Quick Start: Connect External Tools to Elitea with MCP¶

What You'll Accomplish¶

By the end of this guide, you'll have connected external tools (like Playwright for browser automation or GitHub for repository management) to your Elitea agents, allowing them to use these powerful tools directly from the Elitea interface.

Before You Start¶

Before you begin, make sure you have:

☑️ Python installed on your computer (version 3.10 or newer) - Download Python
☑️ Node.js installed (required for most MCP servers like Playwright, GitHub, Figma) - Download Node.js
☑️ Your Elitea Project ID (find this in Elitea Settings → Configuration)
☑️ Your Elitea Authentication Token (create one in Elitea Settings → Personal Tokens)
☑️ Your Elitea deployment URL (example: https://next.elitea.ai)

Additional Dependencies

Some MCP servers may require additional dependencies beyond Python and Node.js. Check the specific MCP server documentation for any additional requirements before installation.

What is an MCP Client and Why Do I Need It?¶

MCP Client means Elitea can connect to external tools that follow the Model Context Protocol (MCP) standard.

Why it matters to you: Your Elitea agents can use powerful external tools like: - Playwright - Automate web browsers, take screenshots, test websites - GitHub - Create issues, manage pull requests, read repositories - And many more - Any tool that supports MCP can be connected

This means your agents become much more powerful without you writing any code!

Step-by-Step Setup¶

Part 1: Install the Alita MCP Client¶

The client is a program that connects Elitea to external MCP tools.

Open PowerShell
- Press Windows key, type "PowerShell", and press Enter

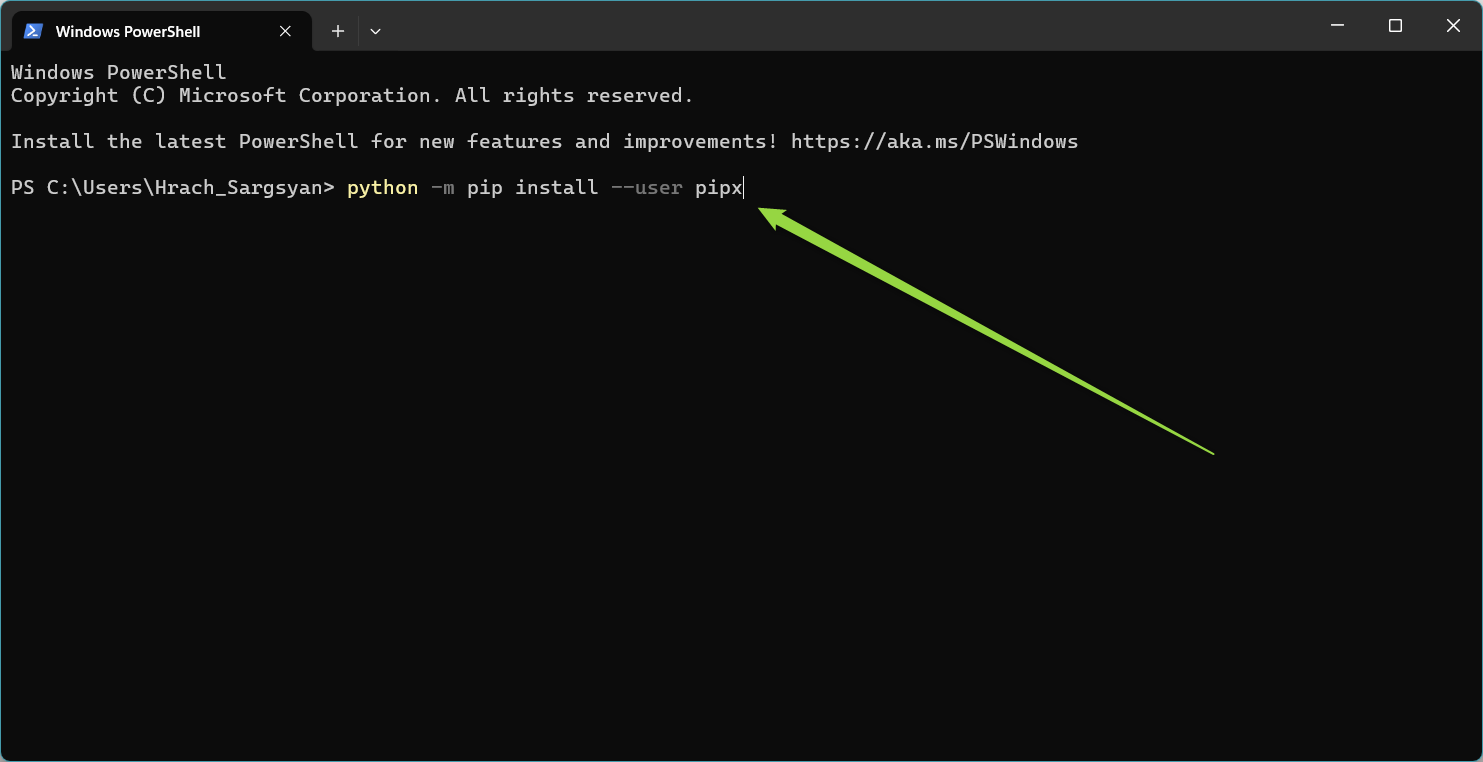

Install pipx (a tool that helps install Python programs)
- Copy this command and paste it into PowerShell, then press Enter:
```
python -m pip install --user pipx
```
- Wait for it to finish

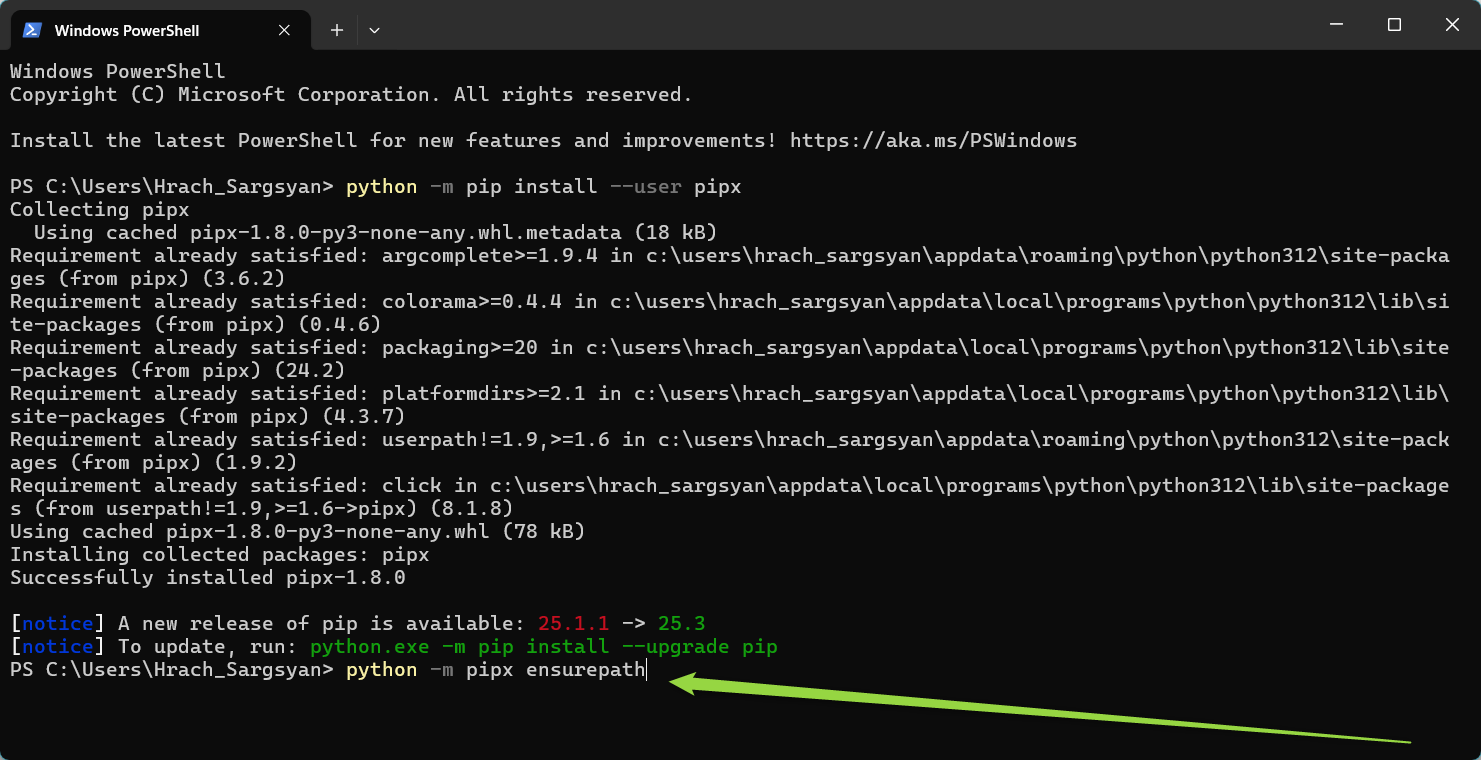

Set up pipx's path
- This makes sure your computer can find pipx. Copy and run:
```
python -m pipx ensurepath
```

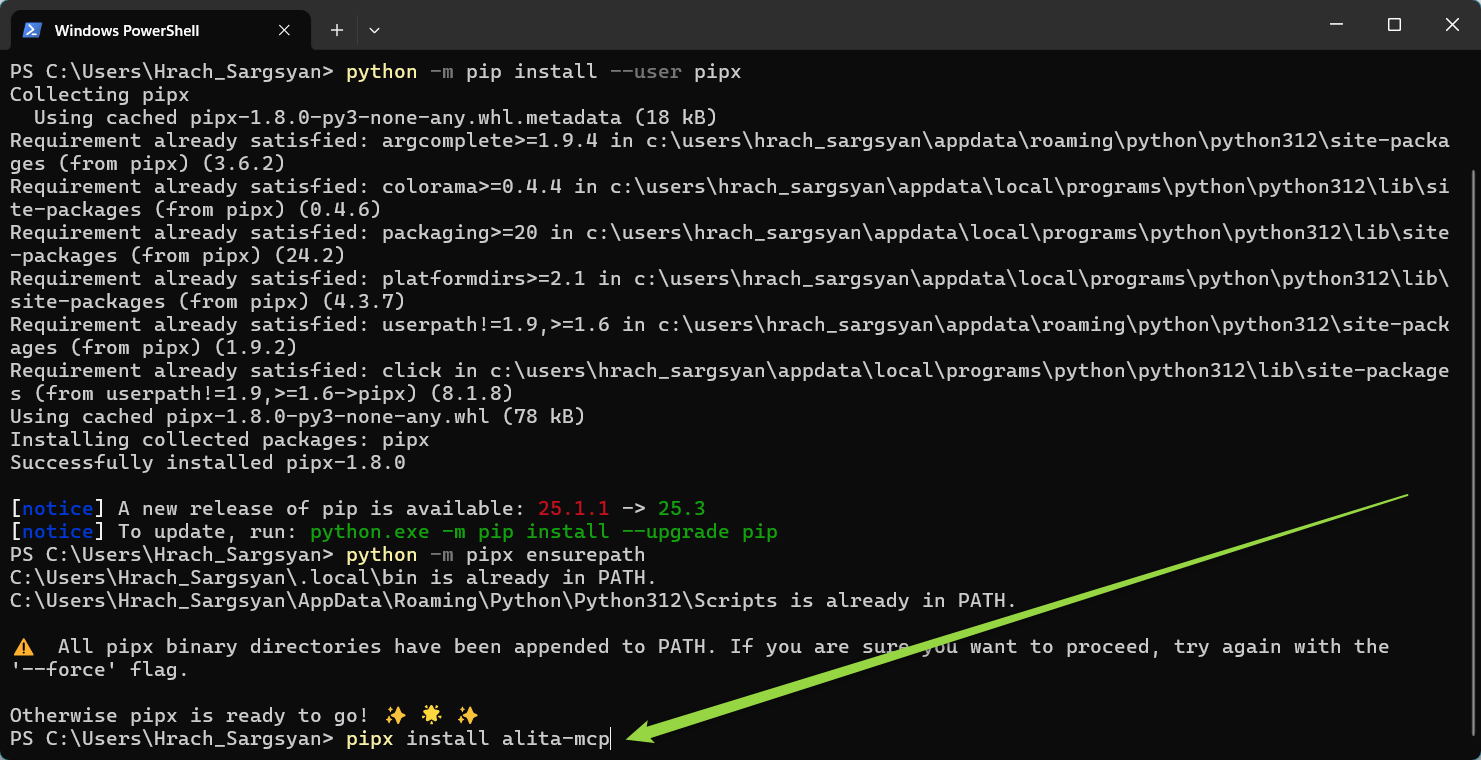

Install alita-mcp
- This is the actual client program. Copy and run:
```
pipx install alita-mcp
```
- Wait for installation to complete
Close and reopen PowerShell
- This refreshes your environment so the new program is recognized

Part 2: Configure the Client¶

Now you'll set up the connection to your Elitea account and add external tools.

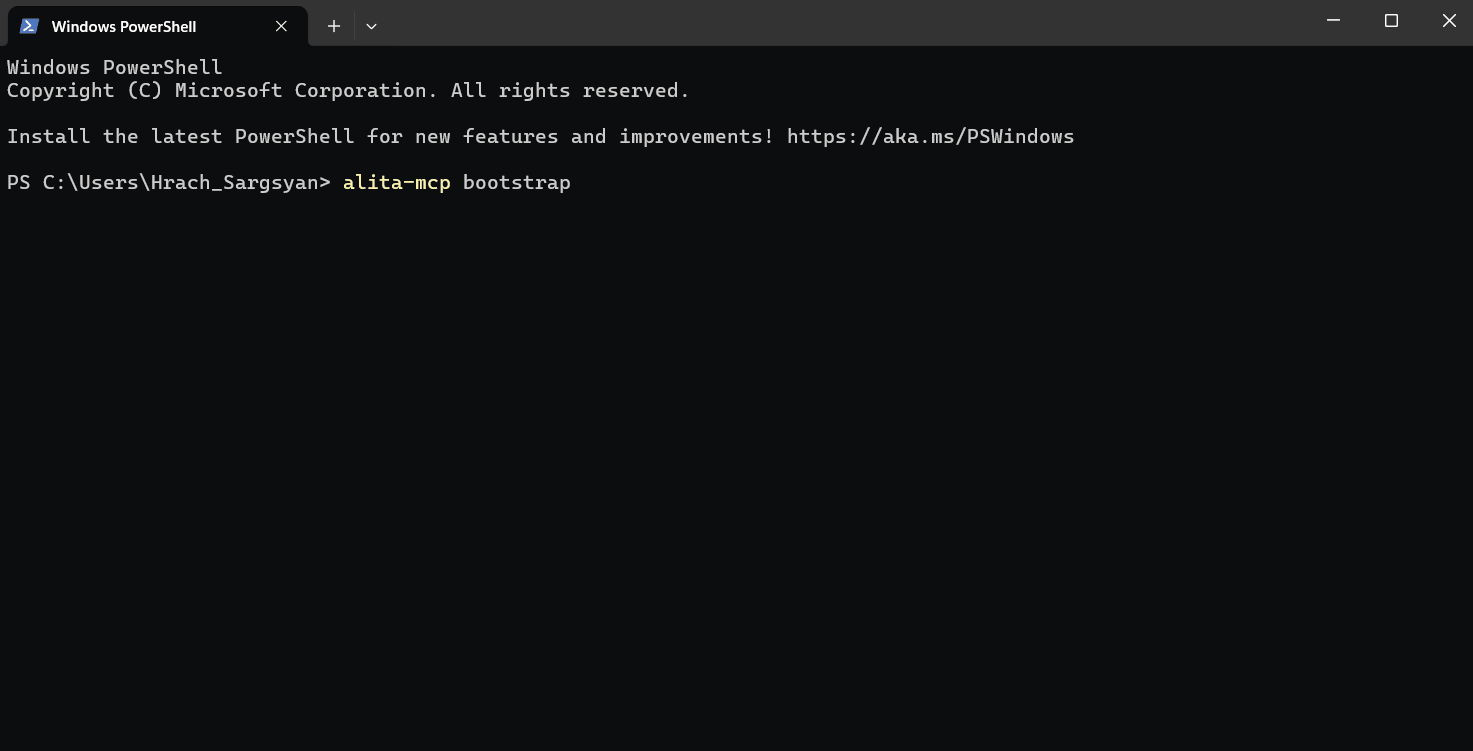

Run the setup wizard
- In PowerShell, type:
```
alita-mcp bootstrap
```
- Press Enter
Answer the basic prompts
- Deployment URL: Type your Elitea URL (example: https://next.elitea.ai) and press Enter
- Authentication token: Paste your token (the one you copied earlier) and press Enter
- Host: Just press Enter to accept the default (0.0.0.0)
- Port: Just press Enter to accept the default (8000)
- Project ID: Enter your Project ID number (find it in Elitea Settings → Configuration)
Add an MCP Server (example: Playwright)
- When asked "Do you want to add an MCP server?", type y and press Enter
- Server Name: Type a name like Playwright and press Enter
- Server Type: Select stdio and press Enter
- Command: Type npx and press Enter (or npx.cmd on Windows if needed)
- Args: Type @playwright/mcp@latest and press Enter
- Keep Connection Alive: Type y for Yes (recommended for browser automation)

Add more servers (optional)

You can add GitHub, Figma, or other MCP servers by repeating the process

For GitHub:

Command: npx
Args: @modelcontextprotocol/server-github
Keep Connection Alive: y

For Figma:

Command: npx
Args: @modelcontextprotocol/server-figma
Keep Connection Alive: y

Finish setup
- When done adding servers, type n when asked to add more
- You should see a confirmation message

Common MCP Servers

Playwright:

@playwright/mcp@latest

GitHub:

@modelcontextprotocol/server-github

Figma:

@modelcontextprotocol/server-figma

Part 3: Start the MCP Client¶

Now you'll start the client so it runs in the background.

Using the System Tray (Recommended - Easiest Way)¶

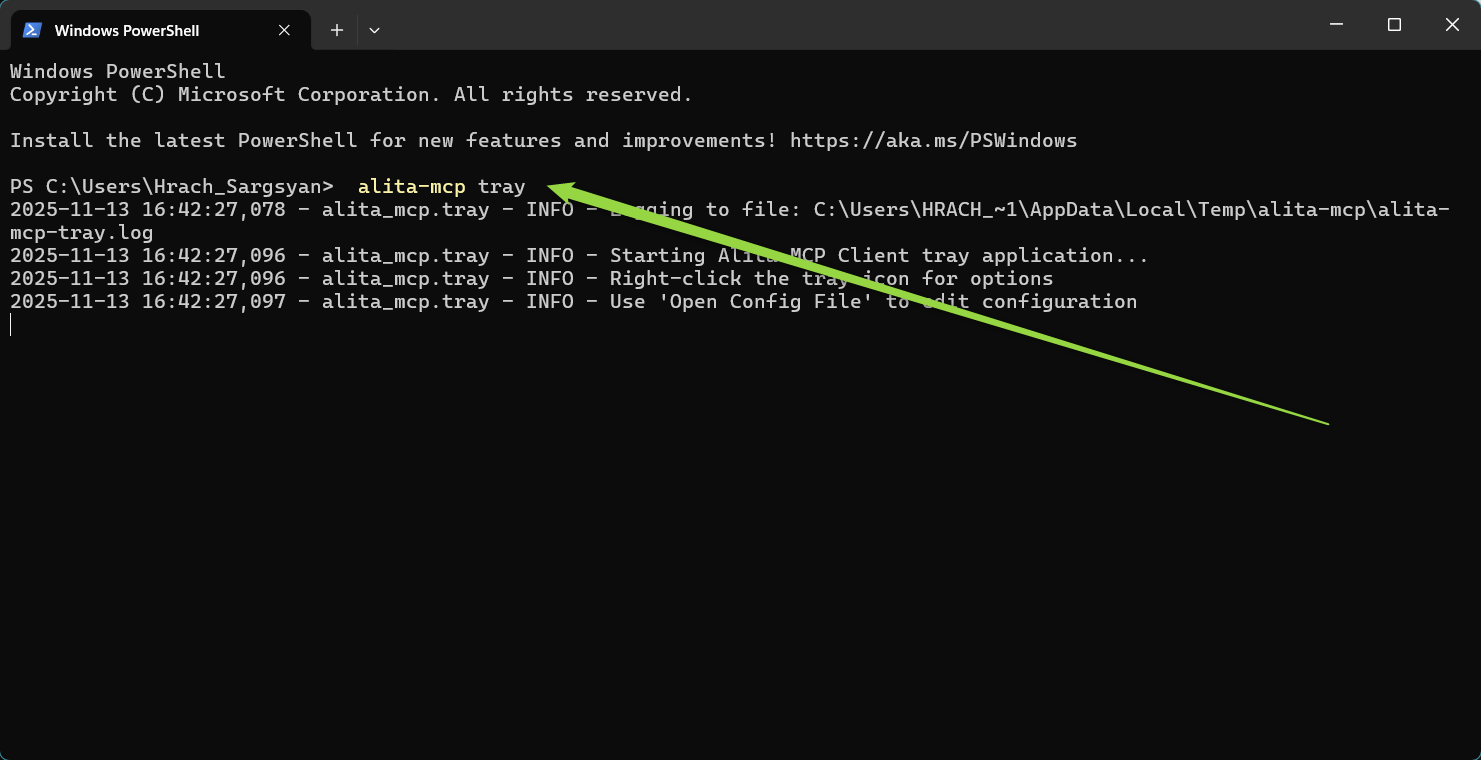

Start the tray application
- In PowerShell, type:
```
alita-mcp tray
```
- Press Enter
- You should see the Alita icon appear in your system tray
Start the MCP Server from the tray
- Look in the bottom-right corner of your screen (system tray)
- Click the Alita icon
- Select Start MCP Server
Verify it's running
- The tray icon should show the server is active

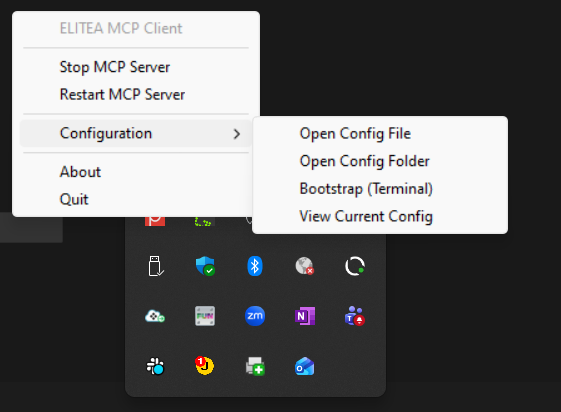

Quick Access to Config File

You can easily open and edit the configuration file from the tray:

Click the Alita icon in the system tray
Select Configuration → Open Config File
The config.json file will open in your default text editor
Make any needed changes and save
Restart the MCP server for changes to take effect

Run in Background

To run the tray app in the background without keeping a PowerShell window open:

alita-mcp tray --daemon

Example of correct configuration

{
  "deployment_url": "https://next.elitea.ai",
  "auth_token": "your-token-here",
  "host": "0.0.0.0",
  "port": 8000,
  "servers": {
    "Playwright": {
      "type": "stdio",
      "command": "npx",
      "args": ["@playwright/mcp@latest"],
      "stateful": true
    }
  },
  "project_id": 456
}

Part 4: Connect Tools in Elitea¶

Now you'll make the external tools available to your Elitea agents.

Log into Elitea
- Open your Elitea deployment in a web browser
- Navigate to your project
Open the MCPs menu
- Look for the MCPs menu in the left sidebar
- Click it to open

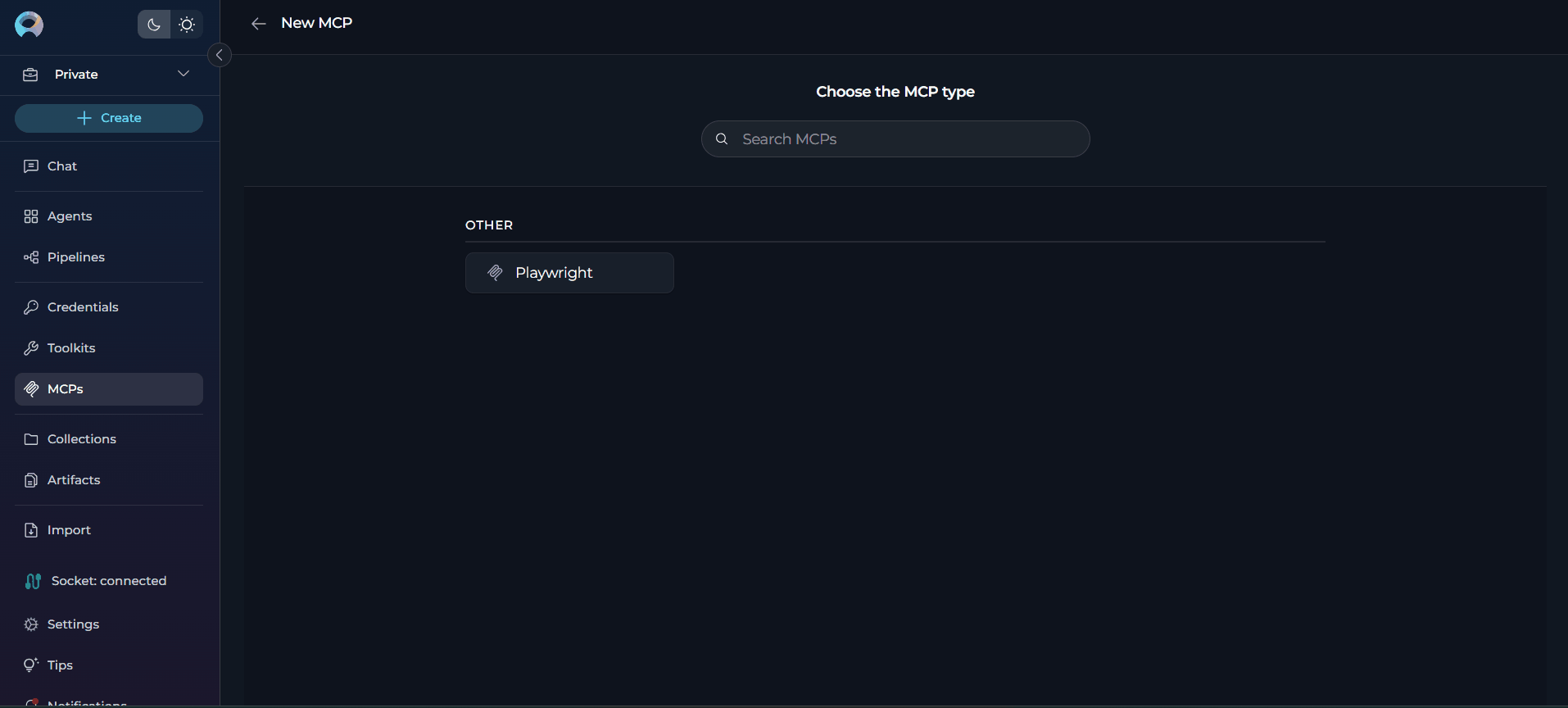

Create an MCP entry
- Click + Create
- You should see your running MCP servers (like "Playwright")
Configure the MCP
- Name: Give it a clear name (example: "Playwright Browser Automation")
- Description: Optional - describe what it does
- Tools: Review the list of tools and uncheck any you don't need
Save
- Click Save to create the MCP entry

Part 5: Add MCP Tools to Your Agent¶

Now you'll give your agent access to these new tools.

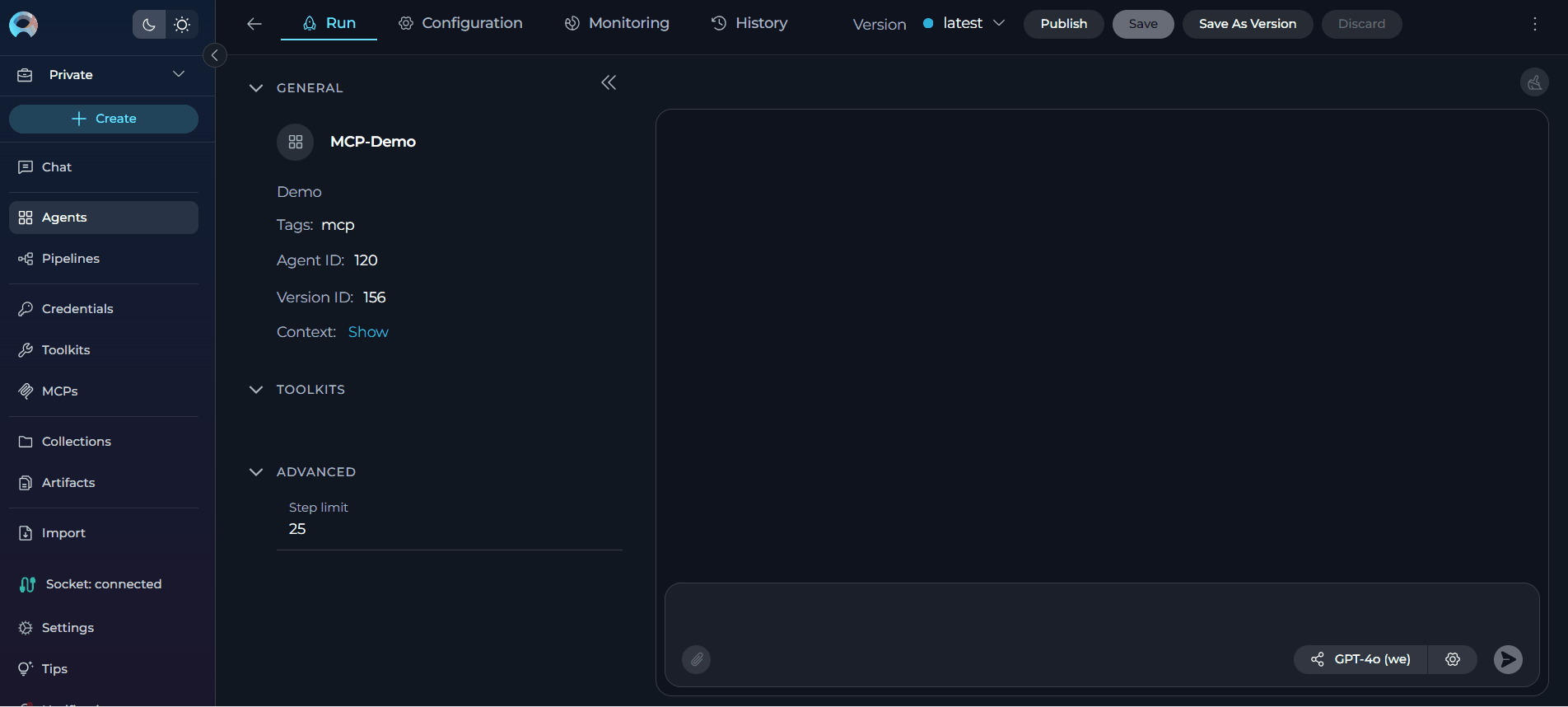

Navigate to your agent
- In Elitea, go to the agent or pipeline you want to enhance
- Click on it to open
Go to Configuration
- Click the Configuration tab
Add the MCP toolkit
- Scroll down to the Toolkits section
- Click +MCP
- Select your MCP server from the list (example: "Playwright Browser Automation")
- Click Add
Save your agent
- Click Save to apply the changes

Part 6: Add MCP to a Conversation and Chat¶

You can add MCP tools directly to conversations when creating a new chat or in an existing conversation.

Adding MCP to a Conversation¶

Navigate to Chat
- Open the sidebar in Elitea
- Select Chat
Start a conversation
- Click + Create to start a new conversation, OR
- Open an existing conversation

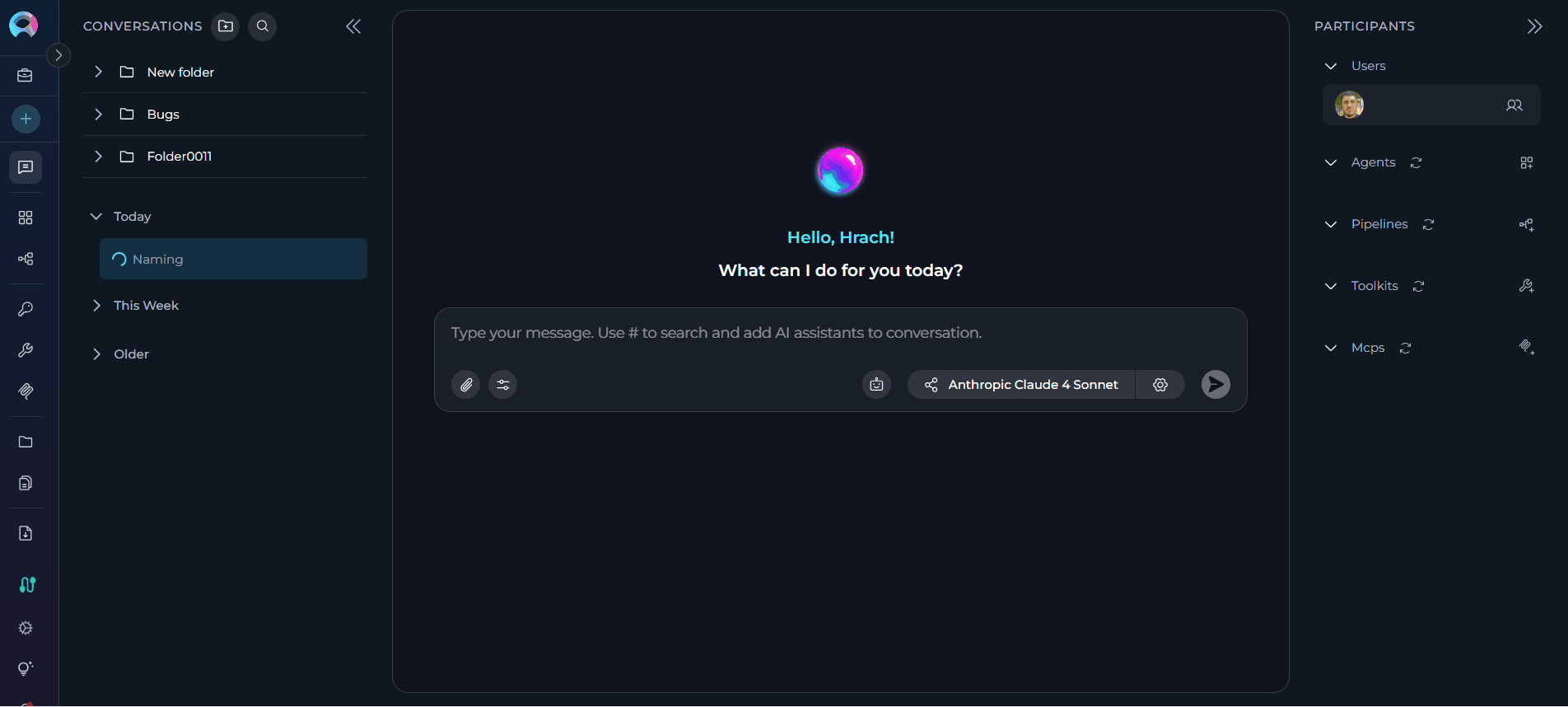

Add MCP to the conversation
- In the Participants section of the chat, look for the MCPs element
- Click to add an MCP
- Select your MCP from the available options (e.g., "Playwright Browser Automation")
- The MCP will be added to your conversation with all configured tools enabled
Use MCP in chat
- You can now directly interact with the MCP tools
- Ask questions or request actions that will trigger the MCP tools
- Example: "Take a screenshot of https://example.com"

Adding Multiple MCPs

You can add multiple MCPs to the same conversation! Just repeat the process to add GitHub MCP, Playwright MCP, or any other MCP you've configured.

Real-World Example: Testing a Login Page

Here's a practical example of using Playwright MCP to test a login page:

You: Navigate to https://practicetestautomation.com/practice-test-login/

[MCP opens the browser and loads the login page]

You: Take a screenshot of the login page

[MCP captures and displays the screenshot]

You: Fill in the username field with "student" and password field with "Password123"

[MCP enters the credentials into the form fields]

You: Click the Submit button

[MCP clicks the button and waits for the page to load]

You: Check if we successfully logged in - look for a success message

[MCP analyzes the page and reports: "Login successful - found confirmation message"]

You: Take a screenshot of the success page

[MCP captures the logged-in state]

This shows how you can use MCP tools to test web applications, verify functionality, and document the results with screenshots - all through natural conversation!

How to Know It's Working¶

✔️ You've succeeded if:

The tray icon shows the MCP server is running
Your MCP appears in the Elitea MCPs menu with tools listed

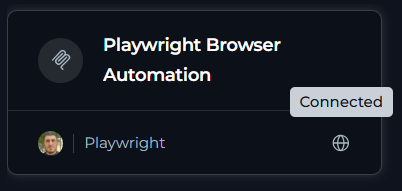

The connection status icon shows grey (connected)
When you ask your agent to use a tool, it executes successfully
No error messages appear

✘ Something's wrong if:

The tray shows "Disconnected" or errors
The connection status icon shows orange (disconnected)
No tools appear when creating the MCP in Elitea
Agent says it can't access the tools
You see error messages in the tray or console

Common Problems & Fixes¶

Problem: "Node.js not found" error with Playwright¶

Fix:

Install Node.js from nodejs.org
Download the LTS (Long Term Support) version
Restart your terminal after installation
Verify by running: node --version

Problem: "npx command not found" on Windows¶

Fix:

Open your configuration file at %APPDATA%\alita-mcp-client\config.json
Change "command": "npx" to "command": "npx.cmd" in the servers section
Save the file and restart the MCP client

Problem: No tools showing up in Elitea¶

Fix:

Make sure the MCP client is running (check the tray icon or terminal)
Restart the MCP server from the tray menu
Refresh the Elitea page in your browser
Check that your Project ID is correct

Problem: "Server configuration empty" error¶

Fix:

Open your config.json file at %APPDATA%\alita-mcp-client\config.json
Make sure the "servers" section is not empty
If it's empty, run alita-mcp bootstrap again to add servers

Problem: Tray icon not visible¶

Fix:

Make sure the tray app is actually running (check PowerShell window)
Try running alita-mcp tray again
Check if other applications are hiding the icon in the system tray
Click the small arrow (^) in the system tray to show hidden icons

Problem: "Connection failures in Elitea", "Port already in use" , "Address already in use" errors¶

Fix:

Another application is using port 8000 (the default MCP port)
Option 1 - Change the port:
- Open your config.json file at %APPDATA%\alita-mcp-client\config.json
- Change "port": 8000 to a different port like "port": 8001
- Save the file and restart the MCP client
Option 2 - Find and stop the conflicting application:
- Open PowerShell as Administrator
- Run: netstat -ano | findstr :8000
- Note the PID (Process ID) in the last column
- Run: tasklist | findstr <PID> (replace <PID> with the number)
- Stop that application if it's not needed
Restart the MCP client after making changes

Problem: Tools work but give errors¶

Fix:

Check the tool's specific requirements (authentication, permissions, etc.)
For GitHub: Make sure you have proper access tokens configured
For Playwright: Ensure you have sufficient system resources for browser automation
Click the tray icon and select View Logs to see detailed error messages

What You Can Do Next¶

Now that your MCP client is running, you can:

Automate browser testing with Playwright tools
Manage GitHub repositories directly from Elitea agents
Connect more MCP servers to add even more capabilities
Create complex workflows that combine multiple external tools
Share configurations with your team by exporting your config.json
