Quick Start: Setting Up Your First MCP Server¶

What You'll Accomplish¶

By the end of this guide, you'll have a working MCP server that connects Elitea to VS Code, allowing you to use Elitea agents directly in your coding environment.

Before You Start¶

Before you begin, make sure you have:

☑️ VS Code installed (version 1.99 or newer)
☑️ GitHub Copilot installed and configured in VS Code
☑️ Python installed on your computer (version 3.8 or newer) - Download Python
☑️ Your Elitea Project ID (find this in Elitea Settings → Configuration)
☑️ Your Elitea Authentication Token (create one in Elitea Settings → Personal Tokens)
☑️ Your Elitea deployment URL (example: https://next.elitea.ai)

What is MCP and Why Do I Need It?¶

MCP stands for Model Context Protocol. It's a way for different AI tools to talk to each other.

Why it matters to you: By setting up an MCP server, you can use your Elitea agents directly inside VS Code while you code. No need to switch windows or copy-paste between apps.

Step-by-Step Setup¶

Part 1: Install the Alita MCP Client¶

The "client" is a small program that handles communication between VS Code and Elitea.

Open PowerShell
- Press Windows key, type "PowerShell", and press Enter
- This opens a window where you'll type commands
Install pipx (a tool that helps install Python programs)
- Copy this command and paste it into PowerShell, then press Enter:
```
python -m pip install --user pipx
```
- Wait for it to finish

Set up pipx's path
- This makes sure your computer can find pipx. Copy and run:
```
python -m pipx ensurepath
```

Install alita-mcp
- This is the actual client program. Copy and run:
```
pipx install alita-mcp
```
- Wait for installation to complete

Close and reopen PowerShell
- This refreshes your environment so the new program is recognized

Part 2: Configure the Client¶

Now you'll tell the client how to connect to your Elitea account.

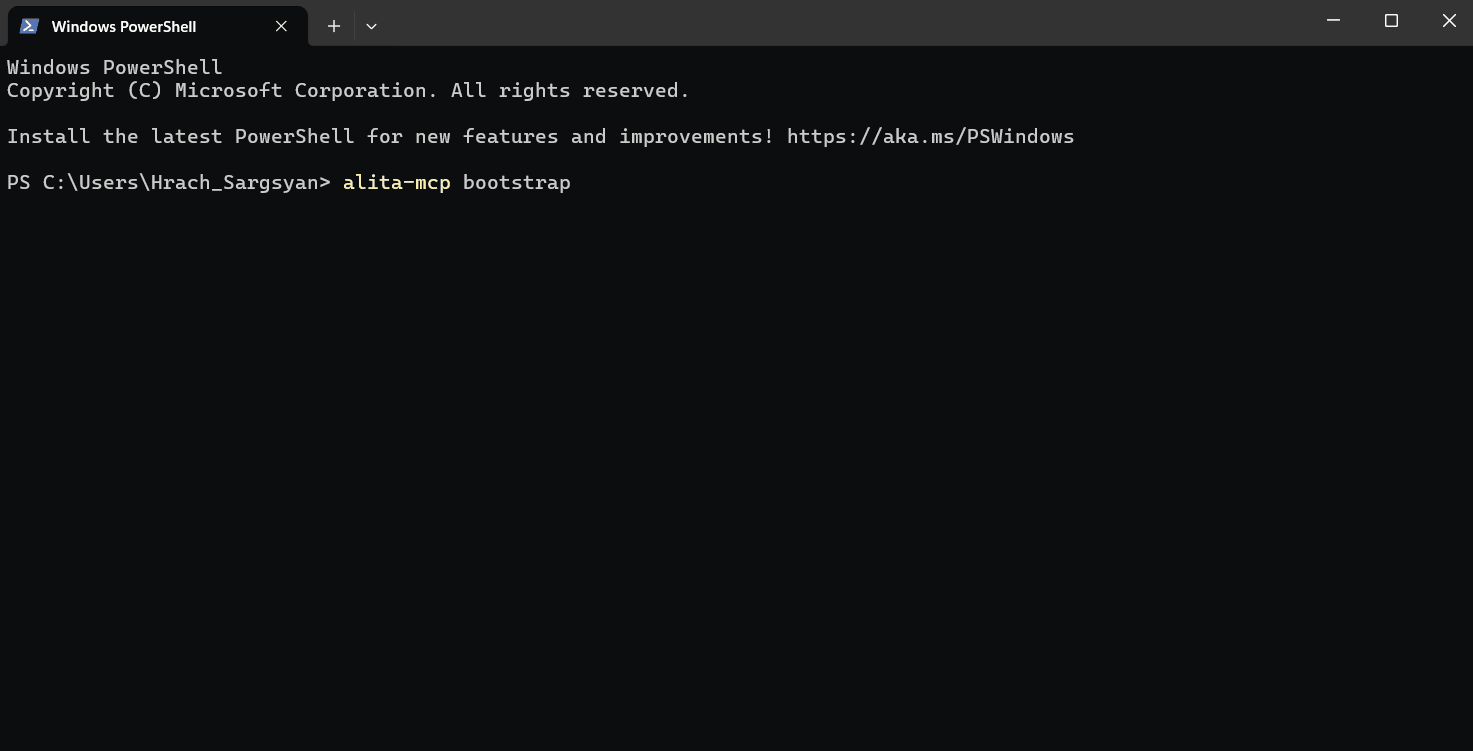

Run the setup wizard
- In PowerShell, type:
```
alita-mcp bootstrap
```
- Press Enter
Answer the prompts
- Deployment URL: Type your Elitea URL (example: https://next.elitea.ai) and press Enter
- Authentication token: Paste your token (the one you copied earlier) and press Enter
- Host: Just press Enter to accept the default (0.0.0.0)
- Port: Just press Enter to accept the default (8000)
- Project ID: You can either:
- Enter your Project ID number now (find it in Elitea Settings → Configuration), OR
- Press Ctrl+C to skip this step and add the Project ID later in VS Code (see Part 4)
Verify success
- You should see a message confirming the configuration was saved
- If you see errors, double-check your URL and token

Skipping Project ID During Bootstrap

If the Project ID prompt keeps asking for a valid integer and won't accept an empty value, press Ctrl+C to cancel. Don't worry—your Deployment URL and Authentication Token have already been saved. You'll add the Project ID in VS Code's configuration file in Part 4 of this guide.

Part 3: Connect to VS Code¶

Now you'll add the MCP server to VS Code so it can talk to Elitea.

Open VS Code
- Launch the VS Code application
Open your project
- Open the folder or workspace where you want to use Elitea agents
Open GitHub Copilot Chat
- Click the chat icon in the left sidebar (or press Ctrl+Alt+I)
Switch to Agent mode
- In the chat panel, look for "Agent mode" and click it
- This enables the use of tools (like your Elitea agents)
Add the MCP server
- Click the Select Tools icon (looks like a wrench or tools)
- Click Add MCP Server icon
- Click + Add MCP Server
- Select Command stdio
- For "Command", type: alita-mcp and press Enter
- For "Server ID", use the suggested name or type something like elitea

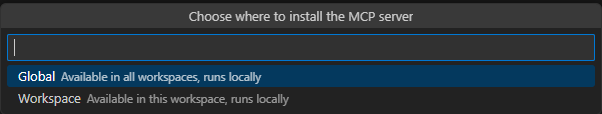

Choose where to save the settings
- You'll see two options:
- Workspace – Only works in this project folder
- Global – Works in all your VS Code projects
- Choose based on your needs (Workspace is good for team projects)

Part 4: Add Your Project ID¶

This tells the server which Elitea project to connect to.

Option A: If You Chose Workspace¶

The config file opens automatically
- After selecting Workspace, VS Code will automatically open .vscode/mcp.json
- If it doesn't open automatically, look for the file at .vscode/mcp.json and click to open it
Add your project ID
- Find the line that says "args": []
- Replace it with:
```
"args": ["run", "--project_id", "YOUR_PROJECT_ID"]
```
- Replace YOUR_PROJECT_ID with your actual number (example: 25)
Save the file
- Press Ctrl+S

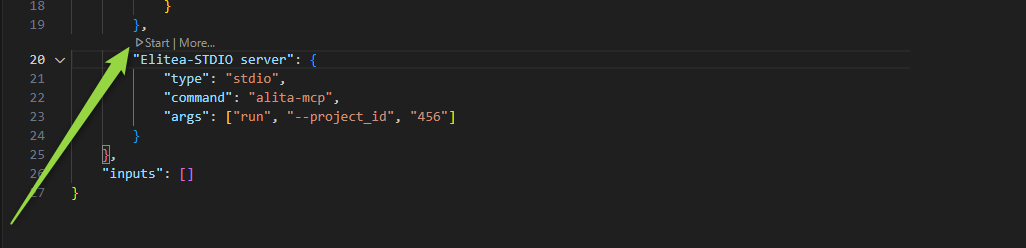

Start the server
- In Copilot Chat, click the Start button

Before Starting the Server

Make sure you have at least one agent tagged with mcp. Otherwise, no tools will be available when the server starts. See Part 5 for tagging instructions.

Option B: If You Chose Global¶

The settings file opens automatically
- After selecting Global, VS Code will automatically open your global mcp.json configuration file
- If it doesn't open automatically, look for a new tab in the VS Code editor with the file
Add your project ID
- Find the MCP server section you just added
- Find the line that says "args": []
- Replace it with:
```
"args": ["run", "--project_id", "YOUR_PROJECT_ID"]
```
- Replace YOUR_PROJECT_ID with your actual number
Save the file
- Press Ctrl+S
Start the server
- In Copilot Chat, click the Start button

Before Starting the Server

Make sure you have at least one agent tagged with mcp. Otherwise, no tools will be available when the server starts. See Part 5 for setup instructions.

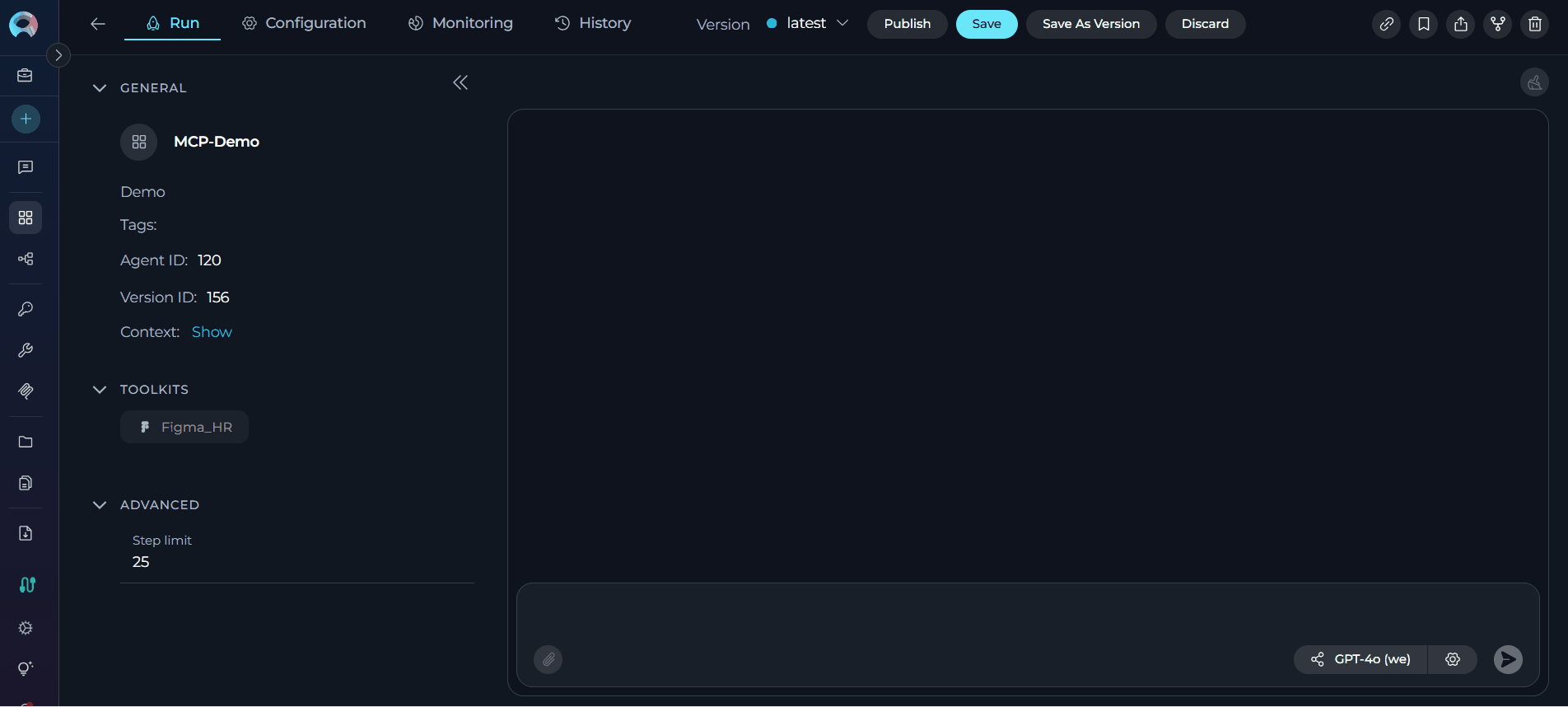

Part 5: Tag Your Agents¶

For an agent to be available as a tool, it must be tagged in Elitea.

Tagging Agents:¶

Log into Elitea
- Open your Elitea deployment in a web browser
Find your agent
- Navigate to the agent or pipeline you want to use
Add the "mcp" tag
- Look for the tags section
- Add a tag named mcp (all lowercase)
- Save your changes

Agent Tool Visibility

Only agents with the mcp tag will be visible in VS Code. Make sure to tag the agents you want to use before starting the server.

Complete Setup:¶

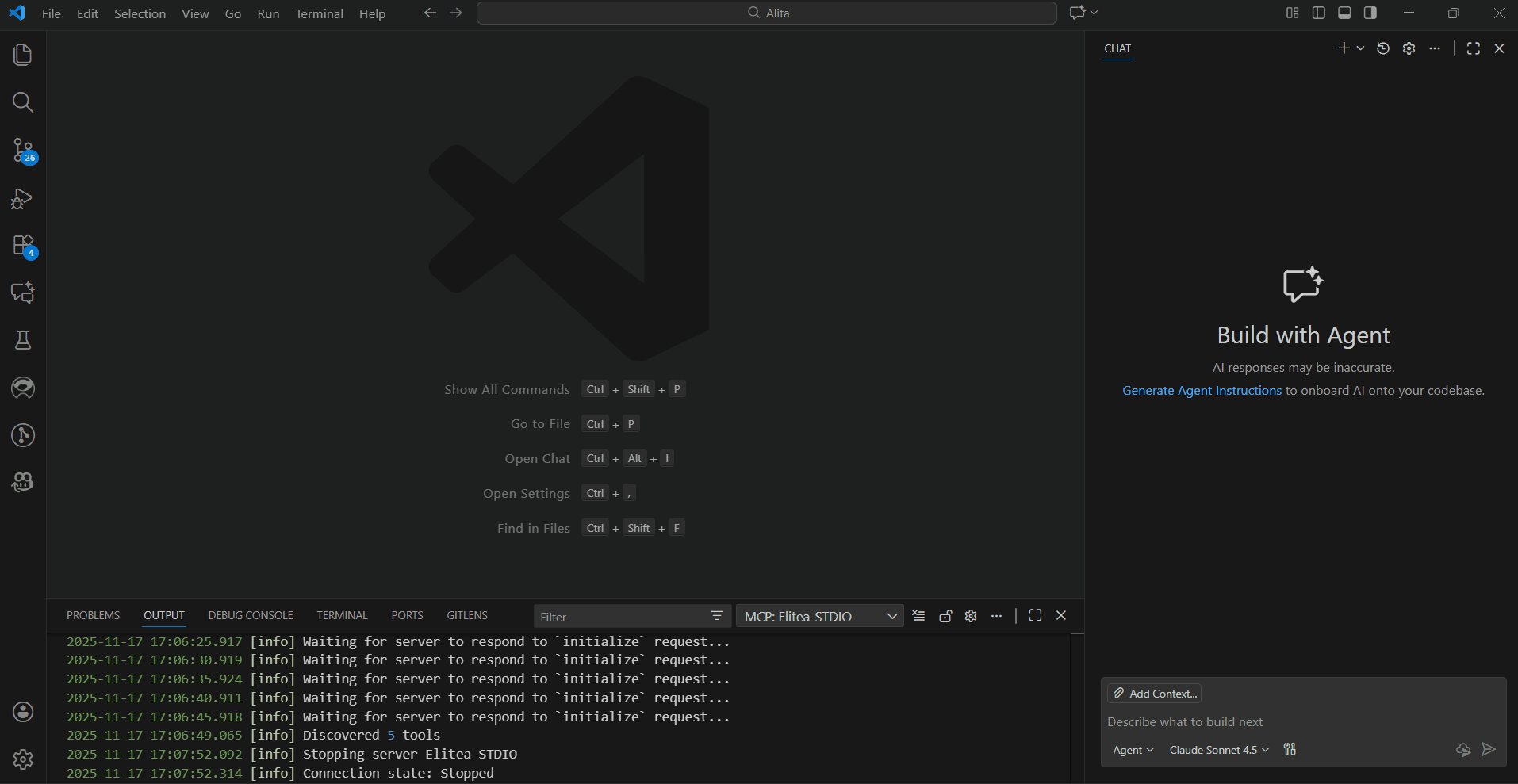

Restart the MCP server in VS Code
- Go back to VS Code
- In Copilot Chat, stop the server and start it again
- This syncs the newly tagged agents

Part 6: Use Your Agent¶

Now you're ready to use your Elitea agent from VS Code!

Open Copilot Chat
- Make sure you're in Agent mode
Click the Tools icon
- You should see your tagged agents listed

Select the tools you want to use
- All tools are selected by default
- You can deselect any you don't need right now
Type your request
- In the chat box, type # followed by your agent's name
- Example: #BA Assistant Show me the scope of PLAN-3012

Run the tool
- Click Run [tool name] when prompted

Confirm execution
- The first time, you'll be asked to confirm
- Click Continue (you can choose to auto-confirm for future runs)
Review the results
- Your agent will execute and return results directly in the chat

How to Know It's Working¶

✔️ You've succeeded if:

The MCP server shows as "Running" in VS Code
Your tagged agents appear in the Tools list
When you call an agent, you see output in the chat
No error messages appear

✘ Something's wrong if:

You see "Command not found" errors → Reinstall the client
No agents appear in the Tools list → Check that they're tagged with mcp
Server won't start → Check your Project ID and authentication token

Common Problems & Fixes¶

Problem: "alita-mcp: command not found"¶

Fix: Make sure you completed all installation steps, including pipx ensurepath. Close and reopen PowerShell.

Problem: No agents showing up¶

Fix:

Make sure your agents are tagged with mcp in Elitea
Restart the MCP server in VS Code
Check you're using the correct Project ID

Problem: "Error indicator" in VS Code¶

Fix:

Click the error in the Chat view
Select Show Output to see details

Look for specific error messages in the log

Problem: Server keeps disconnecting¶

Fix:

Verify your authentication token is still valid
Check your internet connection
Confirm your Elitea deployment URL is correct

Problem: Multiple alita-mcp versions installed (pip and pipx conflict)¶

Fix:

If you see errors or unexpected behavior, you may have multiple versions of alita-mcp installed. This happens when you installed it with both pip and pipx.

Check for multiple installations:

pip list | Select-String alita-mcp
pipx list | Select-String alita-mcp

Remove the pip version (keep pipx):
```
pip uninstall alita-mcp -y
```
Verify the correct version is active:
```
where.exe alita-mcp
```

You should see: C:\Users\<YourUsername>\.local\bin\alita-mcp.exe

Restart VS Code and the MCP server

Why this happens

The pipx installation is the recommended method as it isolates the tool in its own environment. If you previously installed with pip, it may conflict with the pipx version and cause the system to use the wrong (often outdated) version.

What You Can Do Next¶

Now that your MCP server is running, you can: - Call multiple agents in one conversation - Use agents to analyze code, create documentation, or fetch data - Automate repetitive tasks directly from VS Code - Combine Elitea agents with other Copilot features

Advanced Options¶

Click to expand advanced configuration options

**Using a Specific Application** If you want to limit the MCP server to a single agent or pipeline, use this configuration:

"args": ["run", "--project_id", "25", "--app_id", "12", "--version_id", "3"]

- `app_id` is the ID of your specific agent - `version_id` is the version number you want to use ### Multiple MCP Servers You can set up multiple MCP servers for different projects: 1. Repeat the setup process 2. Use a different Server ID for each 3. Each server can point to a different Project ID
