Swarm Mode Internal Tool

Overview

Swarm Mode is an internal tool that enables multi-agent collaboration in ELITEA. When enabled, all child agents share the full conversation history and can hand off control to each other, creating a coordinated team of specialized agents working together to complete complex tasks.

Key Features:

• Shared Conversation History: All agents in the swarm access the same conversation context
• Dynamic Agent Handoff: Agents can transfer control to specialized agents as needed
• Seamless Collaboration: Child agents work together while maintaining conversation continuity
• Automatic Control Flow: The parent agent coordinates work and receives control back after child agents complete tasks

When to Use Swarm Mode

Enable Swarm Mode when your workflow requires multiple specialized agents to collaborate on complex tasks. For example, a QA coordinator agent that delegates test execution to different testing specialists, or a development manager that coordinates between coding, review, and deployment agents.

---

Prerequisites

• Permission Level: User role with agent edit access
• Child Agents: At least one child agent configured in the parent agent's toolkits
• Use Case: Tasks requiring specialized agents to collaborate and share context

---

How It Works

Traditional Agent vs Swarm Mode

Aspect	Traditional Agent	Swarm Mode
Agent Structure	Single agent handles all tasks	Parent agent coordinates multiple specialist agents
Conversation Context	Only the active agent sees the conversation	All agents share the full conversation history
Task Distribution	Single agent attempts all tasks	Parent delegates tasks to specialized child agents
Control Flow	Linear execution	Dynamic handoff between parent and child agents
Collaboration	No inter-agent communication	Agents can transfer control and share results

Agent Roles

Swarm Mode creates a two-tier architecture:

Role	Description	Responsibilities
Parent Agent	Main coordinator	- Receives user requests - Determines which specialist to involve - Hands off tasks to child agents - Coordinates overall workflow
Child Agents	Specialized agents	- Execute specific tasks using their tools - Access full conversation history - Return control to parent when done - Can be other agents configured in the parent's toolkits

Workflow

When Swarm Mode is enabled and child agents are configured:

1. User Request: User sends a message to the conversation
2. Parent Analysis: Parent agent analyzes the request and determines if a specialist is needed
3. Handoff: Parent uses a handoff tool (e.g., transfer_to_test_agent) to delegate to a child agent
4. Specialist Work: Child agent executes the task using its specialized tools and knowledge
5. Return Control: Child agent uses transfer_to_parent to return control after completing the task
6. Continue Coordination: Parent receives results and continues coordinating the overall workflow

What Happens Behind the Scenes

When Swarm Mode is enabled, the system automatically creates handoff tools for each child agent. The parent agent receives instructions about available specialists and when to delegate tasks. All agents share the same conversation state, ensuring seamless collaboration.

---

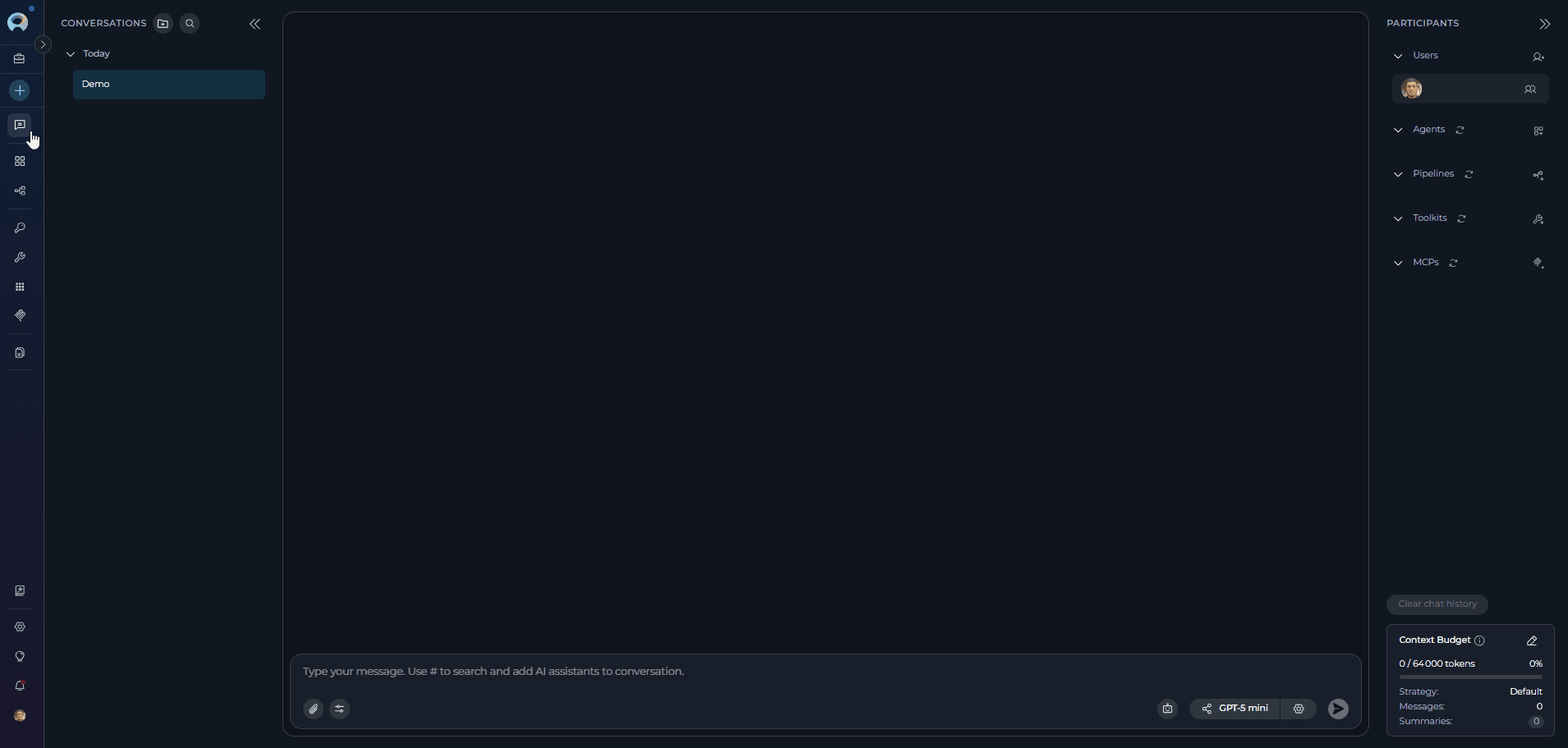

Enabling Swarm Mode in Conversations

Enable Swarm Mode for collaborative multi-agent conversations.

1. Navigate to your conversation.
2. Ensure the conversation's agent has at least one child agent configured in its toolkits.
3. Locate the chat input toolbar at the bottom of the screen.
4. Click the Internal Tools icon (value icon) next to the attachment button.
5. In the popup, find Swarm Mode in the list.
6. Click the toggle switch next to "Swarm Mode" to enable it.
7. A success toast notification appears: "Internal tools configuration updated".
8. Click anywhere outside the popup to close it.

Configuration Persistence

The Swarm Mode setting persists for the conversation. You can toggle it on/off at any time. However, Swarm Mode requires child agents to be configured in the agent's toolkits to function.

---

Enabling Swarm Mode in Agent Configuration

Configure Swarm Mode as part of an agent's default configuration.

1. Navigate to Agents in the main menu.
2. Select the agent you want to configure or create a new agent.
3. Scroll to the TOOLKITS section.
4. Ensure you have added at least one child agent (using + Agent button).
5. In the TOOLKITS section, find the Swarm Mode switch.
6. Toggle the switch to enable Swarm Mode for this agent.
7. Click Save at the top of the configuration page.
8. New conversations created with this agent will have Swarm Mode enabled by default.

Configure Child Agents First

Always add and configure your child agents before enabling Swarm Mode. The parent agent needs at least one child agent to create a functional swarm.

---

Using Swarm Mode

Once enabled and child agents are configured, Swarm Mode works transparently during conversations. The parent agent automatically coordinates with child agents based on the task requirements.

What Happens During Conversations

1. Automatic Handoff Detection: The parent agent recognizes when a task requires a specialist's expertise
2. Context Sharing: When handing off, the child agent receives the full conversation history
3. Specialized Execution: The child agent uses its configured tools and knowledge to complete the task
4. Seamless Return: After completion, control returns to the parent agent
5. Continuous Coordination: The parent agent can delegate to different specialists as needed throughout the conversation

Example Interaction

User: "Run the API tests and if any fail, create bug reports in Jira"

Behind the Scenes:

1. Parent agent receives the request
2. Parent uses transfer_to_test_agent to hand off to the testing specialist
3. Test agent executes API tests using its TestRail toolkit
4. Test agent identifies failed tests and uses transfer_to_parent
5. Parent analyzes failures and uses transfer_to_bug_tracker_agent
6. Bug tracker agent creates Jira tickets for each failure
7. Bug tracker agent returns control with transfer_to_parent
8. Parent summarizes the results to the user

Handoff Tools Are Automatic

You don't need to manually create handoff tools. When Swarm Mode is enabled, the system automatically generates transfer_to_[agent_name] tools for the parent to call child agents, and transfer_to_parent for child agents to return control.

---

Example Scenarios

QA Coordination Agent

Scenario: A QA team uses a coordinator agent to manage testing across multiple platforms and tools.

Configuration:

• Parent Agent: QA Coordinator
• Child Agents:
• API Test Agent (TestRail toolkit)
• UI Test Agent (Selenium toolkit)
• Performance Test Agent (JMeter toolkit)
• Swarm Mode: Enabled

User Request:

Run a full test suite for the new release: API tests, UI smoke tests, and load testing. Create bug reports for any failures.

Workflow:

1. QA Coordinator receives the request and plans the test strategy
2. Hands off to API Test Agent → runs API tests, reports results
3. Hands off to UI Test Agent → runs smoke tests, reports results
4. Hands off to Performance Test Agent → runs load tests, reports metrics
5. Coordinator summarizes all results and creates bug reports for failures
6. User receives comprehensive test report with bug ticket links

Development Workflow Agent

Scenario: A development team uses a manager agent to coordinate code review and deployment tasks.

Configuration:

• Parent Agent: Dev Manager
• Child Agents:
• Code Review Agent (GitHub toolkit, code analysis tools)
• Deployment Agent (Kubernetes toolkit, CI/CD tools)
• Swarm Mode: Enabled

User Request:

Review the pull request for feature X, and if approved, deploy it to staging

Workflow:

1. Dev Manager analyzes the request
2. Hands off to Code Review Agent → reviews PR, checks tests, provides feedback
3. Code Review Agent reports: "PR approved, all checks passed"
4. Dev Manager hands off to Deployment Agent
5. Deployment Agent deploys to staging, monitors deployment health
6. Manager coordinates the entire process and reports completion

Content Creation Swarm

Scenario: A marketing team uses a content coordinator to create comprehensive marketing materials.

Configuration:

• Parent Agent: Content Coordinator
• Child Agents:
• Research Agent (web search, competitor analysis)
• Writing Agent (content generation, copywriting)
• Design Agent (image generation, Canva integration)
• Swarm Mode: Enabled

User Request:

Create a blog post about our new product feature, including research, article, and featured image

Workflow:

1. Content Coordinator breaks down the request
2. Hands off to Research Agent → gathers market data, competitor info
3. Hands off to Writing Agent → creates article using research insights
4. Hands off to Design Agent → generates featured image
5. Coordinator assembles all components and presents final blog post package

---

Best Practices

Design specialized child agents with clear purposes

Each child agent should have a well-defined specialization and appropriate toolkits. Avoid creating generic agents—instead, create focused specialists (e.g., "GitHub Issues Agent" vs. "Development Agent"). This makes handoff decisions clearer and more effective.

Use descriptive agent names and descriptions

The parent agent uses child agent names and descriptions to decide when to hand off. Use clear, descriptive names like "API_Testing_Agent" and detailed descriptions that explain the agent's capabilities and when to use them.

Keep child agent count manageable

While Swarm Mode supports multiple child agents, managing 3-5 specialists is optimal. Too many child agents can make coordination complex and slow down decision-making. Group related capabilities into single agents when appropriate.

Configure comprehensive toolkits for child agents

Each child agent should have all the toolkits it needs to complete its specialized tasks independently. For example, a bug reporting agent needs both testing tools to verify bugs and Jira tools to create tickets.

Test swarm coordination before production use

Run test scenarios to verify that handoffs work smoothly, agents return control properly, and the conversation flow makes sense. Check that child agents are being called appropriately based on task requirements.

Combine with other internal tools

Swarm Mode works well with other internal tools like Smart Tools Selection (for token optimization), Data Analysis (for specialist data agents), and Python Sandbox (for code execution specialists).

Monitor conversation flow and handoffs

Review conversation logs to understand handoff patterns and optimize agent coordination. If certain agents are rarely called or frequently called for wrong tasks, adjust agent descriptions and parent instructions.

Provide clear parent agent instructions

The parent agent's system prompt should include guidance on when to delegate tasks and how to coordinate the overall workflow. Clear instructions improve handoff decisions and overall effectiveness.

---

Troubleshooting

Swarm Mode enabled but agents not collaborating

Possible causes:

• No child agents configured in the parent agent's toolkits
• Swarm Mode enabled without child agents present
• Parent agent not recognizing when to hand off tasks

Solution:

1. Verify that child agents are added to the parent agent in the TOOLKITS section
2. Check that child agents appear in the toolkits list with type "agent"
3. Review parent agent's system prompt to ensure it knows when to delegate
4. Test with explicit requests like "delegate this to [specialist agent name]"
5. If no child agents are configured, Swarm Mode will fall back to standard agent behavior

Child agent not returning control to parent

Possible causes:

• Child agent completing task but not using transfer_to_parent
• Child agent stuck in a loop or waiting for input
• Conversation flow interrupted

Solution:

1. Check child agent's system prompt—it should know to return control when done
2. Child agents automatically receive a transfer_to_parent handoff tool
3. Review conversation logs to see where control flow stopped
4. Restart the conversation if agents are stuck in an inconsistent state
5. Ensure child agents have clear completion criteria

Wrong agent being called for tasks

Possible causes:

• Child agent names or descriptions not clear enough
• Parent agent instructions unclear about delegation
• Tasks require multiple specialists but only one is called

Solution:

1. Use descriptive agent names that clearly indicate specialization
2. Enhance child agent descriptions to specify their exact capabilities
3. Update parent agent's system prompt with clear delegation guidelines
4. Review handoff tools—the parent sees tools like transfer_to_[agent_name] with the child's description
5. Test with specific scenarios and refine agent descriptions based on results

Conversation history not shared correctly

Possible causes:

• Swarm Mode not properly enabled
• Technical issue with shared state
• Conversation interrupted and restarted

Solution:

1. Verify Swarm Mode toggle is enabled in Internal Tools popup
2. Check that the success notification appeared when enabling
3. All agents in a swarm automatically share conversation history via SwarmState
4. If issues persist, try disabling and re-enabling Swarm Mode
5. Start a new conversation to reset the swarm state

Performance slower than expected

Possible causes:

• Multiple handoffs adding latency
• Child agents processing large context
• Too many child agents configured

Solution:

1. Handoffs add processing time—this is expected behavior for coordination
2. Limit the number of child agents to 3-5 specialists
3. Consider if all delegations are necessary—some tasks may not need specialists
4. Use Smart Tools Selection with Swarm Mode to reduce token overhead
5. For simple tasks that don't need collaboration, consider disabling Swarm Mode

---

Swarm Mode Requires Child Agents

Swarm Mode is designed for multi-agent collaboration. If no child agents are configured in the parent agent's toolkits, enabling Swarm Mode has no effect and the agent operates normally.

---
