How to Test Toolkit Tools

Overview

The Test Settings panel provides a powerful interface for testing toolkit tools directly from the Toolkit detailed page. This feature allows you to validate toolkit functionality, verify credentials, test tool parameters, and ensure proper integration before using toolkits in agents or conversations.

Testing toolkit tools is an essential step in the toolkit configuration workflow, enabling you to:

  • Verify Credentials: Confirm that authentication credentials are correctly configured
  • Validate Tool Functionality: Test individual tools with real parameters
  • Debug Tool Behavior: Understand how tools respond to different inputs
  • Preview Tool Outputs: See actual responses before integrating with agents
  • Optimize Parameters: Fine-tune tool settings and parameters for your use case

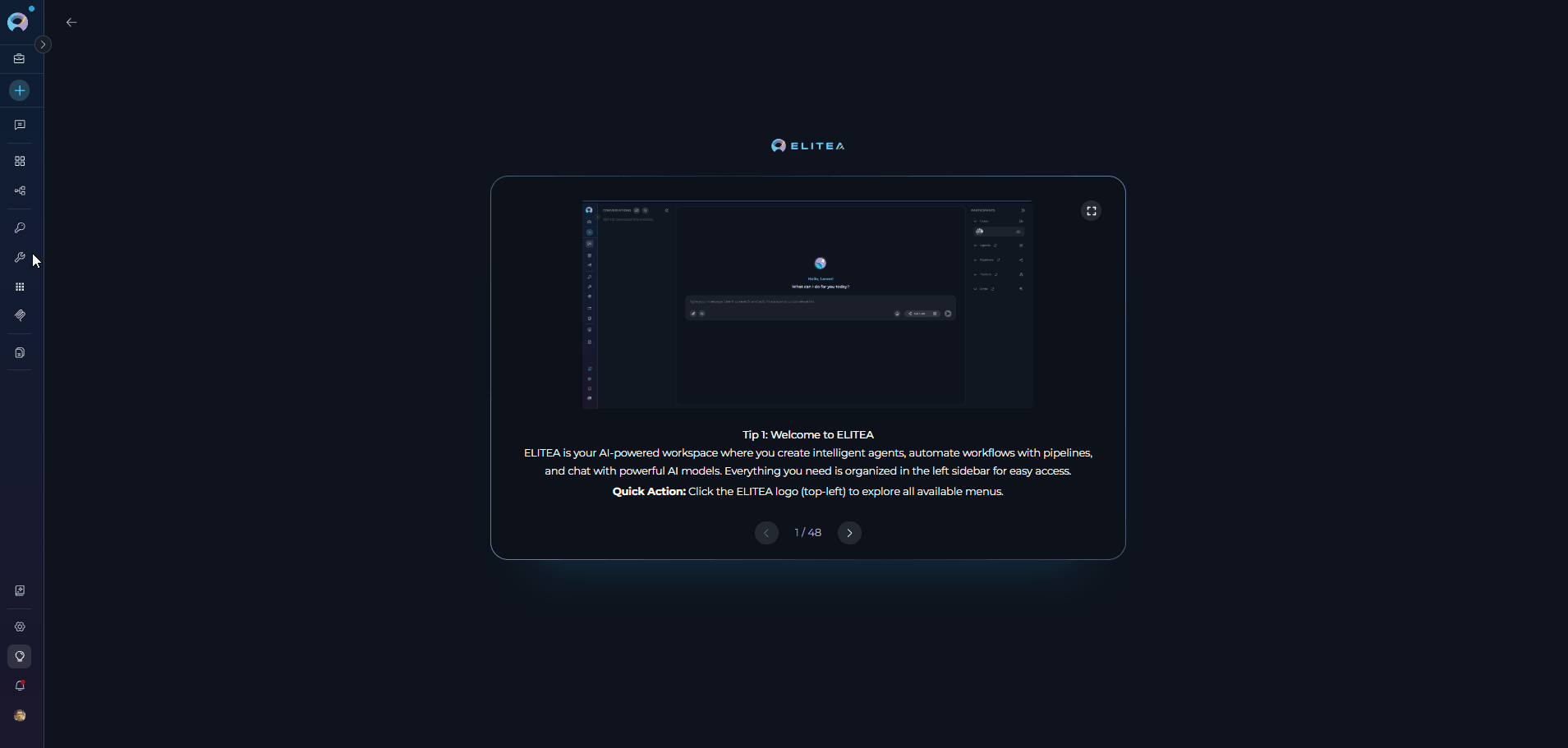

Accessing the Test Settings Panel

The Test Settings panel is located on the right side of the Toolkit detailed page and is available for all configured toolkits.

How to Access:

  1. Navigate to Toolkits: Go to Toolkits from the main navigation
  2. Select a Toolkit: Click on any configured toolkit from the list
  3. View Test Settings: The Test Settings panel appears on the right side of the page

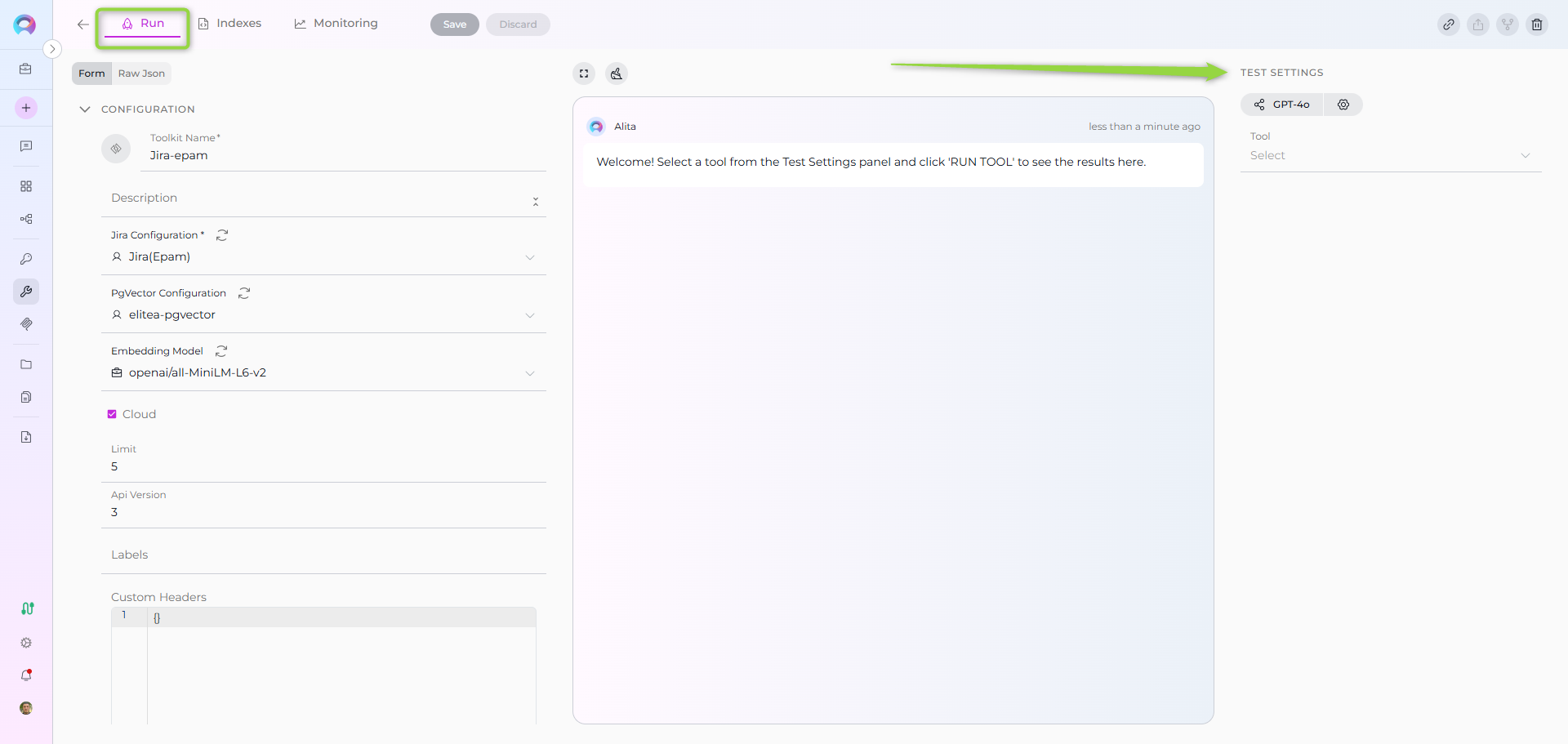

Test Settings Panel

Test Settings Interface Components

The Test Settings panel consists of several key components that work together to enable comprehensive tool testing:

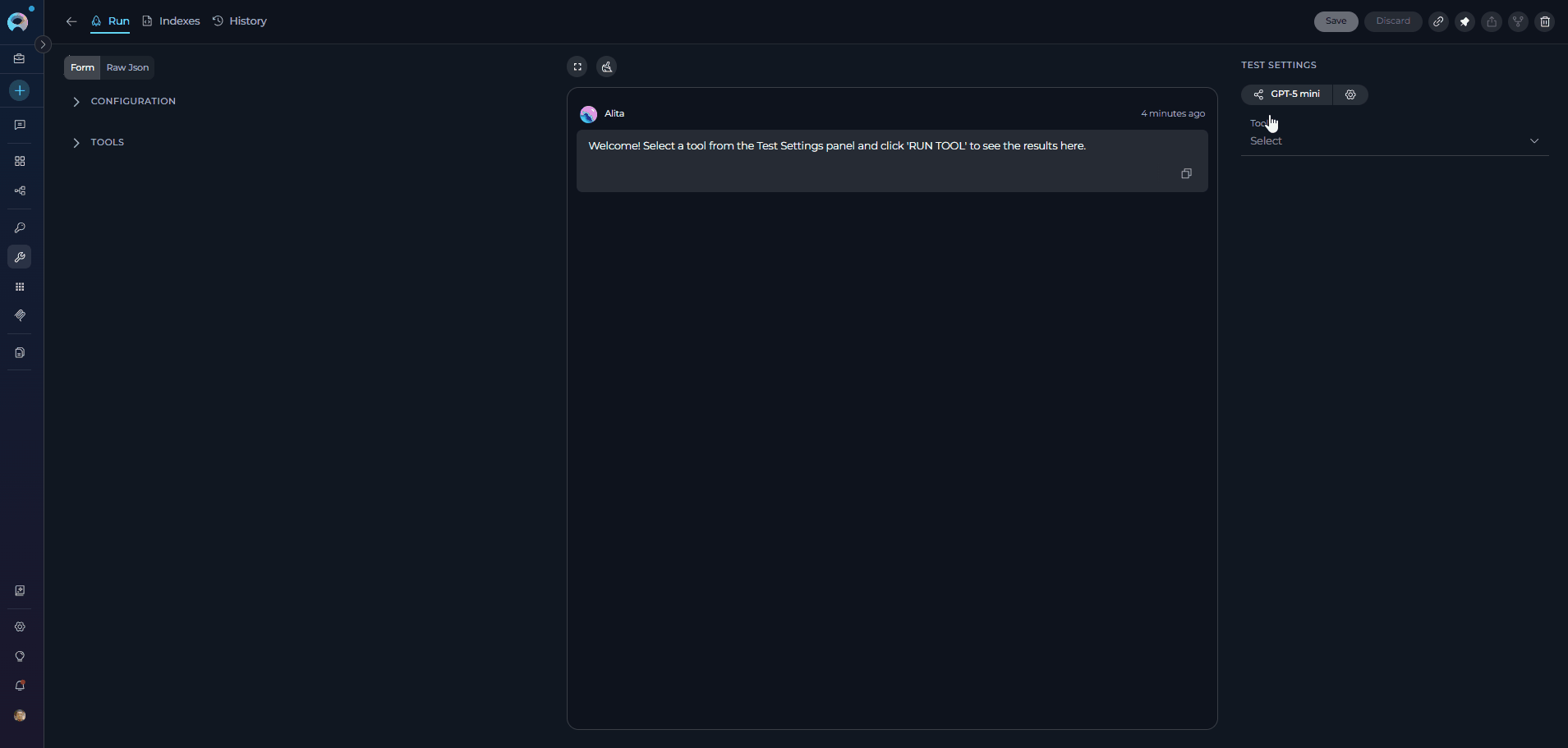

1. Model Selection

Choose the Large Language Model (LLM) that will be used to execute the tool test.

  • Model Dropdown: Select from available LLM models configured in your project
  • Default Selection: The system selects your project's default model automatically
  • Model Options: Displays model names (e.g., gpt-4o, gpt-4o-mini, claude-3-5-sonnet)

Model Selection

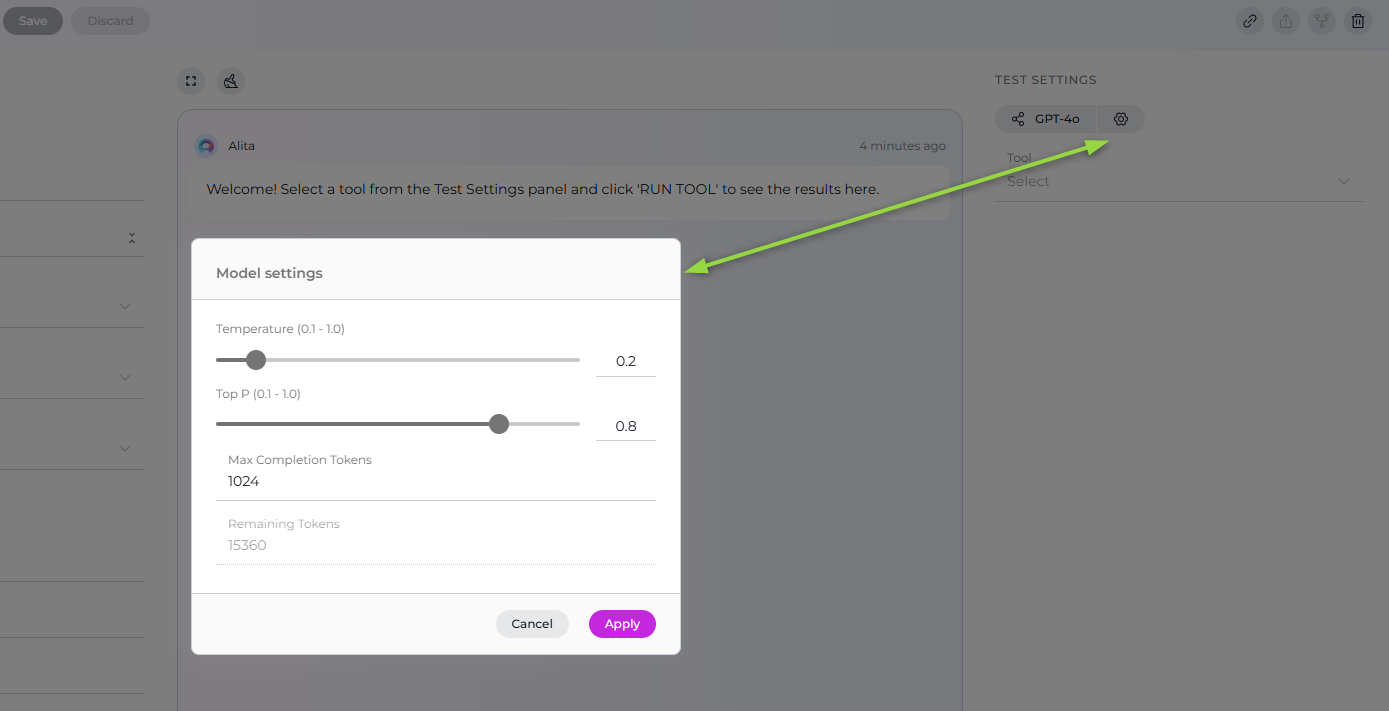

2. Model Settings

Fine-tune how the selected model generates responses using these controls:

Parameter Range Description Best Practices
Temperature 0.1 - 1.0 Controls randomness and creativity in responses Lower values (0.1-0.3) for predictable, focused results; Higher values (0.7-1.0) for creative outputs
Top P 0.1 - 1.0 Nucleus sampling parameter that limits output to most probable words Higher values (0.9-1.0) allow more diversity; Lower values (0.1-0.5) for more focused outputs
Top K 1 - 100 Restricts choices to the top K most likely next words Lower values (10-20) for more deterministic outputs; Higher values (50-100) for variety
Max Completion Tokens 1 - 4096+ Sets the upper limit for the length of the model's output Use higher values (1024-4096) for detailed responses; Lower values (256-512) for concise outputs

alt text

Recommended Settings for Testing

For toolkit tool testing, we recommend:

  • Temperature: 0.1 (for consistent, predictable results)
  • Top P: 1.0 (standard setting)
  • Top K: 10 (focused output)
  • Max Completion Tokens: 1024 (sufficient for most tool responses)

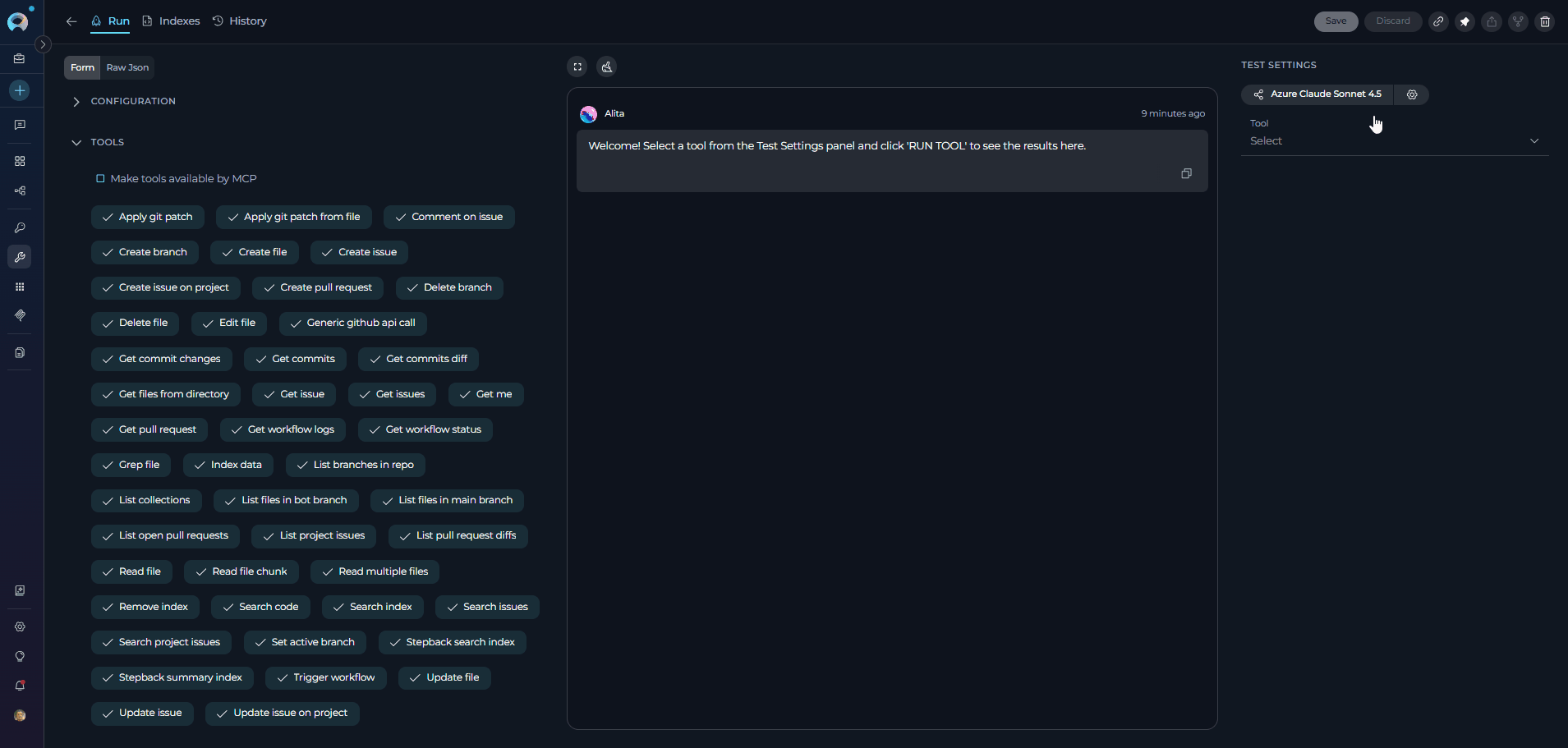

3. Tool Selection

Choose which specific tool from your toolkit you want to test.

  • Tool Dropdown: Lists all tools available in the current toolkit
  • Search Functionality: Type to filter available tools by name
  • Tool Grouping: Tools are organized by their functionality type
  • Enabled Tools Only: Only shows tools that are enabled in the toolkit configuration

Tool Selection

4. Tool Parameters

After selecting a tool, the Test Settings panel dynamically displays the required and optional parameters for that specific tool.

Parameter Field Types:

  • Text Fields: For string inputs (e.g., repository names, URLs)
  • Number Fields: For numeric inputs (e.g., limits, IDs)
  • Dropdown Selects: For predefined choices (e.g., status values)
  • Boolean Checkboxes: For true/false options (e.g., include archived)
  • Array Fields: For multiple values (e.g., list of labels, file extensions)
  • Object Fields: For complex structured data (e.g., JSON configurations)

Field Indicators:

  • Required Fields: Marked with an asterisk (*) and must be filled before testing
  • Optional Fields: Can be left empty; the tool will use default values
  • Default Values: Pre-populated fields show the tool's default setting
  • Field Descriptions: Hover over field labels for detailed parameter information

How to Test a Toolkit Tool

Follow these steps to test any tool from your configured toolkit:

Step 1: Select Your Model

  1. Click the Model dropdown in the Test Settings panel
  2. Choose the LLM model you want to use for testing
  3. (Optional) Adjust model parameters using the advanced settings sliders

Step 2: Choose a Tool to Test

  1. Click the Tool dropdown
  2. Use the search box to filter tools (optional)
  3. Select the tool you want to test from the list

Step 3: Configure Tool Parameters

Once a tool is selected, the parameter input fields appear below:

  1. Fill Required Parameters: Complete all fields marked with an asterisk (*)
  2. Configure Optional Parameters: Provide values for optional fields as needed
  3. Use Default Values: Leave optional fields empty to use tool defaults
  4. Validate Inputs: Ensure all values match the expected format (e.g., valid JSON for object fields)

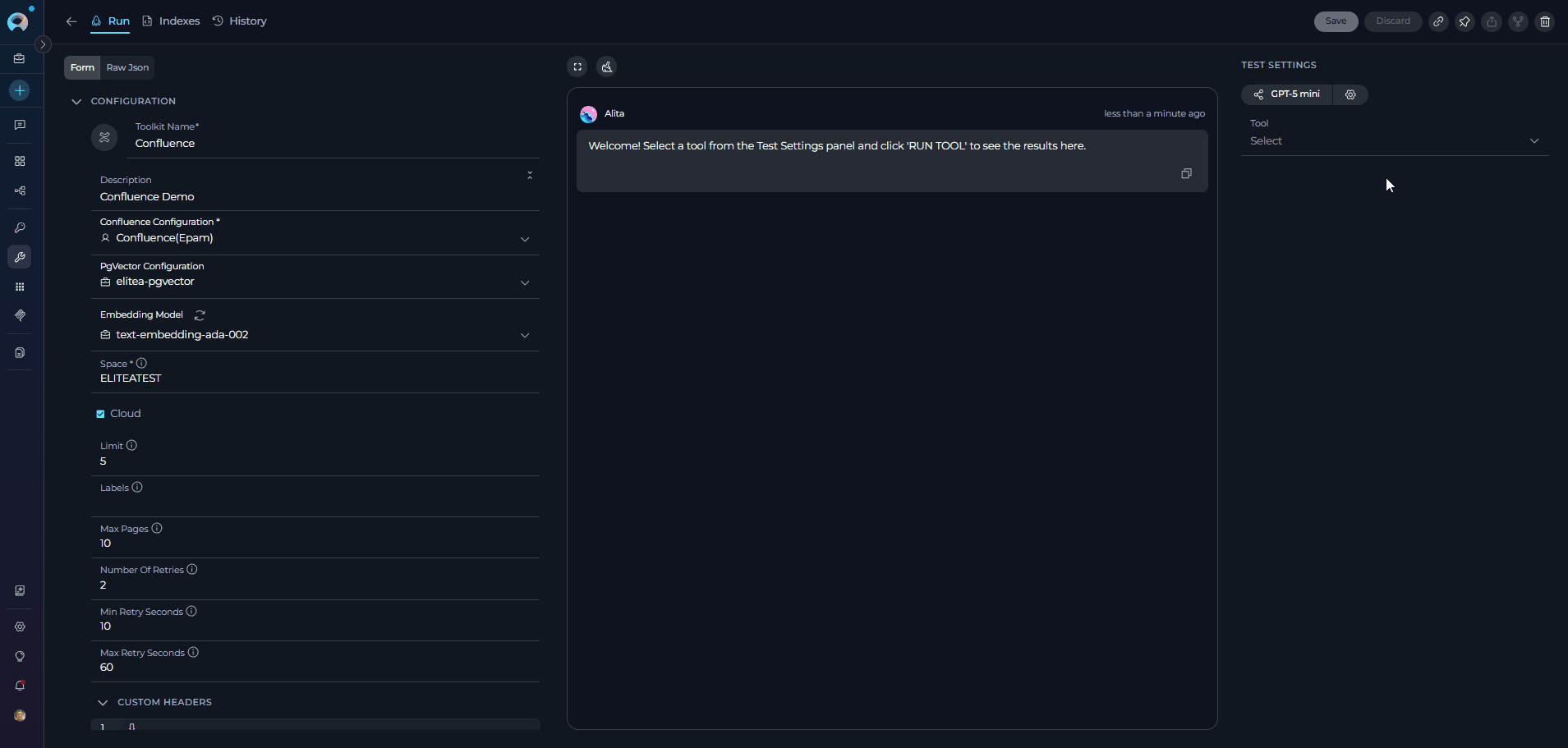

Step 4: Execute the Test

  1. Review Configuration: Verify all parameters are correctly set
  2. Click RUN TOOL: The button becomes active when all required fields are filled
  3. Monitor Execution: Watch the chat interface for real-time tool execution updates
  4. Review Results: Examine the tool output displayed in the chat area

Run Tool

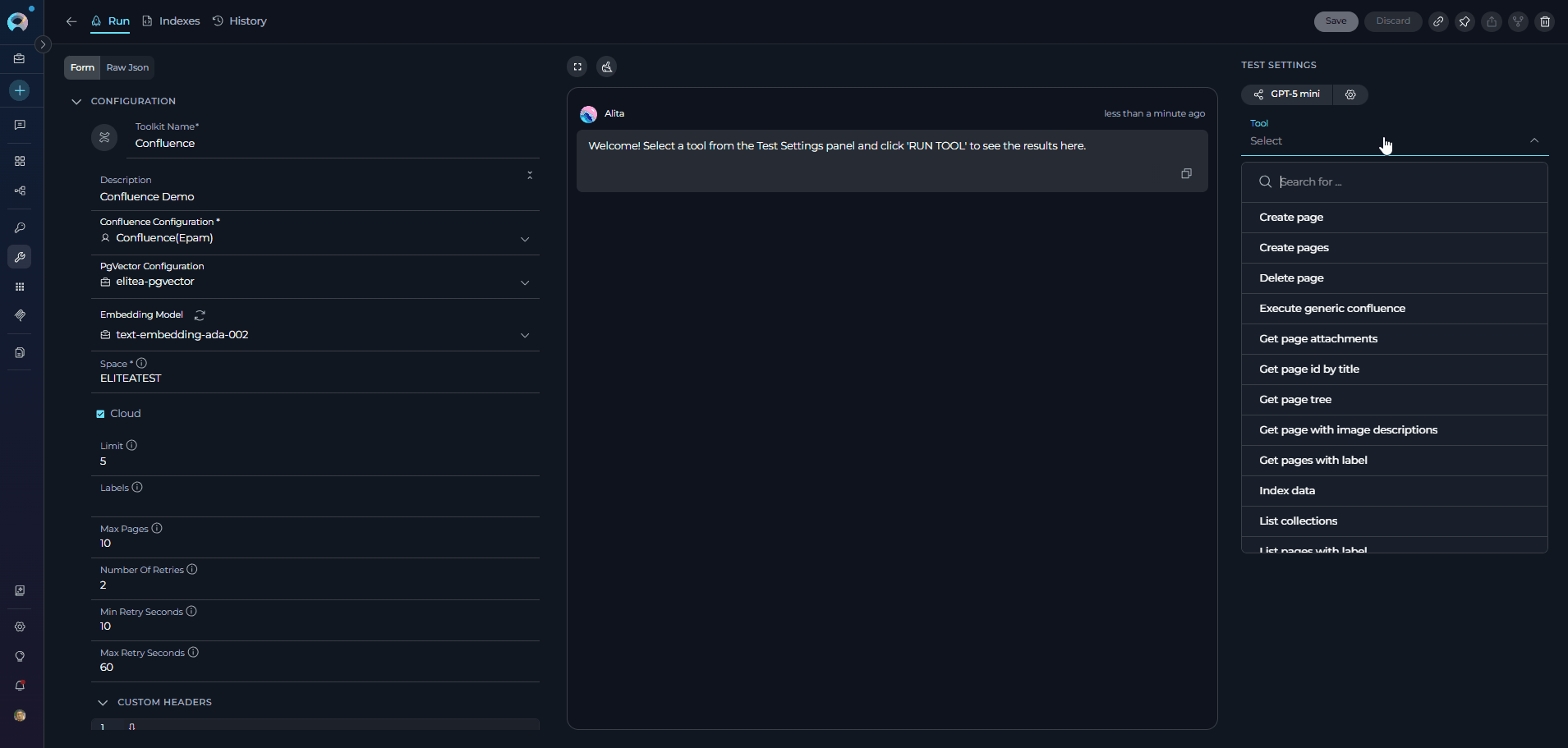

Understanding Test Results

Test results are displayed in a chat-style interface on the right side of the toolkit page, providing detailed information about the tool execution.

Result Components

1. Tool Execution Summary

The first section shows a summary of the tool execution:

  • Status Indicator: ✅ for success, ❌ for errors
  • Tool Name: The name of the executed tool
  • Execution Time: Time taken to complete the tool execution (in seconds)

2. Tool Output

The main result is displayed in a formatted code block (typically JSON):

{
  "success": true,
  "data": { ... },
  "message": "Operation completed successfully"
}

3. Execution Metadata

Additional information about the execution:

  • Timestamp: When the tool was executed
  • Model Used: The LLM model that processed the request
  • Parameters Sent: The actual parameters passed to the tool

Success Response Example

✅ `jira___search_issues` (1.234s)

{
  "success": true,
  "issues": [
    {
      "key": "PROJ-123",
      "summary": "Implement user authentication",
      "status": "In Progress",
      "assignee": "john.doe",
      "priority": "High"
    },
    {
      "key": "PROJ-124",
      "summary": "Fix login page layout",
      "status": "To Do",
      "assignee": "jane.smith",
      "priority": "Medium"
    }
  ],
  "total": 2
}

Error Response Example

❌ `confluence___get_page` (0.423s)

{
  "success": false,
  "error": "Page not found with ID: 98765432",
  "error_type": "PageNotFoundError",
  "status_code": 404
}

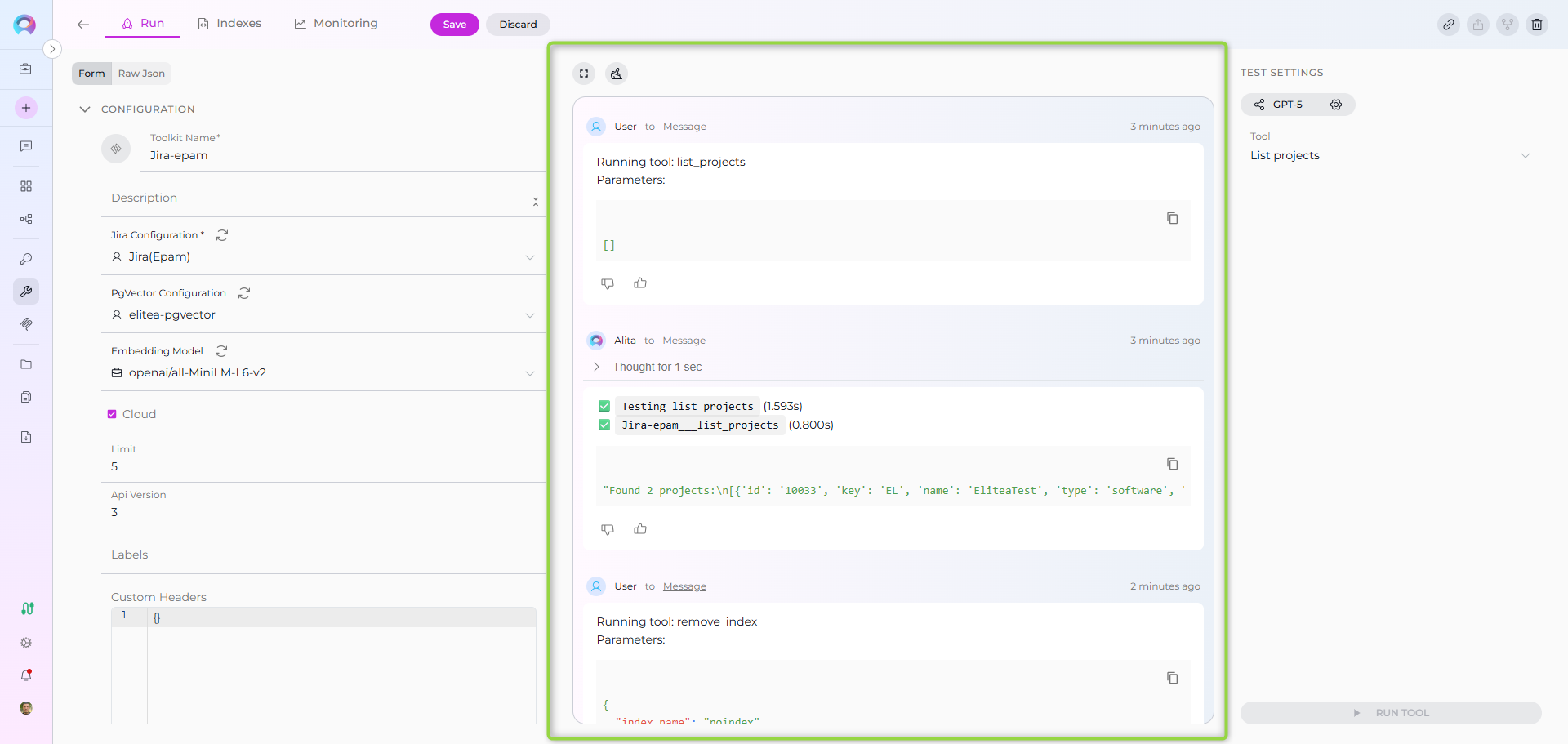

Test Results

Advanced Testing Features

Chat History and Multiple Tests

The test interface maintains a conversation history, allowing you to:

  • Review Previous Tests: Scroll through past test executions
  • Compare Results: See how different parameters affect tool outputs
  • Track Changes: Monitor how tool behavior changes after configuration updates

Clear Chat History:

  • Click the Clear (trash) icon at the top of the chat interface
  • This removes all previous test results and starts fresh

Fullscreen Mode

For detailed result analysis:

  1. Click the Fullscreen icon at the top of the chat interface
  2. The test results expand to fill the entire screen
  3. Click the fullscreen icon again (or press ESC) to return to normal view

This is particularly useful when:

  • Examining large JSON responses
  • Analyzing complex tool outputs
  • Comparing multiple test results side-by-side

Common Testing Scenarios

Scenario 1: Testing GitHub Create Branch

Objective: Verify that your GitHub credential can create a new branch in a repository

Steps:

  1. Select Model: gpt-4o-mini
  2. Select Tool: create_branch
  3. Configure Parameters:
    • branch_name: feature/test-branch
  4. Run Tool: Click RUN TOOL
  5. Verify Result: Confirm that the new branch was created successfully

Expected Result: JSON response confirming branch creation with branch name, commit SHA, and reference details.

Scenario 2: Testing Jira Issue Creation

Objective: Test creating a new Jira issue with your configured credentials

Steps:

  1. Select Model: gpt-4o
  2. Select Tool: create_issue
  3. Configure Parameters: Issue Json *:
    { "fields": { "project": { "key": "EL" }, "summary": "Test issue from ELITEA toolkit", "issuetype": { "name": "Task" }, "description": { "type": "doc", "version": 1, "content": [ { "type": "paragraph", "content": [ { "type": "text", "text": "This is a test issue created via toolkit testing" } ] } ] } } } ```
  4. Run Tool: Click RUN TOOL
  5. Verify Result: Check that the issue was created and the response includes the issue key

Expected Result: Success response with the newly created issue key (e.g., DEMO-123).

Scenario 3: Testing Index Data Tool

Objective: Test indexing functionality with your configured PgVector and embedding model

Steps:

  1. Select Model: gpt-4o
  2. Select Tool: index_data
  3. Configure Parameters:
    • index_name: test (7 characters max)
    • clean_index: true (checkbox checked)
    • progress_step: 10
    • Additional toolkit-specific parameters (e.g., repository, branch for GitHub)
  4. Run Tool: Click RUN TOOL
  5. Monitor Progress: Watch for progress updates during indexing
  6. Verify Result: Confirm indexing completed successfully

Expected Result: Success message with indexing statistics (documents processed, chunks created, etc.).

Scenario 4: Testing Search Index Tool

Objective: Verify that indexed data can be searched with natural language queries

Steps:

  1. Select Model: gpt-4o
  2. Select Tool: search_index
  3. Configure Parameters:
    • collection_suffix: test (must match an existing index)
    • query: authentication implementation
    • top_k: 5
    • cut_off: 0.7
  4. Run Tool: Click RUN TOOL
  5. Review Results: Examine the returned search results with relevance scores

Expected Result: List of relevant documents/chunks with similarity scores and metadata.

Troubleshooting Test Failures

Common Issues and Solutions

1. Authentication Errors

Problem: 401 Unauthorized or 403 Forbidden errors

Solutions:

  • Verify Credentials: Check that credentials are correctly configured in Settings → Credentials
  • Check Permissions: Ensure the credential has necessary permissions for the tool
  • Refresh Tokens: Update expired tokens or API keys
  • Test Connectivity: Verify network access to the external service

2. Parameter Validation Errors

Problem: Invalid parameter or Required field missing errors

Solutions:

  • Review Required Fields: Ensure all fields marked with (*) are filled
  • Check Data Types: Verify that values match expected types (string, number, array, etc.)
  • Validate Formats: Ensure data formats are correct (e.g., valid JSON for object fields)
  • Review Field Descriptions: Hover over field labels for parameter requirements

3. Connection Timeouts

Problem: Tool execution times out without response

Solutions:

  • Check Service Status: Verify the external service is operational
  • Network Connectivity: Ensure network access to the service URL
  • Firewall Rules: Check if firewalls are blocking connections
  • Service URLs: Verify endpoint URLs are correct in toolkit configuration

4. Tool Not Found Errors

Problem: Selected tool doesn't execute or shows as unavailable

Solutions:

  • Enable Tool: Ensure the tool is checked in toolkit configuration
  • Save Configuration: Save toolkit changes before testing
  • Refresh Page: Reload the toolkit page to update available tools
  • Check Tool Selection: Verify the tool is supported for the toolkit type

5. Model Configuration Issues

Problem: LLM model errors or unavailable models

Solutions:

  • Select Valid Model: Choose a model configured in your project
  • Check Model Access: Verify you have access to the selected model
  • Review Model Settings: Ensure model parameters are within valid ranges
  • Use Default Model: Try testing with the project's default model first

Best Practices for Toolkit Testing

Before Production Use

  1. Test All Critical Tools: Verify each tool you plan to use in agents or conversations
  2. Validate with Real Data: Test with actual data you'll be working with
  3. Check Error Handling: Test tools with invalid inputs to understand error responses
  4. Document Results: Keep notes on successful parameter combinations
  5. Test After Updates: Re-test tools after updating credentials or configuration

Parameter Testing Strategy

  1. Start with Defaults: Begin testing with default parameter values
  2. Test Required Fields Only: First test with just required parameters
  3. Add Optional Parameters: Gradually add optional parameters to understand their impact
  4. Test Edge Cases: Try boundary values (empty strings, maximum limits, etc.)
  5. Validate Complex Inputs: Carefully test tools requiring JSON or complex objects

Performance Testing

  1. Monitor Execution Times: Note how long different tools take to execute
  2. Test with Different Models: Compare performance across different LLM models
  3. Adjust Timeouts: Configure appropriate timeout values based on tool performance
  4. Test Under Load: Consider how tools perform with larger datasets or parameters

Security Testing

  1. Test Permission Boundaries: Verify tools respect credential permissions
  2. Validate Data Access: Ensure tools only access authorized data
  3. Check Sensitive Data: Confirm sensitive information is properly handled
  4. Test Error Messages: Verify error messages don't expose sensitive information

Testing Tools vs. Using in Agents

Understanding the differences between testing tools and using them in agents helps set appropriate expectations:

Aspect Tool Testing Agent Usage
Execution Context Direct tool call with explicit parameters Agent decides when and how to call tools based on conversation
Parameter Source Manually provided by you Extracted from conversation by the LLM
Error Handling Immediate error feedback Agent may retry or request clarification
Output Format Raw tool output (usually JSON) Natural language interpretation by agent
Execution Flow Single tool execution May involve multiple tool calls in sequence
User Interaction One-time test Ongoing conversation with context

Key Takeaway: Successful tool testing validates that the tool works correctly with proper parameters. In agent usage, the LLM determines when to call tools and how to extract parameters from natural language conversations.

For more information on toolkit configuration and usage:
