Toolkit History Tab

Overview

The History Tab is a feature within the Toolkit detail page that provides a comprehensive record of all toolkit execution runs. It enables users to track, review, and audit toolkit operations by displaying detailed information about each run, including execution parameters, timestamps, duration, and results.

The History Tab serves as a valuable auditing and troubleshooting tool, allowing teams to:

  • Monitor toolkit usage patterns and frequency
  • Review past executions with full input/output details
  • Troubleshoot failures by examining error messages
  • Verify successful operations and their results
  • Track toolkit performance over time

Prerequisites

Access Requirements

  • Toolkit Access: You must have access to a toolkit within your project
  • Project Membership: You must be a member of the project containing the toolkit

Toolkit Requirements

  • Any Toolkit Type: History tracking is available for all toolkit types:
    • Custom Toolkits
    • Integration Toolkits (GitHub, Jira, Confluence, etc.)
    • MCP Servers (except MCPs do not have History tab)
    • Application Toolkits

History Availability

The History tab appears automatically in the toolkit detail view for all supported toolkits. No additional configuration is required.

Accessing the History Tab

  1. Open Toolkits Menu: From the main navigation, click Toolkits
  2. Select a Toolkit: Click on any toolkit from your toolkit list
  3. Open History Tab: In the toolkit detail page, locate the horizontal tab bar and click the History tab (clock icon)

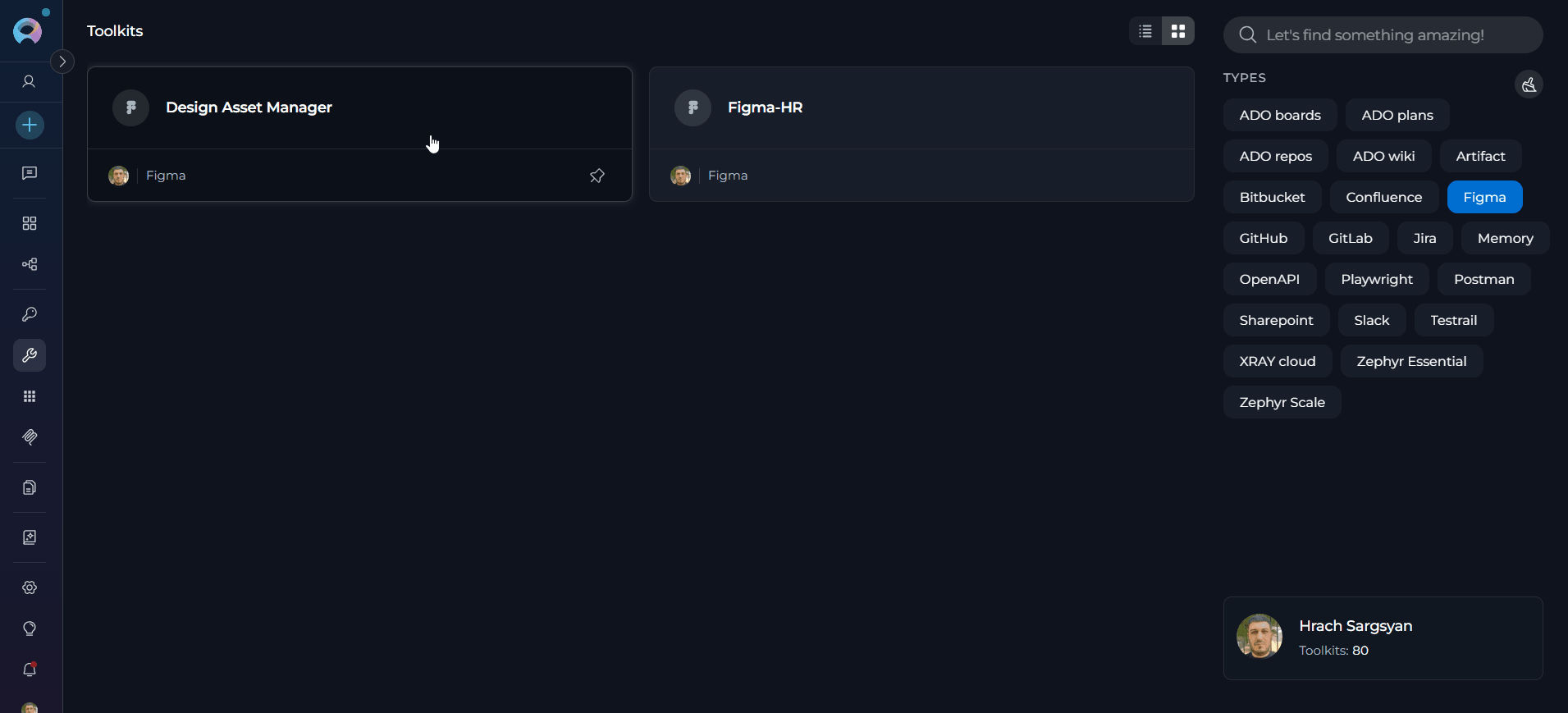

Accessing History Tab

Understanding the History View

The History Tab uses a two-panel layout for comprehensive run review:

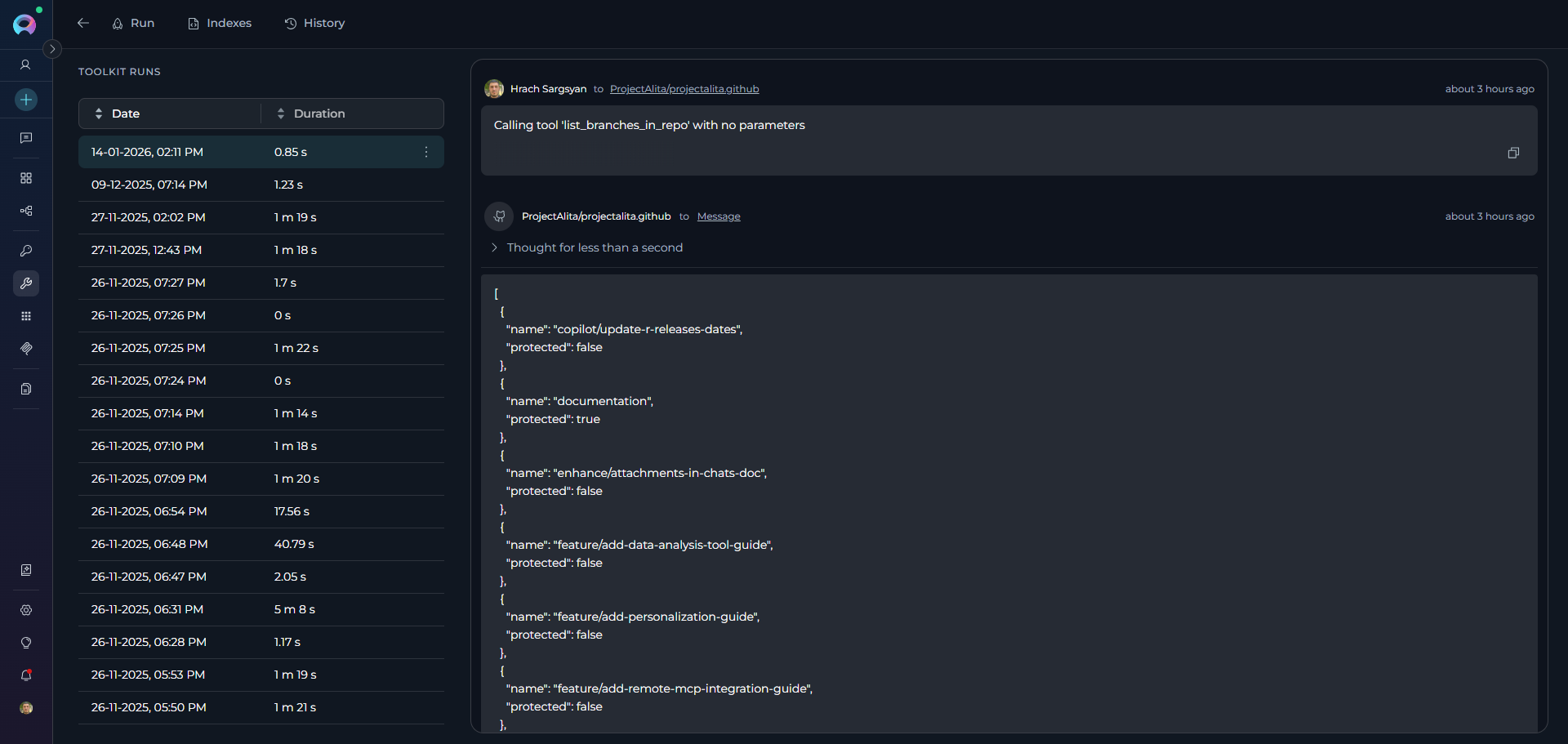

History Tab View

Left Panel: Run History List

The left panel displays a sortable table titled "Toolkit runs" with the following columns:

Column Description Sort Options
Date Execution date and time (format: dd-MM-yyyy, hh:mm a) Chronological (ascending/descending)
Duration Cumulative time for all toolkit tools used in the conversation (e.g., 2m 34s, 45s) Duration length (shortest/longest)

Duration Calculation

Duration represents the cumulative time for all toolkit tool executions within a single conversation. If multiple tools from the same toolkit were used (e.g., Index Data, Search Index, List Collections), the duration shows the total time for all of them.

Interaction:

  • Sorting: Click any column header to toggle sort order (ascending ↑ or descending ↓). Default: Date descending (most recent first)
  • Row Selection: Click any row to view details in the right panel. Selected row is highlighted
  • Actions Menu: Hover over any row to reveal the three-dot menu icon (⋮) on the right side. Click it to access actions:
    • Share link: Copy direct link to this specific run
    • Delete: Remove run from history view

Right Panel: Run Details

The right panel displays comprehensive execution details for the selected run in read-only format. You cannot interact with or modify the displayed conversation.

Displayed Information:

  • User Input: Original queries or commands
  • Tool Execution: Tool names and parameters passed
  • Tool Output: Results and data returned
  • Error Messages: Detailed error information with stack traces
  • Timestamps: Timing information for each step

Using the History Tab

Viewing Run Details

To View a Run:

  1. Select from List: Click any row in the left panel run history table
  2. Details Load: Right panel automatically displays the preserved conversation in read-only format
  3. Scroll Through Details: Use the scroll bar to review all execution steps
  4. Read-Only Mode: You cannot interact with or modify the displayed conversation

What You'll See:

  • Complete conversation flow from input to output
  • All toolkit tools executed during that conversation
  • Parameters passed to each tool
  • Results returned by tools
  • Any errors encountered with stack traces

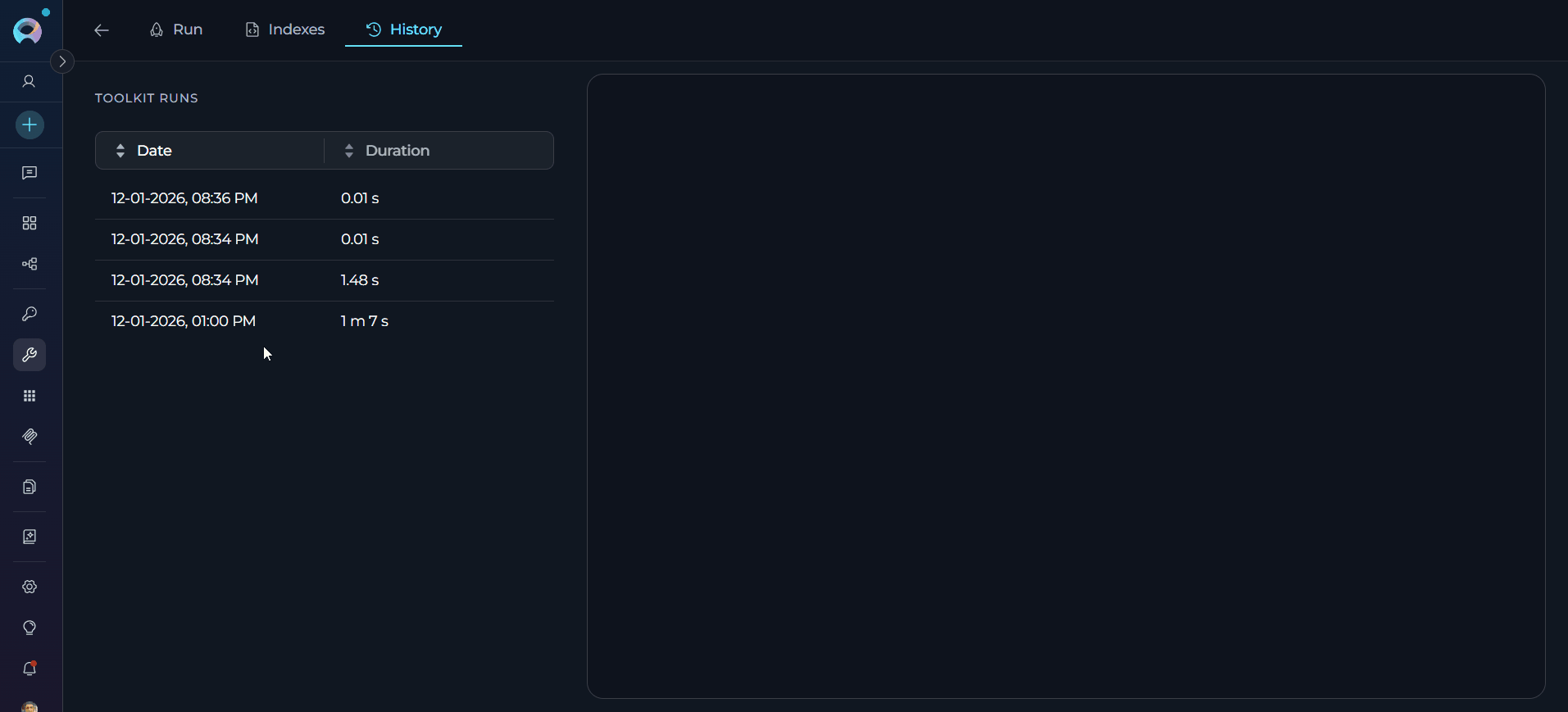

Run details

Tracked Executions

The History tab tracks toolkit runs from:

  • Run Tab: Tool executions from the toolkit's Test Settings
  • Indexes Tab: Index Data, Search Index, and other indexing operations

It does not track toolkit usage from:

  • Chat conversations (when you use a toolkit in a regular chat)
  • Agent or Pipeline executions (when a toolkit is used by an agent or pipeline)

Sorting Run History

Sort by Date:

  1. Click Date Column Header: Toggles between ascending and descending order
  2. Ascending (oldest first): Earliest runs at top
  3. Descending (newest first): Most recent runs at top (default)

Sort by Duration:

  1. Click Duration Column Header: Toggles between shortest and longest
  2. Ascending (shortest first): Fastest runs at top
  3. Descending (longest first): Slowest runs at top

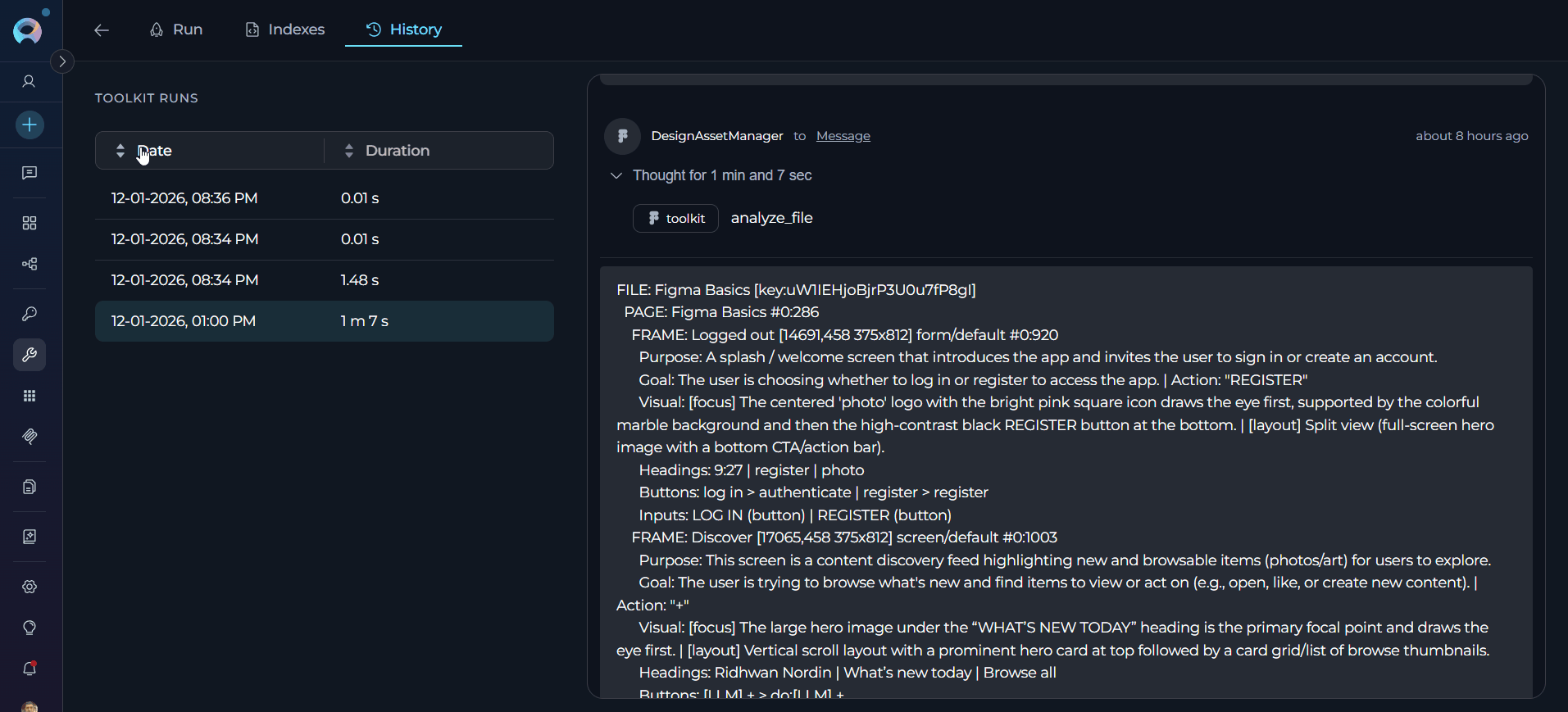

Sorting

Share specific run results with team members by copying direct links:

  1. Locate Run: Find the desired run in the history list
  2. Hover Over Run: Move your mouse over the run row to reveal the actions menu
  3. Open Actions Menu: Click the three-dot menu icon (⋮) that appears on the right side
  4. Select Share Link: Click "Share link" from the menu options
  5. Link Copied: The link is automatically copied to your clipboard
  6. Share Link: Paste the link to share with team members

Link Behavior:

  • Opens toolkit detail page with History tab active
  • Automatically selects the specific run
  • Displays run details in right panel
  • Allows recipient to review exact execution results

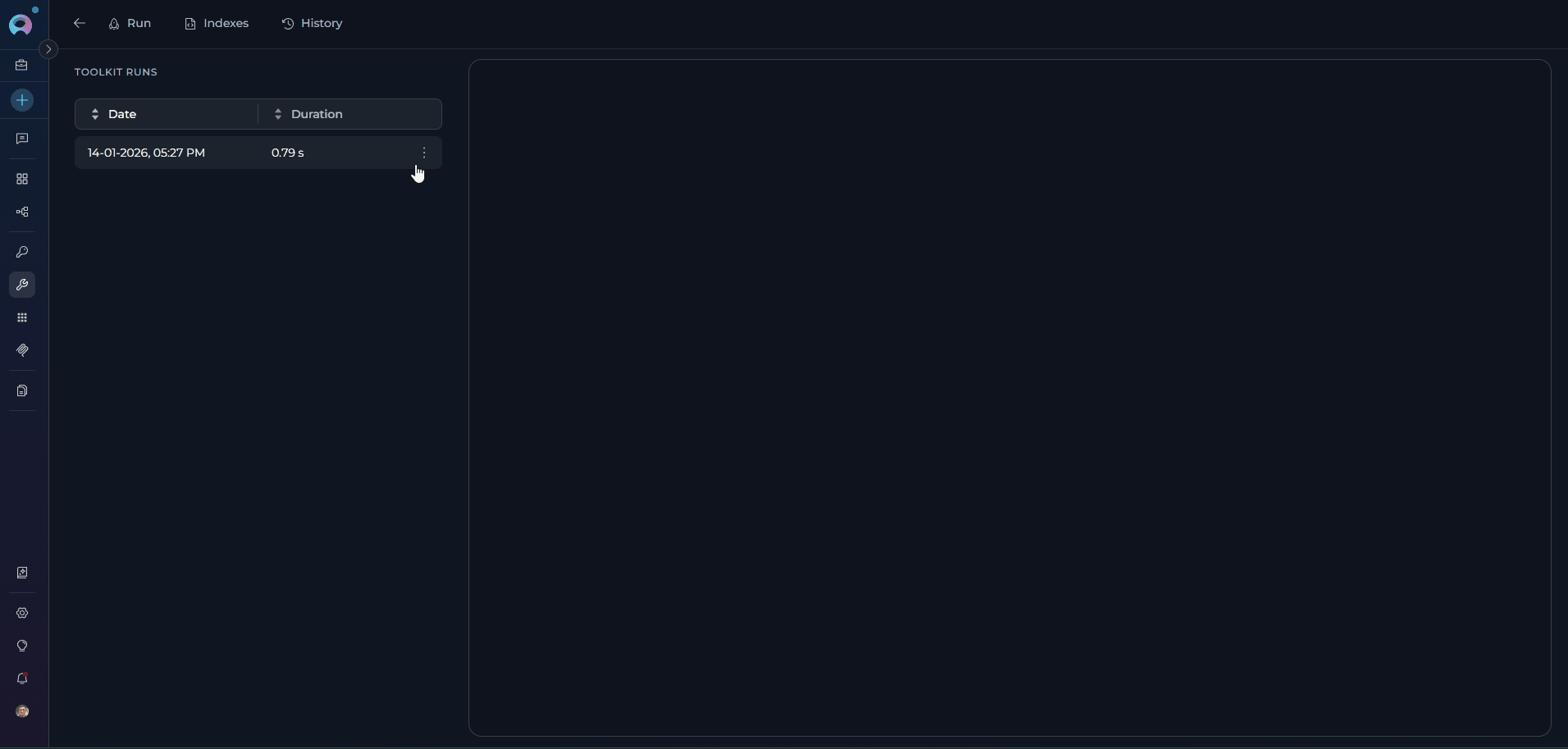

Copy

Deleting Run History

Remove individual runs from the history view:

Deletion Behavior

Deleting a run removes it from the History tab. This action cannot be undone.

To Delete a Run:

  1. Locate Run: Find the run you want to delete in the history list
  2. Hover Over Run: Move your mouse over the run row to reveal the actions menu
  3. Open Actions Menu: Click the three-dot menu icon (⋮) that appears on the right side
  4. Select Delete: Click "Delete" from the menu options
  5. Confirm Deletion: A confirmation dialog appears - click "Remove" to confirm
  6. Run Removed: The row disappears from the history table

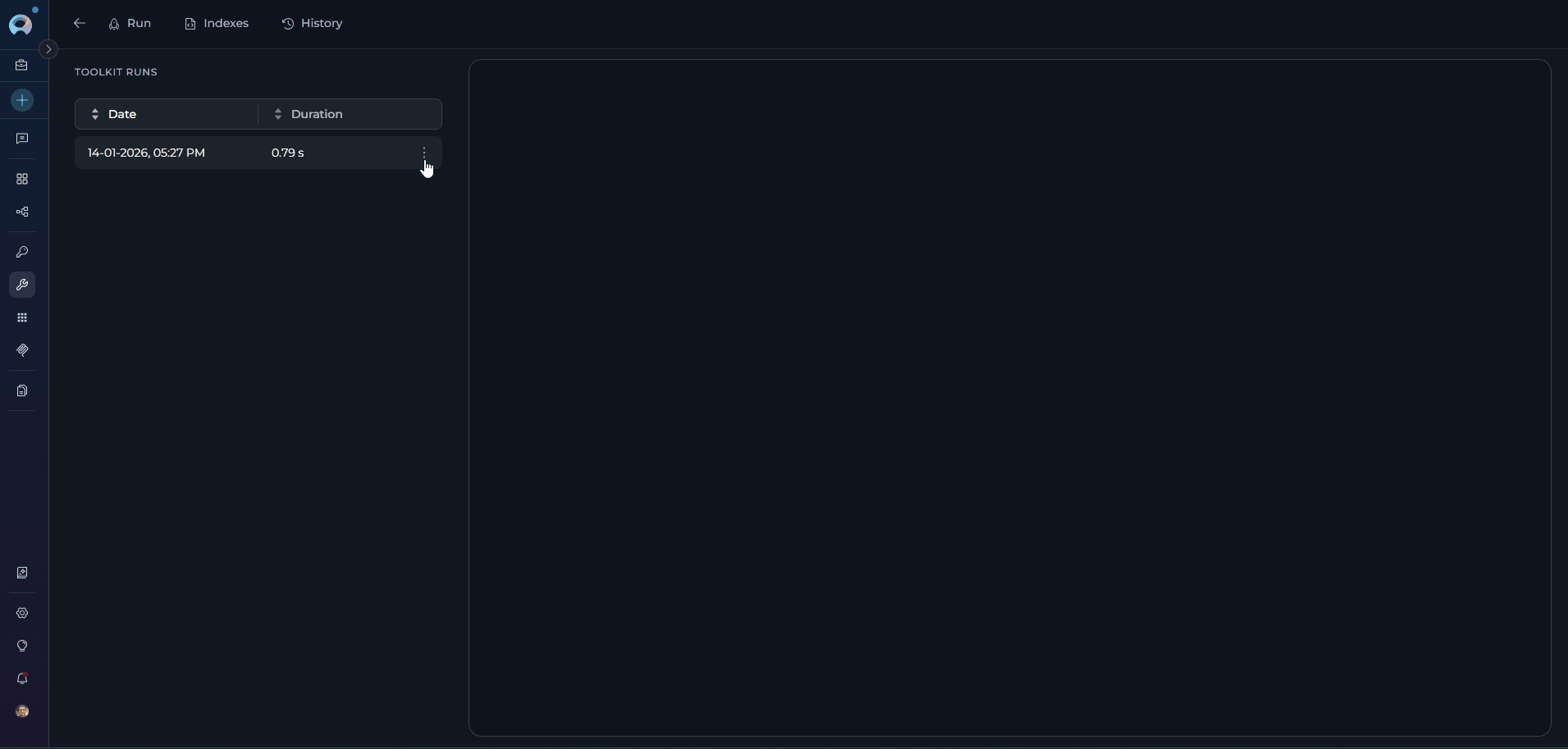

Delete

Common Use Cases

Debugging a Failed Run

Scenario: A toolkit operation produced unexpected results or failed to complete.

Steps:

  1. Go to the History tab
  2. Find the failed run by date
  3. Select the run to view the execution details
  4. Review the details to identify:
  5. What input triggered the issue
  6. Which tool(s) failed
  7. Any error messages or stack traces
  8. Parameters that were passed
  9. Use this information to fix the toolkit configuration or input parameters
Performance Optimization

Scenario: You want to optimize your toolkit's execution time.

Steps:

  1. Open the History tab
  2. Review the Duration column across multiple runs
  3. Identify runs that took longer than expected
  4. Select those runs to see what operations were performed
  5. Optimize the toolkit based on the longest-running operations
Verifying Toolkit Changes

Scenario: You updated your toolkit configuration and want to verify improvements.

Steps:

  1. Make changes to your toolkit configuration
  2. Run the same test inputs on both the old and new configurations
  3. Go to the History tab
  4. Compare runs before and after the changes
  5. Verify that the new configuration produces better results
Audit and Compliance

Scenario: You need to provide evidence of what your toolkit processed.

Steps:

  1. Navigate to the History tab
  2. Find the relevant run by date
  3. Review the complete execution details
  4. Use this as documentation for compliance or audit purposes
Learning and Training

Scenario: You want to understand how your toolkit handles different inputs.

Steps:

  1. Review multiple runs in the History tab
  2. Study patterns in successful executions
  3. Identify common failure scenarios
  4. Use these insights to improve your toolkit's configuration or documentation

Best Practices

Regular Review
  • Check history periodically: Review your toolkit runs regularly to catch issues early
  • Monitor trends: Track execution duration and frequency patterns over time
  • Performance baseline: Establish expected duration ranges for different toolkit operations
Debugging Workflow
  1. Reproduce issues: When a problem is reported, find the specific run in history first
  2. Analyze context: Review input parameters and error messages in detail
  3. Test fixes: After fixing, execute the toolkit and compare results in history
  4. Document findings: Use the history as documentation of issues and resolutions
Data Management
  • Clean old runs: Periodically delete runs that are no longer needed
  • Keep important runs: Don't delete runs that serve as examples or reference cases
  • Share critical runs: Use the copy link feature to share important findings with your team
Performance Monitoring
  • Track duration trends: Monitor if toolkit operations are getting slower over time
  • Identify bottlenecks: Use duration data to identify which tools need optimization
  • Compare executions: Review multiple runs to understand performance variations
Security Considerations
  • Sensitive data: Be aware that all input parameters and results are stored in run history
  • Access control: Ensure only authorized users can access toolkits with sensitive data
  • Retention policy: Consider establishing a policy for how long to retain run history

Troubleshooting

History Tab is Empty

Possible Causes:

  • No toolkit executions have been performed yet
  • All previous runs have been deleted
  • You're viewing a newly created toolkit

Solution:

  1. Execute the toolkit from the Run tab using Test Settings
  2. Or use the toolkit in a chat conversation or agent
  3. Return to the History tab to see the new run
  4. If runs were deleted, they cannot be restored in the UI
Cannot See Run Details in Right Panel

Possible Causes:

  • No run is currently selected
  • Run data failed to load due to network issues
  • Run details are still loading

Solution:

  1. Click a run in the left panel list to select it
  2. Wait a moment for details to load
  3. If details don't appear, refresh the page
  4. Check your network connection
  5. Try selecting a different run to verify functionality
Copy Link Feature Not Working

Possible Causes:

  • Clipboard permissions not granted
  • Browser security restrictions
  • Network connectivity issues

Solution:

  1. Ensure your browser has clipboard access permissions
  2. Hover over the run row to reveal the three-dot menu icon (⋮)
  3. Click the icon to open the actions menu
  4. Select "Share link" from the menu
  5. Check for success notification or confirmation
  6. Manually copy the URL from the address bar after selecting a run
  7. If using private/incognito mode, check browser permissions
Delete Option Not Appearing

Possible Causes:

  • Not hovering over the run row
  • Actions menu not opening
  • Insufficient permissions
  • UI not fully loaded

Solution:

  1. Hover your mouse over the run row to reveal the three-dot menu icon (⋮)
  2. Wait briefly for the icon to appear on the right side of the row
  3. Click the icon to open the actions menu
  4. Look for "Delete" option in the menu
  5. Verify you have necessary permissions to delete runs
  6. Refresh the page if the menu doesn't appear
  7. Check if you're viewing a different user's runs that you cannot delete
Runs Not Sorted Correctly

Possible Causes:

  • Multiple clicks on sort header
  • Sort direction not clearly indicated
  • Cached data display issue

Solution:

  1. Click the column header once to sort ascending
  2. Click again to sort descending
  3. Look for the arrow indicator showing current sort direction
  4. Refresh the page if sorting appears broken
  5. Try sorting by a different column first, then return
