Index Figma Data¶

Availability

Indexing tools are available in the Next environment (Release 1.7.0) and replace legacy Datasources/Datasets. For context, see Release Notes 1.7.0 and the Indexing Overview.

This guide provides a complete step-by-step walkthrough for indexing Figma data and then searching or chatting with the indexed content using ELITEA's AI-powered tools.

Overview¶

Figma indexing allows you to create searchable indexes from your Figma design collaboration and UI/UX content:

Design Files: Complete Figma files with all design elements, components, and layouts
Frames & Pages: Individual screens, artboards, and design layouts within files
Components & Instances: Reusable design components and their instances across projects
Design Elements: UI elements like buttons, forms, icons, and interactive components
Project Organization: Team projects, file structures, and design system hierarchies

What you can do with indexed Figma data:

Design Search: Find specific design patterns, components, or screens across your design system
Context-Aware Design Chat: Get AI-generated answers about design decisions and patterns with references to specific files
Cross-Project Discovery: Search for design elements and patterns across multiple Figma projects
Design System Analysis: Analyze component usage, design consistency, and UI patterns
Component Documentation: Extract insights about design components and their usage patterns

Common use cases:

Finding specific design components or patterns across your design system for reuse
Onboarding new designers by allowing them to ask questions about design standards and components
Analyzing design consistency and identifying opportunities for component standardization
Product teams searching for specific UI patterns and design decisions
Design system managers extracting insights about component adoption and usage

Prerequisites¶

Before indexing Figma data, ensure you have:

Figma Credential: A Figma Personal Access Token or authentication credentials configured in ELITEA
Vector Storage: PgVector selected in Settings → AI Configuration
Embedding Model: Selected in AI Configuration (defaults available) → AI Configuration
Figma Toolkit: Configured with your Figma authentication and project details

Required Permissions¶

Your Figma credential needs appropriate permissions based on what you want to index:

For Content Access:

Read access to Figma files and projects
Permission to view the specific teams and projects you want to index

For Comprehensive Indexing:

Access to view file content, components, and design elements
Permission to access both public and team-restricted files (based on your requirements)
Ability to read from multiple projects and team spaces

Authentication Methods:

Personal Access Token: Figma API token (starts with figd_)
OAuth2: OAuth2 token for application-specific access

Step-by-Step: Creating a Figma Credential¶

Generate Figma Personal Access Token in your Figma account (Settings → Security → Personal Access Tokens)
Create Credential in ELITEA: Navigate to Credentials → + Create → Figma → enter details and save

Detailed Instructions

For complete credential setup steps including token generation and security best practices, see:

Step-by-Step: Configure Figma Toolkit¶

Create Toolkit: Navigate to Toolkits → + Create → Figma
Configure Settings: Set authentication method and assign your Figma credential
Enable Tools: Select Index Data, List Collections, Search Index, Stepback Search Index, Stepback Summary Index, and Remove Index tools
Save Configuration

Tool Overview:¶

Index Data: Creates searchable indexes from Figma files and design content
List Collections: Lists all available collections/indexes to verify what's been indexed
Search Index: Performs semantic search across indexed content using natural language queries
Stepback Search Index: Advanced search that breaks down complex questions into simpler parts for better results
Stepback Summary Index: Generates summaries and insights from search results across indexed content
Remove Index: Deletes existing collections/indexes when you need to clean up or start fresh

Detailed Instructions

For complete toolkit configuration including authentication setup and access permissions, see:

Finding Required Figma IDs¶

Before indexing, you'll need to identify the specific Figma resources you want to index. Here's how to find the required IDs:

Project ID¶

For tools that require a Project ID, you can obtain it in the following ways:

From Project URL (If You Are Project Admin) - Web & Desktop:
- Web: Extract from project URL: https://www.figma.com/files/project/[PROJECT_ID]/[PROJECT_NAME]
- Desktop: Use File → Show in browser or Share → copy project link, then extract from project URL
Request from Project Administrator: If you don't have admin access to the project, contact the project administrator or team owner to provide you with the Project ID.

Project ID Usage Note

Providing Project ID for indexing is optional. It's generally better to use File Keys for targeted indexing instead, because projects may contain many files which could result in large indexes. Use Project ID only when you specifically need to index all files in a project or create comprehensive project-level indexes.

File Key¶

Web: Extract from file URL: https://www.figma.com/file/[FILE_KEY]/[FILE_NAME]
Desktop: Use File → Copy link or Share button, then extract from URL

Node IDs¶

Web: Right-click any design element → Copy link → extract from URL parameter node-id=[NODE_ID]
Desktop: Right-click element → Copy link or select multiple elements (Ctrl/Cmd) → Copy link, then extract from URL

ID Format

Project ID: Numeric (e.g., 123456789)
File Key: Alphanumeric string (e.g., ABC123DEF456)
Node ID: Colon-separated format (e.g., 123:456)

Detailed ID Finding Instructions

For comprehensive step-by-step instructions including additional methods and troubleshooting tips, see the Figma Key Parameters section in the Figma Integration Guide.

Step-by-Step: Index Figma Data¶

Primary Interface

All indexing operations are performed via the Indexes Tab Interface. This dedicated interface provides comprehensive index management with visual status indicators, real-time progress monitoring, and integrated search capabilities.

Requirements

Before proceeding, ensure your project has PgVector and Embedding Model configured in Settings → AI Configuration, and your Figma toolkit has the Index Data tool enabled.

Step 1: Access the Interface¶

Navigate to Toolkits: Go to Toolkits in the main navigation
Select Your Figma Toolkit: Choose your configured Figma toolkit from the list
Open Indexes Tab: Click on the Indexes tab in the toolkit detail view

If the tab is disabled or not visible, verify that: - PgVector and Embedding Model are configured in Settings → AI Configuration - The Index Data tool is enabled in your toolkit configuration

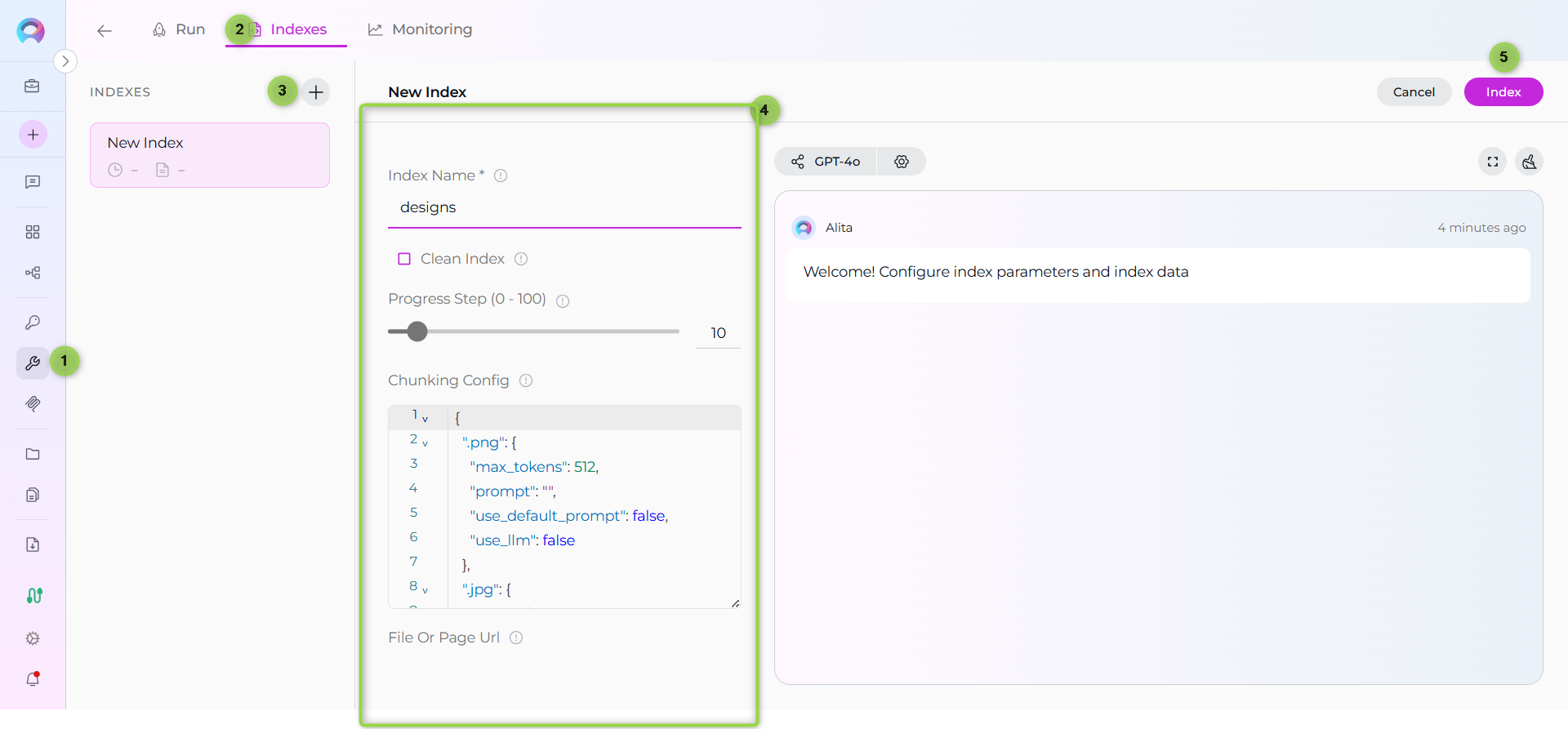

Step 2: Create a New Index¶

Click Create New Index: In the Indexes sidebar, click the + Create New Index button
New Index Form: The center panel displays the new index creation form

Step 3: Configure Index Parameters¶

Fill in the required and optional parameters for your Figma indexing:

Parameter	Required	Description	Example Value
Index Name	✓	Suffix for collection name (max 7 chars)	`designs` or `ui`
Clean Index	✗	Remove existing index data before re-indexing	✓ (checked) or ✗ (unchecked)
Progress Step (0 - 100)	✗	Step size for progress reporting during indexing	`10` or `25`
Chunking Config	✗	Configuration for document chunking	Default or custom settings
Chunking Tool	✗	Method for splitting content into chunks	`markdown` (default)
file_or_page_url	✗	URL to file or page to index	`https://www.figma.com/design/[FILE_KEY]/Design?node-id=[PAGE_ID]`
project_id	✗	ID of the project to list files from	`55391681`
file_keys_include	✗	List of file keys to include if project_id not provided	`["Fp24FuzPwH0L74ODSrCnQo"]`
file_keys_exclude	✗	List of file keys to exclude from indexing	`["OldDesignFile123"]`
node_ids_include	✗	List of top-level nodes (pages) to include	`["123-56", "7651-9230"]`
node_ids_exclude	✗	List of top-level nodes (pages) to exclude	`["Archive-Page"]`
node_types_include	✗	List of node types to include	`["FRAME", "COMPONENT"]`
node_types_exclude	✗	List of node types to exclude	`["VECTOR", "RECTANGLE"]`

Step 4: Start Indexing¶

Form Validation: The Index button remains inactive until all required fields are filled
Review Configuration: Verify all parameters are correct
Click Index Button: Start the indexing process
Monitor Progress: Watch real-time updates with visual indicators:
- 🔄 In Progress: Indexing is currently running
- ✅ Completed: Indexing finished successfully
- ❌ Failed: Indexing encountered an error

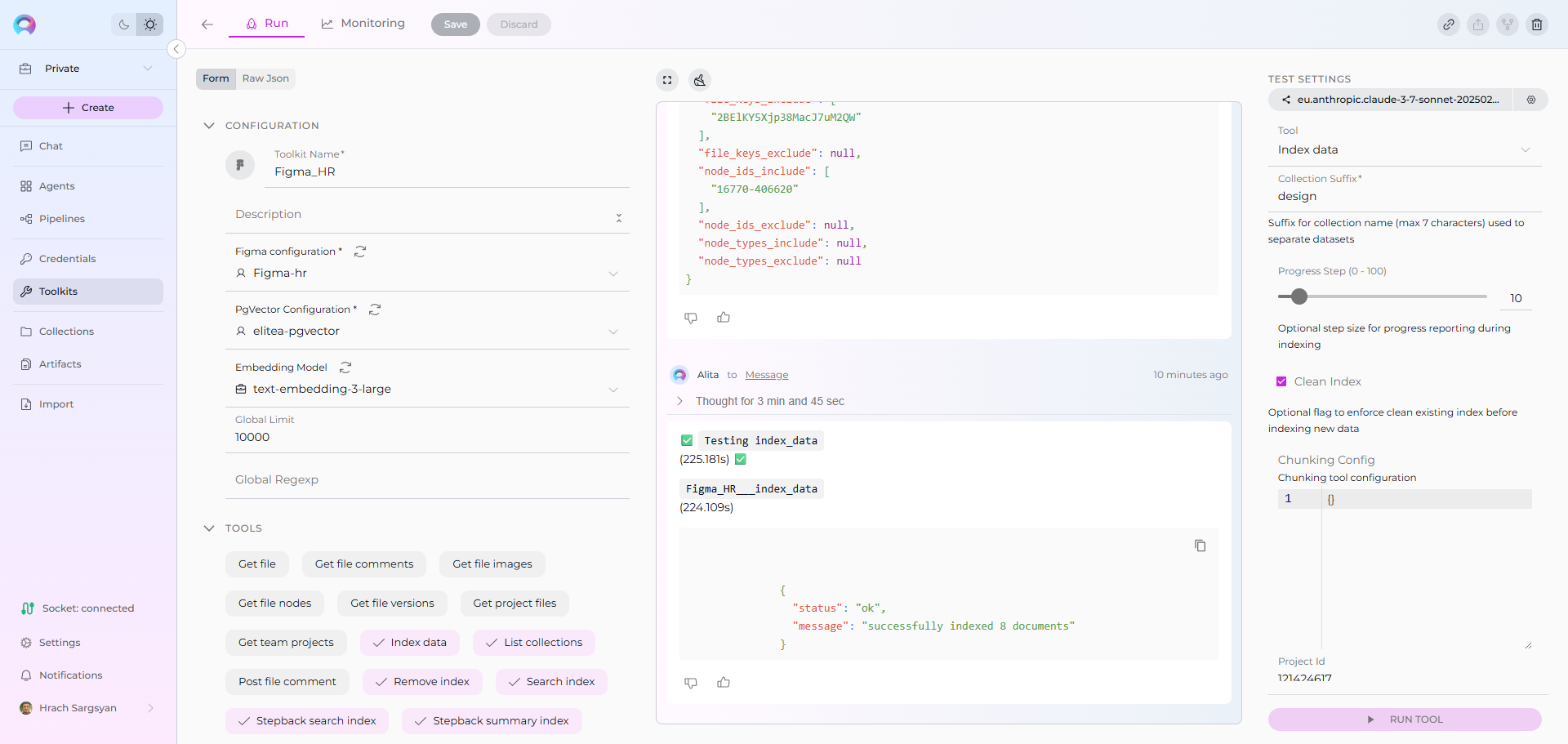

Alternative: Test Settings Method

For quick testing and validation, you can also use the Test Settings panel on the right side of the toolkit detail page. Select a model, choose the Index Data tool from the dropdown, configure parameters, and click Run Tool. However, the Indexes Tab Interface is the recommended approach for comprehensive index management.

Step 5: Verify Index Creation¶

After indexing completes, verify the index was created successfully:

Check Index Status: Visual indicators show completion status
Review Index Details: Click on the created index to see metadata and document count
Test Search: Use the Run tab to test search functionality with sample queries

Search and Chat with Indexed Data¶

Once your Figma data is indexed, you can use it in multiple ways:

Using the Indexes Interface¶

Direct Search via Indexes Tab:

Access Indexes Tab: Navigate to your Figma toolkit → Indexes tab
Select Index: Click on your created index from the sidebar
Open Run Tab: Click the Run tab in the center panel
Choose Search Tool: Select from available search tools:
- Search Index: Basic semantic search
- Stepback Search Index: Advanced search with question breakdown
- Stepback Summary Index: Summarized insights from search results
Enter Query: Type your natural language question
View Results: See responses with citations to specific Figma files and components

Using Toolkit in Conversations and Agents¶

Your Figma toolkit can be used in two main contexts:

In Conversations: Add the toolkit as a participant to ask questions and search your indexed Figma data
In Agents: Include the toolkit when creating AI agents to give them access to your design data

How to use:

Start a New Conversation or Create an Agent
Add Toolkit as Participant: Select your Figma toolkit from the available toolkits
Ask Natural Language Questions: The toolkit will automatically search your indexed data and provide relevant answers with citations

Real-Life Example Workflow¶

Let's walk through a complete example of indexing and using a design team's Figma project:

Step 1: Setup Figma Toolkit for Design Project

Step 2: Use in Conversations

Add toolkit to a conversation and start asking questions:

Navigate to Conversations → + New Conversation
In the participants section click + to add Toolkit
Select your Figma toolkit from the available toolkits list

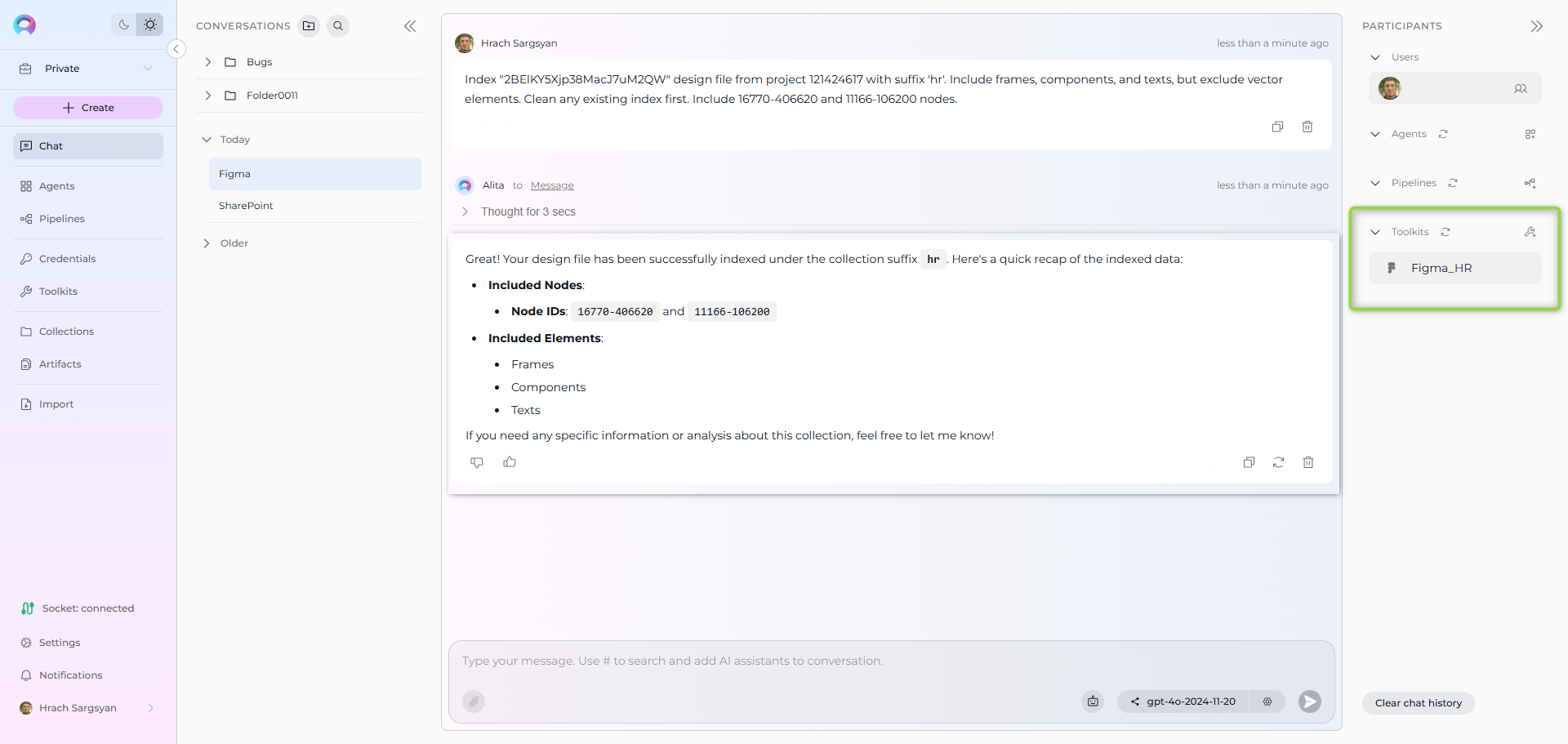

Step 3: Index the Design Project

User Request in Chat:

"Index "2BElKY5Xjp38MacJ7uM2QW" design file from project 121424617 with suffix 'hr'. Include frames, components, and texts, but exclude vector elements. Clean any existing index first. Include 16770-406620 and 11166-106200 nodes."

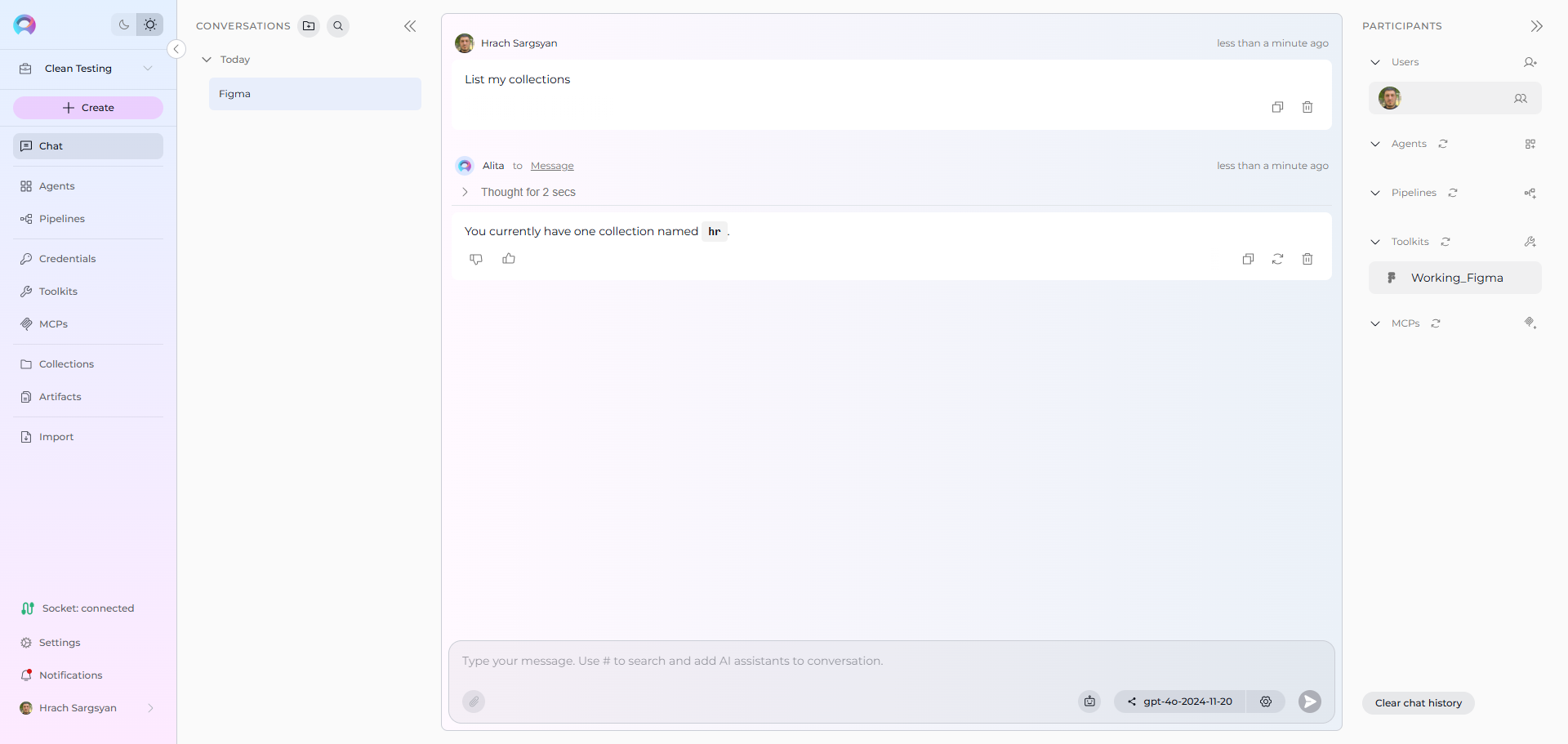

Step 4: Verify Index Creation

User Request in Chat:

"List my collections"
Figma Toolkit Response:

This confirms the indexing completed successfully and your design collection is available for searching.

Step 5: Start the conversation and begin asking questions about your indexed content

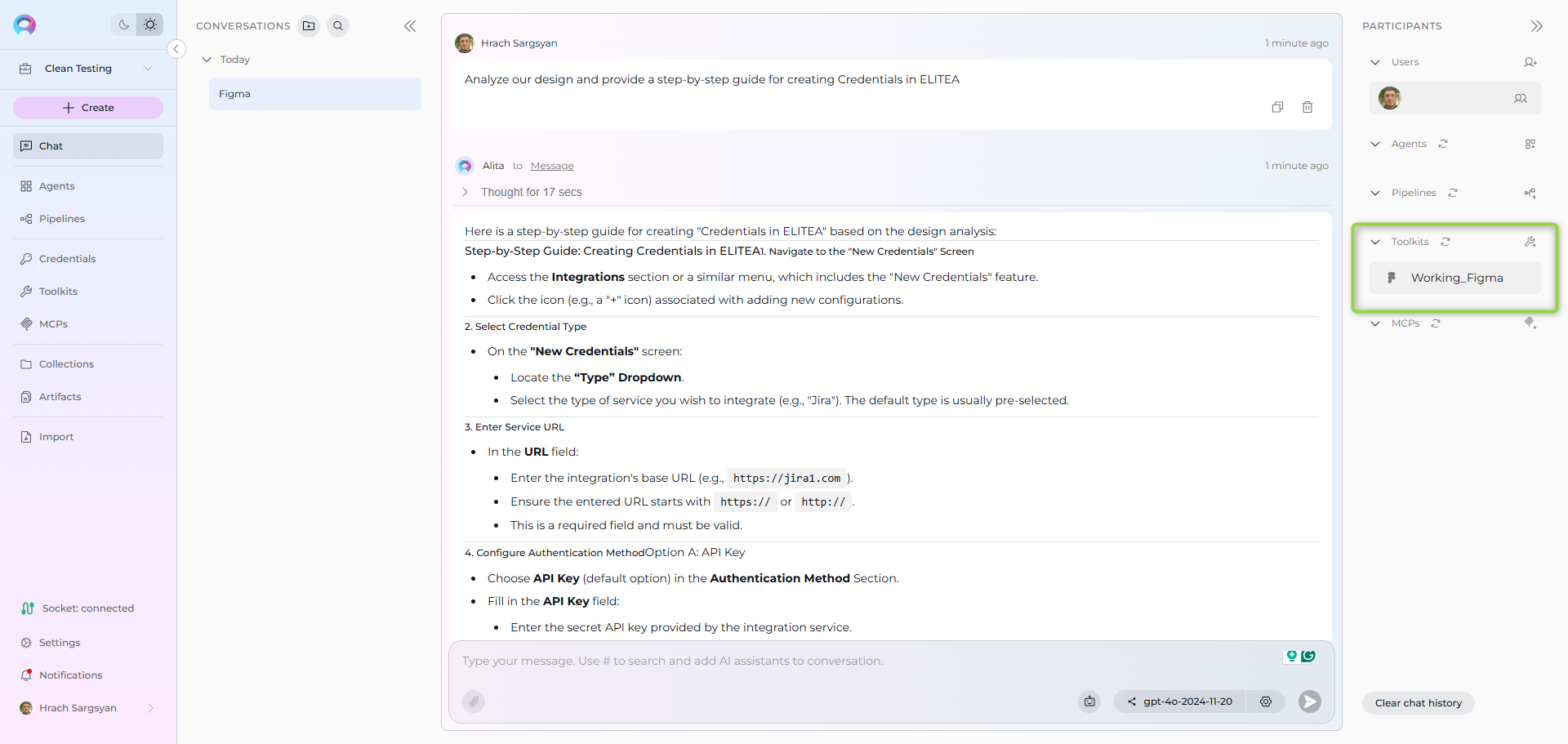

User Request: "Analyze our design system and provide a step-by-step guide for creating Credentials in ELITEA."
Figma Toolkit: "Based on your indexed design files, here's a comprehensive guide for creating ELITEA credentials and analyzing your design system:

ELITEA Credential Creation Steps:
1. Navigate to Credentials: Go to ELITEA → Credentials → + Create → Select Figma
2. Enter Token Information: Paste your Figma Personal Access Token (starts with 'figd_')
3. Credential Configuration: Set name, description, and save the credential for toolkit usage
4. Assign to Toolkit: Link the credential to your Figma toolkit in toolkit settings
Design System Analysis:
1. Component Library: Your design system contains 45 reusable components with consistent naming conventions
2. Design Tokens: Color palette follows brand guidelines with primary (#0066CC) and secondary (#00CC66) colors
3. Typography: Standardized font scales and spacing using 8px grid system

Sources: Design_System_Guide.fig (Component: TokenLibrary), Team_Standards.fig (Frame: CredentialSetup)"

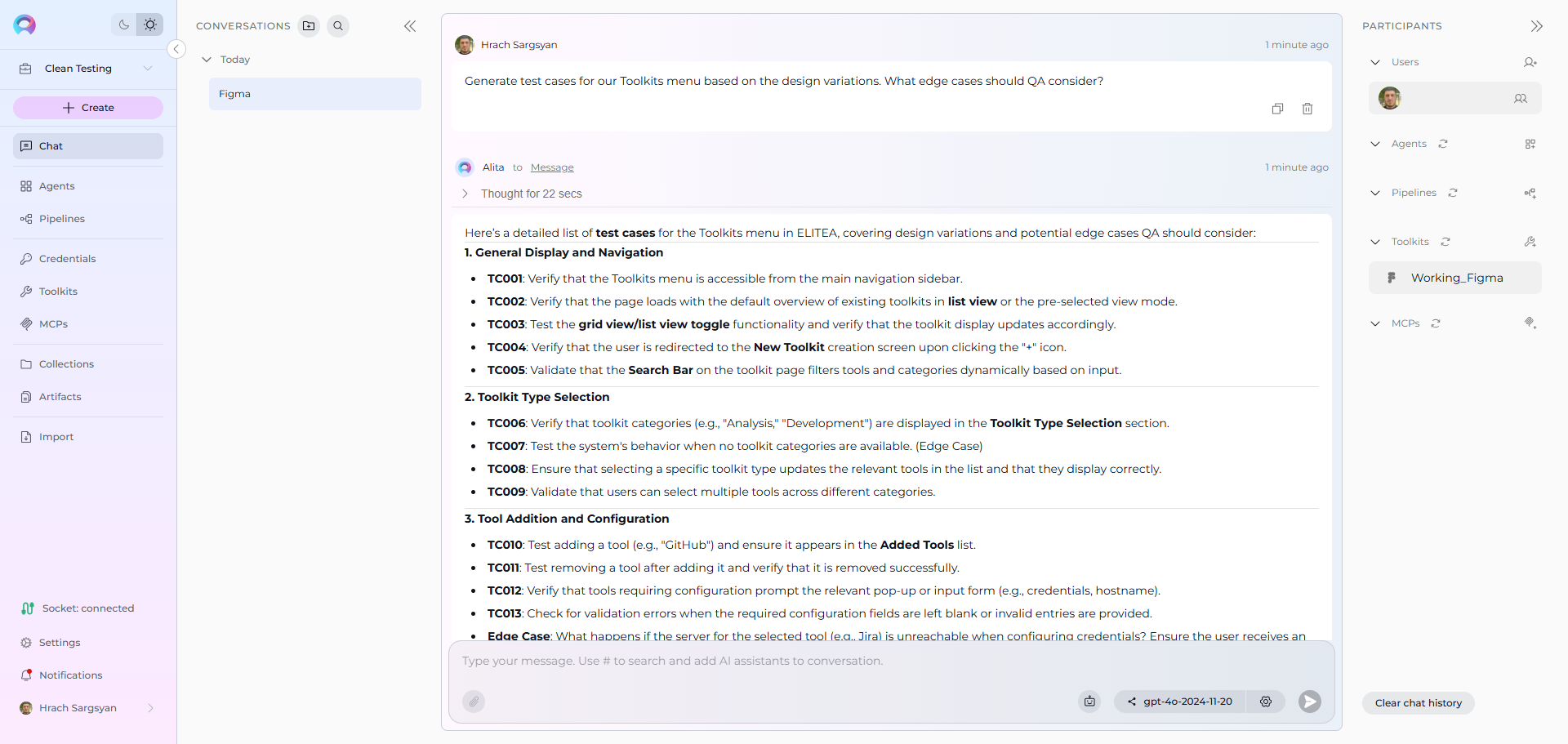

User Request: "Generate test cases for our Toolkits menu based on the design variations. What edge cases should QA consider?"
Figma Toolkit: "Based on your indexed design files, here's a detailed list of test cases for the Toolkits menu in ELITEA, covering design variations and potential edge cases QA should consider:

1. General Display and Navigation
- TC001: Verify that the Toolkits menu is accessible from the main navigation sidebar
- TC002: Verify that the page loads with the default overview of existing toolkits in list view or the pre-selected view mode
2. Toolkit Type Selection
- TC006: Verify that toolkit categories (e.g., 'Analysis,' 'Development') are displayed in the Toolkit Type Selection section
- TC007: Test the system's behavior when no toolkit categories are available (Edge Case)
3. Tool Addition and Configuration
- TC010: Test adding a tool (e.g., 'GitHub') and ensure it appears in the Added Tools list
- TC011: Test removing a tool after adding it and verify that it is removed successfully

Sources: Toolkits_Menu_Design.fig (Pages: MainView, CreationFlow), ELITEA_Navigation.fig (Frame: SidebarMenu)"

Troubleshooting & Tips¶

Common Errors and Solutions¶

"Indexes tab not visible" or "Tab disabled":

Verify PgVector and Embedding Model are configured in Settings → AI Configuration
Ensure the Index Data tool is enabled in your Figma toolkit configuration
Check that your toolkit supports indexing (Figma is supported)
Refresh the browser page and retry

"+ Create New Index button not working":

Verify all project-level prerequisites are met (PgVector and Embedding Model)
Check that you have proper permissions for the toolkit
Ensure the toolkit is properly saved with credentials

"Authentication failed" or "Unauthorized access":

Verify your Figma credential has the correct Personal Access Token (starts with figd_)
Ensure your token has not expired in your Figma account settings
Check that your Figma account has access to the projects and files you want to index
Verify the token was copied correctly without extra spaces or characters

"No files found" or "Project not accessible":

Verify the Project ID is correct and accessible to your Figma account
Ensure your account has permission to view the specific project and its files
Check that the project exists and has not been deleted or archived
Confirm your token's associated account is a member of the team that owns the project

"File keys not found" or "Invalid file keys":

Check that the file keys are copied correctly from Figma URLs (case-sensitive)
Ensure the files exist and are accessible to your account
Verify file sharing settings allow API access if using publicly shared files
Try indexing with Project ID instead of specific file keys for broader access

"Vector database connection failed" or "PgVector errors":

Ensure PgVector is properly configured in Settings → AI Configuration
Verify the vector database is running and accessible
Check connection credentials and database permissions
Restart the vector database service if connection issues persist

"No design elements indexed" or "Empty results":

Check that Node Types filters are not excluding all content
Verify the Figma files contain the specified node types (FRAME, COMPONENT, etc.)
Try indexing without node type filters first, then add restrictions
Ensure the design files have proper structure and named elements

Performance and Scope Considerations¶

For Large Design Projects:

Use specific file filters: File Keys Include for targeted indexing
Filter by node types: include only ["FRAME", "COMPONENT"] for key design elements
Set reasonable progress steps: start with 25 for large projects
Consider indexing by project phase: current designs vs. archived files

Search Result Quality¶

If search returns few/no results:

Lower the cut-off score from 0.5 to 0.35 or 0.3
Increase search_top from 10 to 20 or 30
Try rephrasing your query with design-specific terms (component names, screen types)
Verify the indexed content contains relevant design information for your query

For better search quality:

Include both frames and components for comprehensive coverage
Use natural language queries rather than exact file names
Leverage stepback search for complex design questions that require reasoning
Create separate indexes for different design types (mobile vs. web, current vs. archived)

Content-Specific Indexing Tips¶

For Design Systems:

Focus on components: include ["COMPONENT", "COMPONENT_SET"] node types
Index component libraries and design tokens for comprehensive coverage
Include both current and deprecated components for historical context

For Product Design:

Include frames and screens: ["FRAME"] for screen-level designs
Index across multiple product areas for cross-feature insights
Consider including prototyping and interaction states

For UI/UX Research:

Include wireframes and user flow designs
Index research artifacts and design explorations
Focus on user-centered design elements and patterns
