Index Jira Data¶

Availability

Indexing tools are available in the Next environment (Release 1.7.0) and replace legacy Datasources/Datasets. For context, see Release Notes 1.7.0 and the Indexing Overview.

This guide provides a complete step-by-step walkthrough for indexing Jira data and then searching or chatting with the indexed content using ELITEA's AI-powered tools.

Overview¶

Jira indexing allows you to create searchable indexes from your Jira project management content:

Issues & Stories: User stories, bugs, tasks, epics, and sub-tasks with full descriptions
Custom Fields: Project-specific fields, custom workflows, and metadata
Attachments: Screenshots, documents, test files, and other media attached to issues
Comments: Discussion threads, status updates, and collaborative input on issues
Project Data: Sprint information, priorities, assignees, and project hierarchies

What you can do with indexed Jira data:

Semantic Search: Find issues, bugs, and stories across projects using natural language queries
Context-Aware Chat: Get AI-generated answers from your project data with citations to specific issues
Cross-Project Discovery: Search across multiple Jira projects and issue types
Knowledge Extraction: Transform Jira content into searchable organizational knowledge
Project Analysis: Analyze patterns, trends, and relationships in your project management data

Common use cases:

Finding similar bugs or issues across projects for faster resolution
Onboarding new team members by allowing them to ask questions about project history and processes
Analyzing sprint retrospectives and team feedback for continuous improvement
Support and customer service teams searching for known issues and solutions
Project managers extracting insights from historical project data and decisions

Prerequisites¶

Before indexing Jira data, ensure you have:

Jira Credential: A Jira API token or authentication credentials configured in ELITEA
Vector Storage: PgVector selected in Settings → AI Configuration
Embedding Model: Selected in AI Configuration (defaults available) → AI Configuration
Jira Toolkit: Configured with your Jira instance details and credentials

Required Permissions¶

Your Jira credential needs appropriate permissions based on what you want to index:

For Content Access:

Read access to Jira projects and issues
Permission to view the specific projects you want to index

For Comprehensive Indexing:

Access to view attachments (if including attachments)
Permission to view comments and issue history
Access to both public and restricted projects (based on your requirements)

Authentication Methods:

Basic Authentication: Username and API Key
Bearer Token: Jira API token

Step-by-Step: Creating a Jira Credential¶

Generate Jira API Token in your Atlassian account (Security → API Tokens)
Create Credential in ELITEA: Navigate to Credentials → + Create → Jira → enter details and save

Detailed Instructions

For complete credential setup steps including token generation and security best practices, see:

Step-by-Step: Configure Jira Toolkit¶

Create Toolkit: Navigate to Toolkits → + Create → Jira
Configure Settings: Set base URL, hosting option (Cloud/Server), and assign your Jira credential
Enable Tools: Select Index Data, List Collections, Search Index, Stepback Search Index, Stepback Summary Index, and Remove Index tools
Save Configuration

Tool Overview:¶

Index Data: Creates searchable indexes from Jira issues and content
List Collections: Lists all available collections/indexes to verify what's been indexed
Search Index: Performs semantic search across indexed content using natural language queries
Stepback Search Index: Advanced search that breaks down complex questions into simpler parts for better results
Stepback Summary Index: Generates summaries and insights from search results across indexed content
Remove Index: Deletes existing collections/indexes when you need to clean up or start fresh

Detailed Instructions

For complete toolkit configuration including hosting options and authentication setup, see:

Step-by-Step: Index Jira Data¶

Primary Interface

All indexing operations are performed via the Indexes Tab Interface. This dedicated interface provides comprehensive index management with visual status indicators, real-time progress monitoring, and integrated search capabilities.

Requirements

Before proceeding, ensure your project has PgVector and Embedding Model configured in Settings → AI Configuration, and your Jira toolkit has the Index Data tool enabled.

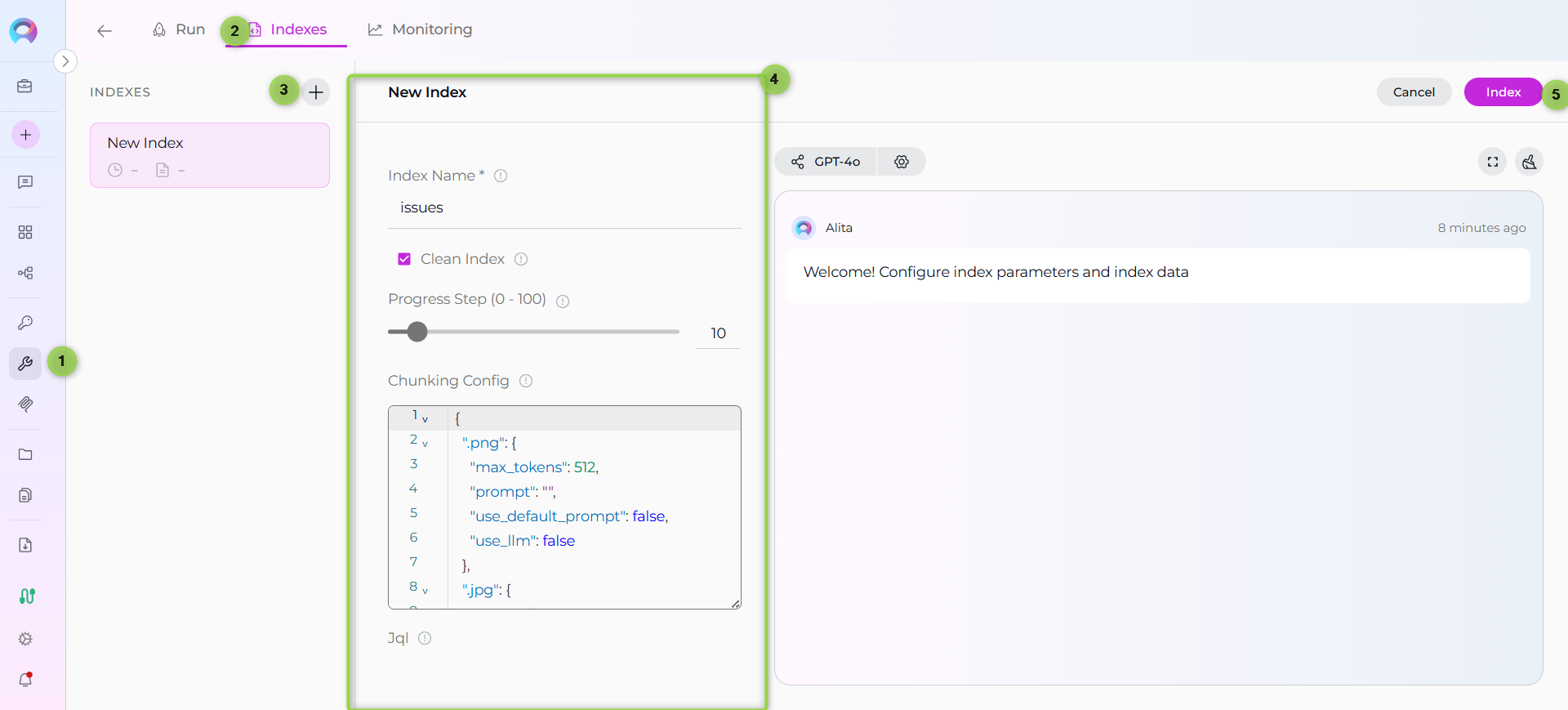

Step 1: Access the Interface¶

Navigate to Toolkits: Go to Toolkits in the main navigation
Select Your Jira Toolkit: Choose your configured Jira toolkit from the list
Open Indexes Tab: Click on the Indexes tab in the toolkit detail view

If the tab is disabled or not visible, verify that: - PgVector and Embedding Model are configured in Settings → AI Configuration - The Index Data tool is enabled in your toolkit configuration

Step 2: Create a New Index¶

Click Create New Index: In the Indexes sidebar, click the + Create New Index button
New Index Form: The center panel displays the new index creation form

Step 3: Configure Index Parameters¶

Fill in the required and optional parameters for your Jira indexing:

Parameter	Required	Description	Example Value
Index Name	✓	Suffix for collection name (max 7 chars)	`issues` or `proj`
Clean Index	✗	Remove existing index data before re-indexing	✓ (checked) or ✗ (unchecked)
Progress Step (0 - 100)	✗	Step size for progress reporting during indexing	`10` or `25`
Chunking Tool	✗	Method for splitting content into chunks	`markdown` (default) or custom
jql	✗	JQL query to filter issues	`project=PROJ AND status=Open`
fields_to_extract	✗	Additional fields to extract from issues	`["customfield_10001", "priority"]`
fields_to_index	✗	Additional fields to include in indexed content	`["reporter", "assignee"]`
include_attachments	✗	Include attachment content in indexing	✓ (checked) or ✗ (unchecked)
max_total_issues	✗	Maximum number of issues to index	`1000` (default)
skip_attachment_extensions	✗	File extensions to skip when processing attachments	`[".png", ".jpg", ".gif"]`

Step 4: Start Indexing¶

Form Validation: The Index button remains inactive until all required fields are filled
Review Configuration: Verify all parameters are correct
Click Index Button: Start the indexing process
Monitor Progress: Watch real-time updates with visual indicators:
- 🔄 In Progress: Indexing is currently running
- ✅ Completed: Indexing finished successfully
- ❌ Failed: Indexing encountered an error

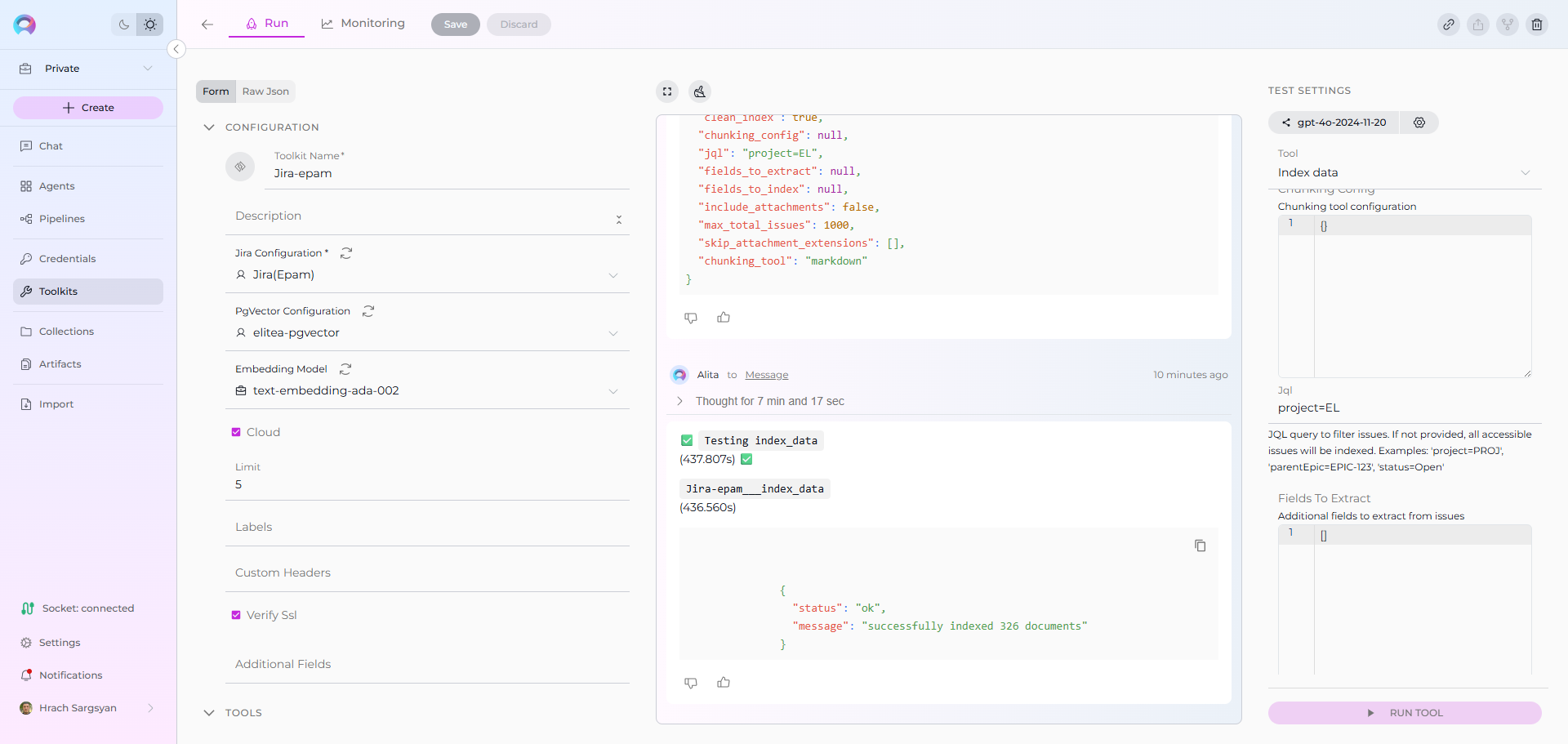

Alternative: Test Settings Method

For quick testing and validation, you can also use the Test Settings panel on the right side of the toolkit detail page. Select a model, choose the Index Data tool from the dropdown, configure parameters, and click Run Tool. However, the Indexes Tab Interface is the recommended approach for comprehensive index management.

Step 5: Verify Index Creation¶

After indexing completes, verify the index was created successfully:

Check Index Status: Visual indicators show completion status
Review Index Details: Click on the created index to see metadata and document count
Test Search: Use the Run tab to test search functionality with sample queries

Search and Chat with Indexed Data¶

Once your Jira data is indexed, you can use it in multiple ways:

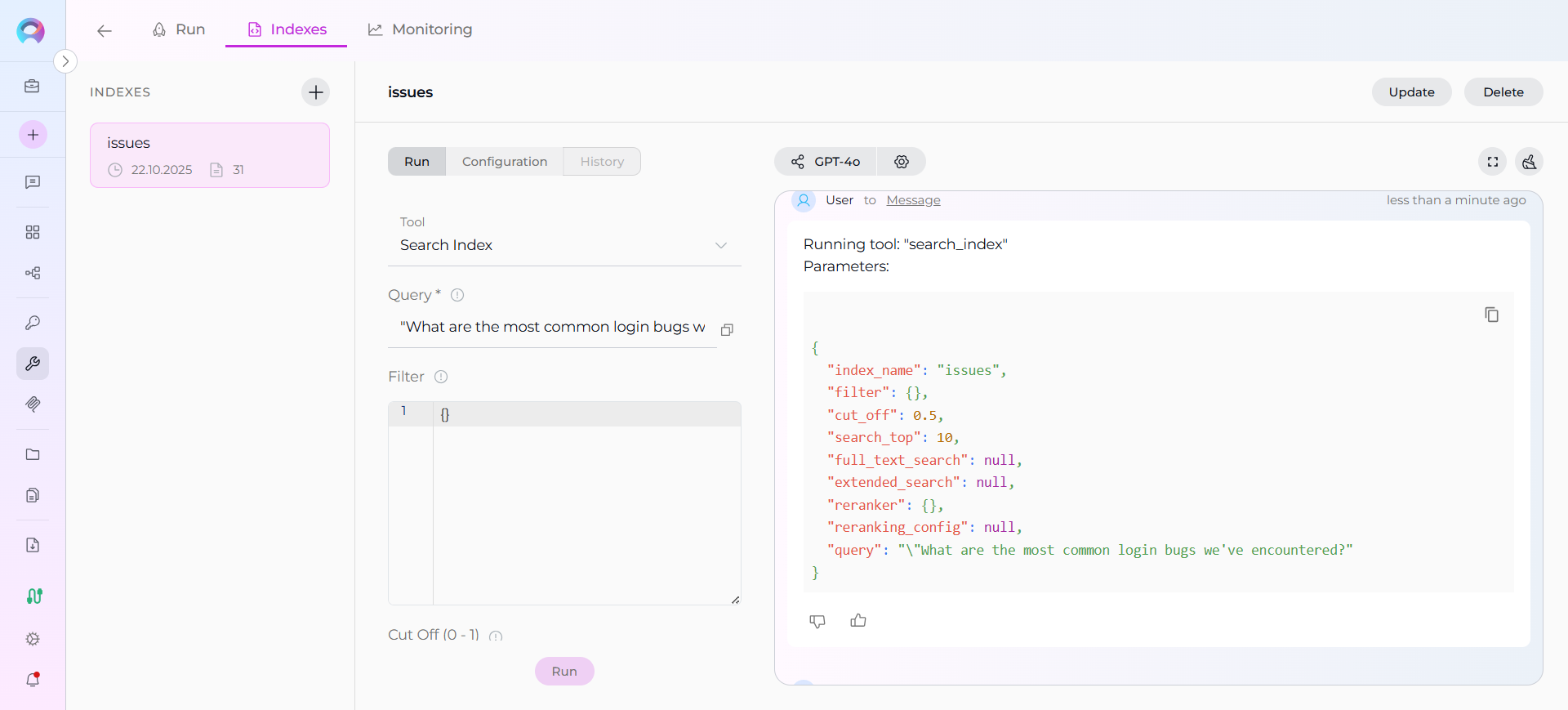

Using the Indexes Interface¶

Direct Search via Indexes Tab:

Access Indexes Tab: Navigate to your Jira toolkit → Indexes tab
Select Index: Click on your created index from the sidebar
Open Run Tab: Click the Run tab in the center panel
Choose Search Tool: Select from available search tools:
- Search Index: Basic semantic search
- Stepback Search Index: Advanced search with question breakdown
- Stepback Summary Index: Summarized insights from search results
Enter Query: Type your natural language question
View Results: See responses with citations to specific Jira issues

Using Toolkit in Conversations and Agents¶

Your Jira toolkit can be used in two main contexts:

In Conversations: Add the toolkit as a participant to ask questions and search your indexed Jira data
In Agents: Include the toolkit when creating AI agents to give them access to your Jira project data

How to use:

Start a New Conversation or Create an Agent
Add Toolkit as Participant: Select your Jira toolkit from the available toolkits
Ask Natural Language Questions: The toolkit will automatically search your indexed data and provide relevant answers with citations

Real-Life Example Workflow¶

Let's walk through a complete example of indexing and using a software project's Jira data:

Step 1: Setup Jira Toolkit for Software Project

Step 2: Use in Conversations

Add toolkit to a conversation and start asking questions:

Navigate to Conversations → + New Conversation
In the participants section click + to add Toolkit
Select your Jira toolkit from the available toolkits list

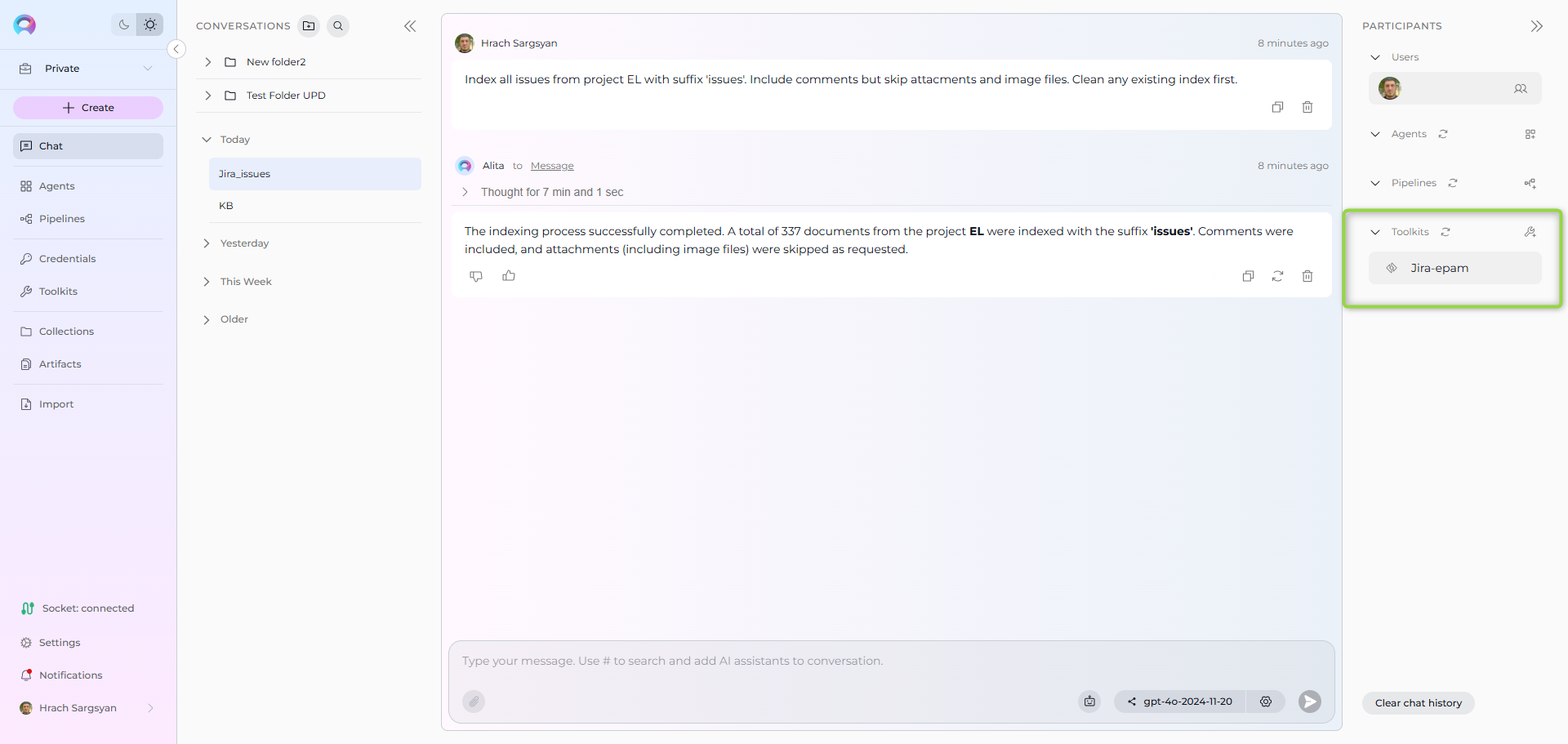

Step 3: Index the Project Issues

User Request in Chat:

"Index all issues from project EL with suffix 'issues'. Include comments but skip attachments and image files. Clean any existing index first."

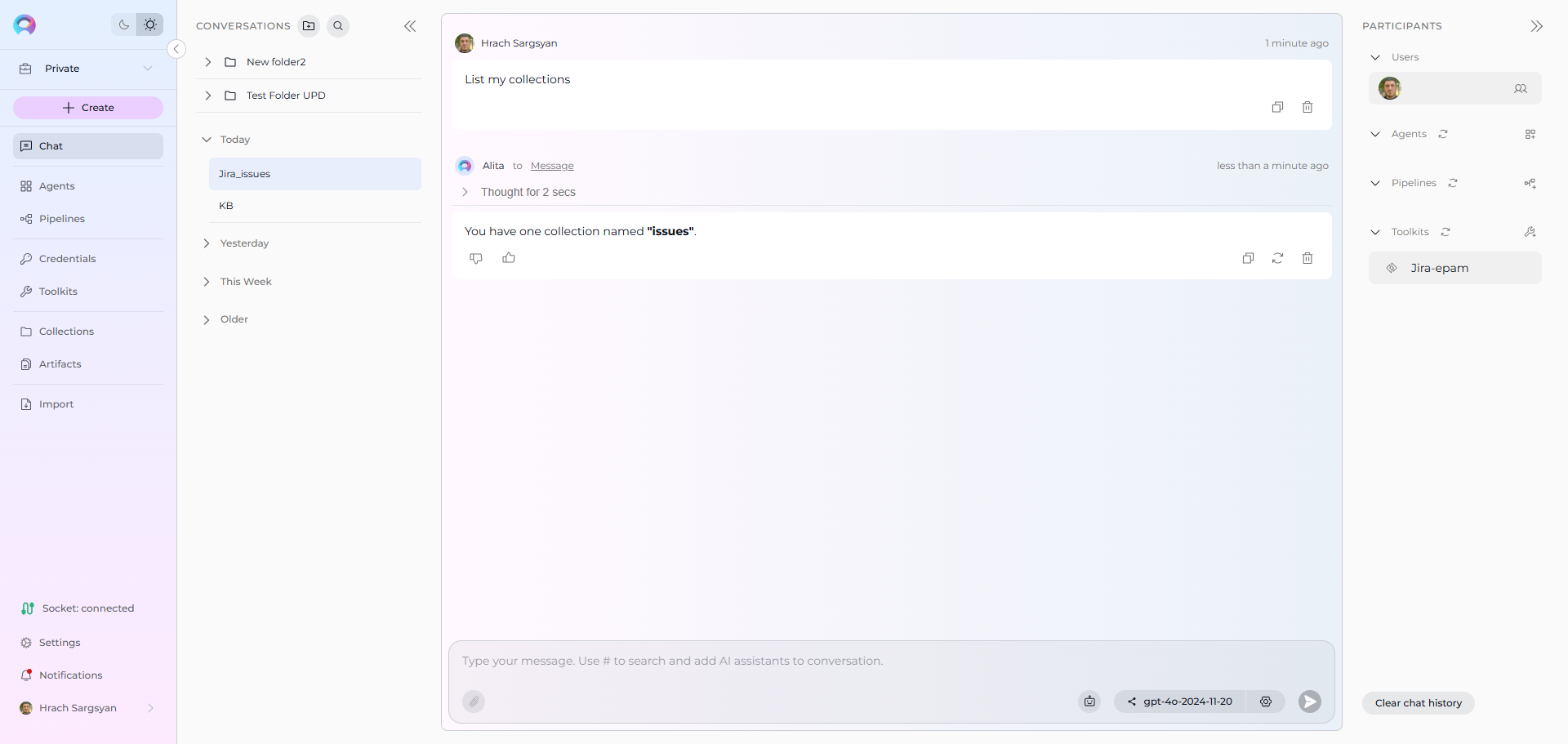

Step 4: Verify Index Creation

User Request in Chat:

"List my collections"
Jira Toolkit Response:

This confirms the indexing completed successfully and your project collection is available for searching.

Step 5: Start the conversation and begin asking questions about your indexed content

User: "What are the most common login bugs we've encountered?"
Jira Toolkit: "Based on your indexed project data, here are the most common login bugs:
1. Session Timeout Issues: Multiple reports of users being logged out unexpectedly (EL-234, EL-287, EL-301)
2. Password Reset Failures: Email delivery issues preventing password resets (EL-156, EL-189)
3. Two-Factor Authentication Problems: Users unable to complete 2FA setup (CALC-EL, CALC-EL)

Sources: CALC-234 (Priority: High), CALC-287 (Status: Resolved), CALC-301 (Assignee: john.doe)"

User: "Retrieve from my collection tests related to profile setup"
Jira Toolkit: "Here are the tests related to profile setup from your indexed data:

Test Cases Found: 1. User Profile Creation Test: Verify new user can create complete profile (CALC-445) 2. Profile Validation Test: Test profile field validation and error handling (CALC-446) 3. Profile Picture Upload Test: Test image upload functionality in user profiles (CALC-447)

Setup Requirements: 1. Test user accounts with different permission levels 2. Valid and invalid profile data sets 3. Image files for upload testing (various formats and sizes)

Sources: CALC-445 (Test: Profile Creation), CALC-446 (Test: Validation), CALC-447 (Test: Image Upload)"

Troubleshooting & Tips¶

Common Errors and Solutions¶

"Indexes tab not visible" or "Tab disabled":

Verify PgVector and Embedding Model are configured in Settings → AI Configuration
Ensure the Index Data tool is enabled in your Jira toolkit configuration
Check that your toolkit supports indexing (Jira is supported)
Refresh the browser page and retry

"+ Create New Index button not working":

Verify all project-level prerequisites are met (PgVector and Embedding Model)
Check that you have proper permissions for the toolkit
Ensure the toolkit is properly saved with credentials

"Authentication failed" or "Unauthorized access":

Verify your Jira credential has the correct API token
Ensure your token has appropriate permissions for the projects you want to index
Check that your token hasn't expired in your Atlassian account settings

"JQL query syntax error":

Verify your JQL syntax is correct using Jira's query builder
Common examples: project=PROJ, status IN (Open, Resolved), updated >= -4w
Test your JQL query directly in Jira before using it for indexing

"No issues indexed" or "Empty result set":

Check your JQL filter isn't too restrictive
Verify the project key is correct and case-sensitive
Try indexing without JQL filter first, then add restrictions
Ensure your account has permission to view the specified projects

"Vector database connection failed" or "PgVector errors":

Ensure PgVector is properly configured in Settings → AI Configuration
Verify the vector database is running and accessible
Check connection credentials and database permissions
Restart the vector database service if connection issues persist

"Attachment processing errors":

Large attachments may cause timeouts; consider using Skip Attachment Extensions
Binary files (executables, videos) should be excluded via Skip Attachment Extensions
Check available storage space for the vector database

Performance and Scope Considerations¶

For Large Jira Projects:

Use specific JQL filters: project=PROJ AND updated >= -12w (last 12 weeks)
Filter by issue type: project=PROJ AND issuetype IN (Bug, Story)
Set reasonable Max Total Issues limits: start with 500-1000 issues for testing
Consider indexing by project phases: current sprint, recent releases, archived items

Search Result Quality¶

If search returns few/no results:

Lower the cut-off score from 0.5 to 0.35 or 0.3
Increase search_top from 10 to 20 or 30
Try rephrasing your query with Jira-specific terms (issue keys, component names)
Verify the indexed content contains relevant information for your query

For better search quality:

Include both issue descriptions and attachments for comprehensive coverage
Use natural language queries rather than exact Jira field names
Leverage stepback search for complex project questions that require reasoning
Create separate indexes for different project types (development vs support, current vs archived)

Content-Specific Indexing Tips¶

For Software Development Projects:

Focus on bugs and stories: issuetype IN (Bug, Story, Task)
Include recent issues: updated >= -13w (last quarter)
Index both current and resolved issues for historical context

For Support and Helpdesk:

Include all issue types for comprehensive ticket history
Focus on resolved issues with solutions: status=Resolved AND resolution!=Duplicate
Consider including comments as they often contain valuable troubleshooting steps

For Project Management:

Include epics and high-level planning issues: issuetype IN (Epic, Initiative)
Index across multiple projects for portfolio-level insights
Include both active and completed projects for lessons learned
