Index TestRail Data

Availability

Indexing tools are available in the Next environment (Release 1.7.0) and replace legacy Datasources/Datasets. For context, see Release Notes 1.7.0 and the Indexing Overview.

Overview

TestRail indexing allows you to create searchable indexes from your TestRail test management content:

  • Test Cases: Detailed test procedures, steps, expected results, and custom fields
  • Test Projects: Project structures, test suites, and section organization
  • Test Metadata: Test priorities, types, automation status, and custom properties
  • Attachments: Screenshots, test files, documentation, and media attached to test cases
  • Test History: Test execution results, comments, and version tracking

What you can do with indexed TestRail data:

  • Semantic Search: Find test cases and procedures across projects using natural language queries
  • Context-Aware Chat: Get AI-generated answers from your test documentation with citations to specific test cases
  • Cross-Project Discovery: Search across multiple TestRail projects and test suites
  • Test Analysis: Analyze testing patterns, coverage, and procedures for quality improvement
  • Knowledge Extraction: Transform test documentation into searchable organizational knowledge

Common use cases:

  • Finding similar test cases across projects to avoid duplication and ensure consistency
  • Onboarding new QA team members by allowing them to ask questions about testing procedures and standards
  • Analyzing test coverage gaps and identifying areas needing additional test cases
  • Support teams searching for existing test procedures when investigating issues
  • Test managers extracting insights from test documentation for reporting and process improvement

Prerequisites

Before indexing TestRail data, ensure you have:

  1. TestRail Credential: A TestRail API key with authentication credentials configured in ELITEA
  2. Vector Storage: PgVector selected in Settings → AI Configuration
  3. Embedding Model: Selected in AI Configuration (defaults available) → AI Configuration
  4. TestRail Toolkit: Configured with your TestRail instance details and credentials

Required Permissions

Your TestRail credential needs appropriate permissions based on what you want to index:

For Content Access:

  • Read access to TestRail projects and test cases
  • Permission to view the specific projects you want to index

For Comprehensive Indexing:

  • Access to view test case attachments (if including attachments)
  • Permission to view test case history and metadata
  • Access to both active and archived projects (based on your requirements)

Authentication Method:

  • TestRail API Key: Email address and API key generated in TestRail

Step-by-Step: Creating a TestRail Credential

  1. Generate TestRail API Key in your TestRail account (My Settings → API Keys → Add Key)
  2. Create Credential in ELITEA: Navigate to Credentials → + Create → TestRail → enter details and save

Detailed Instructions

For complete credential setup steps including API key generation and security best practices, see:

Step-by-Step: Configure TestRail Toolkit

  1. Create Toolkit: Navigate to Toolkits → + Create → TestRail
  2. Configure Settings: Set TestRail instance URL and assign your TestRail credential
  3. Enable Tools: Select Index Data, List Collections, Search Index, Stepback Search Index, Stepback Summary Index, and Remove Index tools
  4. Save Configuration

Tool Overview:

  • Index Data: Creates searchable indexes from TestRail test cases and documentation
  • List Collections: Lists all available collections/indexes to verify what's been indexed
  • Search Index: Performs semantic search across indexed content using natural language queries
  • Stepback Search Index: Advanced search that breaks down complex questions into simpler parts for better results
  • Stepback Summary Index: Generates summaries and insights from search results across indexed content
  • Remove Index: Deletes existing collections/indexes when you need to clean up or start fresh

Configuration Settings:

Setting Description Example Value
URL TestRail instance URL https://yourcompany.testrail.io/
Email TestRail account email address test.manager@company.com
Password/API Key TestRail API key for authentication Select from Secrets or enter directly

TestRail URL Format

Use the complete TestRail instance URL including https:// and your subdomain (e.g., https://yourcompany.testrail.io/).

Detailed Instructions

For complete toolkit configuration including URL setup and authentication options, see:

Step-by-Step: Index TestRail Data

Test Case Indexing (from Toolkit)

  1. Open Toolkit Test Settings:

    • Navigate to your TestRail toolkit's detail page
    • In the Test Settings panel (right side), select a model (e.g., gpt-4o)

  2. Configure Index Data Tool:

    • From the tool dropdown, select "Index Data"
    • Configure the following parameters:
    Parameter Description Example Value
    Project ID * TestRail project ID to index data from (required) 1 or 5
    Collection Suffix * Suffix for collection name (max 7 chars) cases or qa
    Progress Step Step size for progress reporting during indexing 10 (default)
    Clean Index Remove existing index data before re-indexing ✓ (checked) or ✗ (unchecked)
    Suite ID Optional TestRail suite ID to filter test cases 3 or leave empty
    Section ID Optional section ID to filter test cases 15 or leave empty
    Include Attachments Whether to include attachment content in indexing ✓ (checked) or ✗ (unchecked)
    Skip Attachment Extensions File extensions to skip when processing attachments [".png", ".jpg"]
    Chunking Tool Method for splitting content into chunks json (default)
    Chunking Config Configuration settings for content chunking {"chunk_size": 4000, "chunk_overlap": 200}

  3. Run TestRail Indexing:

    • Click "Run Tool"
    • Wait for completion (may take several minutes for large test suites)
    • Check the output for success confirmation or error messages

Real-Life Example: Indexing QA Test Documentation

Scenario: You have a QA team with comprehensive test documentation in TestRail for an e-commerce web application. You want to make all test cases, procedures, and testing knowledge searchable for team collaboration and knowledge sharing.

Indexing Steps:

  1. Configure TestRail Toolkit:

    • URL: https://yourcompany.testrail.io/
    • Email: qa.manager@yourcompany.com
    • API Key: Generated from TestRail → My Settings → API Keys

  2. Index Complete E-commerce Project:

    • Project ID: 1
    • Collection suffix: ecom
    • Progress Step: 5 (report every 5 test cases)
    • Clean Index: ✓ (for fresh start)
    • Include Attachments: ✓ (for test screenshots and documentation)
    • Skip Attachment Extensions: [".jpg"]
    • Chunking Tool: json
    • Chunking Config: Default

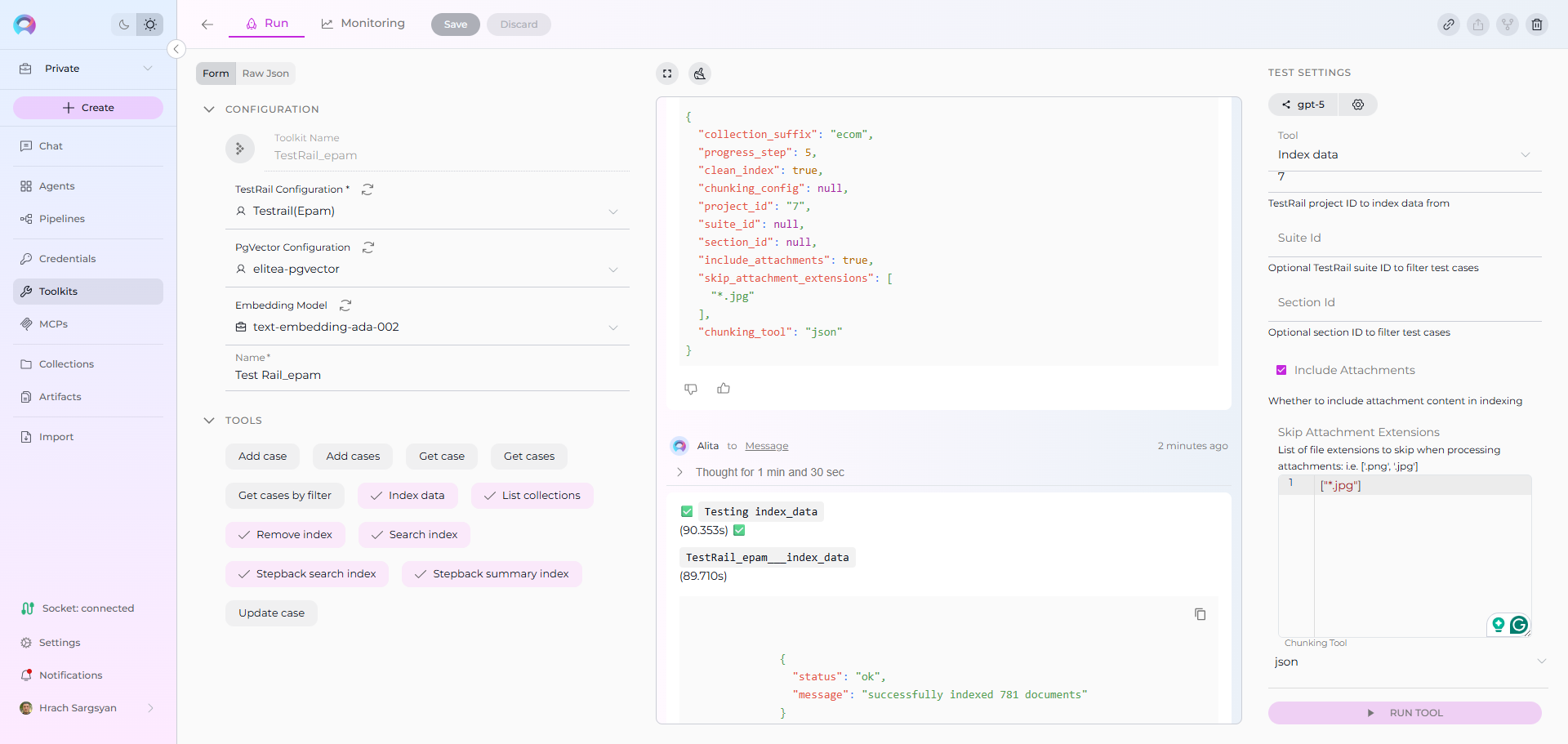

TestRail Index Configuration

  1. Index Specific Test Suite (Optional):

    • Project ID: 1
    • Suite ID: 10 (only User Authentication Tests)
    • Collection suffix: auth
    • Include Attachments: ✗ (authentication tests rarely have attachments)

  2. Index Specific Section (Optional):

    • Project ID: 1
    • Suite ID: 20
    • Section ID: 203 (only Checkout Process tests)
    • Collection suffix: checkout
    • Include Attachments: ✓ (checkout tests often have payment screenshots)

  3. Verify indexing:

    • Use "List Collections" tool to confirm collections exist
    • Expected collections: ecom, auth, checkout
    • Check indexing output for test case processing confirmation

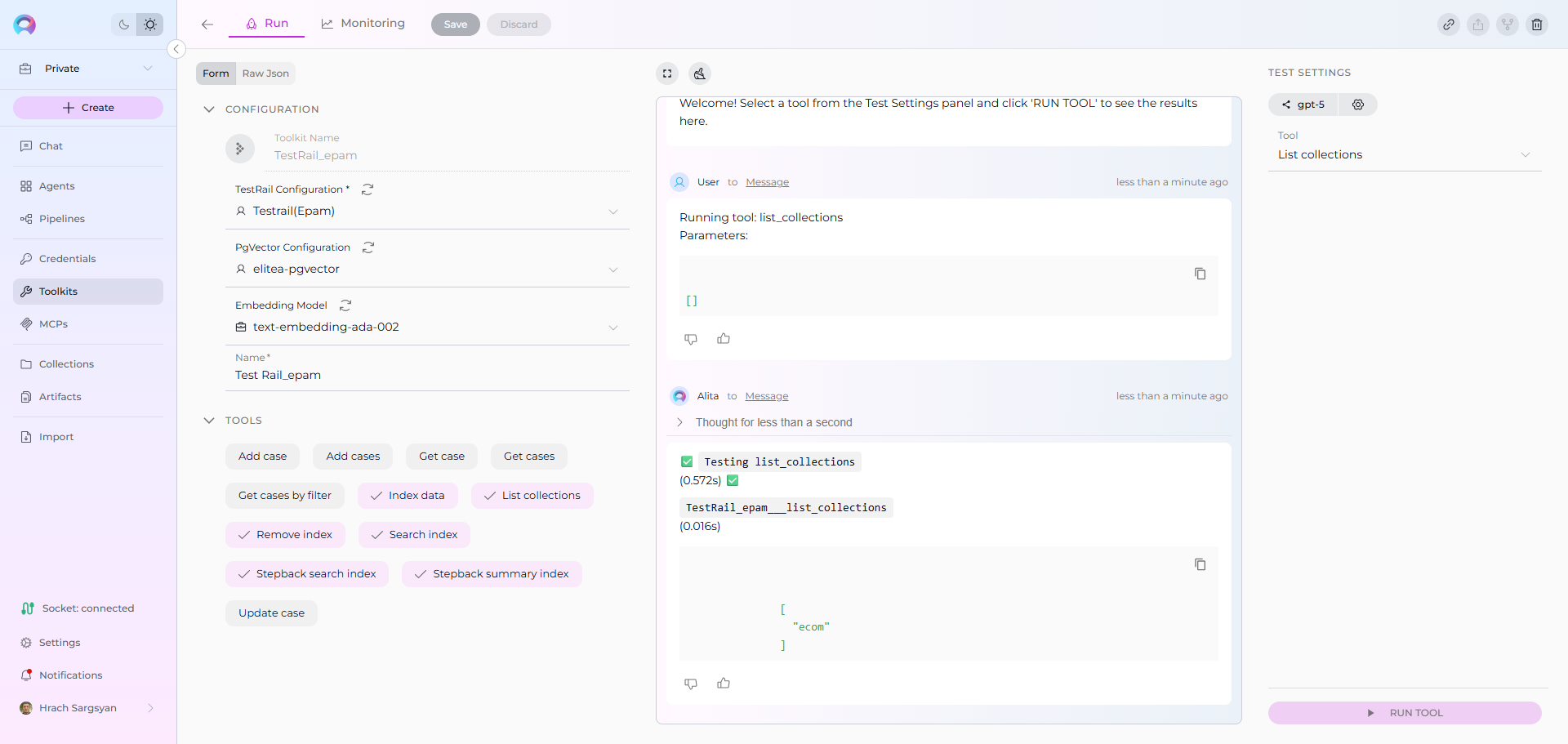

    TestRail List Collections

After indexing, you can search for:

  • Authentication queries: "Find all test cases for user login functionality"
  • Feature-specific tests: "What are the steps to test the shopping cart feature?"
  • Cross-functional testing: "Show me test cases that verify payment processing"
  • Performance analysis: "What performance tests exist for the checkout process?"
  • Test coverage gaps: "Are there tests for guest checkout without registration?"

Search and Chat with Indexed Data

Once your TestRail data is indexed, you can use the toolkit to search and interact with your test documentation in multiple ways:

Using Toolkit in Conversations and Agents

Your TestRail toolkit can be used in two main contexts:

  1. In Conversations: Add the toolkit as a participant to ask questions and search your indexed TestRail data
  2. In Agents: Include the toolkit when creating AI agents to give them access to your test documentation

How to use:

  • Start a New Conversation or Create an Agent
  • Add Toolkit as Participant: Select your TestRail toolkit from the available toolkits
  • Ask Natural Language Questions: The toolkit will automatically search your indexed data and provide relevant answers with citations

Using Indexed TestRail Data in Conversations

Let's walk through a complete example of querying indexed test documentation:

Step 1: Add toolkit to a conversation and start asking questions:

  • Navigate to Chat → + Create
  • In the participants section click + to add Toolkit
  • Select your TestRail toolkit from the available toolkits list

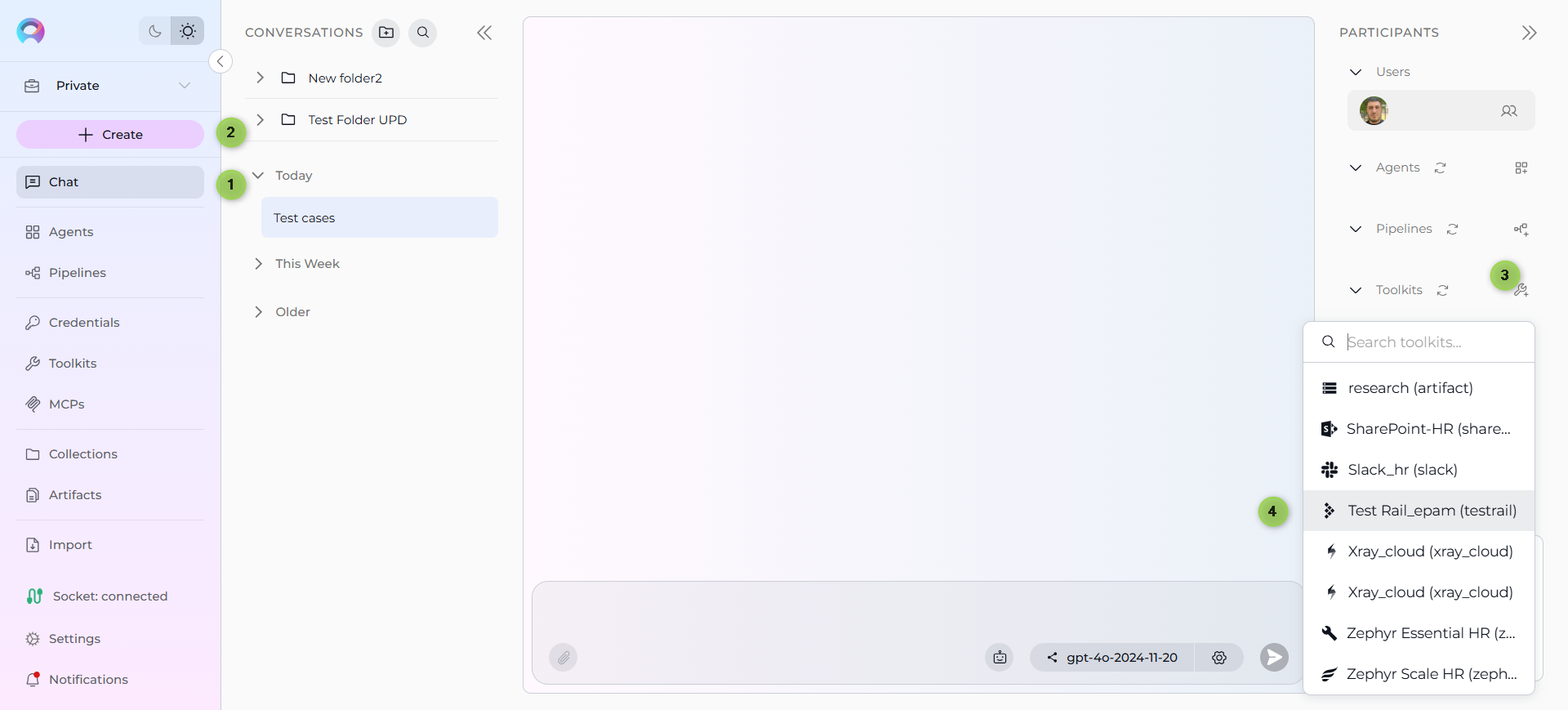

TestRail Add to Chat

Step 2: Start comprehensive analysis with your indexed test documentation

  • User Request: "Find all test cases that verify user authentication and provide a summary of the testing approach for login functionality from the collection."

  • TestRail Toolkit: "Based on your indexed test cases, here's a comprehensive summary of user authentication testing:

    User Authentication Test Cases Found:

    1. TC-4825: Valid User Login: Verifies successful login with correct credentials
    2. TC-7213: Invalid Password Handling: Tests error messages for incorrect passwords
    3. TC-003: Account Lockout Protection: Validates account security after multiple failed attempts
    4. TC-004: Two-Factor Authentication: Tests 2FA implementation and verification process
    5. TC-012: Session Timeout: Verifies automatic logout after inactivity period

    Testing Approach Summary:

    Positive Testing:

    • Valid credential combinations across different user roles
    • Successful authentication flow validation
    • Session management and persistence testing

    Negative Testing:

    • Invalid credential handling and error messaging
    • Security boundary testing (brute force protection)
    • Edge cases for special characters and input validation

    Security Testing:

    • Password encryption verification
    • Session token security validation
    • Multi-factor authentication workflows

Sources: TC-4285 (Project: Web Application Testing), TC-7213 (Suite: User Authentication Tests), TC-003, TC-004, TC-012"

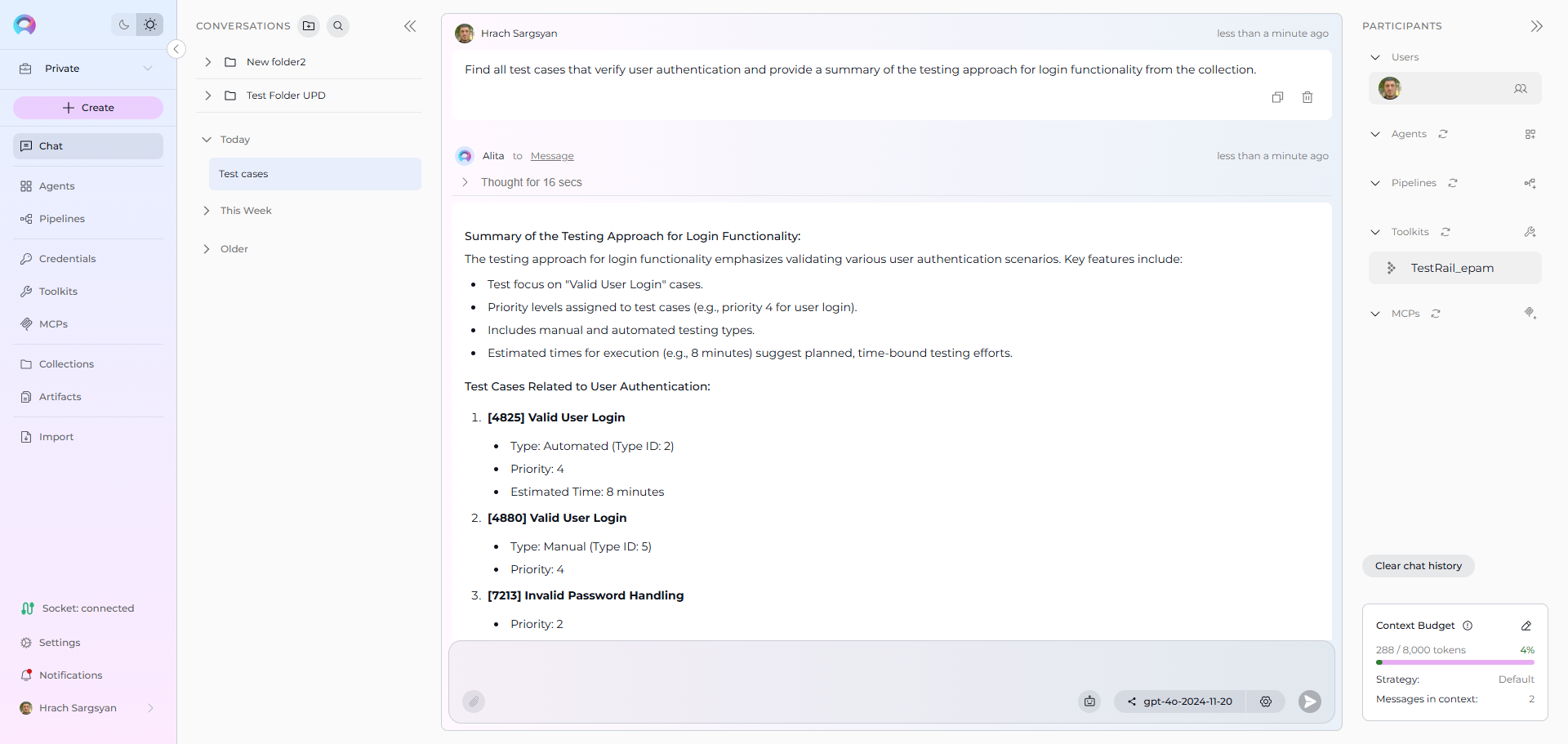

TestRail Authentication Search

  • User Request: "Generate a test execution checklist for our app release based on the indexed test cases. Include critical paths and regression testing areas."

  • TestRail Toolkit: "Based on your indexed mobile app test documentation, here's a comprehensive test execution checklist for release validation:

MOBILE APP RELEASE TEST CHECKLIST

**Critical Path Testing (Must Pass):**

  - Document Formatting:
  - UI and Layout Verification
  - Payment Processing & Transaction Handling
  - Data Synchronization (Online/Offline)
  - Reading and Viewing Modes
  - App Store Compliance & Guidelines

Regression Testing Areas:

**Functionality Regression:**

  - User profile management and settings
  - Search and filtering capabilities
  - Social sharing and integration features
  - In-app purchases and subscription management

**Platform-Specific Testing:**

  - iOS: Touch ID/Face ID authentication
  - Android: Background app behavior and permissions
  - Cross-platform: UI consistency and responsive design

**Performance & Stability:**

  - App launch time and memory usage
  - Battery consumption during extended use
  - Network connectivity handling (WiFi/Cellular/Offline)
  - Device compatibility across OS versions

**Security & Privacy:**

  - Data encryption and secure storage
  - API security and authentication tokens
  - User consent and privacy settings
  - Biometric authentication security

Sources: Mobile Test Suite (15 test cases), Performance Tests (8 test cases), Security Tests (6 test cases)"

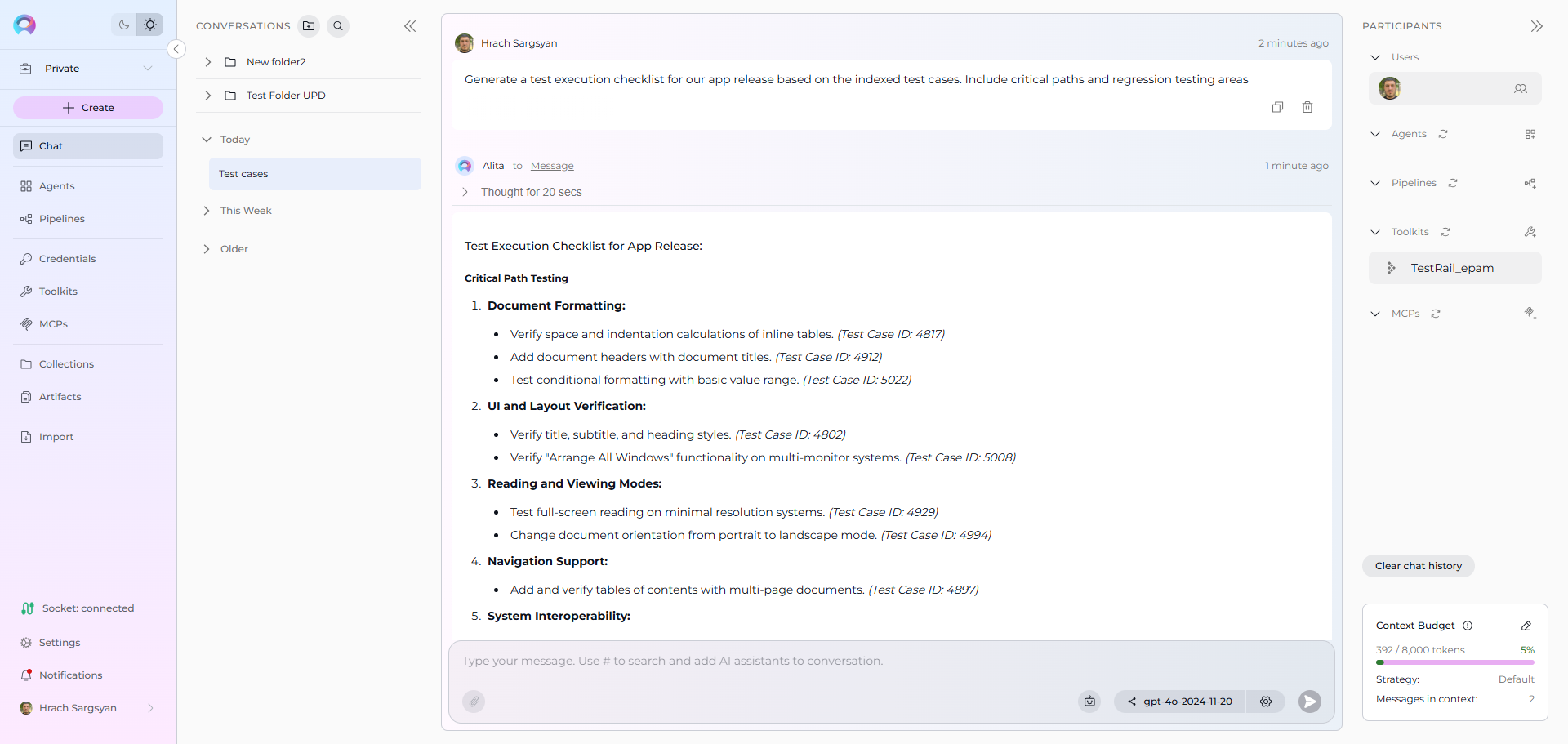

TestRail Checklist Analysis

Best Practices

Test Documentation Organization

  • Use descriptive project names that reflect the application or feature being tested
  • Organize test cases by functionality for better search results and coverage analysis
  • Include clear test steps and expected results to improve indexing quality and searchability

Indexing Strategy

  • Use clear collection suffixes to separate different test projects (e.g., web, mobile, api)
  • Clean index periodically when test documentation changes significantly
  • Include attachments when test cases contain important screenshots or documentation files

Search Optimization

  • Use natural language queries rather than specific test case IDs
  • Be specific about testing areas for better results (e.g., "authentication tests" vs "login")
  • Try different search tools for various use cases:
    • Basic questions: Search Index
    • Complex analysis: Stepback Search Index
    • Test planning: Stepback Summary Index

Content Management

  • Update indexes when adding significant new test cases or projects
  • Remove outdated collections using the Remove Index tool
  • Maintain test case organization in TestRail for better indexing results

Common Issues and Troubleshooting

No Test Cases Found During Indexing

Problem: Index Data tool reports no test cases to process

Solutions:

  • Verify Project ID is correct and exists in your TestRail instance
  • Check that your API key has read permissions for the specified project
  • Confirm the project contains test cases and is not empty

Authentication Errors

Problem: "Unauthorized" or "Access Denied" errors during indexing

Solutions:

  • Verify your TestRail URL format includes https:// and correct subdomain
  • Check that your API key is valid and has not been revoked
  • Ensure your TestRail account has appropriate permissions for the target project

Poor Search Results

Problem: Search queries return irrelevant or no results

Solutions:

  • Try more specific, detailed search queries related to testing terminology
  • Adjust the Cut Off score (lower for more results, higher for precision)
  • Use Stepback Search Index for complex testing questions
  • Verify the Collection Suffix targets the right dataset

Indexing Fails for Specific Test Cases

Problem: Some test cases fail to process during indexing

Solutions:

  • Check if test cases have corrupt attachments or unsupported file formats
  • Verify Suite ID and Section ID are valid if using filters
  • Review indexing output for specific error messages
  • Try indexing without attachment inclusion first, then add attachments

Collection Not Found

Problem: Search tools can't find the specified collection

Solutions:

  • Use List Collections tool to see available collections
  • Verify collection suffix matches what was used during indexing
  • Confirm indexing completed successfully
  • Check for typos in collection suffix

Related Documentation

For additional information and detailed setup instructions, see:
