Using the Indexes Tab Interface¶

Overview¶

The Indexes Tab is a dedicated interface within Toolkit Configuration that provides a centralized location for managing all indexing operations for supported toolkits. It offers an intuitive three-panel layout:

Indexes Sidebar (left): Displays all created indexes with real-time status indicators and metadata
Index Management Panel (center): Provides detailed controls across three tabs (Run, Configuration, History)
Chat Panel (right): Displays search results and indexing progress in a conversational interface

Key Features:

Visual Status Indicators: Real-time identification of index states (in-progress, completed, failed, stopped)
Three Management Tabs:
- Run: Execute search tools and index updates
- Configuration: View read-only index settings

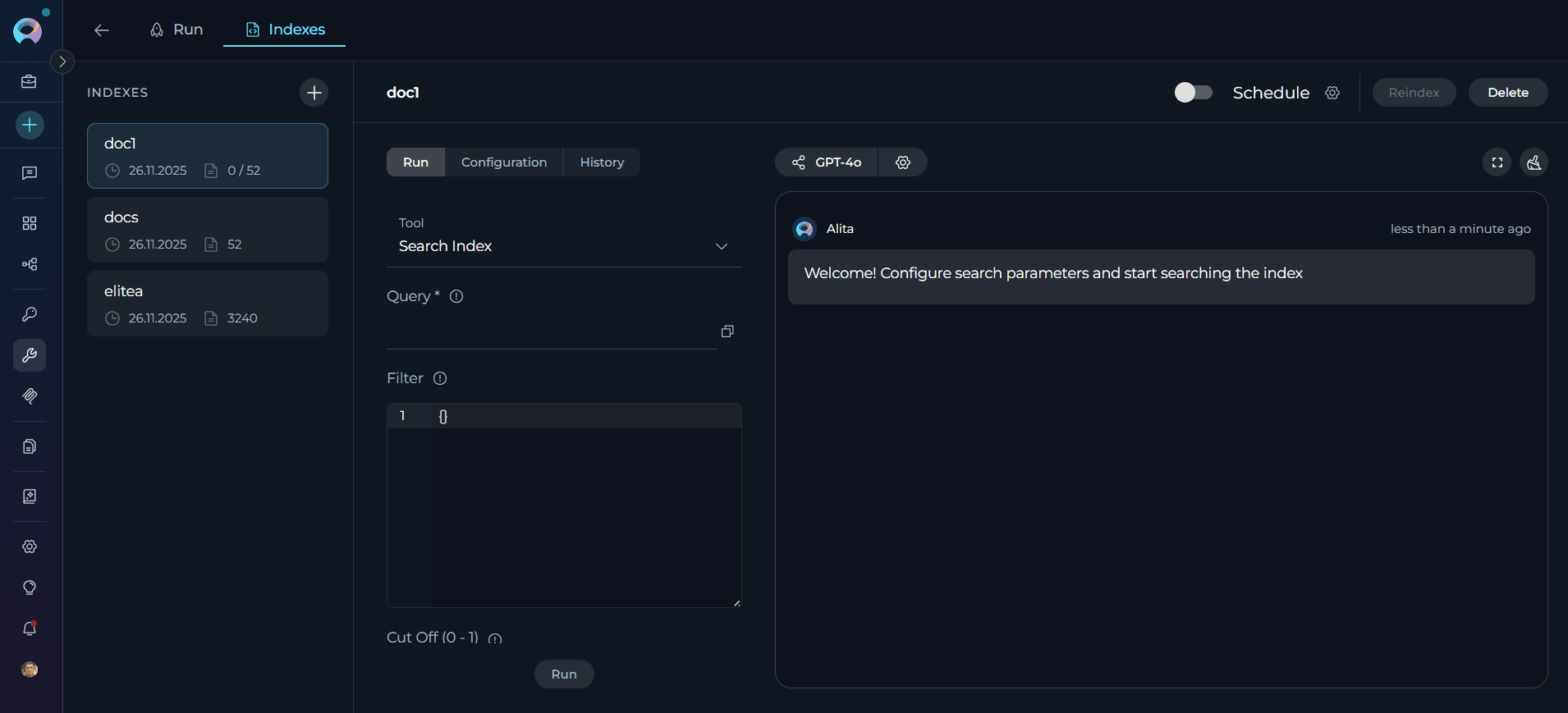

- History: Review all past indexing operations
Real-time Progress Monitoring: Live updates during index creation and updates with conversation recovery
Automated Scheduling: Configure periodic reindexing using cron expressions for hands-free maintenance
Multiple Search Tools: Access to Search Index, Stepback Search Index, and Stepback Summary Index

Prerequisites¶

Before using the Indexes Tab interface, ensure the following requirements are met:

Project-Level Configuration¶

PgVector Configuration: Vector storage must be configured at the project level
- Navigate to Settings → AI Configuration
- Configure PgVector connection settings
- Verify connection is active
Embedding Model Configuration: An embedding model must be selected
- Navigate to Settings → AI Configuration
- Select and configure an embedding model
- Test model availability

Access Control

The Indexes tab is automatically disabled if PgVector and Embedding Model are not properly configured at the project level. You must complete the project-level setup before the tab becomes available.

Toolkit Configuration¶

Supported Toolkit: Ensure you're working with a toolkit that supports indexing:

Category	Supported Toolkits
Repos	ADO Repos, Bitbucket, GitLab, GitHub,
Wikis	ADO Wiki, Confluence, SharePoint
Issues	ADO Boards, ADO Plans, Jira
Files	Artifact, SharePoint
Designs	Figma
Tests	TestRail, Xray Cloud, Zephyr Enterprise, Zephyr Essential, Zephyr Scale

Toolkit Tools: Enable indexing tools in your toolkit configuration:

Tool	Status	Description
Index Data	Required	For creating indexes
Search Index	Required	For search functionality
Stepback Search Index	Optional	For advanced search
Stepback Summary Index	Optional	For summarized search results
List Collections	Optional	For viewing available indexes
Remove Index	Optional	For index cleanup

Indexing Tab Availability

The Indexes tab is automatically disabled if the Index Data tool is not enabled in your toolkit configuration. You must enable the Index Data tool before the Indexes tab becomes available.

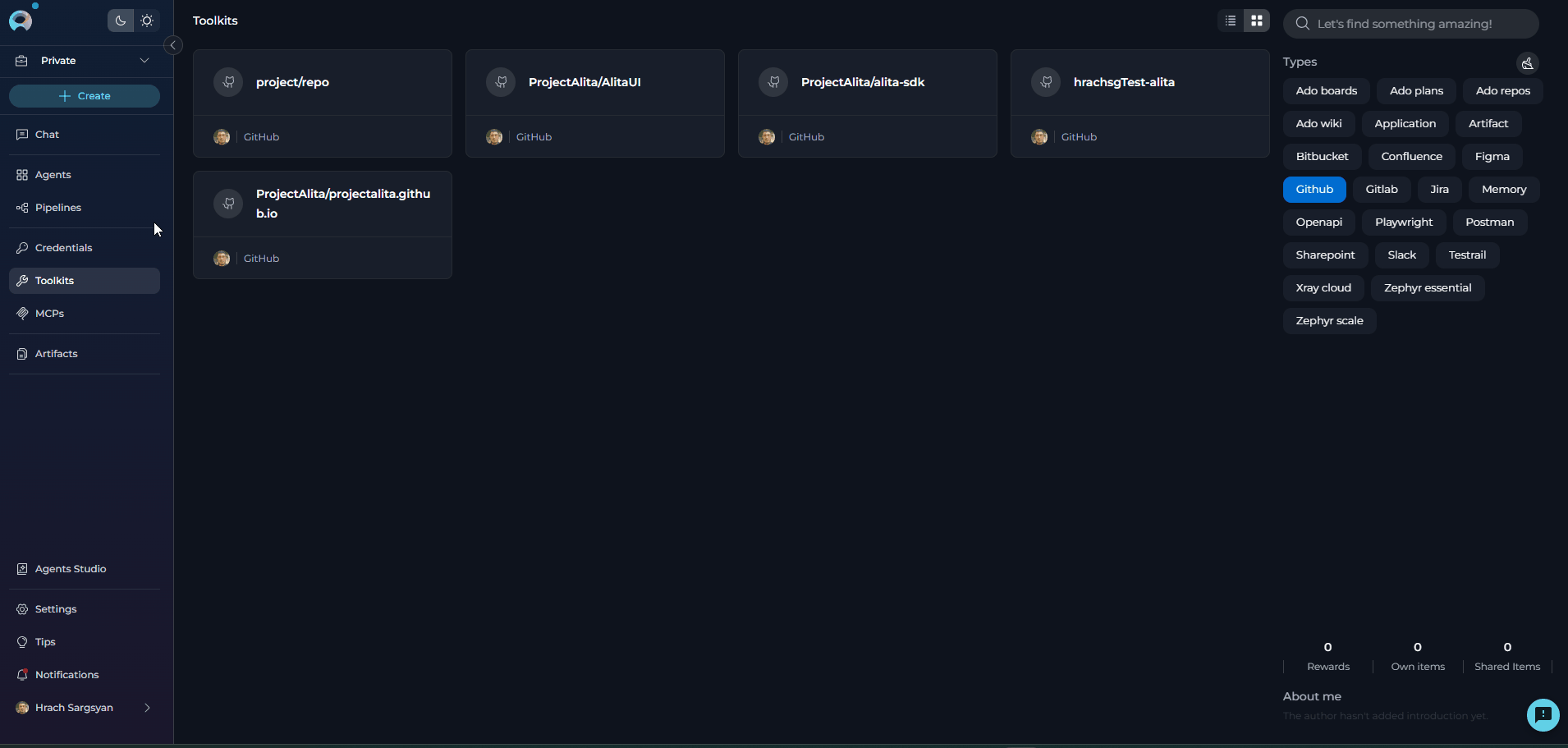

Accessing the Indexes Tab¶

Navigate to Toolkits: Go to Toolkits in the main navigation
Select Toolkit: Choose a toolkit that supports indexing from your list(e.g., Github)
Open Indexes Tab: Click on the Indexes tab in the toolkit detail view

If the Indexes tab is disabled or not visible, verify that your project-level prerequisites are properly configured.

¶

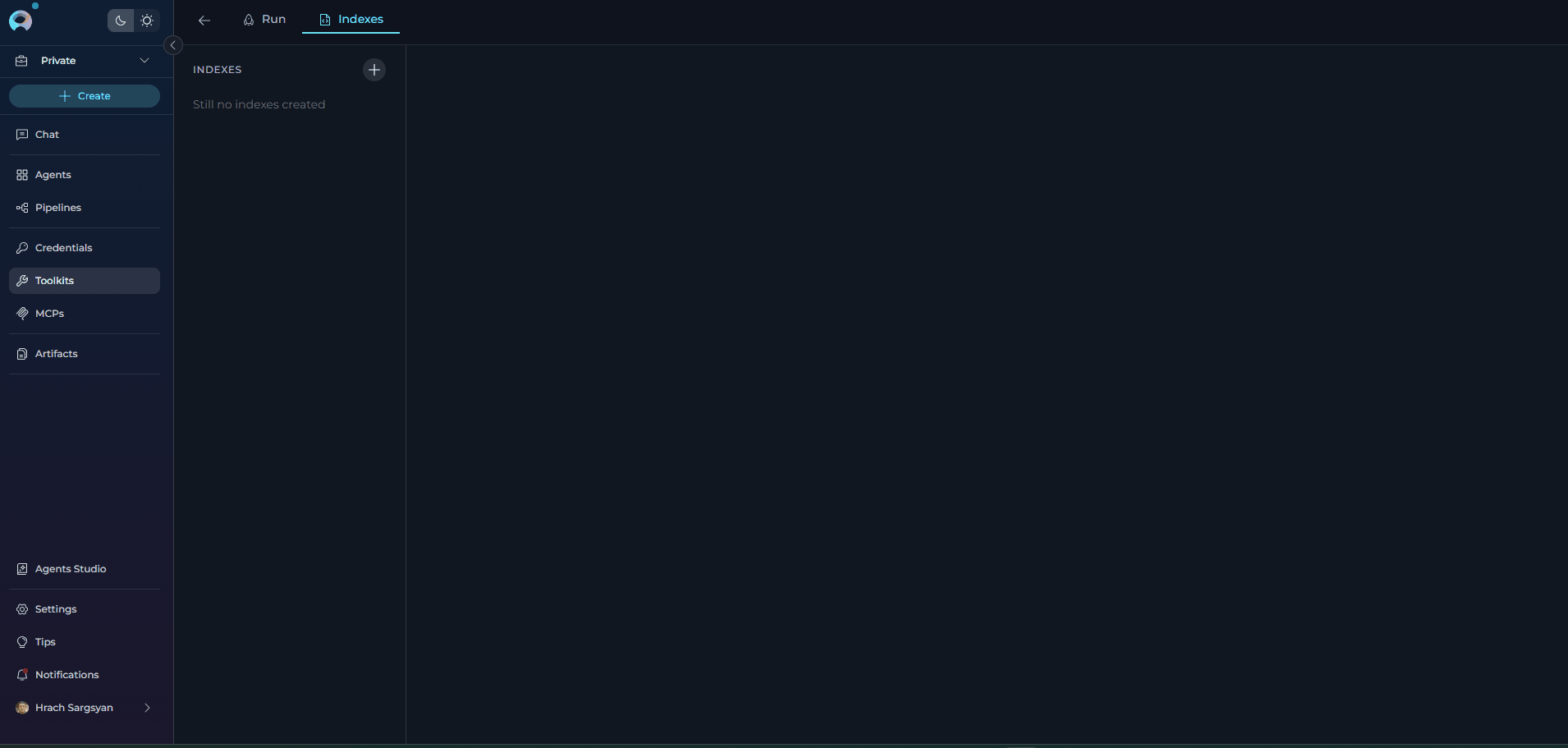

Creating a New Index¶

Step 1: Initiate Index Creation¶

Click the + Icon: In the Indexes sidebar, click the + Create New Index button
New Index Form: The center panel will display the new index creation form

Step 2: Configure Index Parameters¶

Required Fields:

Index Name: Provide a unique name for your index (collection suffix)
- Must be unique within the toolkit
- Maximum 7 characters
- Alphanumeric characters recommended

Toolkit-Specific Parameters:

Configure parameters specific to your toolkit type. Common parameters include:

Parameter	Description	Example
Collection Suffix	Unique identifier for the index	`docs`, `prod`, `v1`
Progress Step	Progress reporting interval (0-100)	`10`
Clean Index	Remove existing data before indexing	✓ or ✗
Chunking Config	Document chunking configuration	`{}` (default)

Toolkit-Specific Settings

Different toolkits require different parameters. For example:

GitHub: Repository name, branch, file patterns
Confluence: Space key, page filters
Jira: JQL queries, field extraction settings
TestRail: Project ID, suite filters

Refer to toolkit-specific documentation for detailed parameter information.

Step 3: Validate and Start Indexing¶

Form Validation: The Index button remains inactive until all mandatory fields are filled
Review Configuration: Verify all parameters are correct
Start Indexing: Click the Index button to begin the process

Monitoring Indexing Progress¶

Real-Time Status Indicators

The Indexes Tab provides visual status indicators to help you track the state of your indexes in real-time. These indicators appear in multiple locations throughout the interface.

Status Indicator Locations:

Indexes Sidebar (left panel): Each index card displays a status icon
Index Detail Header (center panel): Status label appears next to the index name

Index Status Types¶

Status	Description	Availability
In Progress	Indexing is currently running	Progress visible in real-time; History tab disabled
Failed	Indexing encountered an error	Configuration tab available; Run and History tabs disabled
Stopped	Indexing was manually cancelled	Configuration tab available; Run and History tabs disabled

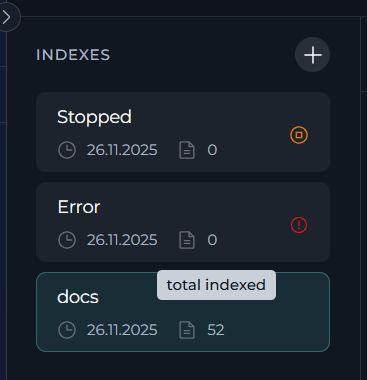

Status Display in Sidebar

Each index card in the left sidebar shows:

Index Name: Collection suffix (e.g., docs, prod)
Creation Date: Format: dd.MM.yyyy
Document Count: Hover over the document count.
- For initial indexing: total indexed count
- For reindexed items: reindexed / total indexed (e.g., 50 / 200)
Status Icon: Real-time visual indicator (progress spinner, error icon, or stop icon)

Progress Recovery

If you navigate away during indexing and return, the system automatically recovers:

Restores the in-progress state
Displays accumulated progress messages
Continues monitoring until completion

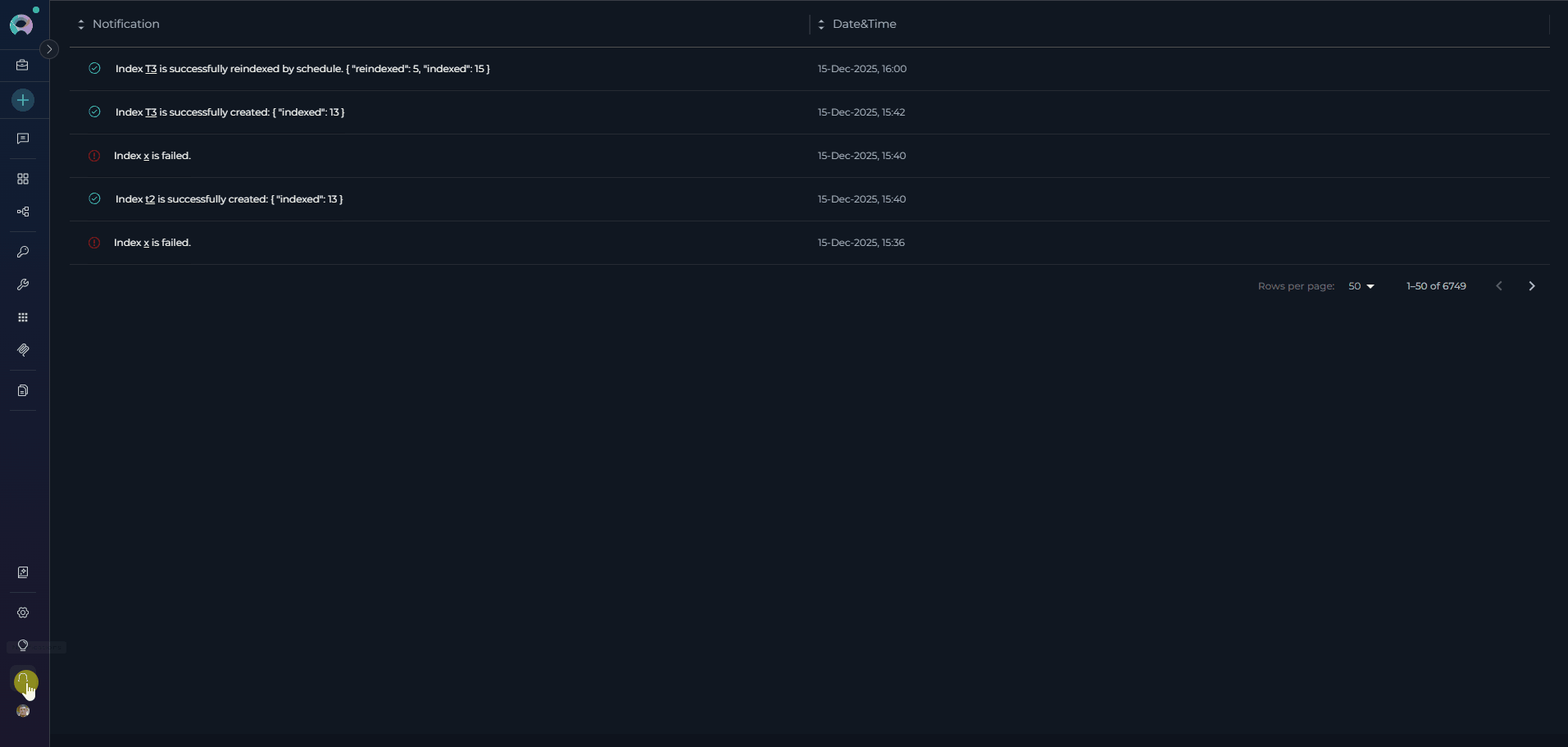

Indexing Notifications

You will receive notifications for all indexing operations (initial indexing and reindexing):

Success: Green checkmark icon with message showing indexed/reindexed counts
Failure: Red error icon with failure message
Scheduled Operations: Marked with "by schedule" text
Action: Click any notification to navigate directly to the index

Notifications appear in the notifications panel

Managing Existing Indexes¶

Selecting an Index

Click Index Card: Select any index from the left sidebar
View Details: Index information and management options appear in center panel
Access Tools: Available actions depend on index status

Index Information Panel

When an index is selected, the index card displays:

Index Name: Current name/collection suffix
Last Updated: Timestamp of most recent update
Document Count: Number of indexed documents

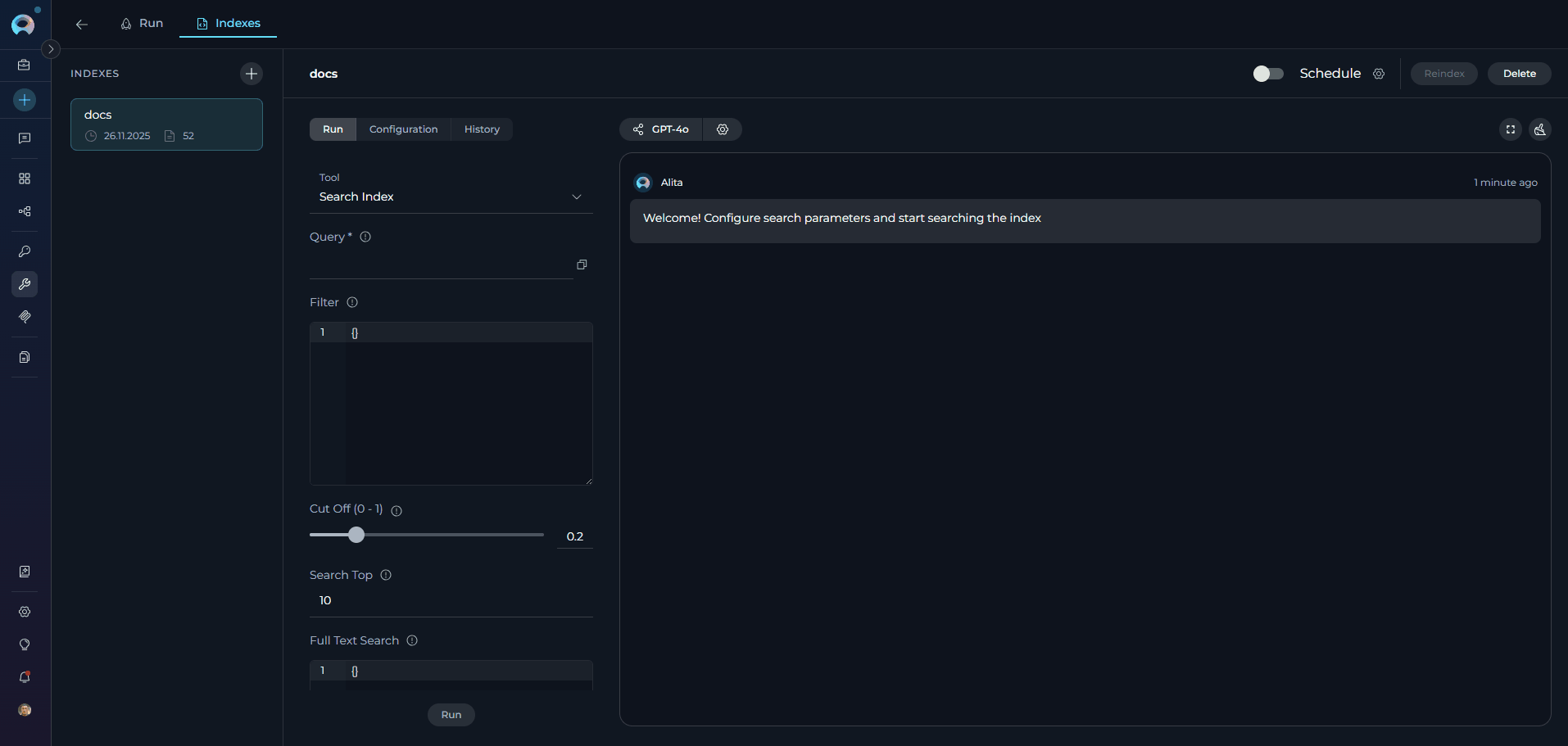

Manual Index Updates¶

Trigger Manual Update:

Select Index: Click on the index you want to update
Navigate to Configuration Tab: Click the Configuration tab in the center panel
Click Reindex: Use the Reindex button in the index information panel
Monitor Progress: Watch real-time updates in the center and right panels
Review Results: Check for successful completion or error messages

Reindexing Parameters

Parameters cannot be modified when reindexing. The reindex operation uses the original configuration settings from when the index was first created. To change parameters, you must create a new index with the desired configuration.

Schedule Index¶

Schedule Availability

Scheduling is only available for indexes with completed status. In-progress, failed, or stopped indexes cannot be scheduled.

Automated Reindexing:

Select Completed Index: Choose an index with completed status from the sidebar
Configure Schedule: Click the settings icon to open the schedule configuration modal
Set Cron Expression: Define the reindexing frequency using cron syntax (e.g., 0 2 * * * for daily at 2 AM)
Configure Credentials: Select an existing credential configuration or create a new one(only credentials matching your project type will be shown)
Save Schedule: Click Aplay to activate the automated schedule
Enable Schedule: Toggle the Schedule switch to activate automated reindexing

Schedule Status Indicators:

Schedule Toggle: ON (enabled) or OFF (disabled)
Cron Expression: Displayed next to the schedule controls
Next Run: Timestamp showing when the next automated reindex will occur

Detailed Scheduling Guide

For comprehensive information about scheduling features, cron expressions, troubleshooting, and best practices, see the Schedule Indexing guide.

Deleting Indexes¶

Delete Process:

Select Index: Choose the index to delete from the sidebar
Click Delete: Use the Delete button in the index information panel
Confirm Deletion: Enter the index name in the confirmation modal
Permanent Removal: Index and all associated data are permanently deleted

Deletion Warning

Index deletion is permanent and cannot be undone. All indexed data, search history, and configurations are permanently removed.
The Delete button is disabled when the Remove Index tool is not selected in your toolkit configuration.

Using Search Tools¶

Accessing Search Functionality

Prerequisites for Search

Successful Index: Only completed indexes support search operations
Enabled Search Tools: At least one search tool (Search Index, Stepback Search Index, or Stepback Summary Index) must be enabled in toolkit configuration. The Run tab is disabled if no search tools are enabled.

Available Search Tools:

Search Index: Basic semantic search across indexed content
Stepback Search Index: Advanced search that breaks down complex questions
Stepback Summary Index: Search with automatic summarization of results

Search Tool Selection

Navigate to Run Tab: Click the Run tab in the center panel
Tool Dropdown: Select search tool from the dropdown menu
Configure Parameters: Set search parameters and LLM model settings

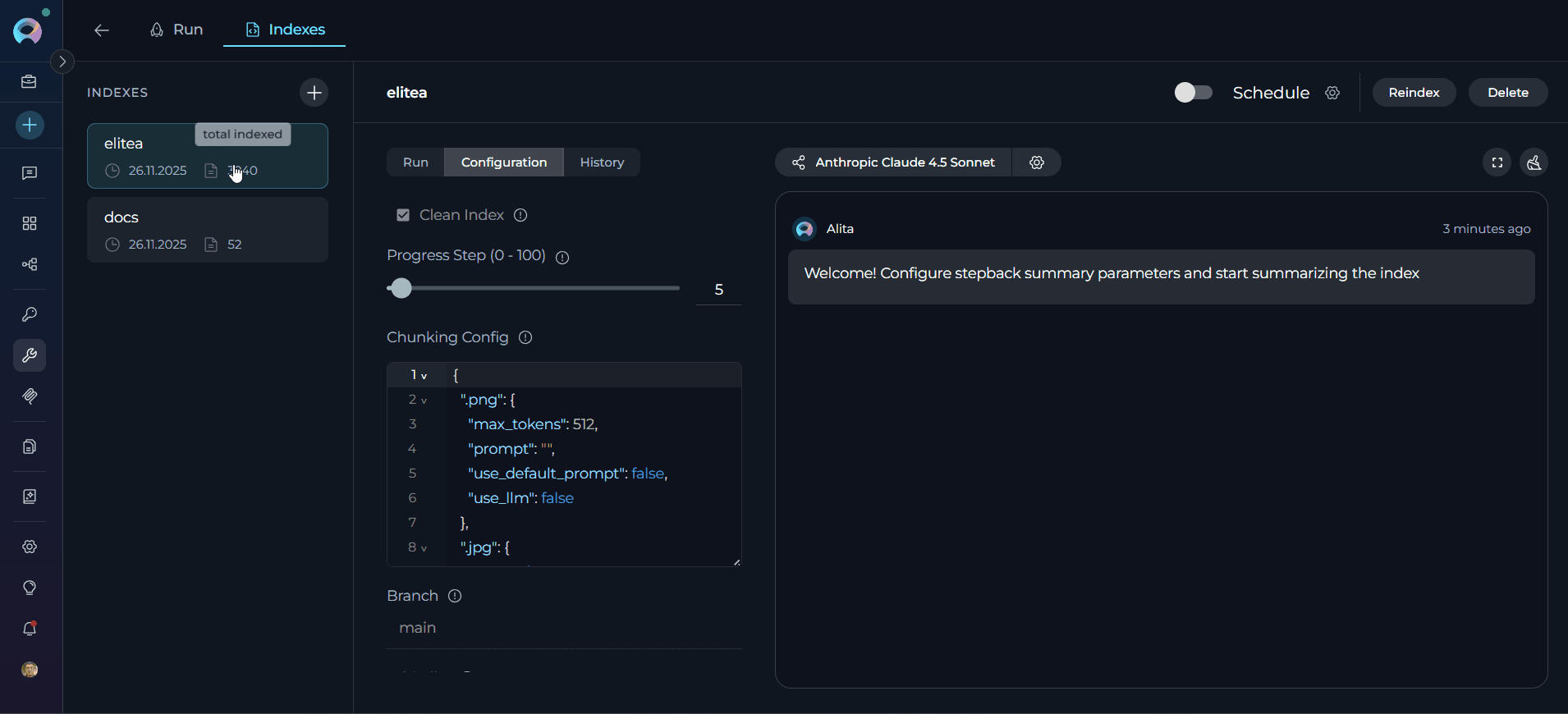

Summarized Search (Stepback Summary Index)¶

Configuration:

Select Tool: Choose "Stepback Summary Index" from dropdown
Enter Query: Provide query requiring summarized response
Model Selection: Choose appropriate LLM for summarization

Search Parameters:

Parameter	Description	Example
Messages	Conversation history for context-aware search	Previous chat messages
Filter	Metadata filter as dictionary or JSON string	`{"file_type": {"$eq": "markdown"}}`, `{"author": {"$eq": "john.doe"}}`
Cut Off (0 - 1)	Relevance threshold for filtering results	`0.7` for high relevance, `0.3` for broader results
Search Top	Maximum number of top results to return	`10`, `25`, `50`
Full Text Search	Dictionary with full-text search configuration	`{"enabled": true, "weight": 0.3, "fields": ["content", "title"], "language": "english"}`
Extended Search	List of chunk types to search	`["title", "summary", "propositions", "keywords", "documents"]`
Reranking Config	Dictionary with field-based reranking rules	`{"priority": {"weight": 2.0, "rules": {"priority": "high"}}}`, `{"updated_at": {"weight": 1.0, "rules": {"sort": "desc"}}}`

Basic Search (Search Index)¶

Configuration:

Select Tool: Choose "Search Index" from tool dropdown
Enter Query: Provide search query in the text field (e.g., How do I create secrets in Elitea and what are the best practices for managing sensitive configuration data?)
Configure Model: Select LLM model and adjust settings if needed

Optional Parameters:

Parameter	Description	Example
Filter	Metadata filter as dictionary or JSON string	`{"file_type": {"$eq": "markdown"}}`, `{"$and": [{"author": {"$eq": "john"}}, {"status": {"$eq": "active"}}]}`
Cut Off (0 - 1)	Relevance threshold for filtering results	`0.7` for high relevance, `0.3` for broader results
Search Top	Maximum number of top results to return	`10`, `25`, `50`
Full Text Search	Dictionary with full-text search configuration	`{"enabled": true, "weight": 0.3, "fields": ["content", "title"], "language": "english"}`
Extended Search	List of chunk types to search	`["title", "summary", "propositions", "keywords", "documents"]`
Reranking Config	Dictionary with field-based reranking rules	`{"severity": {"weight": 2.5, "rules": {"priority": "critical"}}}`, `{"file_type": {"weight": 1.5, "rules": {"contains": "test"}}}`

Execute Search:

Activate Run Button: Button becomes active when query is provided
Click Run: Execute the search operation
View Results: Results appear in the right panel chat interface

Advanced Search (Stepback Search)¶

Configuration:

Select Tool: Choose "Stepback Search Index" from dropdown
Enter Complex Query: Provide detailed or multi-part query
Model Settings: Configure LLM for query decomposition

Search Parameters:

Parameter	Description	Example
Messages	Conversation history for context-aware search	Previous chat messages
Filter	Metadata filter as dictionary or JSON string	`{"category": {"$eq": "bug"}}`, `{"$and": [{"priority": {"$eq": "high"}}, {"status": {"$eq": "open"}}]}`
Cut Off (0 - 1)	Relevance threshold for filtering results	`0.7` for high relevance, `0.3` for broader results
Search Top	Maximum number of top results to return	`10`, `25`, `50`
Full Text Search	Dictionary with full-text search configuration	`{"enabled": true, "weight": 0.3, "fields": ["content", "description"], "language": "english"}`
Extended Search	List of chunk types to search	`["title", "summary", "propositions", "keywords", "documents"]`
Reranking Config	Dictionary with field-based reranking rules	`{"importance": {"weight": 3.0, "rules": {"contains": "critical"}}}`, `{"created_at": {"weight": 1.0, "rules": {"sort": "desc"}}}`

Result Actions

Copy Results: Copy search output for external use
Export Data: Save results in various formats
Refine Search: Modify parameters and search again
Follow-up Questions: Continue conversation with additional queries---

Viewing Index Configuration¶

Configuration Tab Access

Select Index: Choose any index from the sidebar
Navigate to Configuration: Click the Configuration tab in center panel
Review Settings: All configuration parameters are displayed in read-only format

Displayed Parameters:

Creation Settings: Original parameters used during index creation
Toolkit-Specific Config: Parameters unique to the toolkit type
Processing Options: Chunking, filtering, and processing configurations
Timestamp Information: Creation date, last modified date
Version Information: Index format version and compatibility

Understanding Configuration Details¶

Data Source Parameters:

Source Location: Repository, space, project, or file location
Scope Filters: Branches, labels, file patterns, date ranges
Access Credentials: Associated credential information (name only)

Processing Configuration:

Chunking Strategy: How documents are split for indexing
Content Extraction: File types and content elements included
Filtering Rules: Content exclusion patterns and rules

Read-Only Display

All configuration information is read-only and cannot be modified from this tab. To change configuration, create a new index or update the existing index with new parameters.

Reviewing Index History¶

Accessing Index History

The History tab provides a chronological record of all indexing operations performed on a selected index, including initial creation, manual reindexing, and scheduled reindexing events.

Access History:

Select Index: Choose an index from the left sidebar
Navigate to History Tab: Click the History tab in the center panel
Review Operations: View all past indexing events in chronological order

History Tab Availability

The History tab is only available for indexes with completed status. It is disabled for indexes that are in-progress.

History Tab Interface¶

The History tab displays indexing events in a structured table format with the following components:

Table Header (sortable columns):

Event Column: Displays the type of indexing operation (Created, Reindexed, Stopped, Failed)
- Click to sort alphabetically (ascending/descending)
- Sort arrow indicator shows current sort direction
Date Column: Shows when the operation occurred (format: dd-MM-yyyy, hh:mm a)
- Click to sort chronologically (ascending/descending)
- Default sort: Most recent first (descending)

History Items (event rows):

Each row in the history table represents a single indexing operation and displays:

Event Label: Operation type in the left column
Timestamp: Operation date and time in the right column

Interaction:

Click any history item to view detailed information in the chat panel
Most recent history item is automatically selected by default
Selected item remains highlighted for easy reference

Example History Table:

Event          | Date
---------------|------------------------
Reindexed      | 21-11-2025, 02:00 AM
Created        | 20-11-2025, 10:30 AM

Understanding History Events

Initial Index Creation:

Event Label: "Created"
Timestamp: When the index was first created
Purpose: Tracks the original indexing operation

Manual Reindexing:

Event Label: "Reindexed"
Timestamp: When manual reindex was triggered
Purpose: Documents user-initiated index updates

Scheduled Reindexing:

Event Label: "Reindexed"
Timestamp: When automated schedule executed
Purpose: Tracks automatic index updates from schedules
Detail Message: "Successfully reindexed by schedule" appears in the detailed view

Stopped Indexing:

Event Label: "Stopped"
Timestamp: When indexing operation was manually cancelled
Purpose: Documents cancelled indexing operations

Failed Indexing:

Event Label: "Failed"
Timestamp: When indexing operation encountered an error
Purpose: Documents failed indexing operations for troubleshooting

Scheduled Operations

Scheduled reindexing operations appear in the History tab with the same "Reindexed" label as manual operations. The timestamp indicates when the scheduled job executed. For detailed information about scheduling, see the Schedule Indexing guide.

Using History for Monitoring

Verification Use Cases:

Schedule Verification: Confirm that scheduled reindexing is executing as expected
Update Tracking: Monitor frequency of index updates
Troubleshooting: Review timing of operations when investigating issues
Audit Trail: Maintain record of all indexing activities

Best Practices:

Regular Review: Periodically check the History tab to verify operations are successful
Schedule Monitoring: For scheduled indexes, confirm entries appear at expected times
Failure Investigation: Review history when troubleshooting indexing issues
Frequency Analysis: Analyze update patterns to optimize reindexing schedules

History Limitations

The History tab does not display detailed error messages for failed operations
Schedule configuration changes are not tracked in the history
History is permanently deleted when an index is removed

Troubleshooting¶

Common Issues and Solutions¶

Disabled Tabs and Buttons

Indexes Tab Disabled:

The Indexes tab is automatically disabled if required prerequisites are not met. To access this tab in your toolkit configuration, ensure:

PgVector Configuration: Vector storage must be configured at project level (Settings → AI Configuration)
Embedding Model: An embedding model must be selected and configured (Settings → AI Configuration)
Index Data Tool: The "Index Data" tool must be enabled in your toolkit configuration

Solutions:

Verify Prerequisites: Ensure PgVector and Embedding Model are configured
Check Toolkit Support: Confirm toolkit supports indexing
Review Permissions: Verify user has access to indexing features
Refresh Browser: Clear cache and reload the page

Delete Button Disabled:

The Delete button (in Indexes tab) is disabled if the Remove Index tool is not selected in toolkit configuration. Enable this tool to allow index deletion operations.

Run Tab Disabled:

The Run tab (in Indexes tab) is disabled if at least one search index tool (Search Index, Stepback Search Index, or Stepback Summary Index) is not selected in toolkit configuration. Enable at least one search tool to access the Run tab.

Reindex Button Disabled:

The Reindex button is enabled only in the Configuration tab. It is disabled in the Run and History tabs. To trigger a manual reindex, navigate to the Configuration tab.

Index Creation Failures

Symptoms:

Index creation process fails
Error notifications during indexing
Stuck in "in progress" state

Solutions:

Check Credentials: Verify toolkit credentials are valid and accessible
Review Parameters: Ensure all required parameters are provided
Data Source Access: Confirm data source is accessible and contains data
Resource Limits: Check if data size exceeds system limits
Network Connectivity: Verify stable internet connection

Common Error Messages:

Error	Possible Cause	Solution
"Authentication failed"	Invalid credentials	Update toolkit credentials
"Data source not found"	Incorrect source parameters	Verify repository/space/project names
"Insufficient permissions"	Limited access rights	Grant appropriate permissions to credential
"Processing timeout"	Large dataset or slow connection	Reduce scope or increase timeout settings

Search Tool Issues

Symptoms:

Search tools not available
Run button remains disabled
No search results returned

Solutions:

Index Status: Verify index is successfully completed
Tool Selection: Ensure search tools are enabled in toolkit
Query Format: Check search query syntax and format
Model Configuration: Verify LLM model is properly configured
Collection Access: Confirm index collections are accessible

Poor Search Results

Symptoms:

Search returns irrelevant results
Missing expected documents in search results
Low-quality or incomplete answers
Too many or too few results returned

Solutions:

Adjust Cut Off Parameter: The Cut Off threshold (0-1) is critical for result quality
- Too High (e.g., 0.9): May exclude relevant results; try lowering to 0.7 or 0.6
- Too Low (e.g., 0.3): May include irrelevant results; try increasing to 0.5 or 0.6
- Recommended Starting Point: 0.7 for high-quality results, adjust based on feedback
Modify Search Top: Adjust the number of results returned
- Increase for broader coverage (e.g., 25-50 results)
- Decrease for more focused results (e.g., 5-10 results)
Refine Query: Use more specific search terms and context
Enable Full Text Search: Activate for comprehensive text-based matching
Enable Extended Search: Turn on for semantic similarity search
Apply Filters: Use filters to narrow scope (e.g., file_type:markdown, author:john.doe)
Configure Reranking: Use Reranking Config to boost relevance of specific fields

Optimizing Cut Off Parameter

The Cut Off parameter has the most significant impact on search quality. Start with 0.7 and adjust based on results:

0.8-0.9: Very strict, only highly relevant matches
0.6-0.7: Balanced, recommended for most use cases
0.4-0.5: Broader results, useful for exploratory searches
0.2-0.3: Very inclusive, may include less relevant results

Performance Optimization¶

Large Dataset Handling

Strategies:

Incremental Indexing: Use progressive updates instead of full re-indexing
Scope Filtering: Limit indexing scope to relevant content
Chunking Optimization: Adjust chunk sizes for optimal processing
Batch Processing: Process large datasets in smaller batches

Search Performance

Optimization Tips:

Specific Queries: Use specific search terms instead of broad queries
Result Limits: Set appropriate limits on result counts
Model Selection: Choose appropriate LLM models for search tasks
Collection Targeting: Search specific collections instead of all indexes

Best Practices¶

Index Naming and Organization

Naming Conventions:

Descriptive Names: Use meaningful collection suffixes (docs, prod, test)
Version Control: Include version indicators for time-based indexes (v1, 2024q1)
Environment Separation: Distinguish between environments (dev, staging, prod)
Purpose Indication: Reflect the index purpose (onboard, support, api)

Organization Strategies:

Logical Grouping: Group related indexes by purpose or team
Lifecycle Management: Implement retention policies for old indexes
Access Control: Consider who needs access to which indexes
Documentation: Maintain documentation of index purposes and usage

Efficient Index Management

Creation Best Practices:

Start Small: Begin with limited scope and expand as needed
Test First: Use test environments before production indexing
Validate Data: Ensure data quality before indexing
Monitor Resources: Track system resource usage during indexing

Update Strategies:

Incremental Updates: Prefer incremental over full updates when possible
Scheduled Maintenance: Use off-peak hours for large updates
Change Detection: Implement change detection to trigger targeted updates
Rollback Plans: Maintain ability to revert to previous index versions

Search Optimization

Query Design:

Specific Queries: Use specific terms for better accuracy
Context Awareness: Leverage conversation context for follow-up questions
Tool Selection: Choose appropriate search tools for different use cases
Result Validation: Verify search results against known information

Model Configuration:

Model Selection: Choose appropriate LLMs for different search types
Parameter Tuning: Adjust temperature and token limits based on use case
Cost Management: Balance result quality with computational costs
Performance Monitoring: Track search performance and optimize accordingly

Maintenance and Monitoring

Regular Maintenance:

Index Health Checks: Regularly verify index integrity and performance
Cleanup Operations: Remove unused or outdated indexes
Performance Reviews: Analyze search performance and user satisfaction
Security Audits: Review access permissions and credential management

Monitoring Practices:

Usage Analytics: Track index usage patterns and popular searches
Error Monitoring: Monitor for indexing and search failures
Resource Tracking: Monitor system resource consumption
User Feedback: Collect feedback on search quality and interface usability
