Flow Editor

The Flow Editor is ELITEA's visual pipeline builder that lets you design, configure, and manage pipelines without writing code. Create complex workflows by dragging nodes onto the canvas, connecting them, and configuring their properties—all through an intuitive graphical interface.

What is Flow Editor?

The Flow Editor is a visual workspace for building pipelines. It provides:

  • Drag-and-drop interface for adding and arranging nodes
  • Visual connections between nodes showing execution flow
  • Vertical layout optimized for easy configuration
  • Instant YAML sync - changes in Flow appear immediately in YAML (and vice versa)
  • Interactive configuration - click nodes to configure their settings

Accessing Flow Editor

  1. Navigate to Pipelines menu
  2. Open an existing pipeline or create a new one
  3. Click the Configuration tab
  4. Select Flow mode (appears alongside YAML tab)

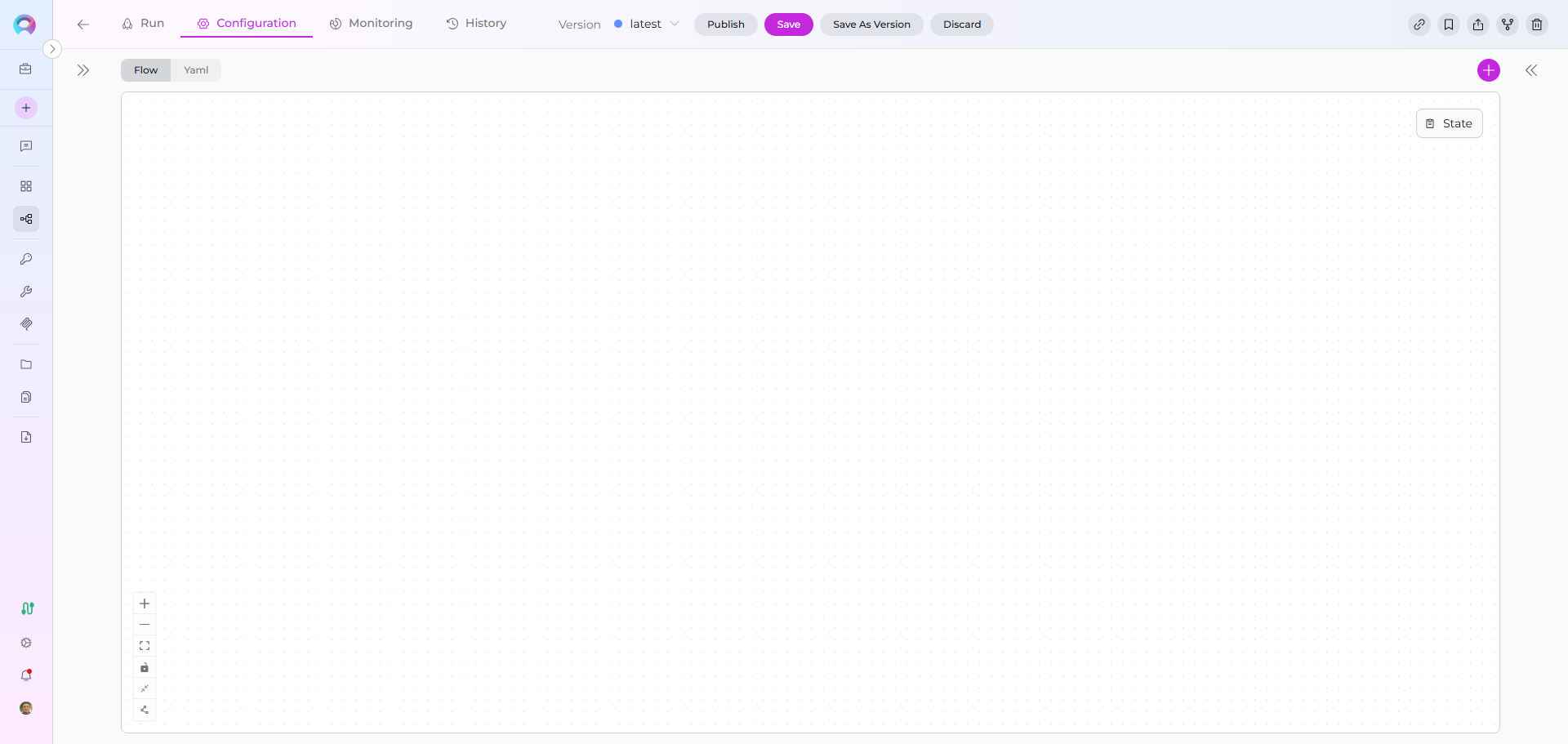

Flow Editor interface overview

Flow and YAML Sync

Whatever you configure in Flow automatically appears in YAML format, and vice versa. Both views stay perfectly synchronized.

Flow Editor Interface

The Flow Editor consists of several key areas:

Main Components

# Component Location Purpose
1 Canvas Center Main workspace for arranging nodes
2 Toolbar Left side Tools for canvas control (zoom, layout, etc.)
3 Add Node Button Top right (➕) Opens node palette to add new nodes
4 State Button Top right Opens state configuration sidebar
5 Flow/YAML Tabs Top center Switch between visual and code views

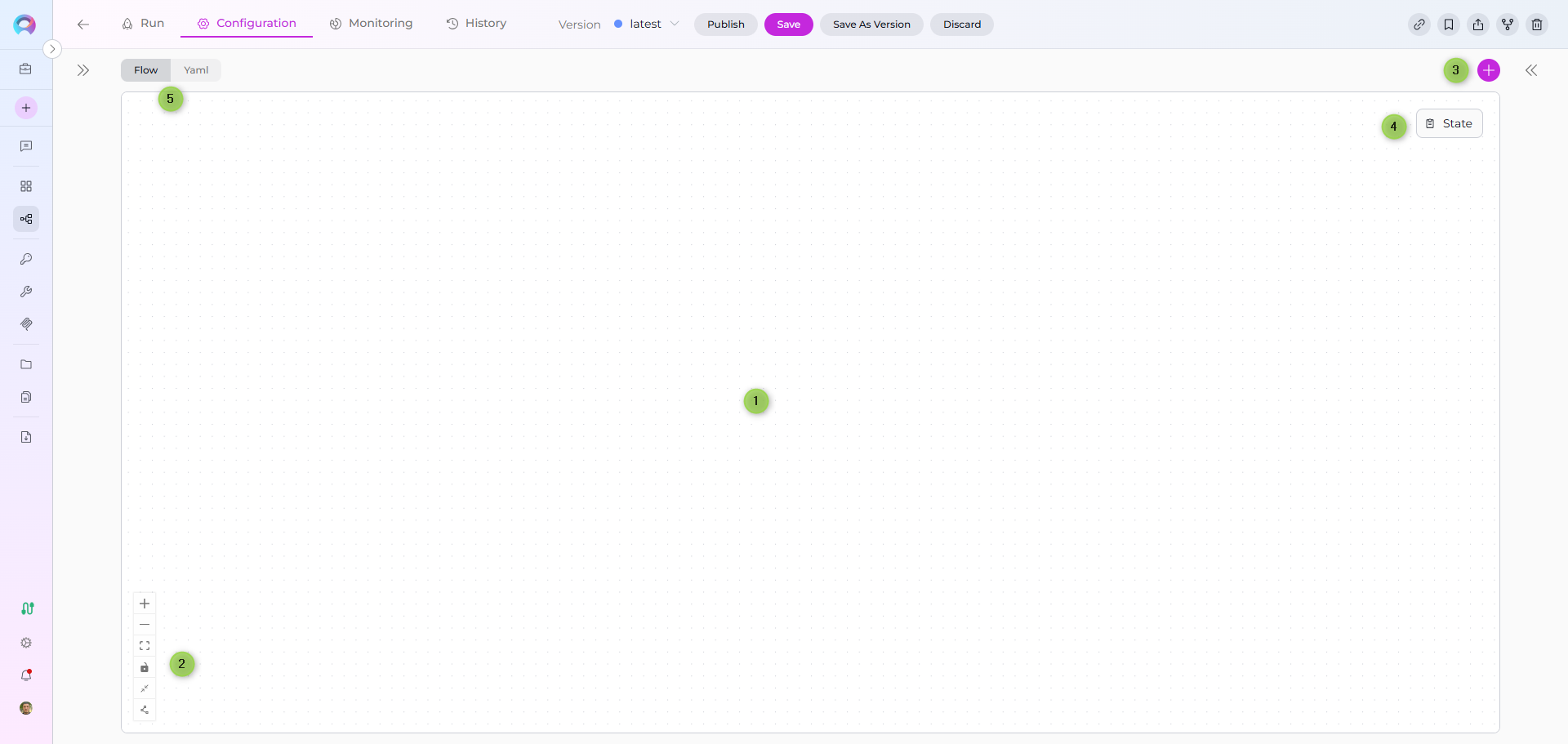

Flow Editor interface components labeled

Left Toolbar Buttons

Icon Action Keyboard Shortcut
➕ Add new node -
➖ Zoom out -
⛶ Fit view (auto-center) -
🔒 Lock/Unlock editing -
⬜ Collapse/Expand all cards -
🔧 Auto-fix layout -

Adding Nodes

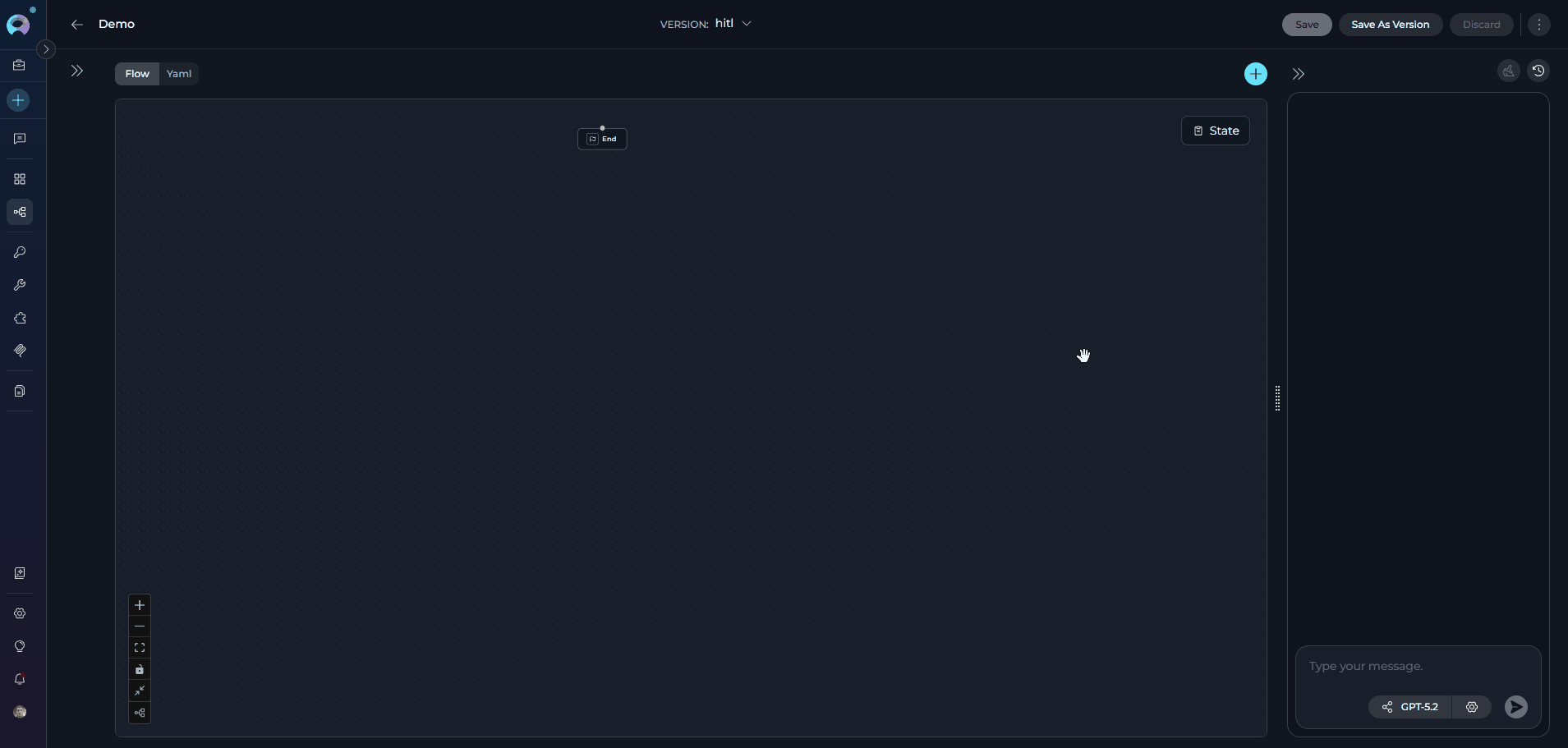

Method 1: Add Node Button

  1. Click the ➕ button (top right corner)
  2. A node palette appears showing all available node types
  3. Select the node type you want to add
  4. Node appears on the canvas

Available Node Types:

  • Agent
  • Code
  • Condition
  • Custom
  • Decision
  • Function
  • LLM
  • Loop
  • Loop from tool
  • Pipeline (Subgraph)
  • Router
  • State modifier
  • Tool

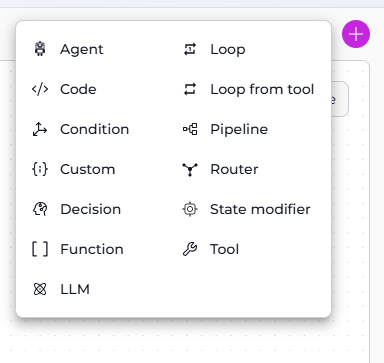

Add node

Method 2: Drag from Connection

You can also add nodes while creating connections:

  1. Drag a connector from an existing node
  2. Release it in empty space on the canvas
  3. Select Create New Node from the dropdown
  4. Choose node type
  5. New node is created with connection already attached

Creating node from connection dropdown

Configuring Nodes

Click on any node card to open its configuration panel:

Node Configuration Options

Each node type has specific configuration fields. Common options include:

  • Node Name (click card title to rename)
  • Input/Output state variables
  • Node-specific settings (prompts, toolkits, conditions, etc.)
  • Advanced options (Interrupt Before/After, Structured Output)

Renaming Nodes

Click on the node card title to rename most nodes. Decision and Condition nodes cannot be renamed.

Renaming a Node

  1. Click the node card title
  2. Type the new name
  3. Press Enter or click outside to save

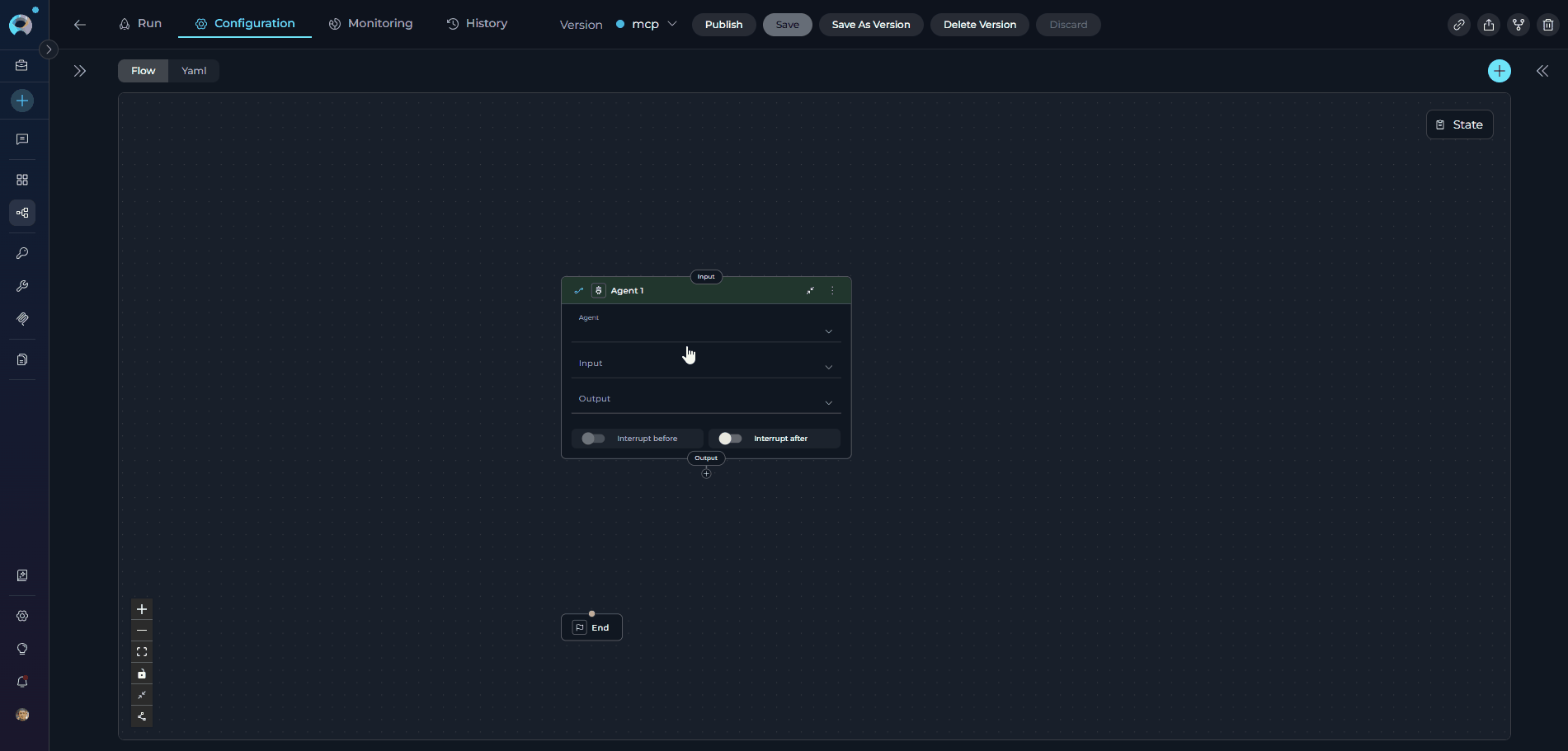

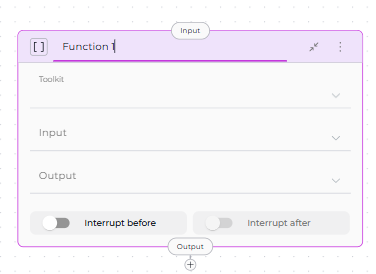

Renaming a node by clicking title

Connecting Nodes

Nodes must be connected to define the execution flow. See the Nodes Connectors Guide for complete details.

Creating Connections

Method 1: Drag and Drop

  1. Click and hold the output port (bottom of node card)
  2. Drag the connector line to the input port (top of target node)
  3. Release to create the connection

Method 2: Drop on Canvas

  1. Drag connector from a node
  2. Release in empty canvas space
  3. Select existing node or create new node from dropdown
  4. Connection auto-completes

Deleting Connections

Option 1: Click on the connection line to select it, then press Delete

Option 2: Click on the connection line to highlight it, then click again to delete

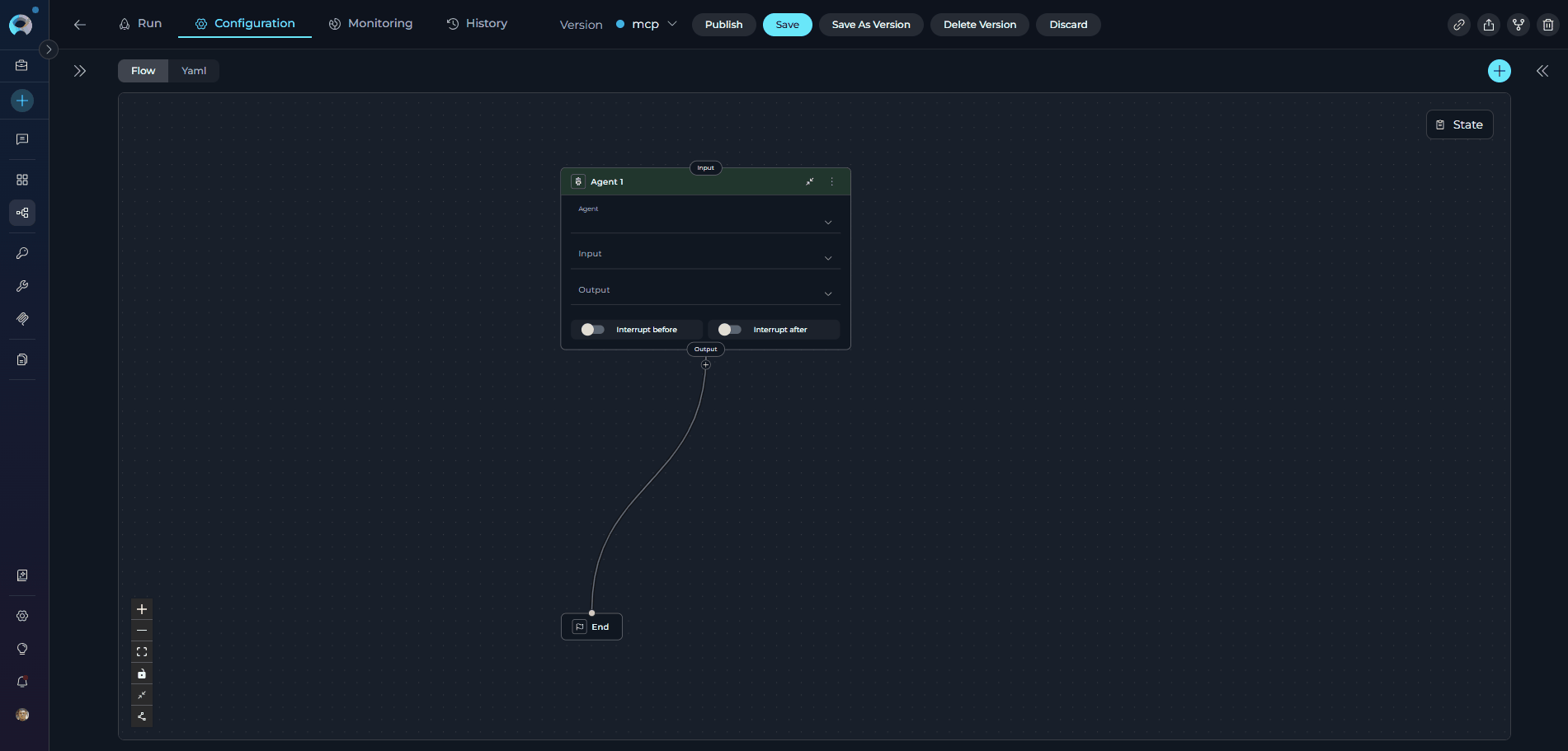

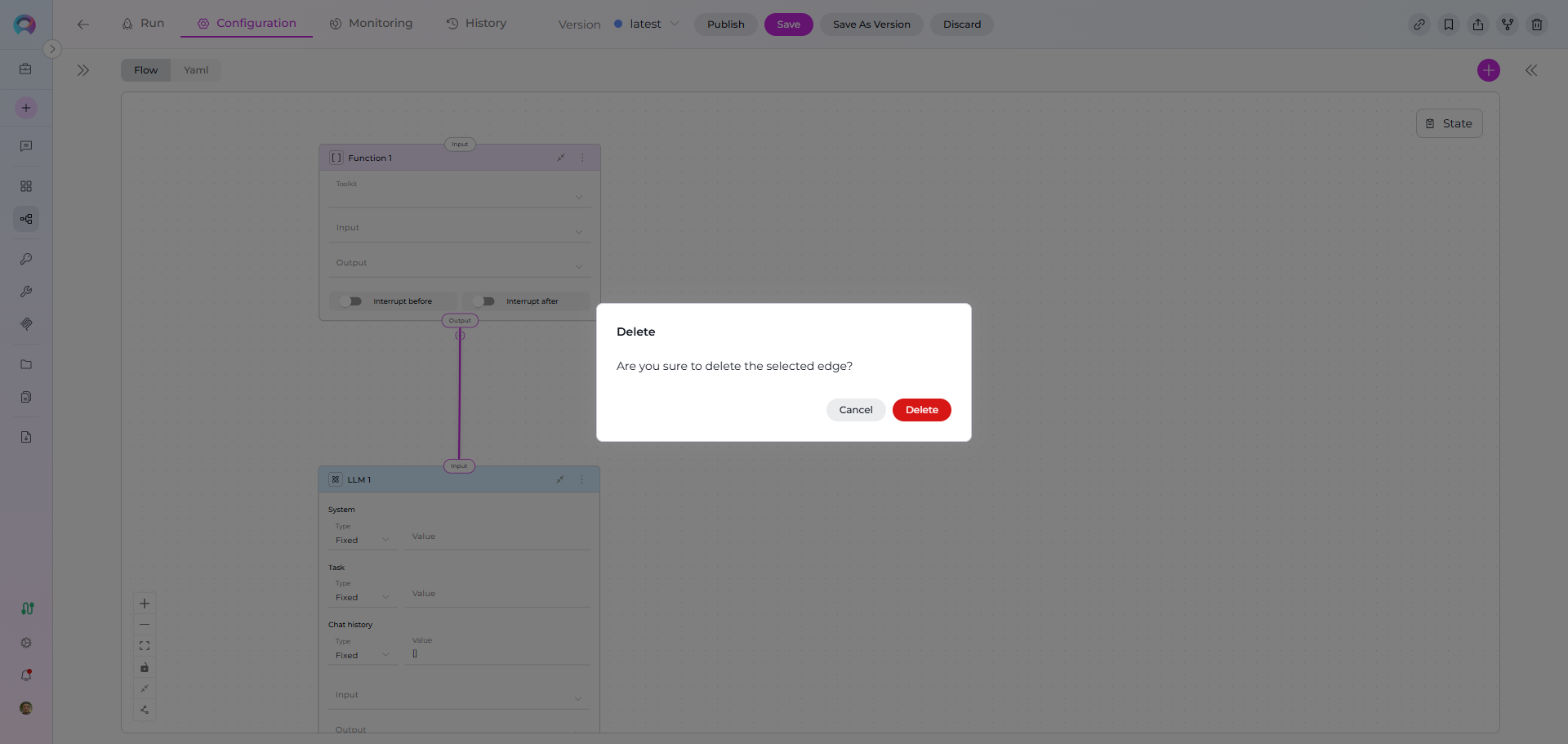

Selected connection line highlighted

Managing Nodes

Node Card Actions

Click the three-dots menu (⋮) on any node card to access node actions:

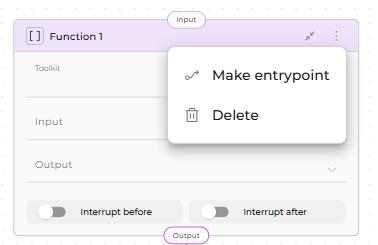

Node card three-dots menu

Available Actions:

Action Description
Make entrypoint Set this node as the pipeline entry point
Delete Remove the node from the pipeline

Deleting Nodes

Deleting a node also removes all its connections. Make sure to reconnect remaining nodes after deletion.

Moving Nodes

Rearrange nodes to improve visual clarity:

  1. Click on a node card
  2. Drag it to a new position on the canvas
  3. Release to place

Vertical Layout

The Flow Editor uses a vertical (top-to-bottom) layout for optimal readability. Nodes execute from top to bottom following the connections.

Canvas Controls

Collapse/Expand Cards

Toggle between compact and detailed node views:

  • Collapsed: Shows only node name and type icon
  • Expanded: Shows all configuration fields

Click ⬜ Collapse/Expand button to toggle all nodes at once.

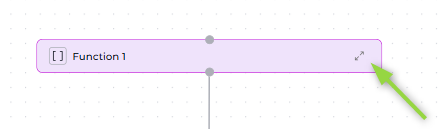

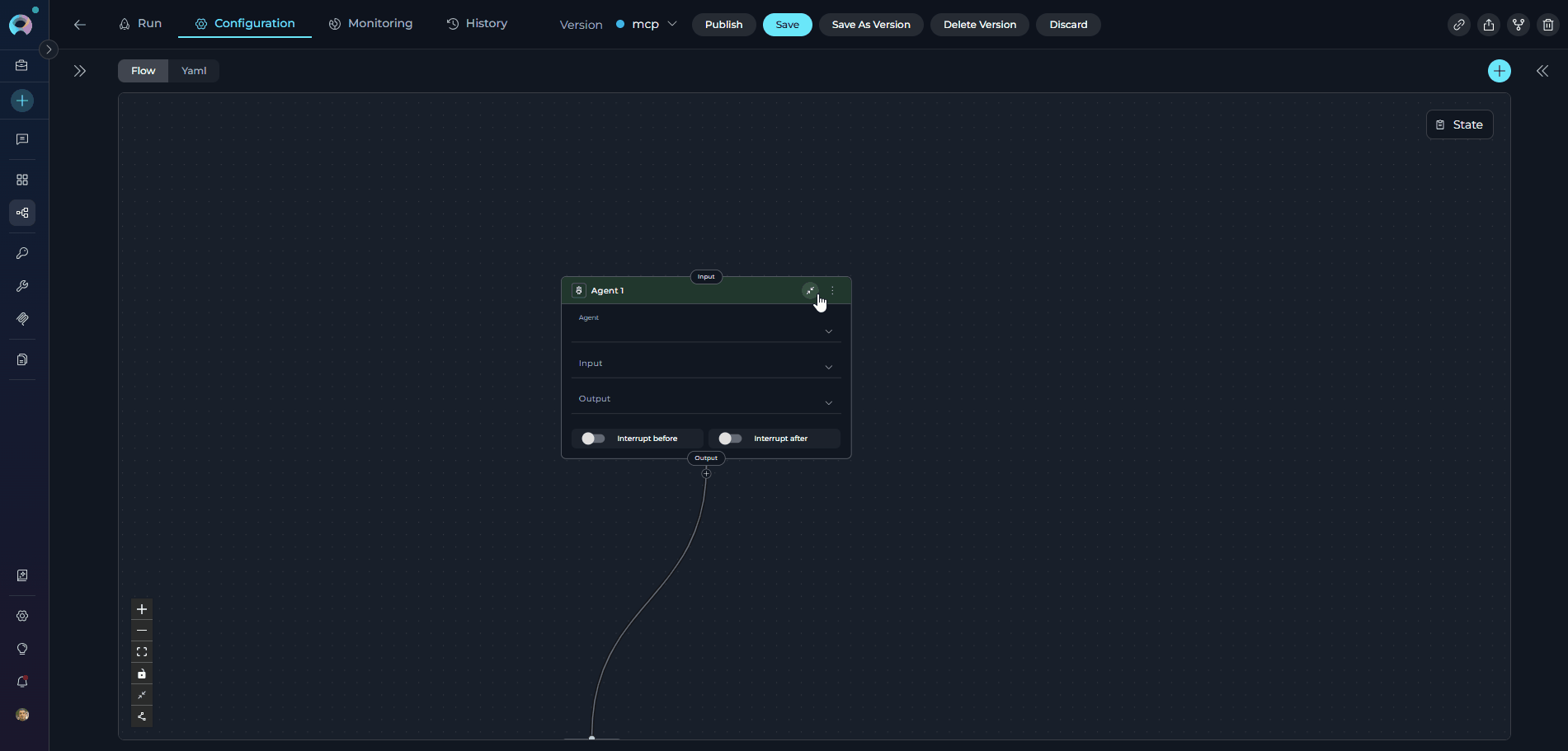

Collapsed vs expanded node cards

Click the State button (top right) to open the state configuration sidebar.

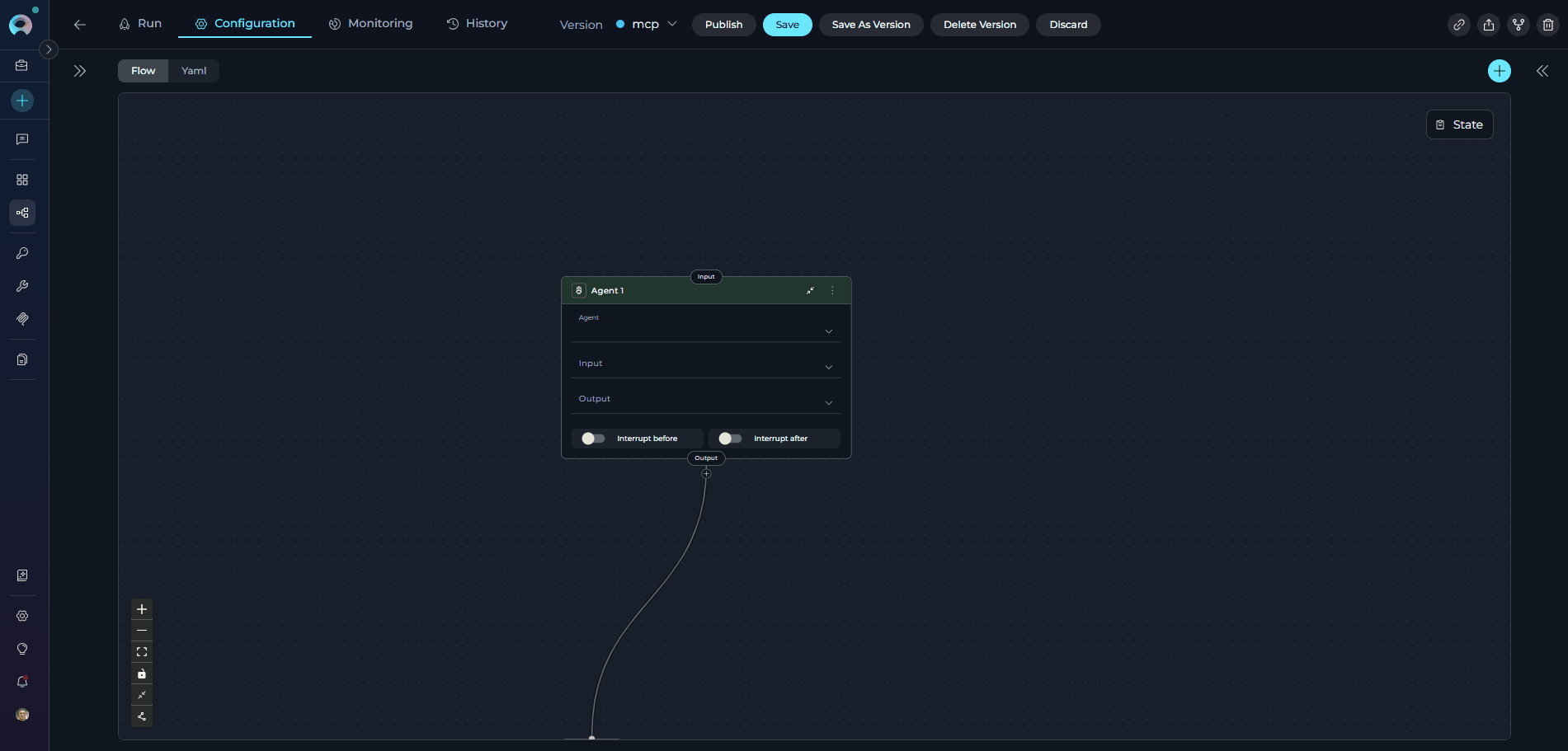

State sidebar panel

In the State Sidebar:

  • View all pipeline state variables
  • Add new custom states
  • Configure default values
  • Set state data types (String, Number, Array, Object)

See the States Guide for complete state configuration details.

Flow to YAML Synchronization

Changes made in Flow Editor instantly appear in YAML:

  1. Add/modify nodes in Flow
  2. Switch to YAML tab
  3. See the updated YAML code
  4. Switch back to Flow to continue visual editing

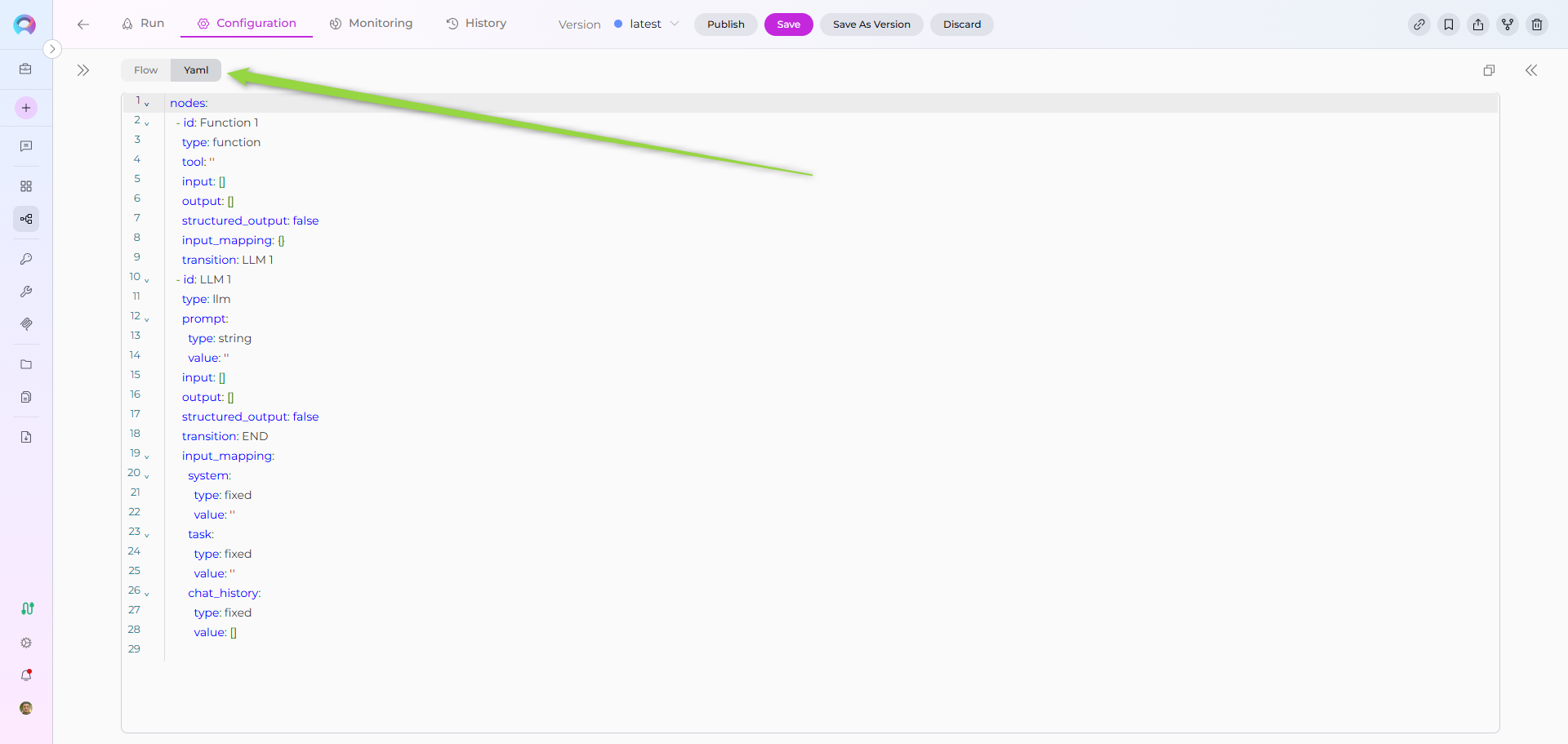

Flow and YAML tabs showing synchronized content

Two-Way Sync

Edits in YAML also update the Flow view immediately. You can work in whichever mode you prefer.

Best Practices

  • Use Descriptive Node Names: "Validate User Input" instead of "LLM Node"
  • Organize Vertically: Entry point at top, processing in middle, END at bottom
  • Collapse Side Panels: Maximize canvas space for complex pipelines
  • Use Auto-Fix Layout: Maintain clean alignment after adding/moving nodes
  • Test Incrementally: Build step-by-step, test after adding each node
  • Save Frequently: Prevent data loss by saving often

Keyboard Shortcuts

Action Shortcut
Delete selected node/connection Delete or Backspace
Save pipeline Ctrl/Cmd + S
Undo Ctrl/Cmd + Z
Redo Ctrl/Cmd + Shift + Z

Troubleshooting

Nodes Not Connecting

Problem: Cannot create connection between nodes.

Solutions:

  • Check if nodes are compatible (e.g., Router requires specific output nodes)
  • Verify you're dragging from output port (bottom) to input port (top)
  • Try Auto-fix Layout if nodes are overlapping

Canvas is Blank

Problem: Flow Editor shows empty canvas.

Solutions:

  • Switch to YAML tab to check if pipeline has nodes
  • Click Fit View to center nodes
  • Refresh the page

Changes Not Saving

Problem: Edits disappear after closing pipeline.

Solutions:

  • Click Save button before navigating away
  • Check for error messages at top of screen
  • Verify network connection

Node Configuration Not Opening

Problem: Clicking node doesn't show configuration panel.

Solutions:

  • Click directly on the node card (not the connection lines)
  • Unlock editing if canvas is locked (🔒 button)
  • Expand the GENERAL section if collapsed
