Node Connectors

Node connectors link nodes together to define your pipeline's execution flow. They determine which node runs next, how data flows between nodes, and when the pipeline completes.

Key Concepts:

• Entry Point - Where pipeline execution begins
• Transitions - Connections between nodes
• END Node - Where pipeline execution stops
• Connection Patterns - Common workflow structures

Essential Elements

Every pipeline requires: (1) Entry Point to start execution, (2) Transitions to connect nodes, (3) END to terminate execution

---

Entry Point Node

The Entry Point is the first node that executes when your pipeline runs. Every pipeline must have exactly one entry point.

Setting an Entry Point

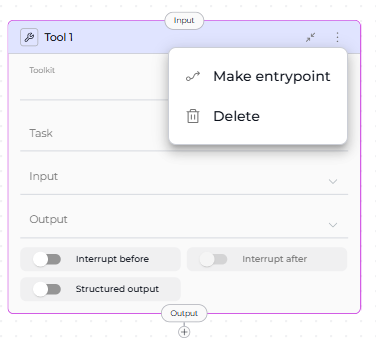

Visual Method:

1. Open your pipeline in Flow Editor
2. Click the three-dots menu (⋮) on the node
3. Select Make entrypoint

YAML Method:

entry_point: Tool 1

Entry Point Rules

• Only one node can be the entry point
• Router and Condition nodes cannot be entry points (they require input from previous nodes)
• All other node types can serve as entry points
• Entry point must be set before running the pipeline

Changing Entry Points

Making a different node the entry point automatically removes the previous entry point designation.

See Also: Entry Point Guide for detailed configuration

---

END Node

The END node terminates pipeline execution. It's not a physical node but a special target for connections.

When to Use END

Use END as the connection target when:

• Pipeline has completed all work
• No further processing is needed
• You want to explicitly stop execution

How to Connect to END

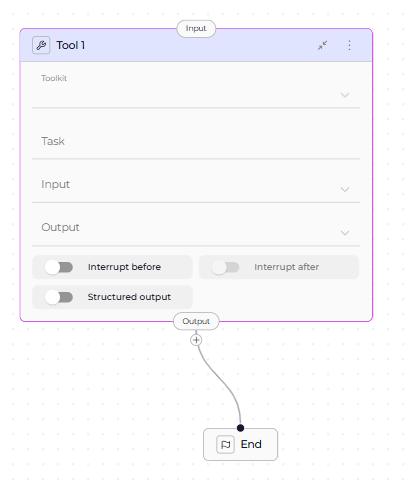

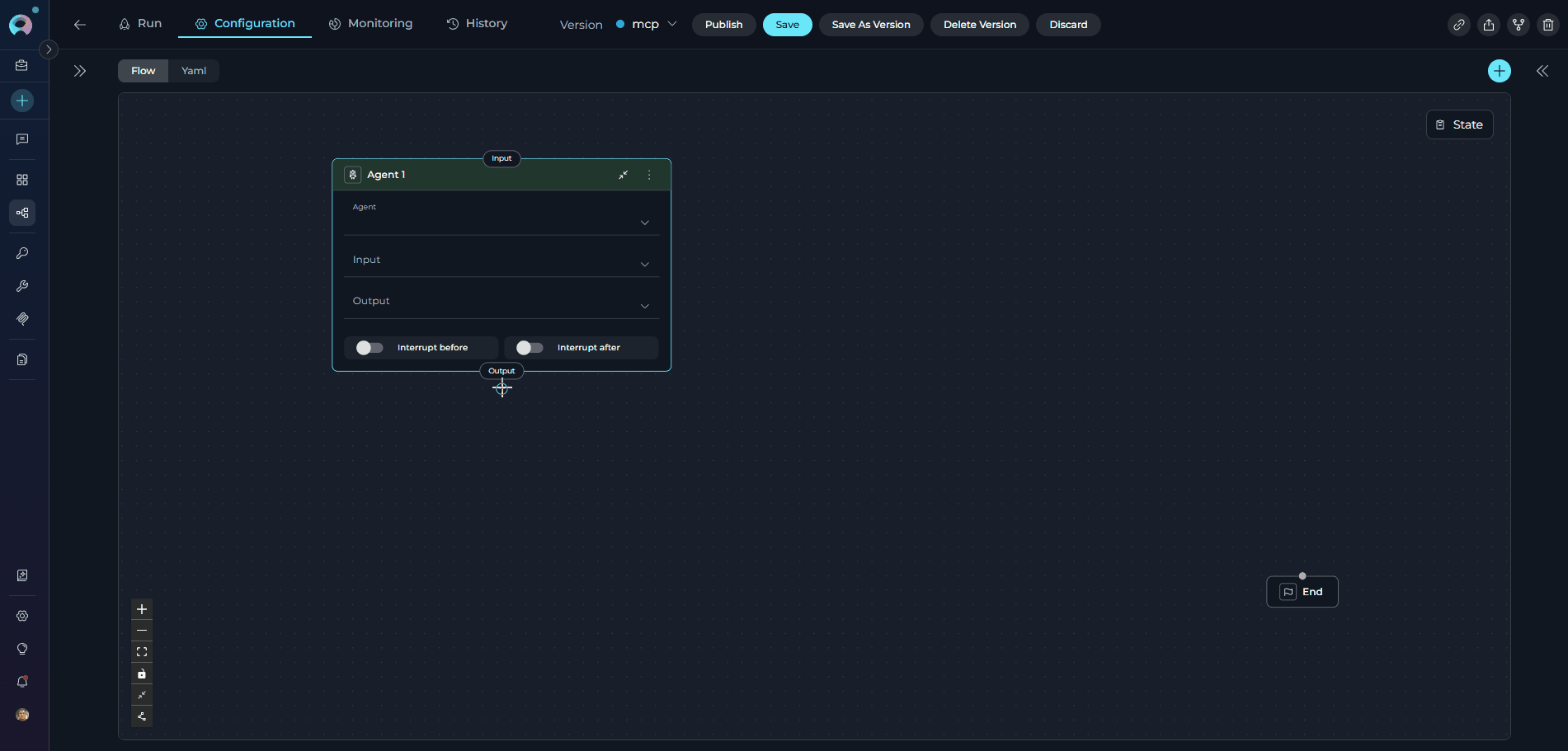

Visual Method:

1. Drag a connector from a node
2. Release in the canvas
3. Select END from the dropdown

YAML Method:

transition: END

Complete Execution Paths

Every execution path must eventually reach END. Paths without termination may cause unexpected behavior.

---

Node Input and Output Ports

All nodes have input and output ports for connectors:

Port Type	Purpose	Visual Indicator
Input	Receives data/control from previous nodes	Top of node card
Output	Sends data/control to next nodes	Bottom of node card
Default Output	Fallback path (Router, Condition, Decision only)	Labeled separately

---

Connection Rules by Node Type

Standard Nodes (Single Output)

Most nodes can have only ONE output connection:

• LLM
• Agent
• Function
• Tool
• Code
• Loop
• Loop from Tool
• State Modifier
• Pipeline (Subgraph)
• Decision

YAML Example:

- id: Process Data
  type: function
  transition: Display Results

Multi-Output Nodes

Three node types support multiple outputs:

1. Router Node

Routes execution based on conditional logic. Can have:

• Multiple conditional outputs: One for each defined route
• Default output: Fallback when no conditions match

YAML Example:

- id: Route Request
  type: router
  condition: "{{ request_type }}"
  routes:
    - when: "{{ request_type == 'urgent' }}"
      transition: Priority Handler
    - when: "{{ request_type == 'standard' }}"
      transition: Standard Handler
  default: Error Handler  # Default output

2. Condition Node

Boolean evaluation with two outputs:

• True output: When condition evaluates to true
• False output: When condition evaluates to false

YAML Example:

- id: Check Approval
  type: condition
  condition: "{{ status == 'approved' }}"
  transitions:
    true: Publish Story
    false: Request Changes

3. Decision Node

LLM-powered routing to multiple destinations.

YAML Example:

- id: Classify Intent
  type: decision
  description: "Analyze user intent and route appropriately"
  decision:
    nodes:
      - Bug Report Handler
      - Feature Request Handler
      - Question Handler

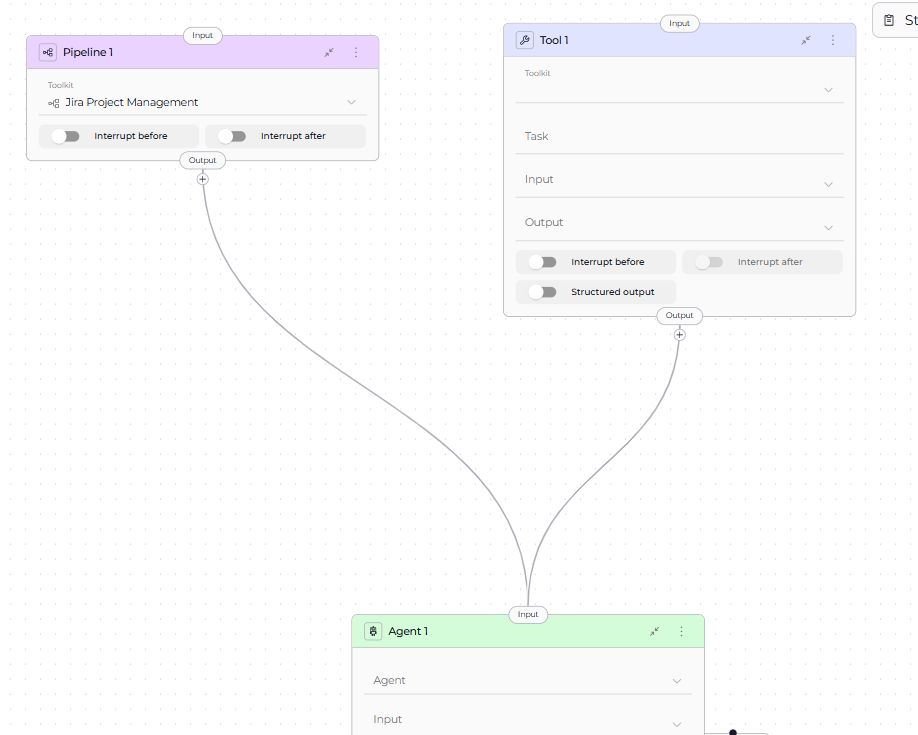

Multiple Inputs

All nodes can accept multiple input connections, allowing:

• Convergence of different execution paths
• Merging results from parallel branches
• Reusing nodes in different contexts

Example:

- id: Generate Report
  type: function
  # Can receive input from multiple nodes
  transition: Email Results

# Both paths lead to same node:
- id: Process Type A
  transition: Generate Report

- id: Process Type B
  transition: Generate Report

---

YAML Connection Syntax

Basic Transition

Connect one node to another:

transition: <node_id>

Example:

- id: Fetch Data
  type: function
  transition: Process Data  # Next node ID

Conditional Transitions (Router)

Multiple routes with default fallback:

condition: "{{ variable }}"
routes:
  - when: "{{ condition_1 }}"
    transition: Node A
  - when: "{{ condition_2 }}"
    transition: Node B
default: Default Node  # Optional fallback

Boolean Transitions (Condition)

True/false paths:

condition: "{{ expression }}"
transitions:
  true: Success Node
  false: Failure Node

Decision-Based Transitions

LLM chooses from options:

decision:
  nodes:
    - Option 1 Node
    - Option 2 Node
    - Option 3 Node

Terminate Pipeline

transition: END

---

Creating Connections Visually

ELITEA provides multiple ways to create connections in Flow mode:

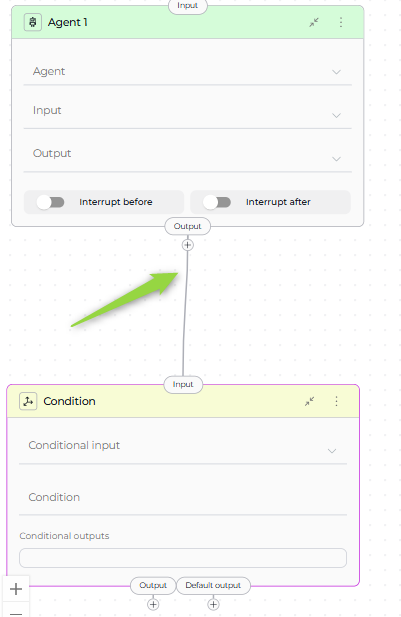

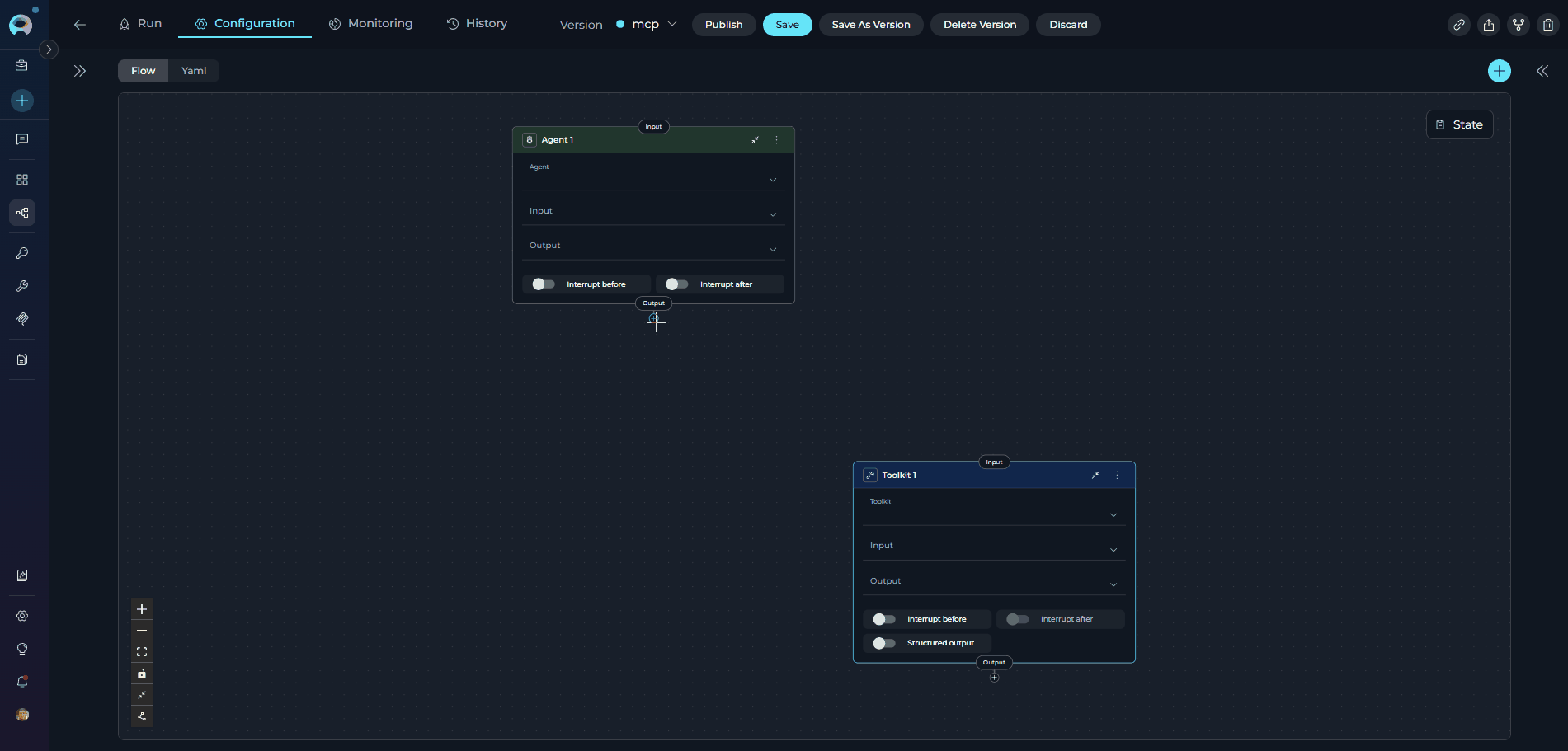

Method 1: Drag from Node

1. Click and drag the output port (bottom of node)
2. Drag the connector line across the canvas
3. Release on the input port (top of target node)

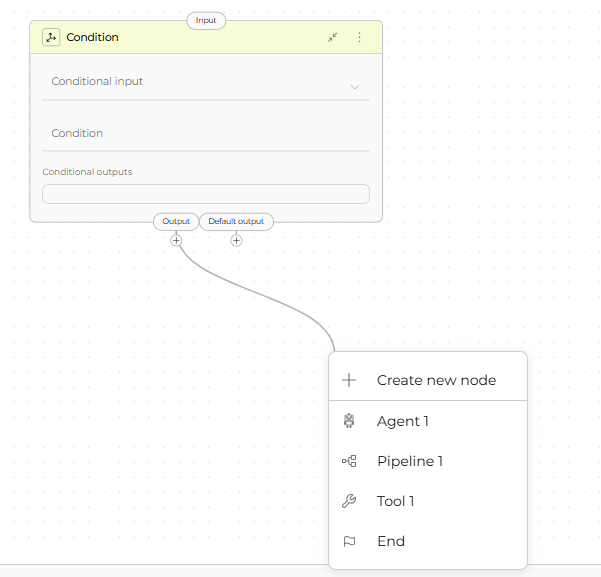

Method 2: Dropdown Menu

1. Drag connector from output port
2. Release in empty canvas area
3. Select from dropdown:
4. Existing nodes - Connect to available node
5. Create New Node - Add and connect new node
6. END - Terminate pipeline

---

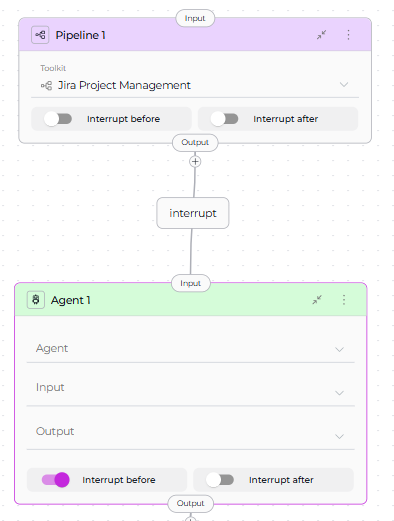

Interrupt Options

Interrupt Before and Interrupt After are advanced options that pause pipeline execution for human review or intervention.

Interrupt Before

Pauses before a node runs. Useful for:

• Reviewing inputs before critical operations
• Confirming decisions before irreversible actions
• Manual data validation

YAML:

interrupt_before:
  - Node Name

Visual: Toggle Interrupt Before in node's Advanced settings

Interrupt After

Pauses execution after a node completes. Useful for:

• Reviewing outputs before proceeding
• Verifying LLM results
• Allowing human feedback

YAML Syntax:

interrupt_after:
  - Node Name

Visual: Toggle Interrupt After in node's Advanced settings

Interrupt Limitations

• Only works in interactive mode (Chat interface)
• Programmatic/API executions may ignore interrupts
• Use sparingly to avoid breaking automated workflows

---

Connection Patterns

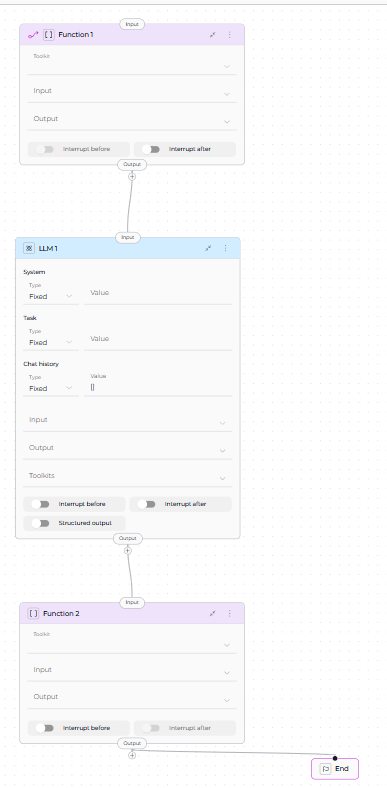

Linear Flow

Sequential execution through nodes.

entry_point: Step 1
nodes:
  - id: Step 1
    type: function
    transition: Step 2

  - id: Step 2
    type: llm
    transition: Step 3

  - id: Step 3
    type: function
    transition: END

Conditional Branching

Route based on true/false condition.

entry_point: Check Status
nodes:
  - id: Check Status
    type: condition
    condition: "{{ approved }}"
    transitions:
      true: Publish
      false: Request Changes

  - id: Publish
    type: function
    transition: END

  - id: Request Changes
    type: llm
    transition: END

Multi-Path Routing

Multiple branches based on complex logic.

entry_point: Classify Request
nodes:
  - id: Classify Request
    type: router
    condition: "{{ request_type }}"
    routes:
      - Bug Handler
      - Feature Handler
      - Question Handler
    default_output: General Handler

Converging Paths

Multiple branches merge into single node.

entry_point: Route Input
nodes:
  - id: Route Input
    type: decision
    decision:
      nodes:
        - Process Type A
        - Process Type B

  - id: Process Type A
    type: function
    transition: Generate Report

  - id: Process Type B
    type: function
    transition: Generate Report

  - id: Generate Report
    type: function
    transition: END

Best Practices

Essential Rules

Required Elements

• Set Entry Point: Pipeline won't run without one
• All Paths to END: Every branch must terminate
• Avoid Infinite Loops: Ensure loops eventually reach END

Connection Guidelines

• Use Descriptive Names: Validate User Input instead of Node1
• Add Default Routes: Provide fallback for Router nodes
• Test Incrementally: Build and test step-by-step
• Limit Nesting: Keep pipeline structure clear and maintainable

Good Example:

entry_point: Validate User Input
nodes:
  - id: Validate User Input
    type: function
    transition: Process Valid Data

  - id: Process Valid Data
    type: llm
    transition: END

Bad Example:

# Missing entry_point
nodes:
  - id: Node1
    transition: Node2

  - id: Node2
    # Missing transition - pipeline hangs

---

Related

Related Documentation

• Entry Point Guide - Detailed entry point configuration
• State Management - Data flow between nodes
• Control Flow Nodes - Router, Condition, and Decision nodes
• Flow Editor - Visual pipeline design
• YAML Configuration - Complete YAML syntax reference
