Execution Nodes

Execution Nodes enable your pipeline to perform actions, call external tools, execute code, and integrate with APIs. These nodes form the "action" layer of your workflow, transforming data, triggering external systems, and performing computational tasks.

Available Execution Nodes:

• Function Node - Execute specific toolkit/MCP functions with direct parameter mapping
• Tool Node - LLM-assisted tool selection and execution based on task instructions
• Code Node - Execute custom Python code in a secure sandbox

---

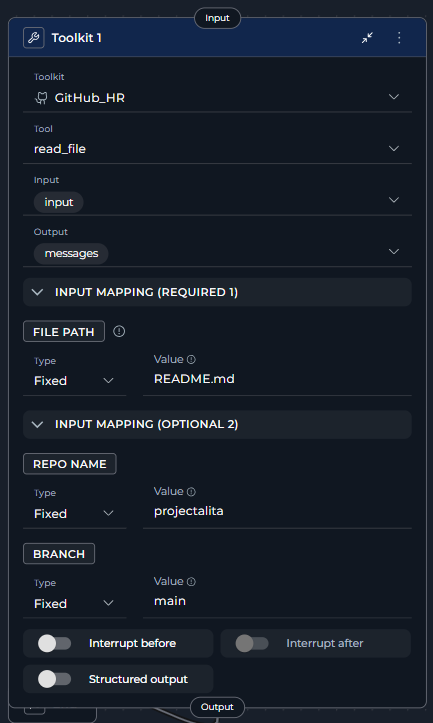

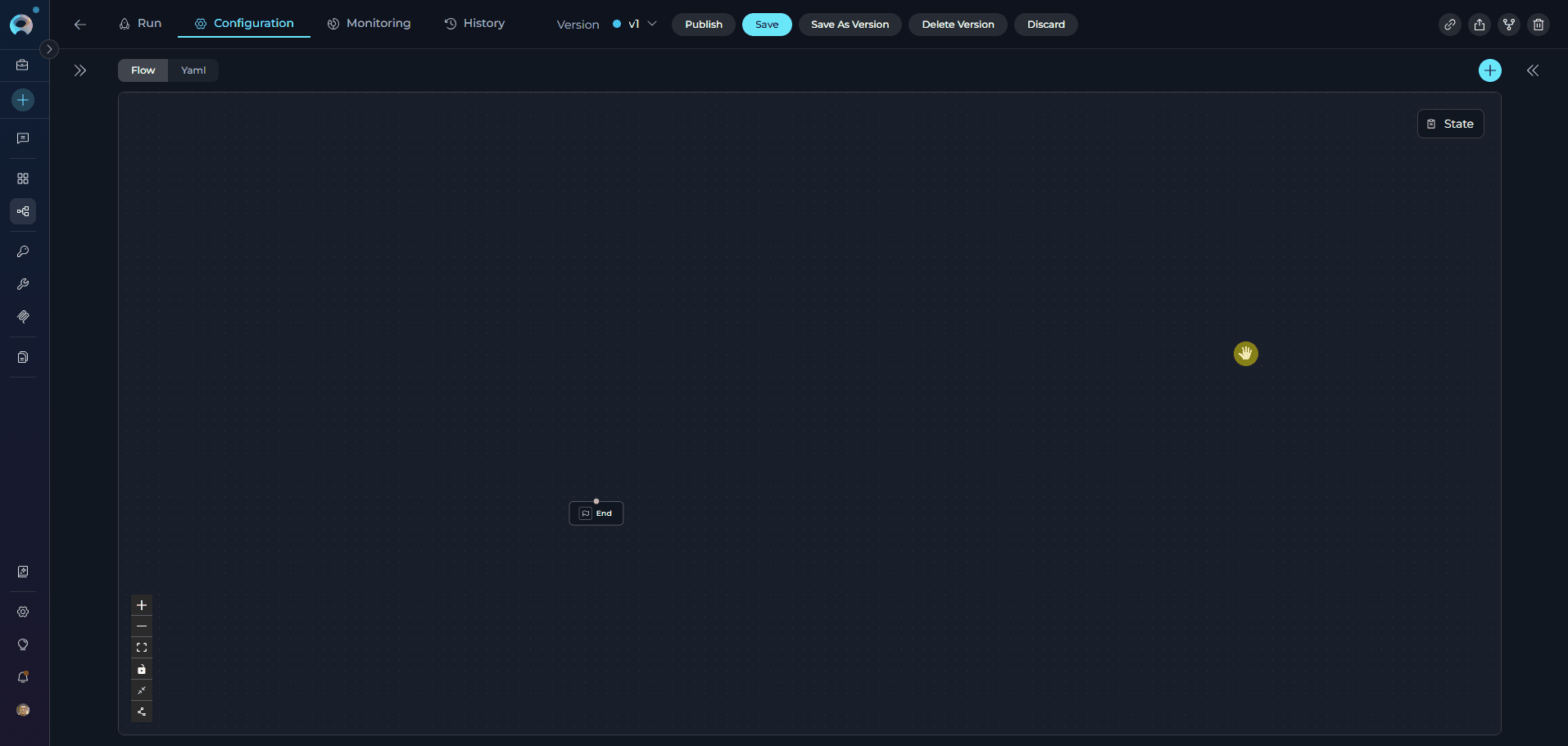

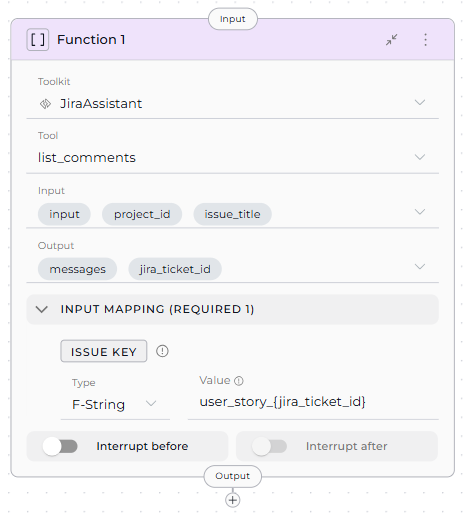

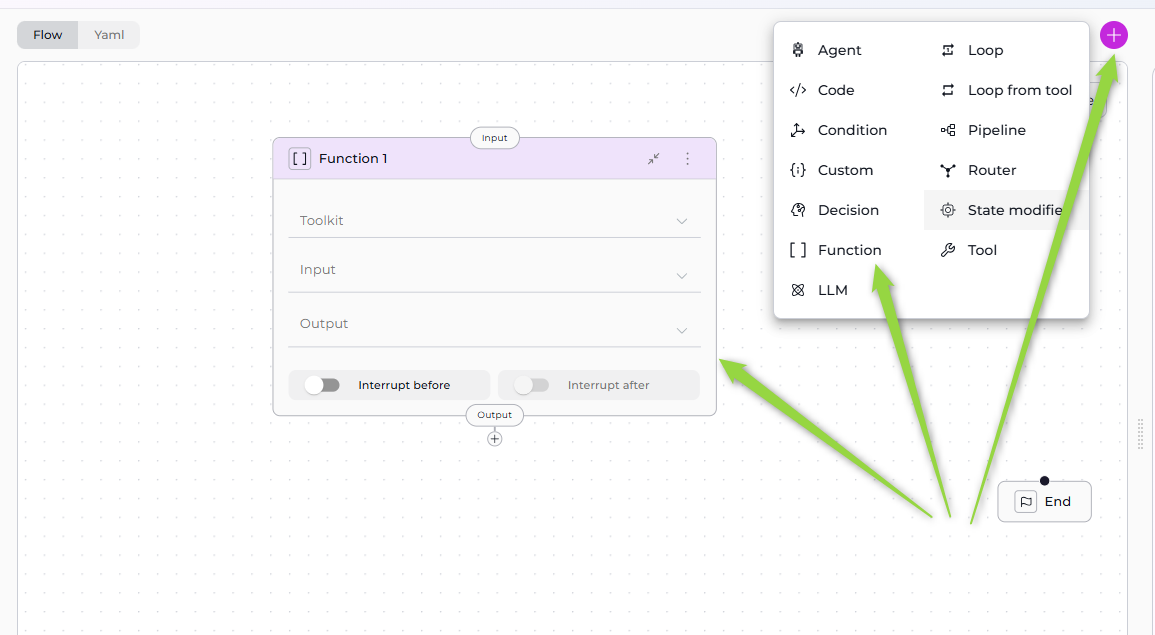

Function Node

The Function Node executes specific tools from Toolkits or MCPs (Model Context Protocol servers) with direct parameter mapping. Unlike the Tool Node, which uses LLM intelligence to decide which tool to call, the Function Node directly invokes a pre-selected tool with explicitly mapped inputs.

Purpose

Use the Function Node to:

• Execute specific tools without LLM decision-making overhead
• Call external APIs through toolkit integrations (Jira, Confluence, GitHub, etc.)
• Perform deterministic actions where the tool and parameters are known upfront
• Map pipeline state directly to tool parameters
• Chain multiple tool calls in sequence with precise control

Function Node Scope

Function Nodes can use Toolkits and MCPs only. Agents and Pipelines now have their dedicated node types.

Parameters

Parameter	Purpose	Type Options & Examples
Toolkit	Select which Toolkit or MCP contains the tool you want to execute	Toolkits - External service integrations MCPs - Model Context Protocol servers Selection Process: 1. Select Toolkit/MCP from dropdown 2. Tool dropdown appears 3. Select specific tool Example: jira_toolkit
Tool	Select the specific tool/function to execute from the chosen toolkit	Dropdown populated with all available tools from selected toolkit jira_toolkit: create_issue, update_issue, search_issues, list_comments
Input	Specify which state variables the Function node reads from	Default states: input, messages Custom states: Any defined state variables Example: - project_id - issue_title - input
Output	Define which state variables the tool's result should populate	Default: messages Custom states: Specific variables Example: - jira_ticket_id - messages
Input Mapping	Map pipeline state variables to the tool's required parameters (appears after tool selection)	F-String - Formatted string with variables Example: user_story_{ticket_id}_v{version}.md Variable - Direct state reference Example: generated_content Fixed - Static value Example: production-reports Categories: - Required parameters (must provide) - Optional parameters (can be null)
Interrupt Before	Pause pipeline execution before this node	Enabled / Disabled
Interrupt After	Pause pipeline execution after this node for inspection	Enabled / Disabled

YAML Configuration

nodes:
  - id: Function 1
    type: function
    tool: list_comments
    input:
      - project_id
      - issue_title
      - input
    output:
      - jira_ticket_id
      - messages
    structured_output: false
    input_mapping:
      issue_key:
        type: fstring
        value: user_story_{jira_ticket_id}
    transition: END
    toolkit_name: JiraAssistant
interrupt_before: []
state:
  messages:
    type: list
  input:
    type: str
  project_id:
    type: str
    value: ''
  jira_ticket_id:
    type: str
    value: ''
  issue_title:
    type: str
    value: ''

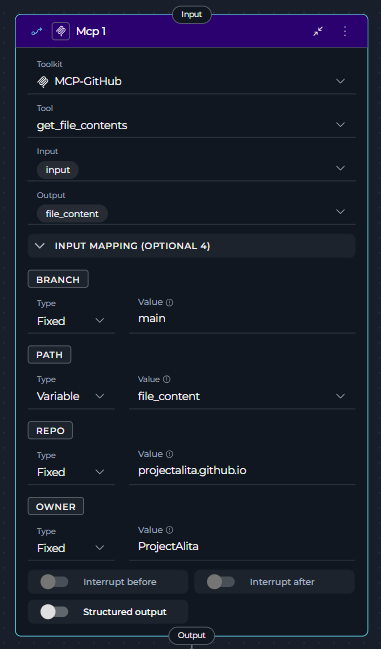

Input Mapping Configuration

The Input Mapping section dynamically displays only the parameters required by the selected tool. Each toolkit/MCP tool has different required and optional parameters. Select your tool first to see available mapping options.

Single Toolkit and Tool Selection

Each Function Node can select only one toolkit and one tool. For multiple tool executions, create separate Function Nodes and chain them together.

Best Practices

• Map Required Parameters Correctly.
• Use Appropriate Type for Each Parameter
  • Variable: When value comes from state
  • F-String: When you need dynamic interpolation
  • Fixed: For static, unchanging values
• Handle Optional Parameters: Set optional parameters to null if not needed:
• Include Output Variables: Capture important results in output variables:
• Use Interrupts for Debugging: Enable interrupts when testing new integrations:
• Validate State Variables: Ensure input state variables exist before the Function node executes:
• Choose Function Over Tool Node: Use Function Node when:
  • You know exactly which tool to call
  • Parameters are straightforward to map
  • No LLM decision-making is needed
  • Performance is critical (no LLM overhead)
• Chain Function Calls: Create workflows by sequencing Function nodes:

---

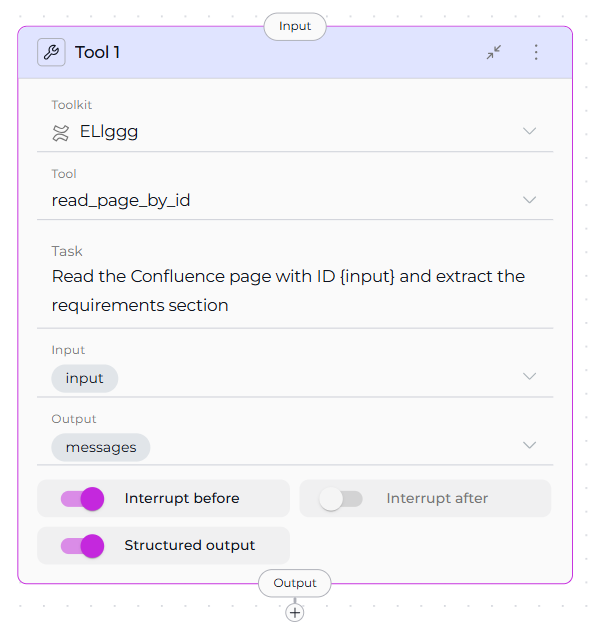

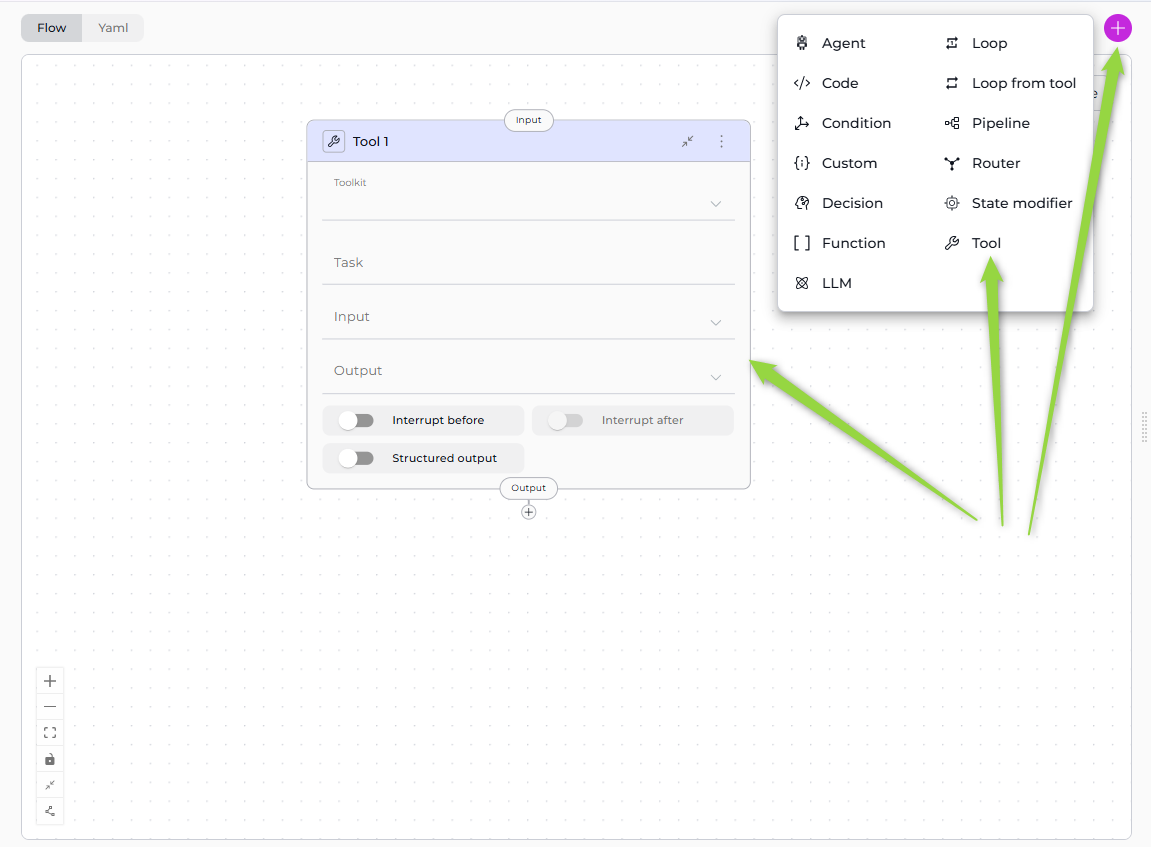

Tool Node

The Tool Node uses LLM intelligence to analyze a task instruction, select appropriate tools from available Toolkits/MCPs, and execute them with LLM-generated parameters. Unlike the Function Node, which requires explicit tool selection and parameter mapping, the Tool Node makes intelligent decisions about which tools to call and how.

Purpose

Use the Tool Node to:

• Delegate tool selection to LLM based on natural language instructions
• Handle complex workflows where multiple tools might be needed
• Simplify configuration by avoiding manual parameter mapping
• Leverage LLM reasoning to choose the right tool for the task
• Execute multi-step tool chains dynamically

Parameters

Parameter	Purpose	Type Options & Examples
Toolkit	Select which Toolkits or MCPs the LLM can choose tools from	Toolkits - External service integrations MCPs - Model Context Protocol servers Selection: Can select multiple How It Works: 1. User selects one or more toolkits 2. LLM receives tool descriptions 3. LLM analyzes task and selects tools 4. Pipeline executes selected tools Example: - confluence_toolkit
Tool	Select a specific tool from the chosen toolkit that the LLM will use	Dropdown populated with all available tools from selected toolkit Selection: Only one tool can be selected LLM Usage: LLM uses the selected tool to accomplish the task Example: read_page_by_id
Task	Provide natural language instructions describing what the node should accomplish	Read the Confluence page with ID {input} and extract the requirements section.
Input	Specify which state variables the Tool node reads from	Default states: input, messages Custom states: Any defined state variables Example: - page_id - topic - messages
Output	Define which state variables the tool execution results should populate	Default: messages Custom states: Specific variables Example: - search_results - created_page_id - messages
Structured Output	Force the LLM to return results in a structured format matching your output variables	Enabled - LLM formats tool results into specific state variables Disabled - LLM returns free-form summary in messages Example: true or false
Interrupt Before	Pause execution before the LLM executes tools	Enabled / Disabled
Interrupt After	Pause execution after the LLM executes tools for inspection	Enabled / Disabled

YAML Configuration

nodes:
  - id: Tool 1
    type: tool
    tool: read_page_by_id
    input:
      - input
    output:
      - messages
    structured_output: true
    transition: END
    toolkit_name: ELlggg
    task: Read the Confluence page with ID {input} and extract the requirements section
interrupt_before:
  - Tool 1
state:
  messages:
    type: list
  input:
    type: str
  project_id:
    type: str
    value: ''
  issue_title:
    type: str
    value: ''
  page_id:
    type: str
    value: ''

Best Practices

• Write Clear Task Instructions: Provide specific, actionable tasks that clearly describe what the node should accomplish.
• Single Tool Selection: Each Tool Node can select only one tool. The LLM uses that selected tool to accomplish the task based on the provided instructions.
• Use Structured Output for Data Extraction: When you need specific values, enable structured output to extract data into defined state variables.
• Provide Context in Task: Include necessary context from state variables using f-string formatting in the task description.
• Use Interrupts for Debugging: Enable interrupts to review LLM tool execution and results during development.
• Handle Multi-Step Tasks: Break complex workflows into clear, sequential steps in the task description.
• Choose Tool Node Over Function Node: Use Tool Node when:
  • Task requires LLM reasoning about how to use the tool
  • You want natural language task specification
  • Tool parameters are complex or context-dependent
• Monitor Tool Execution: Review the tool execution results to ensure expected behavior and optimize task instructions.

---

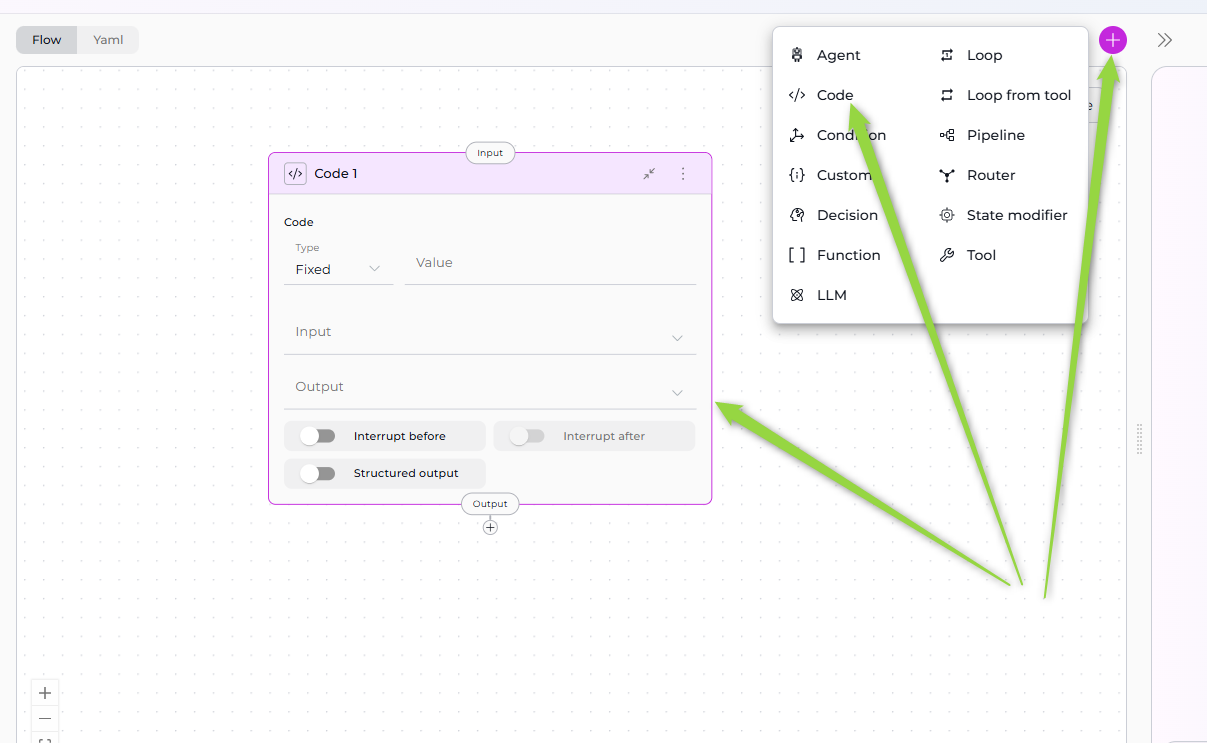

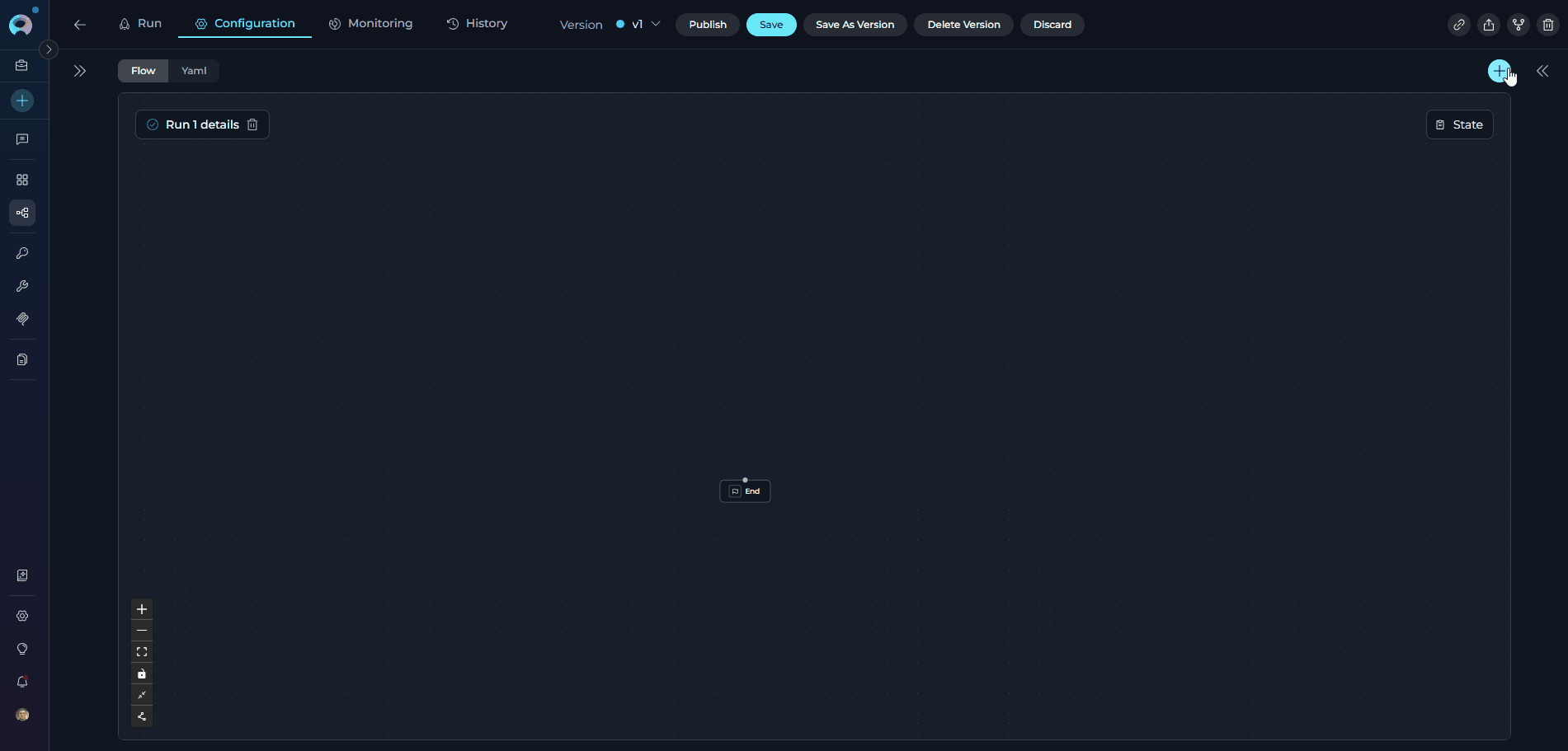

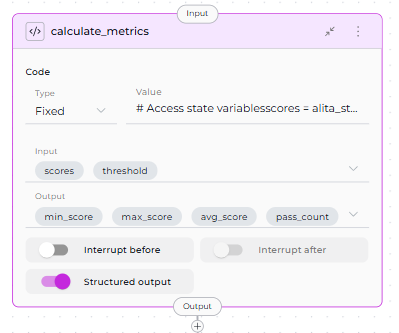

Code Node

The Code Node enables secure execution of custom Python code within a sandboxed environment (Pyodide/WebAssembly). It provides full Python capabilities for data processing, calculations, and custom logic without accessing the host system.

Purpose

Use the Code Node to:

• Execute custom Python logic for data transformation and processing
• Perform calculations that don't require external tool integrations
• Process pipeline state with full programming control
• Implement business rules and conditional logic in Python
• Transform data formats between pipeline nodes
• Call external APIs directly from Python

Parameters

Parameter	Purpose	Type Options & Examples
Code	Provide the Python code to execute	Fixed - Static Python code block (most common) F-String - Code with dynamic variable interpolation Variable - Code sourced from state Full-Screen Editor: Value field supports full-screen mode with Python syntax highlighting, code validation, and multi-line editing Example (Fixed): python<br>numbers = alita_state.get('numbers', [])<br>return {"total": sum(numbers)}<br>
Input	Specify which state variables to inject into the code execution context	How It Works: Selected state variables become accessible via alita_state dictionary Example: - user_data - configuration - previous_results Code Access: user_data = alita_state.get('user_data', {})
Output	Define which state variables the code's return value should populate	Without Output Variables: Code return value added to messages With Output Variables: Code must return dictionary, only listed variables updated Example: - total - average - status - messages
Structured Output	Enable parsing of code return value as structured data for state variable updates	Enabled (true): Code must return dictionary, keys matching output variables update state Disabled (false): Code return value goes to messages Example: true or false
Interrupt Before	Pause pipeline execution before code execution	Enabled / Disabled
Interrupt After	Pause pipeline execution after code execution for inspection	Enabled / Disabled

YAML Configuration

nodes:
  - id: calculate_metrics
    type: code
    code:
      type: fixed
      value: |
        # Access state variables
        scores = alita_state.get('scores', [])
        threshold = alita_state.get('threshold', 70)

        # Calculate metrics
        if scores:
            min_score = min(scores)
            max_score = max(scores)
            avg_score = sum(scores) / len(scores)
            pass_count = sum(1 for s in scores if s >= threshold)
        else:
            min_score = max_score = avg_score = pass_count = 0

        # Return structured data
        return {
            "min_score": min_score,
            "max_score": max_score,
            "avg_score": round(avg_score, 2),
            "pass_count": pass_count
        }
    input:
      - scores
      - threshold
    output:
      - min_score
      - max_score
      - avg_score
      - pass_count
      - messages
    structured_output: true
    transition: END
interrupt_after:
  - calculate_metrics
state:
  scores:
    type: list
    value: []
  threshold:
    type: int
    value: 70
  min_score:
    type: float
    value: 0.0
  max_score:
    type: float
    value: 0.0
  avg_score:
    type: float
    value: 0.0
  pass_count:
    type: int
    value: 0
  messages:
    type: list

State Access in Code

Access pipeline state via alita_state dictionary. When an Alita client is available, it's automatically injected as alita_client for accessing artifacts and other resources.

Output Variable Filtering

Only variables listed in output will be updated, even if the returned dictionary contains additional keys. Use structured_output: true for proper variable mapping.

Code Execution Environment

Code runs in a sandboxed Pyodide/WebAssembly environment with full Python standard library. Use import micropip; await micropip.install('package-name') for additional packages. Network access is enabled for external API calls.

Best Practices

• Return Structured Data: When using structured_output: true, always return dictionaries with keys matching output variables.
• Handle Errors Gracefully: Include try-except blocks to catch and return errors as part of the structured output.
• Validate Input Data: Check state variables exist and have expected types before processing using alita_state.get().
• Use Descriptive Output Variables: Name output variables clearly to indicate their purpose (e.g., total_revenue, average_order_value instead of result1, result2).
• Keep Code Focused: Each Code Node should have one clear purpose - avoid combining multiple unrelated operations in a single node.
• Document Complex Logic: Use Python comments to explain business rules, calculations, and non-obvious operations.
• Test with Interrupts: Enable interrupts to review code execution results and debug issues during development.
• Optimize Performance: Avoid heavy computations in frequently called nodes, cache expensive operations when possible, and use efficient data structures.

---

Execution Nodes Comparison

Feature	Function Node	Tool Node	Code Node
Purpose	Execute specific tool with explicit parameter mapping	LLM-assisted tool selection and execution	Execute custom Python code
Toolkit Types	Toolkits, MCPs	Toolkits, MCPs	N/A (Python sandbox)
Tool Selection	Manual (user selects)	Automatic (LLM decides)	N/A
Parameter Mapping	Explicit Input Mapping (per tool)	LLM generates parameters from task	State via alita_state
Task Instruction	No task field	Required (natural language)	Python code
LLM Usage	No LLM	Yes (for tool selection and params)	No LLM
Configuration	UI-based parameter mapping	Natural language task + toolkit selection	Python code editor
Flexibility	Low (predefined tools)	High (LLM reasoning)	Very High (full Python)
Complexity	Medium	Low (natural language)	High (requires Python knowledge)
Performance	Fast (direct execution)	Slower (LLM overhead)	Fast (compiled sandbox)
Structured Output	Not applicable	Supported	Supported
Input Mapping	Required parameters + optional	LLM generates from task	alita_state dictionary
Use Case	Known tool, explicit parameters	Flexible tool selection, complex workflows	Custom logic, calculations, data processing
Best For	Deterministic tool calls (create Jira ticket, search Confluence)	Dynamic tool selection (research and document, multi-step workflows)	Data transformation, business logic, API calls

When to Use Each Node

Function Node ✅

Choose Function Node when you:

• Know exactly which tool to call
• Have straightforward parameter mapping
• Need fast, deterministic execution
• Don't require LLM reasoning
• Want explicit control over tool execution

Example: Create a Jira ticket with known project, summary, and description.

Tool Node ✅

Choose Tool Node when you:

• Need LLM to decide which tool(s) to call
• Have complex, multi-step workflows
• Want natural language task specification
• Require dynamic tool selection based on context
• Need LLM reasoning about tool parameters

Example: "Search Confluence for authentication docs, then create a Jira ticket summarizing the findings."

Code Node ✅

Choose Code Node when you:

• Need custom Python logic
• Require data transformation or processing
• Implement business rules and calculations
• Call external APIs directly
• Have logic too complex for standard nodes

Example: Calculate tiered discounts based on customer segment, order value, and first-order status.

---
