Pipeline Nodes Overview¶

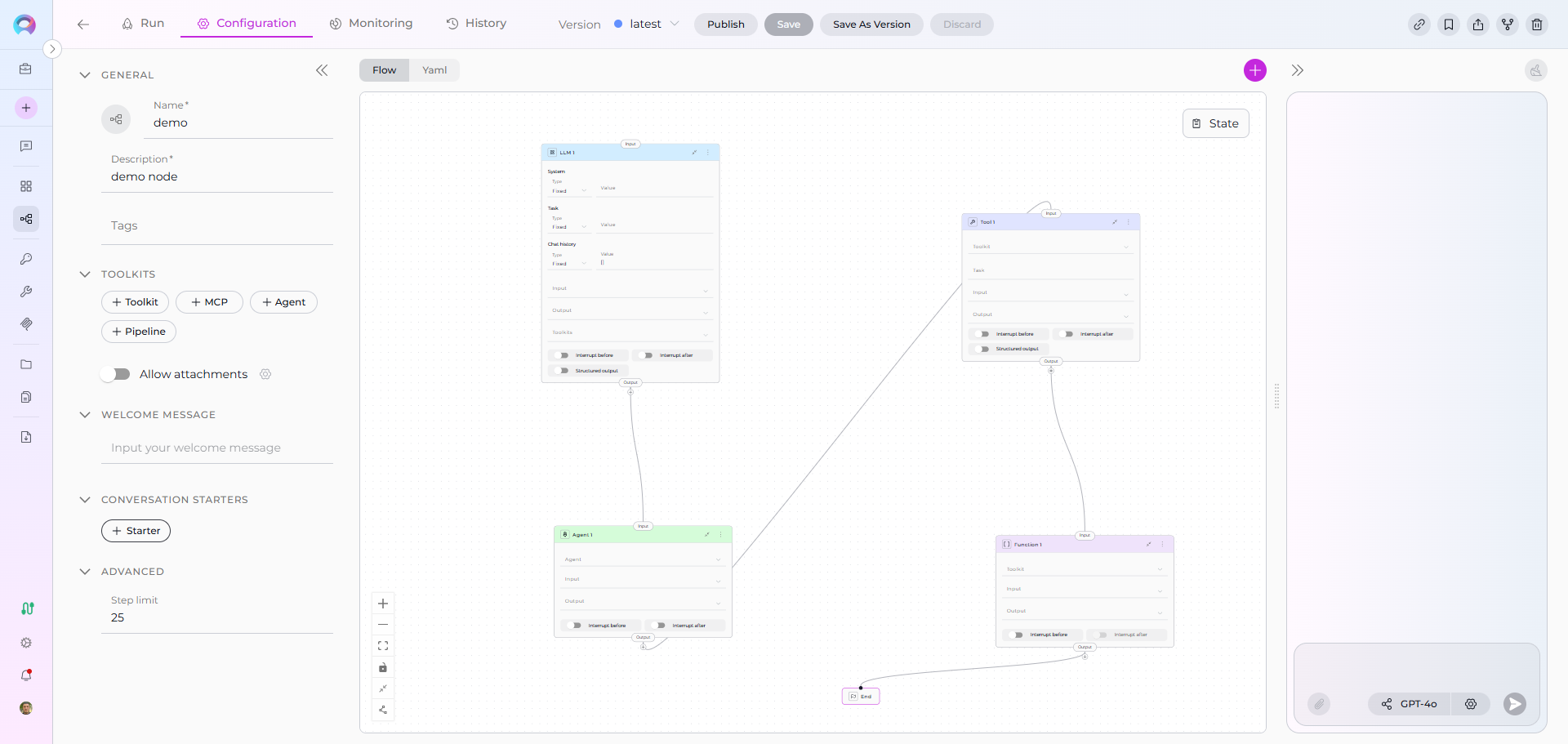

Nodes are the fundamental building blocks of ELITEA Pipelines—individual steps that perform specific actions within your workflow. Each node:

Performs one specific task (call an AI model, execute code, make a decision)
Reads input from pipeline state
Writes output back to state
Connects to other nodes to form a workflow

Nodes execute sequentially or conditionally based on your configuration.

state:
  input:
    type: str
  messages:
    type: list
entry_point: LLM 1
interrupt_after: []
nodes:
  - id: Agent 1
    type: agent
    input: []
    input_mapping: {}
    output: []
    transition: Toolkit 1
  - id: LLM 1
    type: llm
    input: []
    input_mapping:
      chat_history:
        type: fixed
        value: []
      system:
        type: fixed
        value: ''
      task:
        type: fixed
        value: ''
    output: []
    structured_output: false
    transition: Agent 1
  - id: Toolkit 1
    type: toolkit
    input: []
    input_mapping: {}
    output: []
    structured_output: false
    tool: ''
    transition: END

Execution Flow¶

When a pipeline runs:

Entry Point - Execution begins at the starting node
Node Execution - The node reads from state, performs its action, and writes results
Transition - Execution moves to the next node based on configuration
Iteration - Process continues until reaching END or completing all nodes

State is Shared

All nodes share the same state. Data written by one node is immediately available to subsequent nodes.

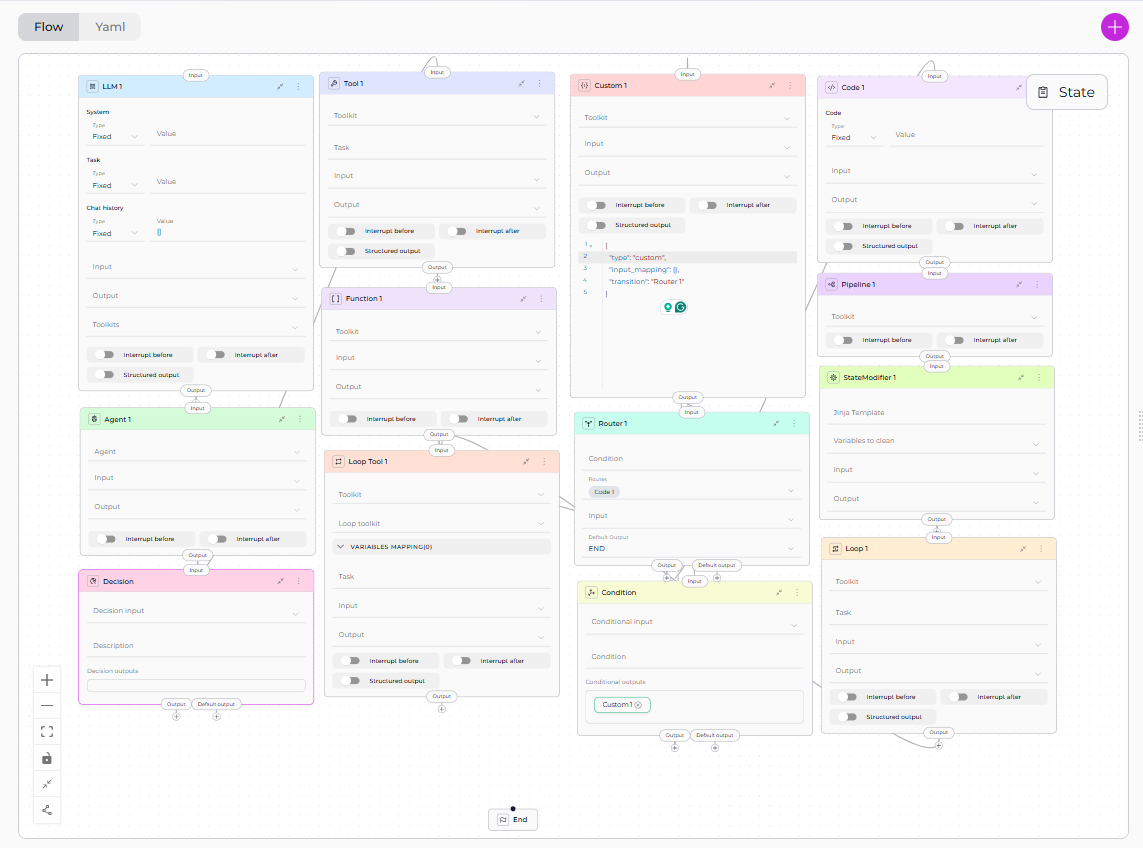

Common Node Attributes¶

All nodes share these common configuration attributes:

Core Attributes¶

id (required): Unique identifier for the node within the pipeline. Must be unique across all nodes.

id: "process_request"

type (required): Node type (llm, agent, toolkit, mcp, code, custom, router, decision, state_modifier, printer). Determines behavior and available parameters.

type: "llm"

Input/Output Attributes¶

input (optional, default: ["input"]): List of state variable names the node reads from. Defines which parts of the state the node can access.

input: ["user_input", "messages", "config"]

output (optional, default: []): List of state variable names the node writes to. Specifies where the node's results are stored in state.

output: ["extracted_data", "confidence_score"]

Default Behavior

If output is not specified, results typically go to the messages state variable (varies by node type).

Flow Control Attributes¶

transition (optional): Simple transition to another node. Specifies the next node to execute unconditionally.

transition: "next_step"

condition (optional): Conditional branching using Jinja2 templates. Routes to different nodes based on expression evaluation.

condition:
  condition_input: ["status", "approval"]
  condition_definition: |
    {% if status == 'approved' and approval == true %}
    PublishNode
    {% else %}
    ReviewNode
    {% endif %}

decision (optional): AI-powered decision making. Uses LLM to determine the next node based on context.

decision:
  nodes: ["Publish", "Edit", "Reject"]
  decisional_inputs: ["feedback", "messages"]
  default_output: "ReviewAgain"

Node-Specific Attributes¶

Each node type has additional parameters covered in the individual node type guides.

Node Categories¶

ELITEA Pipelines provide 7 different node types organized into 3 functional categories. Understanding these categories helps you quickly identify the right node for your needs.

Interaction Nodes¶

Purpose: Interact with users or AI models to gather information, generate responses, or delegate tasks.

Node Types:

LLM Node - Interact with Large Language Models
- Call AI models (GPT-4, Claude, etc.) for text generation
- Support chat history and conversation context
- Bind tools for function calling
- Extract structured data from responses
Agent Node - Delegate tasks to pre-built AI agents
- Execute specialized agents within your pipeline
- Leverage agent-specific capabilities
- Pass context and get results
- Combine multiple agents in workflows

When to Use:

Generate text, summaries, or responses
Analyze content or extract information
Have contextual conversations
Delegate to specialized AI capabilities

Execution Nodes¶

Purpose: Perform actions, call external services, execute code, or trigger integrations.

Node Types:

Toolkit Node - Execute ELITEA toolkit functions
- Call toolkit functions (Jira, GitHub, Slack, Confluence, etc.)
- Direct execution without LLM preprocessing
- Map inputs to toolkit parameters
- Capture structured outputs
- Support for all ELITEA toolkits
MCP Node - Execute Model Context Protocol (MCP) tools
- Connect to remote MCP servers via HTTP
- Execute MCP server tools directly
- Configure connection parameters (URL, headers, timeout)
- Map inputs and capture outputs
- Enable/disable specific tools from MCP server
Code Node - Run custom Python code
- Execute arbitrary Python scripts
- Access pipeline state via alita_state
- Process data, perform calculations
- Integrate with external APIs
- Return structured results
Custom Node - Advanced manual JSON configuration
- Make manual and advanced configurations
- Use any available toolkit (Agents, Pipelines, Toolkits, MCPs)
- Full control via JSON-based configuration
- For advanced users with specific requirements

Use Cases:

Call external services or APIs
Execute custom business logic
Process or transform data
Integrate with third-party systems
Perform calculations or validations

Control Flow Nodes¶

Purpose: Make decisions and route pipeline execution based on conditions or logic.

Node Types:

Router Node - Route based on expression evaluation
- Evaluate Python expressions
- Direct flow to specific nodes based on result
- Support multiple output routes
- Use state variables in conditions
Decision Node - AI-powered routing decisions
- Let LLM decide the next step based on context
- Provide natural language description of routing criteria
- Define possible decision outcomes (nodes list)
- Specify decisional inputs for LLM analysis
- Fallback to default output if decision unclear

Use Cases:

Branch workflow based on data values
Implement business rules
Create approval workflows
Route based on AI interpretation
Handle different scenarios dynamically

Utility Nodes¶

Purpose: Manage state, transform data, and display information.

Node Types:

State Modifier Node - Transform and clean state
- Use Jinja2 templates to modify state
- Combine multiple state variables
- Format and transform data
- Clean up or reset state variables
- Apply filters (from_json, base64_to_string, split_by_words, etc.)
Printer Node - Display formatted output to users
- Format and display messages during pipeline execution
- Pause pipeline execution for user review
- Use Jinja2 templates to format output
- Access state variables in templates
- Resume execution after user acknowledgment

Use Cases:

Format output for specific purposes
Combine data from multiple sources
Clean up temporary state
Transform and structure data
Display progress or results to users
Show intermediate workflow status

Choosing the Right Node¶

Use this guide to select the appropriate node:

Decision Tree¶

Need to...
│
├─ Generate text or analyze content?
│  └─ Use **LLM Node** or **Agent Node**
│
├─ Call an external service or API?
│  ├─ ELITEA Toolkit? → **Toolkit Node**
│  ├─ MCP Server? → **MCP Node**
│  └─ Custom integration? → **Code Node**
│
├─ Make a decision or branch?
│  ├─ Simple expression/condition? → **Router Node**
│  └─ AI-powered decision? → **Decision Node**
│
├─ Delegate to specialized agent?
│  └─ Use **Agent Node**
│
└─ Transform, manage state, or display output?
   ├─ Transform state? → **State Modifier Node**
   └─ Display to user? → **Printer Node**

Quick Reference Table¶

Goal	Recommended Node	Alternative	Example Use Case
Generate text with AI	LLM Node	Agent Node	Summarize documents, generate responses, analyze content
Call external API or service	Toolkit Node	Code Node + API	Create Jira tickets, send Slack messages, query databases
Execute MCP server tools	MCP Node	Code Node + HTTP	Connect to remote MCP servers, execute MCP tools
Make conditional decisions	Router Node	Decision Node	Route by status (approved/rejected), check error conditions
Transform or format data	State Modifier Node	Code Node	Format output with templates, combine state variables
Run custom business logic	Code Node	Toolkit Node	Perform calculations, data processing, custom validations
Display information to users	Printer Node	Code Node	Show progress updates, formatted reports, status messages
Delegate to AI agents	Agent Node	-	Use specialized agents for complex tasks, multi-step workflows
AI-powered routing	Decision Node	Router Node	Route based on content analysis, sentiment, or context

Common Patterns¶

Pattern 1: Gather → Process → Act

nodes:
  # 1. Gather information using LLM
  - id: "gather_requirements"
    type: "llm"
    input: ["user_input", "messages"]
    output: ["requirements", "project_id"]
    structured_output: true

  # 2. Process with external tool
  - id: "create_tickets"
    type: "toolkit"
    toolkit_name: "jira_toolkit"
    tool: "create_issue"
    input: ["requirements", "project_id"]
    output: ["ticket_ids"]
    input_mapping: {}

  # 3. Act - send notification
  - id: "notify_team"
    type: "toolkit"
    toolkit_name: "slack_toolkit"
    tool: "send_message"
    input: ["ticket_ids"]
    input_mapping: {}
    transition: "END"

Pattern 2: Conditional Branching

nodes:
  - id: "check_approval"
    type: "router"
    condition: "status == 'approved'"
    input: ["status"]
    routes: ["approved", "rejected"]
    default_output: "review_needed"

  - id: "approved"
    type: "llm"
    # ... approved workflow

  - id: "rejected"
    type: "llm"
    # ... rejection workflow

  - id: "review_needed"
    type: "llm"
    # ... review workflow

Pattern 3: Toolkit Integration

nodes:
  - id: "fetch_jira_issues"
    type: "toolkit"
    toolkit_name: "jira_toolkit"
    tool: "search_issues"
    input: ["project_key", "status"]
    output: ["issues"]
    input_mapping: {}

  - id: "process_issues"
    type: "code"
    code: |
      # Process each issue
      processed = []
      for issue in alita_state.get('issues', []):
          processed.append({
              'key': issue['key'],
              'summary': issue['summary']
          })
      return {'processed_issues': processed}
    input: ["issues"]
    output: ["processed_issues"]
    transition: "send_summary"

  - id: "send_summary"
    type: "toolkit"
    toolkit_name: "slack_toolkit"
    tool: "send_message"
    input: ["processed_issues"]
    input_mapping: {}
    transition: "END"

Pattern 4: State Transformation

nodes:
  - id: "extract_data"
    type: "llm"
    output: ["raw_data", "metadata"]

  - id: "format_output"
    type: "state_modifier"
    template: |
      ## Report
      **Data**: {{raw_data}}
      **Metadata**: {{metadata | from_json}}
    input: ["raw_data", "metadata"]
    output: ["formatted_report"]

Best Practices¶

Use Descriptive Node IDs

✔️ Good:

id: "extract_jira_requirements"
id: "send_slack_notification"
id: "approve_or_reject_decision"

✘ Avoid:

id: "node1"
id: "process"
id: "step_final"

Minimize State Pollution

Only output what you need:

✔️ Good:

output: ["user_id", "status"]  # Only what's needed

✘ Avoid:

output: ["user_id", "status", "temp_data", "debug_info", "raw_response"]

Choose the Right Tool

Toolkit Node for direct ELITEA toolkit calls (faster, more reliable)
MCP Node for Model Context Protocol server integrations
Code Node for custom logic not available in toolkits or MCPs
Printer Node for displaying formatted output to users during execution

Handle Errors Gracefully

Use router nodes to check for errors:

- id: "api_call"
  type: "toolkit"
  toolkit_name: "api_toolkit"
  tool: "fetch_data"
  output: ["result", "error"]

- id: "check_error"
  type: "router"
  condition: "error is not None"
  routes: ["handle_error", "continue_success"]
  input: ["error"]

Keep Nodes Focused

Each node should have a single responsibility:

✔️ Good: Separate nodes for each step

- id: "fetch_data"
- id: "process_data"
- id: "send_results"

✘ Avoid: One node doing everything

- id: "fetch_process_and_send_everything"

Use Consistent Naming

Establish naming conventions for your team:

# Verb-noun pattern
id: "fetch_users"
id: "create_ticket"
id: "validate_input"

# Or: subject-action pattern
id: "user_validation"
id: "ticket_creation"
id: "email_notification"

Document Complex Nodes

Use comments in YAML to explain non-obvious logic:

# This node uses LLM to extract structured data from user stories
# Expected output: {title, description, acceptance_criteria}
- id: "extract_story_details"
  type: "llm"
  structured_output: true
  output: ["title", "description", "acceptance_criteria"]

Deprecated Nodes¶

The following nodes are deprecated and will be removed in a future release. Please migrate to the recommended alternatives:

Condition Node

The Condition node is deprecated and will be removed in an upcoming release.

Migration: Use the Router node for expression-based routing or the Decision node for AI-powered routing decisions.

Migration Guide: Condition Node Migration

Function Node

The Function node is deprecated and will be removed in an upcoming release.

Migration: Use the Toolkit node for ELITEA toolkits, the MCP node for Model Context Protocol servers, or the Agent node for delegating to AI agents.

Migration Guide: Function Node Migration

Tool Node

The Tool node is deprecated and will be removed in an upcoming release.

Migration: Use the Toolkit node for direct toolkit execution without LLM preprocessing.

Migration Guide: Tool Node Migration

Loop Node

The Loop node is deprecated and will be removed in an upcoming release.

Migration: Use the Router node with state-based iteration control for implementing loop patterns.

Migration Guide: Loop Node Migration

Loop from Tool Node

The Loop from Tool node is deprecated and will be removed in an upcoming release.

Migration: Use the Router node with state-based iteration control for implementing loop patterns.

Migration Guide: Loop Node Migration

Pipeline (Subgraph) Node

The Pipeline (Subgraph) node is deprecated and will be removed in an upcoming release.

Migration: Use the Agent node to delegate tasks to specialized AI agents, effectively replacing nested pipeline functionality.

Migration Guide: Pipeline Node Migration
