Utility Nodes¶

Utility Nodes provide specialized functionality for state management and workflow composition. These nodes form the "supporting infrastructure" of your pipeline, allowing you to manipulate state variables and execute nested pipelines within your workflow.

Available Utility Nodes:

State Modifier Node - Transform, update, and clean up state variables using templates
Printer Node - Display formatted output to users during pipeline execution

Supporting Infrastructure

Utility nodes don't perform AI inference or external API calls directly. Instead, they provide essential support functions: state manipulation, data transformation, and user output display.

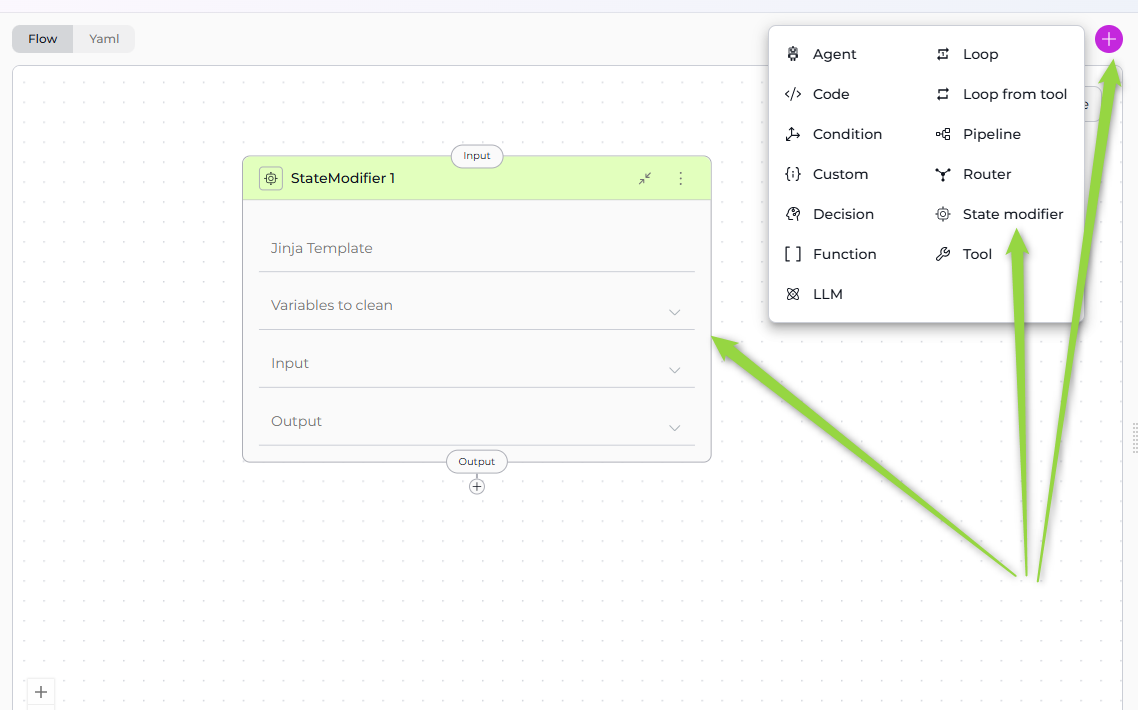

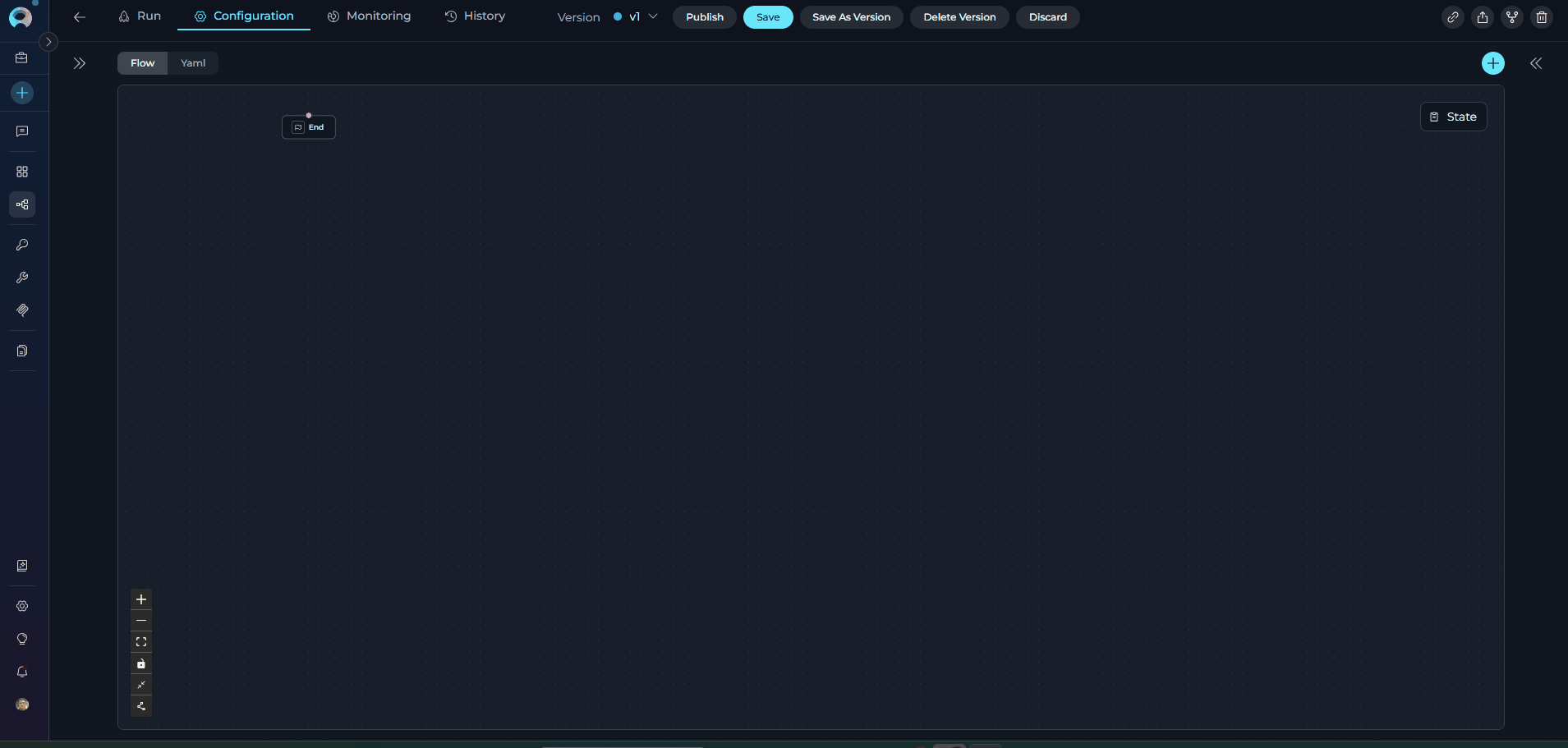

State Modifier Node¶

The State Modifier Node is like a text editor for your pipeline's data. It takes information from your workflow (stored in variables), combines or changes it using templates, and saves the result back into your pipeline.

It's useful when you need to:

Combine multiple pieces of data into one
Format data in a specific way (like creating a message or report)
Clean up temporary data you no longer need
Do simple calculations (like adding numbers or counting items)

Purpose

Use the State Modifier Node to:

Combine data - Mix information from different variables into one formatted output
Format text - Create messages, reports, or structured content from your data
Clean up - Delete or reset temporary variables after you're done with them
Simple math - Add, subtract, or count things
Transform data - Change how your data looks (uppercase, lowercase, extract parts, etc.)

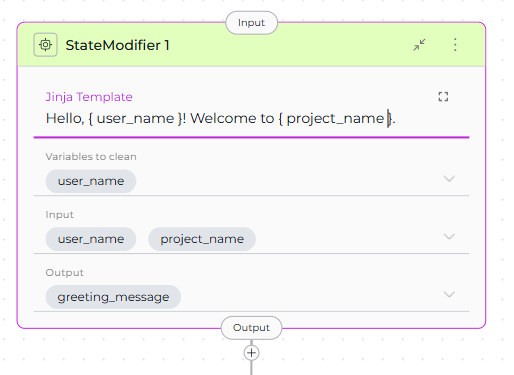

Parameters

Parameter	Purpose	Type Options & Examples
Jinja Template	Write a template that shows how to format your output using variables from your pipeline	Example: `Hello, {{ user_name }}! Your score: {{ score + 10 }}` What you can do: - Use variables: `{{ name }}` - Add conditions: `{% if score > 50 %}Pass{% endif %}` - Loop through lists: `{% for item in items %}...{% endfor %}` - Apply formatting: `{{ text\\|upper }}` (makes text UPPERCASE)
Input	List the variables from your pipeline that you want to use in the template	Example: `input: ["user_name", "score"]` Note: You can only use variables that you list here
Output	Name the variable where you want to save the result	Example: `output: ["greeting_message"]` Note: This creates a new variable or replaces an existing one
Variables to Clean	(Optional) List any variables you want to clear/reset after the template runs	Example: `variables_to_clean: ["temp_data", "cache"]` What gets cleared: - Text becomes empty: `""` - Lists become empty: `[]` - Numbers become zero: `0`

Variable Cleanup

Variables listed in variables_to_clean are reset based on their type after the template renders (strings→"", lists→[], dicts→{}, numbers→0). Ensure these variables aren't needed by subsequent nodes.

YAML Configuration Examples

Basic Example: Simple Greeting

nodes:
  - id: StateModifier 1
    type: state_modifier
    template: Hello, {{ user_name }}! Welcome to {{ project_name }}.
    variables_to_clean:
      - user_name
    input:
      - user_name
      - project_name
    output:
      - greeting_message
state:
  input:
    type: str
  messages:
    type: list
  user_name:
    type: str
    value: ''
  project_name:
    type: str
    value: ''
  greeting_message:
    type: str
    value: ''

Advanced Example: Counter Increment with Type Conversion

This example demonstrates automatic type conversion - the template renders a string, but the State Modifier automatically converts it to an integer to match the output variable's type.

nodes:
  - id: IncrementCounter
    type: state_modifier
    template: '{{ index + 1 }}'
    variables_to_clean: []
    input:
      - index
    output:
      - index
    transition: NextNode
state:
  input:
    type: str
  messages:
    type: list
  index:
    type: int
    value: 0

How it works:

Template renders: "1" (string)
State Modifier detects index is type int
Automatically converts: "1" → 1
Result: index is updated to integer 1

Complex Example: Aggregating Multi-Step Responses

This example shows how to build a comprehensive response by combining multiple state variables, accessing message history, and using conditional formatting.

nodes:
  - id: AggregateResponse
    type: state_modifier
    template: |
      {{ response_full }}

      ## Question {{ index }}
      {{ question }}

      ## Answer {{ index }}
      {{ messages[-1].content }}
    variables_to_clean: []
    input:
      - response_full
      - messages
      - question
      - index
    output:
      - response_full
    transition: NextStep
state:
  input:
    type: str
  messages:
    type: list
  response_full:
    type: str
    value: ''
  question:
    type: str
    value: ''
  index:
    type: int
    value: 0

Custom Filters Example: JSON Processing and Text Splitting

This example demonstrates the custom filters available in State Modifier for data transformation.

nodes:
  - id: ProcessAPIResponse
    type: state_modifier
    template: |
      {% set data = api_response|from_json %}
      **User:** {{ data.name }}
      **Email:** {{ data.email }}
      **Status:** {{ data.status|upper }}

      {% if data.description %}
      **Description Chunks:**
      {% for chunk in data.description|split_by_words(50) %}
      - {{ chunk }}
      {% endfor %}
      {% endif %}
    variables_to_clean:
      - api_response
    input:
      - api_response
    output:
      - formatted_user_info
    transition: DisplayResults
state:
  input:
    type: str
  messages:
    type: list
  api_response:
    type: str
    value: '{"name": "John Doe", "email": "john@example.com", "status": "active", "description": "Long text here..."}'
  formatted_user_info:
    type: str
    value: ''

Available Custom Filters:

from_json - Parse JSON string to Python object
base64_to_string - Decode base64 encoded data
split_by_words(chunk_size) - Split text into chunks of specified word count
split_by_regex(pattern) - Split text using regex pattern

Text Extraction Example: Cleaning Status Value

This example shows how to extract a specific value from a sentence using conditional logic and string manipulation.

nodes:
  - id: ExtractStatus
    type: state_modifier
    template: |
      {% if 'is' in status %}
      {{ status.split('is')[-1]|trim }}
      {% else %}
      {{ status }}
      {% endif %}
    variables_to_clean: []
    input:
      - status
    output:
      - status
    transition: NextNode
state:
  input:
    type: str
  messages:
    type: list
  status:
    type: str
    value: 'The status is Open'

How it works:

Check if 'is' exists: {% if 'is' in status %} - Checks if the word "is" appears in the status text
Split the text: status.split('is') - Divides the text into parts using "is" as the separator
Example: "The status is Open" becomes ["The status ", " Open"]
Get the last part: [-1] - Takes the last item from the split result
Example: " Open"
Remove extra spaces: |trim - Removes whitespace from the beginning and end
Example: "Open"
Otherwise keep original: {% else %} {{ status }} {% endif %} - If "is" is not found, keeps the status unchanged

Before: "The status is Open"
After: "Open"

Cleanup Example: Resetting Variables by Type

This example shows how variables_to_clean resets different variable types appropriately.

nodes:
  - id: CleanupAfterProcessing
    type: state_modifier
    template: |
      Processing complete for batch {{ batch_number }}.
      Total items: {{ items|length }}
    variables_to_clean:
      - temp_items
      - cache_data
      - counter
      - processing_flag
    input:
      - batch_number
      - items
    output:
      - summary
    transition: END
state:
  input:
    type: str
  messages:
    type: list
  batch_number:
    type: int
    value: 1
  items:
    type: list
    value: []
  temp_items:
    type: list
    value: ['item1', 'item2']
  cache_data:
    type: dict
    value: {}
  counter:
    type: int
    value: 5
  processing_flag:
    type: str
    value: 'active'
  summary:
    type: str
    value: ''

After execution:

temp_items (list) → []
cache_data (dict) → {}
counter (int) → 0
processing_flag (str) → ""

Jinja2 Template Features

Template Access Control

The template can only access variables listed in the Input parameter. Variables not included in Input will cause template rendering errors if referenced.

Standard Filters: |default('value'), |upper/|lower, |length
Custom Filters: |from_json, |base64_to_string, |split_by_words(n), |split_by_regex('pattern')
Multi-line: Use YAML multi-line syntax (|) for complex templates
Formatting: Access nested data with dot notation: {{ user.profile.name }}
Type Conversion: Output automatically converts to match state variable type (str, int, float, bool, list, dict)

Best Practices

Always List Input Variables: Explicitly specify all variables used in template to avoid rendering errors.
Use Default Filters for Optional Variables: Handle missing or null values gracefully with {{ var|default('default_value') }}.
Leverage Custom Filters: Use |from_json for API responses, |split_by_words() for chunking, |base64_to_string for encoded data.
Trust Automatic Type Conversion: The node automatically converts rendered output to match the target variable's type (int, float, bool, list, dict).
Clean Up Temporary Variables: Reset variables that are no longer needed using variables_to_clean - they'll be reset appropriately based on type.
Format Long Templates for Readability: Use multi-line YAML strings with proper indentation.
Test Templates with Sample Data: Verify template rendering before deployment with sample state data.
Use Descriptive Output Names: Name outputs to indicate their content (e.g., "formatted_summary" not "result").
Access Message History: Use messages[-1].content to get the last message or messages[0] for the first.
Document Complex Templates: Add comments explaining template logic for maintainability.
Validate State Before Cleaning: Ensure cleaned variables aren't needed by later nodes.
Use State Modifier for Formatting Only: Don't use for complex logic - use LLM or Code nodes instead.
Combine Multiple Variables in Output: Generate comprehensive output in single template rather than multiple State Modifiers.
Handle JSON Data: Use |from_json filter to parse JSON strings, then access nested properties with dot notation.

Printer Node¶

The Printer Node displays output to users during pipeline execution and pauses the workflow so users can review the information before continuing.

Simple Explanation:

Think of it like a "pause and show" button in your pipeline. It stops the workflow, shows a message to the user (which can be a simple text, a variable's value, or formatted text), and waits for the user to click "continue" before moving to the next step.

For example, you might use it to show: - "Processing complete! Found 5 results." - The contents of a status variable - A formatted report combining multiple pieces of data

Purpose

Use the State Modifier Node to:

Show messages - Display text to users at any point in the workflow
Pause for review - Stop the pipeline so users can check results before continuing
Display variable values - Show the contents of any variable from your pipeline
Show formatted output - Combine text and variables for better presentation
Progress updates - Tell users what's happening in multi-step workflows

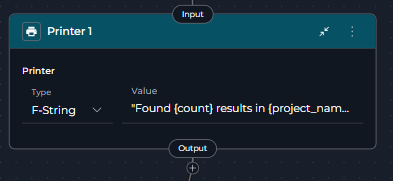

Parameters

Parameter	Purpose	Type Options & Examples
Input Mapping (Printer)	Define what content to display to the user	Type: Fixed - Show static text Example: `"Processing complete!"` Type: Variable - Show a variable's value Example: `status` (shows value of status variable) Type: F-String - Combine text with variables Example: `"Found {count} results in {project_name}"` Required field name: Must be called `printer`
Transition	Which node to go to after user clicks continue	Required: Must specify next node or END Example: `END` or `NextNode`

YAML Configuration Examples

Simple Text (Type: Fixed)

Display a static message to the user.

nodes:
  - id: Printer 1
    type: printer
    input_mapping:
      printer:
        type: fixed
        value: "Processing complete. Review the results below."
    transition: END
state:
  input:
    type: str
  messages:
    type: list

Show Variable Value (Type: Variable)

Display the contents of a variable directly.

nodes:
  - id: Printer 1
    type: printer
    input_mapping:
      printer:
        type: variable
        value: status
    transition: END
state:
  input:
    type: str
  messages:
    type: list
  status:
    type: str
    value: ''

Formatted Text (Type: F-String)

Combine text with variable values using {variable_name} syntax.

nodes:
  - id: Printer 1
    type: printer
    input_mapping:
      printer:
        type: fstring
        value: |
          Processing Report:
          - Project: {project_name}
          - Items processed: {count}
          - Status: {status}
    transition: END
state:
  input:
    type: str
  messages:
    type: list
  project_name:
    type: str
    value: ''
  count:
    type: int
    value: 0
  status:
    type: str
    value: ''

Automatic Pause

The Printer Node automatically pauses the pipeline after displaying the message. The pipeline will resume only after the user acknowledges the message by typing anything.

Important: If the Printer Node is the last node in your pipeline (transition: END), the pipeline execution will not complete until the user provides input to continue.

Best Practices

Choose the Right Type:
Use fixed for static messages that don't change
Use variable to show the value of a single variable
Use fstring when you need to combine text with multiple variables
Use Clear Messages - Make it obvious what information you're showing
Format Multi-line Output - Use | in YAML for readable multi-line messages
Include Context - Show relevant information so users understand what they're looking at
Test Variable Names - Make sure the variables you reference actually exist in your state
Keep It Simple - Don't try to show too much information at once
Use Descriptive Text - Add labels like "Status:", "Results:", etc. to make output clear

Utility Nodes Comparison¶

When to Use Each Node

Scenario	Recommended Node	Why
Transform state variables	State Modifier Node	Jinja2 templates ideal for data transformation and variable manipulation
Display output to users	Printer Node	Shows formatted messages and pauses for user review
Clean up temporary variables	State Modifier Node	variables_to_clean parameter resets specified state variables
Show progress updates	Printer Node	Displays intermediate results with automatic pause
Combine data from multiple state variables	State Modifier Node	Jinja2 templates can access multiple inputs and generate consolidated output
Format user-facing messages	Printer Node	F-string or variable types create readable output for users
Apply custom filters to data	State Modifier Node	Custom Jinja2 filters (from_json, split_by_words, etc.) for data transformation
Pause pipeline for user inspection	Printer Node	Automatic interrupt after displaying output
Generate content for next node	State Modifier Node	Output variables feed into subsequent pipeline nodes
Show static completion messages	Printer Node	Fixed type displays unchanging text (e.g., "Processing complete")
Perform calculations on state	State Modifier Node	Templates support arithmetic and logic operations
Display formatted reports	Printer Node	F-string type combines text with variable values

Deprecated Utility Nodes¶

The following utility node is deprecated and will be removed in a future release:

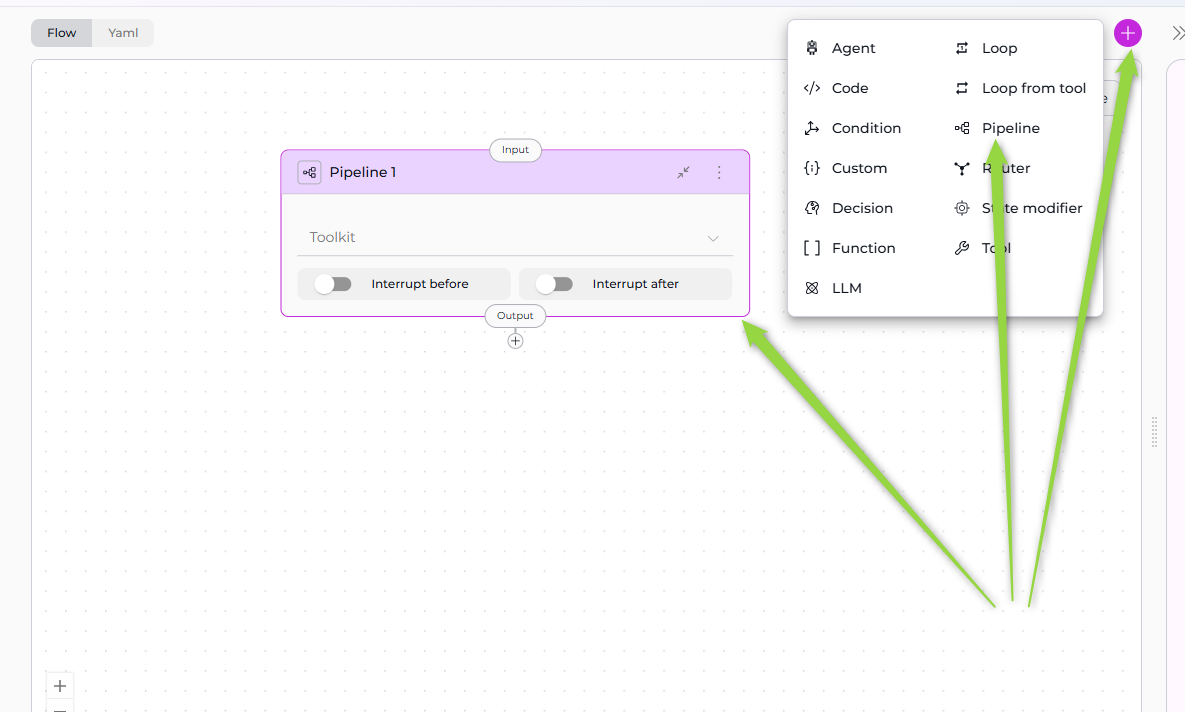

Pipeline (Subgraph) Node

The Pipeline (Subgraph) node is deprecated and will be removed in an upcoming release.

Migration: Use the Agent node to delegate tasks to specialized AI agents, effectively replacing nested pipeline functionality.

Migration Guide: Pipeline Node Migration
