Pipeline States¶

State is the memory of your pipeline—a structured storage system that holds all information gathered and used during pipeline execution. Think of state as a collection of variables that persist throughout your pipeline's lifecycle, allowing different nodes to share data and build upon each other's work.

What is Pipeline State?¶

Pipeline state represents the current condition of your workflow at any given moment. It stores:

User input from conversations
Conversation history (messages exchanged)
Extracted data from external systems
Intermediate results from processing nodes
Configuration values used across multiple steps

Why State Matters

Without state, each node would operate in isolation with no memory of previous steps. State enables your pipeline to maintain context, pass data between nodes, and build complex workflows that accumulate knowledge as they execute.

Default States¶

Every pipeline automatically includes two special default states that are always available:

`input` State¶

Type: str
Purpose: Holds the most recent message from the user

The input state represents short-term memory—it always contains the latest user message. When a user types something new, input is updated to reflect that new message.

`messages` State¶

Type: list[BaseMessage]
Purpose: Stores the complete conversation history

The messages state represents long-term memory—it contains the entire conversation between the user and the pipeline, including all user inputs and pipeline responses.

input vs messages

Use input when you only need the current user message
Use messages when you need conversation context or history
You can use both together: input: ["input", "messages"]

Managing States in Flow Mode¶

Starting with ELITEA 2.0.0 Beta, pipeline states are managed through an intuitive sidebar interface in Flow mode.

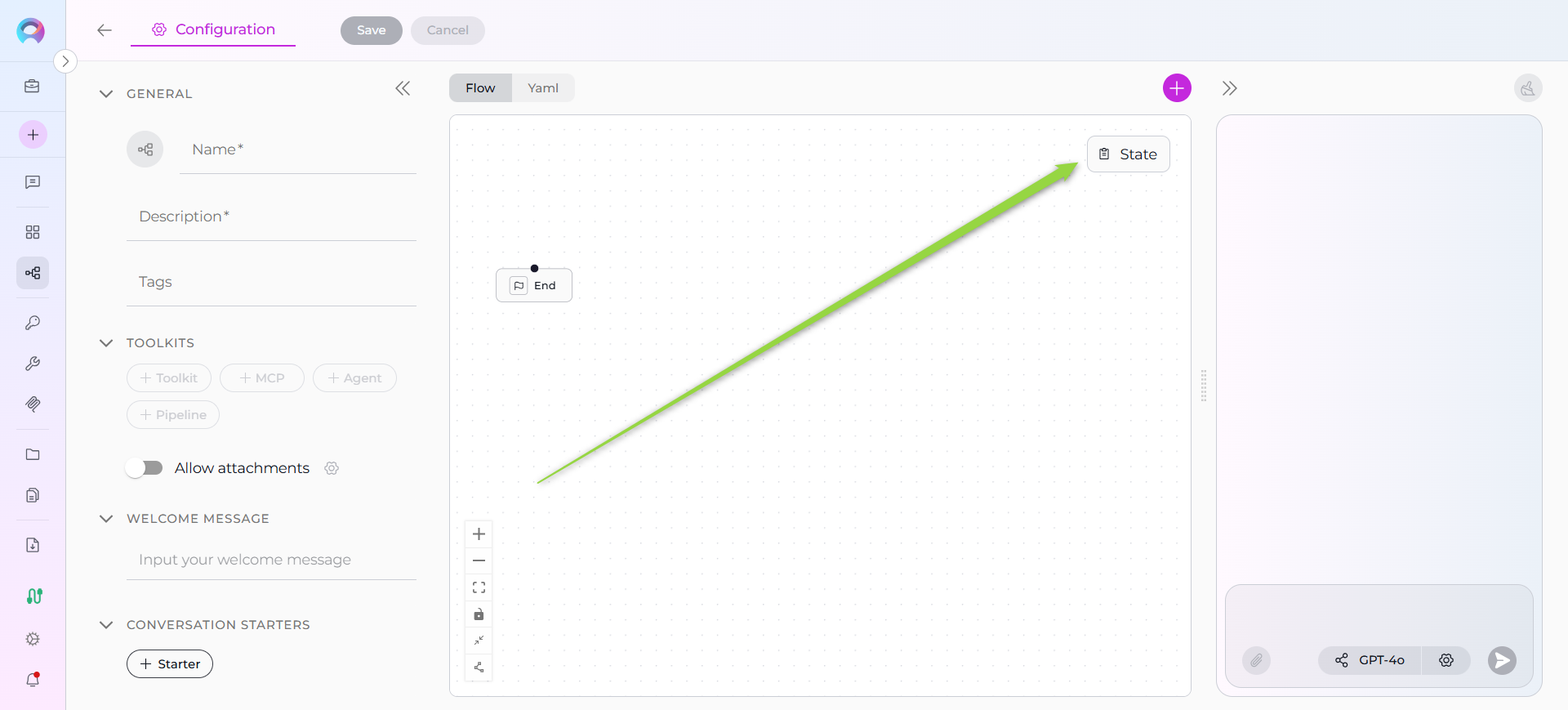

Open Flow Editor: Navigate to your pipeline's Configuration tab
Click States Button: Located under the + button for adding nodes
States Sidebar Opens: A resizable panel appears on the right side

Flow Mode Only

The States button is only visible in Flow mode. In YAML mode, states are defined directly in the YAML configuration.

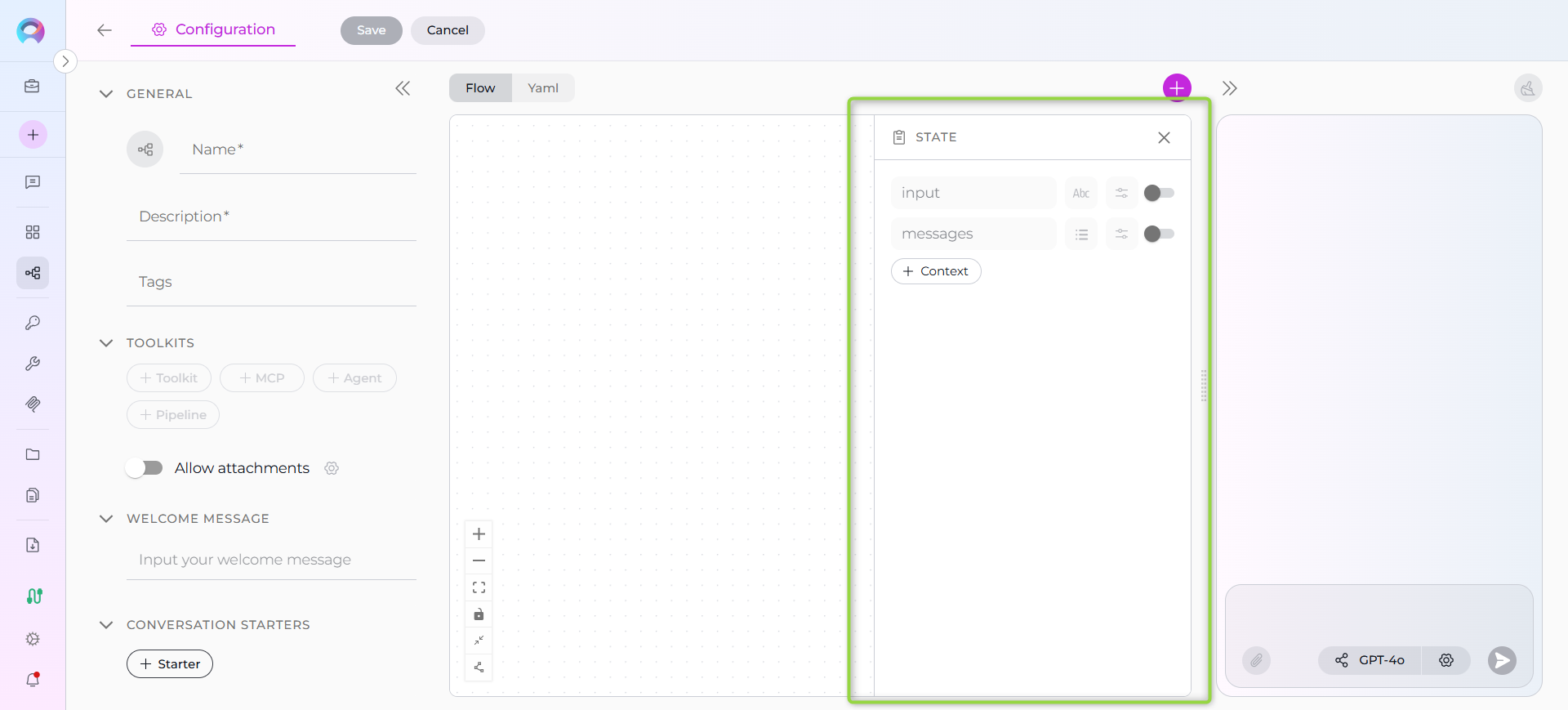

Default States Display¶

When you open the States sidebar, you'll see the two default states:

input - Toggle to activate/deactivate
messages - Toggle to activate/deactivate

New Pipeline Behavior

When creating a new pipeline, input and messages states are automatically added but disabled. You must explicitly enable them if your pipeline needs to access user input or conversation history.

Resizable Panel: Drag the left edge of the sidebar to resize it. The sidebar remembers your preferred width for the session.
Minimum/Maximum Width: The sidebar has a minimum width (300px) and maximum width (50% of screen).
Collapse Icon: Click the collapse icon in the top-right corner to close the sidebar.

Adding Custom States¶

Custom states allow you to store pipeline-specific data beyond the default input and messages.

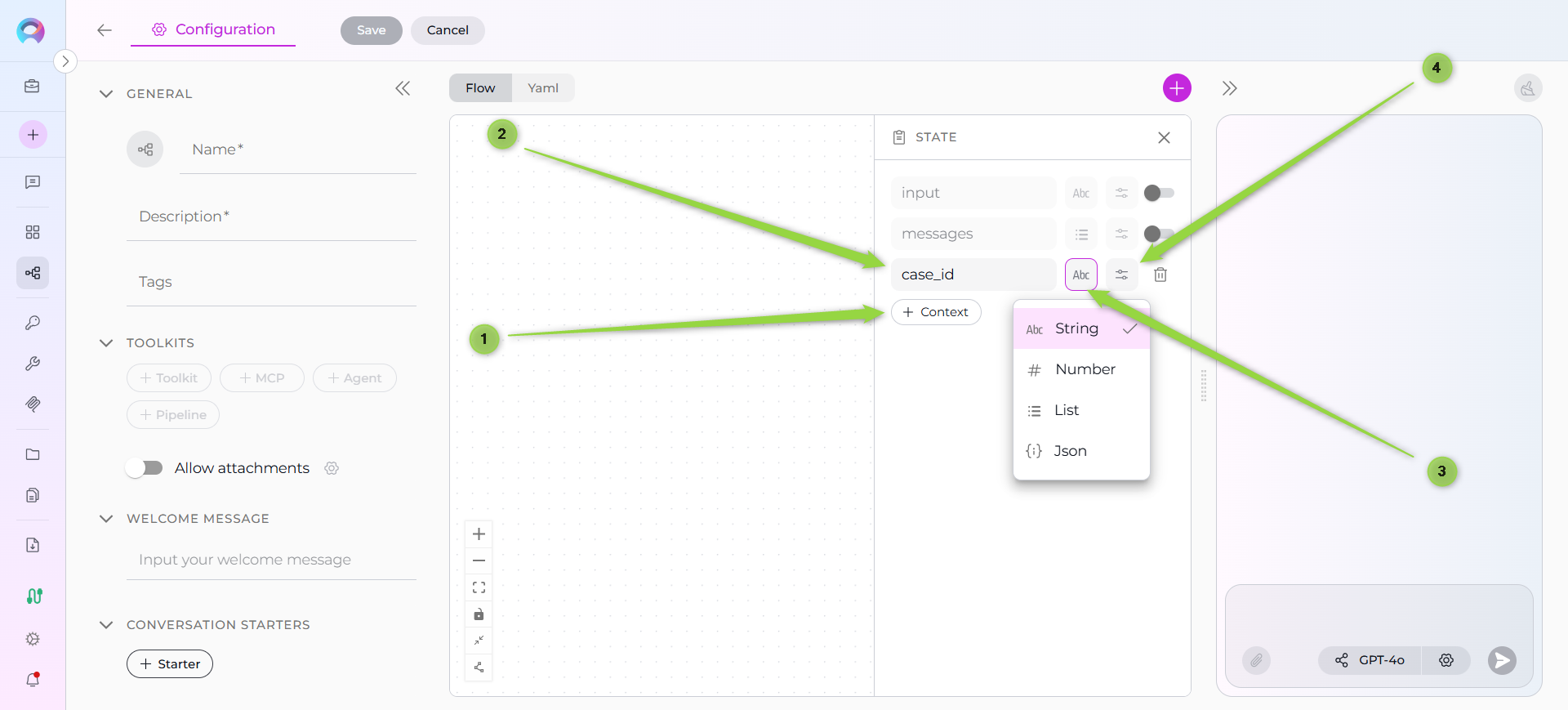

Creating a New State¶

Click + Context Button: Located in the States sidebar
Fill Out State Form:
- State Name (required): Enter a valid name
- State Type (required): Select from dropdown (string, list, JSON, number)
- Default Value (optional): Enter initial value in 5-row text area
Auto-Save: Changes are automatically saved

![Adding Custom State]

State Name Validation¶

State names must follow these rules:

✅ Allowed: * Letters (a-z, A-Z) * Numbers (0-9) * Underscores (_)

✅ Must start with a letter

❌ Not allowed: * Special characters (!, @, #, $, %, etc.) * Spaces * Hyphens or dashes

Valid State Names

user_story_title ✅
jiraProjectId ✅
epic_id_123 ✅
description ✅

Invalid State Names

user-story-title ❌ (contains hyphens)
jira project id ❌ (contains spaces)
123_epic_id ❌ (starts with number)
epic@id ❌ (contains special character)

Real-time validation provides immediate feedback as you type.

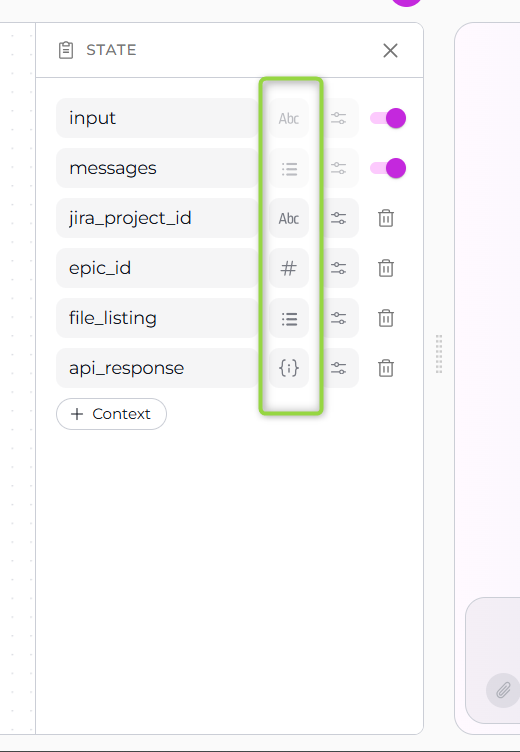

State Variable Types¶

ELITEA Pipelines support multiple data types for state variables:

nodes: []
state:
  jira_project_id:
    type: str
    value: ''
  epic_id:
    type: number
    value: ''
  file_listing:
    type: list
    value: ''
  api_response:
    type: dict
    value: ''
  input:
    type: str
  messages:
    type: list

String (`str`)¶

Icon: 📝 (displayed in sidebar)
Purpose: Store text data
Default Value Example: "Draft user story"

Use Cases:

User story titles
Descriptions
Status messages
Extracted text content

Number (`int`, `float`)¶

Icon: 🔢 (displayed in sidebar)
Purpose: Store numeric data
Default Value Example: 42 or 3.14

Use Cases:

Counters
Scores or ratings
Identifiers
Calculation results

List (`list`)¶

Icon: 📋 (displayed in sidebar)
Purpose: Store ordered collections
Default Value Example: ["item1", "item2", "item3"]

Use Cases:

Multiple results from a search
Batch processing items
Conversation history
File listings

Special List Type: messages

The messages state is a special list type that stores BaseMessage objects (LangChain message format), not simple strings.

JSON¶

Icon: {i} (displayed in sidebar)
Purpose: Store key-value pairs and structured data
Default Value Example: {"key": "value", "status": "active"}

Use Cases:

Configuration objects
API responses
Structured metadata
Complex data structures

State Initialization¶

Default Values¶

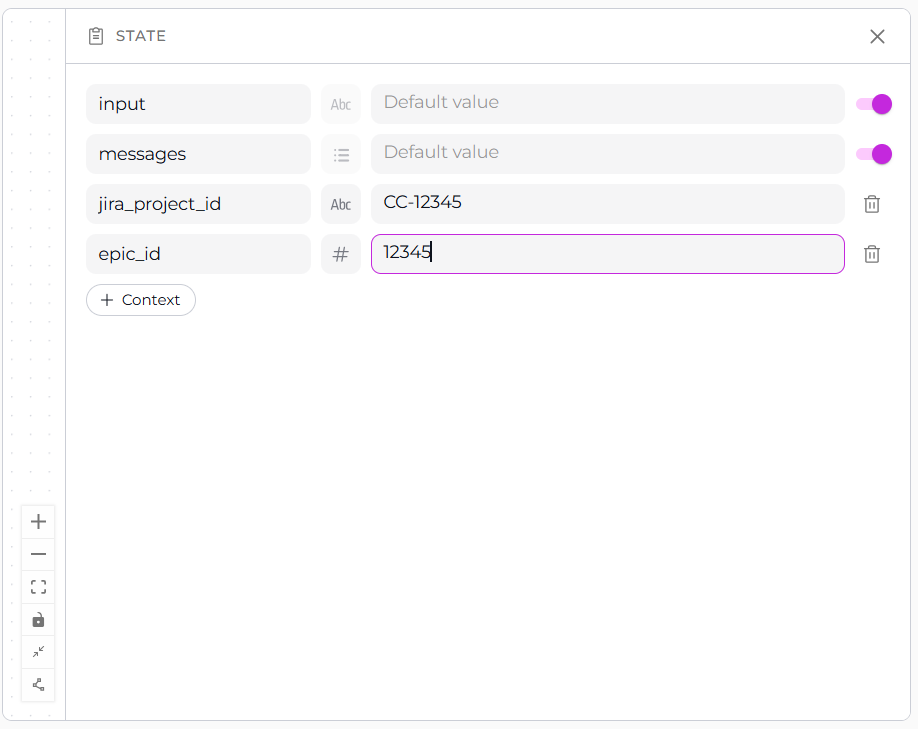

When adding a custom state, you can optionally provide a default value. This value is used when the pipeline starts executing if no other value has been set.

Default Value Field:

5-row text area for comfortable editing
Expands when sidebar is resized
Supports multi-line input for complex values

Examples:

nodes: []
state:
  jira_project_id:
    type: str
    value: CC-12345
  epic_id:
    type: number
    value: 12356
  input:
    type: str
  messages:
    type: list

State Modification¶

States can be modified in several ways during pipeline execution:

1. Node Output Variables¶

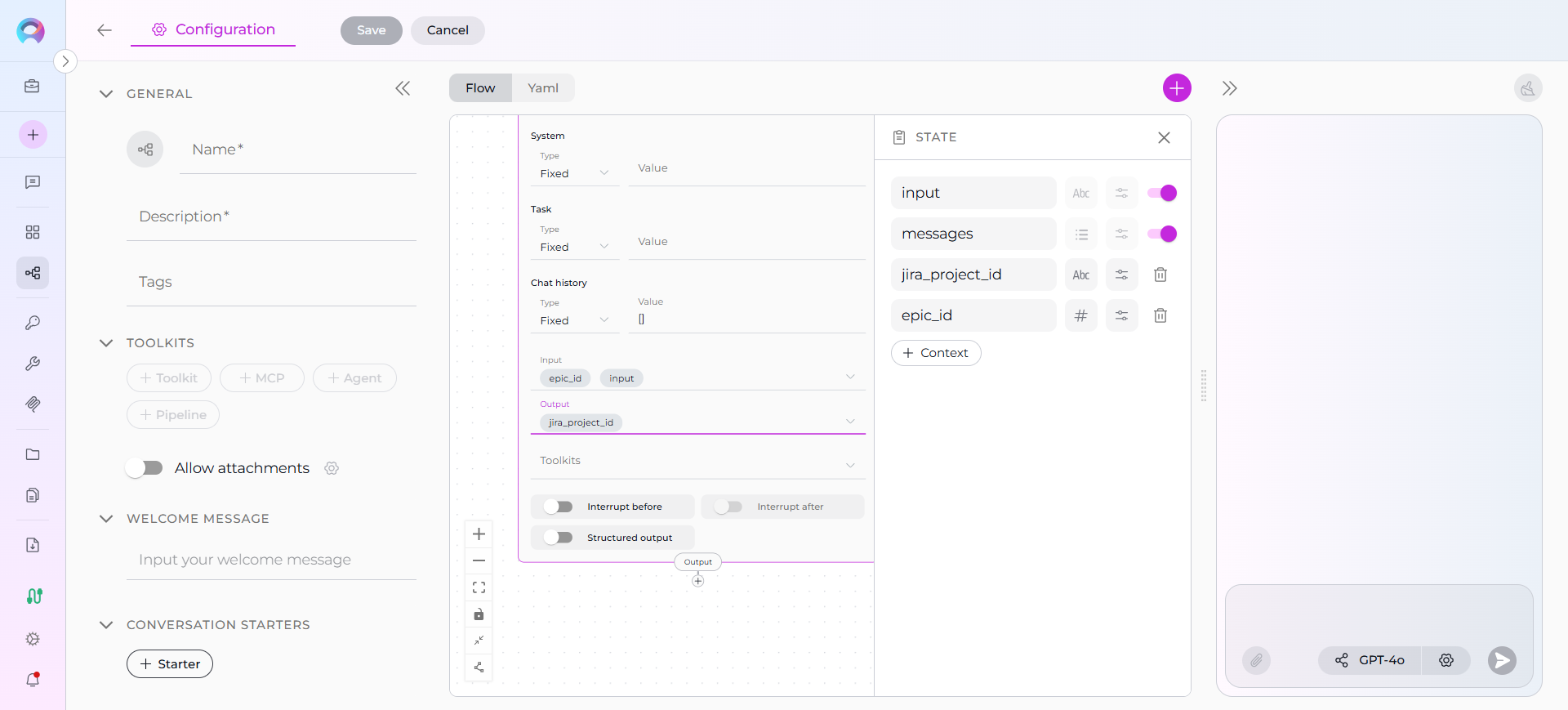

Nodes can write to state variables using the output parameter: When this node executes, the LLM response will be parsed and the values will be stored in the specified state variables. Output

2. State Modifier Node¶

The State Modifier node allows advanced state manipulation using Jinja2 templates:

- id: "format_description"
  type: "state_modifier"
  template: "**Title:** {{us_title}}\n**Description:** {{description}}"
  input_variables: ["us_title", "description"]
  output_variables: ["formatted_output"]

State Modifier Capabilities:

Combine multiple state variables
Transform data using Jinja2 filters
Clean or reset state variables
Format output for specific purposes

3. Code Node Updates¶

Code nodes can update state by returning structured dictionaries:

- id: "process_data"
  type: "code"
  code:
    type: "fixed"
    value: |
      # Access state via alita_state
      raw_data = alita_state.get('raw_data', [])

      # Process data
      processed = [item.upper() for item in raw_data]

      # Return updates state variables
      {"processed_data": processed, "status": "completed"}
  output: ["processed_data", "status"]
  structured_output: true

4. Function/Tool Node Results¶

Function and Tool nodes automatically store results in output variables:

- id: "search_confluence"
  type: "function"
  function: "confluence_toolkit||search_by_title"
  input: ["search_query"]
  output: ["search_results"]
  input_mapping:
    query:
      type: "variable"
      value: "search_query"

Practical Examples¶

Example 1: User Story Creation Pipeline¶

state:
  jira_project_id: str
  epic_id: str
  us_title: str
  description: str
  input: str
  messages: list
  draft_us: str
  enhanced_us: str

nodes:
  - id: "Gather Info"
    type: "llm"
    input: ["input", "messages"]
    output: ["jira_project_id", "epic_id", "us_title", "description"]
    structured_output: true
    prompt:
      type: "string"
      value: "Extract Jira project ID, epic ID, title, and description."

  - id: "Generate Draft"
    type: "llm"
    input: ["jira_project_id", "epic_id", "us_title", "description"]
    output: ["draft_us"]
    prompt:
      type: "fstring"
      value: |
        Create a user story for project {jira_project_id}, epic {epic_id}.
        Title: {us_title}
        Description: {description}

Example 2: Data Processing with State¶

state:
  raw_data: list
  processed_data: list
  status: str
  error_count: int
  messages: list

nodes:
  - id: "Load Data"
    type: "function"
    function: "data_toolkit||fetch_records"
    output: ["raw_data"]

  - id: "Process Data"
    type: "code"
    code:
      type: "fixed"
      value: |
        data = alita_state.get('raw_data', [])
        processed = []
        errors = 0

        for item in data:
            try:
                processed.append(item.strip().upper())
            except:
                errors += 1

        {
          "processed_data": processed,
          "status": "completed",
          "error_count": errors
        }
    output: ["processed_data", "status", "error_count"]
    structured_output: true

Example 3: Conversation Context with Messages¶

state:
  user_preference: str
  messages: list

nodes:
  - id: "Capture Preference"
    type: "llm"
    input: ["input", "messages"]
    output: ["user_preference"]
    prompt:
      type: "string"
      value: "Based on the conversation, what is the user's preference?"

  - id: "Contextual Response"
    type: "llm"
    input: ["messages", "user_preference"]
    prompt:
      type: "fstring"
      value: |
        Given the conversation history and that the user prefers {user_preference},
        provide a personalized response.

Best Practices¶

1. Use Descriptive State Names¶

✅ Good:

state:
  jira_project_id: str
  user_story_title: str
  extracted_requirements: list

❌ Avoid:

state:
  data: str
  temp: str
  x: list

2. Choose Appropriate Types¶

Match state types to the data they'll store:

Strings: Single values, text content
Lists: Collections, multiple items
Dictionaries: Structured data, API responses
Numbers: Counters, IDs, scores

3. Initialize Critical States¶

Provide default values for states that nodes depend on:

state:
  retry_count: int  # Will default to 0
  status: str       # Will default to ""
  pending_tasks: list  # Will default to []

4. Keep State Minimal¶

Only create state variables you actually need. Unnecessary states:

Increase complexity
Make debugging harder
Use more memory

5. Use `input` vs `messages` Appropriately¶

Use input for single-turn interactions
Use messages when context from previous turns matters
Use both when you need current input AND historical context

6. Leverage State Modifier for Complex Transformations¶

Instead of complex prompt formatting, use State Modifier:

- id: "format_output"
  type: "state_modifier"
  template: |
    ## User Story: {{us_title}}

    **Project:** {{jira_project_id}}
    **Epic:** {{epic_id}}

    ### Description
    {{description}}
  input_variables: ["us_title", "jira_project_id", "epic_id", "description"]
  output_variables: ["formatted_story"]

7. Handle State Errors Gracefully¶

Always account for missing or invalid state:

# In Code nodes
raw_data = alita_state.get('raw_data', [])  # Default to empty list
if not raw_data:
    return {"error": "No data to process", "status": "failed"}

8. Monitor State in Development¶

Use interruptions to inspect state at key points:

interrupt_before:
  - "Critical Processing Node"

interrupt_after:
  - "Data Extraction Node"

When the pipeline pauses, examine state variables to verify data flow.

9. Document Complex State Usage¶

Add comments in YAML or description fields explaining non-obvious state usage:

state:
  # Stores API response from Jira for later processing
  jira_response: dict

  # Counter for retry logic in error handling
  retry_attempts: int

  # Accumulated results from loop iterations
  batch_results: list

10. Clean Up Unused State¶

Use State Modifier to clear state variables when no longer needed:

- id: "cleanup"
  type: "state_modifier"
  template: ""
  variables_to_clean: ["temp_data", "intermediate_results"]

Common Patterns¶

Pattern 1: Accumulating Results in Loops¶

state:
  accumulated_results: str

nodes:
  - id: "Loop Process"
    type: "loop"
    tool: "process_item_function"
    output: ["accumulated_results"]
    # Each iteration appends to accumulated_results

Pattern 2: Conditional State Initialization¶

- id: "Initialize State"
  type: "code"
  code:
    type: "fixed"
    value: |
      existing = alita_state.get('config', {})
      if not existing:
          {"config": {"mode": "default", "retries": 3}}
      else:
          {}
  structured_output: true

Pattern 3: State-Based Routing¶

- id: "Router Node"
  type: "router"
  condition: "status == 'approved'"
  input_variables: ["status"]
  routes: ["approved", "rejected"]
  default_output: "Review Again"

Troubleshooting¶

Issue: State Variable Not Found¶

Problem: Node fails because a state variable doesn't exist

Solutions:

Verify the state is defined in the state section
Check that previous nodes populate the state via output
Provide default values in state initialization
Use alita_state.get('var', default_value) in Code nodes

Issue: State Type Mismatch¶

Problem: Node expects a list but receives a string

Solutions:

Verify state type matches the data being stored
Use State Modifier to transform types if needed
Check node output configuration

Issue: Messages Not Persisting¶

Problem: Conversation history is lost between nodes

Solutions:

Ensure messages: list is in the state section
Activate the messages toggle in States sidebar
Include messages in node input parameters
Verify nodes return messages in their output

Issue: Default Values Not Applied¶

Problem: State variable is empty despite setting a default value

Solutions:

Check that default value syntax matches the state type
Verify no nodes are overwriting the state with empty values
Use State Modifier to explicitly set values at pipeline start

Cross-Mode Consistency¶

State management works identically in:

Pipelines Menu: Create and manage pipelines from the main Pipelines interface
Canvas Mode: Create and manage pipelines directly from conversation canvas

The States sidebar behavior, validation rules, and auto-save functionality remain consistent across both modes.

Nodes Overview - Learn how different node types read from and write to state
State Modifier Node - Advanced state manipulation with Jinja2 templates
Connections - Understand how data flows between nodes through state
Entry Point - Define pipeline starting point and initial state
YAML Configuration - See complete state definition syntax
Code Node - Access state via alita_state in Python code

Pipeline States¶

What is Pipeline State?¶

Default States¶

input State¶

messages State¶

Managing States in Flow Mode¶

Accessing the States Sidebar¶

Default States Display¶

Sidebar Features¶

Adding Custom States¶

Creating a New State¶

State Name Validation¶

State Variable Types¶

String (str)¶

Number (int, float)¶

List (list)¶

JSON¶

State Initialization¶

Default Values¶

State Modification¶

1. Node Output Variables¶

2. State Modifier Node¶

3. Code Node Updates¶

4. Function/Tool Node Results¶

Practical Examples¶

Example 1: User Story Creation Pipeline¶

Example 2: Data Processing with State¶

Example 3: Conversation Context with Messages¶

Best Practices¶

1. Use Descriptive State Names¶

2. Choose Appropriate Types¶

3. Initialize Critical States¶

4. Keep State Minimal¶

5. Use input vs messages Appropriately¶

6. Leverage State Modifier for Complex Transformations¶

7. Handle State Errors Gracefully¶

8. Monitor State in Development¶

9. Document Complex State Usage¶

10. Clean Up Unused State¶

Common Patterns¶

Pattern 1: Accumulating Results in Loops¶

Pattern 2: Conditional State Initialization¶

Pattern 3: State-Based Routing¶

Troubleshooting¶

Issue: State Variable Not Found¶

Issue: State Type Mismatch¶

Issue: Messages Not Persisting¶

Issue: Default Values Not Applied¶

Cross-Mode Consistency¶

`input` State¶

`messages` State¶

String (`str`)¶

Number (`int`, `float`)¶

List (`list`)¶

5. Use `input` vs `messages` Appropriately¶
