YAML Configuration

YAML view provides code-based pipeline configuration with advanced control over definitions, schemas, and patterns.

Target Audience

For advanced users who prefer code editing or need version-controlled pipeline definitions.

What is YAML View

A code editor for pipelines in the Configuration tab (alongside Flow Editor) that provides direct access to pipeline YAML definitions.

Features:

  • Instant Flow Sync: Changes sync instantly between YAML and Flow views
  • Syntax Highlighting: Color-coded YAML structure with CodeMirror
  • Real-time Validation: Immediate error feedback
  • Find & Replace: Ctrl+F (Windows) or ⌘+F (Mac)
  • Version Control: Copy/paste YAML for backup or sharing

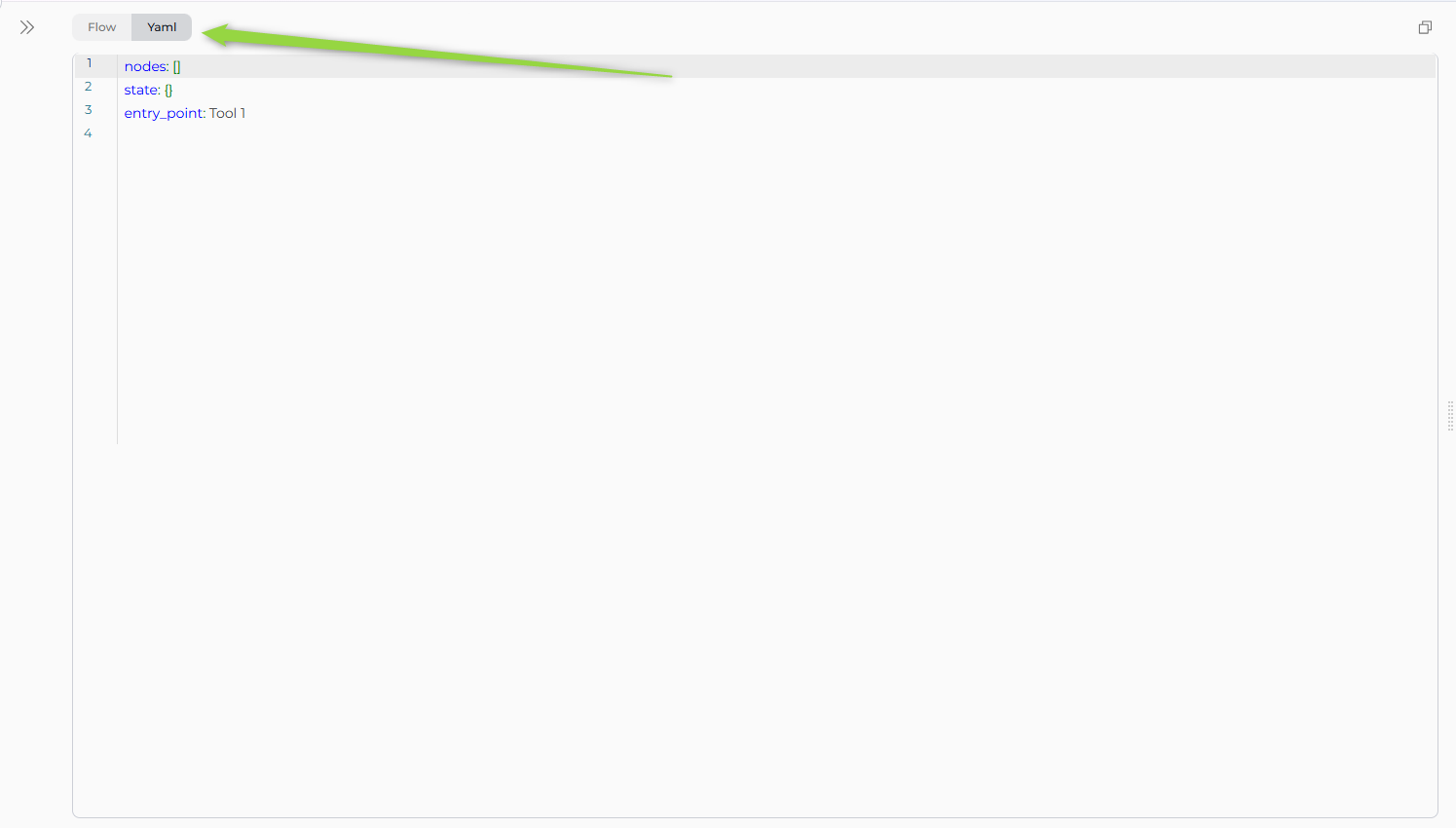

YAML Editor Interface

Schema Structure

Every pipeline has three required top-level sections:

entry_point: <node_id>        # Required
state: {...}                   # Required
nodes: [...]                   # Required
Field Type Required Description
entry_point String ✔️ Starting node ID
state Object ✔️ State variable definitions
nodes Array ✔️ Node configurations

State Configuration

Defines all variables used across the pipeline. Each has a type and optional default value.

State Syntax

state:
  <variable_name>:
    type: <data_type>
    value: <default_value>  # Optional

Default Variables

Default variables like input and messages don't require initial values—they are populated during pipeline execution.

Data Types:

Type Example
string "Hello"
number 42, 3.14
list [], ["a", "b"]
JSON {}, {"key": "value"}

Example:

state:
  input:
    type: string
  counter:
    type: number
    value: 0
  qna_list:
    type: list
    value: []
  metadata:
    type: JSON
    value: {}

Guidelines

  • Use descriptive names (user_query vs q)
  • Initialize accumulators ('', [], 0)
  • See States Guide for details

Node Configuration

The nodes array contains all pipeline nodes with common structure plus node-specific fields.

Common Fields (all nodes):

Field Type Required Description
id String ✔️ Unique node identifier
type String ✔️ Node type (see overview)
input Array ✔️ State variables to read
output Array ✔️ State variables to write
transition String Conditional Next node ID (not needed with condition, decision, or END)

Node-Type-Specific Configurations

Complete configurations for all 13 node types. See Nodes Overview for detailed documentation.

1. LLM Node

Calls language models with system/task prompts.

- id: Summarizer
  type: llm
  prompt:
    type: string
    value: ''
  input: [article_text]
  output: [messages]
  structured_output: false
  transition: NextNode
  input_mapping:
    system:
      type: fixed
      value: "You are an expert summarizer"
    task:
      type: fstring
      value: "Summarize: {article_text}"
    chat_history:
      type: fixed
      value: []
  tool_names:              # Optional
    toolkit_name:
      - tool1

Mapping Types: fixed (static), variable (state reference), fstring (template with {var})

2. Agent Node

Executes pre-configured agents.

 - id: Agent 1
    type: agent
    input:
      - input
    output:
      - metadata
    transition: END
    input_mapping:
      task:
        type: fstring
        value: ''
      chat_history:
        type: fixed
        value: []
    tool: Github

3. Function Node

Executes single toolkit function.

  - id: Function 1
    type: function
    tool: read_page_by_id
    input:
      - counter
    output:
      - metadata
    structured_output: false
    input_mapping:
      skip_images:
        type: fixed
        value: false
      page_id:
        type: fixed
        value: ''
    transition: END
    toolkit_name: ELITEATEST

4. Tool Node

Executes multiple toolkit functions.

- id: MultiTool
  type: tool
  tool: ["function1", "function2"]
  toolkit_name: MyToolkit
  input: [input_data]
  output: [tool_results]
  structured_output: false
  input_mapping:
    param1:
      type: variable
      value: input_data
  transition: END

5. Code Node

Executes Python in sandbox.

- id: DataProcessor
  type: code
  code:
    type: fixed
    value: |
      # Access state
      input_text = alita_state.get('input')

      # Return dict to update state
      {"processed": input_text.upper()}
  input: [input]
  output: [processed_data]
  structured_output: true
  transition: END

Code Node Rules

Use alita_state.get('var') to access state variables, return dict with structured_output: true

6. Router Node

Template-based routing with Jinja2.

- id: CategoryRouter
  type: router
  default_output: DefaultNode
  routes: [ProcessA, ProcessB, END]
  input: [category]
  condition: |
    {% if category == 'urgent' %}
      ProcessA
    {% elif category == 'normal' %}
      ProcessB
    {% else %}
      END
    {% endif %}

7. Condition Node

Boolean-based routing.

- id: ApprovalCheck
  type: condition
  input: [input, branches]
  output: [branches]
  condition:
    condition_definition: |
      {% if 'approved' in input|lower %}
        PublishNode
      {% else %}
        ReviewNode
      {% endif %}
    condition_input: [input, branches]
    conditional_outputs: [PublishNode]
    default_output: ReviewNode

8. Decision Node

LLM-powered routing.

- id: SmartRouter
  type: decision
  input: [user_input]
  output: [classification]
  decision:
    description: |
      Route to SaveNode if user wants to save,
      otherwise END
    decisional_inputs: [user_input]
    nodes: [SaveNode]
    default_output: END
  tool_names:              # Optional
    toolkit1: [tool_a]

9. Loop Node

Iterates over task list.

- id: ProcessItems
  type: loop
  input: [item_list]
  output: [processed_items]
  transition: SummaryNode
  input_mapping:
    task_instructions:
      type: fixed
      value: "Process each item"
    variables_mapping:
      type: fixed
      value:
        items: item_list

10. Loop from Tool Node

Iterates over toolkit results.

- id: ProcessSearchResults
  type: loop_from_tool
  tool: search_index
  toolkit_name: EPMALTA
  input: [query]
  output: [all_results]
  transition: AggregateResults
  input_mapping:
    task_instructions:
      type: fixed
      value: "Analyze each result"
    variables_mapping:
      type: fixed
      value:
        results: search_results
    query:
      type: variable
      value: query

Required Mapping

variables_mapping is critical—see Iteration Nodes

11. State Modifier Node

Transforms state with Jinja2 templates.

- id: IncrementCounter
  type: state_modifier
  template: '{{ index + 1 }}'
  variables_to_clean: []
  input: [index]
  output: [index]
  transition: NextNode

Advanced Example:

- id: AggregateResponse
  type: state_modifier
  template: |
    {{ response_full }}

    ## Question {{index}}
    {{question}}

    ## Answer {{index}}
    {{messages[-1].content }}
  variables_to_clean: []
  input: [response_full, messages, question, index]
  output: [response_full]
  transition: NextStep

12. Pipeline Node

Executes nested pipelines.

- id: RunSubPipeline
  type: pipeline
  tool: "Baseline Automation assessment"
  input: []
  output: []
  transition: NextNode

Entry Point

Specifies the first node to execute.

entry_point: StartNode

nodes:
  - id: StartNode
    type: llm
    # ...

Rules

Must reference existing node ID; only one per pipeline; Router/Condition nodes cannot be entry points

Interrupts

Defines pause points for user input. See Nodes Connectors.

interrupt_after:
  - ReviewNode
  - ApprovalCheck

nodes:
  - id: ReviewNode
    type: llm
    transition: NextNode

Use Cases

Human-in-the-loop workflows, review checkpoints, approval gates

Connections

Nodes connect via transition, condition, decision, or routes. See Nodes Connectors.

Simple Transition:

- id: Step1
  type: llm
  transition: Step2

- id: Step2
  type: function
  transition: END

Router:

nodes:
  - id: CategoryRouter
    type: router
    default_output: DefaultNode
    routes:
      - ProcessA
      - ProcessB
    condition: |
      {% if category == 'urgent' %}
        ProcessA
      {% else %}
        ProcessB
      {% endif %}

Condition:

nodes:
  - id: CheckApproval
    type: condition
    condition:
      condition_definition: |
        {% if 'approved' in input|lower %}
          PublishNode
        {% else %}
          ReviewNode
        {% endif %}
      conditional_outputs:
        - PublishNode
      default_output: ReviewNode

Decision:

nodes:
  - id: SmartRouter
    type: decision
    decision:
      description: "Route based on user intent"
      nodes:
        - SaveNode
        - ProcessNode
      default_output: END

Editor Features

CodeMirror Capabilities:

  • Syntax highlighting with color-coded structure
  • Error detection (red underlines for invalid YAML)
  • Auto-indentation for nested structures
  • Line numbers for navigation
  • Find & Replace: Ctrl+F (Windows) / ⌘+F (Mac)

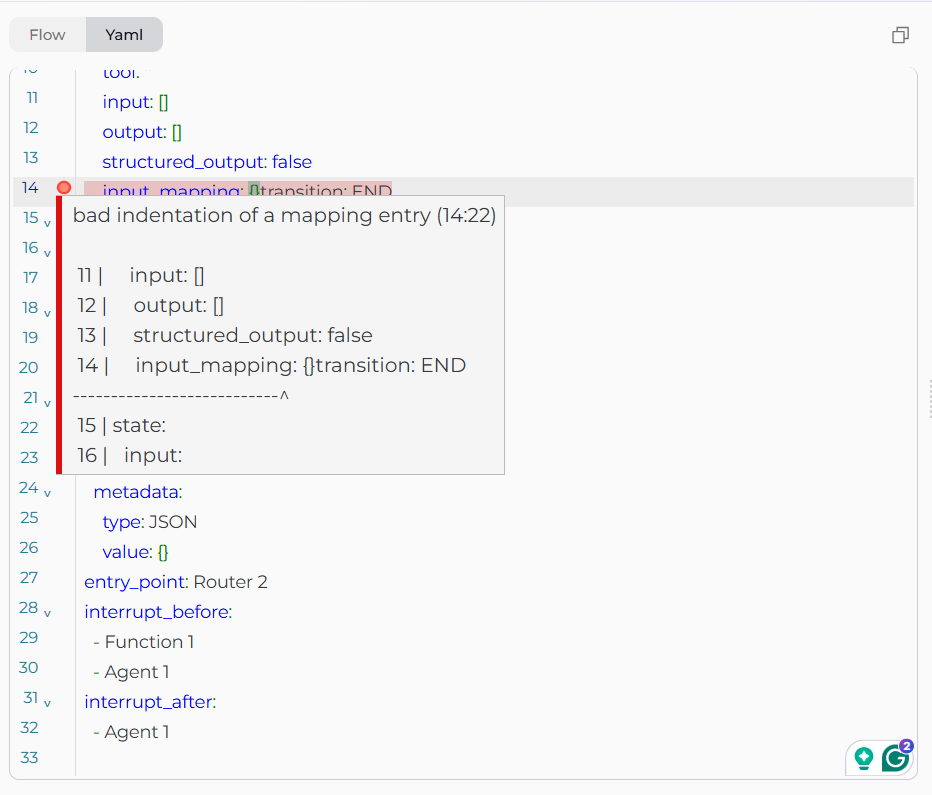

CodeMirror Highlighting

Two-Way Sync:

Changes sync instantly between YAML and Flow Editor.

  • YAML → Flow: Add node in YAML → appears in Flow canvas
  • Flow → YAML: Add node via Flow + button → YAML updates automatically

Workflow

Start in Flow for layout → switch to YAML for bulk edits → copy YAML for version control

YAML Guide

Syntax Rules

Indentation (use spaces, not tabs):

✔️ Correct:
nodes:
  - id: Node1
    type: llm
    input:
      - var1

✘ Incorrect (mixed spaces/tabs):
nodes:
  - id: Node1
    type: llm    # Tab used instead of spaces

Strings with Special Characters

✔️ Correct:
template: '{{ index + 1 }}'
description: "Route: urgent"
value: |
  Multi-line
  content

✘ Wrong:
template: {{ index + 1 }}
description: Route: urgent

Lists (use block style):

✔️ Correct:
input: [var1, var2]
routes:
  - NodeA
  - NodeB

✘ Avoid inline for readability

Booleans/Null (lowercase):

✔️ Correct:
structured_output: true
structured_output: false
value: null

✘ Wrong:
structured_output: True
value: None

Common Errors

Missing Quotes:

✘ condition: {% if approved %}
✔️ condition: '{% if approved %}'

Undefined Node:

✘ transition: NonExistentNode
✔️ Ensure node exists in nodes array

Invalid Type:

✘ type: invalid_type
✔️ type: llm  # Use: llm, agent, function, tool, code, custom, router, condition, decision, loop, loop_from_tool, state_modifier, pipeline

Missing Fields:

✘ nodes:
     - id: Node1
       type: llm
✔️ Add: input, output, transition

Validation Checklist

Before saving:

  • [ ] Entry point references existing node ID
  • [ ] All node IDs are unique
  • [ ] All transitions reference existing nodes or END
  • [ ] State variables in nodes are defined in state
  • [ ] Input/output arrays use valid variable names
  • [ ] Node-specific fields complete (e.g., LLM has input_mapping)
  • [ ] No YAML syntax errors (red underlines)
  • [ ] Indentation uses spaces
  • [ ] Quotes around special characters (:, {, %)

Best Practices

Use Descriptive IDs:

✔️ - id: FetchUserData
✘ - id: Node1

Initialize Defaults:

✔️ counter: {type: number, value: 0}
✘ counter: {type: number}

Multi-Line Templates:

✔️ template: |
     {% if condition %}NodeA{% else %}NodeB{% endif %}
✘ template: '{% if condition %}NodeA{% else %}NodeB{% endif %}'

Group Nodes:

nodes:
  # Data Loading
  - id: LoadData
  # Processing
  - id: ProcessData

Don't Hardcode Secrets:

✘ api_key: {type: fixed, value: "sk-123"}
✔️ Use Credentials instead

Avoid Unreachable Nodes:

✘ - id: Node1
     transition: Node3
   - id: Node2  # Unreachable

Always Terminate:

✔️ - id: FinalNode
     transition: END

Workflow Tips

  1. Start Visual, Refine in Code: Use Flow Editor for layout → YAML for bulk edits
  2. Bulk Updates: Find/replace to update toolkit names, node IDs
  3. Test Incrementally: Add one node at a time, run pipeline after each
  4. Version Control: Copy YAML to files, commit to git
  5. Use Comments:
    # Step 1: Load data
- id: LoadData
