ELITEA Toolkit Guide: Artifact Integration¶

Introduction¶

This guide is your comprehensive resource for integrating and effectively utilizing the Artifact Toolkit within ELITEA. It provides detailed, step-by-step instructions from initial setup to advanced usage scenarios, enabling you to leverage artifacts for temporary data storage, context management, and inter-agent data sharing. By following this guide, you will unlock powerful capabilities for handling data within AI-driven workflows, enhancing your agents' ability to process, store, and share information efficiently across your ELITEA environment.

Brief Overview of the Artifact Toolkit¶

The Artifact Toolkit provides a versatile file storage mechanism designed specifically for AI agent workflows within ELITEA. It allows agents to create, read, update, and delete files within project-specific buckets (storage containers). This toolkit serves as a temporary workspace for agents, enabling them to:

Store Temporary Data: Save intermediate results, generated content, logs, and data retrieved during agent operations
Manage Context: Preserve and retrieve context across multiple agent interactions or workflow steps
Share Data Between Agents: Enable collaboration by allowing different agents to access and modify files in shared buckets
Process Multiple File Formats: Read from various document types (PDF, Excel, Word, images) and create text-based files
Handle Large Outputs: Store data that exceeds LLM context windows or requires persistent access

Important: Temporary Storage

Artifact storage is designed for temporary data and operational workflows. It is not intended for long-term data archival or as a primary database. Files are subject to configurable retention policies (default: 30 days) and can be manually deleted at any time.

System Integration with ELITEA¶

To integrate the Artifact Toolkit with ELITEA, follow a streamlined process: Create Toolkit → Use in Agents, Pipelines, or Chat. Unlike other toolkits, the Artifact Toolkit does not require credentials since it uses ELITEA's internal storage system.

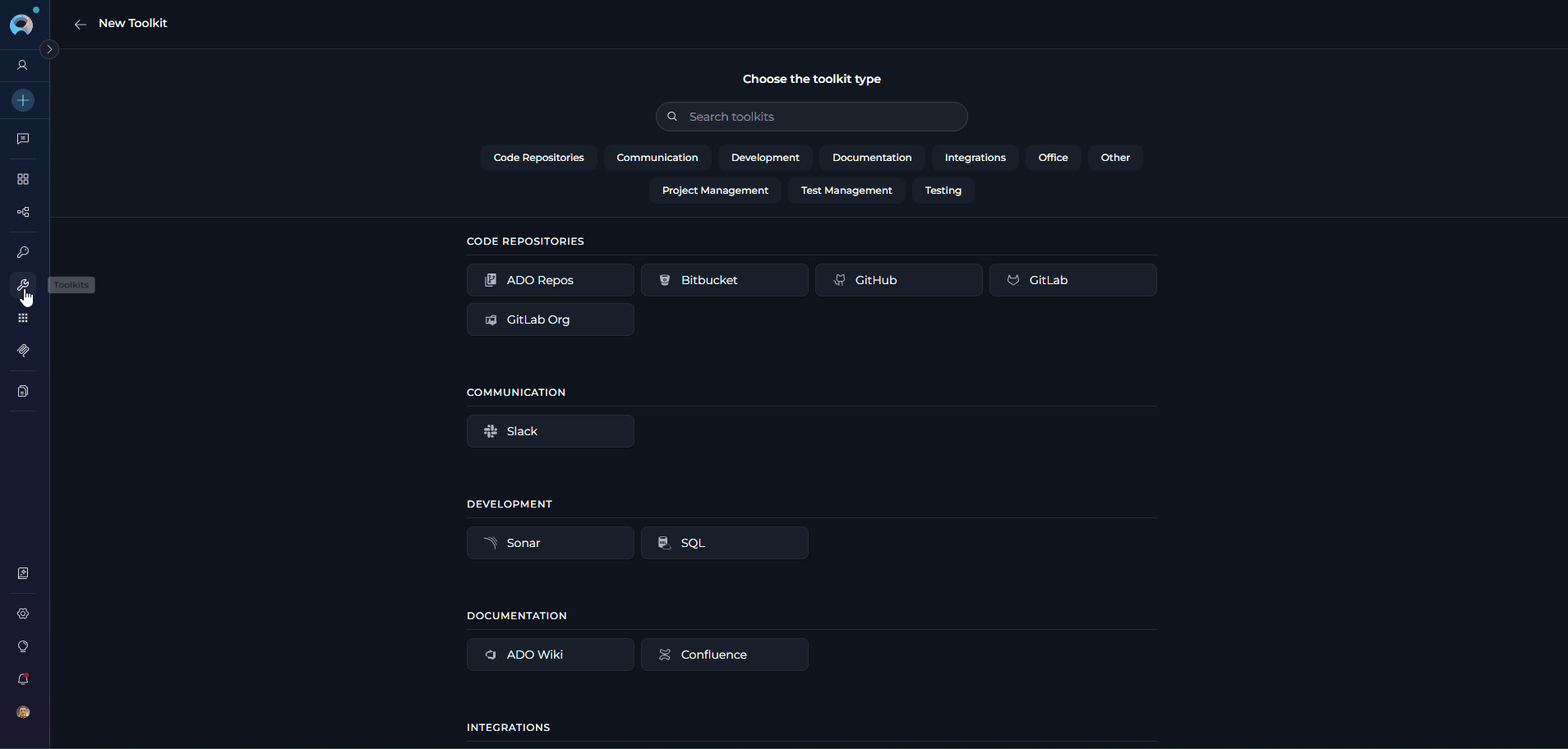

Step 1: Create Artifact Toolkit¶

You can create an Artifact Toolkit through multiple methods:

Navigate to Toolkits Menu: Open the sidebar and select Toolkits.
Create New Toolkit: Click the + Create button.
Select Artifact: Choose Artifact from the list of available toolkit types.
Configure Toolkit Details:
- Toolkit Name: Enter a descriptive name for the toolkit (e.g., "Report Storage", "Data Processing Artifacts")
- Description: Add an optional description explaining the toolkit's purpose
- PgVector Configuration: Select a PgVector connection for vector database integration and semantic search (optional)
- Embedding Model: Select an embedding model for text processing and semantic search capabilities (optional)
- Bucket Name: Specify the bucket (storage container) name
  - Creating a New Bucket: Enter a new bucket name, and it will be automatically created when first used
  - Using an Existing Bucket: Enter an existing bucket name to connect to it
  - Naming Convention: Use lowercase letters, numbers, and hyphens only (underscores are automatically converted to hyphens)
  - Best Practice: Use descriptive, unique names to avoid conflicts between different agents or workflows

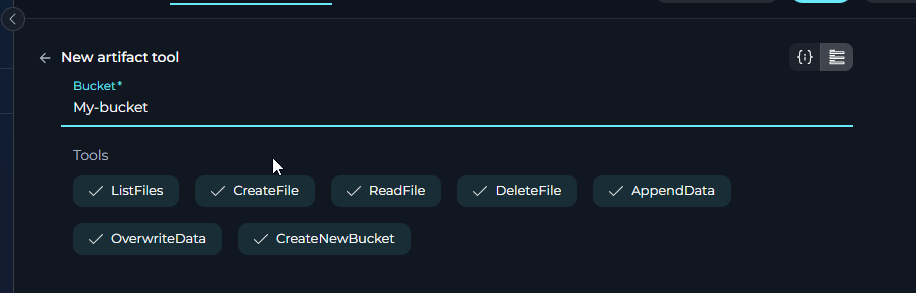

Select Tools: In the "Tools" section, select the checkboxes next to the specific tools you want to enable. Enable only the tools your agents will actually use to follow the principle of least privilege.
Save Toolkit: Click Save to create the toolkit.

Available Tools:¶

The Artifact Toolkit provides the following tools for file and data management:

Tool Name	Functionality	Parameters	Use Case
ListFiles	Retrieves a list of all files in the bucket with download links	`bucket_name` (optional)	Check available files before processing
CreateFile	Creates a new file in the bucket	`filename` `filedata` `bucket_name` (optional)	Store generated content, reports, or initial data
ReadFile	Reads and retrieves file content from the bucket	`filename` (required) `bucket_name` (optional) `is_capture_image` (optional) `page_number` (optional) `sheet_name` (optional)	Access previously stored data for processing, with image capture and pagination support
DeleteFile	Permanently deletes a file from the bucket	`filename` `bucket_name` (optional)	Remove temporary or obsolete files
AppendData	Adds content to the end of an existing file	`filename` `filedata` `bucket_name` (optional)	Build log files, accumulate test cases, expand datasets
OverwriteData	Replaces entire file content with new data	`filename` `filedata` `bucket_name` (optional)	Update configuration files, replace reports
CreateNewBucket	Creates a new storage bucket with custom retention	`bucket_name` `expiration_measure` (optional) `expiration_value` (optional)	Organize different file groups, set custom retention periods
Edit file	Modifies specific content within an existing file	`file_path` (required) `file_query` (required) `branch` (optional) `commit_message` (optional)	Make targeted changes to file content with version control
Read file chunk	Reads a specific portion of a file	`file_path` (required) `branch` (optional) `start_line` (required) `end_line` (optional)	Access large files incrementally by line number
Read multiple files	Reads content from multiple files simultaneously	`file_paths` (required, list) `branch` (optional) `offset` (optional) `limit` (optional)	Batch processing multiple files with pagination support
Index data	Indexes file content for vector search	`index_name` (required) `clean_index` (optional) `progress_step` (optional) `chunking_config` (optional) `include_extensions` (optional) `skip_extensions` (optional)	Enable semantic search capabilities with customizable indexing options
List collections	Lists all indexed collections in the vector database		View available indexed data collections
Remove index	Removes indexed data from the vector database	`Index_name`	Clean up obsolete indexes
Search file	Searches for files by name or pattern	`file_path` (required) `pattern` (required) `branch` (optional) `is_regex` (optional) `context_lines` (optional)	Find specific content within files with regex support and context
Search index	Performs semantic search across indexed content	`query` (required) `index_name` (optional) `filter` (optional) `cut_off` (optional, 0-1) `search_top` (optional) `full_text_search` (optional) `extended_search` (optional) `reranker` (optional) `reranking_config` (optional)	Find relevant information semantically with advanced filtering and reranking
Stepback search index	Advanced search with step-back prompting technique	`query` (required) `index_name` (optional) `messages` (optional) `filter` (optional) `cut_off` (optional, 0-1) `search_top` (optional) `full_text_search` (optional) `extended_search` (optional) `reranker` (optional) `reranking_config` (optional)	Complex semantic queries with reasoning and message context
Stepback summary index	Generates summaries using step-back search	`query` (required) `index_name` (optional) `messages` (optional) `filter` (optional) `cut_off` (optional, 0-1) `search_top` (optional) `full_text_search` (optional) `extended_search` (optional) `reranker` (optional) `reranking_config` (optional)	Create summaries from indexed content

Vector Search Tools

The tools Index data, List collections, Remove index, Search index, Stepback search index, and Stepback summary index require PgVector configuration and an embedding model. These enable advanced semantic search capabilities across your artifact files.

Method 2: Create from Canvas (During Conversation)¶

You can create an Artifact Toolkit directly from a chat conversation using the canvas interface:

Navigate to Chat: Open the sidebar and select Chat.
Start or Open Conversation: Create a new conversation or open an existing one.
Access Toolkit Selection: In the PARTICIPANTS section, locate Toolkits and click the + Add toolkit icon.
Create New Toolkit: In the "New Toolkit" dialog, click + Create new Toolkit.
Choose Toolkit Type: The canvas interface displays available toolkit categories. Navigate to the appropriate category and select Artifact.
Configure Settings: Follow the same configuration steps as Method 1 (display name, bucket name, tool selection).
Save and Use: Click Save to create the toolkit. It will be immediately available in your current conversation.

Canvas Advantage

Creating toolkits through the canvas interface allows for immediate use in your conversation without navigating away from the chat. This is ideal for ad-hoc data storage needs during active conversations.

Reference

For more details on canvas-based toolkit creation, see How to Create and Edit Toolkits from Canvas.

Method 3: Automatic Creation via Attachment Settings¶

When enabling attachments for agents, pipelines, or conversations, an Artifact Toolkit is automatically created if needed:

Enable Attachments: When configuring an agent, pipeline, or conversation, toggle the Allow attachments option.
Configure Attachment Storage: In the Attachment settings popup:
- Option A: Select an existing Artifact Toolkit from the dropdown
- Option B: Select "Create new" and enter a bucket name to automatically create a new Artifact Toolkit
Automatic Integration: The toolkit is created and linked to handle file uploads. Files attached in conversations are automatically stored in the specified bucket.

Attachment Integration

Files uploaded through the attachment feature are stored in the linked Artifact Toolkit's bucket and can be accessed by agents using the toolkit's file management tools. This provides seamless integration between user uploads and agent file processing capabilities.

Reference

For comprehensive details on attachment functionality, see Attach Images and Files in Chat.

Step 2: Use Toolkit in Agents, Pipelines, or Chat¶

Once created, the Artifact Toolkit can be integrated into your agents, pipelines, or used directly in chat conversations:

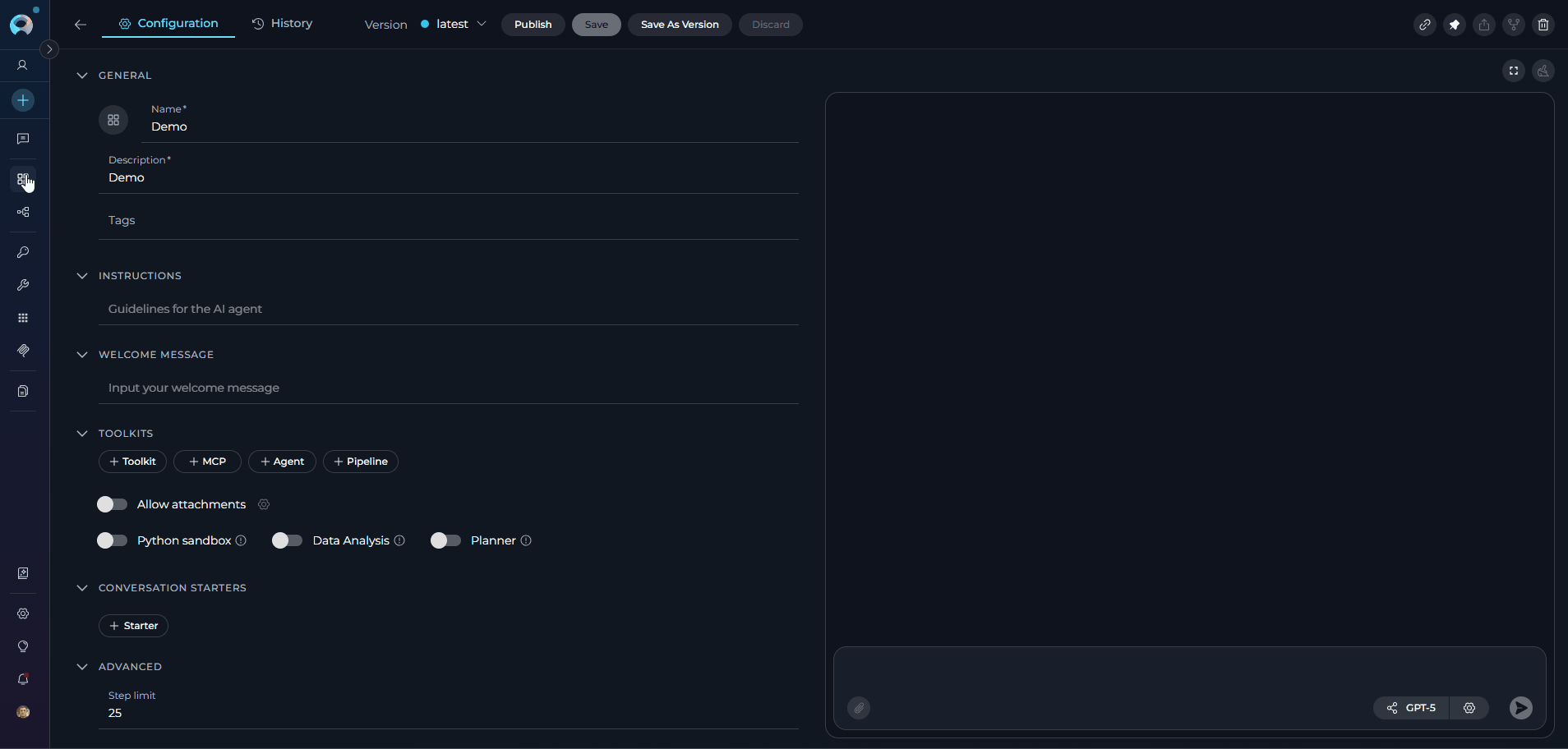

In Agents:¶

Navigate to Agents: Open the sidebar and select Agents.

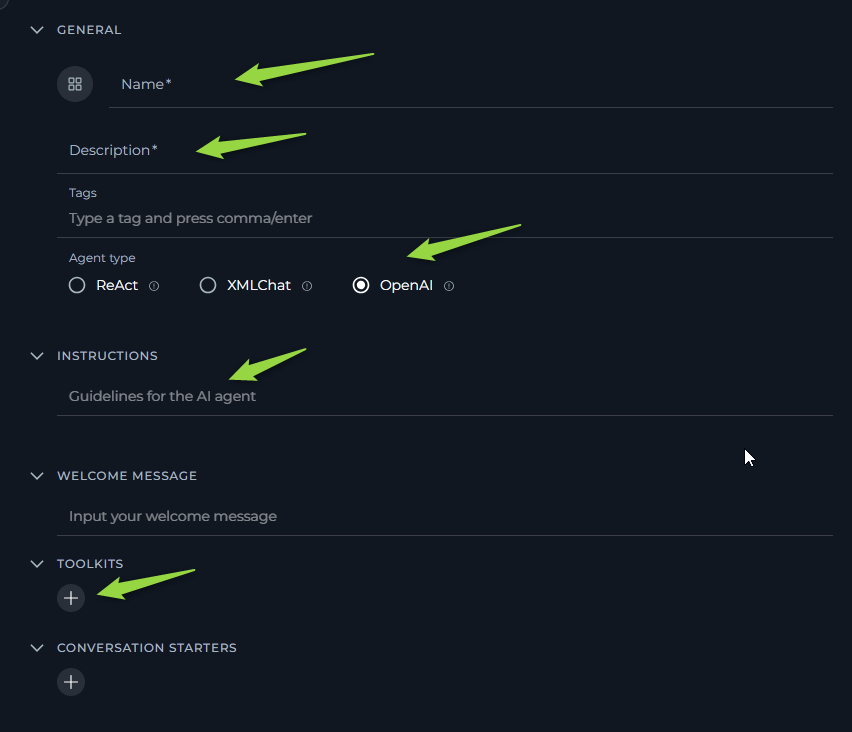

Create or Edit Agent: Click + Create for a new agent or select an existing agent to edit.
Add Artifact Toolkit:
- In the "TOOLKITS" section of the agent configuration, click the "+Toolkit" icon
- Select your Artifact toolkit from the dropdown list
- The toolkit will be added to your agent with the previously configured tools enabled

Your agent can now use artifact storage for data management, context preservation, and file operations.

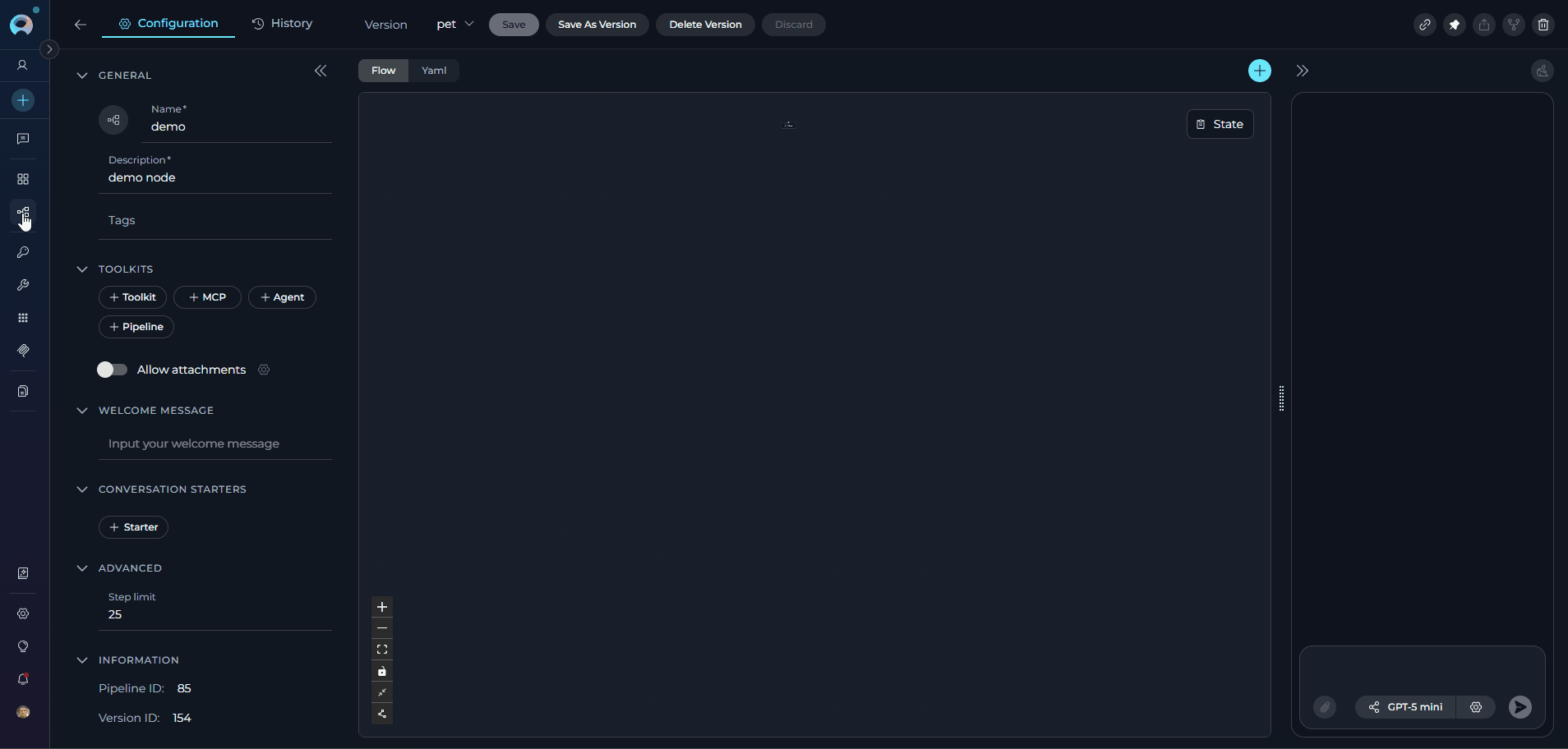

In Pipelines:¶

Navigate to Pipelines: Open the sidebar and select Pipelines.
Create or Edit Pipeline: Either create a new pipeline or select an existing pipeline to edit.
Add Artifact Toolkit:
- In the "TOOLKITS" section of the pipeline configuration, click the "+Toolkit" icon
- Select your Artifact toolkit from the dropdown list
- The toolkit will be added to your pipeline with the previously configured tools enabled

Your pipeline can now leverage artifact storage for intermediate data handling across pipeline stages.

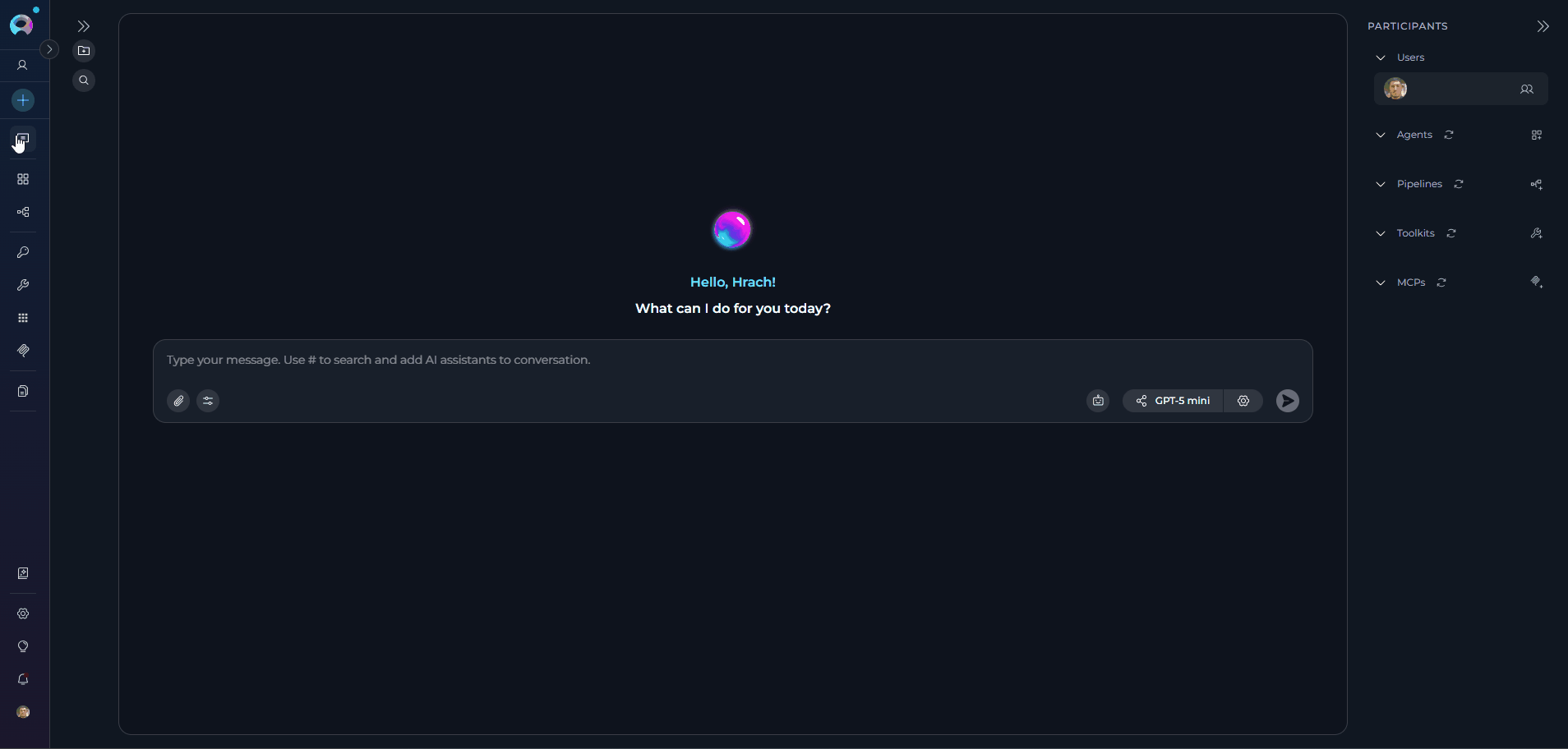

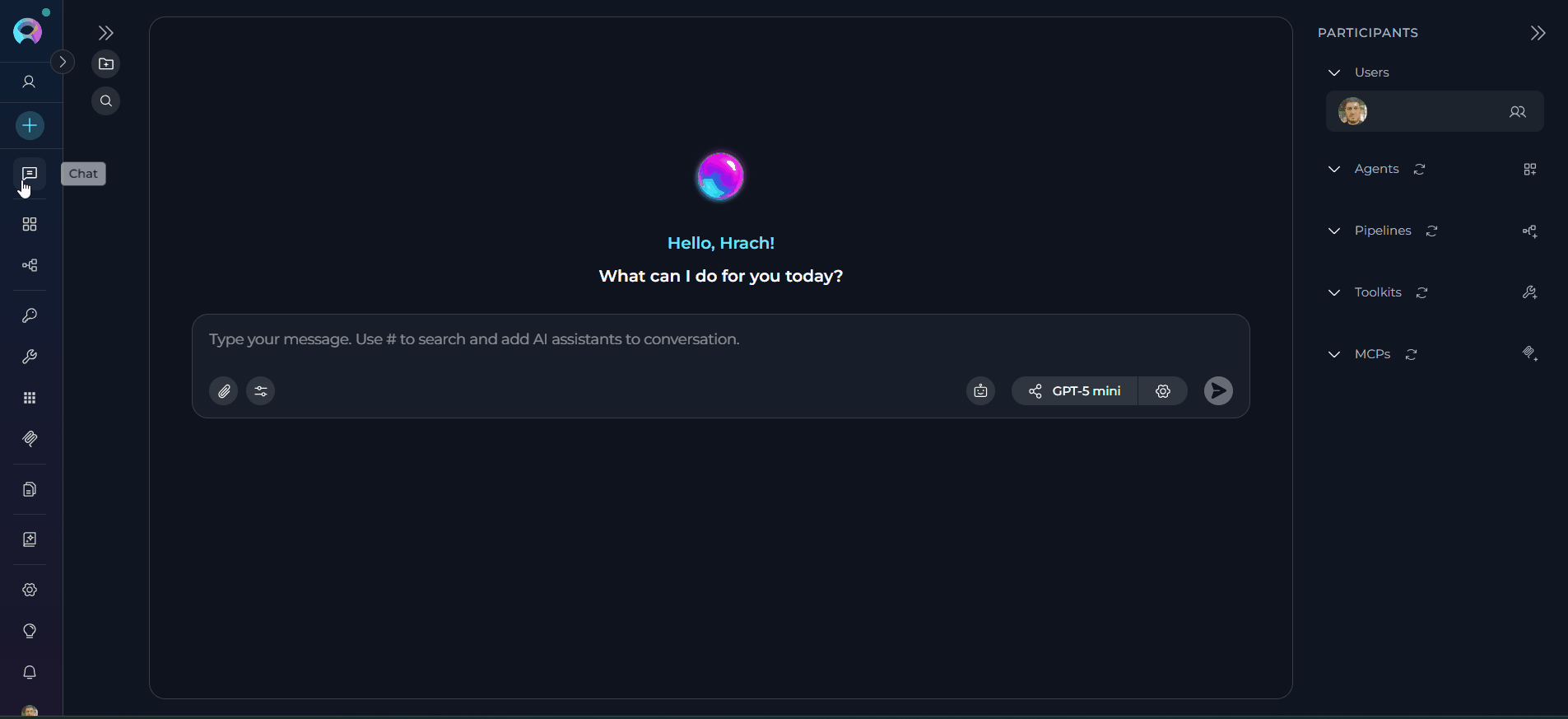

In Chat:¶

Navigate to Chat: Open the sidebar and select Chat.
Start New Conversation: Click +Create or open an existing conversation.
Add Toolkit to Conversation:
- In the chat Participants section, look for the Toolkits element
- Click the "Add Tools" icon to open the tools selection dropdown
- Select your configured Artifact toolkit from the list
- The toolkit will be added to the conversation

You can now interact with artifact storage directly in your conversation, asking the AI to create, read, or manage files.

Chat Usage Example

User: "Create a file called meeting_notes.txt with today's agenda"
Agent: [Uses createFile tool to store the agenda in the artifact bucket]

User: "Now append the action items we discussed"
Agent: [Uses appendData tool to add new content to meeting_notes.txt]

User: "Show me all files we've created today"
Agent: [Uses listFiles tool to display all files in the bucket]

File Types and Capabilities¶

The Artifact Toolkit has different capabilities for reading and creating files, offering flexibility for various data processing workflows.

File Types Supported for Reading

The Artifact Toolkit can read and process a wide variety of file formats:

Category	File Extensions	Description
Text and Document Files	`.txt`, `.md`, `.rtf`, `.docx`, `.pdf`	Plain text, Markdown, Rich Text Format, Microsoft Word Documents, Portable Document Format
Data and Spreadsheet Files	`.csv`, `.xlsx`, `.json`, `.xml`, `.yaml`, `.yml`	Comma Separated Values, Microsoft Excel Spreadsheets, JSON Data, XML Data, YAML Data
Presentation Files	`.pptx`	Microsoft PowerPoint Presentations
Programming and Code Files	`.py`, `.js`, `.html`, `.css`, `.java`, `.cpp`, `.php`, `.sql`, `.sh`, `.bat`	Python, JavaScript, HTML, CSS, Java, C++, PHP, SQL, Shell Scripts, Batch Files, and other common programming language file extensions
Image Files	`.jpg`, `.jpeg`, `.png`, `.gif`, `.bmp`, `.webp`	JPEG Images, PNG Images, GIF Images, Bitmap Images, WebP Images

Image Processing Requirements

When reading image files, the image is sent to the LLM for analysis. The LLM describes the image content and provides the description in the context.

Important Requirements:

The LLM must be multimodal with image reading capabilities
Compatible models: GPT-4 Vision, Claude 3, Gemini Pro Vision, or similar
The image description is returned as text in the agent's context

For best results, provide clear instructions about what information to extract from images.

File Types Supported for Creation¶

The Artifact Toolkit can create the following file types:

Category	File Extensions	Description
Text-Based Files	`.txt`, `.md`, `.csv`, `.json`, `.yaml`, `.yml`, `.html`, `.css`, `.js`, `.py`, `.sql`	Plain Text, Markdown, Comma Separated Values, JSON Data, YAML Data, HTML, CSS, JavaScript, Python, SQL, and other unformatted plain text or code files
Spreadsheet Files	`.xlsx`	Microsoft Excel Spreadsheets

Unsupported File Types for Creation¶

The toolkit cannot create the following binary files or formatted document types:

Category	File Extensions	Description
Unsupported Files	`.docx`, `.pdf`, `.pptx`, `.jpg`, `.png`, `.gif`	Word Documents, PDF Files, PowerPoint Presentations, Images, and other binary or complex formatted documents

Recommended Workflow

Read complex file formats (Excel, Word, PDF, images) to extract content
Process the extracted information using agent logic
Create new plain text files with processed results

This workflow allows you to transform complex documents into structured text formats that are easier to work with in automated workflows.

Security and Access Control¶

Bucket Accessibility and Security¶

Project-Specific Buckets: Buckets created using the Artifact Toolkit are specific to the ELITEA project in which they are created. Buckets and files within one project cannot be directly accessed from another separate ELITEA project.
Agent Access: Within a project, all agents configured with the Artifact Toolkit can potentially access files within their configured buckets. Agents can only access buckets specified in their toolkit configuration.

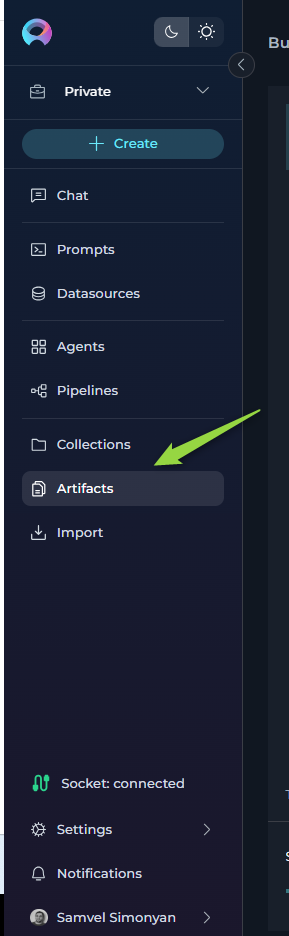

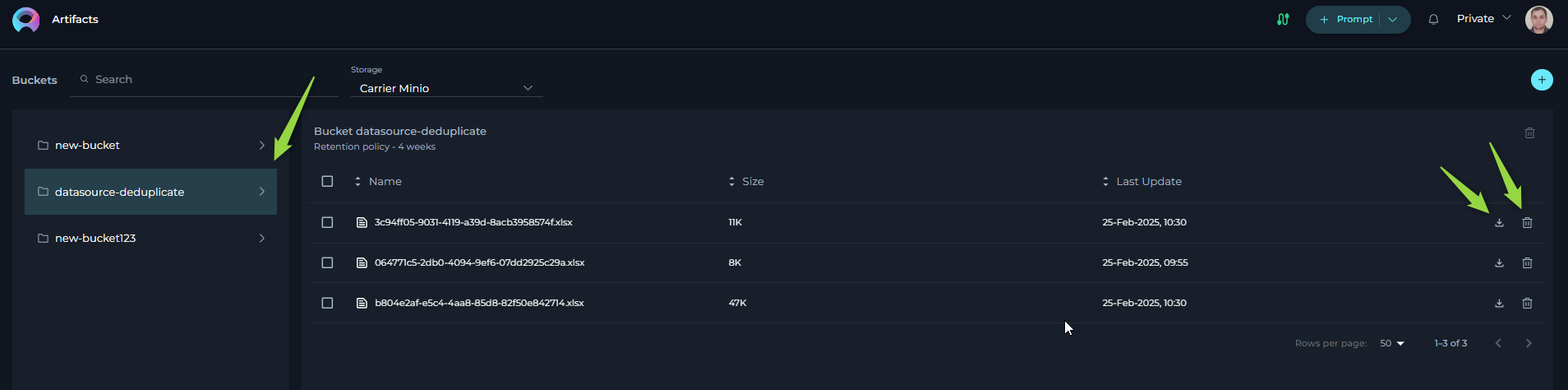

User Access via Artifacts Page: All project members with access to the Artifacts page can view, download, and delete files within project buckets, regardless of which agent created them.
Shared Bucket Usage: If multiple agents or users within a project configure Artifact Toolkits to use the same bucket name, they will share the same storage space.

Recommendations:
- For independent tasks: Use unique bucket names per agent to avoid unintended data interference
- For collaborative workflows: Use shared buckets intentionally to enable data exchange
- File naming conventions: Use clear, descriptive filenames with identifiers to prevent accidental overwrites
- Regular cleanup: Remove obsolete files to maintain organization
Security Considerations:
- Users with agent configuration access can potentially access and manipulate bucket data
- Do not store highly sensitive data in artifacts without additional security measures
- Consider encryption for sensitive information before storing
- Be aware of project-level access controls
- Regularly review and audit artifact usage

Data Sensitivity

Artifact storage is designed for temporary operational data. Avoid storing:

Passwords or API keys (use Secrets instead)
Personal Identifiable Information (PII) without proper safeguards
Confidential business data requiring strict access controls
Data subject to compliance regulations (GDPR, HIPAA, etc.) without proper security measures

Artifact Retention and Lifecycle¶

Default Retention: Files created in Artifact buckets have a default retention period of 30 days. After this period, files are automatically deleted and cannot be recovered.

Custom Retention: You can set custom retention periods when creating buckets:

Using createNewBucket tool:
- expiration_measure: "days", "weeks", "months", or "years"
- expiration_value: numeric value (e.g., 7, 30, 90)

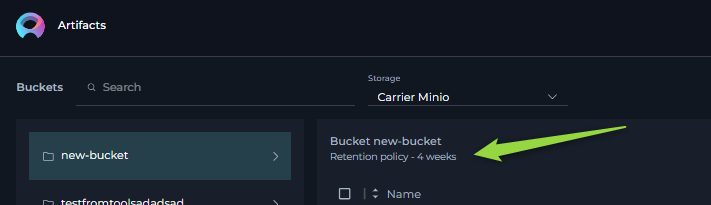

Retention Management: View and modify retention settings through the Artifacts page:
- View current retention settings per bucket
- Modify retention periods for existing buckets
- Monitor days remaining until file expiration
Manual Deletion: Files and buckets can be manually deleted at any time:
- By agents using the deleteFile tool
- By users through the Artifacts page
- Bulk deletion by removing entire buckets

Retention Best Practices

Set retention based on data lifecycle needs
Download important files before expiration
Use longer retention (e.g., 90 days) for audit logs
Use shorter retention (e.g., 7 days) for temporary processing files
Regularly review and clean up unused buckets

Storage Limits

Project Limit: Each project has a total storage limit of 9 GB for all artifacts combined
Individual Files: No strict per-file size limit, but best practice is to keep files reasonably sized
Performance Impact: Very large files may impact agent processing speed
Monitoring: Check storage usage in the Artifacts page to avoid exceeding limits

Storage Management

Monitor your project's artifact storage usage regularly. When approaching the 9 GB limit:

Delete obsolete files
Download and remove archived data
Review retention policies
Consider using external storage for large datasets

Real-World Usage Examples¶

The Artifact Toolkit provides versatile capabilities to enhance agent workflows within ELITEA. Here are key use cases and examples demonstrating how to leverage the toolkit effectively:

1. Storing Large Generated Outputs

Scenario: An agent generates extensive text data (reports, lists, test cases) that exceeds the LLM's context window.

Tools Used: createFile, appendData

Implementation:

Agent Instruction: "Create a file named 'detailed_report.txt' to store the generated report.
Append each section incrementally as it's generated."

Benefits: - Handle outputs exceeding context window limits - Persistent storage for later retrieval - Downloadable results for external use

Chat Interaction Example:

User: "Analyze all our Q4 sales data and create a comprehensive report"

Agent: "I'll analyze the Q4 sales data and create a detailed report."
[Agent uses createFile tool to create "Q4_Sales_Report.txt"]
[Agent appends sections incrementally using appendData tool]

Agent: "I've created a comprehensive Q4 sales report with the following sections:
- Executive Summary
- Sales by Region
- Top Performing Products
- Year-over-Year Comparison
- Recommendations

The report has been saved to 'Q4_Sales_Report.txt' in your artifacts."

User: "Can you add a section about customer demographics?"

Agent: [Uses appendData tool to add new section]
"I've added the customer demographics section to the report."

2. Managing Workflow Context and State

Scenario: An agent maintains state across multiple interactions in a multi-stage workflow.

Tools Used: createFile, readFile, appendData, deleteFile

Implementation:

Agent Instruction: "Create 'workflow_state.json' to store the initial state.
Read and update this state in subsequent steps.
Delete when workflow completes."

Benefits: - Persistent context across interactions - Complex stateful workflows - Progress tracking and recovery

3. Multi-Agent Collaboration

Scenario: Multiple agents collaborate by exchanging data through shared buckets.

Tools Used: createFile, appendData (Agent 1), readFile (Agent 2)

Implementation:

Agent 1: "Save processed data to 'shared_data.json' for the analysis agent."
Agent 2: "Retrieve data from 'shared_data.json' to perform analysis."

Benefits: - Seamless inter-agent data exchange - Sophisticated multi-agent workflows - Clear data handoff between processing stages

Chat Interaction Example:

Agent 1 (Data Collector):

User: "Gather all customer feedback from last month"

Agent 1: [Uses createFile to save "customer_feedback_march.json"]
"I've collected and stored 247 customer feedback entries in 'customer_feedback_march.json'."

Agent 2 (Data Analyzer):

User: "Analyze the sentiment of last month's customer feedback"

Agent 2: [Uses readFile to access "customer_feedback_march.json"]
[Analyzes data and creates "sentiment_analysis_march.txt"]
"Based on 247 feedback entries:
- Positive: 68%
- Neutral: 22%
- Negative: 10%

Full analysis saved to 'sentiment_analysis_march.txt'."

Shared Bucket Best Practices

When multiple agents share a bucket, use clear file naming conventions with timestamps or agent identifiers to prevent conflicts. Example: agent1_results_2024-01-09.json

4. Extended Clipboard Functionality

Scenario: Agents manage multiple text snippets beyond a single clipboard.

Tools Used: createFile, appendData, readFile, listFiles

Implementation:

Agent Instruction: "Save copied text as 'clipboard_item_1.txt'.
Use 'listFiles' to show available items.
Retrieve specific items by filename."

Benefits: - Multiple clipboard entries - Organized snippet management - Easy retrieval and reuse

5. Automated Logging and Audit Trails

Scenario: Agents record execution logs for monitoring, troubleshooting, or compliance.

Tools Used: createFile, appendData

Implementation:

Agent Instruction: "Create 'agent_log.txt' at execution start.
Append timestamped log entries throughout operation."

Benefits: - Automatic log generation - Improved traceability - Debugging and compliance support

Chat Interaction Example:

User: "Start processing the customer orders"

Agent: [Creates "order_processing_log.txt" using createFile]
"Started processing. Created log file."

User: "Process order #1234"

Agent: [Processes order, uses appendData to add log entry]
"Order #1234 processed successfully. Updated log."

User: "Process order #1235"

Agent: [Processes order, uses appendData to add log entry]
"Order #1235 processed successfully. Updated log."

User: "Show me the processing log"

Agent: [Uses readFile to retrieve "order_processing_log.txt"]
"Here's the complete processing log:

2024-01-09 10:15:23 - Processing started
2024-01-09 10:16:45 - Order #1234: Processed successfully
2024-01-09 10:18:12 - Order #1235: Processed successfully"

Log Retention

For long-term log storage, consider downloading logs before the retention period expires or use a longer retention setting when creating the bucket.

6. Processing Pre-existing Data Files

Scenario: Agents process existing files uploaded by users or external systems.

Tools Used: listFiles, readFile

Implementation:

Agent Instruction: "Use 'listFiles' to see available data files.
Read 'data_file_1.txt' for processing."

Benefits: - Integration with existing data - Versatile data source handling - Support for uploaded user files

7. Document Analysis and Extraction

Scenario: Extract and store information from uploaded documents.

Tools Used: readFile (with attachments), createFile, appendData

Implementation:

User uploads document → Agent reads it → Agent extracts key information →
Agent creates structured output file

Benefits: - Automated document processing - Structured data extraction - Persistent analysis results

Chat Interaction Example:

User: [Attaches contract.pdf] "Extract key terms from this contract"

Agent: [Reads the attached PDF using readFile with attachment integration]
[Creates "contract_key_terms.txt" using createFile]
"I've analyzed the contract and extracted the key terms:

- Contract Duration: 24 months
- Payment Terms: Net 30
- Renewal Clause: Automatic with 60-day notice
- Termination: 90-day written notice required

Full extraction saved to 'contract_key_terms.txt' for reference."

User: "Add a summary of the liability clauses"

Agent: [Uses appendData to add to existing file]
"Added liability clause summary to the document."

Multimodal Document Processing

For processing images within documents or analyzing image files, ensure your LLM supports multimodal capabilities (GPT-4 Vision, Claude 3, Gemini Pro Vision).

8. Configuration Management

Scenario: Agent manages and updates configuration files.

Tools Used: createFile, readFile, overwriteData, listFiles

Chat Interaction Example:

User: "Create a configuration file for the production environment"

Agent: [Uses createFile to create "prod_config.json"]
"Created production configuration with default settings."

User: "Update the API timeout to 60 seconds"

Agent: [Uses readFile to get current config]
[Uses overwriteData to update the entire file with new timeout]
"Updated API timeout in production configuration."

User: "Show me all configuration files"

Agent: [Uses listFiles tool]
"Available configuration files:
- prod_config.json
- staging_config.json
- dev_config.json"

9. UI Test Execution and Results Storage

Scenario: Agent executes UI test cases using Playwright MCP toolkit and stores comprehensive test results in artifacts for analysis and reporting.

Tools Used: createFile, appendData, listFiles

Implementation:

Agent uses Playwright MCP toolkit to execute UI tests →
Captures test results, screenshots, and logs →
Stores all data in artifact bucket for review

Benefits: - Automated test execution and result storage - Persistent test history for trend analysis - Centralized test artifacts for team review - Easy access to screenshots and error logs

Chat Interaction Example:

User: "Run the UI tests for the login flow and save the results"

Agent: [Uses Playwright MCP toolkit to execute test cases]
[Creates "ui_test_results_2026-01-09.json" using createFile]
[Creates "test_execution_log.txt" using createFile]
[Saves screenshots for failed tests]

Agent: "I've completed the UI test execution for the login flow:

Test Summary:
- Total Tests: 15
- Passed: 13
- Failed: 2
- Duration: 2m 34s

Failed Tests:
1. Login with invalid credentials - Expected error message not displayed
2. Password reset flow - Email field validation failed

All results have been saved to your artifacts:
- ui_test_results_2026-01-09.json (detailed test results)
- test_execution_log.txt (execution logs)
- screenshot_login_error.png (failed test screenshot)
- screenshot_password_reset.png (failed test screenshot)"

User: "Append a summary to the execution log"

Agent: [Uses appendData to add summary]
"Summary appended to test_execution_log.txt:

=== Test Execution Summary ===
Date: 2026-01-09
Environment: Staging
Browser: Chrome 120
Pass Rate: 86.7%

Action Required:
- Investigate error message display logic in login component
- Review email validation regex in password reset form"

User: "Run the checkout flow tests and save results to the same log"

Agent: [Executes checkout tests using Playwright MCP toolkit]
[Uses appendData to add results to existing log]
[Creates new test results file]

Agent: "Checkout flow tests completed:

Test Summary:
- Total Tests: 8
- Passed: 8
- Failed: 0
- Duration: 1m 47s

Results appended to test_execution_log.txt
Detailed results saved to ui_test_results_checkout_2026-01-09.json

All tests passed! ✓"

Best Practices from Examples

Use descriptive filenames with dates or identifiers
Create log files at the start of operations for traceability
Use listFiles before creating files to avoid duplicates
Leverage appendData for incremental updates (logs, reports)
Use overwriteData for configuration updates
Share buckets between agents for collaborative workflows

Troubleshooting and Support¶

Troubleshooting¶

File Not Found Errors

Problem: Agent execution fails with "File Not Found" errors when attempting to use read_file, delete_file, or append_data tools.

Solutions:

Verify Filename: Double-check the filename specified in the agent instruction. Ensure it exactly matches the filename of the artifact in the bucket (including file extension)
Check Bucket Name: Confirm that the correct bucket name is configured for the Artifact Toolkit
List Files First: Use the list_files tool to verify the file exists and check the exact filename spelling
Check Retention: Ensure the file hasn't been automatically deleted due to exceeding the retention period
Manual Deletion: Verify the file wasn't accidentally deleted by another agent or user. Check the Artifacts page for file history

Bucket Access Issues

Problem: Unable to access bucket or bucket appears empty.

Solutions:

Verify Bucket Name: Double-check the bucket name in the toolkit configuration. Ensure correct spelling and format (lowercase, hyphens instead of underscores)
Project Scope: Buckets are project-specific. Ensure you're accessing the bucket within the correct ELITEA project
First Use: If the bucket is newly created, it will be empty until files are added
Permissions: Verify you have the necessary project permissions to access artifacts

Data Not Saving or Appending Correctly

Problem: append_data or create_file tools don't create or modify files as expected. Data is missing, incomplete, or not being saved.

Solutions:

Check Execution Logs: Examine the agent's execution logs or chat output for error messages related to tool calls
File Type Limitations: Confirm you're working with supported text file types. The toolkit cannot create binary files (Excel, PDF, images)
Review Instructions: Verify that instructions given to the LLM are clear and align with tool capabilities
Test with Simple Operations: Try creating a simple text file first to confirm basic functionality
Check Bucket Configuration: Ensure the bucket is properly configured in the toolkit settings

Toolkit Not Appearing in Dropdown

Problem: Created Artifact Toolkit doesn't appear when trying to add it to an agent, pipeline, or chat.

Solutions:

Verify Toolkit Saved: Ensure you clicked Save after creating the toolkit configuration
Refresh Interface: Refresh your browser or reload the page
Check Project Context: Toolkits are project-specific. Ensure you're in the correct project
Review Toolkit List: Navigate to the Toolkits menu to verify the toolkit was successfully created

File Upload/Attachment Issues

Problem: Files uploaded through attachments aren't accessible or don't appear in the bucket.

Solutions:

Verify Attachment Settings: Ensure attachments are enabled and linked to the correct Artifact Toolkit
Check Bucket Name: Confirm the attachment settings point to the correct bucket
File Size Limits: Verify files don't exceed project storage limits (9 GB total per project)
Review Artifacts Page: Check the Artifacts page to see if files were uploaded successfully

Support Contact¶

For issues, questions, or assistance with Artifact toolkit integration, please refer to Contact Support for detailed information on how to reach the ELITEA Support Team.

Frequently Asked Questions¶

Can I create binary files like Excel or images in Artifacts?

The Artifact Toolkit supports creating text-based files and Excel spreadsheets. It does not support creating most binary files, images, or formatted document types like .docx or .pdf.

You can create:

Plain text (.txt)
CSV (.csv)
JSON (.json)
YAML (.yaml, .yml)
Markdown (.md)
Code files (.py, .js, .html, .css, .sql, etc.)
Excel files (.xlsx)

You can read many binary file formats including Excel, Word, PDF, and images (with multimodal LLM support).

What is the maximum file size for artifacts?

While there isn't a strict file size limit for individual artifacts, there is a project-wide storage limit of 9 GB for all artifacts within a project.

Best Practices:

Keep individual files reasonably sized for optimal performance
Extremely large files may impact agent processing efficiency
Monitor your project's total storage usage in the Artifacts page
Delete unnecessary files regularly to maintain available space

How long are files stored in Artifacts?

By default, files stored in Artifact buckets have a retention period of 30 days. After 30 days, they are automatically deleted.

You can customize the retention period:

When creating a new bucket using the createNewBucket tool
By modifying bucket settings in the Artifacts page
Supported retention measures: days, weeks, months, years

Important: Files approaching expiration should be downloaded or backed up if you need to retain them longer.

Can I recover deleted files from Artifacts?

No, files deleted from Artifact buckets are permanently deleted and cannot be recovered. This applies to:

Manual deletions (by agents or users)
Automatic deletions due to retention period expiration

Recommendation: Download and back up any important data stored in artifacts before it's deleted or if you need to retain it beyond the retention period.

How do I access and download files stored in Artifacts?

You can access and manage artifact files through the Artifacts page in ELITEA:

Navigate to Artifacts from the sidebar
Browse buckets and view file lists
Download individual files
View file metadata (size, creation date, retention)
Delete files or entire buckets
Modify retention settings

Files can also be accessed programmatically by agents using the readFile tool.

Can multiple agents share the same bucket?

Yes, multiple agents within the same project can use the same bucket name, allowing them to share data. This enables:

Collaborative Workflows: One agent creates data, another processes it
Data Handoffs: Sequential agents passing information through shared storage
Shared Context: Multiple agents accessing common reference data

Recommendations:

For independent tasks, use unique bucket names to avoid conflicts
For collaborative workflows, use shared buckets intentionally
Use clear file naming conventions to prevent accidental overwrites
Consider using the listFiles tool to check existing files before creating new ones

Do I need credentials to use the Artifact Toolkit?

No, the Artifact Toolkit does not require any credentials. It uses ELITEA's internal storage system and authenticates based on your project access.

This is different from external integration toolkits (like GitHub, Jira, Confluence) which require API credentials.

Can I use artifacts across different projects?

No, artifact buckets and files are project-specific. Buckets created in one project cannot be accessed from another project.

If you need to share data across projects:

Download files from one project's Artifacts page
Upload them to the other project
Consider using external storage integrations for cross-project data sharing

What happens when I enable attachments in a conversation?

When you enable attachments and configure an Artifact Toolkit:

Files you upload are automatically stored in the specified bucket
The AI agent can access these files using the toolkit's readFile tool
Files are subject to the bucket's retention policy
You can manage uploaded files through the Artifacts page

This creates a seamless integration between user uploads and agent file processing capabilities.

Can agents read image files?

Yes, agents can read and analyze image files, but with specific requirements:

Requirements:

The LLM must be multimodal with image reading capabilities
Supported models: GPT-4 Vision, Claude 3, Gemini Pro Vision, or similar
Supported formats: .jpg, .jpeg, .png, .gif, .bmp, .webp

How it works:

The image is sent to the LLM for analysis
The LLM describes the image content
The description is provided in the agent's context

Note: Agents cannot create image files, only read and analyze them.

Additional Resources

Artifacts Menu Documentation - Comprehensive guide to managing artifacts through the UI
Agents Menu Documentation - Complete guide to creating and configuring agents
Pipelines Menu Documentation - Guide to building and managing pipelines
Chat Documentation - Using chat conversations with toolkits
Secrets Management - Secure storage for sensitive data
How to Create and Edit Toolkits from Canvas - Creating toolkits from conversations
Attach Files in Chat - Using attachments with artifacts

ELITEA Toolkit Guide: Artifact Integration¶

Introduction¶

Brief Overview of the Artifact Toolkit¶

System Integration with ELITEA¶

Step 1: Create Artifact Toolkit¶

Method 1: Create from Toolkits Menu¶

Available Tools:¶

Method 2: Create from Canvas (During Conversation)¶

Method 3: Automatic Creation via Attachment Settings¶

Step 2: Use Toolkit in Agents, Pipelines, or Chat¶

In Agents:¶

In Pipelines:¶

In Chat:¶

File Types and Capabilities¶

File Types Supported for Creation¶

Unsupported File Types for Creation¶

Security and Access Control¶

Bucket Accessibility and Security¶

Artifact Retention and Lifecycle¶

Real-World Usage Examples¶

Troubleshooting and Support¶

Troubleshooting¶

Support Contact¶

Frequently Asked Questions¶
