GitHub Toolkit Integration Guide¶

Introduction¶

This guide is your definitive resource for integrating and utilizing the GitHub toolkit within ELITEA. It provides a comprehensive, step-by-step walkthrough, from generating a GitHub Personal Access Token to configuring the toolkit in ELITEA and effectively using it within your Agents. By following this guide, you will unlock the power of automated code management, streamlined development workflows, and enhanced team collaboration, all directly within the ELITEA platform. This integration empowers you to leverage AI-driven automation to optimize your software development lifecycle using the combined strengths of ELITEA and GitHub.

Brief Overview of GitHub

GitHub is the world's leading web-based platform for version control, collaboration, and software development. It is built around Git and provides a rich ecosystem for developers to host, manage, and collaborate on code. GitHub is essential for modern software development, offering features for:

Robust Version Control: Leveraging Git, GitHub meticulously tracks every change to your code, enabling seamless collaboration, easy rollback to previous states, and a complete history of project evolution.
Streamlined Code Collaboration: Facilitate effective teamwork with features like pull requests for code review, in-line commenting, and branch-based development workflows, fostering a collaborative coding environment.
Centralized Code Hosting: Provides a secure, reliable, and globally accessible platform for hosting and managing your Git repositories, ensuring code availability and integrity.
Powerful Workflow Automation (GitHub Actions): Enables you to automate your software development lifecycle with GitHub Actions, including building, testing, and deploying code directly from your repositories.
Issue Tracking and Project Management: Integrated issue tracking and project management tools help teams organize tasks, track bugs, and manage projects directly within the GitHub platform.

Integrating GitHub with ELITEA brings these powerful development capabilities directly into your AI-driven workflows. Your ELITEA Agents can then interact with your GitHub repositories to automate code-related tasks, enhance development processes, and improve team collaboration through intelligent automation, making your development workflows smarter and more efficient.

Toolkit's Account Setup and Configuration in GitHub¶

Account Setup

If you don't already have a GitHub account, follow these steps to create one:

Visit GitHub Website: Open your web browser and go to github.com.
Sign Up: Click on the "Sign up" button, located in the top right corner of the homepage.
Enter Details: Follow the on-screen instructions to create your account. You will need to choose a username, provide your email address, and create a strong password.
Verify Email: Check your inbox for a verification email from GitHub. Click the verification link in the email to activate your account.
Log In: Once your email is verified, log in to GitHub using your newly created username and password.

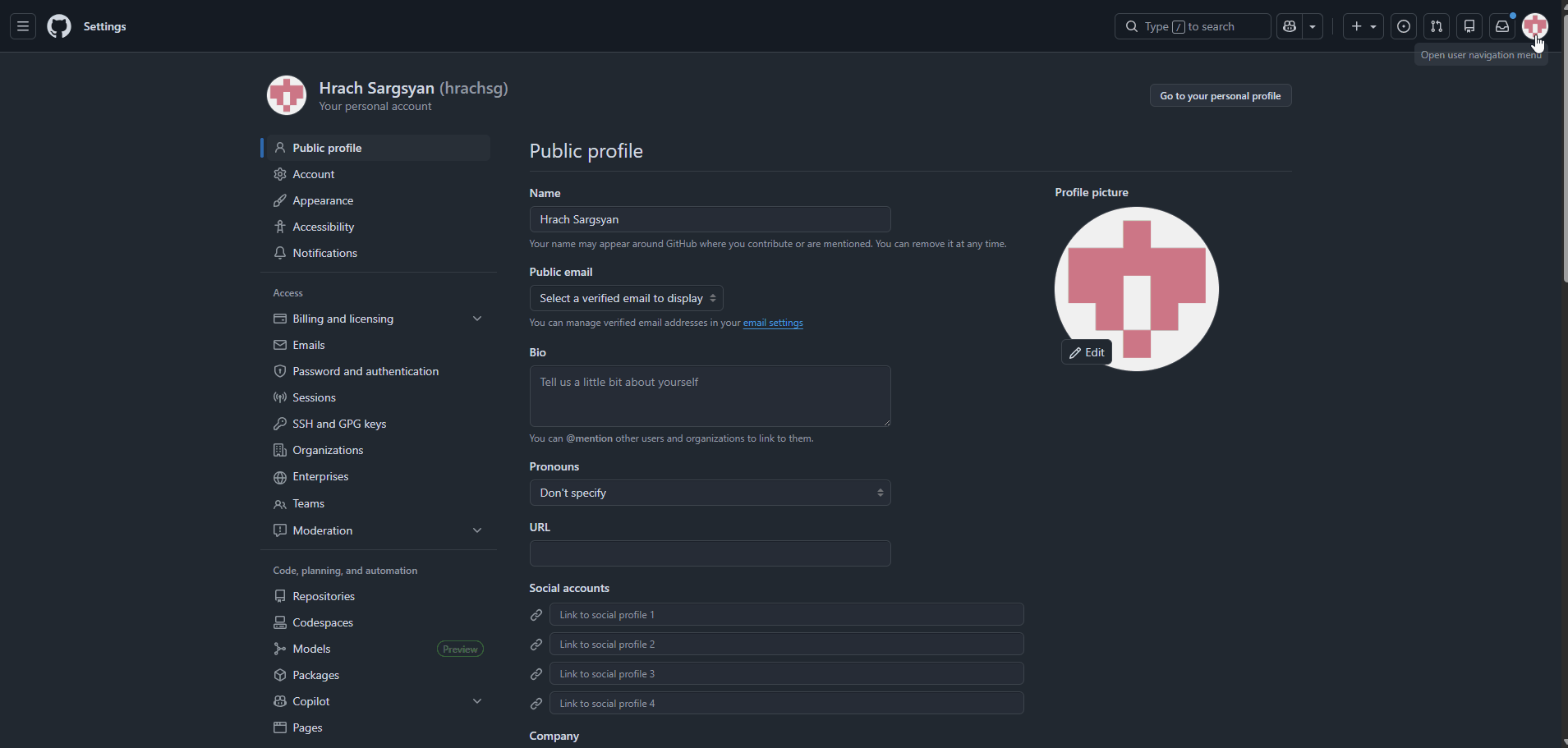

Generate a Personal Access Token (Classic)¶

For secure integration with ELITEA, it is essential to use a GitHub Personal Access Token (Classic). This method is significantly more secure than using your primary GitHub account password directly and allows you to precisely control the permissions granted to ELITEA.

Follow these steps to generate a Personal Access Token (Classic) in GitHub:

Log in to GitHub: Access your GitHub account at github.com.

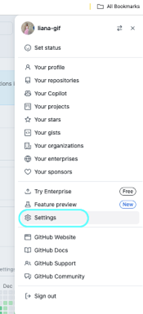

Access Settings: Click on your profile avatar in the top right corner and then click on "Settings".

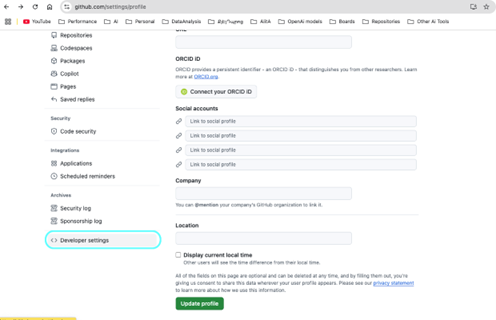

Navigate to Developer Settings: In the left-hand sidebar, scroll down and click on "Developer settings".

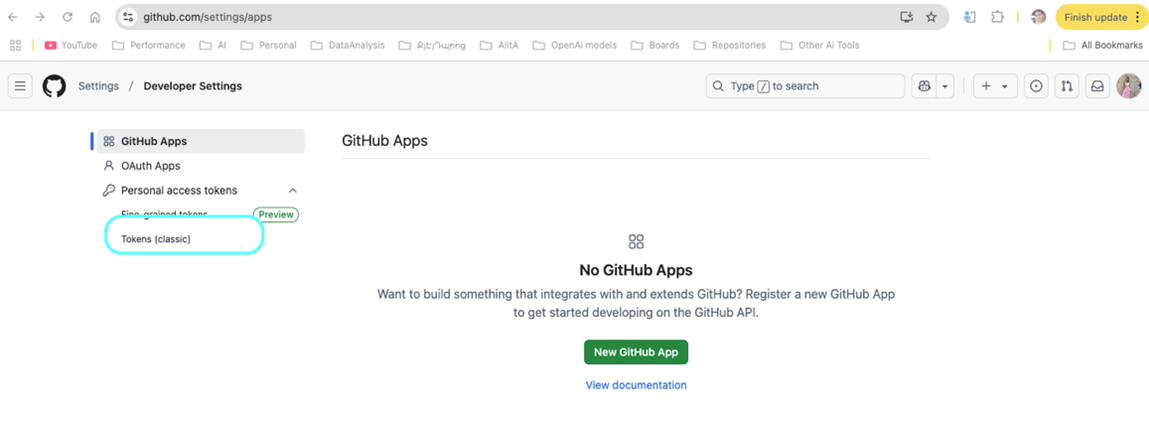

Access Personal Access Tokens (Classic): In the left-hand sidebar under "Personal access tokens," click on "Tokens (classic)".

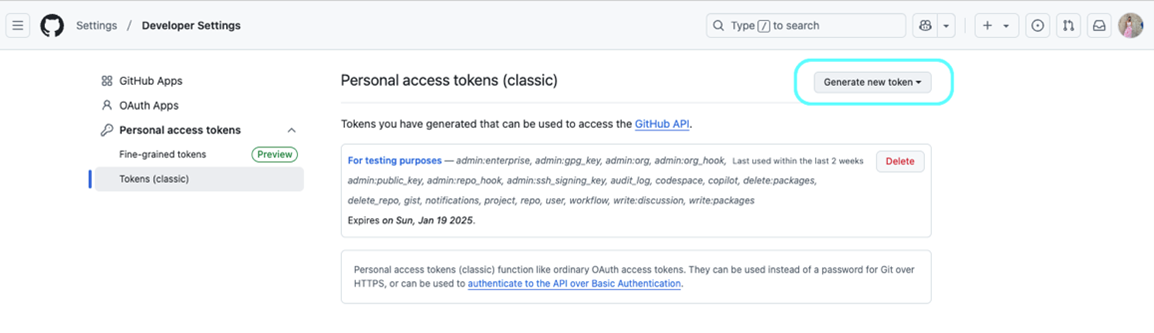

Generate New Token: Click the "Generate new token (classic)" button.

Authentication Required

After clicking the "Generate new token (classic)" button, GitHub may prompt you to enter your password to proceed. This is a security measure to confirm your identity before creating a new token.

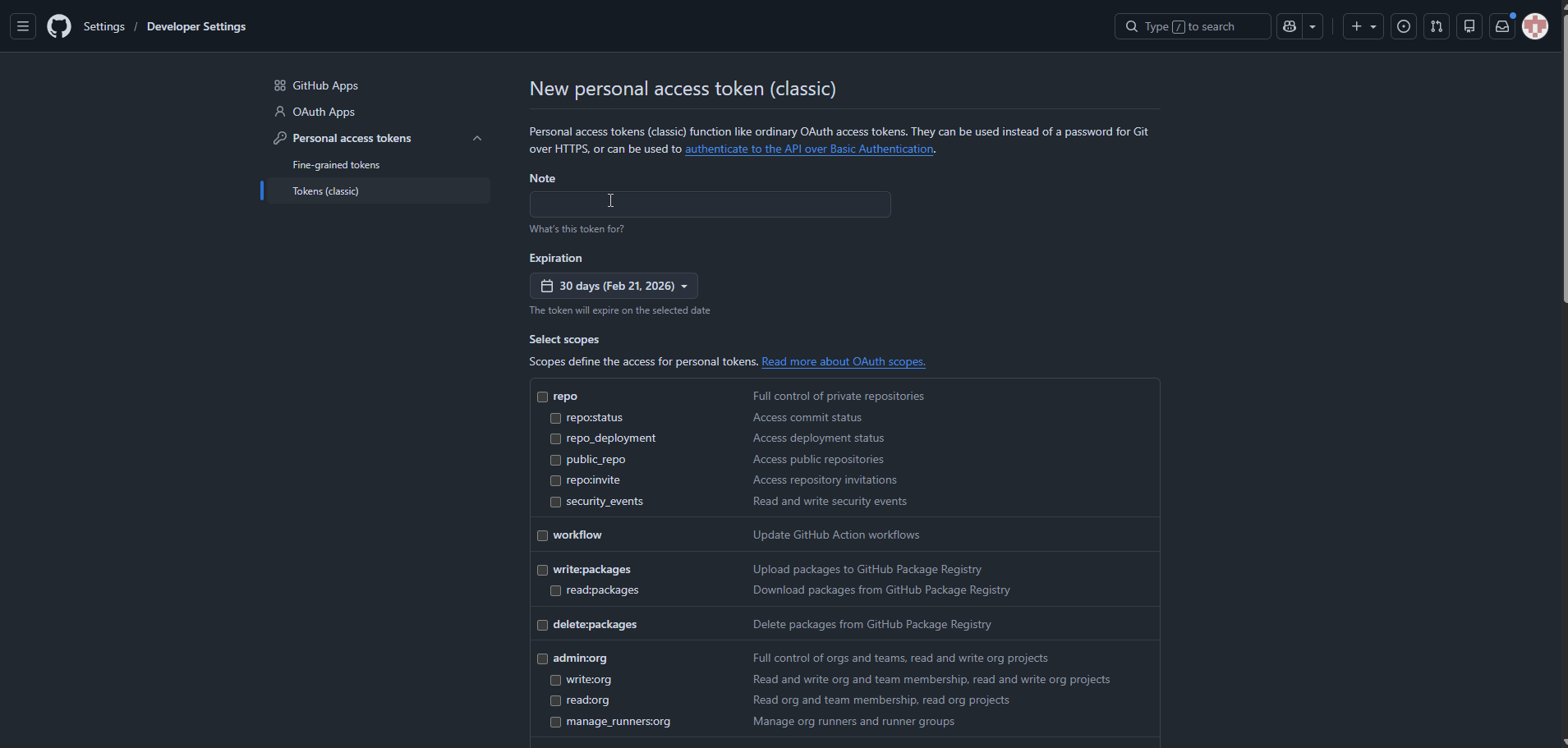

Provide Token Details:

Note: Enter a descriptive label (e.g., "ELITEA Integration") to identify this token's purpose.
Expiration: Set an expiration date to limit the token's lifespan and reduce security risk if compromised.
Select Scopes: Grant only the minimum necessary permissions. Overly permissive tokens pose security risks. For typical ELITEA integration, consider these minimal scopes:
Token Scopes

Minimal Scopes for Common Use Cases:
- repo (For full access to private and public repositories. If possible, select more granular repo scopes instead of full repo):
  - repo:status (Access commit statuses)
  - public_repo (Access public repositories)
- workflow (Access GitHub Actions workflows if your Agent needs to interact with workflows)
- read:user (To read user profile information, often needed for basic interactions)
Additional Scopes for Specific Functionality (Grant only if needed):
- issues (To access and manage issues)
- pull_request (To access and manage pull requests)
- gist (To access gists, if your Agent needs to work with gists)
- read:org (To read organization membership and information, if your Agent needs organization-level access)
Generate Token: Click the "Generate token" button at the bottom of the page.
Copy and Store Token: Copy the generated token immediately - this is your only chance to see it. Store it securely in a password manager or ELITEA's Secrets feature. You'll need it to configure the GitHub toolkit.

Important Security Practices

Principle of Least Privilege: Strictly adhere to the principle of least privilege. Grant only the scopes that are absolutely essential for your ELITEA Agent to perform its intended tasks.

Avoid "admin" or Broad Scopes: Never grant "admin" or overly broad permissions unless absolutely necessary and with a clear understanding of the security implications. Broad scopes significantly increase the potential security impact if the token is compromised.

Regular Token Review and Rotation: Regularly review the tokens you have generated and their associated scopes. Rotate tokens periodically (generate new ones and revoke old ones) as a security best practice, especially for sensitive integrations.

Authentication Using a GitHub App (Private Key)¶

For more granular control and enhanced security, especially in organizational or automated contexts, using a GitHub App for authentication is the recommended approach. This method authenticates as the app itself, not as a user, and its permissions are precisely defined within the app's settings.

Integration with ELITEA

Once you create a GitHub App and generate its private key, you'll use these credentials when creating your GitHub credential in ELITEA (Step 1 of the integration process).

Step 1: Create and Configure a GitHub App

Navigate to Developer Settings: Log in to your GitHub account, click your profile photo in the top-right corner, and go to Settings > Developer settings.
Register a New App: Select GitHub Apps from the left-hand menu and click New GitHub App.
Fill in App Details:
- App Name: Enter a unique name for your application (e.g., "ELITEA Integration App").
- Homepage URL: Provide a valid URL. A placeholder like https://www.example.com is sufficient if you don't have a dedicated homepage.
Configure Permissions: This is the most critical step. Scroll down to the "Permissions" section. For the toolkit to function correctly, you must grant the following permissions. Under Repository permissions, set the following:
- Actions: Read & Write
- Contents: Read & Write
- Issues: Read & Write
- Metadata: Read-only (This is a minimum requirement)
- Pull requests: Read & Write
- Projects: Read & Write
Set Installation Options: Under "Where can this GitHub App be installed?", choose "Only on this account" for private use.
Create the App: Click Create GitHub App at the bottom of the page.

Step 2: Generate Private Key and Install the App

After creating the app, you will be redirected to its settings page.

Generate a Private Key:
- Scroll down to the "Private keys" section.
- Click Generate a private key.
- A .pem file will be immediately downloaded to your computer. This is your private key. Treat it like a password and store it securely. You will only be able to download it once.

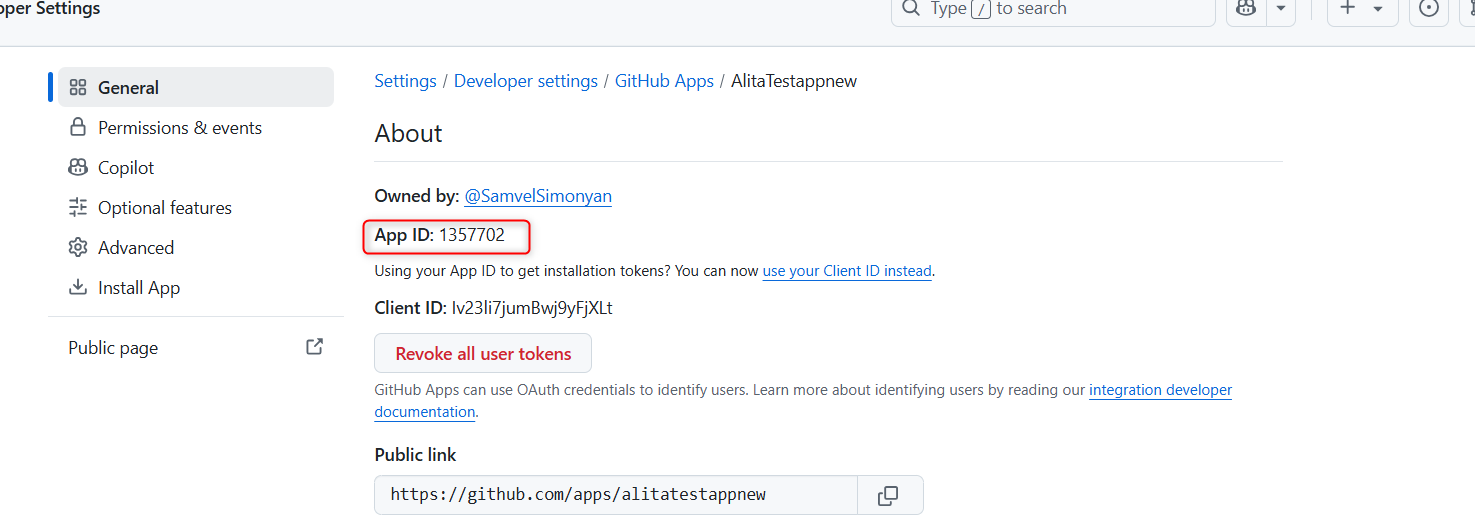

Get the App ID:
- Note the App ID displayed at the top of your GitHub App's settings page. You'll need this along with the private key when creating your ELITEA credential.
Install the App:
- In your GitHub App's settings, click the Install App tab in the left sidebar.
- Click Install next to your organization or personal account.
- On the next screen, you can choose to install the app on All repositories or Only select repositories.
- Click Install to complete the process. The app can now interact with the selected repositories.

Next Steps

Once you have created your GitHub App and generated the private key, you can use these credentials when creating your GitHub credential in ELITEA. Choose the App Private Key authentication method in Step 1 of the System Integration process.

System Integration with ELITEA¶

To integrate GitHub with ELITEA, you need to follow a three-step process: Create Credentials → Create Toolkit → Use in Agents. This workflow ensures secure authentication and proper configuration.

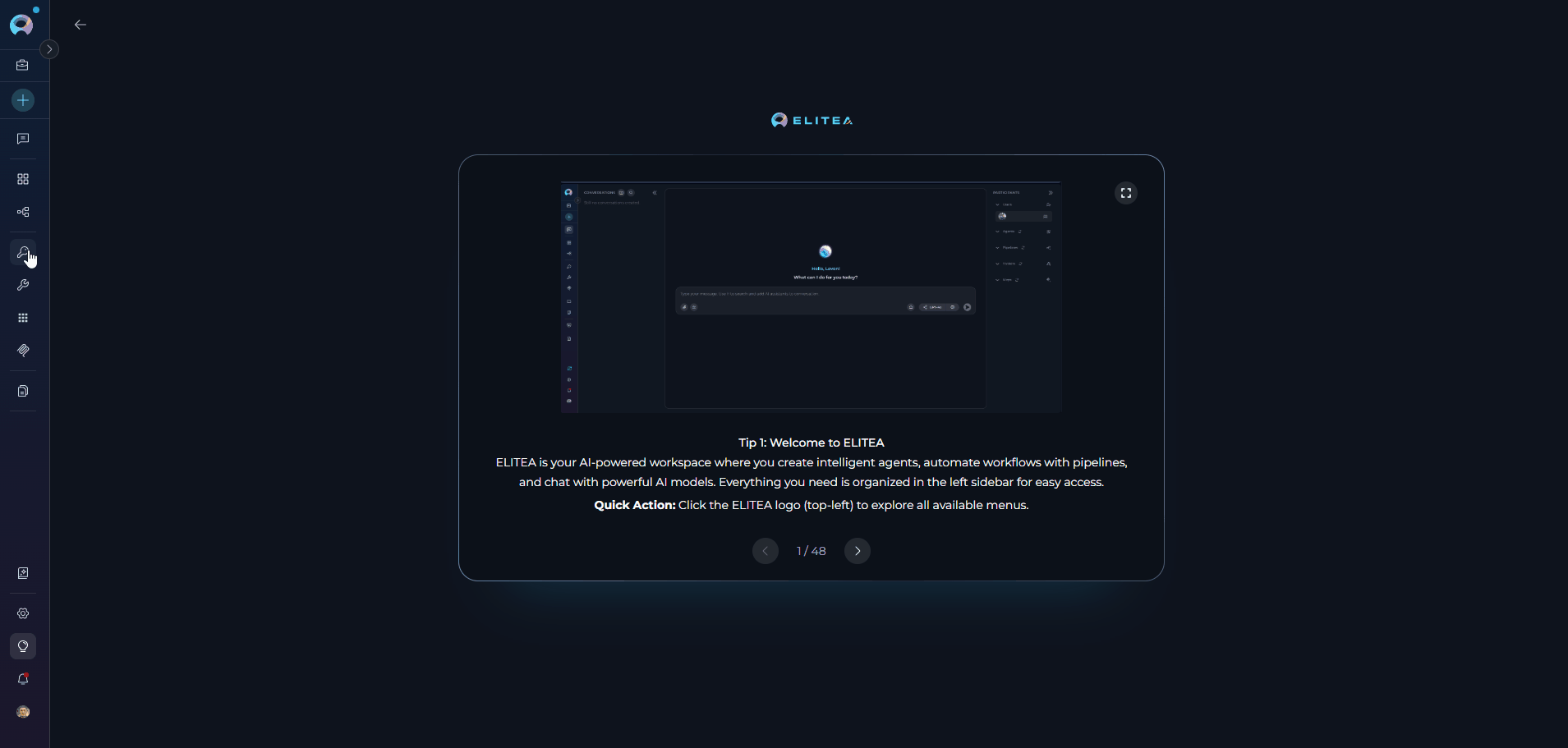

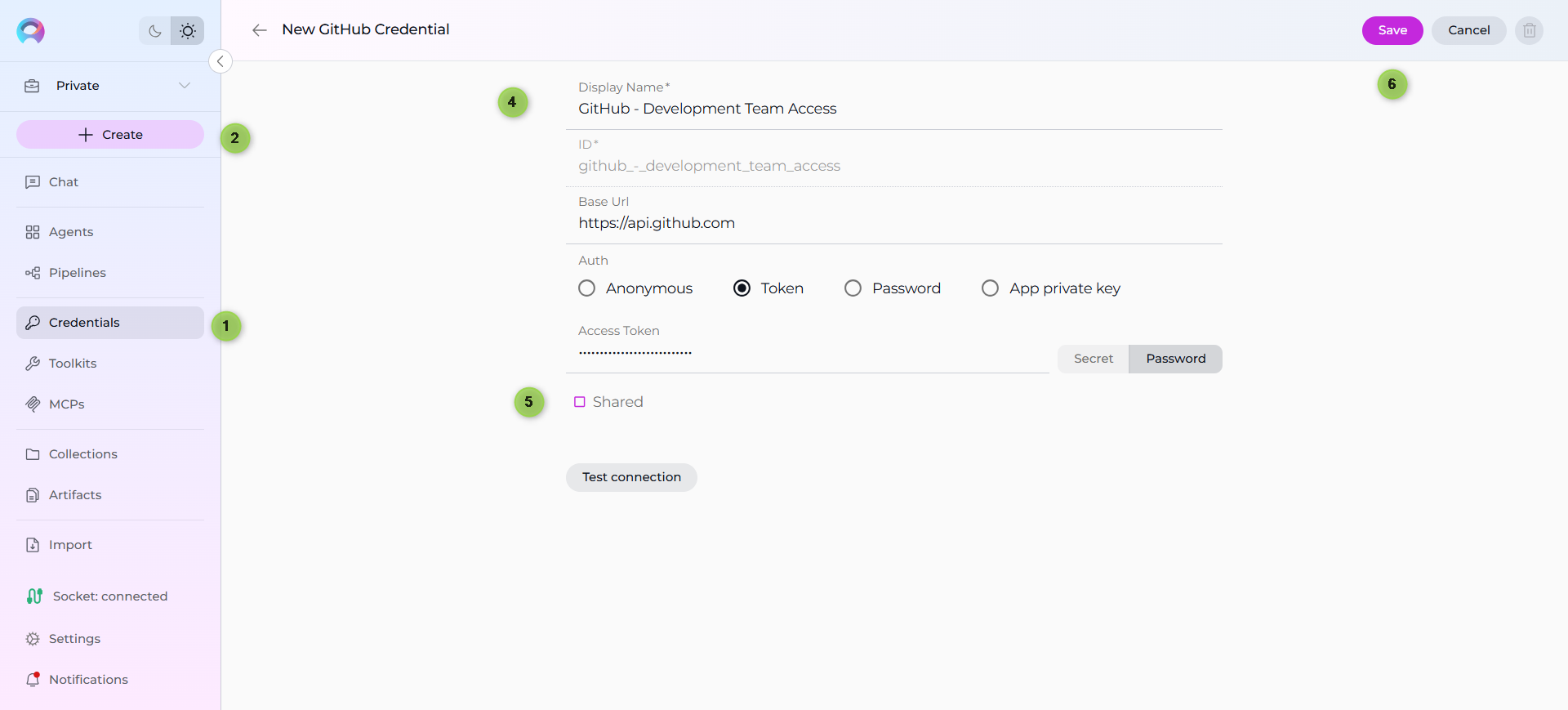

Step 1: Create GitHub Credentials¶

Before creating a toolkit, you must first create GitHub credentials in ELITEA:

Navigate to Credentials Menu: Open the sidebar and select Credentials.
Create New Credential: Click the + Create button.
Select GitHub: Choose GitHub as the credential type.
Configure Credential Details:
- Display Name: Enter a descriptive name (e.g., "GitHub - Development Team Access")
- Base URL:
  - GitHub.com: leave empty to use the default https://api.github.com.
  - GitHub Enterprise Server: set your REST v3 endpoint, for example https://<your-ghes-domain>/api/v3.
- Authentication Method: Choose your preferred authentication method:
  - Anonymous: No authentication required (limited to public repositories and rate-limited)
  - Token: Enter your GitHub Personal Access Token (recommended)
  - Password: Enter your GitHub username and password (not recommended)
  - App Private Key: Enter GitHub App ID and private key for app-based authentication
Test Connection: Click Test Connection to verify that your credentials are valid and ELITEA can successfully connect to GitHub
Save Credential: Click Save to create the credential. After saving, your GitHub credential will be added to the credentials dashboard and will be ready to use in toolkit configurations. You can view, edit, or delete it from the Credentials menu at any time.

GitHub.com vs GitHub Enterprise (Endpoints)

The Base URL configuration depends on your GitHub environment:

API Type	GitHub Enterprise Server	GitHub.com
REST (v3)	`https://[YOUR_HOST]/api/v3`	`https://api.github.com`
GraphQL (v4)	`https://[YOUR_HOST]/api/graphql`	`https://api.github.com/graphql`

Configuration:

GitHub.com: Leave Base URL empty (uses default https://api.github.com)
GitHub Enterprise Server: Enter your REST v3 endpoint (e.g., https://ghe.company.com/api/v3)

Important: For GHES, ensure your server's SSL certificate is trusted by your environment to avoid connection errors.

Security Recommendation

Use Secrets for sensitive authentication data (tokens, passwords, and private keys) instead of entering values directly. Create a secret first, then reference it in your credential configuration.

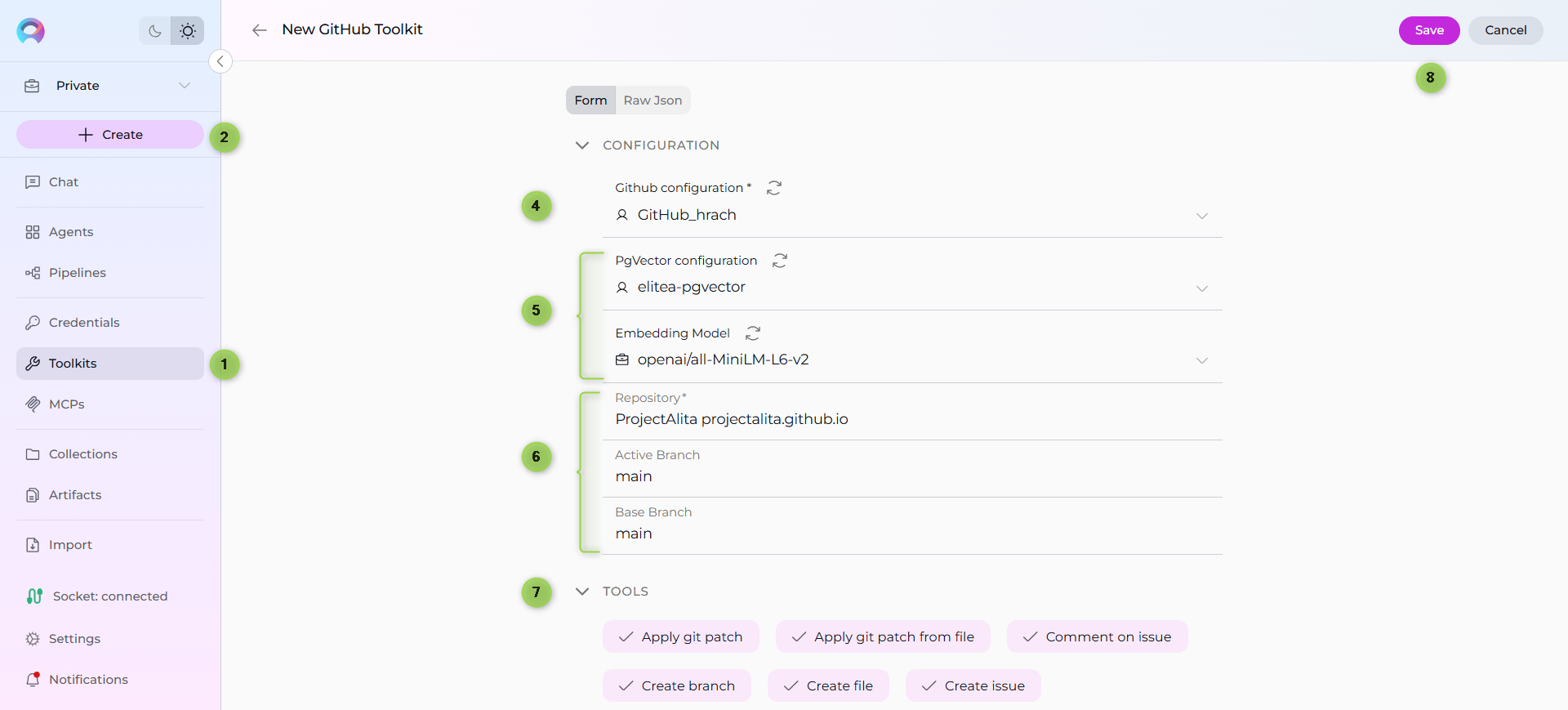

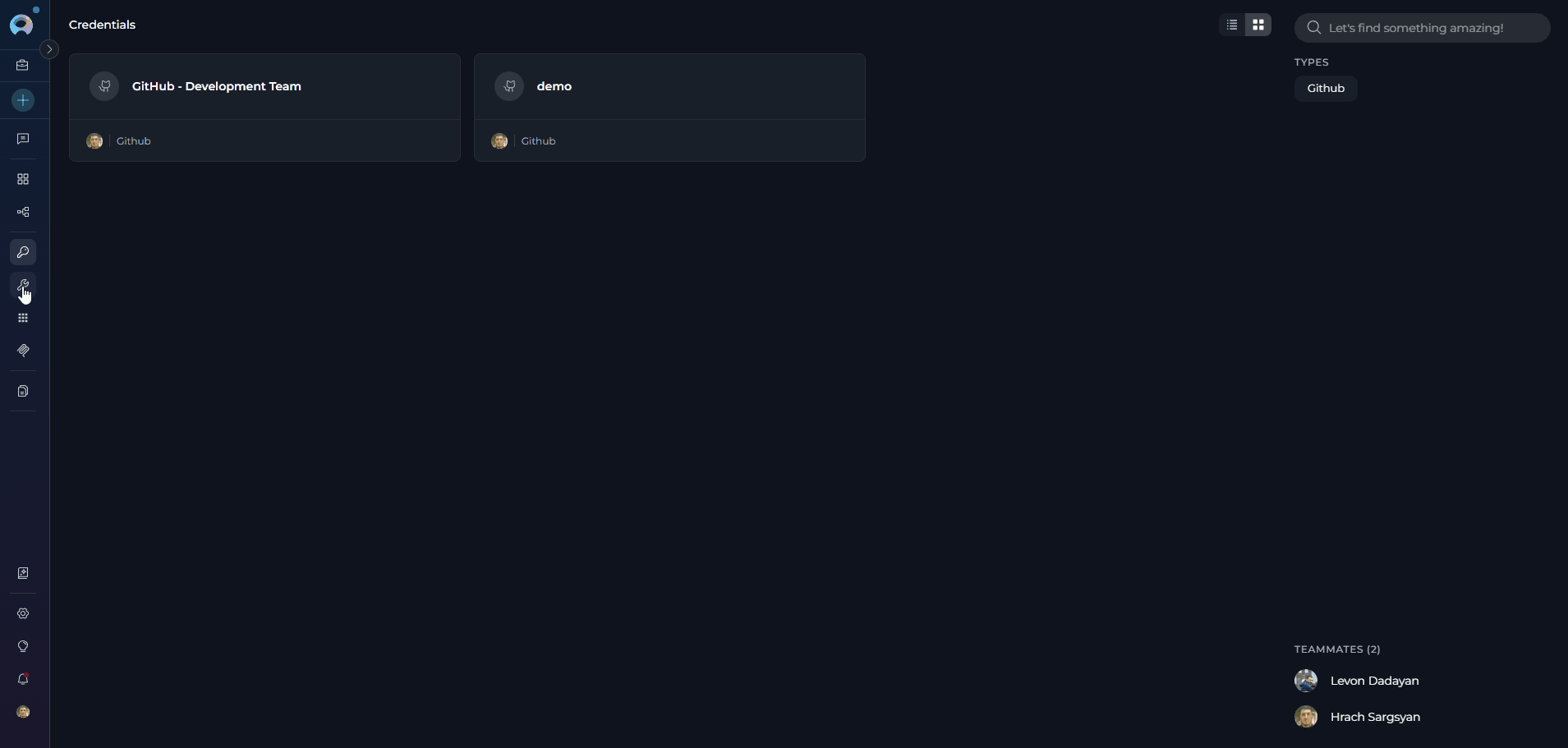

Step 2: Create GitHub Toolkit¶

Once your credentials are configured, create the GitHub toolkit:

Navigate to Toolkits Menu: Open the sidebar and select Toolkits.
Create New Toolkit: Click the + Create button.
Select GitHub: Choose GitHub from the list of available toolkit types.
Configure Basic Information:
- Toolkit Name: Enter a descriptive name for your toolkit (required). Example: "GitHub - ProjectAlita Repository"
- Description: Provide an optional description to explain the toolkit's purpose. Example: "Toolkit for managing ProjectAlita repository - handles code reviews, issue tracking, and automated deployments"
Configure Credentials:
- In the Configuration section, select your previously created GitHub credential from the Credentials dropdown
Configure Advanced Options:
- PgVector Configuration: Select a PgVector connection for vector database integration
- Embedding Model: Select an embedding model for text processing and semantic search capabilities
Configure Repository Settings:
- Repository: Enter the repository name in the format owner/repository-name (e.g., MyOrg/my-project)
- Main Branch: Specify the main branch name (typically main or master)
- Active Branch: Set the active working branch (defaults to main)
Enable Desired Tools: In the "Tools" section, select the checkboxes next to the specific GitHub tools you want to enable. Enable only the tools your agents will actually use to follow the principle of least privilege
- Make Tools Available by MCP - (optional checkbox) Enable this option to make the selected tools accessible through the external MCP clients to use the toolkit's capabilities
Save Toolkit: Click Save to create the toolkit.

Available Tools:¶

The GitHub toolkit provides the following tools for interacting with GitHub repositories and managing development workflows, organized by functional categories:

Tool Category	Tool Name	Description	Primary Use Case
Issue Management
	Get issues	Retrieves a list of issues from the repository	View all issues for project management and task tracking
	Get issue	Retrieves details of a specific issue by number	Access detailed information about a particular issue
	Search issues	Searches for issues based on keywords and criteria	Find issues related to specific topics, bugs, or features
	Create issue	Creates a new issue in the repository	Automate bug reporting and task creation
	Update issue	Updates an existing issue's properties	Modify issue status, labels, assignees, and other attributes
	Comment on issue	Adds a comment to an existing issue	Provide automated updates and feedback on issues
Pull Request Management
	List open pull requests	Lists all currently open pull requests	Monitor pending code changes and review requests
	Get pull request	Retrieves details of a specific pull request	Access comprehensive information about a PR
	List pull request diffs	Lists files changed in a pull request	Review code changes and assess impact of modifications
	Create pull request	Creates a new pull request	Automate the code review and integration process
File Operations
	Create file	Creates a new file in the repository	Generate code files, documentation, or configuration files
	Read file	Reads the content of a specific file	Access file content for analysis or processing
	Read file chunk	Reads a specific chunk or section of a file	Access portions of large files efficiently
	Read multiple files	Reads content from multiple files in one operation	Batch read multiple files for comparison or analysis
	Edit file	Edits an existing file in the repository	Make modifications to existing file content
	Update file	Updates the content of an existing file	Modify code, documentation, or configuration files
	Delete file	Deletes a file from the repository	Remove obsolete or unnecessary files
	List files in main branch	Lists all files in the main branch	Browse repository structure and discover files
	List files in bot branch	Lists files in the active working branch	View files in the current development branch
	Get files from directory	Retrieves files from a specific directory	Access files within particular folder structures
	Grep file	Searches for patterns within a specific file	Find specific text patterns or code snippets in files
	Search code	Searches for code across the entire repository	Locate code patterns, functions, or implementations
Branch Management
	List branches in repo	Lists all branches in the repository	Manage and overview repository branching structure
	Set active branch	Sets the active working branch for operations	Control which branch file operations target
	Create branch	Creates a new branch from a base branch	Set up new development branches for features or fixes
	Delete branch	Deletes a branch from the repository	Remove obsolete or merged branches
Version Control
	Get commits	Retrieves commit history and information	Analyze repository history and track changes
	Get commit changes	Gets detailed changes for a specific commit	Review what was modified in a particular commit
	Get commits diff	Compares changes between two commits	Analyze differences between code versions
	Apply git patch	Applies a git patch to the repository	Automate code changes using patch format
	Apply git patch from file	Applies a git patch from an artifact file	Apply pre-generated patches from stored files
Workflow Automation
	Trigger workflow	Triggers a GitHub Actions workflow	Automate CI/CD and other repository workflows
	Get workflow status	Retrieves the status of a workflow run	Monitor automated workflow execution
	Get workflow logs	Gets logs from a workflow execution	Debug and analyze workflow performance
Project Management
	Create issue on project	Creates an issue within a GitHub project board	Manage project-specific issue creation with custom fields
	Update issue on project	Updates an issue within a GitHub project board	Modify project-specific issue properties and custom fields
	List project issues	Lists all issues in a GitHub project	View project-specific issue collections with custom fields
	Search project issues	Searches for issues within a GitHub project	Find specific issues within project contexts
Indexing & Search
	Index data	Creates searchable indexes of GitHub repository content	Enable advanced search and discovery across repository files
	List collections	Lists available indexed collections in the repository	View and manage indexed data collections
	Remove index	Removes previously created search indexes	Clean up and manage indexed repository data
	Search index	Performs searches across indexed repository content	Find specific code, comments, or content across the repository
	Stepback search index	Performs advanced contextual searches with broader scope	Execute sophisticated searches with expanded context
	Stepback summary index	Creates comprehensive summaries of indexed repository content	Generate intelligent summaries of code and repository information
Advanced Operations
	Get me	Retrieves authenticated user information	Get details about the current GitHub user or app
	Generic github api call	Makes custom calls to the GitHub API	Access any GitHub API endpoint not covered by specific tools

Vector Search Tools

The tools Index data, List collections, Remove index, Search index, Stepback search index, and Stepback summary index require PgVector configuration and an embedding model. These enable advanced semantic search capabilities across your GitHub repositories.

Step 3: Add GitHub Toolkit to Your Workflows¶

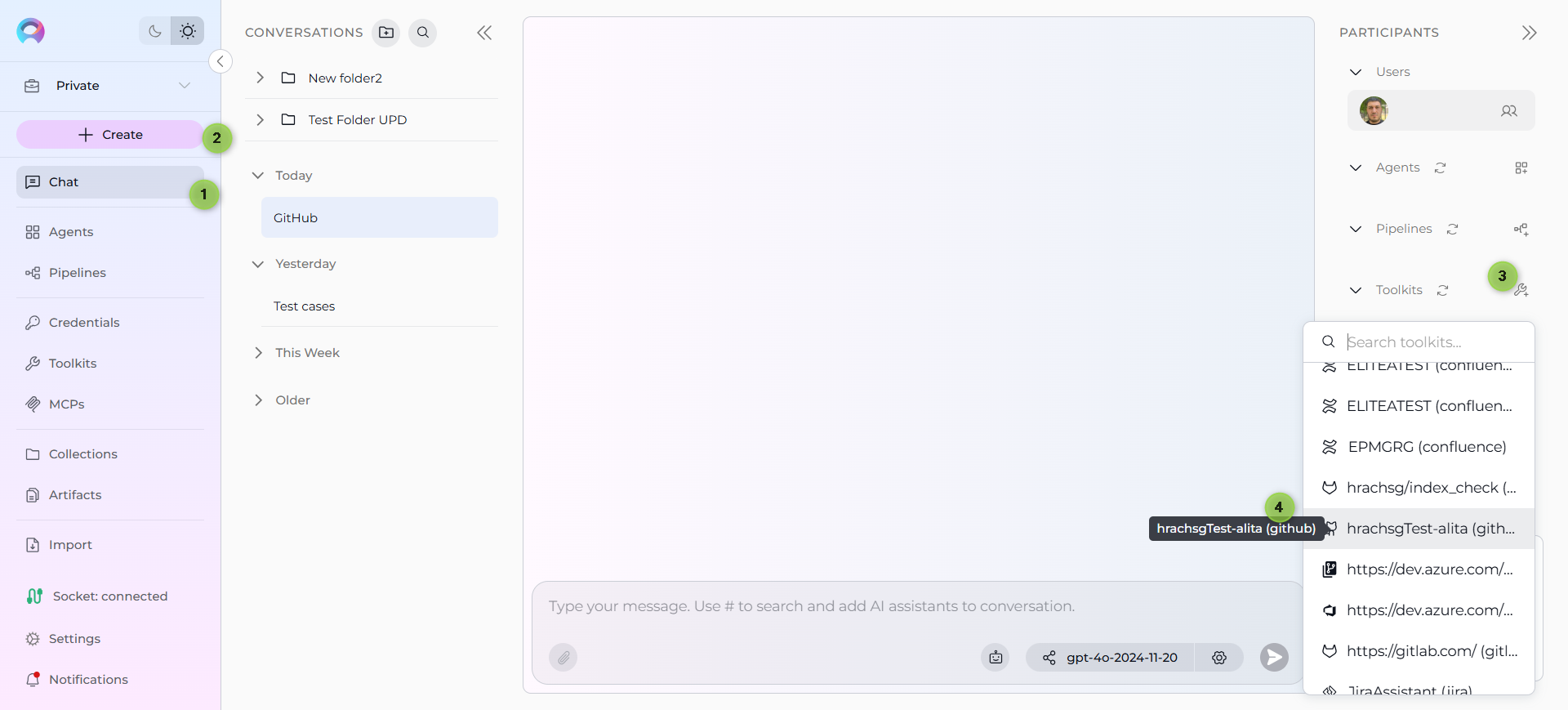

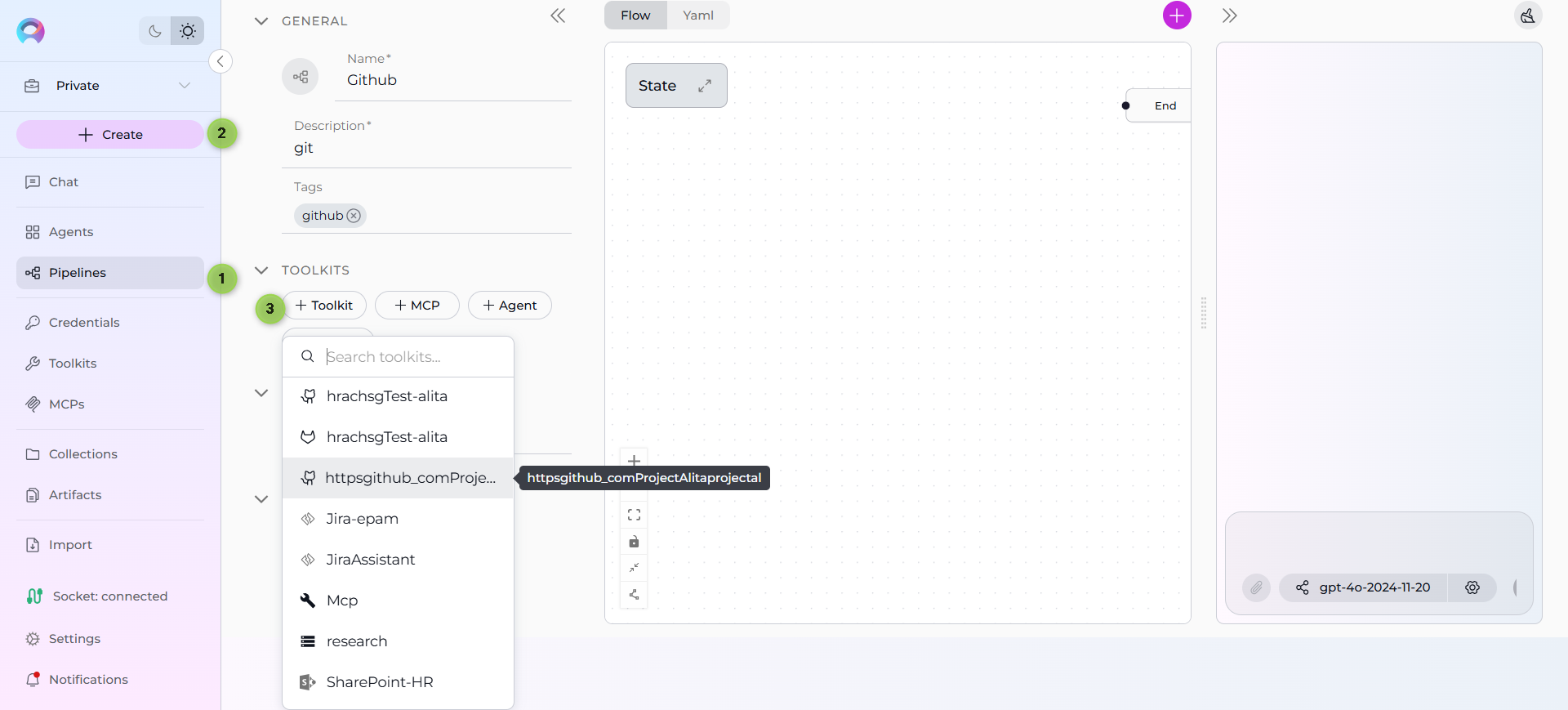

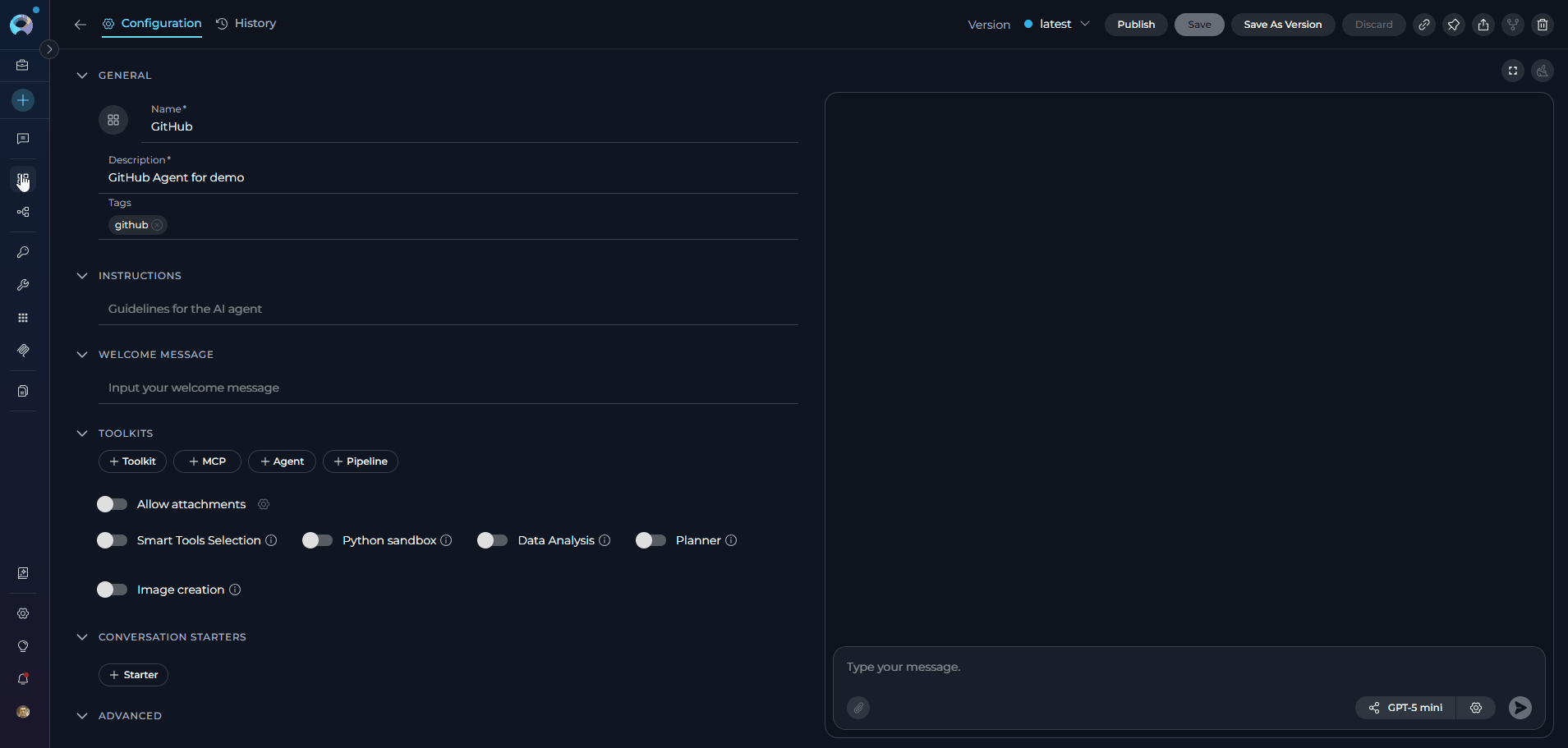

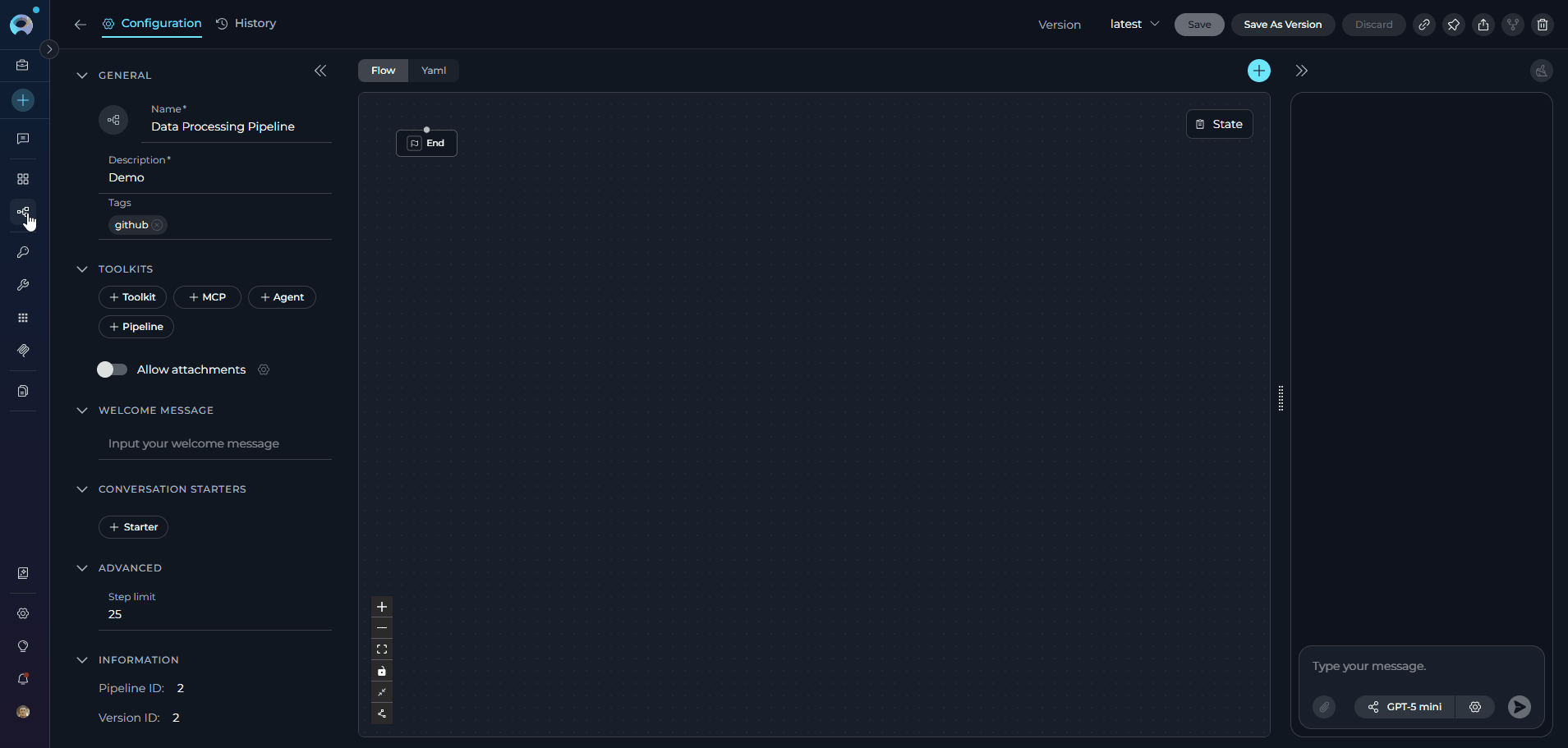

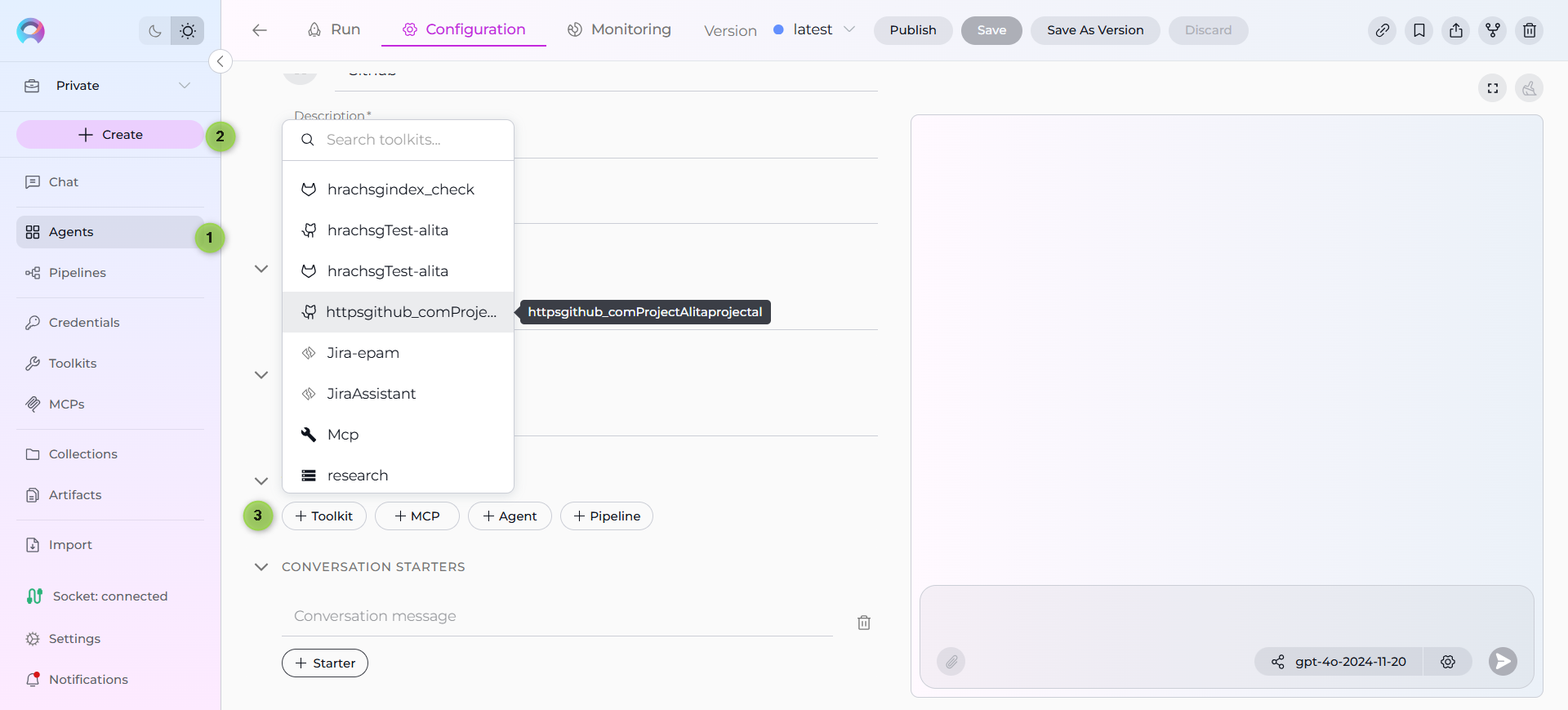

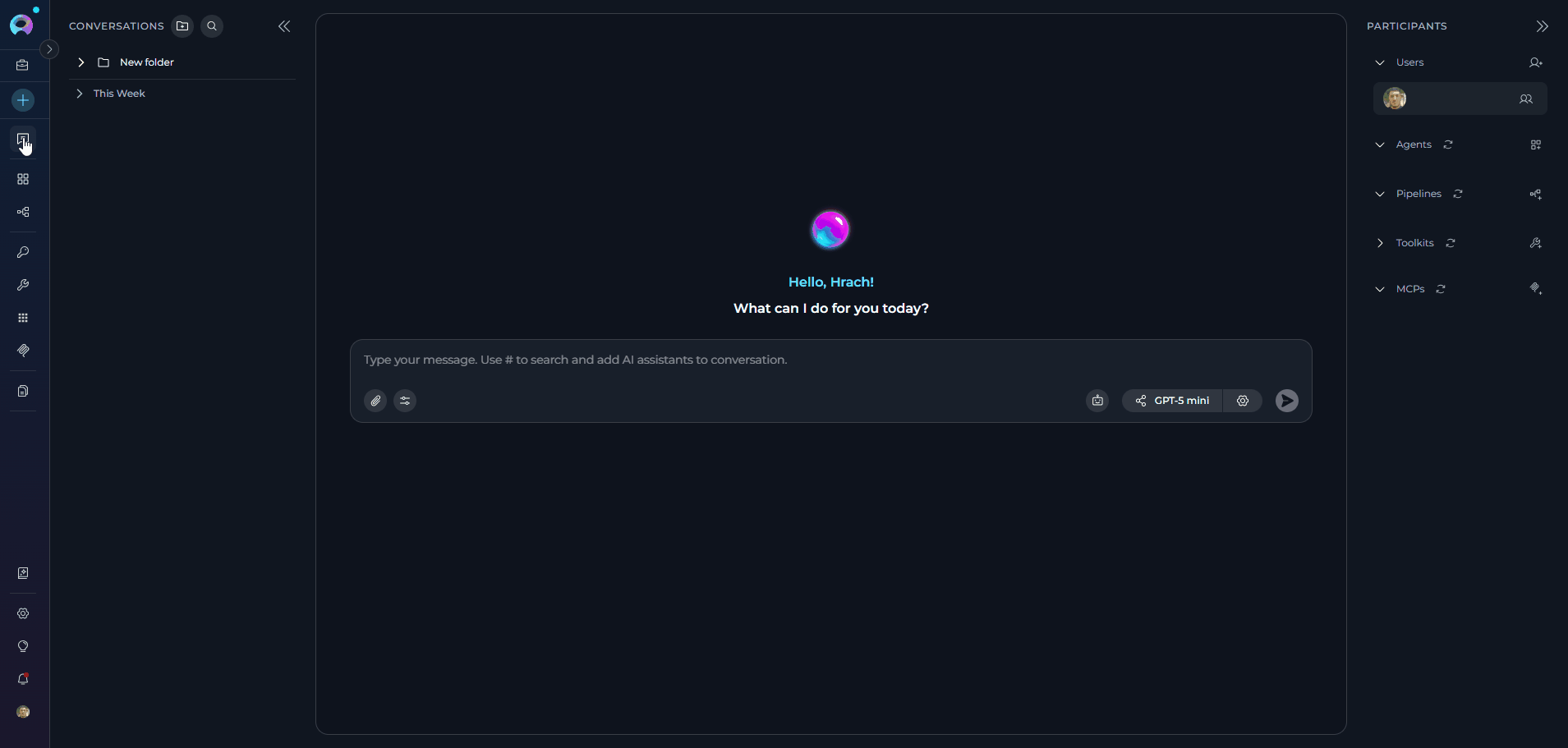

Now you can add the configured GitHub toolkit to your agents, pipelines, or use it directly in chat:

In Agents:¶

Navigate to Agents: Open the sidebar and select Agents.
Create or Edit Agent: Either create a new agent or select an existing agent to edit.
Add GitHub Toolkit:
- In the "TOOLKITS" section of the agent configuration, click the "+Toolkit" icon
- Select your configured GitHub toolkit from the dropdown list
- The toolkit will be added to your agent with the previously configured tools enabled

Your agent can now interact with GitHub using the configured toolkit and enabled tools.

In Pipelines:¶

Navigate to Pipelines: Open the sidebar and select Pipelines.
Create or Edit Pipeline: Either create a new pipeline or select an existing pipeline to edit.
Add GitHub Toolkit:
- In the "TOOLKITS" section of the pipeline configuration, click the "+Toolkit" icon
- Select your configured GitHub toolkit from the dropdown list
- The toolkit will be added to your pipeline with the previously configured tools enabled

In Chat:¶

Navigate to Chat: Open the sidebar and select Chat.
Start New Conversation: Click +Create or open an existing conversation.
Add Toolkit to Conversation:
- In the chat Participants section, look for the Toolkits element
- Click the "Add Tools" Icon to open the tools selection dropdown
- Select your configured GitHub toolkit from the dropdown list
- The toolkit will be added to your conversation with all previously configured tools enabled
Use Toolkit in Chat: You can now directly interact with your GitHub repositories by asking questions or requesting actions that will trigger the GitHub toolkit tools.

Example Chat Usage:

Please list all open issues in the repository that are labeled as 'bug' and 'high-priority'."
Create a new branch called 'feature-user-authentication' from the main branch."
Show me the recent commits in the main branch and summarize what changes were made."
Create a pull request to merge the 'feature-login' branch into 'develop' with the title 'Add user login functionality'."

Instructions and Prompts for Using the GitHub Toolkit¶

To effectively instruct your ELITEA Agent to use the GitHub toolkit, you need to provide clear and precise instructions within the Agent's "Instructions" field. These instructions are crucial for guiding the Agent on when and how to utilize the available GitHub tools to achieve your desired automation goals.

Instruction Creation for Agents¶

When crafting instructions for the GitHub toolkit, especially for OpenAI-based Agents, clarity and precision are paramount. Break down complex tasks into a sequence of simple, actionable steps. Explicitly define all parameters required for each tool and guide the Agent on how to obtain or determine the values for these parameters. OpenAI Agents respond best to instructions that are:

Direct and Action-Oriented: Employ strong action verbs and clear commands to initiate actions. For example, "Use the 'read_file' tool...", "Create a branch named...", "List all open pull requests...".
Parameter-Centric: Clearly enumerate each parameter required by the tool. For each parameter, specify:
- Its name (exactly as expected by the tool)
- The format or type of value expected
- How the Agent should obtain the value – whether from user input, derived from previous steps in the conversation, retrieved from an external source, or a predefined static value
Contextually Rich: Provide sufficient context so the Agent understands the overarching objective and the specific scenario in which each GitHub tool should be applied within the broader workflow. Explain the desired outcome or goal for each tool invocation.
Step-by-Step Structure: Organize instructions into a numbered or bulleted list of steps for complex workflows. This helps the Agent follow a logical sequence of actions.
Add Conversation Starters: Include example conversation starters that users can use to trigger this functionality. For example, "Conversation Starters: 'Show me the README file', 'What's in the README.md?', 'Display the project documentation'"

When instructing your Agent to use a GitHub toolkit tool, adhere to this structured pattern:

State the Goal: Begin by clearly stating the objective you want to achieve with this step. For example, "Goal: To retrieve the content of the 'README.md' file."
Specify the Tool: Clearly indicate the specific GitHub tool to be used for this step. For example, "Tool: Use the 'read_file' tool."
Define Parameters: Provide a detailed list of all parameters required by the selected tool. For each parameter:
Parameter Name: <Parameter Name as defined in tool documentation>
Value or Source: <Specify the value or how to obtain the value. Examples: "user input", "from previous step", "hardcoded value 'main'", "value of variable X">
Describe Expected Outcome (Optional but Recommended): Briefly describe the expected result or outcome after the tool is successfully executed. For example, "Outcome: The Agent will provide the content of the 'README.md' file."
Add Conversation Starters: Include example conversation starters that users can use to trigger this functionality. For example, "Conversation Starters: 'Show me the README file', 'What's in the README.md?', 'Display the project documentation'"

Example Agent Instructions

Agent Instructions for Updating a File:

1. Goal: Update the 'config.json' file in the 'settings' branch with new configuration values provided by the user.
2. Tool: Use the "update_file" tool.
3. Parameters:
   - Repository Name: "Specify the repository name in 'owner/repo' format. Use the repository configured in the GitHub toolkit."
   - File Path: "config.json"
   - Branch Name: "settings"
   - New Content: "Ask the user for the new JSON configuration content. Ensure it is valid JSON format. Example: {\"setting\": \"new_value\"}"
4. Outcome: The 'config.json' file in the 'settings' branch will be updated with the user-provided JSON configuration. Confirm the update to the user.

Chat Usage Examples by Tool Category¶

The following examples demonstrate how to interact with the GitHub toolkit in ELITEA Chat, organized by functional categories. Each example shows the user request and the expected agent behavior.

Issue Management - Create Issue

Chat Example:

User: "I found a bug in the login system where users can't reset their passwords. Can you create an issue for this?"

Agent Response: I'll create a GitHub issue for the password reset bug you've identified.

[Agent uses create_issue tool]

✅ Issue created successfully!
- **Issue #47**: "Bug: Password reset not working in login system"
- **Description**: User reported that the password reset functionality is not working properly in the login system
- **Labels**: bug, login, high-priority
- **Status**: Open
- **URL**: https://github.com/yourorg/yourrepo/issues/47

The development team will be notified and can begin investigating this issue.

Pull Request Management - List Open Pull Requests

Chat Example:

User: "What pull requests are currently open and waiting for review?"

Agent Response: Let me check the open pull requests in the repository.


Here are the currently open pull requests awaiting review:

📋 **Open Pull Requests** (3 total):

1. **PR #23**: "Add user authentication middleware"
   - **Author**: @johndev
   - **Branch**: feature/auth-middleware → main
   - **Created**: 2 days ago
   - **Status**: Ready for review

2. **PR #24**: "Fix database connection timeout"
   - **Author**: @sarah-engineer
   - **Branch**: bugfix/db-timeout → develop
   - **Created**: 1 day ago
   - **Status**: Draft

Would you like me to provide more details about any specific pull request?

File Operations - Read File

Chat Example:

User: "Can you show me the contents of the README.md file?"

Agent Response: I'll retrieve the README.md file from the repository for you.

[Agent uses read_file tool]

📄 **README.md Contents**:

```markdown
# Project Name

A comprehensive web application for managing user accounts and data.

## Features
- User authentication and authorization
- Data visualization dashboard
- RESTful API endpoints
- Real-time notifications

## Installation
```bash
npm install
npm start

Branch Management - Create Branch

Chat Example:

User: "I need to create a new feature branch called 'user-profile-enhancement' based on the develop branch."

Agent Response: I'll create the new feature branch for you.

[Agent uses create_branch tool]

🌟 **Branch created successfully!**
- **Branch Name**: user-profile-enhancement
- **Based on**: develop branch

Would you like me to help you with any initial setup or file creation in this new branch?

Version Control - Get Commits

Chat Example:

User: "Show me the recent commits from the last week and summarize what changes were made."

Agent Response: Let me retrieve the recent commit history for you.

[Agent uses get_commits tool]

📈 **Recent Commits (Last 7 Days)**:

1. **Latest**: `a7b3f2c` - "Fix user login validation"
   - **Author**: @johndev
   - **Date**: 2 hours ago
   - **Changes**: Updated authentication logic to handle edge cases

2. `9d4e1a8` - "Add responsive design for mobile devices"
   - **Author**: @ui-designer
   - **Date**: Yesterday
   - **Changes**: Implemented mobile-first CSS and responsive breakpoints

**Summary**: The team has been focusing on stability improvements, performance optimization, and mobile user experience enhancements this week.

Workflow Automation - Trigger Workflow

Chat Example:

User: "Please trigger the deployment workflow to push the latest changes to the staging environment."

Agent Response: I'll trigger the deployment workflow for the staging environment.

[Agent uses trigger_workflow tool]

🚀 **Deployment Workflow Triggered**:
- **Workflow**: "Deploy to Staging"
- **Trigger**: Manual (via ELITEA)
- **Branch**: main
- **Status**: Running
- **Workflow Run ID**: #12345

The deployment process has started and typically takes 3-5 minutes to complete. You can monitor the progress at:
https://github.com/yourorg/yourrepo/actions/runs/12345

I'll notify you once the deployment is complete. Would you like me to check the workflow status in a few minutes?

Project Management - List Project Issues

Chat Example:

User: "Show me all the issues in our 'Sprint 23' project board."

Agent Response: Let me retrieve all issues from the Sprint 23 project board.

[Agent uses list_project_issues tool]

📊 **Sprint 23 Project Issues** (8 total):

**🔴 To Do** (3 issues):
- **Issue #45**: Implement user profile editing
  - **Assignee**: @frontend-dev
  - **Priority**: High
  - **Story Points**: 5
**🟡 In Progress** (3 issues):
- **Issue #42**: Database migration for user tables
- **Issue #43**: Integration tests for payment system
- **Issue #44**: Performance optimization

**🟢 Done** (2 issues):
- **Issue #40**: User authentication bug fix ✅
- **Issue #41**: Mobile responsive layout ✅

**Sprint Progress**: 25% complete (2/8 issues done)

Indexing & Search - Search Index

Chat Example:

User: "Search the codebase for any references to 'authentication' and 'security' to help me understand our current security implementation."

Agent Response: I'll search through the indexed repository content for authentication and security references.

[Agent uses search_index tool]

🔍 **Search Results for "authentication" and "security"**:

**📁 Authentication Files** (5 matches):
1. `src/auth/authentication.js` - Main authentication module
2. `src/middleware/auth.middleware.js` - Authentication middleware
3. `tests/auth.test.js` - Authentication unit tests
4. `docs/AUTH.md` - Authentication documentation
5. `config/auth.config.js` - Authentication configuration

**🔒 Security References** (8 matches):
1. `src/security/validation.js` - Input validation and sanitization
2. `src/security/encryption.js` - Password hashing and encryption
3. `src/middleware/security.headers.js` - Security headers middleware
4. `package.json` - Security-related dependencies
5. `docs/SECURITY.md` - Security guidelines and policies

**🔑 Key Implementation Patterns Found**:
- JWT token-based authentication
- bcrypt password hashing
- Rate limiting for login attempts
- CORS configuration
- Input validation middleware
- Security headers (CSRF, XSS protection)

Would you like me to read the contents of any specific files to dive deeper into the security implementation?

Advanced Operations - Generic GitHub API Call

Chat Example:

User: "Can you check the repository's current rate limit status using the GitHub API?"

Agent Response: I'll check the current GitHub API rate limit status for this repository.

[Agent uses generic_github_api_call tool]

📊 **GitHub API Rate Limit Status**:

**Core API**:
- **Limit**: 5,000 requests per hour
- **Used**: 1,247 requests
- **Remaining**: 3,753 requests
- **Reset Time**: 42 minutes from now

✅ **Status**: All APIs are within normal usage limits. You have plenty of requests remaining for continued GitHub operations.

Troubleshooting¶

Credential Not Appearing in Toolkit Configuration

Problem: When creating a toolkit, your GitHub credential doesn't appear in the credentials dropdown.

Troubleshooting Steps:

Check Credential Scope: Ensure you're working in the same workspace/project where the credential was created. Private credentials are only visible in your Private workspace, while project credentials are visible within the specific team project.
Verify Credential Creation: Go to the Credentials menu and confirm that your GitHub credential was successfully saved.
Credential Type Match: Ensure you selected "GitHub" as the credential type when creating the credential.

Connection Errors

Problem: ELITEA Agent fails to establish a connection with GitHub, resulting in errors during toolkit execution.

Troubleshooting Steps:

Verify GitHub API URL: Ensure that the Base URL field in the credential configuration is correctly set to the standard GitHub API URL: https://api.github.com. Avoid modifying this URL unless you are using GitHub Enterprise Server.
Check Personal Access Token (PAT): Double-check that the Personal Access Token (Classic) you have provided is accurate, has not expired, and is valid for your GitHub account and the target repository. Carefully re-enter or copy-paste the token to rule out typos.
Verify Token Scopes: Review the scopes/permissions granted to your Personal Access Token in GitHub. Ensure that the token has the necessary scopes (e.g., repo, workflow, issues, pull_request) for the specific GitHub tools your Agent is attempting to use. Insufficient scopes are a common cause of connection and permission errors.
Network Connectivity: Confirm that both your ELITEA environment and the GitHub service are connected to the internet and that there are no network connectivity issues, firewalls, or proxies blocking the integration. Test network connectivity to api.github.com from your ELITEA environment if possible.

Authorization Errors (Permission Denied/Unauthorized)

Problem: Agent execution fails with "Permission Denied" or "Unauthorized" errors when attempting to access or modify GitHub resources, even with a seemingly valid token.

Troubleshooting Steps:

Re-verify Token Scopes: Double-check the scopes/permissions granted to your Personal Access Token with extreme care. Ensure that the token possesses the precise scopes required for the specific GitHub actions your Agent is trying to perform. For example, creating files or pull requests requires scopes that grant write access (repo scope or granular write:repo scopes).
Repository Access Permissions: Confirm that the GitHub account associated with the Personal Access Token has the necessary access permissions to the specified repository. Verify that the account is a collaborator, member of the organization that owns the repository, or has the appropriate roles and permissions (e.g., write access for modifying repositories). Check repository settings in GitHub to confirm access levels.
Token Revocation or Expiration: Ensure that the Personal Access Token has not been accidentally revoked in GitHub settings or that it has not reached its expiration date if you set one. Generate a new token if necessary.

Rate Limit Errors

Problem: Agent execution fails with "GitHub API rate limit exceeded" or 403 errors when performing searches or multiple operations.

Troubleshooting Steps:

Check Rate Limit Status: Use the "Get Me" tool to check your current GitHub API rate limit status and remaining requests.
Reduce Search Scope: When using search operations, add specific filters like repo:owner/name, org:organization, or language:python to narrow down the search scope and reduce API calls.
Wait and Retry: GitHub API rate limits reset every hour. Wait for the reset time indicated in the error message before retrying.
Upgrade GitHub Plan: Consider upgrading to GitHub Enterprise or using a GitHub App authentication for higher rate limits if you frequently hit limits.
Optimize Agent Instructions: Review your agent's workflow to minimize unnecessary API calls and batch operations when possible.

Incorrect Repository or Branch Names

Problem: Agent tools fail to operate on the intended repository or branch, often resulting in "Repository not found" or "Branch not found" errors.

Troubleshooting Steps:

Double-Check Repository Name: Carefully and meticulously verify that you have entered the correct GitHub Repository name in the toolkit configuration within ELITEA. Pay close attention to capitalization, spelling, and the repository_owner/repository_name format. Even minor typos can cause errors.
Verify Branch Name Spelling and Case: Ensure that you are using the correct branch name (e.g., main, develop, feature-branch) in your Agent's instructions when specifying branch-related parameters for GitHub tools. Branch names in Git are case-sensitive. Double-check the spelling and capitalization of branch names against your repository in GitHub.
Branch Existence: Confirm that the specified branch actually exists in your GitHub repository. It's possible the branch name is correct but the branch was deleted or renamed.

Search Query Syntax Errors

Problem: Code or issue search operations fail with "Invalid search query syntax" or 422 errors.

Troubleshooting Steps:

Use Supported Filters: Ensure your search queries use valid GitHub search filters: language:, repo:, org:, path:, filename:, extension:, user:, is:, in:.
Check Query Format: Verify that your query follows GitHub's search syntax rules. Use quotes for exact phrases: "exact match".
Example Valid Queries:
- language:python repo:owner/name authentication
- filename:config.json org:my-organization
- extension:js "function handleClick"
Consult GitHub Search Syntax: Refer to GitHub's search documentation for detailed syntax rules.

Toolkit Configuration Issues

Problem: The toolkit fails to load or shows configuration errors after creation.

Troubleshooting Steps:

Verify Repository Format: Ensure the repository name follows the correct format: owner/repository-name. Do not include the full GitHub URL or .git extension.
Check Main Branch Name: Verify that the main branch name matches the actual main branch in your repository (commonly main or master).
Credential Selection: Ensure you have selected the correct credential from the dropdown in the toolkit configuration.
Refresh Configuration: After updating credential details, refresh or recreate the toolkit to ensure it picks up the latest configuration.

Support Contact¶

If you encounter issues not covered in this guide or need additional assistance with GitHub integration, please refer to Contact Support for detailed information on how to reach the ELITEA Support Team.

FAQ¶

Can I use my regular GitHub password directly for the ELITEA integration instead of a Personal Access Token?

While ELITEA supports password authentication, using a GitHub Personal Access Token (Classic) is strongly recommended for security. Personal Access Tokens provide a significantly more secure and controlled method for granting access to external applications like ELITEA, without exposing your primary account credentials. You can configure this in the credential's authentication method selection.

The GitHub toolkit supports three authentication methods:

Access Token (Recommended): Most secure and flexible option with granular permissions
Username/Password: Supported but less secure, use only if PAT is not an option
GitHub App Private Key: For GitHub App integrations with enhanced security and higher rate limits

What scopes/permissions are absolutely necessary and minimally sufficient for the GitHub Personal Access Token to work with ELITEA?

The minimum required scopes depend on the specific GitHub tools your ELITEA Agent will be using:

Read-Only Operations (read_file, list_files_in_main_branch, get_issue):

repo:status and public_repo for public repositories
repo for private repositories

Write Operations (create_file, update_file, create_pull_request):

repo (full repository access)
Or granular scopes: repo:write, contents:write

Issue & PR Management:

issues - Create, edit, and manage issues
pull_request - Create and manage pull requests

Workflow Operations (trigger_workflow):

workflow - Trigger and manage GitHub Actions workflows

Project Management (create_issue_on_project, update_issue_on_project):

project - Required for GitHub Projects (Classic) operations
Note: These operations require OAuth App tokens, not regular Personal Access Tokens

Always adhere to the principle of least privilege and grant only the scopes that are strictly necessary for your Agent's intended functionalities. Refer to the GitHub token scopes documentation for detailed descriptions.

What is the correct format for specifying the GitHub Repository name in the ELITEA toolkit configuration?

The GitHub Repository name must be entered in the format repository_owner/repository_name.

Examples:

MyOrganization/my-project-repo
username/personal-project
ProjectAlita/AlitaUI

Important:

Include both the repository owner (username or organization name) and the repository name
Separate them with a forward slash /
Do NOT include:
- Full GitHub URL (https://github.com/owner/repo)
- .git extension (owner/repo.git)
- Trailing or leading slashes (/owner/repo/)

This format is crucial for ELITEA to correctly identify and access your repository on GitHub.

How do I switch from the old Agent-based configuration to the new Credentials + Toolkit workflow?

The new workflow provides better security, reusability, and organization:

New Workflow Steps:

Create a GitHub Credential: Navigate to Credentials menu → Create new credential → Select "GitHub" type → Add your authentication details (PAT, username/password, or App key)
Create a GitHub Toolkit: Navigate to Toolkits menu → Create toolkit → Select "GitHub" → Link your credential → Configure repository and branch → Select tools to enable
Add Toolkit to Workflows: Add the toolkit to your agents, pipelines, or chat sessions

Benefits over old approach:

Credentials stored securely in one place
Reuse same credential across multiple toolkits
Easier to update authentication without reconfiguring agents
Better audit trail and access control
Separate concerns: authentication vs. toolkit configuration

Can I use the same GitHub credential across multiple toolkits and agents?

Yes! This is one of the key benefits of the new workflow.

Credential Reusability:

One GitHub credential can be used by multiple GitHub toolkits
Each toolkit can be configured for different repositories or with different tool selections
Each toolkit can be added to multiple agents, pipelines, and chat sessions

Example Use Case:

Create one GitHub credential with your Personal Access Token
Create multiple toolkits using the same credential:
- Toolkit A: Production repository (company/production-app)
- Toolkit B: Development repository (company/dev-app)
- Toolkit C: Documentation repository (company/docs)
Add different toolkits to different agents based on their purpose

This promotes better credential management, reduces duplication, and simplifies updates when credentials need to be rotated.

Can I use GitHub toolkits with private repositories?

Yes, GitHub toolkits fully support private repositories with proper authentication.

Requirements:

Personal Access Token with repo scope (full repository access)
Or GitHub App with repository permissions configured
Your GitHub account must have appropriate access to the private repository (collaborator, team member, or organization member)

Note: The public_repo scope only works with public repositories. For private repositories, you must use the full repo scope.

What's the difference between Personal Access Token (Classic) and GitHub OAuth App authentication?

Both authentication methods are supported but serve different purposes:

Personal Access Token (Classic) - Recommended for most use cases:

Easy to generate from GitHub Settings
Works for all standard repository operations
User-specific permissions and rate limits
Best for individual users and standard integrations

GitHub OAuth App - Required for specific operations:

Required for GitHub Projects (Classic) operations (create_issue_on_project, update_issue_on_project)
Requires OAuth App setup in GitHub Developer Settings
Provides project scope access that PATs don't support
More complex setup requiring authorization flow

To use OAuth App authentication:

Create OAuth App in GitHub Settings → Developer Settings → OAuth Apps
Use gh CLI to login with project scope: gh auth login --scopes "project"
Get token: gh auth token
Use this token in your ELITEA GitHub credential

Most users should use Personal Access Tokens unless specifically working with GitHub Projects (Classic).

Can I use the same toolkit across different workspaces (Private vs. Team Projects)?

Credential and toolkit visibility depends on where they're created:

Private Workspace:

Credentials created in Private workspace are only visible to you
Toolkits using private credentials are only accessible in your private workspace
Cannot be shared with team members

Team Project Workspace:

Credentials created in a team project are visible to all project members
Toolkits using project credentials can be used by all project members
Ideal for team collaboration

Best Practice:

Use Private workspace credentials for personal repositories or testing
Use Team Project credentials for shared repositories and team collaboration
Create separate toolkits for different repositories even if using the same credential

Why am I consistently encountering 'Permission Denied' errors, even though I believe I have configured everything correctly?

If you are still facing "Permission Denied" errors despite careful configuration, systematically re-examine the following:

1. Token Scope Accuracy:

Double and triple-check the scopes/permissions granted to your GitHub Personal Access Token in your GitHub Developer Settings
Ensure that the token possesses the exact scopes required for each GitHub tool your Agent is attempting to use
Pay close attention to write vs. read permissions
Remember: public_repo only works for public repositories; private repos need full repo scope

2. Repository Access Verification:

Explicitly verify that the GitHub account associated with the Personal Access Token has the necessary access rights to the specific target repository
Confirm repository membership, collaborator status, and assigned roles/permissions within the GitHub repository settings
Check if the repository is in an organization with additional access restrictions

3. Token Validity and Revocation:

Double-check that the Personal Access Token is still valid and has not expired
Verify the token hasn't been accidentally revoked in your GitHub settings
Generate a new token as a test if unsure
Check token expiration date in GitHub Settings → Developer Settings → Personal Access Tokens

4. Credential Configuration:

Carefully review the credential configuration in ELITEA
Check authentication method selection (Token vs. Password vs. App Key)
Look for hidden typographical errors or accidental whitespace in token field
Ensure no special characters were added when copying the token

5. Repository Privacy Settings:

If working with organization repositories, check organization-level restrictions
Some organizations require OAuth App approval before tokens can access repositories
Verify SSO (Single Sign-On) requirements if applicable

If, after meticulously checking all of these points, you still encounter "Permission Denied" errors, please reach out to ELITEA Support with:

Error message details
Tool/operation that failed
Token scopes granted
Repository name and privacy setting (public/private)
Organization restrictions (if applicable)

Useful ELITEA Resources

To further enhance your understanding and skills in using the GitHub toolkit with ELITEA, here are helpful internal resources:

How to Use Chat Functionality - Complete guide to using ELITEA Chat with toolkits for interactive GitHub operations.
Create and Edit Agents from Canvas - Learn how to quickly create and edit agents directly from chat canvas for rapid prototyping and workflow automation.
Create and Edit Toolkits from Canvas - Discover how to create and configure GitHub toolkits directly from chat interface for streamlined workflow setup.
Create and Edit Pipelines from Canvas - Guide to building and modifying pipelines from chat canvas for automated GitHub workflows.
Indexing Overview - Comprehensive guide to understanding ELITEA's indexing capabilities and how to leverage them for enhanced search and discovery.
Index GitHub Data - Detailed instructions for indexing GitHub repository data to enable advanced search, analysis, and AI-powered insights across your codebase.

External Resources

GitHub Developer Settings: https://github.com/settings/developers - Navigate to the Developer settings in your GitHub account to manage Personal Access Tokens and other developer-related configurations.
GitHub Personal Access Tokens (Classic): https://github.com/settings/tokens - Directly access the section in GitHub settings to manage your Personal Access Tokens (Classic) for secure integrations.
GitHub API Documentation: https://docs.github.com/en/rest - Explore the official GitHub API documentation for detailed information on GitHub API endpoints, authentication, data structures, and developer guides.
GitHub Help Center: https://docs.github.com - Access the official GitHub documentation for comprehensive articles, FAQs, and troubleshooting guides on all aspects of GitHub usage.
