GitLab Toolkit Integration Guide¶

Introduction¶

This guide is your comprehensive resource for integrating and utilizing the GitLab toolkit within ELITEA. It provides detailed, step-by-step instructions, from setting up your GitLab Personal Access Token to configuring the toolkit in ELITEA and effectively using it within your Agents, Pipelines, and Chat conversations. By following this guide, you will unlock the power of automated code management, streamlined development workflows, and enhanced team collaboration, all directly within the ELITEA platform.

Brief Overview of GitLab

GitLab is a powerful, web-based DevOps platform that provides a comprehensive suite of tools for the entire software development lifecycle, delivered as a single, integrated application. It is widely adopted by development teams for its robust features and collaborative environment, offering features for:

Centralized Git Repository Management: GitLab provides a robust and scalable platform for hosting and managing Git repositories, ensuring efficient version control, code organization, and secure access management for your entire codebase.
Enhanced Collaboration Features: GitLab fosters seamless team collaboration with features such as Merge Requests for code review, robust Issue Tracking for project management, Wikis for documentation, and in-line Code Review tools, facilitating a collaborative and transparent development process.
Integrated CI/CD Pipelines: GitLab CI/CD is a powerful built-in Continuous Integration and Continuous Delivery system that automates the entire software pipeline, from building and testing code to deploying applications, enabling rapid and reliable software releases.
Comprehensive Project Management Tools: GitLab includes a rich set of project planning and management features, such as Issue Boards for agile task management, Milestones for tracking progress against deadlines, and Time Tracking to monitor effort, streamlining software development workflows and improving project visibility.
DevSecOps Capabilities: GitLab integrates security scanning and testing throughout the DevOps lifecycle, enabling teams to build secure applications and proactively address vulnerabilities early in the development process.

Integrating GitLab with ELITEA brings these powerful DevOps capabilities directly into your AI-driven workflows. Your ELITEA Agents, Pipelines, and Chat conversations can intelligently interact with your GitLab repositories to automate code-related tasks, enhance development processes, and improve team collaboration.

Toolkit's Account Setup and Configuration¶

Account Setup

If you don't have a GitLab account yet, here's how to get started:

Visit GitLab Website: Open your web browser and navigate to GitLab's official website.
Sign Up: Click on the "Register" or "Sign Up" button, typically located in the top right corner of the homepage.
Fill Out the Registration Form: Provide your details in the registration form. This typically includes your username, email address, full name, and a secure password. For professional use, it's highly recommended to use your company email.
Submit the Form: Click on the "Register" or similar button to submit the form. GitLab will send a confirmation email to the email address you provided.
Verify Your Email: Open the confirmation email from GitLab and click on the verification link provided within the email. This step is crucial to activate your GitLab account.
Access Your Account: After email verification, you will be redirected to your GitLab account or prompted to log in. You are now ready to proceed with GitLab configuration.

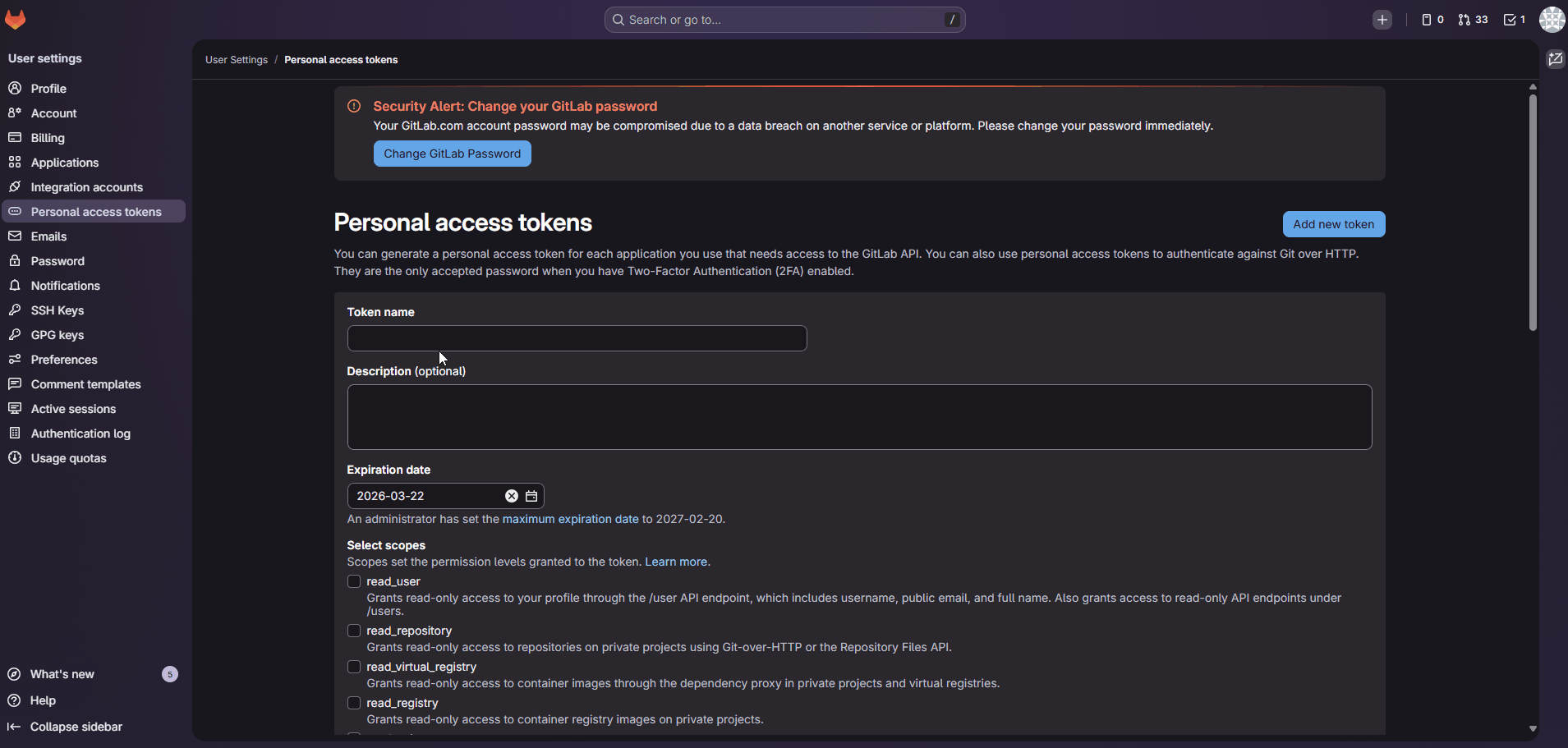

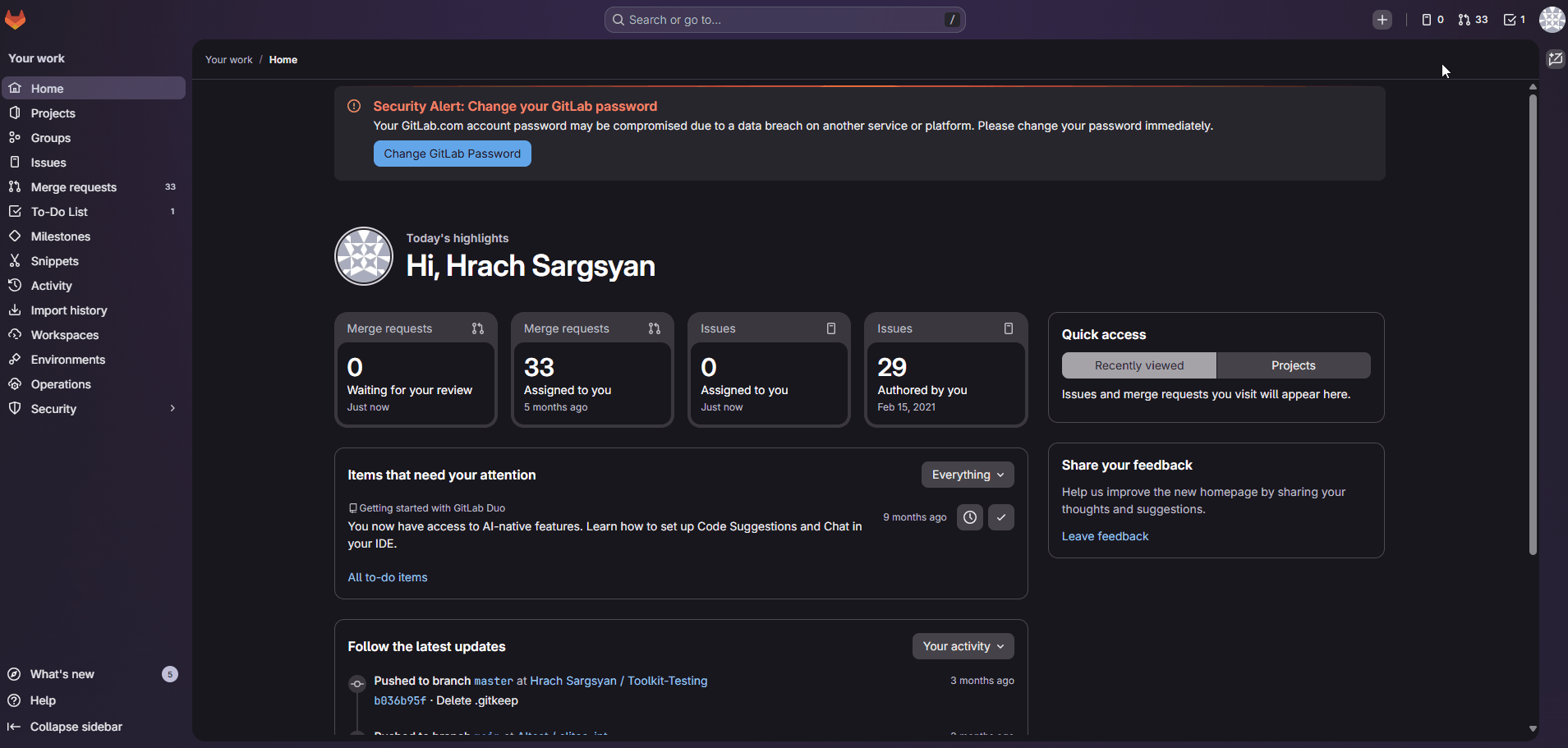

Generate a Personal Access Token¶

For secure integration with ELITEA, it is essential to use a GitLab Personal Access Token. This method is significantly more secure than using your primary GitLab account password directly and allows you to precisely control the permissions granted to ELITEA.

Follow these steps to generate a Personal Access Token in GitLab:

Log in to GitLab: Access your GitLab account using your credentials.
Access User Settings: Click on your profile avatar in the top right corner of the GitLab interface. From the dropdown menu, select "Edit profile".
Navigate to Access Tokens: In the left-hand sidebar of your profile settings, click on "Access Tokens".
Add New Token: Click the "Add new token" button to create a new Personal Access Token.
Configure Token Details:
- Token name: In the "Token name" field, enter a descriptive name for the token, such as "ELITEA Integration Token". This will help you identify the purpose of this token later.
- Expiration date (Recommended): For enhanced security, it is strongly recommended to set an Expiration date for your token. Choose a reasonable validity period that aligns with your security policies and integration needs.
- Select Scopes - Grant Least Privilege (Crucial for Security): Carefully select the scopes or permissions you grant to this Personal Access Token. It is crucial to grant only the minimum necessary permissions required for your ELITEA Agent's intended interactions with GitLab.
  Token Scopes

  Minimal Scopes for Common Use Cases:
  - api: Provides full access to the GitLab API. If possible, for enhanced security, consider using more granular scopes
  - read_api: Read-only access to the API
  - read_repository: Read-only access to repositories
  - write_repository: Write access to repositories. Include only if your Agent needs to modify repositories
  Additional Scopes for Specific Functionality (Grant only when required):
  - read_user: Read access to user profiles
  - read_issue: Read access to issues
  - write_issue: Write access to issues. Include only if your Agent needs to manage issues
  - read_merge_requests: Read access to merge requests
  - write_merge_requests: Write access to merge requests. Include only if your Agent needs to manage merge requests
Create Personal Access Token: Click the "Create personal access token" button to generate your token.
Securely Copy and Store Your Token: Immediately copy the generated Personal Access Token. This is the only time it will be displayed in full. Store it securely in a password manager or, preferably, ELITEA's built-in Secrets feature for enhanced security within ELITEA. You will need this token to configure the GitLab toolkit in ELITEA.

Important Security Practices

Principle of Least Privilege: Grant only the permissions absolutely essential for your ELITEA integration tasks.

Never Share Tokens: Treat your Personal Access Token like a password. Do not share it publicly or commit it to version control systems.

Regular Token Review and Rotation: Regularly review generated tokens and rotate them periodically as a security best practice.

System Integration with ELITEA¶

To integrate GitLab with ELITEA, you need to follow a three-step process: Create Credentials → Create Toolkit → Use in Agents. This workflow ensures secure authentication and proper configuration.

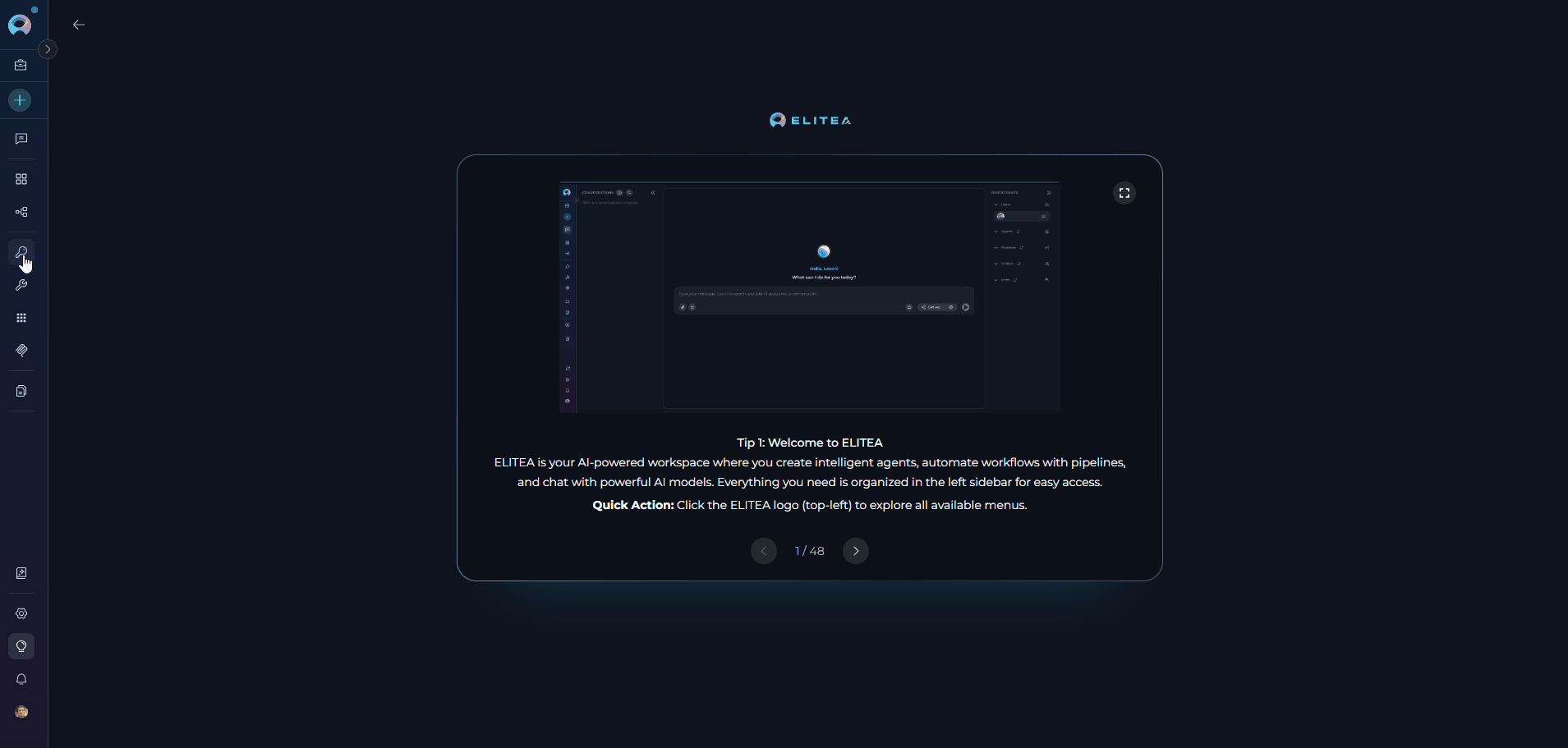

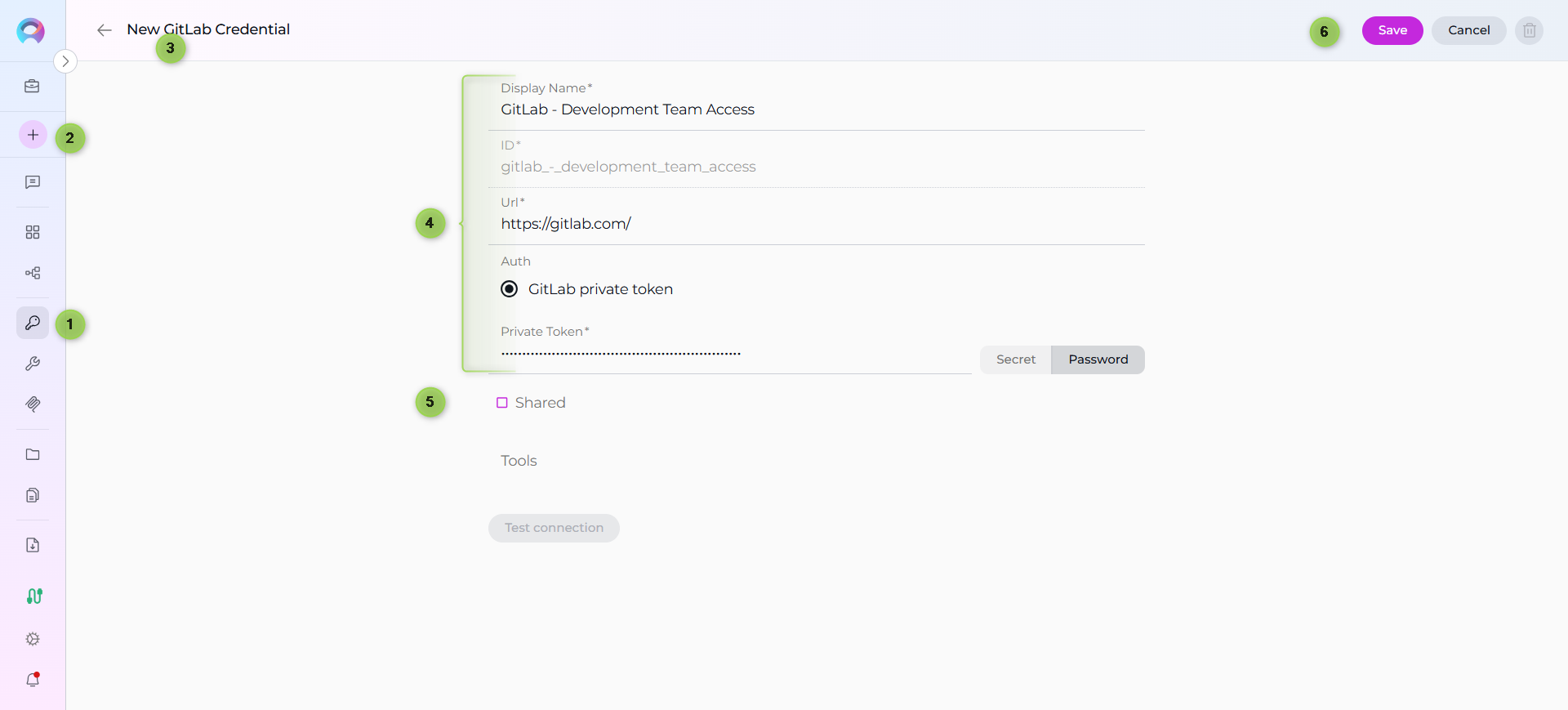

Step 1: Create GitLab Credentials¶

Before creating a toolkit, you must first create GitLab credentials in ELITEA:

Navigate to Credentials Menu: Open the sidebar and select Credentials.
Create New Credential: Click the + Create button.
Select GitLab: Choose GitLab as the credential type.

Configure Credential Details:

Field	Description	Example
Display Name	Descriptive name for easy identification	`GitLab - Development Team`
ID	Unique identifier for the credential	Auto-generated
URL	Your GitLab instance URL	`https://gitlab.com` or `https://gitlab.yourcompany.com`
Private Token	Your GitLab Personal Access Token	`your-personal-access-token`

Test Connection: Click Test Connection to verify your credentials are valid and ELITEA can connect to GitLab
Save Credential: Click Save to create the credential

!!! tip "Security Recommendation" It's highly recommended to use Secrets for Personal Access Tokens instead of entering them directly. Create a secret first, then reference it in your credential configuration.

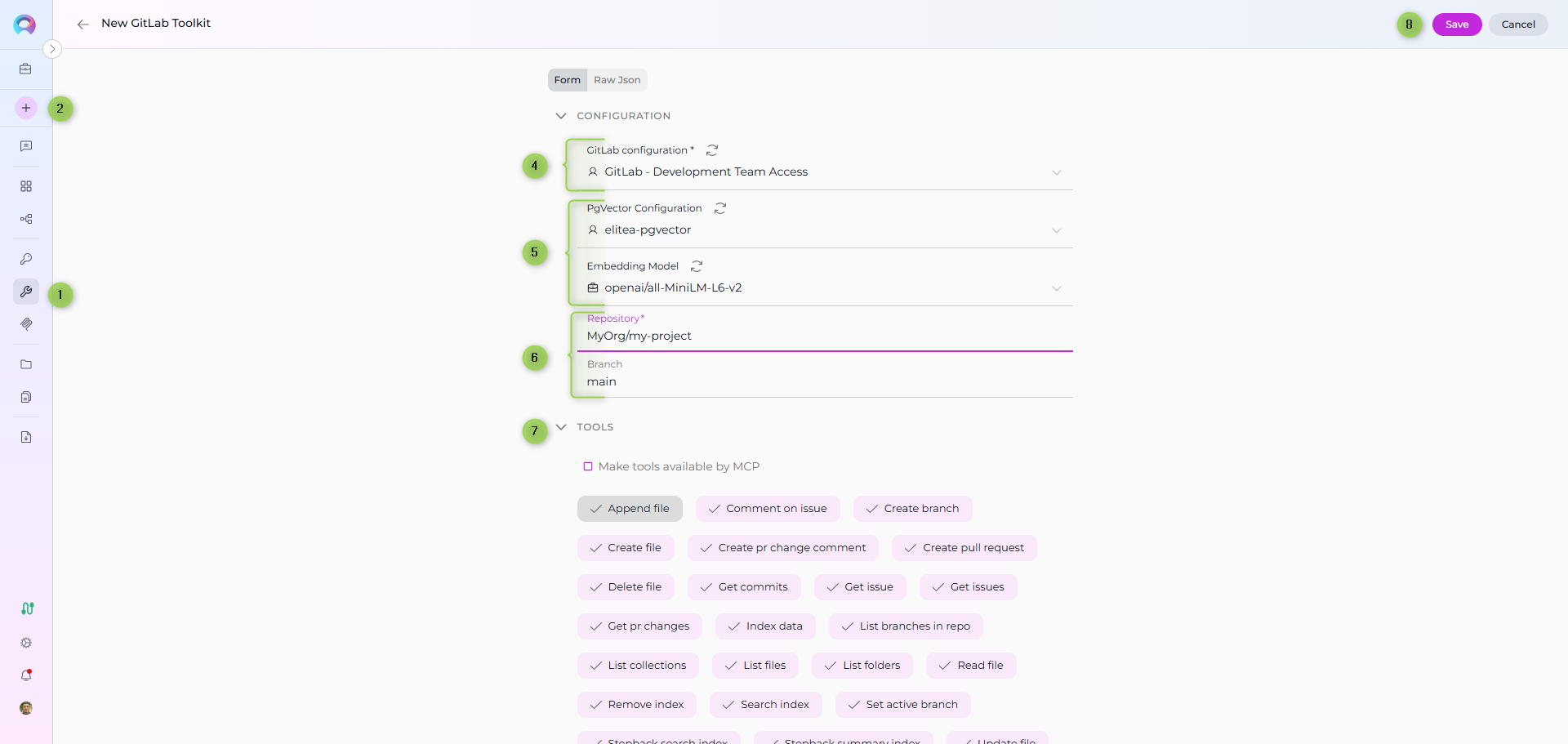

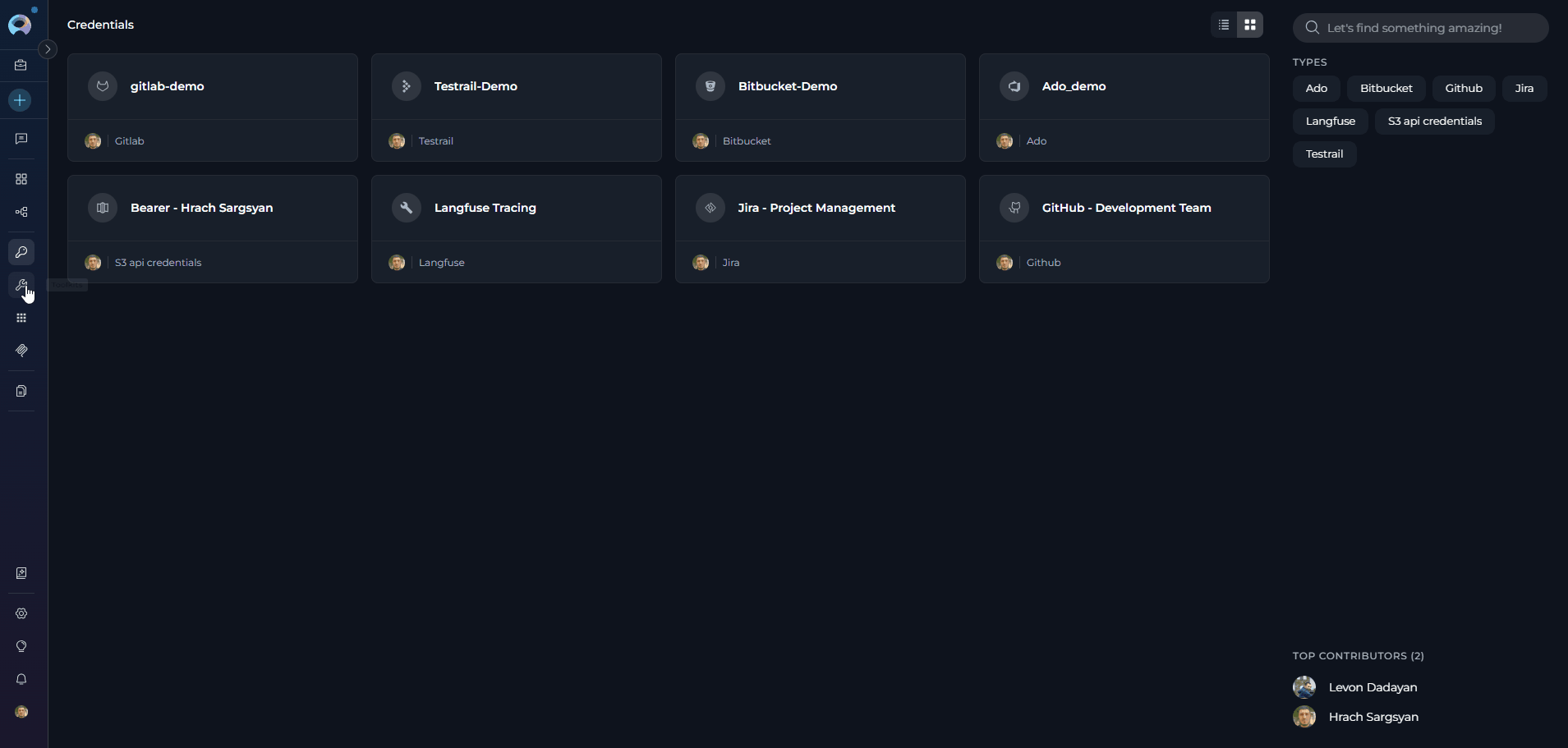

Step 2: Create GitLab Toolkit¶

Once your credentials are configured, create the GitLab toolkit:

Navigate to Toolkits Menu: Open the sidebar and select Toolkits.
Create New Toolkit: Click the + Create button.
Select GitLab: Choose GitLab from the list of available toolkit types.

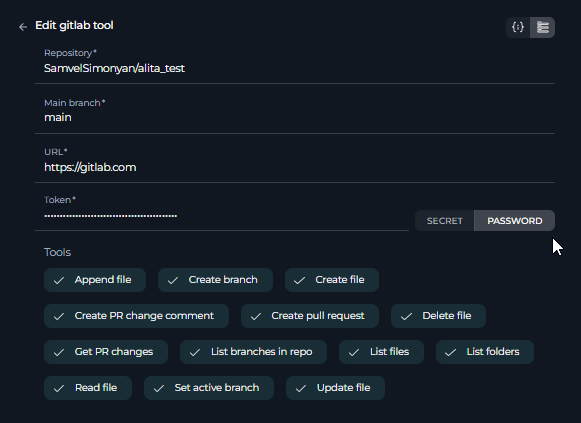

Configure Toolkit Settings:

Field	Description	Example
Toolkit Name	Descriptive name for your toolkit	`GitLab - MyProject Repo`
Description	Optional description for the toolkit	`GitLab toolkit for development team`
GitLab Configuration	Select your previously created GitLab credential	`GitLab - Development Team`
PgVector Configuration	(Optional) Select PgVector for indexing features	Your PgVector configuration
Embedding Model	(Optional) Select embedding model for semantic search	`amazon.titan-embed-text-v2:0`
Repository	Enter repository name in format `namespace/repository`	`mygroup/my-project`
Branch	Enter the main branch name	`main`

Enable Desired Tools: In the "Tools" section, select the checkboxes next to the specific GitLab tools you want to enable. Enable only the tools your agents will actually use
- Make Tools Available by MCP - (optional checkbox) Enable this option to make the selected tools accessible through external MCP clients
Save Toolkit: Click Save to create the toolkit

Available Tools:¶

The GitLab toolkit provides the following tools for interacting with GitLab repositories, organized by functional categories:

Tool Category	Tool Name	Description	Primary Use Case
Branch Management
	Create branch	Creates a new branch from the active branch. Automatically sets the new branch as active after creation. Returns success message or handles conflicts if branch already exists	Set up new feature branches or bug fix branches for development work
	Delete branch	Deletes a branch from the repository with proper validation and error handling	Remove obsolete or merged feature branches to maintain repository cleanliness
	List branches in repo	Lists branches in the repository with optional limit parameter (default: 20) and wildcard filtering support (e.g., '*dev')	View all branches or find specific branches matching a pattern for branch management
	Set active branch	Switches the active branch for subsequent operations. Validates branch existence before switching and provides helpful error messages with available branches	Switch context to work on a specific branch for file operations and merge requests
File Operations
	Append file	Appends new content to the end of an existing file without overwriting existing content	Add log entries, update changelog files, or append data to existing files
	Create file	Creates a new file in the GitLab repository at the specified path with provided contents and commits it to the specified branch	Add new configuration files, documentation, or source code to the repository
	Delete file	Deletes a file from the repository with proper commit message and branch specification	Remove obsolete files, clean up temporary files, or maintain repository hygiene
	Edit file	Edits an existing file with enhanced validation and error handling capabilities	Modify file contents with improved change tracking and validation
	Grep file	Searches for patterns within files using grep-like functionality across the repository	Find specific code patterns, text occurrences, or search within file contents
	List files	Lists files in the repository with optional path filter and branch specification. Supports filtering by directory path	Browse repository structure, explore directories, or locate specific file paths
	List folders	Lists folders in the repository with optional path filter, recursive/non-recursive search control, and branch specification	Explore directory structure and organize file operations
	Read file	Reads and returns the complete contents of a file from the repository at the specified branch	Retrieve file contents for review, analysis, or processing by the AI agent
	Read multiple files	Reads and returns contents of multiple files in a single operation for improved efficiency	Retrieve multiple file contents simultaneously for batch processing or analysis
	Update file	Updates an existing file using OLD/NEW marker format for content replacement. Validates changes and provides detailed error messages if markers are malformed	Modify existing file contents with explicit old-to-new content transformations
Issue Management
	Comment on issue	Adds a comment to an existing GitLab issue with support for markdown formatting	Provide updates, feedback, or status changes on issues
	Get issue	Retrieves complete details of a specific issue by number including the first 10 comments	Access detailed information about a particular issue for review or analysis
	Get issues	Retrieves all open issues from the repository with their titles, descriptions, labels, and metadata	Track project tasks, bugs, and feature requests across the project
Merge Request Management
	Comment on pr	Adds a general comment to a merge request for discussion or feedback	Provide overall feedback or discussion points on a merge request
	Create pr change comment	Adds a comment to specific changes within a merge request at a particular file path and line number	Provide targeted feedback on code modifications during code review
	Create pull request	Creates a merge request from the specified branch to the main branch using JSON data specification. Returns MR details including URL upon success	Initiate code review process for changes made by the agent or automation
	Get pr changes	Retrieves the diff/changes from a merge request showing file modifications, additions, and deletions	Examine specific file changes and modifications included in a merge request
Version Control
	Get commits	Retrieves a list of commits from the repository with optional filtering by SHA, path, date range, and author	Track project history, analyze code changes over time, and understand development activity
Indexing & Search
	Index data	Loads GitLab repository data into PgVector for semantic search. Requires PgVector configuration and embedding model to create searchable code index	Enable AI-powered semantic search across repository code for intelligent code discovery
	List collections	Lists all available indexed collections in the PgVector database to identify searchable datasets	View and manage indexed data collections to understand what code bases are searchable
	Remove index	Removes previously created search indexes from PgVector to free resources or refresh data	Clean up outdated indexes or prepare for re-indexing with updated repository content
	Search index	Performs semantic searches across indexed repository content using natural language queries	Find specific code patterns, implementations, or documentation using AI-powered search
	Stepback search index	Performs advanced contextual searches with broader scope, using step-back prompting to generate better search queries	Execute sophisticated searches requiring broader context understanding and query refinement
	Stepback summary index	Creates comprehensive summaries of indexed content using step-back prompting for more thorough analysis	Generate intelligent, context-aware summaries of repository code and documentation

Vector Search Tools

The tools Index data, List collections, Remove index, Search index, Stepback search index, and Stepback summary index require PgVector configuration and an embedding model. These enable advanced semantic search capabilities across your GitLab repository.

Testing Toolkit Tools¶

After configuring your GitLab toolkit, you can test individual tools directly from the Toolkit detailed page using the Test Settings panel. This allows you to verify that your credentials are working correctly and validate tool functionality before adding the toolkit to your workflows.

General Testing Steps:

Select LLM Model: Choose a Large Language Model from the model dropdown in the Test Settings panel
Configure Model Settings: Adjust model parameters like Creativity, Max Completion Tokens, and other settings as needed
Select a Tool: Choose the specific GitLab tool you want to test from the available tools
Provide Input: Enter any required parameters or test queries for the selected tool
Run the Test: Execute the tool and wait for the response
Review the Response: Analyze the output to verify the tool is working correctly and returning expected results

Key benefits of testing toolkit tools:

Verify that GitLab credentials and connection are configured correctly
Validate that tools function as expected with your GitLab repository
Test different parameter combinations and edge cases before production use
Familiarize yourself with tool capabilities and expected outputs

For detailed instructions on how to use the Test Settings panel, see How to Test Toolkit Tools.

Step 3: Use GitLab Toolkit in Agents¶

Once your GitLab toolkit is created, you can use it in various ELITEA features:

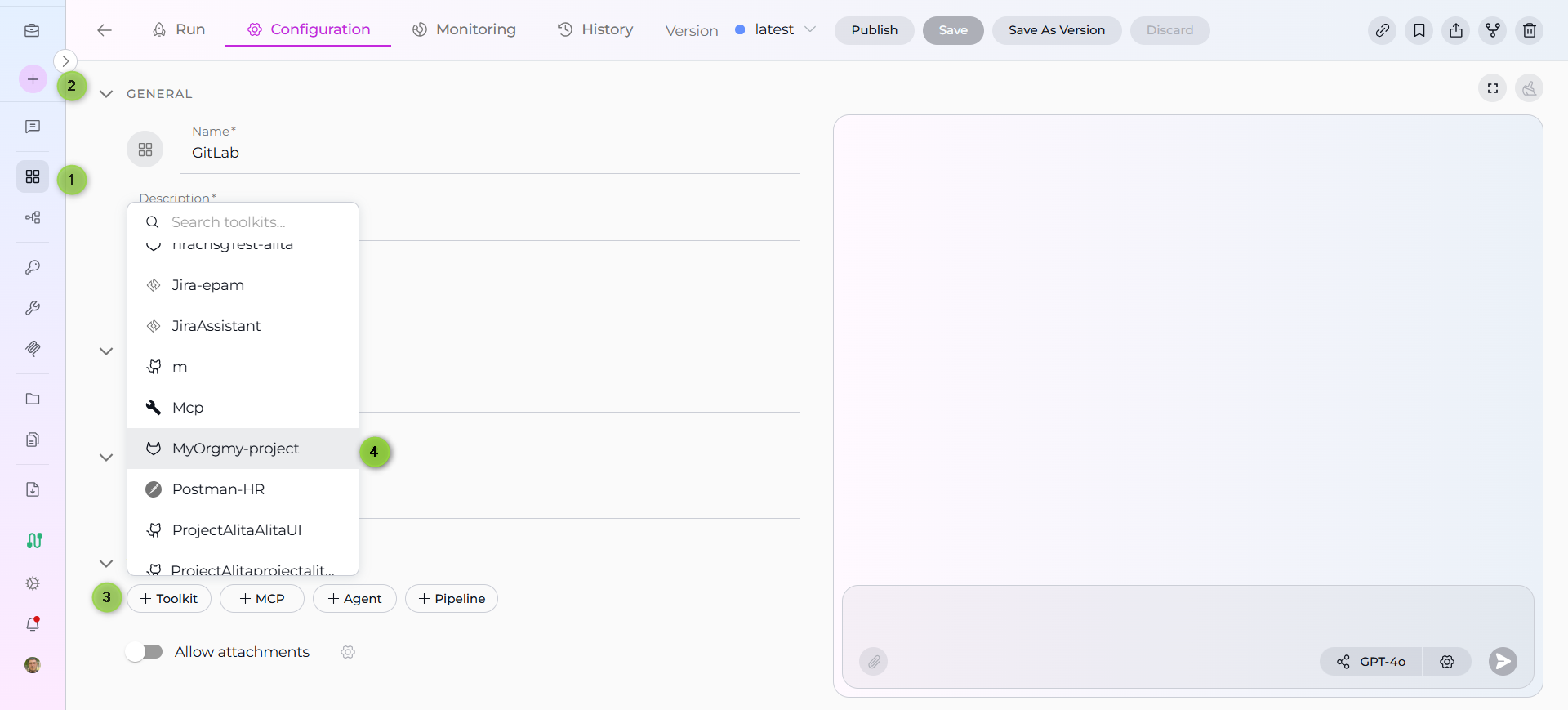

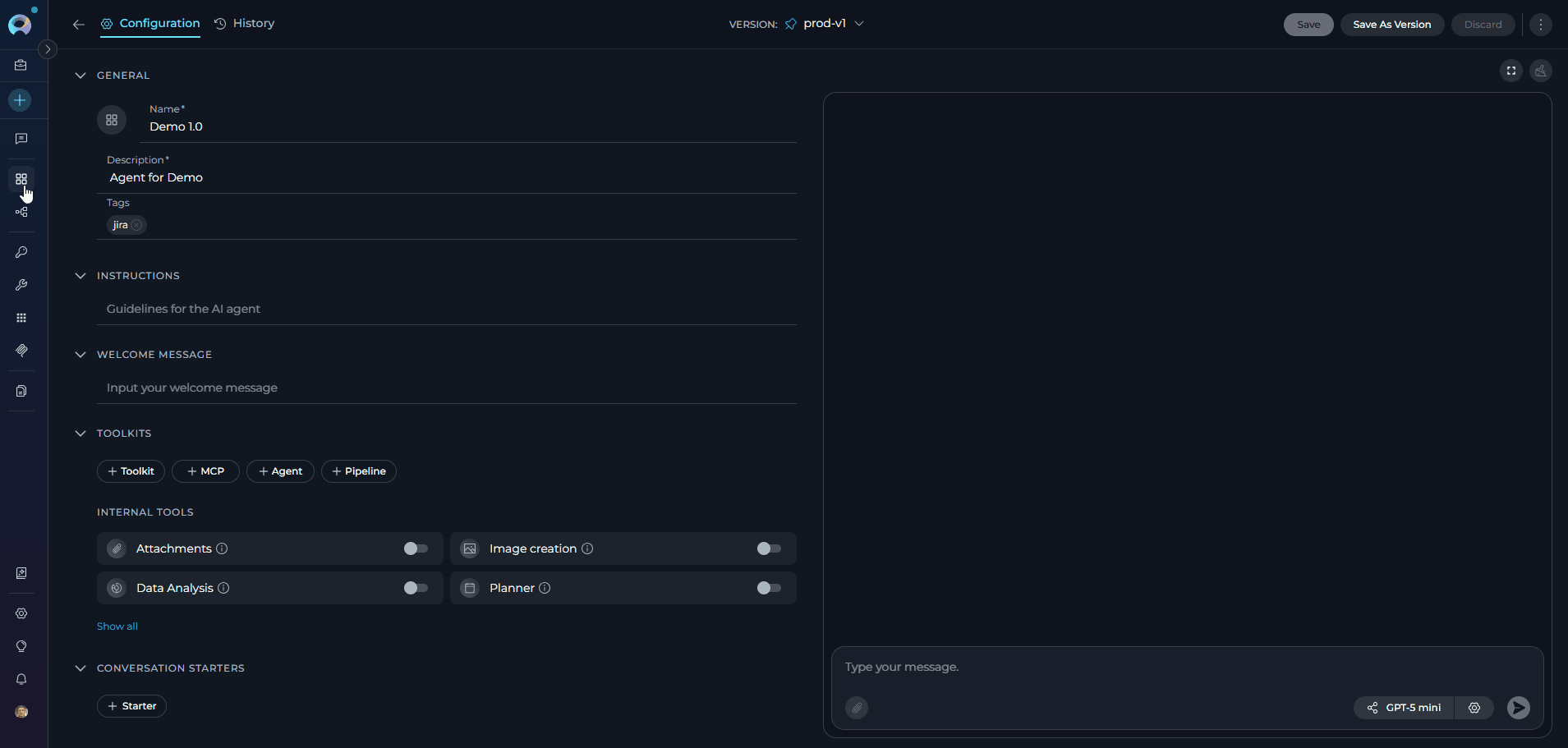

In Agents:¶

Navigate to Agents: Open the sidebar and select Agents.
Create or Edit Agent: Click + Create for a new agent or select an existing agent to edit.
Add GitLab Toolkit:
- In the "TOOLKITS" section of the agent configuration, click the "+Toolkit" icon
- Select your GitLab toolkit from the dropdown menu
- The toolkit will be added to your agent with the previously configured tools enabled

Your agent can now interact with GitLab using the configured toolkit and enabled tools.

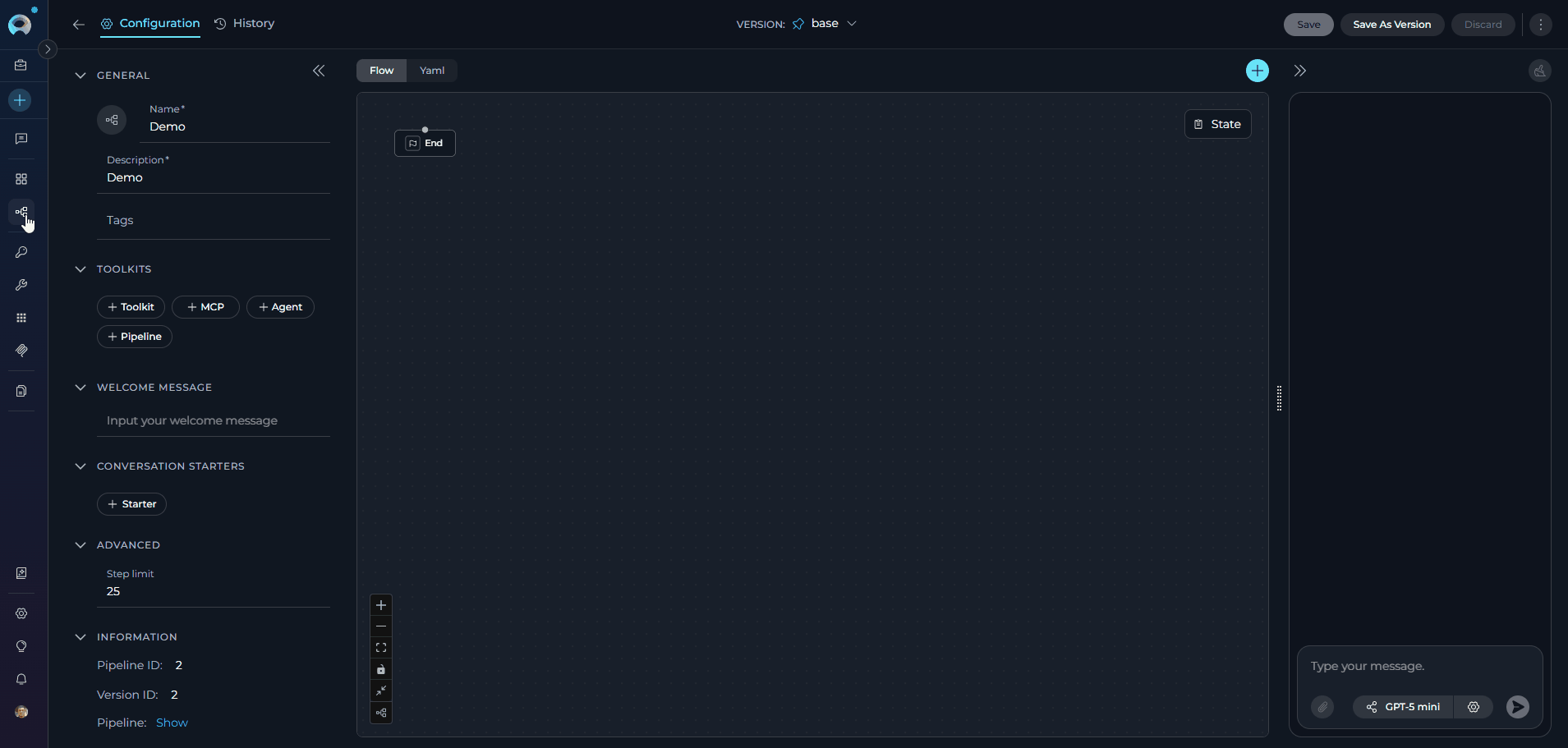

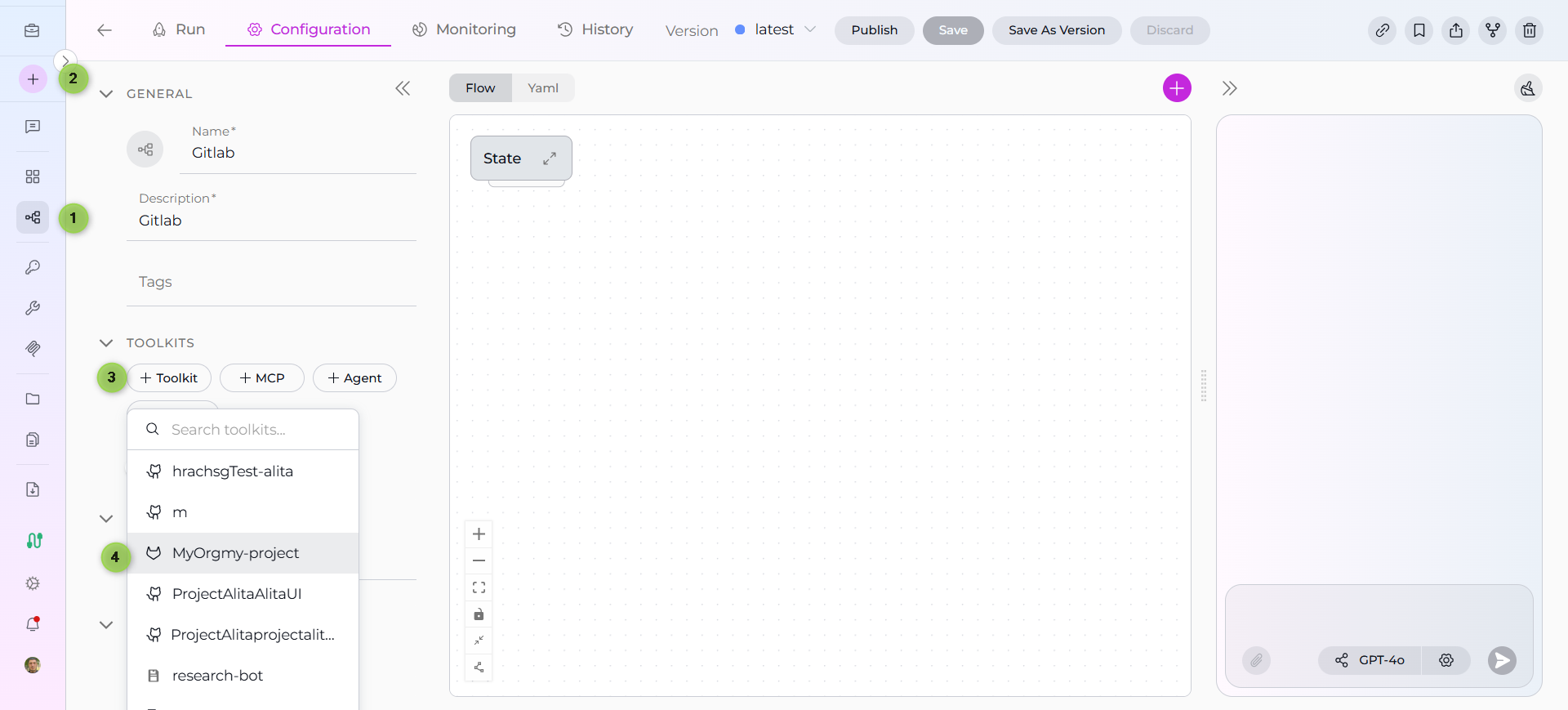

In Pipelines:¶

Navigate to Pipelines: Open the sidebar and select Pipelines.
Create or Edit Pipeline: Either create a new pipeline or select an existing pipeline to edit.
Add GitLab Toolkit:
- In the "TOOLKITS" section of the pipeline configuration, click the "+Toolkit" icon
- Select your GitLab toolkit from the dropdown menu
- The toolkit will be added to your pipeline with the previously configured tools enabled

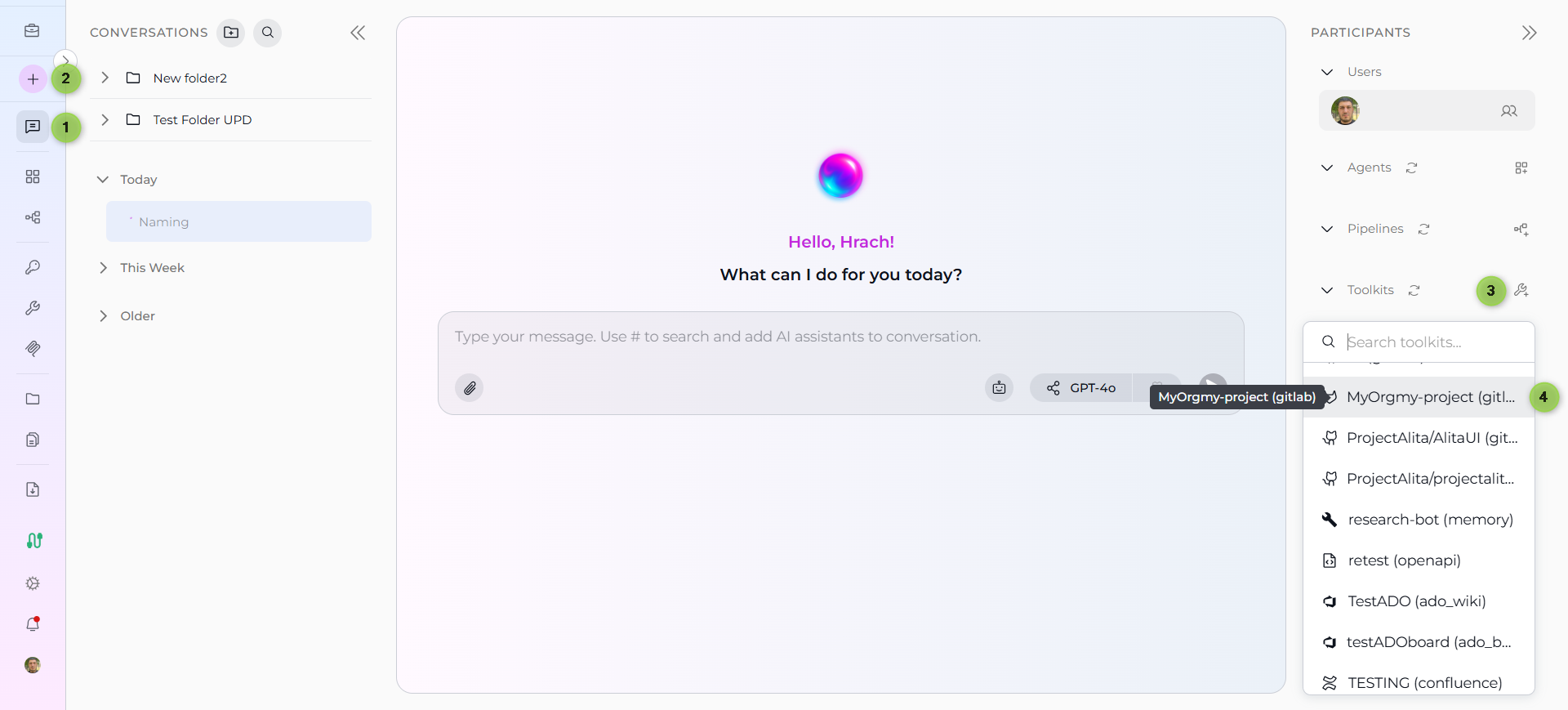

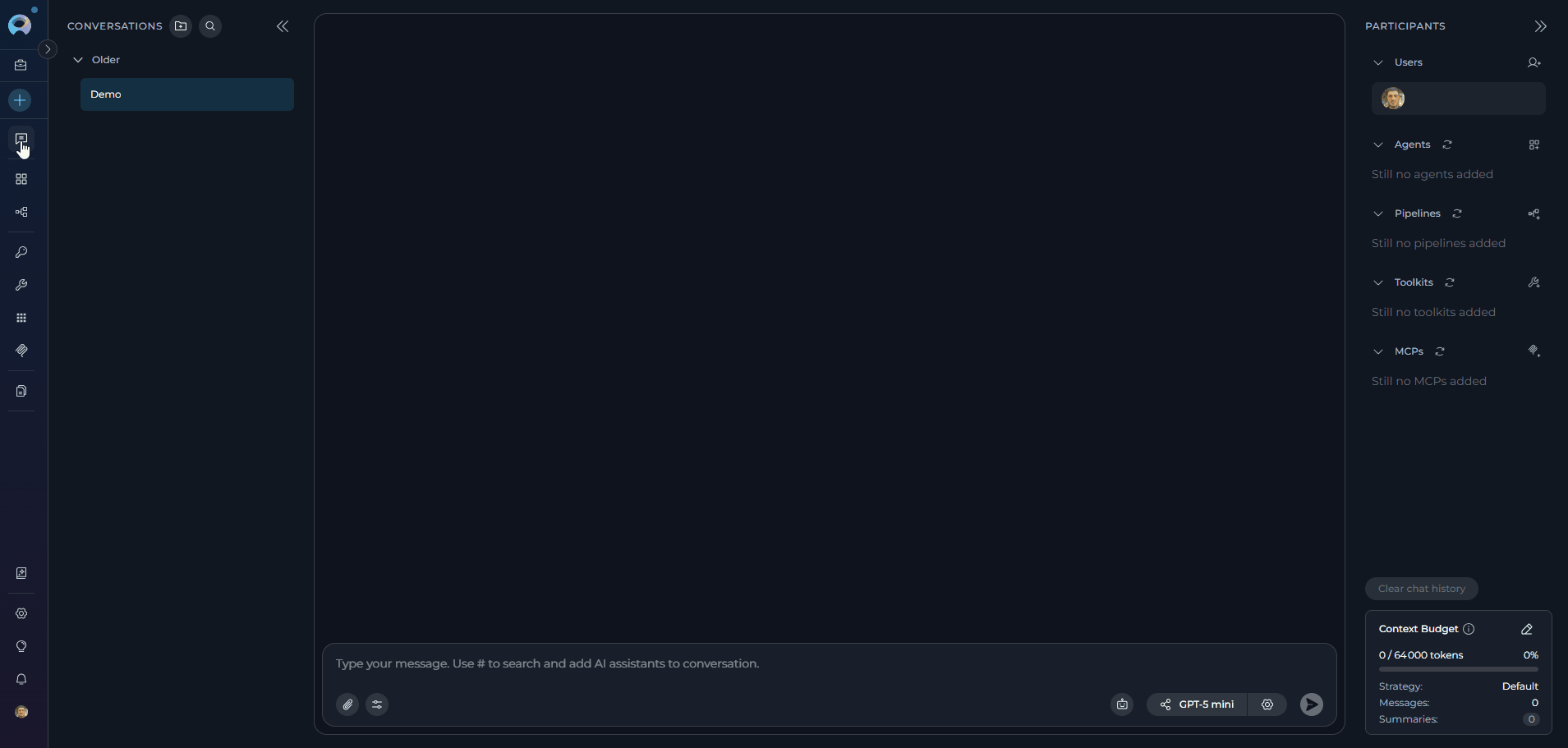

In Chat:¶

Navigate to Chat: Open the sidebar and select Chat.
Start New Conversation: Click +Create or open an existing conversation.
Add Toolkit to Conversation:
- In the chat Participants section, look for the Toolkits element
- Click to add a toolkit and select your GitLab toolkit from the available options
- The toolkit will be added to your conversation with all previously configured tools enabled
Use Toolkit in Chat: You can now directly interact with your GitLab repositories by asking questions or requesting actions that will trigger the GitLab toolkit tools.

Instructions and Prompts for Using the GitLab Toolkit¶

To effectively instruct your ELITEA Agent to use the GitLab toolkit, you need to provide clear and precise instructions within the Agent's "Instructions" field. These instructions are crucial for guiding the Agent on when and how to utilize the available GitLab tools to achieve your desired automation goals.

Instruction Creation for Agents¶

When crafting instructions for the GitLab toolkit, especially for OpenAI-based Agents, clarity and precision are paramount. Break down complex tasks into a sequence of simple, actionable steps. Explicitly define all parameters required for each tool and guide the Agent on how to obtain or determine the values for these parameters. Agents respond best to instructions that are:

Direct and Action-Oriented: Employ strong action verbs and clear commands to initiate actions. For example, "Use the 'read_file' tool...", "Create a branch named...", "List all open issues...".
Parameter-Centric: Clearly enumerate each parameter required by the tool. For each parameter, specify:
- Its name (exactly as expected by the tool)
- Its expected data type (string, integer, JSON object, etc.)
- How the Agent should obtain the value – whether from user input, derived from previous steps in the conversation, retrieved from an external source, or a predefined static value
Contextually Rich: Provide sufficient context so the Agent understands the overarching objective and the specific scenario in which each GitLab tool should be applied within the broader workflow. Explain the desired outcome or goal for each tool invocation.
Step-by-Step Structure: Organize instructions into a numbered or bulleted list of steps for complex workflows. This helps the Agent follow a logical sequence of actions.
Add Conversation Starters: Include example conversation starters that users can use to trigger this functionality. For example, "Conversation Starters: 'Create a new branch', 'Show me the README', 'List all open issues'"

When instructing your Agent to use a GitLab toolkit tool, adhere to this structured pattern:

State the Goal: Begin by clearly stating the objective you want to achieve with this step. For example, "Goal: To retrieve the content of the 'README.md' file."
Specify the Tool: Clearly indicate the specific GitLab tool to be used for this step. For example, "Tool: Use the 'read_file' tool."
Define Parameters: Provide a detailed list of all parameters required by the selected tool. For each parameter:
Parameter Name: <Parameter Name as defined in tool documentation>
Value or Source: <Specify the value or how to obtain the value. Examples: "user input", "from previous step", "hardcoded value 'main'", "value of variable X">
Describe Expected Outcome (Optional but Recommended): Briefly describe the expected result or outcome after the tool is successfully executed. For example, "Outcome: The Agent will display the file content to the user."
Add Conversation Starters: Include example conversation starters that users can use to trigger this functionality.

Example Agent Instructions

Agent Instructions for Creating a Branch:

1. Goal: Create a new feature branch based on the main branch.
2. Tool: Use the "create_branch" tool.
3. Parameters:
    - branch_name: "Ask the user for the feature branch name, or use a default naming convention like 'feature-<feature-name>'."
    - repository: "Use the repository configured in the GitLab toolkit, or ask user to specify."
4. Outcome: A new branch will be created and automatically set as the active branch for subsequent operations.
5. Conversation Starters: "Create a new feature branch", "Start a new branch for user authentication"

Agent Instructions for Reading a File:

1. Goal: Read the content of a specific file to provide information to the user.
2. Tool: Use the "read_file" tool.
3. Parameters:
    - file_path: "Ask the user which file they want to read, or specify a default file like 'README.md'."
    - branch: "Use the currently active branch, or ask the user to specify a branch name."
    - repository: "Use the repository configured in the GitLab toolkit."
4. Outcome: The file contents will be retrieved and displayed to the user.
5. Conversation Starters: "Show me the README file", "Read the config.json file"

Chat Usage Examples by Tool Category¶

The following examples demonstrate how to interact with the GitLab toolkit in ELITEA Chat, organized by functional categories. Each example shows the user request and the expected agent behavior.

Branch Management - Create Branch

Chat Example:

User: "Create a new feature branch called 'feature-user-authentication'"

Agent Response: [Agent uses create_branch tool]

✔️ **Branch Created Successfully!**

Branch `feature-user-authentication` created successfully and set as active.

You can now start making changes to this branch. All subsequent file operations will be performed on this branch.

Branch Management - List Branches

Chat Example:

User: "Show me all branches in the repository"

Agent Response: [Agent uses list_branches_in_repo tool]

**Repository Branches:**

Found branches: main, develop, feature-user-auth, feature-dashboard, bugfix-login, hotfix-security

Total: 6 branches found in the repository.

File Operations - Create File

Chat Example:

User: "Create a new file called 'deployment.yaml' with basic deployment configuration"

Agent Response: [Agent uses create_file tool]

✔️ **File Created Successfully!**

- **File Path**: deployment.yaml
- **Branch**: feature-user-authentication (active branch)
- **Status**: File has been created

The file has been added to the repository on the current active branch.

File Operations - Read File

Chat Example:

User: "Show me the contents of the README.md file"

Agent Response: [Agent uses read_file tool]

**File Contents: README.md**
**Branch**: main

\`\`\`markdown
# My Project

This is a sample project demonstrating...
[... file contents ...]
\`\`\`

The README file provides an overview of the project structure and setup instructions.

Issue Management - Get Issues

Chat Example:

User: "Show me all open issues in the repository"

Agent Response: [Agent uses get_issues tool]

**Open Issues (15 total):**

1. **Issue #42**: "Implement user authentication"
   - **Labels**: enhancement, high-priority
   - **Created**: 3 days ago

2. **Issue #41**: "Fix login bug on mobile devices"
   - **Labels**: bug, mobile
   - **Created**: 5 days ago

3. **Issue #40**: "Add documentation for API endpoints"
   - **Labels**: documentation
   - **Created**: 1 week ago

[... additional issues ...]

These issues are currently open and awaiting action.

Merge Request Management - Create Merge Request

Chat Example:

User: "Create a merge request to merge feature-user-authentication into develop"

Agent Response: [Agent uses create_pull_request tool]

✔️ **Merge Request Created Successfully!**

- **Source Branch**: feature-user-authentication
- **Target Branch**: develop
- **Title**: Merge feature-user-authentication
- **Status**: Open
- **URL**: https://gitlab.com/workspace/repo/-/merge_requests/123

The merge request is ready for review. Team members can now review and approve the changes.

Version Control - Get Commits

Chat Example:

User: "Show me the recent commits from the last week"

Agent Response: [Agent uses get_commits tool]

📈 **Recent Commits (Last 7 Days)**:

1. **Latest**: `a7b3f2c` - "Fix user login validation"
   - **Author**: @johndev
   - **Date**: 2 hours ago
   - **Changes**: Updated authentication logic to handle edge cases

2. `9d4e1a8` - "Add responsive design for mobile devices"
   - **Author**: @ui-designer
   - **Date**: Yesterday
   - **Changes**: Implemented mobile-first CSS and responsive breakpoints

3. `f2a1b9e` - "Update API documentation"
   - **Author**: @backend-dev
   - **Date**: 3 days ago
   - **Changes**: Added new endpoint documentation and examples

**Summary**: The team has been focusing on stability improvements and mobile user experience enhancements this week.

Use Cases¶

The GitLab toolkit unlocks numerous automation possibilities for software development workflows within ELITEA. Here are some key use cases:

Automated Branch Creation

Scenario: Development team needs to create feature branches consistently for new tasks

Tools Used: create_branch, set_active_branch

Benefit: Ensure consistent branch naming and automatic branch activation

Example Workflow:

User requests new feature branch through Chat
Agent creates branch with standardized naming (e.g., feature-<description>)
Branch automatically becomes active for subsequent operations
User can immediately start working on the new branch

Code Review Automation

Scenario: Automate creation and management of merge requests for code reviews

Tools Used: create_pull_request, get_pr_changes, create_pr_change_comment

Benefit: Streamline code review process and provide automated feedback

Example Workflow:

Agent creates merge request from feature branch to develop
Retrieves changes using get_pr_changes
Analyzes code modifications
Adds targeted comments on specific lines
Notifies reviewers of merge request creation

Issue Tracking and Management

Scenario: Monitor and manage project issues through AI-powered analysis

Tools Used: get_issues, get_issue, comment_on_issue

Benefit: Efficient issue triage and automated status updates

Example Workflow:

Agent retrieves all open issues
Analyzes issue content and labels
Provides summary and prioritization recommendations
Automatically adds comments with analysis or status updates
Links related issues for better context

Documentation Generation

Scenario: Automatically generate or update project documentation

Tools Used: read_file, create_file, update_file, list_files

Benefit: Keep documentation synchronized with code changes

Example Workflow:

Agent scans repository structure using list_files
Reads source files to extract documentation comments
Generates or updates README, API documentation, or changelog
Creates new documentation files or updates existing ones
Commits changes with descriptive messages

Repository Analysis

Scenario: Analyze repository structure and codebase for insights

Tools Used: list_files, list_folders, read_file, get_commits

Benefit: Understand codebase structure and development patterns

Example Workflow:

Agent explores directory structure with list_folders
Identifies key files and their purposes
Analyzes commit history for development activity
Provides insights on code organization and hotspots
Recommends refactoring or architectural improvements

Semantic Code Search

Scenario: Enable intelligent code discovery through semantic search

Tools Used: index_data, search_index, stepback_search_index

Benefit: Find code patterns and implementations using natural language

Example Workflow:

Index repository content using index_data
User asks natural language questions about codebase
Agent performs semantic search across indexed content
Returns relevant code snippets and files
Provides context and explanations for found code

Continuous Integration Support

Scenario: Monitor commits and trigger automated workflows

Tools Used: get_commits, read_file, comment_on_issue

Benefit: Automate CI/CD processes and provide intelligent feedback

Example Workflow:

Agent monitors recent commits using get_commits
Analyzes commit messages and changed files
Triggers appropriate CI/CD pipelines
Reviews test results and code quality metrics
Updates related issues with commit references and status

File Management Automation

Scenario: Bulk file operations and repository maintenance

Tools Used: create_file, update_file, delete_file, append_file

Benefit: Efficiently manage multiple files and maintain repository hygiene

Example Workflow:

Agent identifies obsolete or temporary files
Creates new configuration or documentation files as needed
Updates multiple files with consistent changes
Appends log entries or changelog updates
Removes deprecated files to keep repository clean

Troubleshooting¶

Connection Issues

Possible Error Messages:

"Cannot connect to GitLab"
"Connection timeout"
"Network error"

Common Causes and Solutions:

Incorrect GitLab URL

Solution: Verify the URL in credential configuration matches your GitLab instance:

GitLab.com: https://gitlab.com
Self-hosted: https://gitlab.yourcompany.com
Remove any trailing slashes or /api/v4 paths
Network Connectivity Issues

Solution: Verify network connectivity to GitLab

Check firewall settings and proxy configuration
Test access to GitLab from your browser
SSL Certificate Issues

Solution: For self-hosted GitLab with custom certificates

Ensure certificates are properly configured
Contact your GitLab administrator if certificate validation fails

Authentication Errors

Possible Error Messages:

"Authentication failed: invalid private token"
"Access forbidden: token lacks required permissions"
"401 Unauthorized"
"403 Forbidden"

Common Causes and Solutions:

Invalid or Expired Token

Solution: Verify your Personal Access Token in GitLab settings

Check token expiration date
Generate a new token if necessary
Update credential configuration with new token
Insufficient Token Scopes

Solution: Review token scopes in GitLab

Ensure token has required permissions:
- api for full API access
- read_repository for reading files
- write_repository for modifying repositories
- Additional scopes for issues and merge requests as needed
Generate new token with appropriate scopes
Token Not Properly Configured

Solution: Verify token is correctly entered in credential configuration

Check for extra spaces or hidden characters
Use Secrets feature for secure token storage

Repository Access Issues

Possible Error Messages:

"Repository not found"
"Project not found"
"Permission denied"

Common Causes and Solutions:

Incorrect Repository Format

Solution: Ensure repository name follows format: namespace/repository-name

Examples: mygroup/my-project, username/repo-name
Verify namespace and repository name spelling
Check for correct capitalization
Insufficient Repository Permissions

Solution: Verify GitLab account has access to repository

Check project membership and role (Guest, Reporter, Developer, Maintainer)
Ensure token has appropriate repository access permissions
Repository Doesn't Exist

Solution: Verify repository exists in GitLab

Check repository hasn't been renamed or deleted
Confirm you're accessing correct GitLab instance

Branch Operation Failures

Possible Error Messages:

"Branch not found"
"Branch already exists"
"Cannot delete active branch"
"Cannot delete main branch"

Common Causes and Solutions:

Branch Name Issues

Solution: Verify branch name spelling and capitalization

Check branch exists in repository
Use list_branches_in_repo to see available branches
Protected Branch Restrictions

Solution: Check if branch is protected in GitLab settings

Protected branches may have restrictions on:
- Who can push
- Who can merge
- Who can delete
Request appropriate permissions or use unprotected branches
Branch Creation Conflicts

Solution: Choose a different branch name if branch already exists

Delete old branch first if intentionally replacing
Use unique, descriptive branch names

File Operation Failures

Possible Error Messages:

"File not found"
"File already exists"
"Permission denied"
"Invalid file path"

Common Causes and Solutions:

File Path Issues

Solution: Verify file path is correct and relative to repository root

Use forward slashes / in file paths
Check file actually exists before reading/updating
Use list_files to verify file locations
File Already Exists

Solution: Use update_file instead of create_file for existing files

Check if file exists first before creating
Delete old file before creating new one if intentionally replacing
Encoding Issues

Solution: Ensure file content uses proper encoding (UTF-8)

Avoid special characters that may cause encoding problems
Binary files may require special handling

Merge Request Issues

Possible Error Messages:

"Merge request creation failed"
"Source branch not found"
"Target branch not found"
"Merge conflicts detected"

Common Causes and Solutions:

Branch Issues

Solution: Verify source and target branches exist

Ensure branches are specified correctly
Check that source branch has commits different from target
Merge Conflicts

Solution: Resolve conflicts manually in GitLab

Update source branch to incorporate target branch changes
Use Git merge tools to resolve conflicts locally
Insufficient Permissions

Solution: Verify token has write_merge_requests scope

Check project permissions allow merge request creation
Ensure user role permits creating merge requests

Indexing and Search Issues

Possible Error Messages:

"PgVector configuration not found"
"Embedding model not configured"
"Index creation failed"
"Search failed"

Common Causes and Solutions:

Missing Configuration

Solution: Configure PgVector in toolkit settings

Select appropriate embedding model
Ensure PgVector database is accessible
Indexing Failures

Solution: Check repository size and content

Verify sufficient resources for indexing
Review indexing logs for specific errors
Try indexing smaller subsets if needed
Search Limitations

Solution: Ensure data is indexed before searching

Use appropriate search queries
Consider stepback search for complex queries
Review indexed collections with list_collections

Python-GitLab Library Issues

Possible Error Messages:

"python-gitlab is not installed"
"ModuleNotFoundError: No module named 'gitlab'"
"Import error"

Common Causes and Solutions:

Missing Python-GitLab Package

Solution: Install the required python-gitlab library

Run: pip install python-gitlab
Verify installation: pip show python-gitlab
Ensure package is installed in correct Python environment
Version Compatibility Issues

Solution: Check python-gitlab version compatibility

Update to latest version: pip install --upgrade python-gitlab
Verify Python version is compatible (Python 3.7+)
Check for conflicting package versions
Environment Issues

Solution: Ensure correct Python environment is active

Activate virtual environment if using one
Verify pip is installing to correct environment
Use python -m pip install python-gitlab to ensure correct Python

Support Contact¶

If you encounter issues not covered in this guide or need additional assistance with GitLab integration, please refer to Contact Support for detailed information on how to reach the ELITEA Support Team.

FAQ¶

Q: Can I use my regular GitLab password instead of a Personal Access Token?

A: No, you must use a GitLab Personal Access Token for secure integration with ELITEA. Regular passwords are not supported.

Why Personal Access Tokens?

More secure than using account passwords
Allow granular permission control through scopes
Can be easily revoked without changing password
Support expiration dates for enhanced security
Enable audit trails for API access

Generate your Personal Access Token in GitLab: Profile → Access Tokens → Add new token

Q: What are the minimum required scopes for the Personal Access Token?

A: The minimum required scopes depend on your intended use. For most common scenarios:

Basic Read-Only Access:

read_api - Read-only API access
read_repository - Read repository content

Read and Write Access:

api - Full API access (recommended for most integrations)
Alternatively, use granular scopes:
- read_repository + write_repository for repository operations
- read_issue + write_issue for issue management
- read_merge_requests + write_merge_requests for MR operations

Always follow the principle of least privilege: Grant only the scopes your Agent actually needs.

Q: What is the correct format for specifying the repository name?

A: The repository name must follow the format namespace/repository-name:

Examples:

User repository: username/my-project
Group repository: mygroup/project-name
Subgroup repository: mygroup/subgroup/repo-name

Important Notes:

Include both namespace and repository name
Use forward slashes to separate components
Match exact capitalization as it appears in GitLab
Do not include the GitLab URL or .git extension

Q: Can I use both GitLab.com and self-hosted GitLab instances?

A: Yes! ELITEA supports both GitLab.com and self-hosted GitLab instances.

Configuration:

GitLab.com: Use URL https://gitlab.com
Self-hosted: Use your instance URL like https://gitlab.yourcompany.com

Important:

Ensure URL includes https:// prefix
Do not include /api/v4 or other API paths
Self-hosted instances may require additional network configuration
Verify SSL certificates are properly configured for self-hosted instances

Q: How do I switch the active branch for operations?

A: Use the set_active_branch tool to switch the active branch:

Example Agent Instruction:

Use the set_active_branch tool with branch parameter set to "develop"

How it works:

Sets the specified branch as active for subsequent operations
All file operations will use the active branch unless explicitly specified
Validates branch exists before switching
Returns error if branch not found

Tip: Always set the correct branch before performing file operations to ensure changes are made to the intended branch.

Q: Why am I getting 'Permission Denied' errors?

A: Permission denied errors typically occur due to insufficient permissions. Follow these troubleshooting steps:

1. Verify Token Scopes:

Check your Personal Access Token scopes in GitLab
Ensure token has required permissions for the operation:
- write_repository for creating/modifying files
- write_issue for managing issues
- write_merge_requests for creating merge requests

2. Check Repository Access:

Verify your GitLab account has access to the repository
Confirm you have appropriate role (Developer or Maintainer for write operations)
Check project visibility settings

3. Verify Token Validity:

Ensure token hasn't expired
Confirm token wasn't revoked
Check for any typos in token value

4. Protected Branch Restrictions:

Some branches may be protected from direct modifications
Check GitLab project settings → Repository → Protected branches
Use merge requests for protected branches instead

Q: How do merge requests (MRs) work in GitLab vs pull requests (PRs) in other platforms?

A: GitLab uses "Merge Requests" (MRs) which are equivalent to "Pull Requests" (PRs) in GitHub or Bitbucket.

Key Points:

Terminology: GitLab uses "Merge Request" instead of "Pull Request"
Functionality is identical: propose changes from one branch to another
The toolkit tool is named create_pull_request for consistency with other integrations
In GitLab UI, you'll see these as "Merge Requests"

Creating MRs:

Use create_pull_request tool:
- pr_title: "Add user authentication feature"
- pr_body: "This MR adds user login and registration"
- branch: "feature-auth"
- repository: "mygroup/myproject"

Q: Can I work with multiple repositories in one toolkit?

A: Yes, the GitLab toolkit supports multiple repositories.

Configuration:

In toolkit settings, enter multiple repositories separated by commas or semicolons
Example: mygroup/repo1,mygroup/repo2,mygroup/repo3

Usage:

Specify repository parameter in tool calls to target specific repository
If only one repository configured, it's used by default
If multiple repositories configured without specifying, agent may need clarification

Best Practice:

For complex multi-repository workflows, consider creating separate toolkits for better organization
Use descriptive toolkit names to identify which repositories they manage

Q: How does semantic search work with GitLab repositories?

A: Semantic search uses AI embeddings to find code based on meaning, not just keywords.

Setup Requirements:

Configure PgVector in toolkit settings
Select an embedding model (e.g., amazon.titan-embed-text-v2:0)
Run index_data tool to index repository content

How It Works:

Indexes all repository files and content
Creates vector embeddings of code and documentation
Enables natural language searches
Finds semantically similar code even without exact keyword matches

Example Searches:

"Find authentication logic" - locates auth-related code
"Database connection code" - finds DB connection implementations
"Error handling patterns" - discovers error handling approaches

Benefits:

Discover code without knowing exact function names
Find similar implementations across codebase
Understand unfamiliar codebases quickly
Generate insights from code patterns

Q: What's the difference between update_file, edit_file, and append_file?

A: These tools serve different purposes for file modifications:

update_file:

Replaces specific content using OLD/NEW markers
Delegates to edit_file internally for processing
Accepts file path on first line followed by OLD/NEW blocks
Precise control over what changes
Best for modifying existing code sections
Requires old content to match exactly

Example:

path/to/file.py
OLD <<<<
const API_URL = "https://api.dev.com"
>>>> OLD
NEW <<<<
const API_URL = "https://api.prod.com"
>>>> NEW

edit_file:

Direct file editing method using OLD/NEW markers
More flexible - supports multiple replacements in one call
Accepts file path as parameter and edit content separately
Used internally by update_file
Validates OLD content exists before making changes

append_file:

Adds new content to end of file
Does not modify existing content
Best for log files, changelogs, or incremental additions
Simpler than update_file for adding new content

Example:

Append to CHANGELOG.md:
## [1.2.0] - 2024-02-20
- Added user authentication feature
- Fixed mobile responsiveness

Choosing Between Them:

Use update_file or edit_file when modifying existing content
Use append_file when adding new content to end
Use create_file for entirely new files
Avoid editing protected branches directly - use merge requests instead

Q: How do I handle errors in file operations?

A: File operation errors usually provide clear messages about what went wrong. Follow these guidelines:

File Not Found:

Verify file path is correct relative to repository root
Use list_files to confirm file location
Check you're on the correct branch
Ensure file hasn't been renamed or deleted

File Already Exists:

Use update_file instead of create_file for existing files
Check with list_files before creating files
Delete old file first if intentionally replacing

Permission Denied:

Verify token has write_repository scope
Check repository permissions (need Developer role or higher)
Confirm branch isn't protected (use MRs for protected branches)

Invalid Content:

Check file encoding (use UTF-8)
Verify content format is appropriate for file type
Avoid special characters that may cause issues

Best Practice:

Always check file existence before operations
Use descriptive commit messages
Test file operations on non-protected branches first
Handle errors gracefully with user-friendly messages

Q: Can I delete branches, and are there any restrictions?

A: Yes, you can delete branches using the delete_branch tool, but there are important restrictions and considerations:

Restrictions:

Cannot delete the currently active branch
Cannot delete the main/default branch (usually main or master)
Cannot delete protected branches without proper permissions
Requires Developer role or higher in the repository

How to Delete a Branch:

Switch to a different branch first using set_active_branch
Use delete_branch tool with branch name parameter
Verify deletion was successful

Common Errors:

"Cannot delete active branch" - Switch to another branch first
"Cannot delete main branch" - Main branch is protected from deletion
"Permission denied" - Check repository permissions and token scopes
"Branch not found" - Verify branch name spelling and existence

Best Practices:

Always merge or back up important changes before deleting
Use list_branches_in_repo to see available branches
Delete obsolete feature branches after merging
Consider branch naming conventions to identify deletable branches

Q: What are read_file_chunk and read_multiple_files tools used for?

A: These advanced file reading tools provide more efficient ways to read repository content:

read_file_chunk:

Reads a specific portion of a file using offset and limit
Useful for large files where you only need specific sections
Reduces data transfer and processing time
Supports head/tail options for reading beginning or end of files

Parameters:

file_path: Path to the file
branch: Branch to read from
offset: Starting byte position (optional)
limit: Maximum bytes to read (optional)
head: Number of lines from start (optional)
tail: Number of lines from end (optional)

read_multiple_files:

Reads multiple files in a single operation
More efficient than calling read_file multiple times
Returns dictionary mapping file paths to their contents
Useful for comparing files or reading related files together

Parameters:

file_paths: List of file paths to read
branch: Branch to read from

Use Cases:

Reading configuration files and their related documentation
Comparing multiple versions or implementations
Analyzing large log files (read specific sections)
Batch processing multiple related files

Example:

Read multiple configuration files:
- config/database.yml
- config/application.yml
- config/environments/production.yml

Q: How do commit messages work, and can I customize them?

A: Commit messages are automatically generated for most operations, but can be customized in some tools:

Automatic Commit Messages:

create_file: "Create {file_path}"
update_file: "Update {file_path}"
append_file: "Append {file_path}"
delete_file: "Delete {file_path}" (customizable)

Customizable Commit Messages:

delete_file accepts optional commit_message parameter
edit_file accepts optional commit_message parameter
Provide descriptive messages for better version history

Best Practices:

Use clear, descriptive commit messages
Follow conventional commit format when possible
Include ticket/issue numbers for traceability
Describe what changed and why

Examples of Good Commit Messages:

"Update API endpoint URL for production environment"
"Fix authentication bug in login handler - ISSUE-123"
"Add error handling to file upload function"
"Remove deprecated configuration settings"

Protected Branch Behavior:

Direct commits to protected branches (like main) are blocked
Error message: "Cannot commit directly to the {branch} branch"
Solution: Create a feature branch and use merge requests

Q: What should I do about 'Change for file wasn't found in PR' errors?

A: This error occurs when trying to comment on merge request changes for a file that isn't in the MR diff:

Common Causes:

File path doesn't match the path shown in the diff
File wasn't actually changed in the merge request
Incorrect file path format (old_path vs new_path)

Solution Steps:

Get the PR changes first:
- Use get_pr_changes tool with the merge request number
- Review the diff output to see which files changed
- Note the exact file paths as shown in the diff
Verify file path format:
- Check if file was renamed (old_path vs new_path)
- Use exact path from diff output
- Include full path relative to repository root
Check line number:
- line_number parameter is 0-based index from diff
- Count lines in the diff output to find correct index
- Use get_pr_changes output as reference

Example Workflow:

1. Call get_pr_changes with pr_number: 123
2. Review output to find file: "src/api/auth.py"
3. Count lines in diff to find target line index: 15
4. Call create_pr_change_comment:
   - pr_number: 123
   - file_path: "src/api/auth.py"
   - line_number: 15
   - comment: "Consider adding error handling here"

Important Notes:

Always call get_pr_changes before create_pr_change_comment
Line numbers are diff line indices, not file line numbers
Comments can only be added to lines that appear in the diff

Useful ELITEA Resources

How to Use Chat Functionality — Learn interactive GitLab operations in Chat
Create and Edit Agents from Canvas — Quick agent creation for GitLab automation
Create and Edit Toolkits from Canvas — Streamline GitLab toolkit configuration
Create and Edit Pipelines from Canvas — Build automated GitLab workflows
Indexing Overview — Enable semantic search across GitLab repositories
Index Repo Data — Instructions for indexing repository content (applicable to GitLab)

External Resources

GitLab Website — Main GitLab platform and product information
GitLab API Documentation — Official API reference and endpoints
GitLab Personal Access Tokens — Token creation and management documentation
GitLab Help Center — Official GitLab documentation and guides
ELITEA Support — Contact support team for assistance
