ELITEA Toolkit Guide: TestRail Integration

Introduction

Purpose of this Guide

This guide is your definitive resource for integrating and utilizing the TestRail toolkit within ELITEA. It provides a comprehensive, step-by-step walkthrough, from generating a TestRail API key to configuring the toolkit in ELITEA and effectively using it within your Agents. By following this guide, you will unlock the power of automated test management, streamlined testing workflows, and enhanced team collaboration, all directly within the ELITEA platform. This integration empowers you to leverage AI-driven automation to optimize your software testing lifecycle using the combined strengths of ELITEA and TestRail.

Brief Overview of TestRail

TestRail is a comprehensive, web-based test management tool that helps teams of all sizes efficiently organize, manage, and track their software testing efforts. It provides a centralized platform to streamline your testing process, offering features for:

  • Test Case Management: Create, organize, and manage test cases with rich text formatting, attachments, and custom fields. Structure test cases into projects, suites, and sections for easy navigation and maintenance.
  • Test Execution & Tracking: Plan and execute test runs and test plans, track test results in real-time, and assign tests to team members. Get a clear overview of testing progress and identify areas needing attention.
  • Reporting & Metrics: Generate insightful reports and metrics on test coverage, test results, and team performance. Use dashboards and charts to visualize testing progress and identify trends.
  • Integration with Development Tools: Seamlessly integrates with issue trackers like Jira and automation tools, making it a central hub for your testing ecosystem.
  • Customization & Scalability: Adapt TestRail to your specific testing processes with customizable workflows, fields, and templates. Scale TestRail as your team and projects grow.

Integrating TestRail with ELITEA brings these robust test management capabilities directly into your AI-powered workflows. Your ELITEA Agents can then interact with your TestRail instance to automate test-related tasks, enhance testing processes, and improve team collaboration through intelligent automation.

Toolkit's Account Setup and Configuration in TestRail

Integration with ELITEA

The credentials you create in this section will be used when creating your TestRail credential in ELITEA (Step 1 of the integration process).

Account Setup

If you don't have a TestRail account yet, here's how to get started with a free trial:

  1. Visit TestRail Website: Open your web browser and navigate to TestRail's official website.
  2. Start a Free Trial: On the homepage, locate and click the "Free Trial" button.

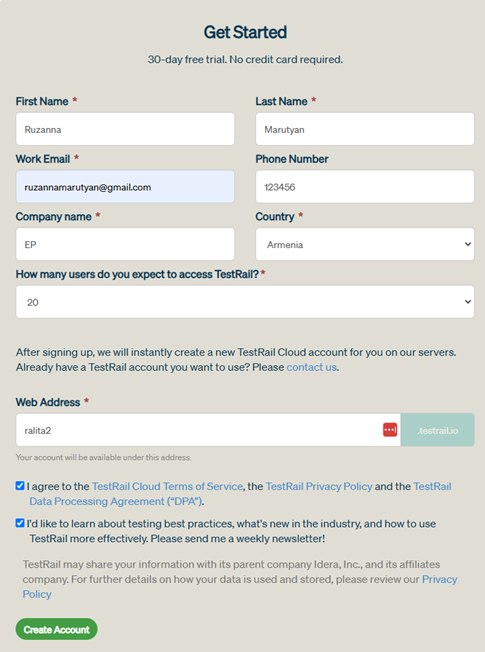

  3. Fill Out the Registration Form: Provide your details in the registration form. This typically includes your name, company email address, company name, and other relevant information. For professional use, it's highly recommended to use your company email.

  4. Submit the Form: Click on the "Start Free Trial" or similar button to submit the form. TestRail will send a confirmation email to the email address you provided.

    TestRail-Account_Form

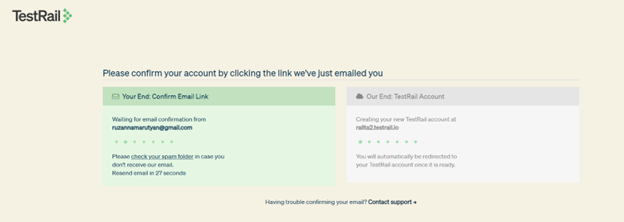

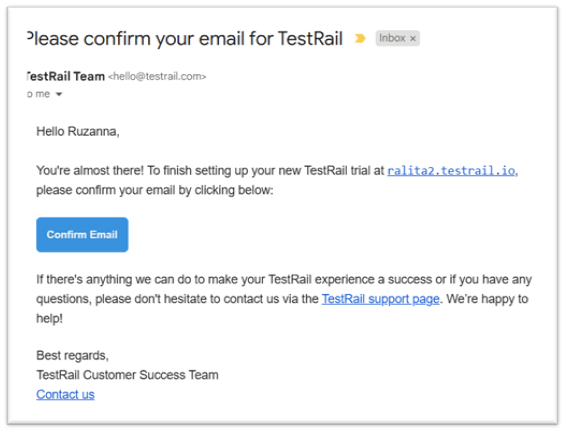

  5. Verify Your Email: Open the confirmation email from TestRail and click on the verification link provided within the email. This step is crucial to activate your TestRail trial account.

    TestRail-Confirm_Your_Account_1

    TestRail-Confirm_Your_Account_2

  6. Access Your Account: After email verification, you will be redirected to your new TestRail instance or prompted to log in. Follow any on-screen instructions to complete the setup and access your TestRail account.

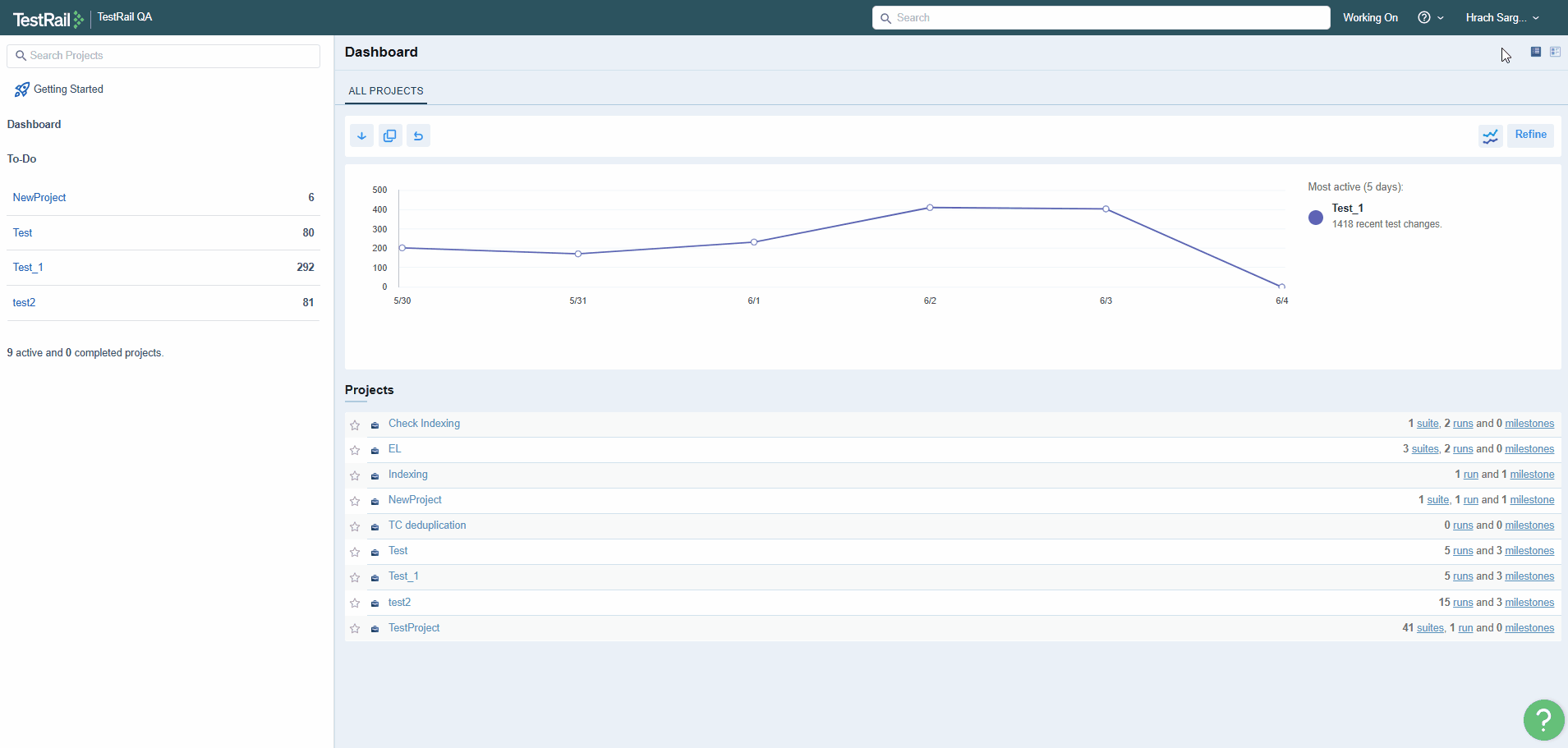

Token/API Key Generation: Creating an API Key in TestRail

To securely integrate TestRail with ELITEA, you need to generate an API key within TestRail. This API key will be used by ELITEA to authenticate and access your TestRail instance.

Follow these steps to create an API Key:

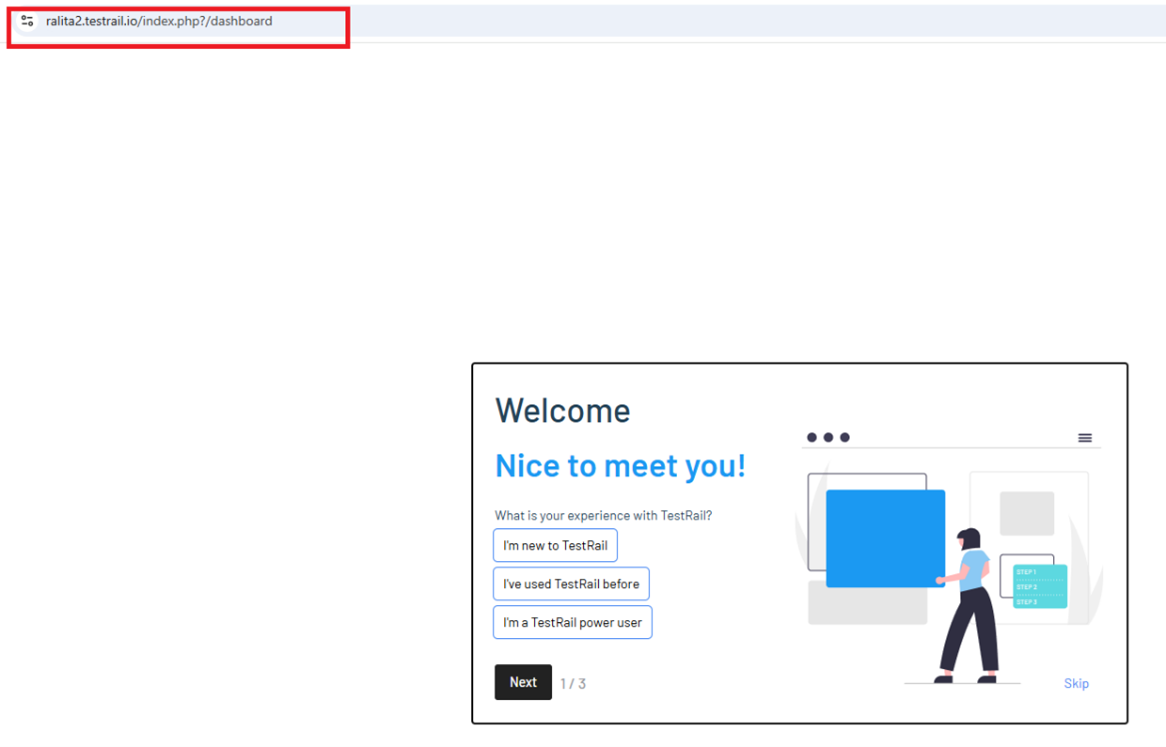

  1. Log in to TestRail: Access your TestRail account using your credentials.

    TestRail-Welcome

  2. Access My Settings: Click on your profile name in the top right corner of the TestRail interface. From the dropdown menu, select "My Settings".

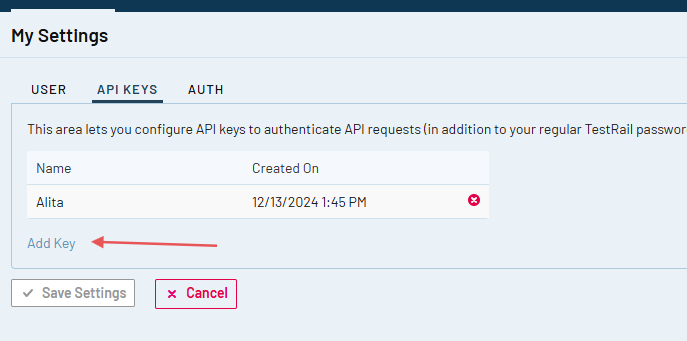

  3. Navigate to API Keys: In the "My Settings" page, find and click on the "API keys" tab.

  4. Add API Key: Click the "Add Key" button to create a new API key.

    TestRail-Add_API_Key

  5. Name the API Key: In the "Name" field, enter a descriptive name for the API key, such as "ELITEA Integration Key". This will help you identify the purpose of this key later.

  6. Generate API Key: Click the "Generate Key" button. TestRail will generate a new API key and display it to you.
  7. Securely Copy and Store Your API Key: Immediately copy the generated API key. This is the only time it will be displayed in full. Store it securely in a password manager or, preferably, ELITEA's built-in Secrets feature for enhanced security within ELITEA. You will need this API key to configure the TestRail toolkit in ELITEA.

System Integration with ELITEA

To integrate TestRail with ELITEA, you need to follow a three-step process: Create Credentials → Create Toolkit → Use in Agents. This workflow ensures secure authentication and proper configuration.

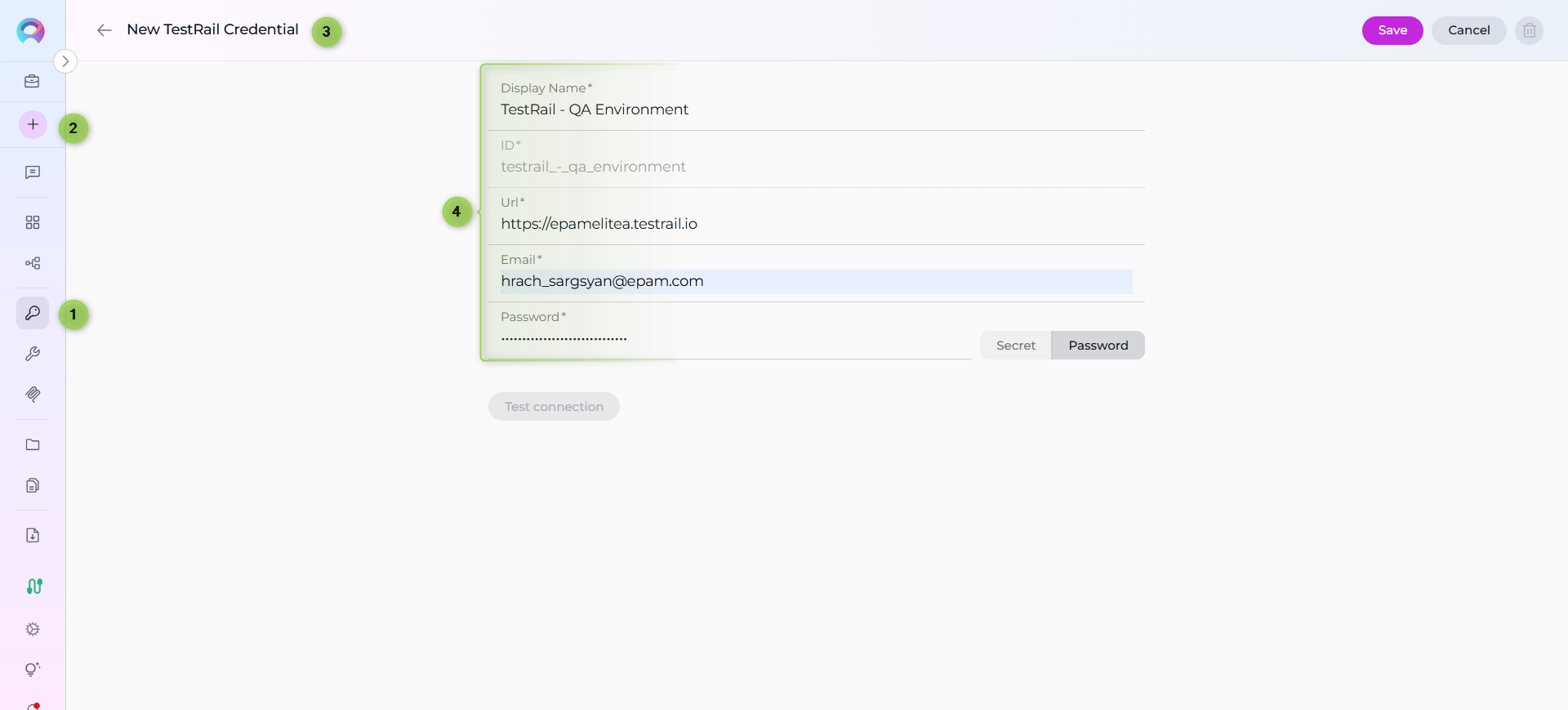

Step 1: Create TestRail Credentials

Before creating a toolkit, you must first create TestRail credentials in ELITEA:

  1. Navigate to Credentials Menu: Open the sidebar and select Credentials.
  2. Create New Credential: Click the + Create button.
  3. Select TestRail: Choose TestRail as the credential type.

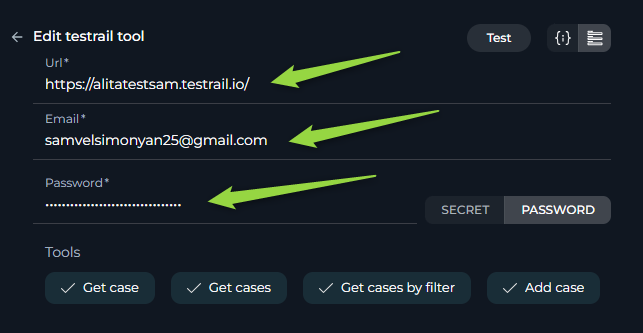

  4. Configure Credential Details:
    • Display Name: Enter a descriptive name (e.g., "TestRail - QA Environment")
    • URL: Enter the URL of your TestRail instance (e.g., https://yourcompany.testrail.io/)
    • Email: Enter the email address associated with your TestRail account
    • Password: Enter your TestRail API key (the one you generated in the previous section)
  5. Shared Credential: Check the Shared checkbox if you want this credential to be accessible by all team members in the current project
  6. Save Credential: Click Save to create the credential

Security Recommendation

It's highly recommended to use Secrets for API keys instead of entering them directly. Create a secret first, then reference it

Credential Create in your credential configuration.

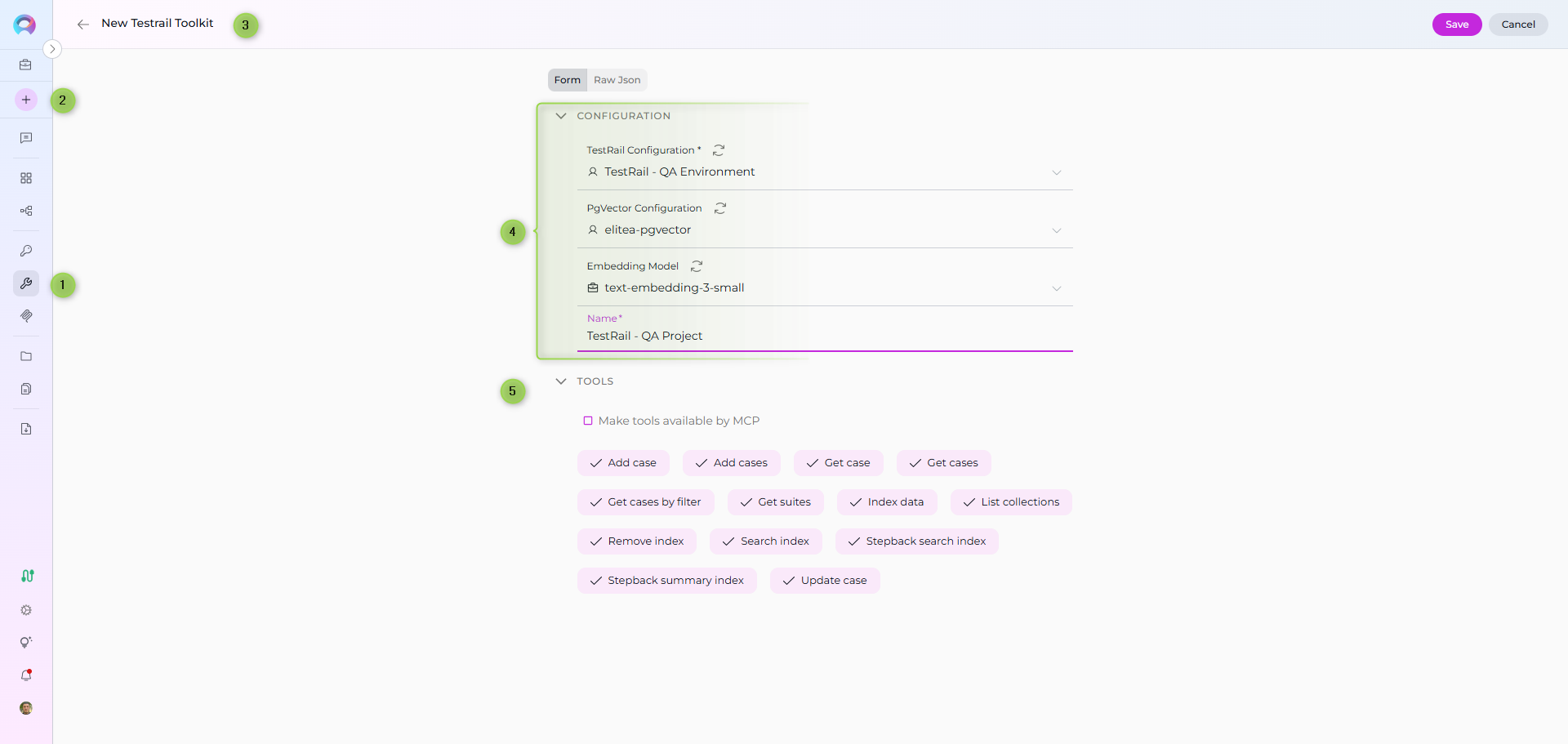

Step 2: Create TestRail Toolkit

Once your credentials are configured, create the TestRail toolkit:

  1. Navigate to Toolkits Menu: Open the sidebar and select Toolkits.
  2. Create New Toolkit: Click the + Create button.
  3. Select TestRail: Choose TestRail from the list of available toolkit types.
  4. Configure Toolkit Details:
    • Name: Enter a descriptive name for your toolkit (e.g., "TestRail - QA Project")
  5. Configure Credentials:
    • In the Configuration section, select your previously created TestRail credential from the Credentials dropdown
  6. Configure Advanced Options (Optional):
    • PgVector Configuration: Select a PgVector connection for vector database integration (required for indexing features)
    • Embedding Model: Select an embedding model for text processing and semantic search capabilities (required for indexing features)
  7. Enable Desired Tools: In the "Tools" section, select the checkboxes next to the specific TestRail tools you want to enable. Enable only the tools your agents will actually use to follow the principle of least privilege
  8. Save Toolkit: Click Save to create the toolkit

Toolkit Create

Available Tools:

The TestRail toolkit provides the following tools for interacting with TestRail test cases and suites, organized by functional categories:

Tool Category Tool Name Description Primary Use Case
Test Case Access
Get case Retrieves information about a single test case from TestRail Access detailed information about a specific test case by its ID
Get cases Extracts a list of test cases in specified format (json, csv, or markdown) Get an overview of all test cases in a project or suite
Get cases by filter Extracts test cases from a specified project based on given case attributes Find test cases matching specific criteria (priority, type, status, etc.)
Test Case Management
Add case Adds a new test case into TestRail per defined parameters Create new test cases programmatically with custom fields and properties
Add cases Adds new test cases into TestRail in bulk Efficiently create multiple test cases at once
Update case Updates an existing test case (partial updates supported) Modify test case details, fields, or properties
Suite Management
Get suites Extracts a list of test suites for a given project from TestRail Retrieve all test suites available in a project
Indexing & Search
Index data Loads TestRail test case data to index for semantic search Enable advanced search and discovery across test cases with AI-powered semantic search
Search index Performs searches across indexed content Find specific test case content across indexed data
Stepback search index Performs advanced contextual searches with broader scope Execute sophisticated searches with expanded context
Stepback summary index Creates comprehensive summaries of indexed content Generate intelligent summaries of test case information
Remove index Removes previously created search indexes Clean up and manage indexed content
List collections Lists available indexed collections View and manage indexed data collections

Step 3: Use TestRail Toolkit in Agents

Once your TestRail toolkit is created, you can use it in various ELITEA features:

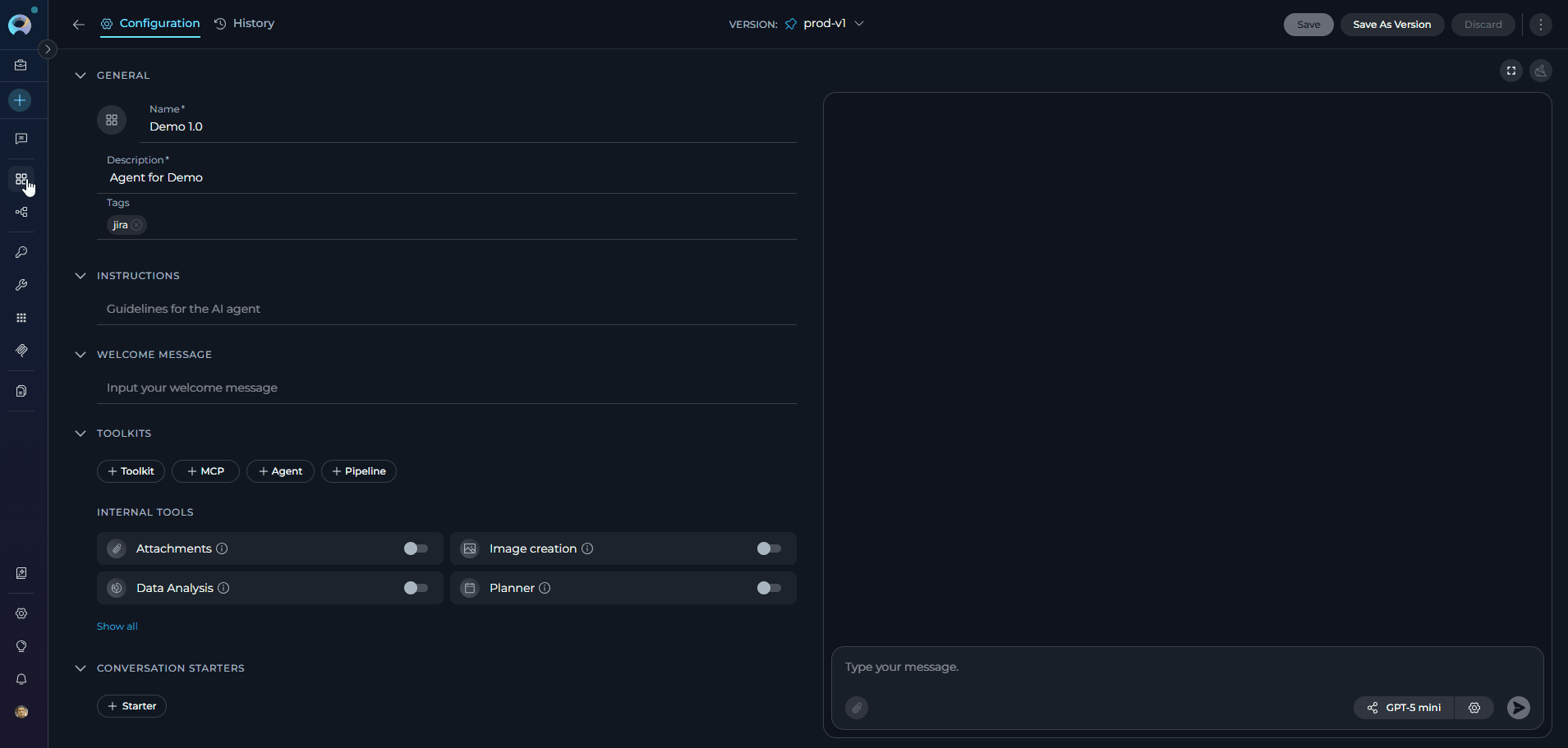

In Agents:

  1. Navigate to Agents: Open the sidebar and select Agents.
  2. Create or Edit Agent: Click + Create for a new agent or select an existing agent to edit.

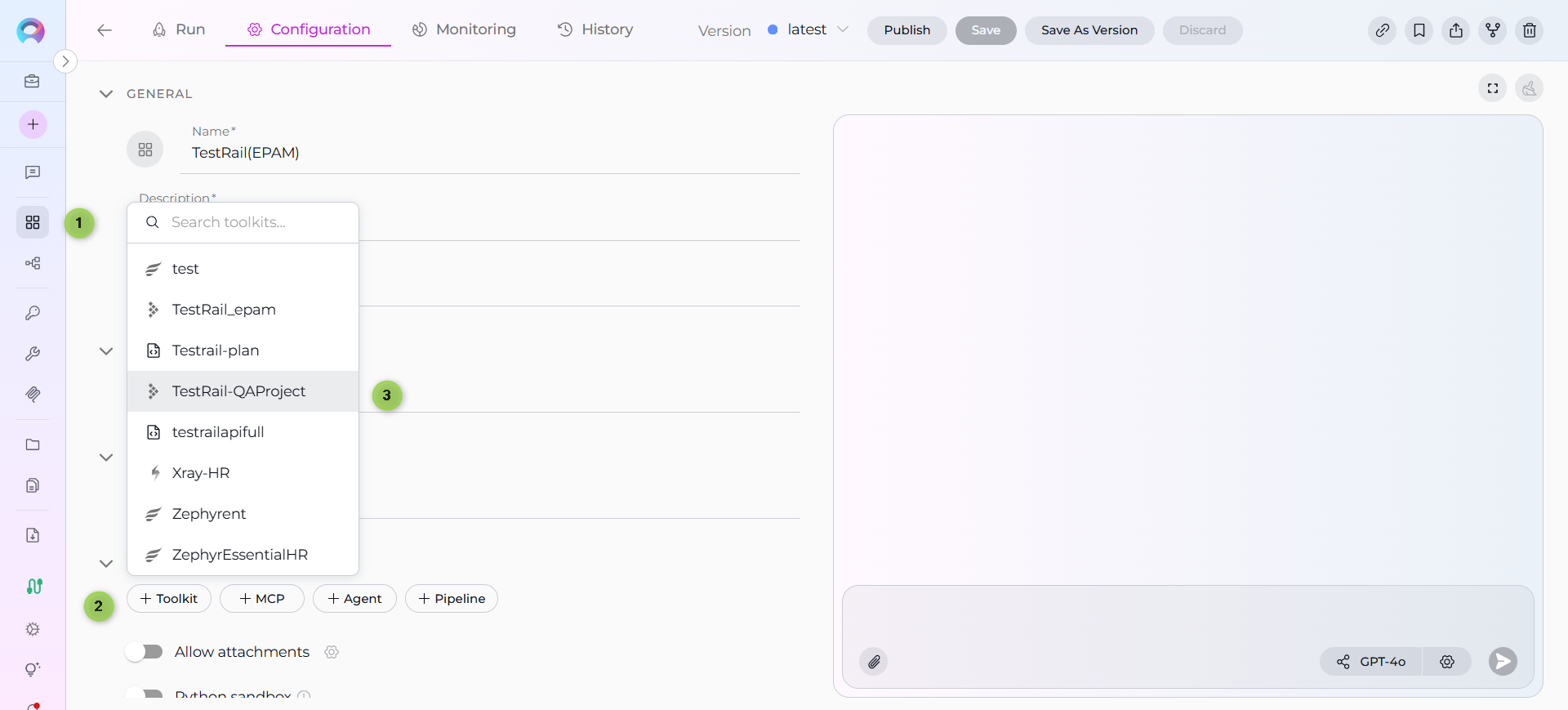

  3. Add TestRail Toolkit:
    • In the "Tools" section of the agent configuration, click the "+Toolkit" icon
    • Select your TestRail toolkit from the dropdown menu
    • The toolkit will be added to your agent with the previously configured tools enabled

Your agent can now interact with TestRail using the configured toolkit and enabled tools.

TestRail Agent

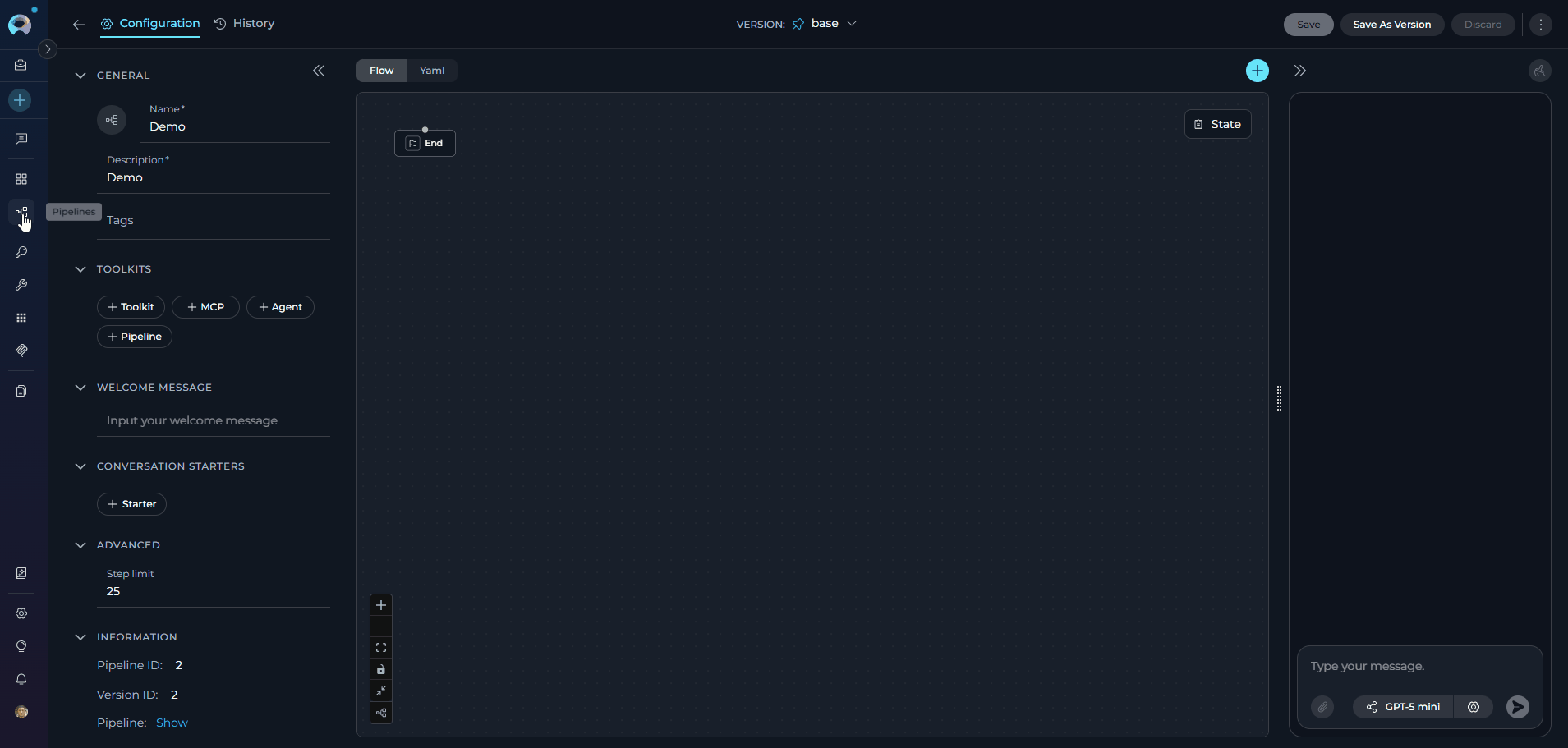

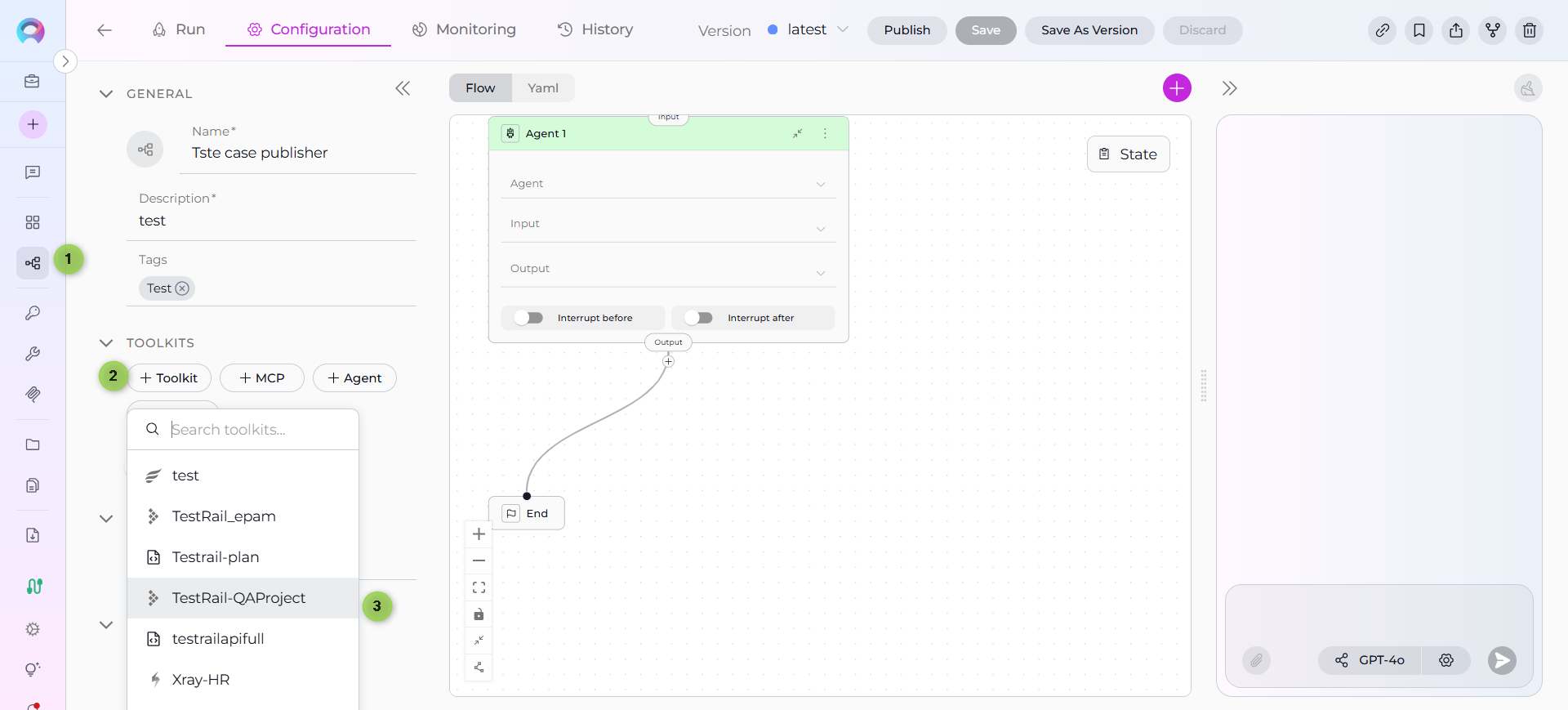

In Pipelines:

  1. Navigate to Pipelines: Open the sidebar and select Pipelines.
  2. Create or Edit Pipeline: Either create a new pipeline or select an existing pipeline to edit.
  3. Add TestRail Toolkit:
    • In the "Tools" section of the pipeline configuration, click the "+Toolkit" icon
    • Select your TestRail toolkit from the dropdown menu
    • The toolkit will be added to your pipeline with the previously configured tools enabled

TestRail Pipeline

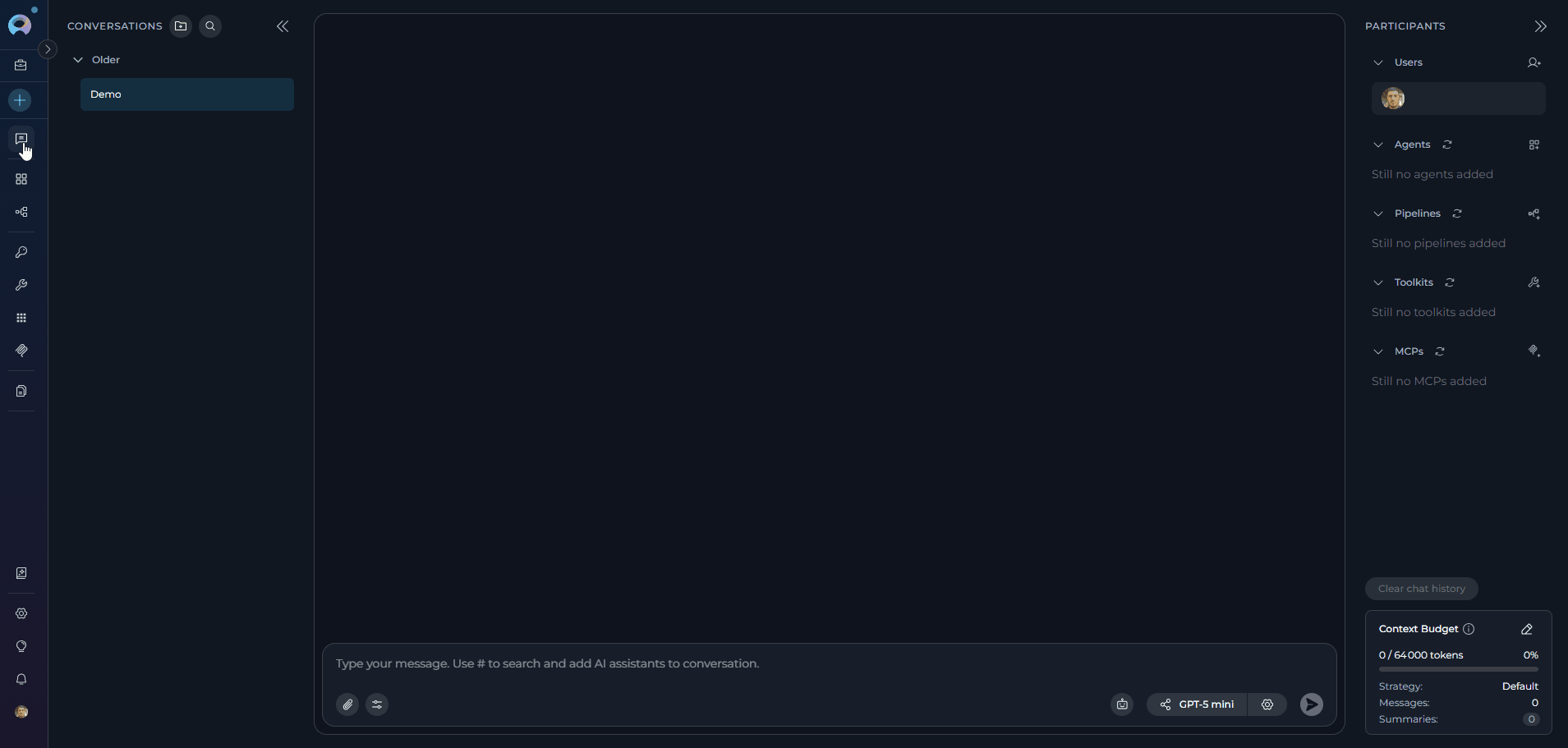

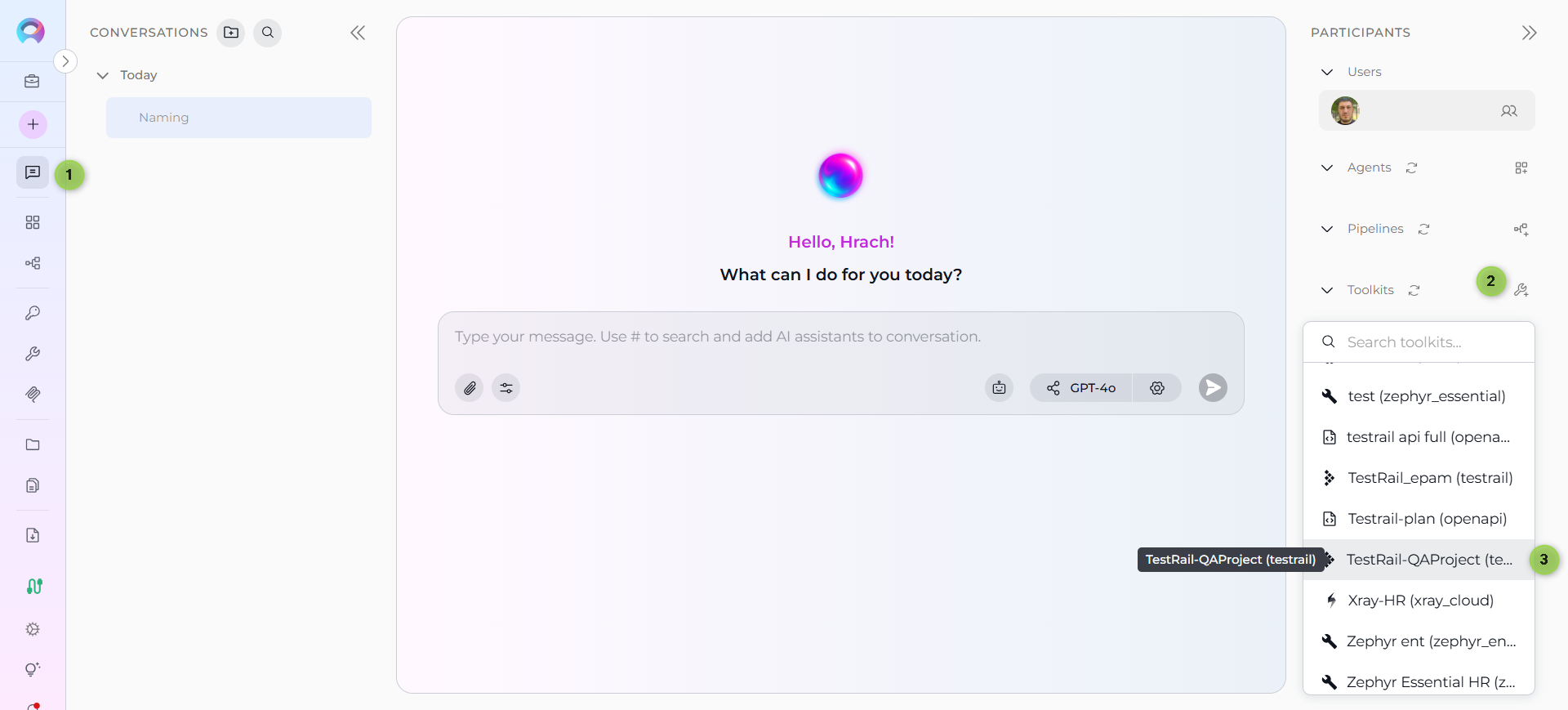

In Chat:

  1. Navigate to Chat: Open the sidebar and select Chat.
  2. Start New Conversation: Click +Create or open an existing conversation.
  3. Add Toolkit to Conversation:
    • In the chat Participants section, look for the Toolkits element
    • Click to add a toolkit and select your TestRail toolkit from the available options
    • The toolkit will be added to your conversation with all previously configured tools enabled
  4. Use Toolkit in Chat: You can now directly interact with your TestRail instance by asking questions or requesting actions that will trigger the TestRail toolkit tools.
    • Example Chat Usage:

TestRail Chat

Instructions and Prompts for Using the TestRail Toolkit

To effectively instruct your ELITEA Agent to use the TestRail toolkit, you need to provide clear and precise instructions within the Agent's "Instructions" field. These instructions are crucial for guiding the Agent on when and how to utilize the available TestRail tools to achieve your desired automation goals.

Instruction Creation for OpenAI Agents

When crafting instructions for the TestRail toolkit, especially for OpenAI-based Agents, clarity and precision are paramount. Break down complex tasks into a sequence of simple, actionable steps. Explicitly define all parameters required for each tool and guide the Agent on how to obtain or determine the values for these parameters. OpenAI Agents respond best to instructions that are:

  • Direct and Action-Oriented: Employ strong action verbs and clear commands to initiate actions. For example, "Use the 'get_case' tool...", "Create a test case named...", "Search for test cases containing...".

  • Parameter-Centric: Clearly enumerate each parameter required by the tool. For each parameter, specify:

    • Its name (exactly as expected by the tool)
    • Its expected data type (string, integer, JSON object, etc.)
    • How the Agent should obtain the value – whether from user input, derived from previous steps in the conversation, retrieved from an external source, or a predefined static value

  • Contextually Rich: Provide sufficient context so the Agent understands the overarching objective and the specific scenario in which each TestRail tool should be applied within the broader workflow. Explain the desired outcome or goal for each tool invocation.

  • Step-by-Step Structure: Organize instructions into a numbered or bulleted list of steps for complex workflows. This helps the Agent follow a logical sequence of actions.

  • Add Conversation Starters: Include example conversation starters that users can use to trigger this functionality. For example, "Conversation Starters: 'Show me test case 123', 'Create a new login test', 'Find all high priority test cases'"

When instructing your Agent to use a TestRail toolkit tool, adhere to this structured pattern:

  1. State the Goal: Begin by clearly stating the objective you want to achieve with this step. For example, "Goal: To retrieve details of test case with ID 123."

  2. Specify the Tool: Clearly indicate the specific TestRail tool to be used for this step. For example, "Tool: Use the 'get_case' tool."

  3. Define Parameters: Provide a detailed list of all parameters required by the selected tool. For each parameter:

  4. Parameter Name: <Parameter Name as defined in tool documentation>

  5. Value or Source: <Specify the value or how to obtain the value. Examples: "user input", "from previous step", "hardcoded value '123'", "value of variable X">

  6. Describe Expected Outcome (Optional but Recommended): Briefly describe the expected result or outcome after the tool is successfully executed. For example, "Outcome: The Agent will display the full details of test case 123."

  7. Add Conversation Starters: Include example conversation starters that users can use to trigger this functionality. For example, "Conversation Starters: 'Show me test case 123', 'Create a new login test', 'Find all high priority test cases'"

Example Agent Instructions

Agent Instructions for Creating a Test Case:

1. Goal: Create a new test case in TestRail based on user requirements.
2. Tool: Use the "add_case" tool.
3. Parameters:
    - section_id: "Ask the user which section the test case should be added to, or use a default section ID from the configuration."
    - title: "Get the test case title from the user. Example: 'Verify login with valid credentials'"
    - case_properties: "Ask the user for test case details including priority, type, steps, and expected results. Format as JSON object."
4. Outcome: A new test case will be created in TestRail with the specified details. Confirm the creation to the user with the test case ID.

Chat Usage Examples by Tool Category

The following examples demonstrate how to interact with the TestRail toolkit in ELITEA Chat, organized by functional categories. Each example shows the user request and the expected agent behavior.

Test Case Access - Get Case

Chat Example:

User: "Show me the details of test case 2260."

Agent Response: [Agent uses get_case tool]

📋 **Test Case #2260 Details**:

- **Title**: Verify user login with valid credentials
- **Section**: Authentication Tests
- **Priority**: High
- **Type**: Functional
- **Status**: Active

**Preconditions**:
- User account exists in the system
- User has valid username and password

**Steps**:
1. Navigate to the login page
2. Enter valid username
3. Enter valid password
4. Click the Login button

**Expected Result**:
User is successfully authenticated and redirected to the dashboard

This test case validates the core authentication functionality of the application.

Test Case Access - Get Cases by Filter

Chat Example:

User: "Find all high-priority test cases in project 1 that are related to the login feature."

Agent Response: [Agent uses get_cases_by_filter tool]

🔍 **High-Priority Test Cases Found** (5 cases):

1. **TC-101**: Verify login with valid credentials
   - **Priority**: High
   - **Type**: Functional
   - **Status**: Active

2. **TC-102**: Verify login with invalid password
   - **Priority**: High
   - **Type**: Negative
   - **Status**: Active

3. **TC-103**: Verify login session timeout
   - **Priority**: High
   - **Type**: Functional
   - **Status**: Active

4. **TC-104**: Verify password reset functionality
   - **Priority**: High
   - **Type**: Functional
   - **Status**: Active

5. **TC-105**: Verify multi-factor authentication
   - **Priority**: High
   - **Type**: Security
   - **Status**: Active

These test cases cover critical authentication scenarios that should be prioritized in testing cycles.

Test Case Management - Add Case

Chat Example:

User: "Create a new test case for verifying the password reset functionality in section 5."

Agent Response: [Agent uses add_case tool]

✅ **Test Case Created Successfully!**

- **Test Case ID**: #2305
- **Title**: Verify password reset functionality
- **Section**: Authentication Tests (Section 5)
- **Priority**: Medium
- **Type**: Functional
- **Status**: Active

**Created with the following details**:
- **Preconditions**: User has a registered account with verified email
- **Steps**:
  1. Click "Forgot Password" link on login page
  2. Enter registered email address
  3. Click "Send Reset Link" button
  4. Check email for password reset link
  5. Click the reset link
  6. Enter new password
  7. Confirm new password
  8. Submit the form
- **Expected Result**: Password is successfully reset and user can login with the new password

The test case is now available in TestRail and ready for execution.

Test Case Management - Update Case

Chat Example:

User: "Update test case 123 to set its priority to Critical."

Agent Response: [Agent uses update_case tool]

✅ **Test Case Updated Successfully!**

- **Test Case ID**: #123
- **Updated Field**: Priority
- **New Value**: Critical (Priority ID: 1)
- **Previous Value**: High

The test case priority has been elevated to Critical. This change will be reflected in all test runs and reports.

Suite Management - Get Suites

Chat Example:

User: "Show me all test suites available in project 1."

Agent Response: [Agent uses get_suites tool]

📚 **Test Suites in Project 1** (4 suites):

1. **Suite #1**: Authentication & Authorization
   - **Description**: Test cases for login, logout, password management, and user permissions
   - **Test Cases**: 45

2. **Suite #2**: User Profile Management
   - **Description**: Test cases for user profile creation, editing, and deletion
   - **Test Cases**: 32

3. **Suite #3**: Data Validation & Input
   - **Description**: Test cases for form validation and data input scenarios
   - **Test Cases**: 28

4. **Suite #4**: Performance & Load Testing
   - **Description**: Test cases for system performance under various load conditions
   - **Test Cases**: 15

**Total Test Cases**: 120

These suites organize the test cases by functional area for better management and execution planning.

Indexing & Search - Search Index

Chat Example:

User: "Search for test cases related to 'password authentication and security'."

Agent Response: [Agent uses search_index tool]

🔎 **Search Results for "password authentication and security"** (Top 5 matches):

1. **TC-2260** (Relevance: 95%): Verify user login with valid credentials
   - Covers password-based authentication flow
   - Section: Authentication Tests

2. **TC-2261** (Relevance: 92%): Verify password complexity requirements
   - Tests security policies for password creation
   - Section: Security Tests

3. **TC-2262** (Relevance: 88%): Verify password reset functionality
   - Tests secure password recovery process
   - Section: Authentication Tests

4. **TC-2263** (Relevance: 85%): Verify password encryption in database
   - Validates password security at storage level
   - Section: Security Tests

5. **TC-2264** (Relevance: 82%): Verify account lockout after failed login attempts
   - Tests security mechanism against brute force attacks
   - Section: Security Tests

These test cases cover various aspects of password authentication and security. Would you like details on any specific test case?

Use Cases

The TestRail toolkit unlocks numerous automation possibilities for software testing workflows within ELITEA. Here are some key use cases:

  • Automated Test Case Review:

    • Scenario: Quickly review details of specific test cases without opening TestRail interface
    • Tools Used: get_case
    • Benefit: Saves time and allows for faster decision-making during test reviews

  • Test Coverage Analysis:

    • Scenario: Get comprehensive overview of test cases across projects and analyze coverage
    • Tools Used: get_cases, get_cases_by_filter, get_suites
    • Benefit: Provides insights into testing scope and identifies coverage gaps

  • Automated Test Case Creation:

    • Scenario: Generate test cases automatically from requirements, user stories, or technical specifications
    • Tools Used: add_case, add_cases
    • Benefit: Reduces manual effort, ensures consistency, and accelerates test case development

  • Test Case Maintenance:

    • Scenario: Bulk update test case properties based on project changes or process improvements
    • Tools Used: update_case
    • Benefit: Keeps test cases up-to-date efficiently across large test suites

  • Priority-Based Test Selection:

    • Scenario: Identify and retrieve high-priority or failed test cases for focused testing efforts
    • Tools Used: get_cases_by_filter
    • Benefit: Enables targeted testing and efficient resource allocation

  • Semantic Test Case Discovery:

    • Scenario: Use AI-powered semantic search to find relevant test cases based on natural language queries
    • Tools Used: index_data, search_index, stepback_search_index
    • Benefit: Improves test case discoverability and enables intelligent test recommendations

  • Test Documentation Generation:

    • Scenario: Export test cases in various formats for documentation or reporting purposes
    • Tools Used: get_cases with different output formats (json, csv, markdown)
    • Benefit: Automates documentation creation and supports various reporting needs

Troubleshooting and Support

Troubleshooting

  • Connection Issues:

    • Problem: Agent fails to connect to TestRail
    • Troubleshooting Steps:
      1. Verify TestRail URL is correct (e.g., https://yourcompany.testrail.io/)
      2. Check that Email and API Key are accurate
      3. Regenerate API key in TestRail if needed
      4. Verify network connectivity between ELITEA and TestRail

  • Authorization Errors:

    • Problem: "Permission Denied" or "Unauthorized" errors
    • Troubleshooting Steps:
      1. Ensure API key is valid and not revoked
      2. Verify the TestRail account has necessary permissions (read, write, admin)
      3. Check project-level permissions in TestRail

  • Invalid Project or Section IDs:

    • Problem: Cannot find specified project, suite, or section
    • Troubleshooting Steps:
      1. Verify IDs by checking TestRail URLs (IDs are typically visible in the URL)
      2. Ensure the suite_id is provided for projects in multiple suite mode
      3. Confirm section exists within the specified project/suite

  • Indexing Failures:

    • Problem: Index data tool fails or indexing takes too long
    • Troubleshooting Steps:
      1. Verify PgVector configuration is correctly set up
      2. Ensure embedding model is selected
      3. Check that project has accessible test cases
      4. Try indexing smaller datasets first (use suite_id or section_id filters)

FAQ

  1. Q: Can I use my regular TestRail password instead of an API Key?

    • A: No, you must use a TestRail API Key for secure integration. Regular passwords are not supported.

  2. Q: Where do I find Project IDs, Suite IDs, and Section IDs?

    • A: These IDs are typically visible in the URL when navigating in TestRail. For example, /projects/overview/1 shows project ID 1. You can also use TestRail's API to query these IDs.

  3. Q: What are the priority_id and type_id values for my TestRail instance?

    • A: These IDs vary by TestRail instance. Check your TestRail configuration or contact your TestRail administrator. Common values: Priority (1=High, 2=Medium, 3=Low), but verify for your instance.

  4. Q: How do I know which template_id to use when creating test cases?

    • A: Template IDs depend on your TestRail configuration. Template 1 typically uses simple text steps (custom_steps), while template 2 uses separated steps (custom_steps_separated). Check your TestRail templates settings.

  5. Q: Can I index test case attachments?

    • A: Yes, set include_attachments: true in the index_data tool parameters. Note that this requires additional processing time and storage.

  6. Q: What's the difference between single suite and multiple suite modes?

    • A: TestRail projects can operate in single suite mode (all test cases in one suite) or multiple suite mode (test cases organized across multiple suites). For multiple suite projects, you must specify suite_id when retrieving or creating test cases.

Support Contact

For issues, questions, or assistance with TestRail integration, contact the ELITEA Support Team:

Email: SupportAlita@epam.com

When contacting support, please include: * ELITEA environment name * Project name and workspace type (Private/Team) * Detailed description of the issue * Agent instructions (screenshot or text) * Toolkit configuration (screenshot) * Complete error messages * Exact query or prompt used

Useful Links
