Updating LLM Nodes in Pipelines

Overview

The LLM node structure has been updated with a new configuration format. If you have existing pipelines created before this change, you'll need to manually update each LLM node to continue using them without errors.

What changed:

  • Old LLM nodes used a single Prompt field
  • New LLM nodes require separate System and Task fields
  • The UI has been redesigned with dedicated sections for each parameter

What you need to do:

  • Open your pipeline and manually update each LLM node to the new format
  • Add values for the new required fields: System and Task
  • Save your pipeline after updating

Visual Comparison

Old LLM Node (No longer supported)

The previous LLM node configuration had a simpler structure with just a Prompt field:

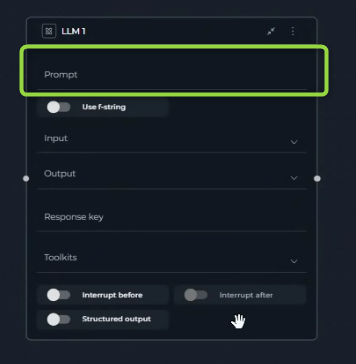

Old LLM Node

New LLM Node (Current format)

The updated LLM node now requires System and Task fields:

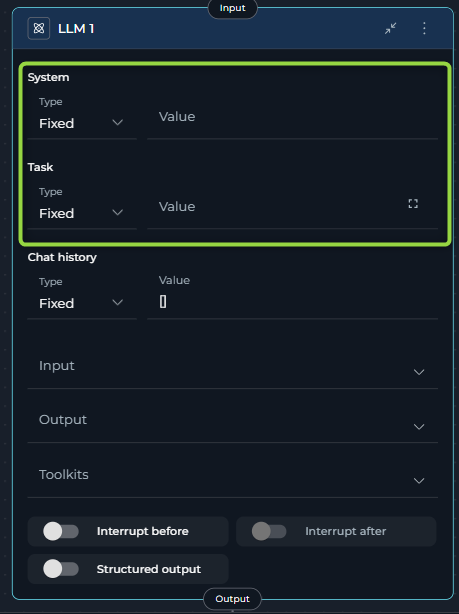

New LLM Node

Symptoms

If you have an existing pipeline with LLM nodes created before this update, you may experience:

  • Pipeline fails to load or execute
  • LLM node shows configuration issues
  • Errors when trying to run the pipeline

Solution

Follow these steps to update your LLM nodes manually:

Step 1: Open Your Pipeline

  1. Navigate to Pipelines in the main menu
  2. Find and click on the pipeline that's experiencing issues
  3. Click the Configuration tab
  4. Select the Flow tab to view the pipeline flow diagram

Step 2: Update the LLM Node

  1. Click on the LLM node in the flow diagram to open its configuration panel
  2. You'll see three input fields:
    • System: Enter your system prompt (instructions for the AI's behavior and role)
    • Task: Enter the specific task or user query
    • Chat History: Optional conversation history (can be left empty)
  3. Fill in the required fields:
    • System: Add the system-level instructions (e.g., "You are a helpful assistant that...")
    • Task: Add the user task or prompt (e.g., "Analyze the provided code and suggest improvements")
  4. Click Save in the configuration panel

Step 3: Test the Pipeline

Run your pipeline to verify the LLM node works correctly with the new configuration.

Tips

Migrating Your Old Prompt

If you need to retrieve your old prompt content:

  • In the pipeline Configuration tab, switch to the YAML tab
  • Look for your LLM node in the YAML structure
  • Find the old prompt content to help you fill in the new System and Task fields

If your old LLM node had a single prompt, you can split it:

  • Move system-level instructions to the System field
  • Move the specific task/query to the Task field

Using Variables

You can still use variables in these fields by clicking the variable icon next to each input field and selecting from your pipeline variables.
