Migrating from Function Node to Toolkit/MCP/Agent Nodes

Overview

The Function Node has been deprecated and is no longer available for creation in new pipelines starting from version 2.0.0 B2. While existing Function nodes in your pipelines will continue to function, we strongly recommend migrating to Toolkit, MCP, or Agent nodes to take advantage of improved functionality and ensure long-term compatibility.

Deprecation Notice

The Function Node is deprecated starting from release 2.0.1 and will be removed in a future release. Since version 2.0.0 B2, users can no longer create new Function nodes. Existing Function nodes in your pipelines will continue to function, but they display a warning icon with "Deprecated!" text in the node header and show a tooltip when hovered. Plan your migration accordingly.

What changed:

  • Function Node is now deprecated and displays a warning icon with "Deprecated!" text in the node header
  • Creating new Function nodes is no longer possible through the Add Node menu
  • Existing Function nodes continue to function but should be migrated
  • Toolkit Node, MCP Node, and Agent Node are the recommended replacements
  • Hovering over the warning icon shows a tooltip with migration guidance

How to Identify Deprecated Function Nodes

Deprecated Function nodes are visually marked in the pipeline editor:

  • Warning Icon: A yellow/orange warning triangle icon appears in the node header
  • "Deprecated!" Text: Text next to the icon clearly indicates the deprecation status
  • Tooltip: Hovering over the warning area shows: "This node is deprecated and will be removed in a future version. View Migration Guide" with a link to this guide

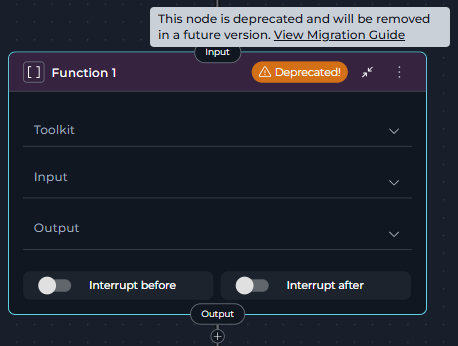

Deprecated Function Node

No Automatic Migration

There is no automatic migration from Function Nodes to Toolkit/MCP/Agent Nodes. You must manually replace Function Nodes in your existing pipelines following the steps in this guide.

What you need to do:

  • Review pipelines containing Function nodes
  • Choose the appropriate replacement: Toolkit, MCP, or Agent node
  • Follow migration steps to update your workflow
  • Test the migrated pipeline thoroughly

Why This Change Was Made

The Function Node has been deprecated in favor of more specialized and capable node types:

  • Toolkit Node: Provides enhanced functionality for executing toolkit tools with structured output support and better configuration options
  • MCP Node: Dedicated node for Model Context Protocol servers with specialized MCP tool handling
  • Agent Node: Enables execution of AI agents with task-based instructions and enhanced capabilities

These replacement nodes provide clearer semantics, better maintainability, and enhanced functionality for different execution scenarios.

Migration Options

You have three supported replacements, each suited for different use cases:

Toolkit Node

For Standard Toolkit Operations

Toolkit Node is the recommended replacement when your Function node executes tools from standard ELITEA toolkits (Jira, GitHub, Confluence, etc.).

Choose Toolkit when:

  • Your Function node uses tools from ELITEA toolkits
  • You need structured output support
  • You want enhanced configuration options for toolkit execution
  • You're working with external service integrations

Best for: External API calls, service integrations, toolkit-based operations

Key Advantages:

  • Full functionality coverage of deprecated Function Node for toolkits
  • Structured output configuration support
  • Enhanced input/output mapping capabilities
  • Better toolkit tool management

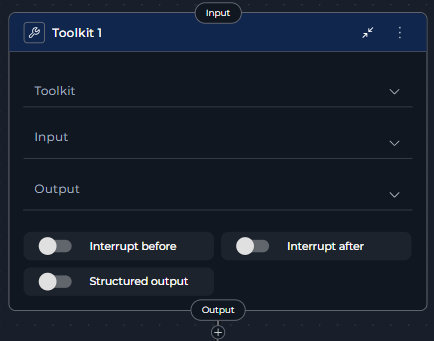

Toolkit Node

MCP Node

For Model Context Protocol Servers

MCP Node is the recommended replacement when your Function node executes tools from MCP servers.

Choose MCP when:

  • Your Function node uses MCP server tools
  • You're working with Model Context Protocol integrations
  • You need MCP-specific tool filtering and configuration
  • You want dedicated MCP server support

Best for: MCP server integrations, Model Context Protocol operations

Key Advantages:

  • Dedicated MCP server support
  • MCP-specific tool filtering
  • Enhanced MCP tool discovery
  • Structured output for MCP operations

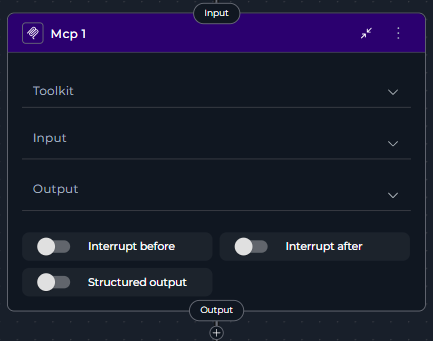

MCP Node

Agent Node

For AI Agent Execution

Agent Node is the recommended replacement when your Function node's logic can be better expressed as AI agent tasks or when you need intelligent decision-making.

Choose Agent when:

  • Your Function node's behavior can be delegated to an AI agent
  • You need intelligent task execution with natural language instructions
  • You want to leverage pre-configured agents with specialized capabilities
  • Your workflow requires LLM-based decision making

Best for: AI-driven tasks, intelligent workflows, agent orchestration

Key Advantages:

  • Natural language task instructions
  • Access to pre-configured agents
  • Enhanced AI capabilities
  • Flexible input mapping with task and chat_history support

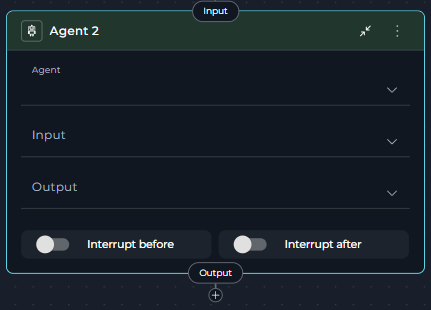

Agent Node

Migration Steps: Function → Toolkit

Follow these steps to migrate a Function node that uses toolkit tools to a Toolkit node:

Step 1: Review the Existing Function Node

  1. Navigate to Pipelines in the main menu
  2. Open the pipeline containing the Function node
  3. Click the Configuration tab
  4. Select the Flow tab to view the pipeline flow diagram
  5. Locate the Function node - it will display with a warning icon and "Deprecated!" text in the node header
  6. Click on the Function node to open its configuration panel
  7. Review its current configuration:
    • Toolkit: Note which toolkit is selected (e.g., "confluence_toolkit")
    • Tool: Note which specific tool is selected (e.g., "read_page_by_id")
    • Input: Review input state variables
    • Output: Review output state variables
    • Input Mapping: Document all parameter mappings
    • Interrupt Settings: Note any interrupt configurations

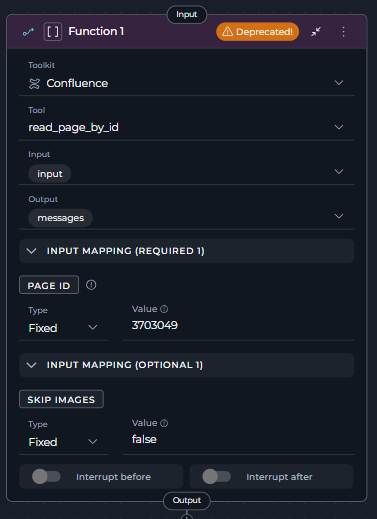

Function Node

Step 2: Add a Toolkit Node

  1. In the same Flow tab, click the Add Node button (+ icon)
  2. Select Toolkit from the node menu under Execution Nodes
  3. The new Toolkit node will appear on the canvas
  4. Position it near the deprecated Function node for easy comparison

Step 3: Configure the Toolkit Node

Configure the Toolkit node with the same toolkit and tool as your Function node:

  1. Click on the Toolkit node to open its configuration panel
  2. Set the Toolkit field:
    • Select the same toolkit that was selected in the Function node
    • Example: Select "confluence_toolkit" from the dropdown
  3. Set the Tool field:
    • After selecting the toolkit, the Tool dropdown will appear
    • Select the same tool that was used in the Function node
    • Example: Select "read_page_by_id"
  4. Configure Input:
    • Select the same input state variables that were used in the Function node
    • Example: If Function node had page_id, input, select those same variables
  5. Configure Output:
    • Select the same output state variables that were used in the Function node
    • Example: If Function node output to page_content, messages, configure the same
  6. Set up Input Mapping:
    • Recreate all parameter mappings from the Function node
    • The Input Mapping section displays parameters required by the selected tool
    • For each parameter, configure the same type and value as in the Function node:
      • Variable: Direct state reference (e.g., page_id)
      • F-String: Formatted string with variables (e.g., Page ID: {confluence_page_id})
      • Fixed: Static value (e.g., 123456789)
  7. Configure Structured Output (if needed):
    • Toolkit nodes support structured output configuration (Function nodes did not)
    • Enable if you want to enforce a specific output schema
  8. Configure Interrupt Settings:
    • Copy interrupt before/after settings from the Function node
    • Example: Enable "Interrupt after" if it was enabled in the Function node

Step 4: Reconnect the Workflow

  1. Disconnect the incoming connection to the Function node:
    • Click on the edge connecting to the Function node
    • Press Delete or click the remove icon
  2. Connect the Toolkit node:
    • Drag a connection from the previous node to the Toolkit node's input handle
    • Example: Connect from "Data Input Node" to the new Toolkit node
  3. Connect the Toolkit outputs:
    • Drag a connection from the Toolkit node's output handle to the next node in the workflow
    • Example: Connect to "Results Processor Node"
  4. Verify all connections match the original Function node's flow

Before Migration:

Function Node → END

state:
  input:
    type: str
  messages:
    type: list
entry_point: Function 1
interrupt_after: []
nodes:
  - id: Function 1
    type: function
    input:
      - input
    input_mapping:
      page_id:
        type: fixed
        value: '3703049'
      skip_images:
        type: fixed
        value: false
    output:
      - messages
    structured_output: false
    tool: read_page_by_id
    toolkit_name: Confluence
    transition: END

After Migration:

Toolkit Node → END

state:
  input:
    type: str
  messages:
    type: list
entry_point: Toolkit 1
interrupt_after: []
nodes:
  - id: Toolkit 1
    type: toolkit
    input:
      - input
    input_mapping:
      page_id:
        type: fixed
        value: '3703049'
      skip_images:
        type: fixed
        value: false
    output:
      - messages
    structured_output: false
    tool: read_page_by_id
    toolkit_name: Confluence
    transition: END

Step 5: Remove the Deprecated Function Node

  1. Click on the Function node to select it
  2. Click the Delete icon (trash can) or press Delete key
  3. Confirm the deletion
  4. The Function node is now removed from the pipeline

Step 6: Save and Test

  1. Click Save to save the pipeline configuration
  2. Navigate to the Execution tab
  3. Run the pipeline with test inputs
  4. Verify that:
    • The Toolkit node executes the same tool as before
    • Input/output handling works correctly
    • All parameter mappings function as expected
    • All workflow connections function properly

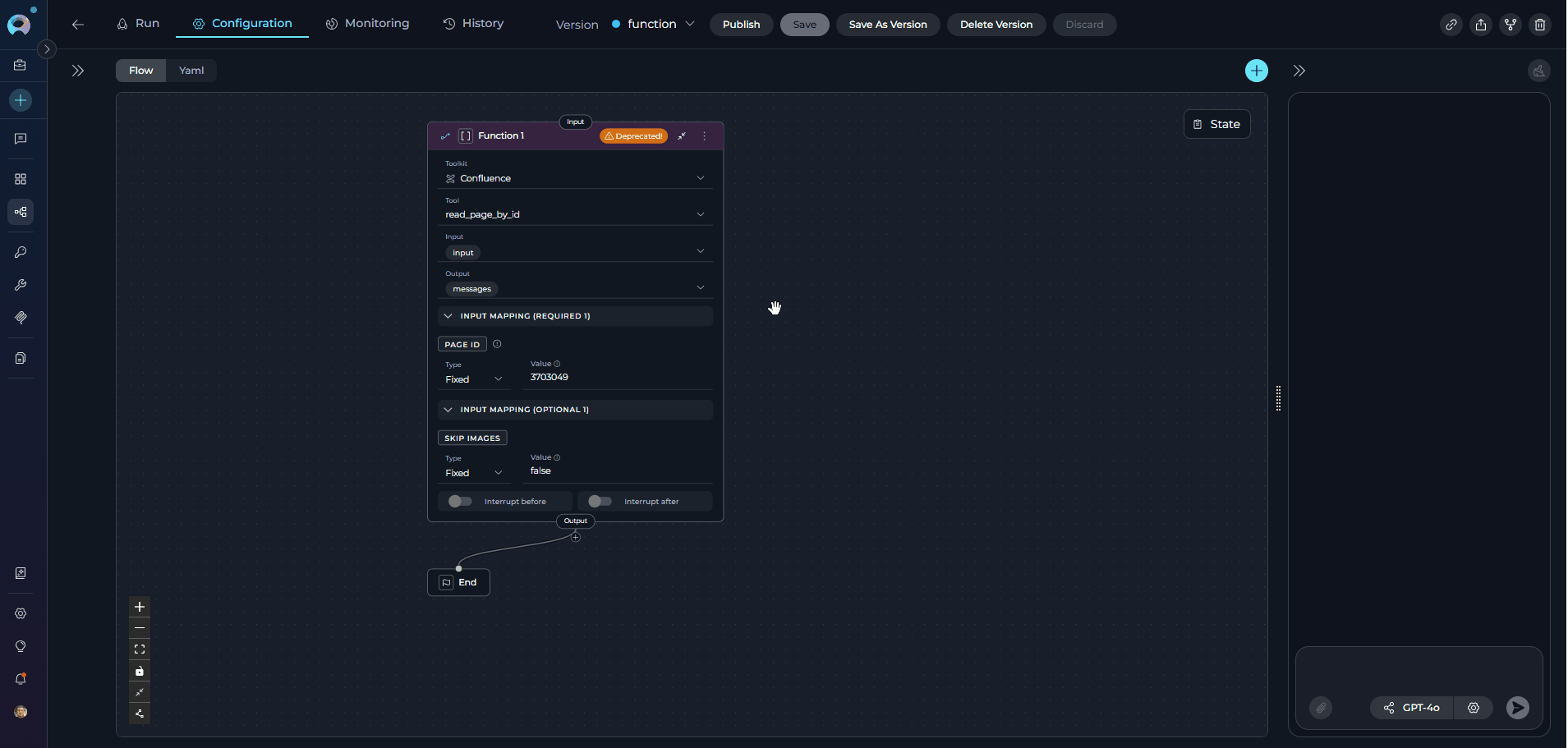

Function to Toolkit Migration

Migration Steps: Function → MCP

Follow these steps to migrate a Function node that uses MCP server tools to an MCP node:

Step 1: Review the Existing Function Node

  1. Navigate to Pipelines in the main menu
  2. Open the pipeline containing the Function node
  3. Click the Configuration tab
  4. Select the Flow tab to view the pipeline flow diagram
  5. Locate the Function node using an MCP server tool - it will display with a warning icon and "Deprecated!" text in the node header
  6. Click on the Function node to open its configuration panel
  7. Review its current configuration:
    • Toolkit: Note which MCP server is selected (e.g., "GitHub MCP")
    • Tool: Note which specific MCP tool is selected (e.g., "get_file_contents")
    • Input: Review input state variables
    • Output: Review output state variables
    • Input Mapping: Document all parameter mappings
    • Interrupt Settings: Note any interrupt configurations

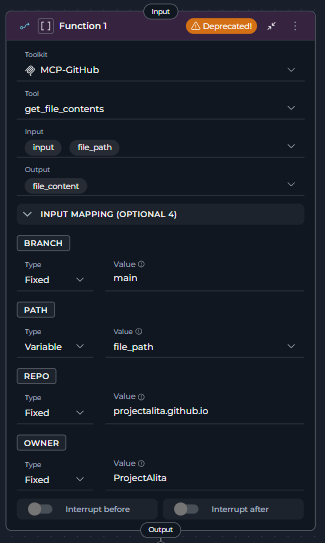

Function Node (MCP)

Step 2: Add an MCP Node

  1. In the same Flow tab, click the Add Node button (+ icon)
  2. Select MCP from the node menu under Execution Nodes
  3. The new MCP node will appear on the canvas
  4. Position it near the deprecated Function node for easy comparison

Step 3: Configure the MCP Node

Configure the MCP node with the same MCP server and tool as your Function node:

  1. Click on the MCP node to open its configuration panel
  2. Set the Toolkit field:
    • Select the same MCP server that was selected in the Function node
    • MCP servers appear in the toolkit dropdown with "(MCP)" suffix
    • Example: Select "GitHub MCP" from the dropdown
  3. Set the Tool field:
    • After selecting the MCP server, the Tool dropdown will appear
    • Select the same MCP tool that was used in the Function node
    • Example: Select "get_file_contents" from available MCP tools
  4. Configure Input:
    • Select the same input state variables that were used in the Function node
    • Example: If Function node had owner, repo, path, select those same variables
  5. Configure Output:
    • Select the same output state variables that were used in the Function node
    • Example: If Function node output to file_content, messages, configure the same
  6. Set up Input Mapping:
    • Recreate all MCP tool parameter mappings from the Function node
    • The Input Mapping section displays MCP tool parameters
    • For each parameter, configure the same type and value as in the Function node:
      • Variable: Direct state reference (e.g., owner, repo, path)
      • F-String: Formatted string with variables (e.g., {repo_owner}/{repo_name})
      • Fixed: Static value (e.g., ProjectAlita for owner, projectalita.github.io for repo)
  7. Configure Structured Output (if needed):
    • MCP nodes support structured output configuration (Function nodes did not)
    • Enable if you want to enforce a specific output schema for MCP responses
  8. Configure Interrupt Settings:
    • Copy interrupt before/after settings from the Function node
    • Example: Enable "Interrupt after" if it was enabled in the Function node

Step 4: Reconnect the Workflow

  1. Disconnect the incoming connection to the Function node:
    • Click on the edge connecting to the Function node
    • Press Delete
  2. Connect the MCP node:
    • Drag a connection from the previous node to the MCP node's input handle
    • Example: Connect from "Repository Input Node" to the new MCP node
  3. Connect the MCP outputs:
    • Drag a connection from the MCP node's output handle to the next node in the workflow
    • Example: Connect to "Content Processor Node"
  4. Verify all connections match the original Function node's flow

Before Migration:

Function Node (MCP) → END

state:
  file_content:
    type: str
    value: ''
  file_path:
    type: str
    value: ''
  input:
    type: str
  messages:
    type: list
entry_point: Function 1
interrupt_after: []
nodes:
  - id: Function 1
    type: function
    input:
      - input
      - file_path
    input_mapping:
      branch:
        type: fixed
        value: main
      owner:
        type: fixed
        value: ProjectAlita
      path:
        type: variable
        value: file_path
      repo:
        type: fixed
        value: projectalita.github.io
    output:
      - messages
      - file_content
    structured_output: false
    tool: get_file_contents
    toolkit_name: MCP-GitHub
    transition: END

After Migration:

MCP Node → END

state:
  file_content:
    type: str
    value: ''
  file_path:
    type: str
    value: tests.md
  input:
    type: str
  messages:
    type: list
entry_point: Mcp 1
interrupt_after: []
nodes:
  - id: Mcp 1
    type: mcp
    input:
      - input
    input_mapping:
      branch:
        type: fixed
        value: main
      owner:
        type: fixed
        value: ProjectAlita
      path:
        type: variable
        value: file_path
      repo:
        type: fixed
        value: projectalita.github.io
    output:
      - file_content
      - messages
    structured_output: false
    tool: get_file_contents
    toolkit_name: MCP-GitHub
    transition: END

Step 5: Remove the Deprecated Function Node

  1. Click on the Function node to select it
  2. Click the Delete icon (trash can) or press Delete key
  3. Confirm the deletion
  4. The Function node is now removed from the pipeline

Step 6: Save and Test

  1. Click Save to save the pipeline configuration
  2. Navigate to the Execution tab
  3. Run the pipeline with test inputs
  4. Verify that:
    • The MCP node executes the same MCP tool as before
    • Input/output handling works correctly
    • All MCP parameter mappings function as expected
    • MCP server connection is maintained
    • All workflow connections function properly

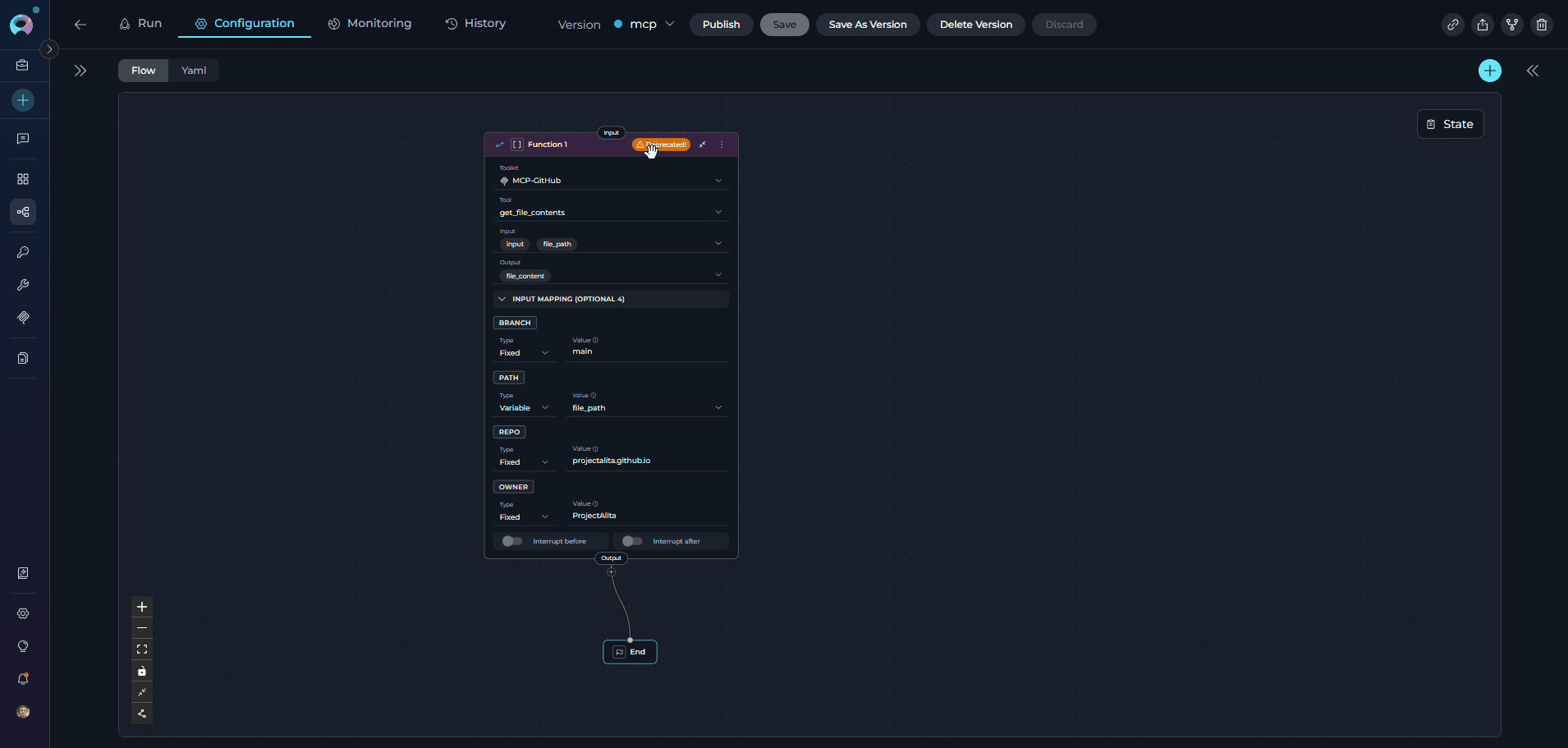

Function to MCP Migration

Migration Steps: Function → Agent

Follow these steps to migrate a Function node to an Agent node when the function's logic can be better expressed as an AI agent task:

Step 1: Analyze Function Logic for Agent Suitability

  1. Navigate to Pipelines in the main menu
  2. Open the pipeline containing the Function node
  3. Click the Configuration tab
  4. Select the Flow tab to view the pipeline flow diagram
  5. Analyze the Function node to determine if it's suitable for agent migration:
    • Good candidates: Functions that perform complex reasoning, content generation, analysis, or decision-making
    • Poor candidates: Simple deterministic tool calls, API operations, or direct data transformations
    • Example good candidate: A Function node that processes user stories and generates summaries
    • Example poor candidate: A Function node that simply calls confluence_toolkit.read_page_by_id with static parameters

Step 2: Add an Agent Node

  1. In the same Flow tab, click the Add Node button (+ icon)
  2. Select Agent from the node menu under Interaction Nodes
  3. The new Agent node will appear on the canvas
  4. Position it near the deprecated Function node for easy comparison

Step 3: Configure the Agent Node

Configure the Agent node to replicate the Function node's behavior using an AI agent:

  1. Click on the Agent node to open its configuration panel
  2. Set the Agent field:
    • Select an appropriate agent from the dropdown that can perform the Function node's task
    • Agents must be added to the pipeline first (Configuration > Toolkits > Add Agent)
    • Example: Select "Content Analysis Agent" to replace a content processing Function node
  3. Configure Input:
    • Select the input states that the agent needs
    • Example: If the Function node used user_data, context, select those state variables
  4. Configure Output:
    • Select the output states where agent results should be stored
    • Example: If the Function node output to processed_result, configure the same
  5. Set up Input Mapping:
    • Configure the agent task and parameters to replicate Function behavior
    • Common Agent Parameters:
      • task: The main instruction/prompt for the agent
      • chat_history: Conversation history (messages array)
      • Custom Variables: Agent-specific parameters
    • Example Task Mapping:
      task: |
  Analyze the following user data and provide insights:

  User Data: {input.user_data}
  Context: {input.context_info}

  Perform the same analysis that was previously done by the toolkit function.
  Provide:
  1. Key findings from the data
  2. Recommendations based on the analysis
  3. Summary in the same format as before
    • Example Chat History Mapping:
      chat_history: messages
  6. Configure Interrupt Settings:
    • Copy interrupt before/after settings from the Function node
    • Example: Enable "Interrupt after" if it was enabled in the Function node

Step 4: Reconnect the Workflow

  1. Disconnect the incoming connection to the Function node:
    • Click on the edge connecting to the Function node
    • Press Delete
  2. Connect the Agent node:
    • Drag a connection from the previous node to the Agent node's input handle
    • Example: Connect from "Data Input Node" to the new Agent node
  3. Connect the Agent outputs:
    • Drag a connection from the Agent node's output handle to the next node in the workflow
    • Example: Connect to "Results Processor Node"
  4. Verify all connections match the original Function node's flow

Before Migration:

Data Input Node → Function Node → Results Processor Node

After Migration:

Data Input Node → Agent Node → Results Processor Node

Step 5: Remove the Deprecated Function Node

  1. Click on the Function node to select it
  2. Click the Delete icon (trash can) or press Delete key
  3. Confirm the deletion
  4. The Function node is now removed from the pipeline

Step 6: Validate and Test

  1. Click Save to save the pipeline configuration
  2. Navigate to the Execution tab
  3. Run the pipeline with test inputs
  4. Verify that:
    • The Agent node produces equivalent results to the Function node
    • Input/output handling works correctly
    • Task instructions properly guide the agent
    • All workflow connections function properly
  5. Compare outputs: Ensure agent results match expected Function node behavior
  6. Adjust task instructions: If results differ, refine the agent task prompt

Best Practices

Choosing the Right Replacement Node

Use Toolkit Node when:

  • Function node executes standard ELITEA toolkit tools
  • You need deterministic, repeatable tool execution
  • Working with external service integrations (Jira, GitHub, Confluence)
  • Parameter mapping is straightforward and well-defined
  • You want structured output support

Use MCP Node when:

  • Function node executes Model Context Protocol server tools
  • Working with MCP server integrations
  • You need MCP-specific tool filtering
  • Your workflow requires MCP server connections
  • You want dedicated MCP support

Use Agent Node when:

  • Function node's logic involves reasoning or analysis
  • Task can be expressed as natural language instructions
  • You need LLM-based decision making
  • Working with content generation or complex processing
  • You want to leverage pre-configured AI agents
General Migration Tips
  • Migrate One at a Time: Update and test one Function node before moving to the next
  • Keep Both Temporarily: Test the new node before removing the deprecated Function node
  • Document Changes: Note any differences in behavior for your team
  • Review Connections: Ensure all incoming and outgoing connections are preserved
  • Use YAML View: Check the YAML tab to verify configuration correctness
  • Test Thoroughly: Always test migrated pipelines with various inputs to ensure correct behavior
  • Version Control Migration: After migrating, save as a new version, test all flows, then update the main (latest) version
Configuration Best Practices

For Toolkit/MCP Nodes:

  • Map All Required Parameters: Ensure all required parameters from the Function node are mapped
  • Preserve Parameter Types: Use the same type (Variable, F-String, Fixed) as in the Function node
  • Enable Structured Output: Take advantage of structured output support when needed
  • Verify Tool Selection: Double-check that the correct toolkit and tool are selected

For Agent Nodes:

  • Write Clear Task Instructions: Provide detailed, unambiguous task descriptions
  • Include Context: Pass relevant context through chat_history or task parameters
  • Test Task Prompts: Verify agent task instructions produce expected results
  • Map Custom Variables: Configure any agent-specific custom variables appropriately

Example Best Practice:

# Toolkit Node - Good Practice
✔️ Good: Complete parameter mapping
  toolkit: confluence_toolkit
  tool: read_page_by_id
  input_mapping:
    page_id:
      type: variable
      value: confluence_page_id
    expand:
      type: fstring
      value: "body.storage,version"
    status:
      type: fixed
      value: current

# Toolkit Node - Poor Practice
✘ Avoid: Missing required parameters
  toolkit: confluence_toolkit
  tool: read_page_by_id
  input_mapping:
    # Missing page_id - will cause errors
    expand:
      type: fixed
      value: body.storage

Troubleshooting

Toolkit/MCP Node Issues

Problem: Toolkit/MCP node doesn't execute the expected tool

Solutions:

  • Verify the selected toolkit/MCP server matches the one from the Function node
  • Check that the tool selection is correct
  • Ensure input/output state configurations are correct
  • Verify all required parameters are mapped in Input Mapping
  • Review YAML configuration for syntax errors

Example Error:

Error: Tool 'read_page_by_id' not found in toolkit 'confluence_toolkit'
Solution: Ensure the toolkit name and tool name are correct. Check that the toolkit is properly configured and the tool exists.

Problem: Input Mapping parameters are missing or incorrect

Solutions:

  • Review the Function node's original input mapping configuration
  • Verify all required parameters are mapped
  • Check that parameter types (Variable, F-String, Fixed) are appropriate
  • Ensure state variables referenced in mappings exist
  • Test with simplified mappings first, then add complexity

Example Error:

Error: Missing required parameter 'page_id' for tool execution
Solution: Add input mapping:
  page_id:
    type: variable
    value: confluence_page_id

Problem: Structured output configuration causes errors

Solutions:

  • Verify structured output schema is valid
  • Check that output state variables can accommodate the structured format
  • Test without structured output first, then add it incrementally
  • Review schema format and requirements
Agent Node Issues

Problem: Agent node doesn't produce expected results

Solutions:

  • Review and refine the task instructions
  • Ensure task description is clear and detailed
  • Verify the selected agent has appropriate capabilities
  • Check that input parameters (task, chat_history) are correctly mapped
  • Test agent separately to verify its behavior

Example Error:

Error: Agent produces incorrect output format
Solution: Refine task instructions to specify exact output format:
  task: |
    Analyze the data and provide results in this exact format:
    1. Key Findings: [list]
    2. Recommendations: [list]
    3. Summary: [paragraph]

Problem: Agent task field is empty or not configured

Solutions:

  • Ensure the task parameter is configured in Input Mapping
  • Provide a clear, descriptive task instruction
  • Use F-String format to include dynamic context: task: "Process {input.data_type} data"
  • Verify task instructions guide the agent to replicate Function node behavior
Connection Issues

Problem: Connections are lost after migration

Solutions:

  • Manually reconnect nodes after adding the replacement node
  • Verify each handle connects to the correct target
  • Check that incoming connection to the new node is established
  • Save pipeline after verifying all connections
  • Use YAML view to confirm connections are properly configured

Known Limitation

When replacing nodes that are followed by Decision, Condition, or Router nodes, connections may be lost. Document connections before migration (screenshots or YAML backup), then manually reconnect after replacement.

State Variable Issues

Problem: State variables not accessible in new node

Solutions:

  • Verify input state variables are defined in pipeline state
  • Check that state variable names match exactly
  • Ensure state variables are populated before the node executes
  • Review state configuration in YAML view

Comparison Table

Feature Function Node Toolkit Node MCP Node Agent Node
Status Deprecated (still works) Active Active Active
Can Create New No (since v2.0.0 B2) Yes Yes Yes
Primary Use Case Toolkit/MCP tool execution Toolkit tool execution MCP server tool execution AI agent task execution
Structured Output Not supported Supported Supported Via agent configuration
Input Mapping Basic Enhanced Enhanced Enhanced (task-based)
Tool Selection Toolkit + MCP Toolkit only MCP only Agent selection
Best For Legacy pipelines only Service integrations, API calls MCP server operations AI-driven tasks, reasoning
Recommended No - migrate away Yes - for toolkit operations Yes - for MCP operations Yes - for agent tasks

Additional Resources
