Loop Node Deprecation and Migration Guide

Overview

The Loop node has been deprecated as of version 2.0.0 B2 and is no longer available for creating new pipelines. This node previously allowed automatic iteration over data batches using a function (toolkit) or Agent within a single node configuration.

This guide will help you migrate your existing pipelines from the deprecated Loop node to manual loop patterns using Router, State Modifier, and Code nodes.

Deprecation Timeline

• Version 2.0.0 B2: Loop node officially deprecated
• Future versions: Loop node may be removed entirely
• Existing pipelines: Loop nodes will continue to function for backward compatibility in version Version 2.0.0 B2

Step Limit Warning

All agents and pipelines have a step limit (default: 25) to prevent endless loops.

When implementing manual loops, you MUST:

• Increase the step limit to match your expected iterations
• Set it close to real-world values (not excessively high)
• Test with small data sets first

Why this matters:

• Mistakes in logic or prompts can cause endless loops
• Endless loops waste tokens and increase costs
• Can create unwanted records or cause data loss in external systems (Confluence, JIRA, etc.)
• Pipeline will error with "Step limit reached" if exceeded

Why Was the Loop Node Deprecated?

The Loop node has been deprecated to simplify the pipeline architecture and provide more explicit control over iteration logic:

• More explicit control: Manual loop patterns make iteration logic visible and debuggable
• Better flexibility: You can customize loop behavior, exit conditions, and error handling
• Clearer data flow: Pipeline visualization shows exact execution paths
• Reduced complexity: Eliminates hidden batching and execution logic

Understanding Loop Node Functionality

The Loop node automatically:

1. Accepted a prompt that generated a list of data batches
2. Executed a function (toolkit) or Agent for each item in the list
3. Aggregated results automatically
4. Handled iteration control internally

Migration Strategy: Manual Loop Pattern

Replace Loop nodes with an explicit loop pattern using these components:

Core Pattern Components

1. Code Node, LLM Node or any other group of nodes: Initialize the list/batch of items to process
2. State Modifier Node: Extract current item and increment index
3. Router Node: Check exit condition and control loop flow
4. Execution Node: Process the current item (Toolkit, LLM, Agent, or Code)
5. State Modifier Node (optional): Aggregate results

Manual Loop Flow

Initialize Data → Get Item → Process Item → Aggregate Result → Increment Index → Check Exit → [Loop Back or END]

ELITEA Vision: Explicit Over Implicit

Manual loop patterns provide better observability, debugging capabilities, and control. While they require more nodes, they make your pipeline logic transparent and maintainable.

Migration Examples

Example 1: Simple Loop Pattern (Reading and Processing List Items)

This simplified example shows the basic loop structure. Each node is shown as a placeholder to help you understand the pattern.

Use Case: Process a list of items one by one

Pattern: Initialize → Get Item → Process Item → Increment → Check → [Loop Back or END]

Simplified Pipeline YAML

state:
  input:
    type: str
  messages:
    type: list
  items_list:
    type: list
    value: []  # Will hold: ["Item 1", "Item 2", "Item 3"]
  index:
    type: number
    value: 0
  input:
    type: str
  items_list:
    type: list
    value: []
  messages:
    type: list
  result:
    type: str
    value: ''

entry_point: InitializeList
nodes:
  - id: InitializeList
    type: code
    code:
      type: fixed
      value: |-
        # Create a simple list of items
        items = ["Item 1", "Item 2", "Item 3"]

        result = {
            "items_list": items,
            "index": 0
        }
        result
    output:
      - items_list
      - index
    structured_output: true
    transition: GetItem
  - id: GetItem
    type: state_modifier
    input:
      - items_list
      - index
    output:
      - current_item
    template: '{{ items_list[index] }}'
    transition: ProcessItem
  - id: ProcessItem
    type: code
    code:
      type: fixed
      value: |-
        # YOUR PROCESSING LOGIC HERE
        # Example: call a toolkit, use LLM, transform data, etc.
        current = alita_state.get('current_item', '')
        result = {"result": f"Processed: {current}"}
        result
    input:
      - current_item
    output:
      - result
    structured_output: true
    transition: IncrementIndex
  - id: IncrementIndex
    type: state_modifier
    input:
      - index
    output:
      - index
    template: '{{ index + 1 }}'
    transition: CheckIfDone
  - id: CheckIfDone
    type: router
    condition: |-
      {% if index >= (items_list | length) %}
        END
      {% else %}
        GetItem
      {% endif %}
    default_output: END
    input:
      - index
      - items_list
    routes:
      - GetItem

Flow Explanation

1. InitializeList (Code Node): Creates a list with 3 items and sets index to 0
2. GetItem (State Modifier): Extracts the current item using the index (items_list[0], then items_list[1], etc.)
3. ProcessItem (Code Node): [Replace this with your processing logic] - could be toolkit, LLM, or any operation
4. IncrementIndex (State Modifier): Adds 1 to index (0 → 1 → 2 → 3)
5. CheckIfDone (Router): Checks if index >= 3 (list length)
6. If NO: Goes back to GetItem (loop continues)
7. If YES: Goes to END (loop exits)

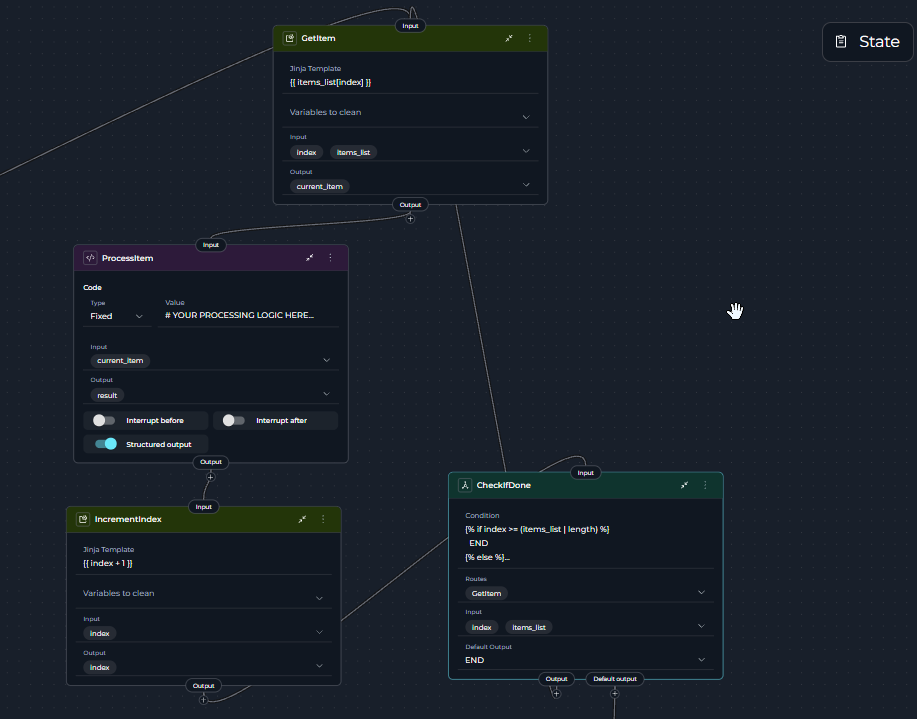

Visual Loop Flow:

InitializeList → GetItem → ProcessItem → IncrementIndex → CheckIfDone
  (index=0)        ↑            |              |               |
                   |            ↓              ↓               ↓
                   └────────[Loop Back]───────────────[If index < length]
                                                       |
                                                    [If index >= length]
                                                       ↓
                                                      END

Customizing the Loop

Replace the ProcessItem node with your actual processing logic:

• Toolkit Node: To call external services (Confluence, JIRA, etc.)
• LLM Node: To process items with AI
• Agent Node: To use AI agents
• Code Node: For custom Python logic

---

Example 2: Writing Data to External Resource (Creating Multiple Confluence Pages)

This example shows how to create multiple items in an external system (Confluence pages).

Use Case: Create several documentation pages in Confluence from a list of topics

Pattern: Initialize Topics → Get Topic → Create Page → Increment → Check → [Loop Back or END]

Pipeline YAML

state:
  input:
    type: str
  messages:
    type: list
  index:
    type: number
    value: 0
  topics_list:
    type: list
    value: []
  current_topic:
    type: str
    value: ''
  page_id:
    type: str
    value: ''

entry_point: InitializeTopics

nodes:
  # Step 1: Create list of topics
  - id: InitializeTopics
    type: code
    code:
      type: fixed
      value: |-
        topics = [
            {"title": "Getting Started", "space": "DOCS"},
            {"title": "API Reference", "space": "DOCS"},
            {"title": "Troubleshooting", "space": "DOCS"}
        ]

        result = {"topics_list": topics, "index": 0}
        result
    output:
      - topics_list
      - index
    structured_output: true
    transition: GetTopic

  # Step 2: Get current topic
  - id: GetTopic
    type: state_modifier
    input:
      - topics_list
      - index
    output:
      - current_topic
    template: '{{ topics_list[index] }}'
    transition: CreatePage

  # Step 3: Create Confluence page (placeholder - replace with your toolkit)
  - id: CreatePage
    type: code
    code:
      type: fixed
      value: |-
        # REPLACE WITH TOOLKIT NODE FOR CONFLUENCE
        # Example: Use Confluence toolkit's create_page tool
        result = {"page_id": page_id}
        result
    input:
      - current_topic
    output:
      - page_id
    structured_output: true
    transition: IncrementIndex

  # Step 4: Increment counter
  - id: IncrementIndex
    type: state_modifier
    input:
      - index
    output:
      - index
    template: '{{ index + 1 }}'
    transition: CheckIfDone

  # Step 5: Check if all topics processed
  - id: CheckIfDone
    type: router
    condition: |-
      {% if index >= (topics_list | length) %}
        END
      {% else %}
        GetTopic
      {% endif %}
    default_output: END
    input:
      - index
      - topics_list
    routes:
      - GetTopic

Flow Explanation

1. InitializeTopics: Creates list of 3 topics to create pages for
2. GetTopic: Gets current topic from list using index
3. CreatePage: [Replace with Confluence Toolkit] - Creates the page
4. IncrementIndex: Moves to next topic
5. CheckIfDone: Checks if all topics processed → loops back or ends

Using Real Toolkit

Replace the CreatePage Code node with a Toolkit node:

- id: CreatePage
  type: toolkit
  toolkit_name: Confluence
  tool: create_page
  input_mapping:
    space_key:
      type: fstring
      value: '{current_topic["space"]}'
    title:
      type: fstring
      value: '{current_topic["title"]}'
    body:
      type: fixed
      value: 'Page content here'

---

  - current_topic
  - page_id
output:
  - creation_results
structured_output: true
transition: IncrementIndex

# Step 6: Increment index - id: IncrementIndex type: state_modifier input: - index output: - index template: '{{ index + 1 }}' transition: CheckExit

# Step 7: Check if more topics to process - id: CheckExit type: router condition: |- {% if index >= (topics_list | length) %} GenerateReport {% else %} GetNextTopic {% endif %} default_output: GenerateReport input: - index - topics_list routes: - GetNextTopic - GenerateReport

# Step 8a: Get next topic (loop back) - id: GetNextTopic type: state_modifier input: - topics_list - index output: - current_topic template: '{{ topics_list[index] }}' transition: GenerateContent

# Step 9: Generate final report - id: GenerateReport type: state_modifier input: - creation_results output: - messages template: |- # Confluence Pages Creation Report

  Successfully created {{ creation_results | length }} pages:

  {% for result in creation_results %}
  - {{ result.title }} (ID: {{ result.page_id }})
  {% endfor %}
transition: END

```

Flow Explanation

1. InitializeTopics (Code Node): Creates list of topics with Confluence metadata
2. GenerateContent (LLM): Generates documentation content for current topic
3. ExtractContent (State Modifier): Extracts content from LLM response
4. CreateConfluencePage (Toolkit): Creates page in Confluence
5. TrackResult (Code Node): Records creation result with page ID
6. IncrementIndex (State Modifier): Moves to next topic
7. CheckExit (Router): Checks if all topics processed → continues or exits
8. GetNextTopic (State Modifier): Gets next topic from list (loop back to step 2)
9. GenerateReport (State Modifier): Creates summary of all created pages

---

Configuring Step Limit for Loops

What is Step Limit?

Every agent and pipeline has a step limit that controls the maximum number of execution steps allowed. The default value is 25 steps.

Why Step Limit Exists

Step limits prevent endless loops that can: - Waste tokens: Endless loops consume API tokens continuously - Increase costs: More tokens = higher costs - Cause data issues: May create duplicate records in Confluence, JIRA, or other systems - Lose data: Failed loops may partially complete, leaving inconsistent state

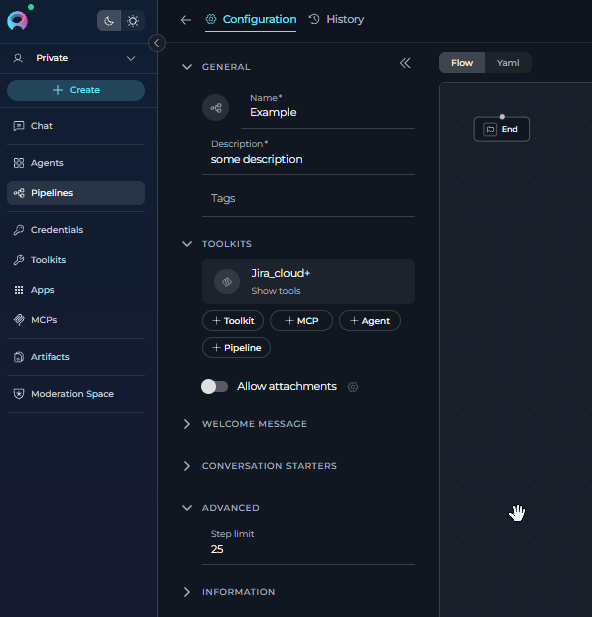

How to Set Step Limit

For Agents: 1. Open your Agent configuration 2. Scroll to Advanced section 3. Set Step limit to your expected number of iterations + buffer For Pipelines: 1. Open your Pipeline in Flow Editor 2. Go to Advanced Settings 3. Set Step limit to your expected loop iterations + overhead

Calculating Step Limit

Formula: Step Limit = (Number of Items × Steps per Iteration) + Overhead + Safety Buffer Example 1: Simple Loop (3 items) - Items to process: 3 - Steps per iteration: 4 (GetItem → Process → Increment → Check) - Overhead: 1 (Initialize) - Safety buffer: 5 - Total: 3 × 4 + 1 + 5 = 18 Example 2: Complex Loop (10 items) - Items to process: 10
- Steps per iteration: 6 (GetItem → Process → Aggregate → Increment → Check → ExtractData) - Overhead: 2 (Initialize + Finalize) - Safety buffer: 10 - Total: 10 × 6 + 2 + 10 = 72

Best Practices for Step Limits

• Start conservative: Set limit close to calculated value, not excessively high
• Add buffer: Always add 20-30% buffer for unexpected iterations
• Test first: Run with 2-3 items before full dataset
• Monitor execution: Check how many steps actually used
• Avoid large values: Don't set to 1000 "just in case" - this hides errors

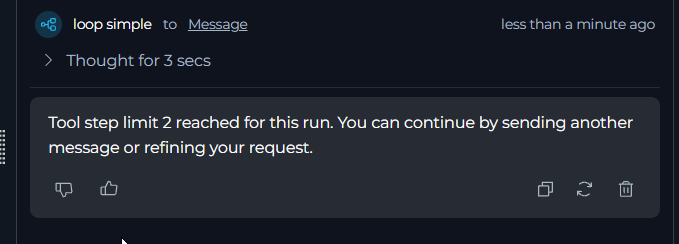

Step Limit Error

If your pipeline exceeds the step limit, you'll see: Error: Step limit reached (25 steps) Pipeline execution stopped to prevent endless loop What to do: 1. Check if loop logic is correct (Router condition, increment, etc.) 2. Verify you're not in an endless loop 3. If loop is correct, increase step limit appropriately 4. Re-run the pipeline

When to Use LLM Instead of Loops

For small iterations (5-10 items or less), consider using an LLM node or Agent instead of manual loops: Use LLM/Agent when: - Processing fewer than 10 items - Items can be processed in a single prompt - You need intelligent interpretation of results - Data fits within token limits Example: yaml - id: ProcessAllItems type: llm input_mapping: system: type: fixed value: | Process the following list of items and return results for each: {items_list} task: type: variable value: items_list

Benefits:

• ✔️ Simpler pipeline (no loop logic needed)
• ✔️ Fewer steps (stays within default 25 limit)
• ✔️ LLM can process batch intelligently
• ✘ Limited by token context window
• ✘ All items must fit in one prompt

---

Step-by-Step Migration Guide

Step 1: Identify Your Loop Requirements

Answer these questions about your existing Loop node:

1. What list of items needs processing?
2. What should happen to each item?
3. Do you need to save results?

Step 2: Build the Loop Pattern

Use the simple pattern from Example 1:

1. Initialize: Create your list
2. Get Item: Extract current item
3. Process: Do something with the item
4. Increment: Move to next item
5. Check: Are we done? If no, loop back

Step 3: Test Your Loop

1. Start with just 2-3 items
2. Run the pipeline
3. Check that all items were processed
4. Verify results are correct

---

Common Loop Patterns

Pattern 1: Process Each Item

Simply process items without saving results.

Example: Send notifications, update records

Initialize → Get Item → Process → Increment → Check → [Loop or END]

Pattern 2: Collect Results

Process items and save all results.

Example: Generate reports, validate data

Initialize → Get Item → Process → Save Result → Increment → Check → [Loop or Summary]

---

Troubleshooting

Error: Step Limit Reached

Problem: Pipeline stops with "Step limit reached (25 steps)" error

Solution:

1. Check if endless loop: Review Router condition and increment logic
2. Calculate required steps: Count items × steps per iteration
3. Increase step limit: Go to Advanced settings and increase the value
4. Add safety buffer: Set limit 20-30% higher than calculated
5. Test with small data: Verify loop works with 2-3 items first

Example: If processing 10 items with 5 steps each = 50 steps needed → Set limit to 65-70

Loop Never Stops

Problem: Pipeline keeps running forever

Solution:

• Check that index increases each time (Step 4: Increment)
• Verify Router condition: {% if index >= (items_list | length) %}
• Add safety limit: {% if index >= 100 %}

Error: List Index Out of Range

Problem: Can't access item at index

Solution:

• Start index at 0, not 1
• Make sure list has items before accessing
• Check Router exits before invalid index

Only Last Result Shows

Problem: Previous results disappear

Solution:

• Initialize result variable as empty: value: '' or value: []
• Use correct template: {{ existing + new }} (not just {{ new }})

---

Frequently Asked Questions

Why was the Loop node removed?

Loop nodes hid too much complexity. Manual loops make it clear what's happening at each step, making pipelines easier to understand and fix.

Can I still use my old pipelines?

Yes. Existing Loop nodes will keep working. But we recommend updating to the new pattern for better control and future compatibility.

What is the step limit and why does it matter?

Every pipeline has a step limit (default: 25) to prevent endless loops. When creating loops:

• You must increase the step limit to match your iterations
• Calculate: (items × steps per item) + overhead + buffer
• Set it close to real values - don't use 1000 "just in case"
• Mistakes in loop logic can cause endless loops that waste tokens and may corrupt external data

Should I use a loop or an LLM for small datasets?

For 5-10 items or less, consider using an LLM node or Agent instead:

• Simpler pipeline (no loop needed)
• Stays within default 25 step limit
• LLM can process batch in one call
• Example: "Process these 5 items and return results" as a single LLM prompt

For more than 10 items, use manual loop pattern with increased step limit.

Which node creates the list?

• Code Node: When reading files, calling APIs, or transforming data
• LLM Node: When AI needs to generate the list

Can I stop the loop early?

Yes. Add a condition to your Router:

- id: CheckIfDone
  type: router
  condition: |-
    {% if found_what_i_need or index >= (items_list | length) %}
      END
    {% else %}
      GetItem
    {% endif %}

How do I handle errors?

Wrap processing in try/catch using Code node:

- id: ProcessItem
  type: code
  code:
    value: |-
      try:
          # Your logic here
          result = {"success": True}
      except Exception as e:
          result = {"success": False, "error": str(e)}
      result

Where can I learn more?

• Router Node: Router Documentation
• State Modifier: State Modifier Documentation
• Code Node: Code Node Documentation
• All Nodes: Nodes Overview
