SharePoint Toolkit Integration Guide

Introduction

This guide is your definitive resource for integrating and utilizing the SharePoint toolkit within ELITEA. It provides a comprehensive, step-by-step walkthrough, from registering your SharePoint application in Azure Active Directory to configuring the toolkit in ELITEA and effectively using it within your Agents. By following this guide, you will unlock the power of automated document management, streamlined collaboration workflows, and enhanced information access, all directly within the ELITEA platform. This integration empowers you to leverage AI-driven automation to optimize your SharePoint-driven workflows using the combined strengths of ELITEA and Microsoft SharePoint.

Brief Overview of Microsoft SharePoint

Microsoft SharePoint is a powerful web-based collaboration and document management platform that enables organizations to create sites, document libraries, lists, and other collaborative resources. It is a cornerstone of modern digital workplaces, facilitating teamwork, information sharing, and workflow automation. Key features of SharePoint include:

  • Centralized Document Management: SharePoint provides a central repository for storing, organizing, and managing documents, ensuring version control, secure access, and efficient document retrieval. Document libraries offer features like check-in/check-out, version history, and metadata tagging for robust document lifecycle management.
  • Collaborative Workspaces and Team Sites: SharePoint enables the creation of team sites and collaboration workspaces, providing teams with a shared platform for communication, document sharing, task management, and project collaboration.
  • Customizable Lists and Libraries: SharePoint lists and libraries are highly customizable and can be tailored to meet specific business needs. Lists can track tasks, manage contacts, or hold custom data tables, while libraries organize documents and media of all types.
  • Workflow Automation: SharePoint supports workflow automation through Power Automate and SharePoint workflows, allowing organizations to automate business processes, streamline approvals, and automate document-centric workflows.
  • Enterprise Search Capabilities: SharePoint offers robust enterprise search capabilities, enabling users to quickly find relevant information across sites, document libraries, lists, and other content sources.

Integrating SharePoint with ELITEA brings these powerful collaboration and document management capabilities directly into your AI-driven workflows. Your ELITEA Agents can then intelligently interact with your SharePoint sites, lists, and libraries to automate document-related tasks, enhance collaboration processes, and improve information accessibility through intelligent automation.

Toolkit's Account Setup and Configuration in SharePoint

Registering an App in Azure Active Directory (Azure AD)

To enable secure integration between ELITEA and SharePoint, you need to register an application in Azure Active Directory (Azure AD). This app registration will represent ELITEA and allow it to authenticate and access SharePoint resources.

  1. Access Azure Portal: Open your web browser and navigate to the Azure Portal and log in using an account with sufficient permissions to register applications in Azure AD.

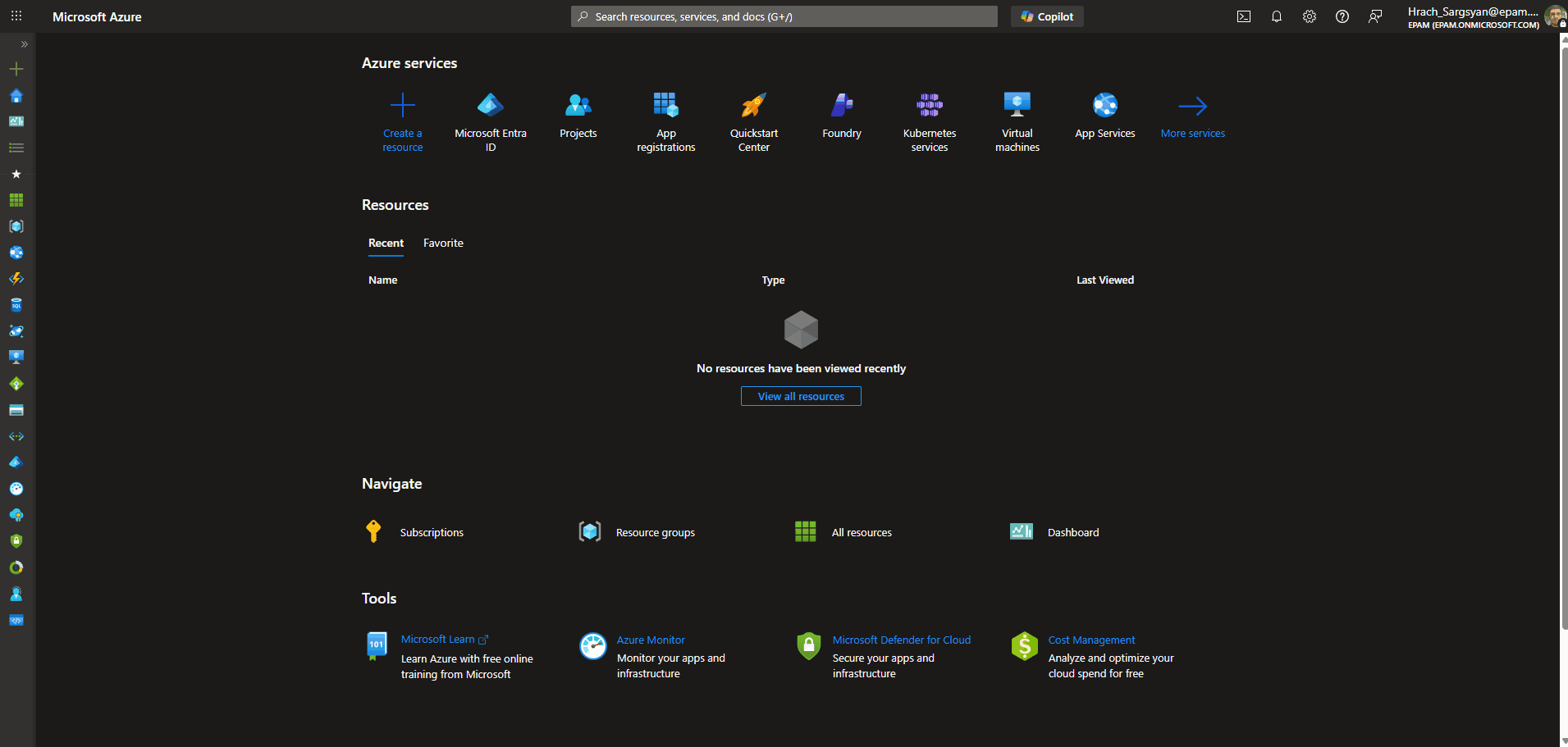

  2. Navigate to App Registrations: In the Azure portal, use the search bar at the top to search for "App registrations" and select "App registrations" from the search results under "Services".

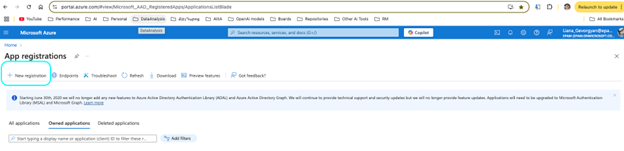

  3. Create New Registration: On the "App registrations" page, click on "+ New registration".

    SharePoint-App_Registration_New_Registration

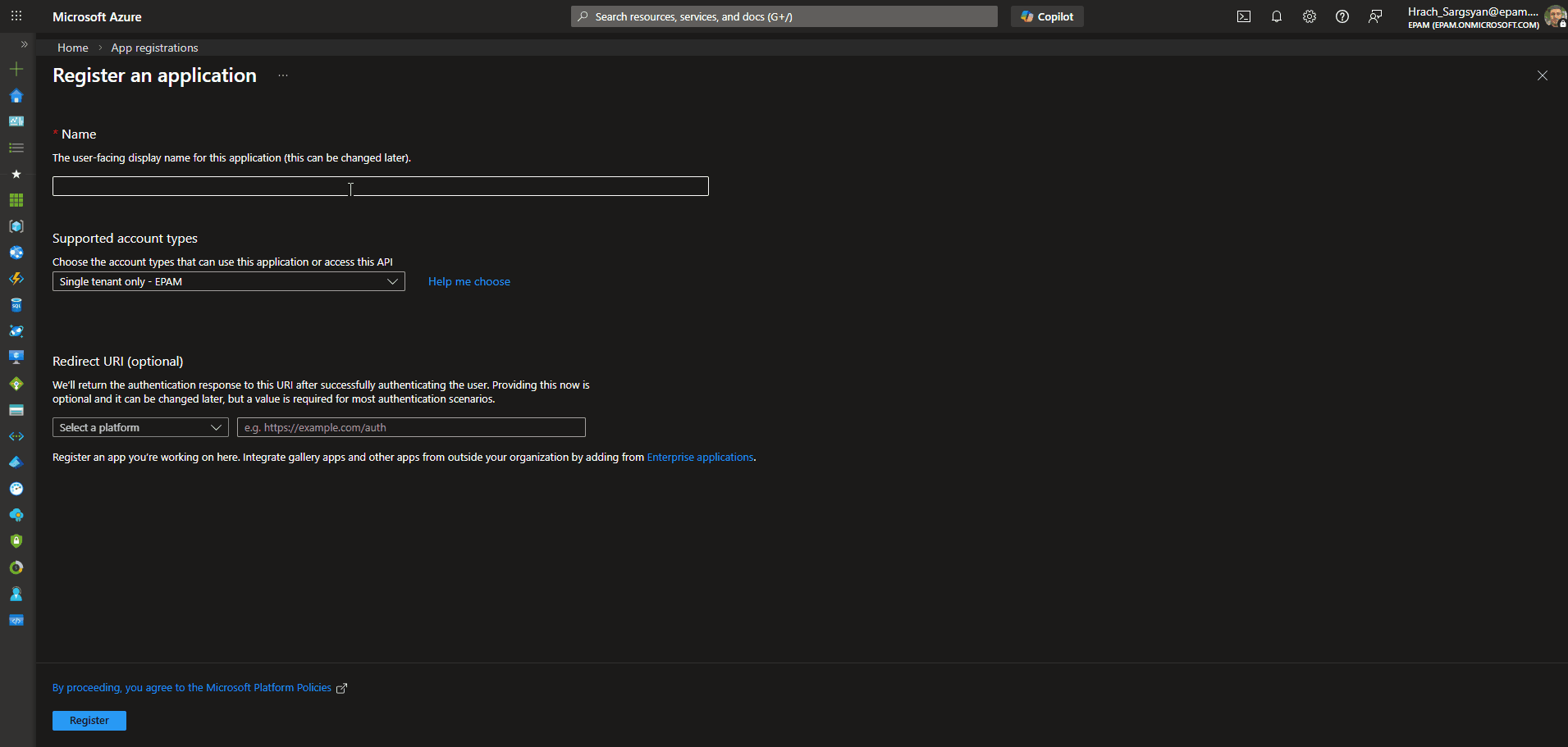

  4. Configure App Registration Details: On the "Register an application" page, provide the following information:

    • Name: Enter a meaningful and descriptive name for your application registration. For example, use "ELITEA SharePoint Integration" or "ELITEA Agent Access to SharePoint". This name will help you identify the purpose of this app registration later.
    • Supported account types: Select the appropriate account type based on your organization's requirements. In most cases, "Accounts in this organizational directory only ([Your Organization Name] only - Single tenant)" is the recommended option for internal organizational use. If you need to access SharePoint resources across multiple organizations, you may need to select a different option.

    • Redirect URI: If you plan to use Delegated (User OAuth) authentication, set the redirect URI here during registration:

      1. In the "Select a platform" dropdown, select "Web".
      2. In the URI field, enter the ELITEA callback URL for your instance. The correct value depends on your deployment — refer to the info callout below.

      If you are using App-Only (Client Credentials) mode only, leave this field blank.

  5. Register Application: After providing the application details, click the "Register" button at the bottom of the page to create the app registration.

    SharePoint-Register_an_Application

ELITEA OAuth Redirect URI

The redirect URI to register in Azure AD depends on your ELITEA deployment:

Deployment Type Redirect URI
ELITEA Cloud Pattern: https://<your-elitea-instance-domain>/app/mcp-auth-callback
Example: https://next.elitea.ai/app/mcp-auth-callback
Self-hosted / standard path https://<your-domain>/mcp-auth-callback
Self-hosted / sub-path (e.g., /app) https://<your-domain>/app/mcp-auth-callback

URL is not shown in the UI

ELITEA does not display the redirect URI anywhere in its interface. The URL is automatically derived from the domain your ELITEA instance is deployed on. If you are unsure which value applies, contact your ELITEA administrator.

Application Credentials

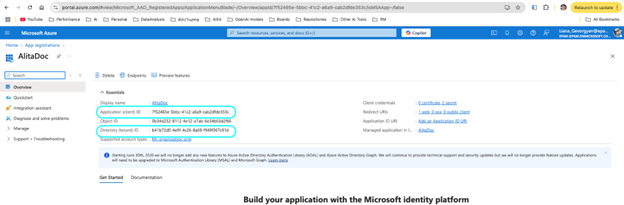

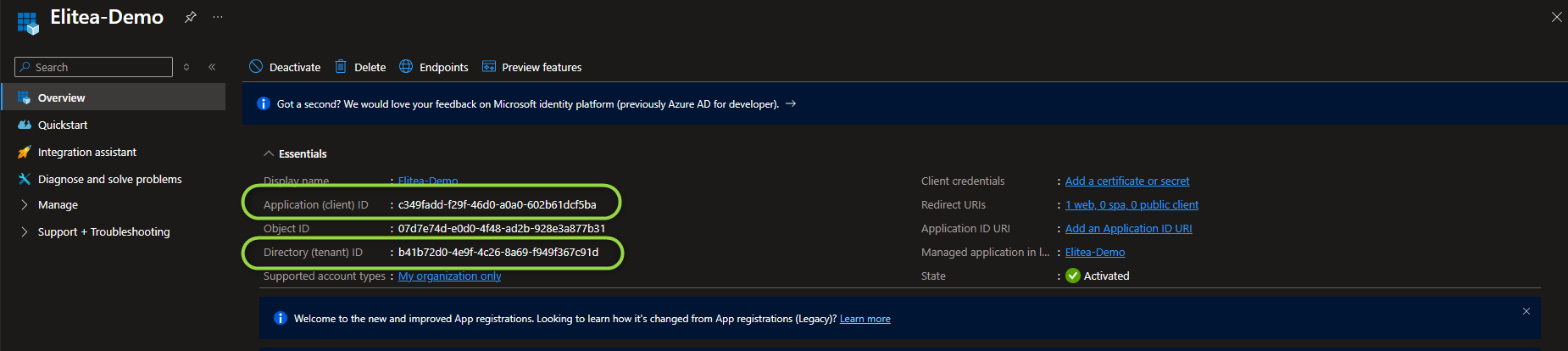

Once the app registration is created successfully, you will be redirected to the application's Overview page. Note down the following credentials, as you will need them to configure the SharePoint toolkit in ELITEA:

  • Application (client) ID — Copy and store this value securely.

  • Directory (tenant) ID — Copy and store this value securely.

    SharePoint-App_Registration_Overview

Configure API Permissions for the Registered App

To allow ELITEA to access SharePoint resources, you need to configure API permissions for your registered application. This involves granting the application the necessary permissions to interact with Microsoft Graph and SharePoint APIs.

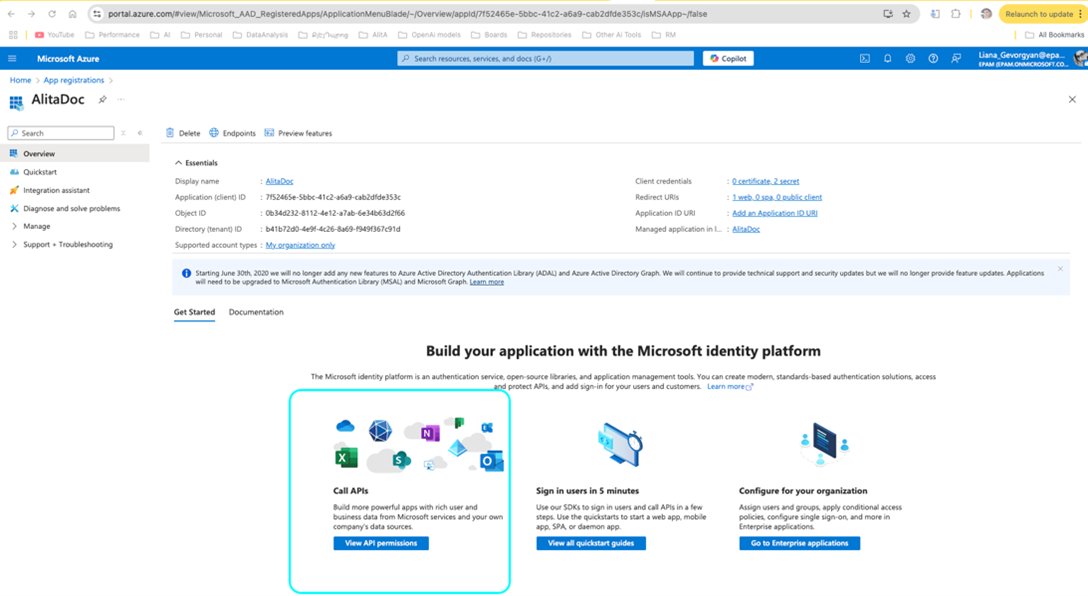

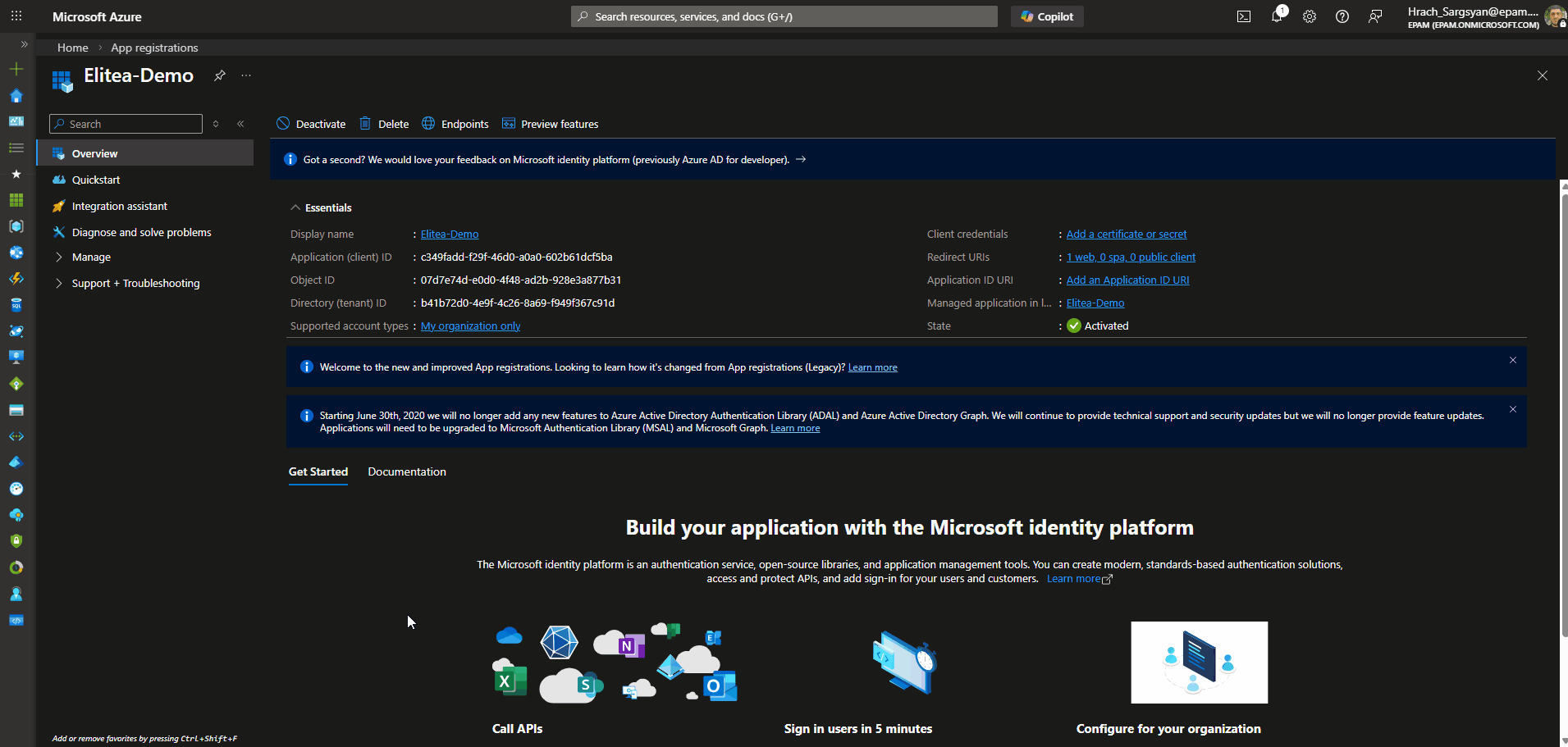

  1. Navigate to API Permissions: In your registered app within the Azure portal, navigate to the left-hand menu and click on "API permissions".

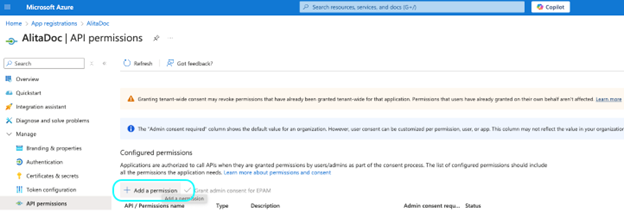

  2. Add Permissions: On the "API permissions" page, click on "+ Add a permission".

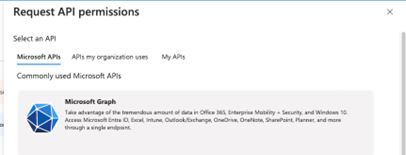

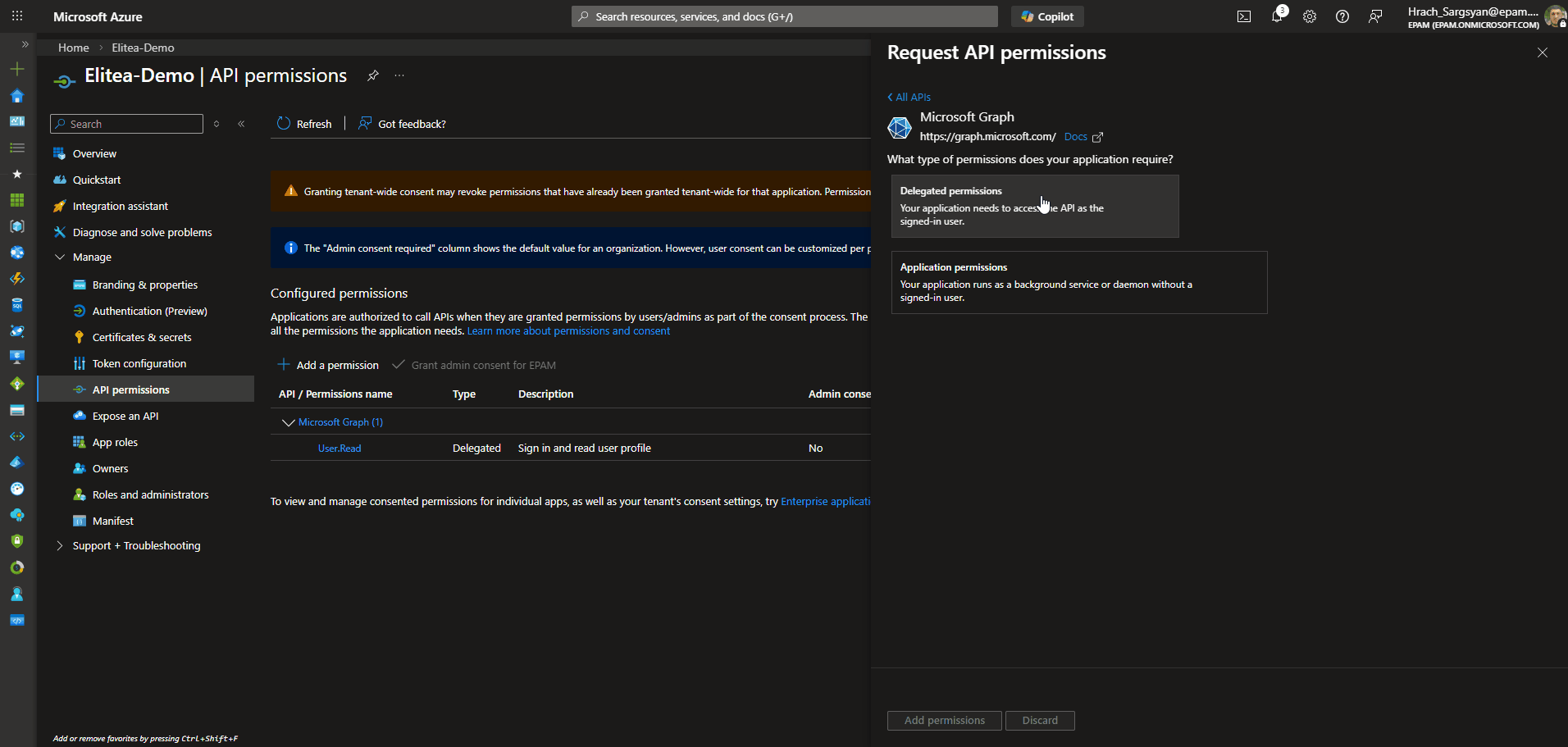

  3. Select API Type - Microsoft Graph: In the "Request API permissions" panel, select the "Microsoft Graph" API tile. Microsoft Graph provides access to various Microsoft 365 services, including SharePoint.

    SharePoint-Add_a_Permission

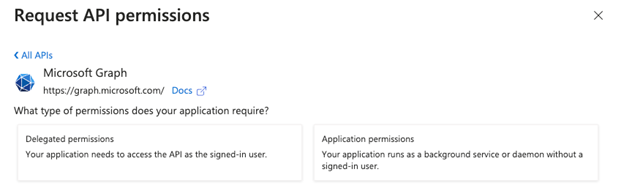

  4. Select Permission Type - Application permissions: Choose "Application permissions" as the permission type. Application permissions are used when the application acts without a signed-in user (App-Only mode). If you are using Delegated (User OAuth) mode, you may also need to add Delegated permissions.

  5. Add Microsoft Graph Scopes: In the "Application permissions" section, use the search bar to search for and select the following scopes:

    Scope Description When to Grant
    Sites.Read.All Read all site collections, lists, and libraries without a signed-in user Always — required for read access
    Sites.ReadWrite.All Read and write all site collections, lists, and libraries without a signed-in user Only if Agents need to create or modify SharePoint content

    SharePoint-API_Permissions_Microsoft_Graph

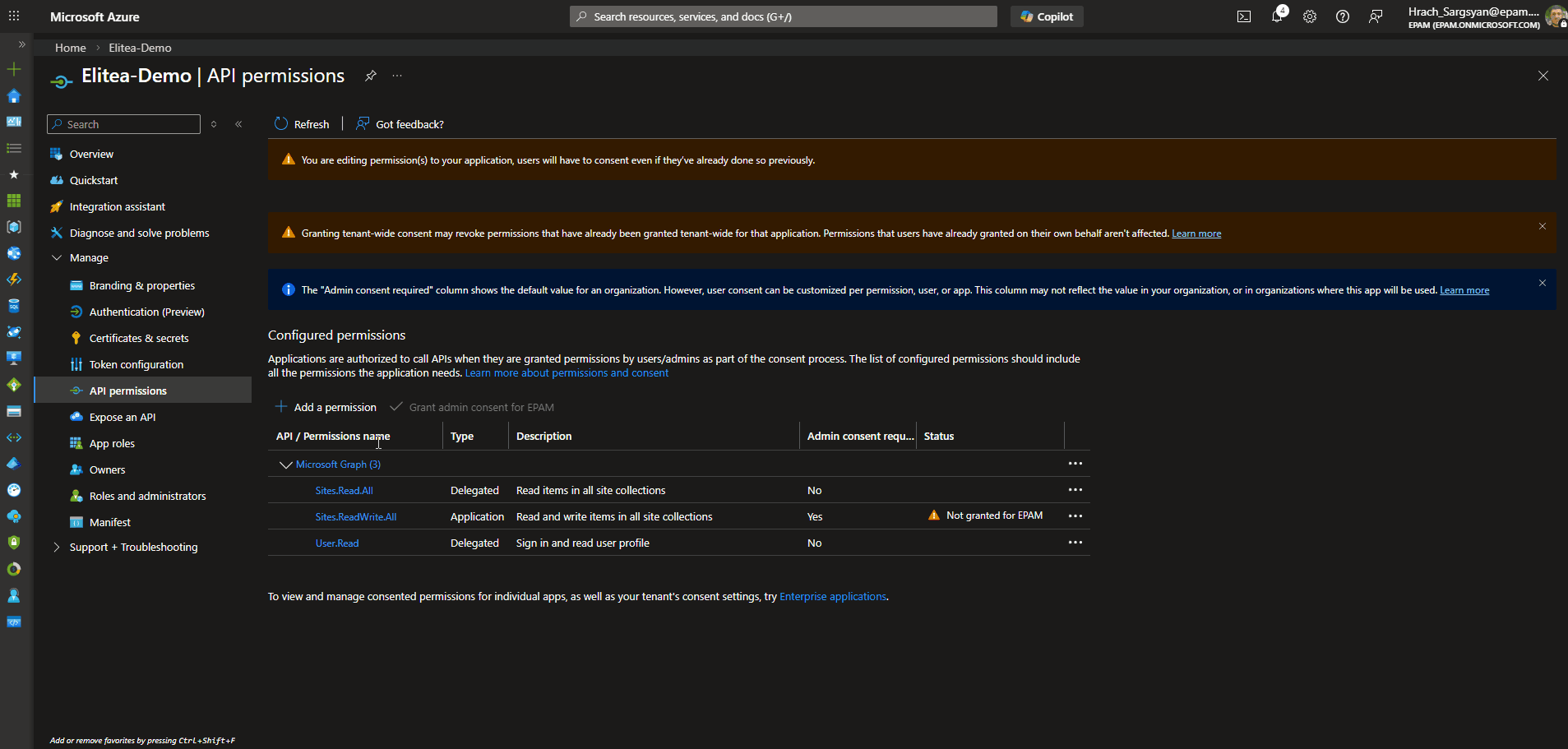

  6. Add Permissions - SharePoint API: Click "+ Add a permission" again to add SharePoint-specific permissions. This time, in the "Request API permissions" panel, select the "SharePoint" API tile (you may need to scroll down to find it).

  7. Select Permission Type - Application permissions: Choose "Application permissions" as the permission type for the SharePoint API as well. If you are using Delegated (User OAuth) mode, select Delegated permissions instead.

  8. Add SharePoint Scopes: In the "Application permissions" section for SharePoint API, use the search bar to search for and select the following scope:

    Scope Description When to Grant
    Sites.FullControl.All Full control of all site collections without a signed-in user Only if absolutely necessary — prefer Microsoft Graph scopes for better security

  9. Add Permissions: After selecting the necessary scopes for both Microsoft Graph and SharePoint APIs, click the "Add permissions" button at the bottom of the "Request API permissions" panel to add the selected permissions to your application registration.

    SharePoint-Request_API_Permissions

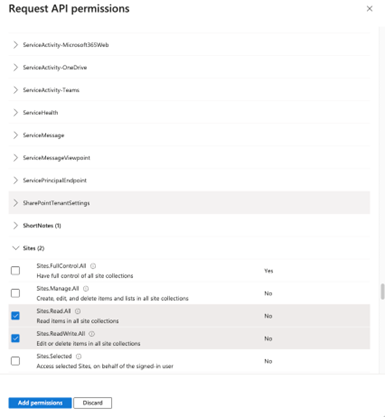

  10. Grant Admin Consent: On the "API permissions" page, you will see the newly added permissions listed. Click the "Grant admin consent for [Your Organization Name]" button and then click "Yes" to grant admin consent for these permissions. Admin consent is required for application permissions to take effect.

Delegated Permissions

If you cannot obtain admin consent for application permissions, you can use delegated permissions instead. This allows ELITEA to access SharePoint resources on behalf of a signed-in user. This approach is commonly used when integrating with organizational SharePoint pages.

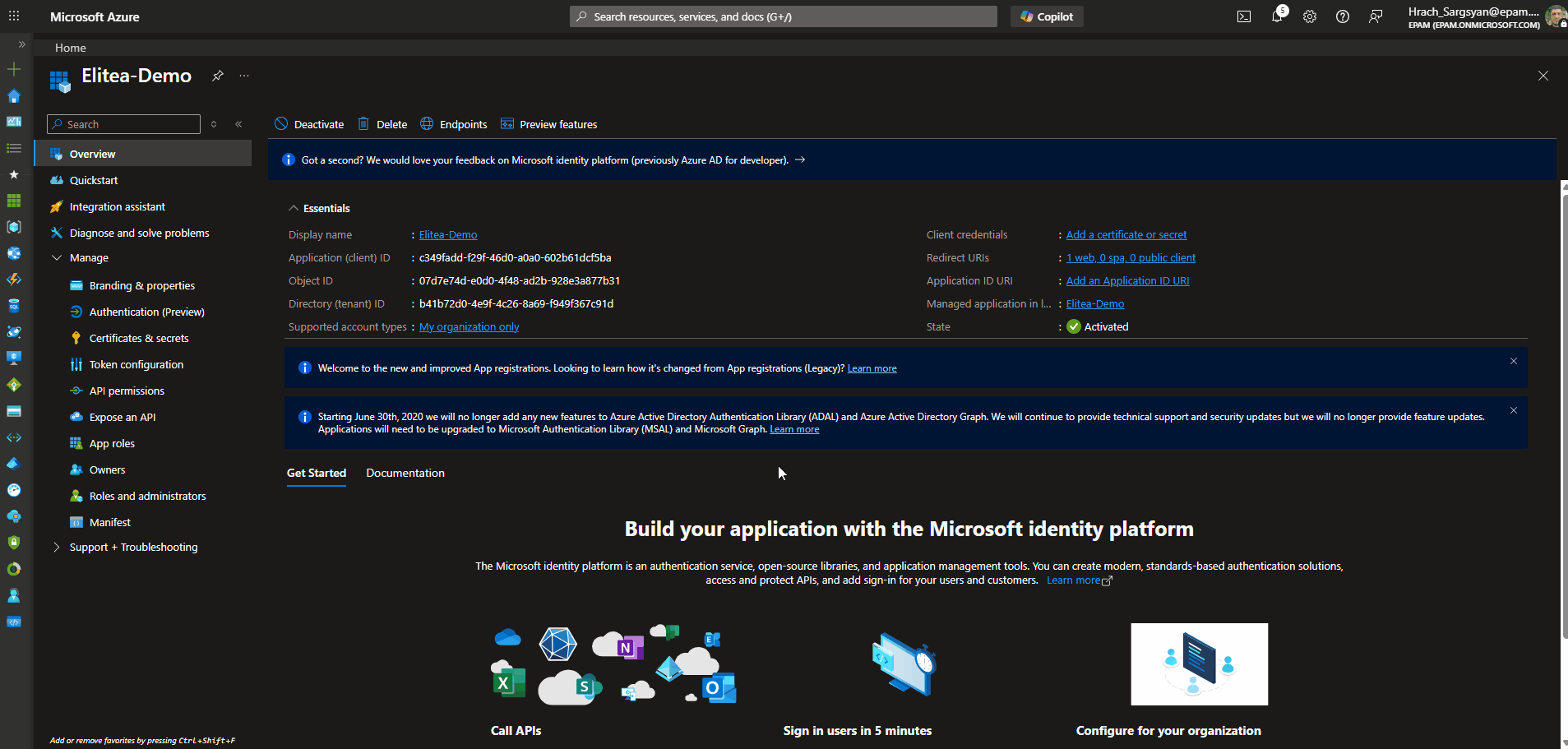

Configure the Client Secret

To securely authenticate your ELITEA Agents with SharePoint, you need to create a Client Secret for your registered application. The Client Secret acts as a password for your application when authenticating with Azure AD.

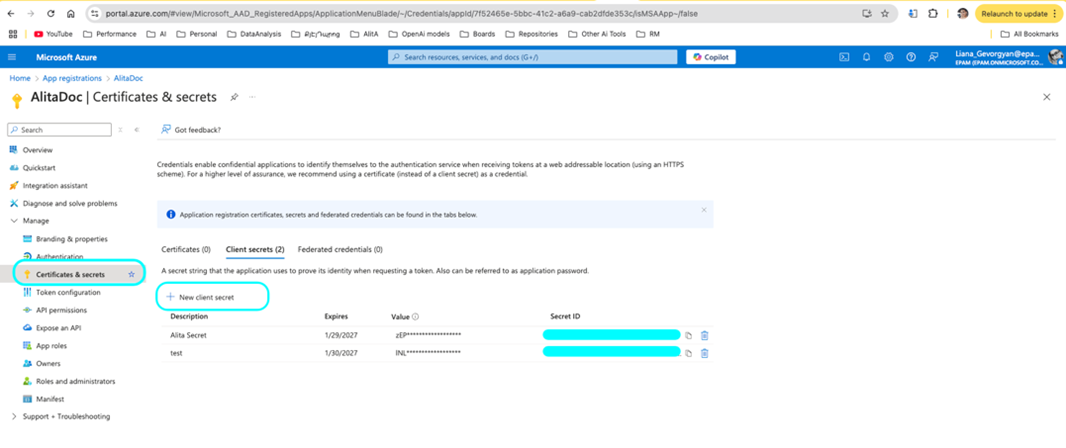

  1. Navigate to Certificates & secrets: In your registered app within the Azure portal, navigate to the left-hand menu and click on "Certificates & secrets".
  2. Create New Client Secret: On the "Certificates & secrets" page, click on "Client secrets" tab (if not already selected) and then click "+ New client secret".
  3. Configure Client Secret Details: In the "Add a client secret" panel:
    • Description: Enter a descriptive name for your client secret.
    • Expiration: Choose an appropriate expiration period for the client secret from the "Expires" dropdown.
  4. Add Client Secret: Click the "Add" button at the bottom of the "Add a client secret" panel to create the client secret.

  5. Securely Copy and Store Client Secret Value: Immediately copy the generated Client Secret Value displayed in the "Value" column. This is the only time you will see the full Client Secret Value. Store it securely in a password manager or in ELITEA's Secrets feature. Do not store the value in plain text.

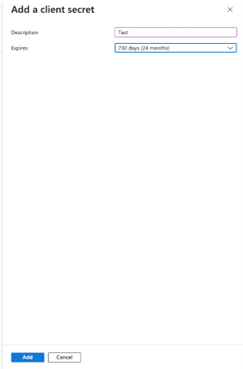

    SharePoint-New_Client_Secret

    Important

    Copy the "Value" column — not the "Secret ID" column. The Value is the actual credential used for authentication.

Grant App-Only Access to the SharePoint Site

App-Only mode only

This step is required for App-Only (Client Credentials) authentication only. If you are using Delegated (User OAuth) mode, skip this section — access is governed by the signed-in user's own SharePoint permissions.

Grant your registered application access at the SharePoint site collection level via the AppInv.aspx page.

  1. Navigate to the SharePoint AppInv.aspx page: Open your browser and go to the following URL, replacing {your-tenant} and {site} with your values:

    https://{your-tenant}.sharepoint.com/sites/{site}/_layouts/15/appinv.aspx

    Example:

    https://contoso.sharepoint.com/sites/MyProjectSite/_layouts/15/appinv.aspx

  2. Look Up the App: In the "App Id" field, enter your Application (client) ID and click "Lookup". Verify that the Title, App Domain, and Redirect URL are populated correctly.

  3. Define Permissions using XML: In the "Permission Request XML" field, enter one of the following XML blocks depending on the level of access your Agents require:

    Permission Request XML Options

    Full Control (read and write operations):

    <AppPermissionRequests AllowAppOnlyPolicy="true">
  <AppPermissionRequest Scope="http://sharepoint/content/sitecollection" Right="FullControl" />
</AppPermissionRequests>

    Read-Only Access:

    <AppPermissionRequests AllowAppOnlyPolicy="true">
  <AppPermissionRequest Scope="http://sharepoint/content/sitecollection" Right="Read" />
</AppPermissionRequests>

    Principle of Least Privilege

    Grant only the minimum required permissions. Avoid FullControl unless your Agents need to create, modify, or delete SharePoint content.

  4. Create and Trust the App: Click "Create", then click "Trust It" on the confirmation page to grant the requested permissions to your application.

    SharePoint-AppInv_Permissions

System Integration with ELITEA

To integrate SharePoint with ELITEA, follow a three-step process: Create Credentials → Create Toolkit → Use in Agents. This workflow ensures secure authentication and proper configuration.

Step 1: Create SharePoint Credentials

Before creating a toolkit, you must first create SharePoint credentials in ELITEA.

The SharePoint credential supports two authentication modes — App-Only (the application acts as itself) and Delegated (the application acts on behalf of a signed-in user). Select the tab in the ELITEA credential form that matches your organization's access policy:

Steps to create a SharePoint credential:

  1. Navigate to Credentials Menu: Open the sidebar and select Credentials.
  2. Create New Credential: Click the + Create button.
  3. Select SharePoint: Choose SharePoint as the credential type.

  4. Configure credential fields:

    Field Description Example
    Display Name Descriptive name for this credential SharePoint - Contoso Marketing Site
    Client ID Application (client) ID from your Azure AD app registration xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
    Client Secret Client Secret Value generated in Azure AD your-client-secret-value
    Site URL Full URL of your SharePoint site https://contoso.sharepoint.com/sites/MarketingTeam

  5. Select the authentication tab: In the credential form, choose either "App-only" or "Delegated" depending on your access model.

App-Only (Client Credentials)

  1. Test Connection: Click Test Connectionto verify your credentials are valid and ELITEA can connect to SharePoint.

  2. Save Credential: Click Save.

    App-Only

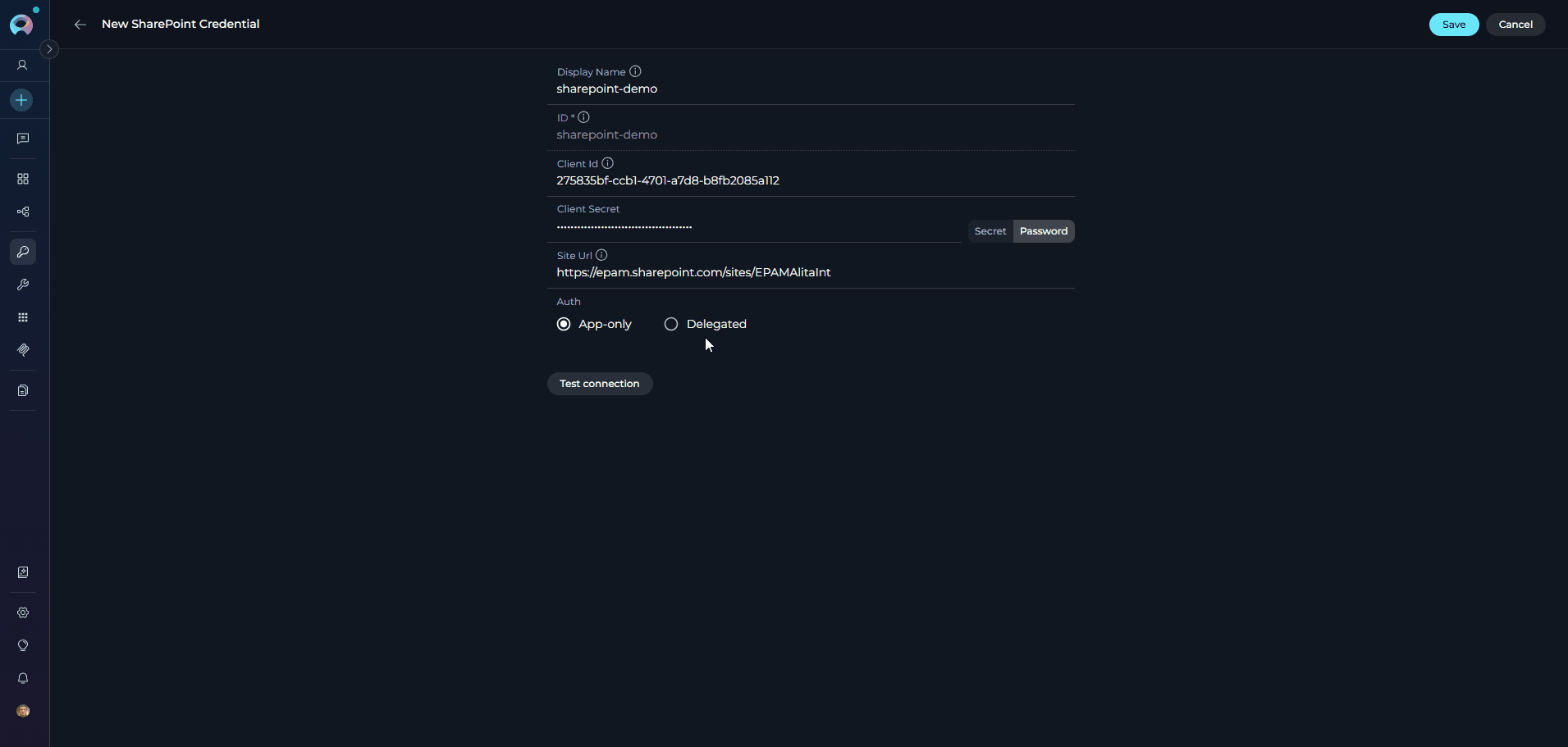

Delegated (User OAuth)

  1. Configure additional Delegated fields:

    Field Description Example
    OAuth Discovery Endpoint Azure AD tenant base URL in the format https://login.microsoftonline.com/{tenant_id}. The {tenant_id} is the Directory (tenant) ID from your Azure AD App Registration Overview page https://login.microsoftonline.com/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
    Scopes Space-separated OAuth permission scopes the delegated token should request Sites.ReadWrite.All Files.ReadWrite.All Notes.ReadWrite.All

  2. Log in: Once all fields are filled, a Log in button appears next to the Test Connection button. Click Log in to complete the OAuth authorization flow — ELITEA redirects to Azure AD for user sign-in, and after authorization the token is stored and the connection is verified via Microsoft Graph.

  3. Save Credential: Click Save.

    Delegated

Re-login required after scope changes

If you add, remove, or modify the Scopes field after the initial login (e.g., to add Notes.ReadWrite.All for OneNote access), the existing token will not automatically include the new scopes. You must click Log in again to complete a new OAuth authorization flow and obtain a fresh token that reflects the updated scope list.

Site URL Format

The Site URL must follow the format https://<tenant>.sharepoint.com/sites/<site>. For App-Only, the tenant name is extracted from this URL to construct the ACS endpoint. For Delegated, the full URL is passed to the Microsoft Graph sites API.

Example URL
Contoso Marketing site https://contoso.sharepoint.com/sites/MarketingTeam
EPAM AlitaDoc site https://epam.sharepoint.com/sites/EPAMAlitaDoc

Ensure there are no trailing slashes and that the URL is well-formed.

Security Recommendation

Use Secrets for sensitive values (Client Secret) instead of entering them directly. Create a secret first, then reference it in your credential configuration.

Choosing an Authentication Mode

Use App-Only (Client Credentials) when:

  • Your workflow runs automatically, without a user actively involved (e.g., a nightly report, a scheduled file sync, or a background data processing pipeline).
  • You want a single shared connection that doesn't depend on any individual user's account.

  • You need to read from or write to public team sites where user identity doesn't matter.

    Example

    An ELITEA Agent that runs every morning, reads all items from a "Project Tasks" list, and generates a summary report — App-Only is the right choice here because no user interaction is needed.

Use Delegated (User OAuth) when:

  • You need to access OneNote notebooks (only available in Delegated mode).
  • Your organization's SharePoint permissions are user-based — only specific people can see certain sites or libraries.
  • The workflow involves a user actively working in ELITEA and you want actions to be logged under their identity.

  • You're building a personal assistant that reads documents or lists on behalf of the signed-in user.

    Example

    An ELITEA Agent helping a team member search their department's restricted SharePoint site and read OneNote meeting notes — Delegated is required because the site is access-controlled per user and OneNote needs a user token.

    App-Only (Client Credentials) Delegated (User OAuth)
    How it works ELITEA connects as the application itself, with no user involved ELITEA connects on behalf of a specific signed-in user
    Best for Automation, background tasks, scheduled workflows Workflows where user identity matters, or access is restricted to specific users
    Example use case Nightly report generation, automated file archiving, batch list updates Reading a user's personal SharePoint files, accessing sites restricted to certain team members
    OneNote support ✘ Not supported ✔️ Supported
    Setup complexity Simpler — App registration + AppInv.aspx site grant Requires Redirect URI + OAuth login step
    Access scope Defined by permissions granted to the app Defined by the permissions of the signed-in user

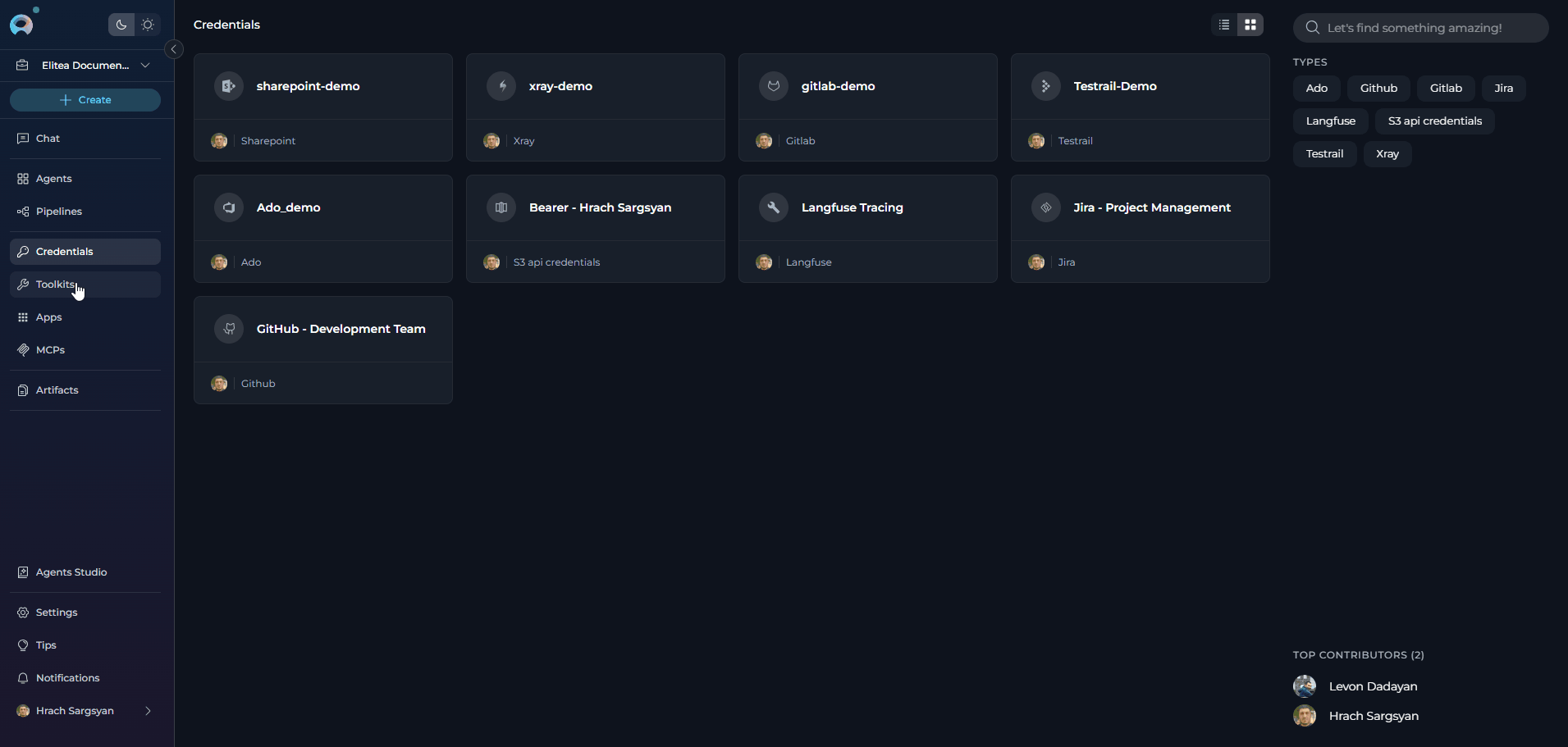

Step 2: Create SharePoint Toolkit

Once your credentials are configured, create the SharePoint toolkit:

  1. Navigate to Toolkits Menu: Open the sidebar and select Toolkits.
  2. Create New Toolkit: Click the + Create button.
  3. Select SharePoint: Choose SharePoint from the list of available toolkit types.

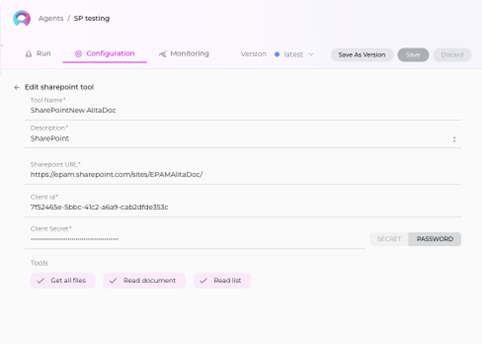

  4. Configure Toolkit Settings:

    Field Description Example
    Toolkit Name Descriptive name for your toolkit (required) SharePoint - Marketing Documents
    Description Optional description for the toolkit purpose Toolkit for accessing the Marketing Team SharePoint site
    Credentials Select your previously created SharePoint credential SharePoint - Contoso Marketing Site
    PgVector Configuration (Optional) Select PgVector connection for indexing and semantic search features Your PgVector configuration
    Embedding Model (Optional) Select embedding model for text processing and semantic search amazon.titan-embed-text-v2:0

  5. Enable Desired Tools: In the "Tools" section, select the checkboxes next to the specific SharePoint tools you want to enable. Enable only the tools your agents will actually use to follow the principle of least privilege.

    • Make Tools Available by MCP — (optional checkbox) Enable this option to make the selected tools accessible through external MCP clients.

  6. Save Toolkit: Click Save to create the toolkit.

    Toolkit

Available Tools

  • The SharePoint toolkit provides the following tools for interacting with SharePoint sites, document libraries, and lists, organized by functional categories:

    Tool Category Tool Name Description Primary Use Case
    File Operations
    Get files list Lists files in a SharePoint document library, optionally filtered by folder or library name Browse and discover files across document libraries
    Read document Reads the content of a document at a given server-relative path; supports .docx, .xlsx, .pptx, .pdf, .txt, .csv, and more Extract text content from SharePoint documents for analysis or summarization
    Upload file Uploads a file to a specified SharePoint document library folder, from artifact storage or direct string content Automate file delivery and publishing to SharePoint
    List & Data Operations
    Get lists Returns all visible SharePoint lists on the configured site with their titles, IDs, descriptions, and item counts Discover lists on a site before reading or writing data
    Read list Reads items from a specified SharePoint list (up to a configurable limit) Access and process data stored in SharePoint lists
    Get list columns Returns all column metadata for a specified list, including field names, display names, types, required flags, and valid choice values Discover available columns before creating list items
    Create list item Creates a new item in a specified SharePoint list using a dictionary of field-value pairs Automate data entry and record creation in SharePoint lists
    Add attachment to list item Attaches a file to an existing SharePoint list item, from artifact storage or direct string content Link supporting documents or data files to list records
    OneNote Operations
    Onenote get notebooks Lists all OneNote notebooks in the configured SharePoint site, returning ids, display names, creation dates, and web URLs Discover notebooks on a site before reading or writing OneNote content
    Onenote get sections Lists all sections in a specific OneNote notebook, returning section ids, display names, and page URLs Browse notebook structure to locate a section before reading pages
    Onenote get pages Lists page metadata (id, title, dates, webUrl) from a OneNote section; does not return page content Discover pages in a section before reading their content
    Onenote get page content Retrieves the raw HTML content of a OneNote page as stored by the service Access the raw XHTML of a page for programmatic processing or export
    Onenote list attachments Lists all file attachments on a OneNote page, returning filenames, resource IDs, and download URLs Discover files attached to a page before downloading or reading them
    Onenote read attachment Downloads and parses a file attachment from a OneNote page; supports PDF, DOCX, XLSX, PPTX, images, and more Extract text content from files attached to OneNote pages for analysis
    Onenote read page Reads and converts a OneNote page into beautified plain text with ----- separators between content items, image descriptions, and attachment entries Retrieve human-readable page content for summarization or analysis
    Onenote read page items Reads a OneNote page into a structured list of typed items (text, image, attachment) in document order Process page content programmatically with fine-grained control over each element
    Onenote search pages Searches all OneNote pages in the site matching a full-text query and returns matching page metadata Quickly locate OneNote pages by topic, keyword, or content across all notebooks
    Onenote create notebook Creates a new OneNote notebook in the SharePoint site, returning the notebook id, display name, and web URL Set up new notebooks for organizing notes and content
    Onenote create section Creates a new section within an existing OneNote notebook, returning the section id and display name Add organizational sections to an existing notebook
    Onenote create page Creates a new page in a OneNote section from an HTML document, returning the page id, title, and web URL Publish AI-generated or automated content as OneNote pages
    Onenote update page Updates a OneNote page using Graph API PATCH commands to append, prepend, replace, or delete specific content elements Make targeted incremental edits to existing OneNote pages
    Onenote replace page content Replaces the entire body of a OneNote page with new HTML content Fully overwrite a page's content with a new version
    Onenote delete page Permanently deletes a OneNote page (this action is irreversible) Remove outdated or incorrect OneNote pages
    Indexing & Search
    Index data Creates searchable indexes of SharePoint document library content Enable advanced semantic search across SharePoint files
    List collections Lists available indexed content collections View and manage indexed SharePoint data collections
    Remove index Removes a previously created search index Clean up indexed SharePoint data
    Search index Performs semantic searches across indexed SharePoint content Find specific documents or file content across the site
    Stepback search index Performs advanced contextual searches with broader scope Execute sophisticated searches with expanded context
    Stepback summary index Creates comprehensive summaries of indexed SharePoint content Generate intelligent summaries of documents and files

    Vector Search Tools

    The tools Index data, List collections, Remove index, Search index, Stepback search index, and Stepback summary index require PgVector configuration and an embedding model. These enable advanced semantic search capabilities across your SharePoint documents.

Testing Toolkit Tools

After configuring your SharePoint toolkit, you can test individual tools directly from the Toolkit detail page using the Test Settings panel. This allows you to verify that your credentials are working correctly and validate tool functionality before adding the toolkit to your workflows.

General Testing Steps:

  1. Select LLM Model: Choose a Large Language Model from the model dropdown in the Test Settings panel.
  2. Configure Model Settings: Adjust model parameters like Creativity, Max Completion Tokens, and other settings as needed.
  3. Select a Tool: Choose the specific SharePoint tool you want to test from the available tools.
  4. Provide Input: Enter any required parameters or test queries for the selected tool.
  5. Run the Test: Execute the tool and wait for the response.

  6. Review the Response: Analyze the output to verify the tool is working correctly and returning expected results.

    Key benefits of testing toolkit tools:

    • Verify that SharePoint credentials and connection are configured correctly
    • Test tool parameters and see actual responses from your SharePoint site
    • Debug tool behavior and understand output formats
    • Optimize tool settings before integrating with agents or pipelines

      For detailed instructions on how to use the Test Settings panel, see How to Test Toolkit Tools.

Step 3: Add SharePoint Toolkit to Your Workflows

Now you can add the configured SharePoint toolkit to your agents, pipelines, or use it directly in chat:

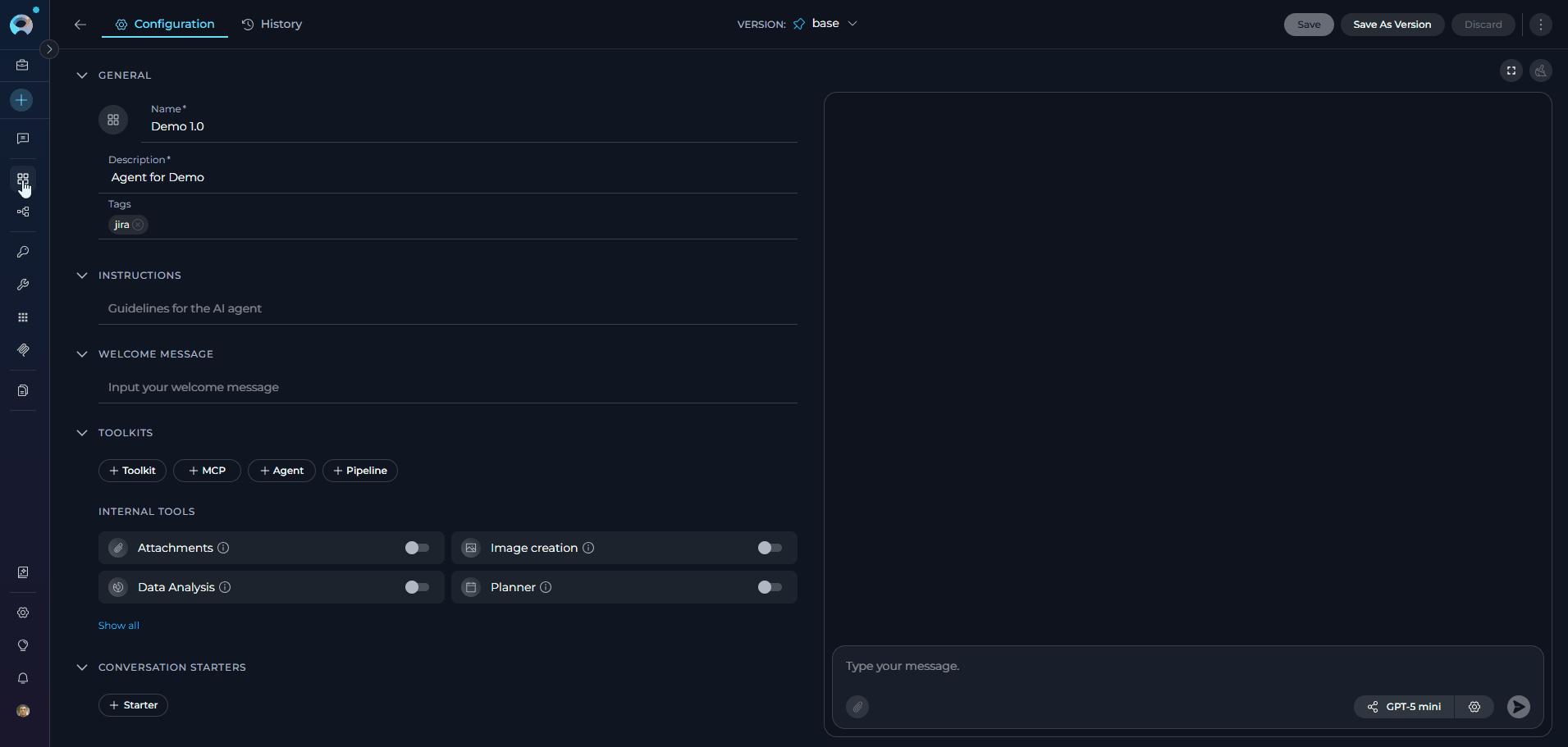

In Agents:

  1. Navigate to Agents: Open the sidebar and select Agents.
  2. Create or Edit Agent: Either create a new agent or select an existing agent to edit.

  3. Add SharePoint Toolkit:

    • In the "TOOLKITS" section of the agent configuration, click the "+Toolkit" icon.
    • Select your configured SharePoint toolkit from the dropdown list.
    • The toolkit will be added to your agent with the previously configured tools enabled.

    Agents

Your agent can now interact with SharePoint using the configured toolkit and enabled tools.

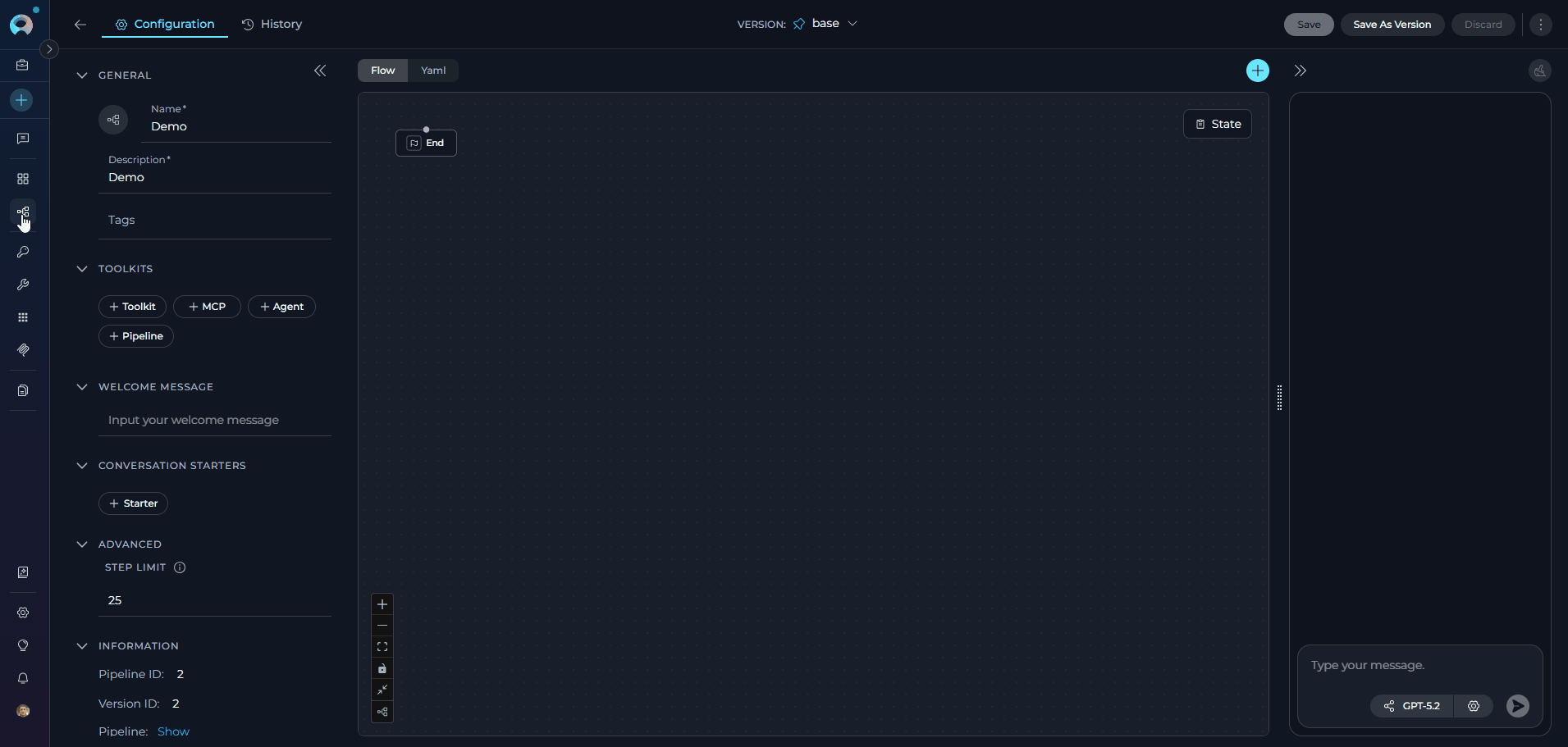

In Pipelines:

  1. Navigate to Pipelines: Open the sidebar and select Pipelines.
  2. Create or Edit Pipeline: Either create a new pipeline or select an existing pipeline to edit.

  3. Add SharePoint Toolkit:

    • In the "TOOLKITS" section of the pipeline configuration, click the "+Toolkit" icon.
    • Select your configured SharePoint toolkit from the dropdown list.
    • The toolkit will be added to your pipeline with the previously configured tools enabled.

    Pipelines

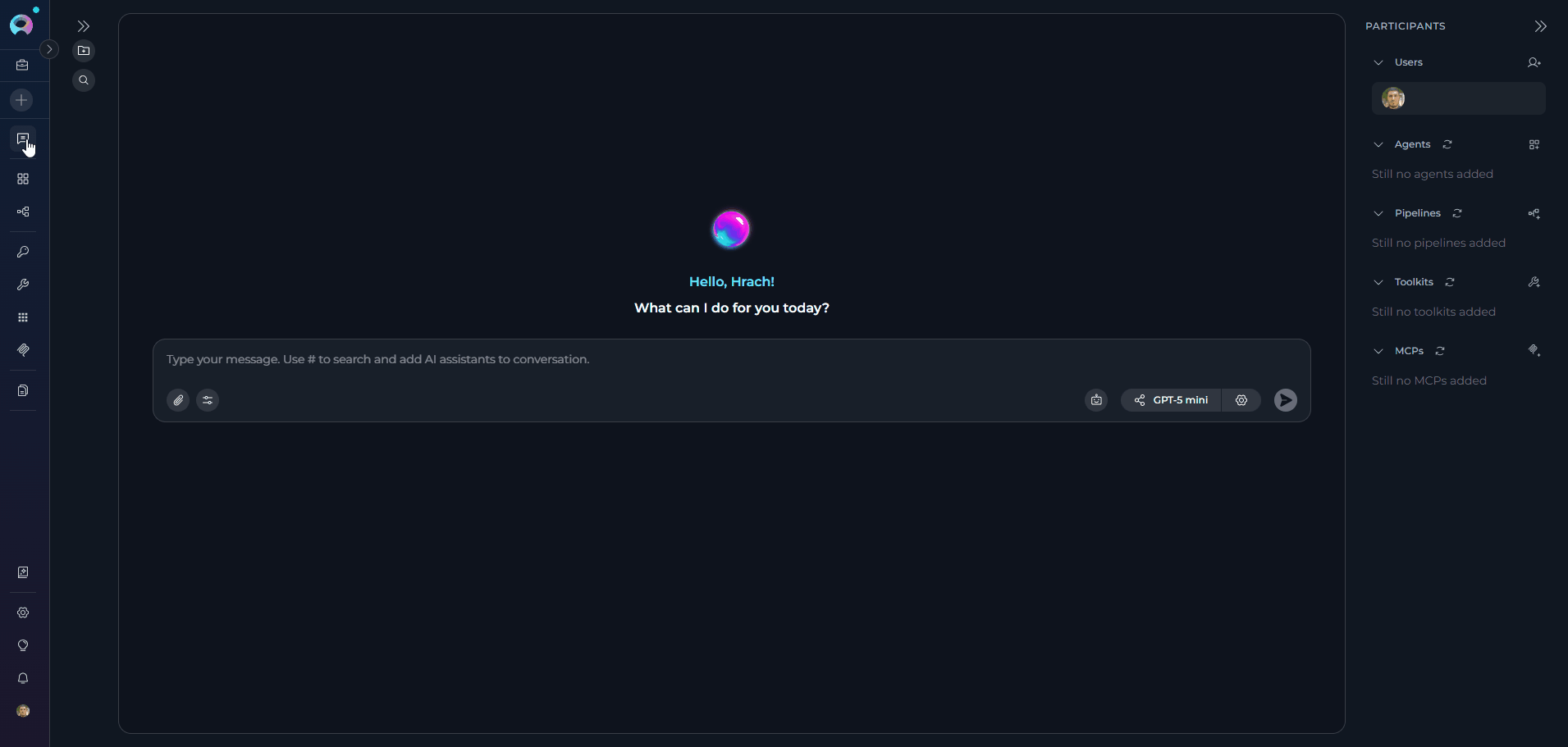

In Chat:

  1. Navigate to Chat: Open the sidebar and select Chat.
  2. Start New Conversation: Click +Create or open an existing conversation.
  3. Add Toolkit to Conversation:
    • In the chat Participants section, look for the Toolkits element.
    • Click the "Add Tools" icon to open the tools selection dropdown.
    • Select your configured SharePoint toolkit from the dropdown list.
    • The toolkit will be added to your conversation with all previously configured tools enabled.

  4. Use Toolkit in Chat: You can now directly interact with your SharePoint site by asking questions or requesting actions that will trigger the SharePoint toolkit tools.

    Chat

    Example Chat Usage:

    • "List all files in the 'Shared Documents' library"
    • "Read the content of the project proposal at /sites/Marketing/Shared Documents/Q3 Proposal.docx"
    • "Show me all items in the 'Project Tasks' list"
    • "Create a new item in the 'Bug Reports' list with Title 'Login page error' and Status 'Open'"

Instructions and Prompts for Using the SharePoint Toolkit

To effectively instruct your ELITEA Agent to use the SharePoint toolkit, you need to provide clear and precise instructions within the Agent's "Instructions" field. These instructions guide the Agent on when and how to use the available SharePoint tools to achieve your desired automation goals.

Instruction Creation for Agents

When crafting instructions for the SharePoint toolkit, especially for OpenAI-based Agents, clarity and precision are paramount. Break down complex tasks into a sequence of simple, actionable steps. Explicitly define all parameters required for each tool and guide the Agent on how to obtain or determine the values for these parameters. Effective instructions are:

  • Direct and Action-Oriented: Use strong action verbs and clear commands. For example, "Use the 'get_files_list' tool...", "Read the document at...", "Create a list item in...".

  • Parameter-Centric: Clearly enumerate each parameter required by the tool. For each parameter, specify:

    • Its name (exactly as expected by the tool)
    • The format or type of value expected
    • How the Agent should obtain the value — whether from user input, from previous steps, or as a predefined value

  • Contextually Rich: Provide sufficient context so the Agent understands the overall objective and the scenario in which each SharePoint tool should be applied.

  • Step-by-Step Structure: Organize instructions into a numbered or bulleted list for complex workflows to help the Agent follow a logical sequence.

  • Add Conversation Starters: Include example conversation starters that users can use to trigger this functionality. For example, "Conversation Starters: 'List the files in the marketing folder', 'What's in the Q3 report?'"

When instructing your Agent to use a SharePoint toolkit tool, follow this structured pattern:

  1. State the Goal: Clearly state the objective for this step.
  2. Specify the Tool: Clearly indicate which SharePoint tool to use.
  3. Define Parameters: List all required parameters with their values or how to obtain them.
  4. Describe Expected Outcome (Optional but Recommended): Briefly describe the expected result.

  5. Add Conversation Starters: Include examples that users can use.

    Example Agent Instructions

    Agent Instructions for Reading a List and Summarizing Tasks:

    1. Goal: Retrieve all items from the 'Project Tasks' SharePoint list and summarize the current workload.
2. Tool: Use the "read_list" tool.
3. Parameters:
   - list_title: "Project Tasks"
   - limit: 200 (or as needed)
4. Outcome: The Agent will retrieve all task items and produce a summary grouped by status
   (e.g., Not Started, In Progress, Completed), highlighting any overdue tasks.
5. Conversation Starters: "Show me the project task summary", "What tasks are currently in progress?"

Chat Usage Examples by Tool Category

The following examples demonstrate how to interact with the SharePoint toolkit in ELITEA Chat, organized by functional categories.

File Operations - Get All Files

Chat Example:

User: "List all files in the Shared Documents library."

Agent Response: I'll retrieve the file list from your SharePoint document library.

[Agent uses get_files_list tool]

📁 Files in Shared Documents (12 total):

1. Q3 Financial Report.xlsx
   - Path: /sites/MarketingTeam/Shared Documents/Q3 Financial Report.xlsx
   - Modified: 2026-03-01
2. Project Proposal - Alpha.docx
   - Path: /sites/MarketingTeam/Shared Documents/Project Proposal - Alpha.docx
   - Modified: 2026-02-28
3. Team Roster.xlsx
   - Path: /sites/MarketingTeam/Shared Documents/Team Roster.xlsx
   - Modified: 2026-02-15

Would you like me to read the content of any of these documents?

File Operations - Read Document

Chat Example:

User: "Read the content of the Q3 Financial Report."

Agent Response: I'll retrieve the document content for you.

[Agent uses read_document tool with path="/sites/MarketingTeam/Shared Documents/Q3 Financial Report.xlsx"]

📄 Q3 Financial Report.xlsx - Contents:

Sheet: Summary

Quarter | Revenue    | Expenses   | Net Profit
Q1 2026 | $1,200,000 | $950,000   | $250,000
Q2 2026 | $1,350,000 | $1,020,000 | $330,000
Q3 2026 | $1,480,000 | $1,100,000 | $380,000

Would you like me to analyze these figures or compare them with another period?

File Operations - Upload File

Chat Example:

User: "Upload the meeting notes from artifact storage to the 'Meeting Notes' folder."

Agent Response: I'll upload the file to your SharePoint document library.

[Agent uses upload_file tool]

✔️ File uploaded successfully!
- File: MeetingNotes_2026-03-10.docx
- Location: /sites/MarketingTeam/Shared Documents/Meeting Notes/
- Size: 45 KB

The file is now available in the Meeting Notes folder on your SharePoint site.

List & Data Operations - Get Lists

Chat Example:

User: "What lists are available on the SharePoint site?"

Agent Response: Let me retrieve all visible lists from your SharePoint site.

[Agent uses get_lists tool]

📋 Available SharePoint Lists (6 total):

1. Project Tasks — 142 items
2. Bug Reports — 87 items
3. Team Contacts — 34 items
4. Meeting Agenda — 23 items
5. Announcements — 12 items
6. Vendor Contracts — 9 items

Which list would you like to read or work with?

List & Data Operations - Read List

Chat Example:

User: "Show me all open bug reports from the Bug Reports list."

Agent Response: I'll retrieve the items from the Bug Reports list.

[Agent uses read_list tool]

🐛 Bug Reports — Open Items (14 total):

1. BUG-0051: Login page times out on mobile
   - Status: Open | Priority: High | Assigned To: @alexdev
2. BUG-0049: Export to CSV produces empty file
   - Status: In Review | Priority: Medium | Assigned To: @sara
3. BUG-0047: Dashboard chart renders incorrectly in Firefox
   - Status: Open | Priority: Low | Assigned To: Unassigned

Would you like me to create a summary report or filter by assignee?

List & Data Operations - Create List Item

Chat Example:

User: "Create a new task: 'Review Q3 report', assigned to Maria, due April 1st, status Not Started."

Agent Response: I'll create the new task in the Project Tasks list.

[Agent uses get_list_columns tool first, then create_list_item tool]

✔️ Task created successfully!
- Title: Review Q3 report
- Assigned To: Maria
- Due Date: 2026-04-01
- Status: Not Started
- Item ID: 143

The task is now visible in the Project Tasks list on your SharePoint site.

Indexing & Search - Search Index

Chat Example:

User: "Search the indexed SharePoint documents for anything related to 'budget approval process'."

Agent Response: I'll search the indexed SharePoint content for budget approval process references.

[Agent uses search_index tool]

🔍 Search Results for "budget approval process" (5 matches):

1. Budget_Policy_2026.docx — /sites/Finance/Shared Documents/Policies/
   Excerpt: "...all budget approvals above $10,000 must follow the standard approval workflow..."

2. Q1 Review Notes.docx — /sites/Finance/Shared Documents/Meeting Notes/
   Excerpt: "...the budget approval process was revised in January to require two sign-offs..."

3. Finance Procedures.xlsx — /sites/Finance/Shared Documents/Procedures/
   Excerpt: "...Sheet 'Approvals': defines the budget approval matrix by department..."

Would you like me to read any of these documents in full?

Troubleshooting

Credential Not Appearing in Toolkit Configuration

Problem: When creating a toolkit, your SharePoint credential doesn't appear in the credentials dropdown.

Troubleshooting Steps:

  1. Check Credential Scope: Ensure you are working in the same workspace/project where the credential was created. Private credentials are only visible in your Private workspace, while project credentials are visible within the specific team project.
  2. Verify Credential Creation: Go to the Credentials menu and confirm that your SharePoint credential was successfully saved.
  3. Credential Type Match: Ensure you selected "SharePoint" as the credential type when creating the credential.
Connection Errors

Problem: ELITEA Agent fails to establish a connection with SharePoint, resulting in errors during toolkit execution.

Troubleshooting Steps:

  1. Verify Site URL Format: Ensure the SharePoint Site URL follows the exact format https://<tenant>.sharepoint.com/sites/<site>. The URL must start with https:// and contain .sharepoint.com. Remove any trailing slashes.
  2. Check Client ID: Double-check that the Application (client) ID is entered correctly, matching the value on the Azure AD app registration Overview page.
  3. Check Client Secret: Ensure the Client Secret Value (not the Secret ID) is accurate and has not expired. If the secret has expired, generate a new one in Azure AD.
  4. Verify App-Only Access (App-Only mode only): If using App-Only (Client Credentials) authentication, confirm that you completed the AppInv.aspx step to grant App-Only access to the SharePoint site collection. Without this step, authentication tokens will be issued but access to the site will be denied. This step is not required for Delegated (User OAuth) mode.
  5. Network Connectivity: Confirm that your ELITEA environment can reach SharePoint over the internet with no firewall or proxy blocking the connection.
OAuth Login Fails with 'No Reply Address Is Registered' Error

Problem: When clicking Log in during Delegated credential setup, the OAuth flow fails with an error such as:

AADSTS500113: No reply address is registered for the application.

Cause: This error occurs when no Redirect URI has been registered in your Azure AD App Registration. Azure AD requires the redirect URI to be explicitly registered before it will send the authorization response back to ELITEA.

Troubleshooting Steps:

  1. Open your App Registration: In the Azure Portal, go to Microsoft Entra ID → App registrations and select your app.
  2. Navigate to Authentication: In the left menu, click "Authentication".
  3. Add a Redirect URI: If no Web platform exists, click "+ Add a platform" → "Web". If Web is already listed, click the Edit pencil next to it.

  4. Enter the ELITEA callback URL: In the "Redirect URIs" field, enter the value matching your deployment:

    Deployment Type Redirect URI
    ELITEA Cloud Pattern: https://<your-elitea-instance-domain>/app/mcp-auth-callback
    Example: https://next.elitea.ai/app/mcp-auth-callback
    Self-hosted / standard path https://<your-domain>/mcp-auth-callback
    Self-hosted / sub-path (e.g., /app) https://<your-domain>/app/mcp-auth-callback

    This URL is derived from your deployment domain and is not shown in the ELITEA UI. Contact your ELITEA administrator if you are unsure which value applies.

  5. Save: Click "Configure" (or "Save" if editing), then click "Save" at the top of the page.

  6. Retry the OAuth flow: Return to your ELITEA SharePoint credential and click Log in again.

Note

This step is only required for Delegated (User OAuth) mode. App-Only (Client Credentials) authentication does not use a redirect URI.

Authorization Errors (Permission Denied / Unauthorized)

Problem: Agent execution fails with "Permission Denied", "Unauthorized", or "403 Forbidden" errors when accessing SharePoint resources.

Troubleshooting Steps:

  1. Verify API Permissions: Double-check the API permissions granted in Azure AD. Ensure at minimum Sites.Read.All (Microsoft Graph) is granted and admin consent has been applied.
  2. Verify App-Only Permissions on the Site: Check that the AppInv.aspx step was completed for the specific site collection. App-only permissions must be granted per site collection.
  3. Check Permission Level: If your Agent requires write operations (upload files, create list items), ensure you granted Sites.ReadWrite.All (Graph) and that the AppInv.aspx XML specifies Right="Write" or Right="FullControl".
  4. Token or Secret Expiry: Ensure the Client Secret has not expired. Generate a new secret in Azure AD and update your ELITEA credential.
Incorrect Library or List Name

Problem: Agent tools fail to operate on the intended SharePoint document library or list, with "not found" or empty results.

Troubleshooting Steps:

  1. Check Library/List Title: Verify you are using the exact title of the document library or list as it appears in SharePoint. Titles must be spelled correctly.
  2. Use get_lists First: Run the get_lists tool to retrieve the exact title of all visible lists on your site before attempting to read a specific one.
  3. Use get_files_list Without Filters: Call get_files_list without specifying a folder to list all files and discover the correct library and path names.
  4. Verify the Site URL: Confirm the Site URL in your credential points to the root of the site collection where the target library or list lives.
File Path Errors When Reading Documents

Problem: The read_document tool returns "File not found" even though the file exists.

Troubleshooting Steps:

  1. Use Server-Relative Path: The path parameter for read_document must be a server-relative path (e.g., /sites/MySite/Shared Documents/folder/file.docx), not a full URL.
  2. Retrieve Path from get_files_list: Use get_files_list first. Each result includes a Path field containing the correct server-relative path to use with read_document.
  3. Check for Special Characters: Use the raw path as returned by get_files_list — do not URL-encode it when passing it to read_document.
Create List Item Fails with Field Errors

Problem: The create_list_item tool returns errors about invalid fields or missing required fields.

Troubleshooting Steps:

  1. Call get_list_columns First: Always call get_list_columns before create_list_item to discover available fields, their internal names, required flags, and valid choice values for the target list.
  2. Use Internal Field Names: The fields dictionary must use the internal field name (the name property returned by get_list_columns), not the display label.
  3. Choice Field Values: For choice fields, the value must exactly match one of the allowed choices returned by get_list_columns.
  4. DateTime Format: Use ISO 8601 format for date fields: 2026-04-01T00:00:00Z.
OneNote Tools Return 'Graph API Delegated Access Required' Error

Problem: OneNote tool calls fail with the message: "OneNote operations require Graph API delegated access. Provide token + scopes to enable OneNote support."

Cause: All OneNote tools exclusively use the Microsoft Graph API with a delegated user token. They are not available when using App-Only (Client Credentials) authentication.

Troubleshooting Steps:

  1. Switch to Delegated credential: In ELITEA, navigate to your SharePoint credential and switch to the Delegated tab.
  2. Configure OAuth Discovery Endpoint: Enter https://login.microsoftonline.com/{tenant_id} using your Directory (tenant) ID.
  3. Configure Scopes: Enter the required scopes: Sites.ReadWrite.All Files.ReadWrite.All Lists.ReadWrite.All Notes.ReadWrite.All.
  4. Complete the OAuth flow: Click Log in to authorize. Once authorized with Delegated credentials, all OneNote tools become available.
OneNote Tools Return 401 Unauthorized Error

Problem: OneNote tool calls succeed with Delegated credentials but return a 401 Unauthorized response from graph.microsoft.com/.../onenote/....

Cause: The OAuth token was issued without the Notes.ReadWrite.All delegated permission — either the scope was never added to the Azure AD app, admin consent was not granted, or the token was issued before the scope was added.

Troubleshooting Steps:

  1. Add the Notes permission in Azure AD: In the Azure Portal, go to Microsoft Entra ID → App registrations → [your app] → API permissions. Click "+ Add a permission" → "Microsoft Graph" → "Delegated permissions", search for Notes.ReadWrite.All, and add it.
  2. Grant admin consent: On the API permissions page, click "Grant admin consent for [Your Organization]". The Notes.ReadWrite.All entry must show a green checkmark.
  3. Update the Scopes field in your ELITEA credential to include all required OneNote scopes. Use the full URL format:
    https://graph.microsoft.com/Sites.ReadWrite.All https://graph.microsoft.com/Files.ReadWrite.All https://graph.microsoft.com/Notes.ReadWrite.All
  4. Re-login: Click Log in again in your ELITEA SharePoint credential to obtain a fresh token that includes the Notes.ReadWrite.All scope.

Required OneNote Scopes

The following scopes are required for OneNote indexing and tool operations:

Scope Purpose
Notes.ReadWrite.All Read and write access to all OneNote notebooks and pages
Sites.ReadWrite.All Access to the SharePoint site where notebooks are hosted
Files.ReadWrite.All Access to files referenced from OneNote pages

Short vs. Full URL scope format

The ELITEA credential accepts scopes in both short (Notes.ReadWrite.All) and full URL (https://graph.microsoft.com/Notes.ReadWrite.All) formats. If short-format scopes do not resolve for your tenant, switch to the full URL format.

Support Contact

If you encounter issues not covered in this guide or need additional assistance with SharePoint integration, please refer to Contact Support for detailed information on how to reach the ELITEA Support Team.

FAQ

Can I use my regular SharePoint username and password instead of an Azure AD App Registration?

No — using an Azure AD App Registration with a Client Secret is the required and recommended method. It provides secure App-Only access without exposing user credentials. The ELITEA SharePoint toolkit authenticates using the OAuth 2.0 client credentials flow (client_id + client_secret + site_url) and does not support username/password authentication.

What are the required credential fields for the SharePoint toolkit?

The required fields depend on the authentication mode:

App-Only (Client Credentials) — three fields:

  • Client ID — The Application (client) ID from your Azure AD app registration.
  • Client Secret — The client secret value generated in Azure AD.
  • Site URL — The full URL of your SharePoint site in the format https://<tenant>.sharepoint.com/sites/<site>.

Delegated (User OAuth) — five fields:

  • Client ID, Client Secret, and Site URL — same as above.
  • OAuth Discovery Endpoint — Azure AD base URL in the format https://login.microsoftonline.com/{tenant_id}.
  • Scopes — Space-separated OAuth permission scopes, e.g. Sites.ReadWrite.All Files.ReadWrite.All Lists.ReadWrite.All.

For App-Only, the tenant is derived automatically from the Site URL; you do not need to enter it separately.

Do I need to complete the AppInv.aspx step even if I already granted Microsoft Graph permissions in Azure AD?

Yes. The Azure AD API permissions (Microsoft Graph Sites.Read.All, etc.) and the SharePoint App-Only access via AppInv.aspx are two separate authorization layers. Graph permissions allow the app to call the Microsoft Graph API, while AppInv.aspx grants the app direct access to the specific SharePoint site collection via the SharePoint REST API. The ELITEA toolkit uses the SharePoint REST API as its primary method and falls back to Graph API. Both steps are required for full functionality.

Important: App-Only credentials will authenticate successfully (obtain a token) but receive Access Forbidden (403) responses from SharePoint unless the AppInv.aspx site collection grant has been completed. Authentication ≠ authorization — the token is issued, but access is denied until the site-level grant is in place.

Do I need to register a Redirect URI for the Delegated auth flow?

Yes — for the Delegated (User OAuth) mode only. The OAuth 2.0 authorization code flow requires that the ELITEA redirect URI is registered in your Azure AD App Registration under Authentication → Redirect URIs. Without it, Azure AD will reject the authorization request with AADSTS500113: No reply address is registered. This step is not required for App-Only (client credentials) authentication.

You can set it during app registration (step 4 in Registering an App) or add it later to an existing registration:

  1. In the Azure Portal, go to Microsoft Entra ID → App registrations and select your app.
  2. In the left menu, click "Authentication".
  3. If no Web platform exists yet, click "+ Add a platform" → "Web". If Web already exists, click the Edit pencil next to it.

  4. In the "Redirect URIs" field, enter the value matching your deployment:

    Deployment Type Redirect URI
    ELITEA Cloud Pattern: https://<your-elitea-instance-domain>/app/mcp-auth-callback
    Example: https://next.elitea.ai/app/mcp-auth-callback
    Self-hosted / standard path https://<your-domain>/mcp-auth-callback
    Self-hosted / sub-path (e.g., /app) https://<your-domain>/app/mcp-auth-callback

    This URL is derived from your deployment domain and is not shown in the ELITEA UI. Contact your ELITEA administrator if you are unsure which value applies.

  5. Click "Configure" (or "Save" if editing), then click "Save" at the top of the page.

  6. Scroll down to verify the URI appears under Web → Redirect URIs.
How do I find my Directory (Tenant) ID?

The Directory (tenant) ID is needed for the OAuth Discovery Endpoint field in Delegated credentials. You can find it in two places:

Option 1 — Microsoft Entra ID Overview: 1. In the Azure Portal, search for "Microsoft Entra ID" and select it. 2. On the Overview page, copy the "Tenant ID" value.

Option 2 — App Registration Overview: 1. In the Azure Portal, go to Microsoft Entra ID → App registrations and select your app. 2. On the Overview page, copy the "Directory (tenant) ID" value.

Use the Tenant ID in the OAuth Discovery Endpoint field as:

https://login.microsoftonline.com/{tenant_id}

What is the correct format for the Site URL in the SharePoint credential?

The Site URL must follow the format https://<tenant>.sharepoint.com/sites/<site>:

  • ✔️ https://contoso.sharepoint.com/sites/MarketingTeam
  • ✔️ https://epam.sharepoint.com/sites/EPAMAlitaDoc
  • ✘ https://contoso.sharepoint.com (missing /sites/<site>)
  • ✘ contoso.sharepoint.com/sites/Marketing (missing https://)
  • ✘ https://contoso.sharepoint.com/sites/Marketing/ (trailing slash)
Which tools require PgVector and an Embedding Model?

The six indexing and semantic search tools require both a PgVector configuration and an Embedding Model to be selected in the toolkit settings:

  • Index data — Indexes documents into the vector store.
  • List collections — Lists available indexed collections.
  • Remove index — Removes an indexed collection.
  • Search index — Searches the vector index semantically.
  • Stepback search index — Contextual search with broader scope.
  • Stepback summary index — Generates summaries from indexed content.

The other tools (get_files_list, read_document, read_list, get_lists, get_list_columns, create_list_item, upload_file, add_attachment_to_list_item) work without a vector database configuration.

Do OneNote tools work with App-Only (Client Credentials) mode?

No. All OneNote tools (onenote_get_notebooks, onenote_get_sections, onenote_get_pages, onenote_get_page_content, onenote_read_page, onenote_read_page_items, onenote_list_attachments, onenote_read_attachment, onenote_create_notebook, onenote_create_section, onenote_create_page, onenote_update_page, onenote_replace_page_content, onenote_delete_page, onenote_search_pages) require Delegated (User OAuth) authentication. They communicate exclusively with the Microsoft Graph API using a user-context access token and will return an error when called with App-Only credentials.

To use OneNote tools: 1. Configure your SharePoint credential using the Delegated tab. 2. Set the OAuth Discovery Endpoint to https://login.microsoftonline.com/{tenant_id}. 3. Set Scopes to include at minimum: Sites.ReadWrite.All Files.ReadWrite.All Lists.ReadWrite.All Notes.ReadWrite.All. 4. Complete the OAuth Log in flow to authorize.

Can I use the same SharePoint credential across multiple toolkits?

Yes. One SharePoint credential can be used by multiple SharePoint toolkits. Each toolkit can target the same site with different tools enabled, or you can create separate toolkits for different use cases (e.g., one for document reading, another for list management) while sharing the same credential.

Can I use the same toolkit across different workspaces (Private vs. Team Projects)?

Credential and toolkit visibility depends on where they are created:

  • Private Workspace: Credentials and toolkits are only visible to you.
  • Team Project Workspace: Credentials and toolkits are visible to all project members.

Best Practice: Use Private workspace credentials for personal testing and Team Project credentials for shared, production use.

Why is create_list_item failing with a validation error?

The most common cause is using the wrong field name or an invalid choice value. Always call get_list_columns on the target list first — this returns each column's internal name (name field), its type, required flag, and valid choices. Use the internal name (not the display label) as the key in the fields dictionary passed to create_list_item.

Why am I consistently encountering 'Permission Denied' errors even though I believe I configured everything correctly?

Systematically re-examine the following:

1. App-Only Access via AppInv.aspx: Confirm you completed the AppInv.aspx step for the exact site collection specified in your Site URL. App-Only permissions granted on one site collection do not apply to sub-sites or other site collections.

2. Azure AD Admin Consent: Verify that admin consent was granted for the API permissions in Azure AD. Without admin consent, application permissions have no effect.

3. Client Secret Validity: Check that the Client Secret has not expired. Review the expiration date in Azure AD under Certificates & Secrets and regenerate if needed.

4. Site URL Accuracy: Confirm the Site URL in your ELITEA credential exactly matches the site collection where App-Only access was granted.

5. Permission Level: If the error occurs on write operations (upload, create item), verify that Right="FullControl" or Right="Write" was specified in the AppInv.aspx XML — Right="Read" is insufficient for write operations.

Useful ELITEA Resources

To further enhance your understanding and skills in using the SharePoint toolkit with ELITEA, here are helpful internal resources:

External Resources
